Vinotemp Wine-Mate Series Installation guide

Packaged Central-Ducted Cooling System
Operation Care Installation Manual
WM-4500DS WM-6500DS WM-8500DS WM-12030DS
WM-4500DS-LA WM-6500DS-LA WM-8500DS-LA WM-12030DS-LA
w
ww ww w. .v vi in no ot te em mp p. .c co om m
R
Re ea ad d a an nd d s sa av ve e t th he es se e i in ns st tr ru uc ct ti io on ns s
Vinotemp International Corp
732 S Racetrack Road, Henderson, NV 89015
Tel: (800) 777-VINO Email: [email protected]

- 1 -
Important Safety Information

- 2 -
Table of Contents
Cellar Construction.…………………………….……………..3
Features & Specifications…………………….….…………..4
Temperature & Humidity……….…………..………..……….6
Care Guide…………………………………………………….10
User’ Troubleshooting…….………………………………...11
Installer’s Instructions………….…..….……..…………….14
Service Instructions…………………………….……………18
Electrical Wirings..…………….…..….……..………………25
Customer Support……………………………………………27
Warranty……………………………………………………….28

- 3 -
Cellar Construction Guide
This is only a guide and shall be considered as the minimum requirements.
All interior walls, ceilings and floors shall have a vapor barrier and a minimum of
R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a
minimum of R19 insulation. The vapor barrier shall be installed on the warm side
of insulation. All joints, door frames, electrical outlets or switches and any pipes
or vents that go through the cellar shall be sealed to prevent air and moisture
leaking into the cellar. Concrete, rock, and brick are not insulations or vapor
barriers. Doors shall be of a minimum size, insulated to at least R13 and tightly
sealed with high quality weather stripping. Be sure to seal the bottom of the door
and fill gap between the door’s frame and wall before installing the cap molding.
In order to maintain 55 °F in the wine cellar, the ambient temperature
surrounding the cellar shall not exceed the temperature of the cellar by more
than 25 °F. No cellar walls shall receive direct sun or strong wind.
Lighting shall be of low wattage, with a timer to insure lights are not left on when
the cellar is not occupied.
The cooling system will not be able to maintain the proper temperature if fresh
moisture-laden air is constantly being introduced to the cellar. Symptoms of this
condition are; cooling unit runs all the time with only a slight reduction in
temperature and/or water overflows from the cooling unit. Because of the
temperature difference between the inside and outside, very small cracks can
allow large amounts of outside air to enter into the cellar. Please be aware that
moisture can pass through solid concrete, paint and wood. Often a newly
constructed cellar contains fresh wood, paint, concrete and other building
materials. These materials contain large amounts of moisture. When placed into
operation in this type of environment, the system will work harder to remove this
extra moisture resulting in increased “run” time.

- 4 -
Features and Specifications
• Wine-Mate packaged central-ducted cooling systems WM-4500~12030DS &
WM-4500~12030DS-LA are designed to provide a cold temperature between
50~65 °F with a humidity range within 50~70% RH for a properly insulated
wine cellar.
• These temperature and humidity ranges are optimized for long term storage
of wine like that in natural caves.
• It is self-contained ready for use and no additional refrigeration tubing is
required in the field.
• The cooling systems are designed to provide chilled air to a wine cellar
through insulated ducts to provide quieter operation and better installation
flexibility.
• The cooling systems can be installed up to 25 ft away from the cellar since
the back-curved impeller fans are so powerful to run a total duct length of 50
ft.
• The cooling systems can be installed both outdoors and indoors.
Fig. 1 DS Packaged Central-Ducted Cooling System
CAUTION
If the cooling unit operates below 50°F, a low ambient
condition kit will be required.
NOTE
The cooling capacity is determined using 55°F cellar
temperature, 75°F cellar ambient temperature, 90°F
condensing unit ambient temperature, R13 interior insulation
and R19 exterior insulations. Higher ambient temperatures or
lower insulations will cause reducing capacity and the cellar
temperature may not be maintained at 55°F.

- 5 -
The specifications and dimensions are listed as follows:
NOTE
“LA” refers the unit equipped with a low ambient kit.
Model No
Dimensions
L” x W” x H”
Capacity
(Btu/h)
Airflow
(CFM)
Cellar
Size
(cu ft)
Refrigerant
Electrical
Rating
Min
Circuit
Ampacity
Weight
(lb)
WM-
4500DS
45 x 34 x 23
4500
380
1000
R134a
115V-
60Hz-8A
20A
140
WM-
4500DS-
LA
115V-
60Hz-9A
WM-
6500DS
45 x 34 x 23
6500
490
1500
R134a
115V-
60Hz-14A
30A
170
WM-
6500DS-
LA
115V-
60Hz-15A
WM-
8500DS
45 x 34 x 25
8500
750
2000
R134a
115V-
60Hz-17A
30A
220
WM-
8500DS-
LA
115V-
60Hz-18A
WM-
12030DS
45 x 34 x 25
12000
810
3300
R134a
230V-
60Hz-10A
20A
260
WM-
12030DS-
LA
230V-
60Hz-11A
Fig. 2 WM-4500~12030DS Dimensions

- 6 -
Temperature and Humidity
1. The controller

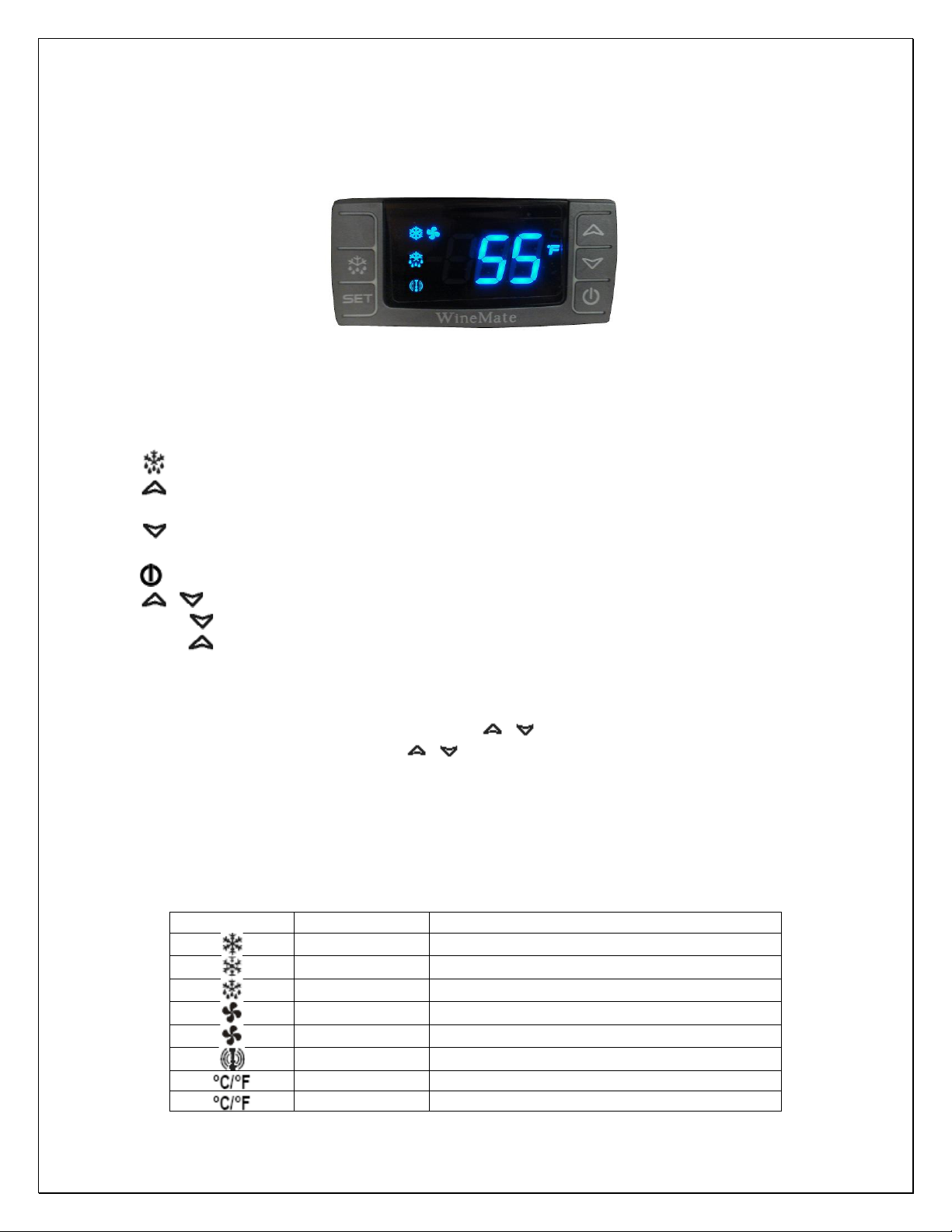

Fig. 3 TEMPERATURE CONTROLLER
1) Keys
SET: To display set-point; in programming mode it selects a parameter or
confirms an operation.
: To start a manual defrost.
: To see the maximum stored temperature; in programming mode it browses
the parameter codes or increases the displayed value.
: To see the minimum stored temperature; in programming mode it browses
the parameter codes or decreases the displayed value.
: To turn on/off the power to the unit.
+ : To lock/unlock the keypad.
SET+ : To enter in the programming mode.
SET+ : To return to the temperature display.
2) Lock and unlock the keys
To lock the keys, press up + down keys + until POF is displayed; to unlock
the keys, press up + down keys + until PON is displayed.
3) Display
During normal operating conditions, the display shows the value measured by
the air temperature probe. In case of active alarm, the temperature flashes
alternately to the code alarm. The LED functions are listed as follows.
LED
MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle enabled
ON
Defrost enabled
ON
Fan enabled
Flashing
Fan delay after defrost enabled
ON
Alarm occurring
ON
Temperature measuring unit
Flashing
Programming mode

- 7 -
4) Alarm Signals
The alarm codes are described as follows.
MESSAGE
CAUSE
FUNCTION
P1
Temperature probe faulty
Compressor switching to Con and CoF
HA
High temperature alarm
Probe temperature ALU higher than the
setting temperature; Outputs unchanged
LA
Low temperature alarm
Probe temperature ALL lower than the
setting temperature; Outputs unchanged
CA
External alarm
All outputs off
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation.
Check connections before replacing the probe. Temperature alarms “HA”, “LA”
automatically stops as soon as the temperature returns to normal value. Alarm
“CA” (with i1F=PAL) recovers only by switching off and on the instrument.
2. Temperature Setting
• Set the temperature at 55 °F for the optimum aging of wine
• On initial start-up, the time required to reach the desired temperature will
vary, depending on the quantity of bottles, temperature setting and
surrounding temperature.
• Allow 24 hours to stabilize the temperature for each new temperature setting
operation
3. How to see temperature set-point
1) Press and immediately release the SET key, the display will show the set-point
value.
2) Press again and immediately release the SET key to display the probe value.
4. How to change the set-point
1) Press and hold the SET key until the “°C” or “°F” LED starts flashing and the
set-point is displayed.
2) Press the up/down keys / to change the set-point value within 10 sec.
3) Press the SET key again to store the new set-point value.
:
NOTE
The unit turns on at set-point Set plus regulation differential
Hy after anti-short cycle AC has elapsed; the unit turns off at
set-point Set.

- 8 -
5. Manual Defrost
Press and hold the defrost key until defrost starts. The defrost indicator will be
on.
6. Parameter Programming
1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing,
then release the keys.
2) Press and hold again the SET + keys until the Pr2 label is displayed, then
release the keys. The first parameter Hy will be displayed.
3) Press up/down keys / to scroll to the required parameter within 10 sec.
4) Press the “SET” key to display its value.
5) Use up/down keys to change its value within 10 sec.
6) Press “SET” to store the new value and the display will flash 3 times.
7) To exit: Press SET + or wait 15sec without pressing a key.
PARAMETER
DESCRIPTION
DEFAULT VALUE
Set
set-point (°)
55
Hy
temperature regulation differential (°)
4
AC
anti-short cycle delay (min)
10 (hidden)
Con
compress on with probe faulty (min)
15
CoF
compress off with probe faulty (min)
30
CF
temperature unit (°F/ °C)
F: Fahrenheit
rES
display resolution
in: integer
dLy
temperature display delay (min)
1
ot
probe calibration (°)
0
LS
minimum set-point (°)
50
US
maximum set-point (°)
65
idF
defrost interval time (hour)
12
MdF
defrost endurance time (min)
30
ALC
temperature alarm type
rE: relative to set-point
ALU
high temperature alarm (°)
10
ALL
low temperature alarm (°)
10
AFH
alarm recovery differential (°)
5
ALd
temperature alarm delay (min)
60
dAO
temperature alarm delay on startup (hr)
23
SAA
heater set-point (°)
40
SHy
heater regulation differential (°)
4
FSU
fan action
Std
FnC
fan operating mode
C-n: on with compressor & off during defrost
Fon
fan on with compressor off (min)
0
FoF
fan off with compressor off (min)
15
NOTE
Depending on the controller, not all parameters are available

- 9 -
7. How to calibrate the air probe
If the actual cellar temperature differs from the setting temperature, set
parameter ot = actual cellar temperature minus set-point.
8. How to adjust defrost settings
In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF =
20 can be used to avoid frost.
9. How to adjust the humidity
The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon
results in higher relative humidity. Use a separate hygrometer to monitor the
humidity.
10. How to set alarm call
1) Speech notice will be sent to your phones when the cellar temperature is ALU
higher or ALL lower than the set-point Set.
2) In order to test the call function, set parameters Ald = 0 and dAO = 0. After
testing, set Ald = 60 and dAO = 23.
11. How to set cellar heater
The heater turns on at SAA minus Shy; the heater turns off at SAA.
NOTE
Use a forced air heater to warm up the wine cellar.
If there is a thermostat on the heater, bypass it or set the
thermostat at the highest level.
If the heater runs more than 10 A current, use a 120VAC coil
contactor.

- 10 -
Care Guide
In general, always unplug system or disconnect power while doing care.
1. Condenser Coil Cleaning
• Clean the condenser coil regularly. Coil may need to be cleaned at least
every 6 months.
• Use a vacuum cleaner with an extended attachment to clean the coil when it
is dusty or dirty.
2. Condensate Removing
• Remove the excessive condensate if it is accumulated in the wine cellar
under high humidity conditions.

- 11 -
User’s Troubleshooting
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive.
Complaint
Possible Causes
Response
1. Unit not running
a. Power cord not plugged
b. No power from supply
c. Incorrect or loose wirings
d. Low voltage
e. Setting higher than ambient
temperature
f. Waiting for cut-in
g. Defrost light blinking
h. Compressor light blinking
i. Defective controller
a. Check power cord
b. Check receptacle and fuses
c. Check all wirings and connections
d. Contact an authorized electrician
e. Lower temperature setting
f. Wait
g. Unit is under defrost mode
h. Unit is under anti-short cycle delay
i. Call service for diagnosis
2. Unit not
starting, but
temperature
rising high
a. Anti-short cycle
a. Reset AC
3. Temperature
fluctuating
a. Air probe
a. When using an air probe, the wine
bottle temperature is mainly
controlled by the average air
temperature. If the set-point is 55°F
with the differential 4F, the cooling
unit turns on at 59°F of air
temperature (It may be higher than
59°F if it is in anti-short cycle or
defrost) and turns off at 55°F of air
temperature. The average air
temperature is 57°F, and then the
wine temperature is around 57+/-
0.5°F. The air is light enough to
change so quickly that it maintains
relatively constant average
temperature that would prevent wine
bottle temperature from fluctuating.
4. Temperature
high, unit
stopping and
starting
normally
a. Temperature setting high
a. Lower the setting
5. Temperature
high, unit
stopping and
starting with
short running
time
a. Air probe touching the
evaporator coil, displaying
temperature ok
b. Air probe in cold-air supply,
displaying temperature ok
c. Failed controller and probe
a. Move the air probe away from the
evaporator
b. Move the air probe away from the
cold-air supply
c. Call service for diagnosis
6. Temperature
high or not
cooling and
running
continually
a. Improper cellar insulation & seal
b. Cellar too large
c. Ambient temperature too high
d. Exhaust restricted
a. Check insulation, gasket and door
opening
b. Check for excessive size
c. Check installation location
d. Leave minimum 3 feet clearance for
the hot air exhaust side and leave

- 12 -
e. Malfunctioning fans
f. Evaporator or condenser airflow
g. Dirty Condenser
h. Iced evaporator
i. Refrigeration system restriction
j. Refrigerant leak
k. Undercharge or overcharge
l. Failed components
minimum 1 foot clearance for the
ambient air intake side
e. Check for both evaporator and
condenser fans
f. Check for air restrictions, air short-
circulation, grille directions
g. Clean condenser
h. Defrost and reset temperature
i. Call service
j. Call service
k. Call service
l. Check compressor windings, start
relay and overload protector
7. Unit running too
long
a. Improper cellar insulation & seal
b. Exhaust restricted
c. Cellar too large
d. Ambient temperature > 90°F
e. Dirty Condenser
f. Improper condenser air flow
a. Check insulation, gasket and door
opening
b. Leave minimum 3 feet clearance for
the hot air exhaust side and leave
minimum 1 foot clearance for the
ambient air intake side
c. Check for excessive size
d. Check for installation location
e. Clean condenser
f. Check for fan and air short
circulation
8. Condenser fan
running but
compressor
not running
a. Incorrect or loose wirings
b. Failed components
c. Liquid refrigerant in the
compressor
a. Check all wirings and connections
b. Check start relay, start capacitor,
overload protector, compressor.
c. Call service.
9. Compressor
running but
condenser fan
not running
a. Fan blade stuck
b. Incorrect or loose wirings
c. Failed motors
d. Fan cycle control
a. Check for proper clearance
b. Check all wirings
c. Call service
d. Check for setting
10.Temperature
high,
compressor
stopping and
starting but
very short
running time
a. Failed components
b. Improper condenser airflow
c. Dirty condenser
d. Overcharge of refrigerant
e. Discharge or suction pressure
too high
a. Check compressor windings, start
relay and overload protector.
b. Check for condenser fan
c. Clean condenser
d. Call service for removing refrigerant
e. Call service for information
11.Evaporator fan
running too
long
a. Post-compressor fan running
mode for humidity modulation
a. Reset FON
12. Evaporator fan
running but
condensing
unit not
running
a. Incorrect or loose wirings
b. Failed components
c. Low refrigerant
a. Check all wirings and connections
b. Check start relay, start capacitor,
overload protector, compressor.
c. Call service
13.Temperature
low
a. Low temperature setting
b. Low ambient temperature
c. Air probe fault
d. Temperature controller fault
a. Raise the setting
b. Move to another location
c. Check probe connections or change
a new one
d. Change a new one
14.Evaporator
freezing up
a. Evaporator air flow restriction
b. Condenser air flow restriction
a. Check for fans and CFM
b. Check for fans and CFM

- 13 -
c. Not stopping due to air leak, high
ambient temperature or low
temperature setting
d. Defective controller or probe
e. Low ambient temperature
f. Initially working then stopping,
moisture in the system
g. Refrigerant low or leaking
h. Expansion valve blockage
c. Check for seal, door opening,
ambient temperature and
temperature setting
d. Check for controller and probe
e. Change defrost settings
f. Call service
g. Call service
h. Call service
15.Water leak
a. Air leak in the wine cellar causing
excessive condensate
b. High humidity causing excessive
condensate
c. Evaporator air flow restriction
d. Drain restricted or unit not level,
and water overflowing
e. Drip tray leak (No overflow but
leak)
a. Check for air leak
b. Use drain line
c. Check supply air flow or air TD
d. Clean the drip tray and drain line
e. Seal the leak using silicone sealant
16.Excessive
condensate in
wine cellar
a. Air leak in the wine cellar causing
excessive condensate
b. High humidity causing excessive
condensate
c. Drain restricted
a. Check for any air leak
b. Use drain line
c. Clean the drip tray and drain line
17.Condensate
inside ducts
a. Drain line restricted
b. Continually running not stopping
c. Too cold supply air
a. Check for drain
b. raise temperature setting or
increase defrost
c. Increase air flow or raise
temperature setting
18.Condensate
outside ducts
a. Duct not insulated
b. High humidity
c. Too cold supply air
a. Check for insulation
b. Use dehumidifier
c. Increase air flow or raise
temperature setting
19.Circuit tripping
a. Incorrect fuse or breaker
b. Incorrect wirings
c. Failed components
a. Check for proper fuse or breaker
b. Check for wirings and connections
c. Call service
20.Noisy
operation
a. Mounting area not firm
b. Loose parts
c. Compressor overloaded due to
high ambient temperatures or
airflow restriction
d. Defective components
a. Add support to improve installation
b. Check fan blades, bearings,
washers, tubing contact and loose
screws.
c. Check for airflow
d. Call service for checking internal
loose, inadequate lubrication and
incorrect wirings

- 14 -
Installer’s Instructions
WARNING
Do not use a ground fault interrupter (GFI).
A dedicated circuit is required.
Federal law requires that WINE-MATE cooling systems be
installed by an EPA certified refrigeration technician.
1. General Instructions
WINE-MATE packaged central-ducted cooling system is shipped ready for use
only after a certified refrigeration technician has properly installed the system.
Proper installation is critical. Vinotemp can only warrant the quality of the
components. The installation of the system must be warranted by the installer.
Installation of the system must be done in accordance with all state and local
building and electrical codes.
Fig. 4 WM-4500~8500DS Cooling System
1-Fresh air intake (condenser); 2-Cellar air return (evaporator); 3-Cold air supply
(evaporator); 4-Hot air exhaust (condenser); 5-Condensate drain; 6-Outlet box
(condenser); 7-Outlet box (evaporator); 8-Fan speed control (evaporator)

- 15 -
Fig. 5 Temperature Controller (4.25”L x 3.75”D x 4.25”H)
Parts included:
Packaged Cooling system
Temperature Controller (4.5”L x 4.5”W x 3.75”D) & Air Probe
Parts not included:
Insulated ducts
CAUTION
If the unit operates below 50°F, a low ambient condition kit
will be required.
2. Location
• Place the cooling unit in a properly ventilated location. If it is not, heat
exhausted by the unit will build up and the cooling unit will not operate
properly.
• The cooling unit shall be elevated to avoid possible flooding and shaded from
direct sun. It shall not be exposed to temperatures higher than 110 °F or
lower than 50 °F.
• Leave minimum 5 feet clearance for hot air exhaust and leave minimum 1 foot
clearance for fresh air intake.
• Cold air supply shall be unobstructed for minimum 12” for a direct blow
installation or 2” for a deflector installation. Cellar air return shall be
unobstructed for minimum 6”.
3. Mounting
• The unit must be mounted on a floor or slab that is level and strong enough to
support up to 300lb.
• There are six ½” bolts required to secure the unit base.

- 16 -
• There is a gravity drain system used, so the unit shall be installed level or with
a slight slope downward the drain connection and the drain line shall be
installed slope down toward the drain.
4. Temperature Controller and Air Probe
• The temperature controller can be mounted either inside or outside the wine
cellar, but the air probe must be located inside the wine cellar or the return
duct.
• The air probe shall be located in the wine cellar 5 ft above the floor or the air
return area, but it shall not be located in the air supply area or other areas
where air is not circulated.
• Air probe can be pulled out of the temperature controller up to 5 ft. If
additional wires are necessary, 18 gauge wires may be used to extend the air
probe.
• If the air probe is installed in a return duct, the evaporator fans shall be
running at all times. Meanwhile due to the temperature differential the air
probe calibration should be done to maintain the proper wine cellar
temperature.
5. Insulated Duct and Drain Line Installation
• Cold air supply and cellar air return ducts can be up to a total length of 50 ft.
• Hot air exhaust and fresh air intake ducts can be up to a total length of 50 ft.
• Secure the ducts with conduits to the cellar exterior walls and make sure they
are not curled, twisted, bent and clogged.
• Hook up the drain line. If rise-up of the drain line is needed, a condensation
pump must be used.
Model No
Insulated Duct
Condensate Drain
WM-4500DS
WM-4500DS-LA
8”
3/4” MPT
WM-6500DS
WM-6500DS-LA
10”
3/4” MPT
WM-8500DS
WM-8500DS-LA
10”
3/4” MPT
WM-12030DS
WM-12030DS-LA
10”
3/4” MPT
6. Intake and Exhaust Guards
• If the intake and exhaust are located outdoors, protection guards may be
required.
7. Field Wirings

- 17 -
CAUTION
Use minimum 14 gauge wires for power lines.
If the unit is equipped with low ambient condition kit, use low
ambient temperature wiring diagrams.
A safety switch is always recommended for the condensing
unit.
.
• Connect the wires in the outlet box of condensing unit to the power lines.
• Connect the wires in the outlet box of evaporator unit to the temperature
controller, and then connect the controller to the power lines.
8. Unit Operating
CAUTION
If the low ambient condition kit is used, turn off the
compressor switch (located at the outlet box of condensing
unit) and then power the condensing unit only. Turn on the
compressor and power the evaporator unit after the
condensing unit has been powered for 12 hours
NOTE
Make sure the fan speed control is turned on
• Turn on the power.
• Press temperature controller to turn on the unit.
• It is necessary to check the air flow to meet the specified CFM. You may use
fan speed control to adjust the system refrigeration performance to achieve 8-
10°F differential between return air and supply air while wine room
temperature is maintained at 55°F. Turn the control knob clockwise to
decrease the air flow or counter-clockwise to increase the air flow.

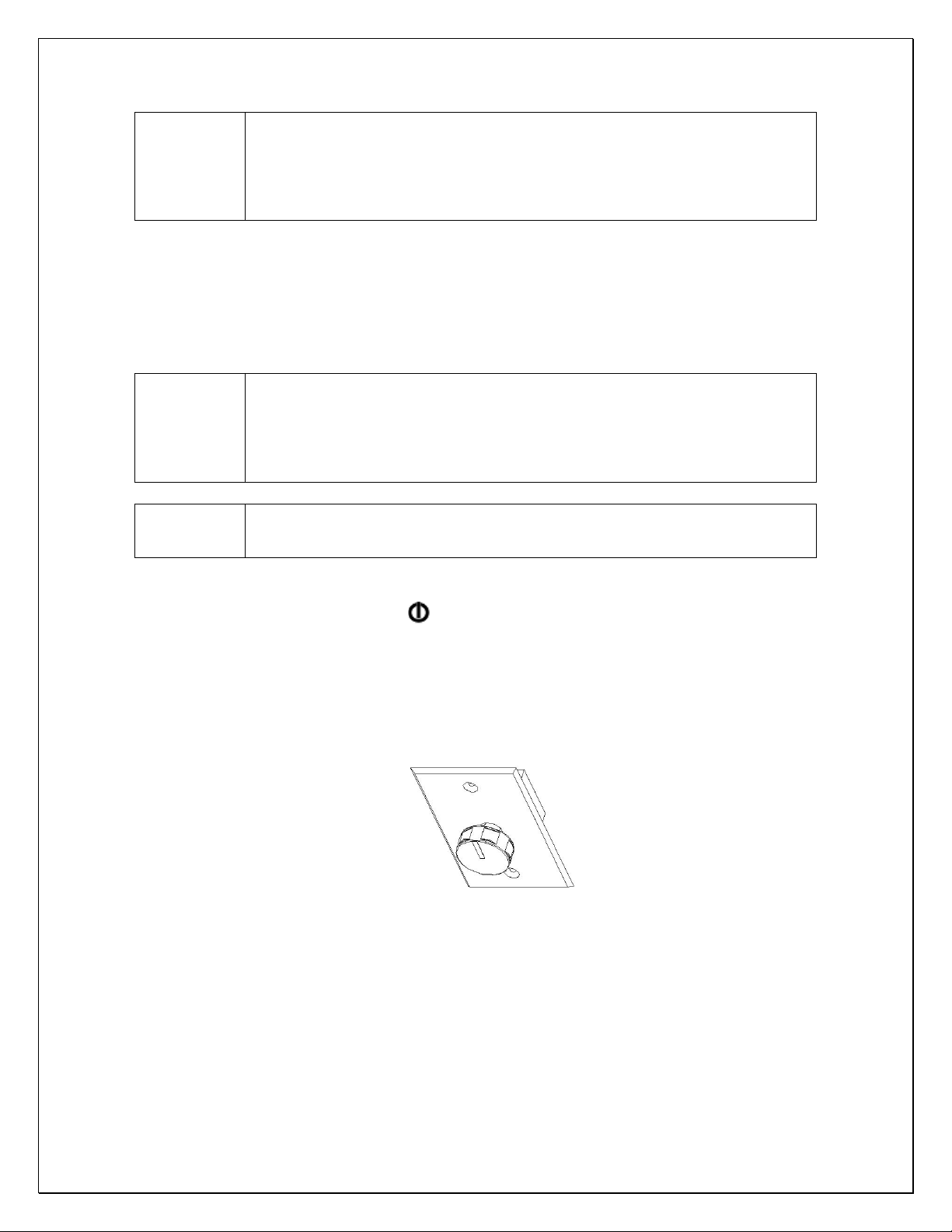

Fig. 6 Fan Speed Control

- 18 -
Service Instructions
1. Service Valve Operations

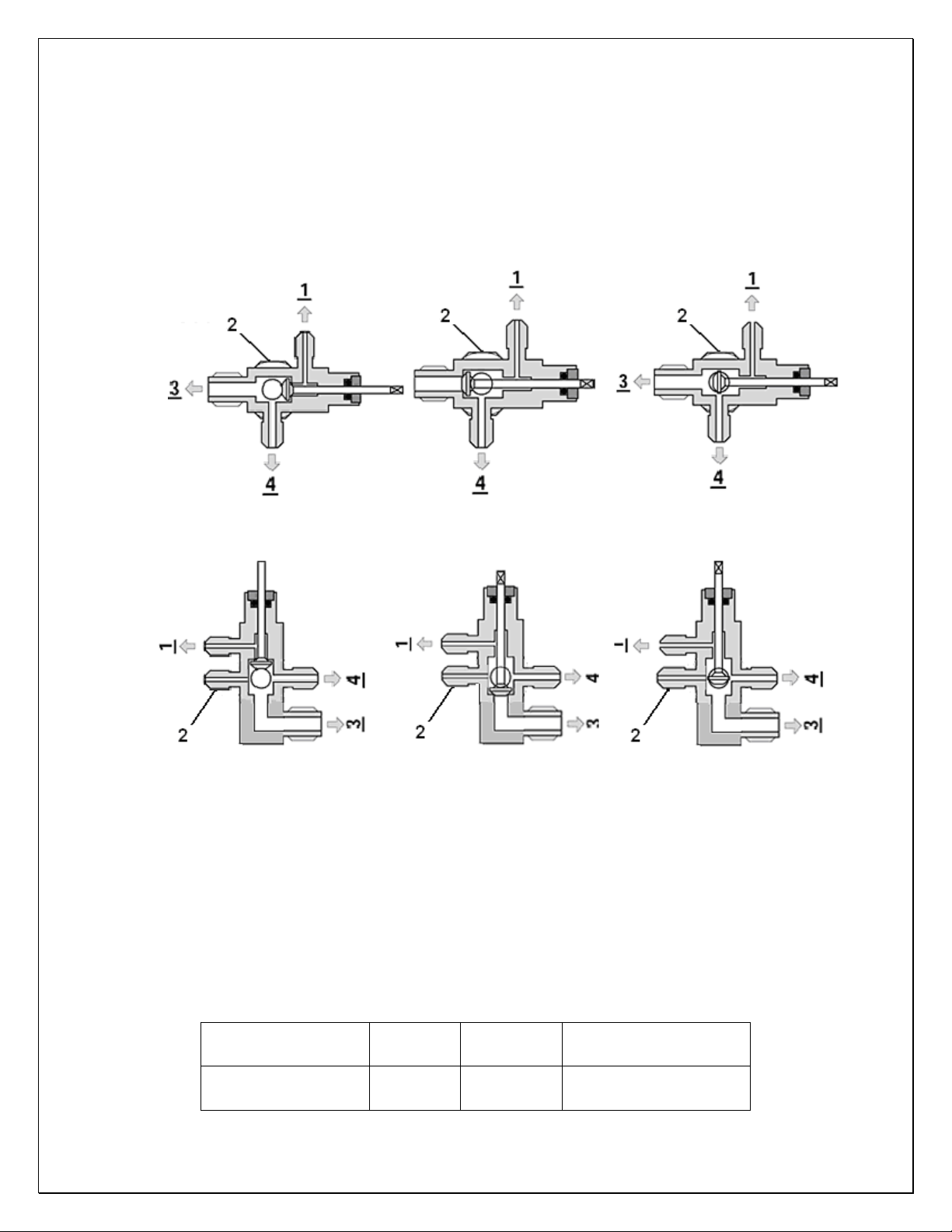

1-Manifold High or Low Pressure Hose; 2-Receiver Discharge or
Compressor Suction Port; 3-Liquid or Suction Line; 4-Pressure Control;
BACK POSITION FRONT POSITION MIDDLE POSITION
Fig. 7 Rotalock Valve Operation
BACK POSITION FRONT POSITION MIDDLE POSITION
Fig. 8 Base Valve Operation
Back Position: Normal operation, manifold port is closed.
Front Position: Storage operation, liquid or suction line connection is closed.
Middle Position: Installation operation, all ports are open.
2. Refrigeration Piping and Leak Testing
The line sizes and refrigerant charges are listed as follows.
Model No.
Liquid
Line
Suction
Line
Recommended
Initial Charge
WM-4500DS
WM-4500DS-LA
1/4” OD
1/2” OD
R134a / 26 OZ

- 19 -
WM-6500DS
WM-6500DS-LA
1/4” OD
1/2” OD
R134a / 32 OZ
WM-8500DS
WM-8500DS-LA
3/8” OD
5/8” OD
R134a / 40 OZ
WM-12030DS
WM-12030DS-LA
3/8” OD
7/8” OD
R134a / 56 OZ

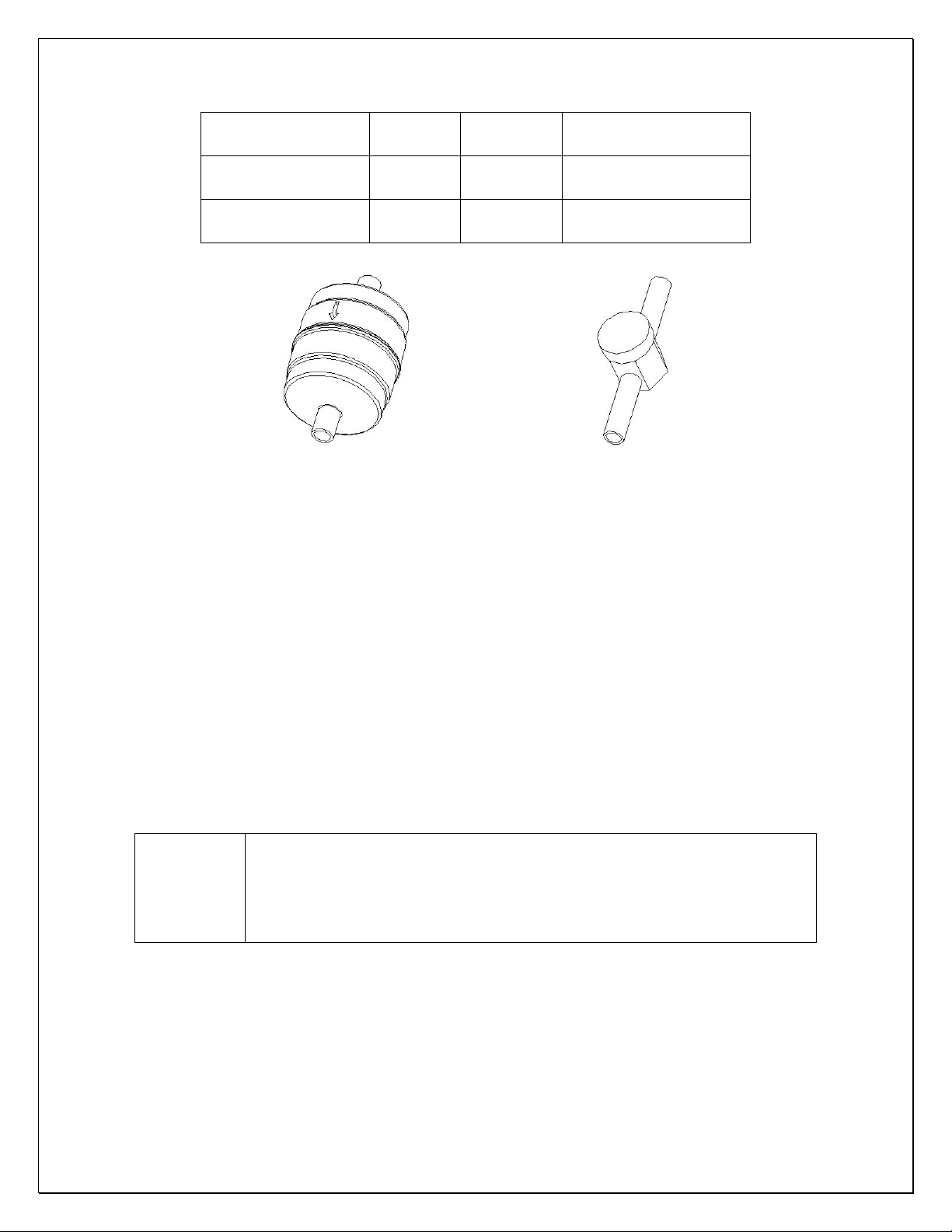

Fig. 9 Liquid Filter Fig. 10 Liquid Indicator
1) The piping starts from à condensing unit’s receiver discharge valve à liquid
filter à liquid indicator à liquid line à to evaporator unit’s liquid line
connection (assembled with solenoid valve and expansion valve) à suction
line connection à insulated suction line à to condensing unit’s suction valve.
2) Complete pipe brazing, check solenoid valve and expansion valve restrictions
and perform leak testing.
3) Hook up the drain line and check if water drains.
3. Connecting Electrical Wires
Connect all electrical components using the wiring diagrams in accordance with
all state and local codes.
4. Evacuating, Charging and Starting the system
NOTE
The recommended initial charges are used for reference only,
always use the superheat, subcooling and pressure readings
to charge refrigerant properly.
If the unit is equipped with a low ambient condition kit and
installed in the summer, add 15% more refrigerant.
1) Turn both discharge and suction valves in the middle positions.
2) Connect the manifold high or low pressure hose to the discharge or suction
valve and connect it to a vacuum pump.
3) Open the manifold high and low pressure valves to evacuate the system.
4) Close the manifold high and low pressure valves and switch it to a charging
scale.
