KVM Discovery AS-21DA User manual

1
USB DVI KVM Switch
AS-21DA / AS-41DA
User Manual
KVM Discovery powered by
Haitwin-Delphin Technologie GmbH,
Kieselstraße 15, 41472 Neuss / Germany
phone: 0049(0)2131/7421652 email: [email protected]

2
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radiofrequency energy, and if not installed and
used in accordance with the instruction manual, may cause interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that which the receiver
is connected;
Consult the dealer/an experienced radio/television technician for help.
RoHS
This product is RoHS compliant.
User Information
User Notice
All information, documentation, and specifications contained in this manual are subject to
change without prior notification by the manufacturer. The manufacturer makes no
representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranties as to merchantability or fitness for any
particular purpose. Any of the manufacturer's software described in this manual is sold or
licensed as is. Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary
servicing, repair and any incidental or consequential damages resulting from any defect in
the software.
The manufacturer of this system is not responsible for any radio and/or TV interference
caused by unauthorized modifications to this device. It is the responsibility of the user to
correct such interference.
The manufacturer is not responsible for any damage incurred in the operation of this system
if the correct operational voltage setting was not selected prior to operation.
PLEASE VERIFY THAT THE VOLTAGE SETTING ISCORRECT BEFORE USE.

3
Package Contents
The AS-21DA / AS-41DA package consists of:
1 AS-21DA / AS-41DA USB DVI KVM Switch
1 User Manual
2 /4 Pieces DVI Cable
Check to make sure that all of the components are present and in good order. If anything is
missing, or was damaged in shipping, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedures carefully
to prevent any damage to the switch or to any other devices on the AS-21DA / AS-41DA
installation.
*Features may have been added to the AS-21DA / AS-41DA since this manual was printed.
Please visit our website to download the most up to date version of the manual.

4
About This Manual
This User Manual is provided to help you get the most from your AS-21DA / AS-41DA system.
It covers all aspects of installation, configuration an operation. An overview of the
information found in the manual is provided below.
Overview
Introduction, introduces you to the AS-21DA / AS-41DA System. Its purpose, features and
benefits are presented, and its front and back panel components are described.
Hardware Preparative Procedure, provides step-by-step instructions for setting up your
installation.
Operation, explains the concepts involved in operating the AS-21DA / AS-41DA.
An Appendix, provides specifications and other technical information regarding the
AS-21DA / AS-41DA.

5
Contents
Introduction...................................................................................................................................... 6
Overview................................................................................................................................................... 6
Features.....................................................................................................................................................6
Requirements............................................................................................................................................7
Console..............................................................................................................................................7
Computers.........................................................................................................................................7
Operating Systems............................................................................................................................ 7
Components..............................................................................................................................................8
Front View......................................................................................................................................... 8
Rear View.......................................................................................................................................... 9
Hardware Preparative Procedure................................................................................................. 11
Before You Use........................................................................................................................................ 11
Cable Connection....................................................................................................................................11
Note: Verify that all the plugs are in the same KVM Port sockets (all in Port 1, all in Port 2,
etc.)..................................................................................................................................................11
Operation........................................................................................................................................ 12
Powering On............................................................................................................................................12
Manual Switching....................................................................................................................................12
LED Display..............................................................................................................................................12
Appendix......................................................................................................................................... 13
Safety Instructions.................................................................................................................................. 13
Specifications.......................................................................................................................................... 14

6
Introduction
Overview
KVM switches can save money and human cost in multiple computer systems. Users need
not to purchase a separate keyboard, monitor and mouse for each computer. They allow
users to access and control up to 2 (AS-21DA) or 4 (AS-41DA) computers from a single USB
keyboard, USB mouse, and DVI monitor console. The setup is easy and there is not software
to configure, this lowers the difficulty of usage.
KVM AS-21DA/ AS-41DA with audio supports control of 2 (AS-21DA) / 4 (AS-41DA)
computers using a set of keyboard, mouse, monitor and speaker. The console connection
uses a set of USB mouse, keyboard, monitor with general DVI interface and a stereo speaker
or earphone. It transfers keyboard and mouse data between KVM and host with USB
interface. It helps users to setup multiple computer system with lowest cost and highest
compatibility to save space and cost.
Features
2/4-port USB DVI Dual Link KVM Switch
Port selection via Pushbutton and hotkey methods
One USB console controls 2/4 computers
Restricted USB connectivity – non HIDs (Human Interface Devices) are ignored when
switching
Isolated channel per port – makes it impossible for data to be transferred between
computers
Multiplatform support – Windows 2000/XP/Vista/Win7/Win8, Linux, Mac, Sun…
Video Resolution support: 2560x1600;
Speaker and microphone support

7
Requirements
Console
DVI monitor capable of the highest resolution that you will be using on any computer in
the installation
USB mouse
USB keyboard
Microphone and speaker
Computers
A DVI card
USB Type A ports keyboard and mouse ports
Operating Systems
Windows
2000,2003,2008,XP,Vista,7
Linux
Redhat
9.0 and higher, Fedora Core 4 and higher
SuSE
10 and higher
Debian
3.1,4.0
Ubuntu
7.04,7.10
UNIX
AIX
4.3 and higher
FreeBSD
5.5 and higher
Sun
Solaris 8 and higher
Novell
Netware
5.0 and higher
Mac
OS 9 and higher
DOS
6.2 and higher

8
Components
Front View
AS-21DA
1
2
AS-41DA
1
2

9
Rear View
AS-21DA
3 4 5
6 7
AS-41DA
6 4 5
3 7

10
No.
Component
Description
1
Port Selection
Pushbuttons
Pressing a Port Selection Pushbutton brings the
focus to the computer attached to its
corresponding port.
2
Port LEDs
The Port LEDs are built into the Port Selection
Pushbuttons.
Online – Lights green to indicate that the computer
attached to its corresponding port is up and
running.
Note: The green light for a given port is lit for as
long as there is a powered on USB connection
between the KVM switch and computer.
Selected – Lights red to indicate that the computer
attached to its corresponding port has the KVM.
3
Power Switch
The power adapter cable plugs in here.
4
USB Console Ports
Your USB keyboard and mouse plug into these
ports.
5
Audio Ports
The cables from your main speakers and main
microphone plug in here.
6
Console Monitor Port
The cable from your console monitor plugs in here.
7
KVM Port Selection
The custom KVM cables that attach to your
computers plug in here.

11
Hardware Preparative Procedure
Before You Use
1. To prevent damage to your installation it is important that all devices are properly
grounded.
2. Make sure that the power to all devices connected to the installation are turned off.
You must unplug the power cords of any computers that have the Keyboard Power On
function.
3. A computer connected to the KVM switch should only be powered on after all of the
connections to the device are made(DVI, USB and audio).
Cable Connection
To set up your AS-21DA / AS-41DA installation, do the following:
1. Plug your USB keyboard and USB mouse into the USB console ports located on the
unit’s rear panel.
2. Plug your console monitor into the DVI console port located in the unit’s rear panel and
power on the monitor.
3. Plug your microphone and speakers into the console microphone and speaker jacks
located on the unit’s rear panel.
4. Using a KVM cable set, plug the DVI connector into any available DVI socket in the KVM
port section of the switch, then plug the accompanying USB, microphone and speaker
connectors into their corresponding USB, microphone, and speaker sockets.
Note: Verify that all the plugs are in the same KVM Port sockets (all in Port 1, all in Port
2, etc.).
5. At the other end of the cable, plug the USB, video, microphone, and speaker cables into
their respective ports on the computer.
6. Plug the DC adaptor into power switch.
7. Turn on the product.

12
Operation
Powering On
When you power on your computers, the AS-21DA / AS-41DA emulates both a mouse and
keyboard on each port and allows your computers to boot normally.
When you power on the AS-21DA / AS-41DA, the default selected port at switch power on is
the lowest port with a computer connected. The selected computer will be displayed on the
console monitor.
Note: The default connection is determined by the lowest numbered DVI connection that is
powered on.
Manual Switching
The AS-21DA / AS-41DA offers manual port-switching. This is achieved by pressing the port
selection pushbuttons located on the unit’s front panel.
Press and release a port selection pushbutton to bring the KVM focus to the computer
attached to its corresponding port.
The Selected LED lights red to indicate that the computer attached to its corresponding port
has the KVM.
LED Display
The AS-21DA / AS-41DA has port LEDs (Online and Selected) that are built into the port
selection pushbuttons to indicate port operating status, as shown in the table below:
LED
Indication
Online
Lights green to indicate that the computer attached to its
corresponding port is up and running.
Note: The green light for a given port is lit for as long as there is a
powered on USB connection between the KVM switch and computer.
Selected
Lights red to indicate that the computer attached to
its corresponding port has the KVM.

13
Appendix
Safety Instructions
Read all of these instructions. Save them for future reference.
Follow all warnings and instructions marked on the device.
Do not place the device on any unstable surface (cart, stand, table, etc.). If the device
falls, serious damage will result.
Do not use the device near water.
Do not place the device near, or over, radiators or heat registers.
The device cabinet is provided with slots and openings to allow for adequate ventilation.
To ensure reliable operation, and to protect against overheating, these openings must
never be blocked or covered.
The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will
block its ventilation openings. Likewise, the device should not be placed in a built in
enclosure unless adequate ventilation has been provided.
Never spill liquid of any kind on the device.
Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
The device should be operated from the type of power source indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or local
power company.
The device is designed for power distribution systems with 220Vvoltage.
To prevent damage to your installation it is important that all devices are properly
grounded.
Never push objects of any kind into or through cabinet slots. They may touch dangerous
voltage points or short out parts resulting in a risk of fire or electrical shock.
Do not attempt to service the device yourself. Refer all servicing to qualified service
personnel.
If the following conditions occur, unplug the device from the wall outlet and bring it to
qualified service personnel for repair.
The power cord or plug has become damaged or frayed.
Liquid has been spilled into the device.
The device has been exposed to rain or water.
The device has been dropped, or the cabinet has been damaged.
The device exhibits a distinct change in performance, indicating a need for service.
The device does not operate normally when the operating instructions are
followed.

14
Specifications
Function
AS-21DA
AS-41DA
Computer Connections
2
4
Port Selection
Pushbutton
Connectors
Console
Keyboard
1 x USB Type-A F (Black)
Video
1 x DVI-I Dual Link F (White)
Mouse
1 x USB Type-A F (Black)
Audio
Speaker
1 x Mini Stereo Jack F (Green)
Microphone
1 x Mini Stereo Jack F (Pink)
Computer
Keyboard/Mouse
2 x USB Type-B F
(White)
4 x USB Type-B F
(White)
Video
2 x DVI-I Dual Link
F(White)
4 x DVI-I Dual Link
F(White)
Audio
Speaker/Mic
2 x Mini Stereo
Jack F (Black)
4 x Mini Stereo Jack
F(Black)
Power
1 DC Adaptor
LEDs
Online
2 (Green)
4 (Green)
Selected
2 (Red)
4 (Red)
Switches
Port Selection
2 x Pushbuttons
4 x Pushbuttons
Video
2560x1600;
Power Consumption
5.1W
5.7W
Environment
Operating Temp
0-40 ℃
Storage Temp
-20-60℃
Humidity
0–80% RH
Physical
Properties
Housing
Mental
weight
2.06kg
2.10kg
Dimensions (L x W x H)
132 x 92 x 43 mm
202 x 110 x 43 mm
This manual suits for next models
1
Table of contents
Other KVM Discovery Switch manuals
Popular Switch manuals by other brands

System Sensor
System Sensor EPS40 Series Installation and maintenance instructions

Kobold
Kobold BVO Series installation instructions

Interlogix
Interlogix IFS NS3050-8T user manual

SignaMax

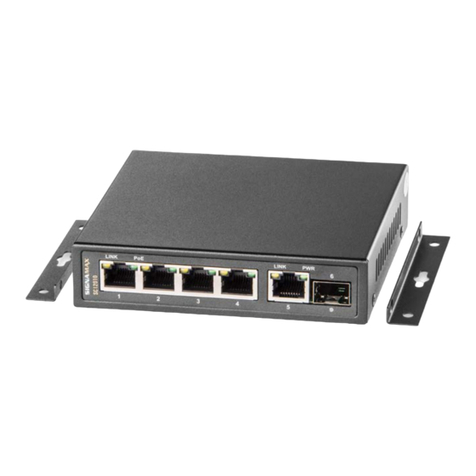

SignaMax C-120 Series quick start guide

NETGEAR
NETGEAR ProSafe JGSM7224 installation guide

D-Link
D-Link xStack DGS-3612G series instruction manual
