Kyla KCTR-610-WR Instructions for use
SMART CURTAIN
EASY START GUIDE
3
Thank you for using Kyla product(s)! Please keep this Easy Start Guide for future reference. For support or help, visit kylas.aztech.com
DISCLAIMER
AztechTechnologiesPteLtd,itsholdingcompanyanditsassociatedcompanies(hereinafterreferredtocollectivelyas“Aztech”)doesnotguaranteethatadequate
warning or protection will be given, and disclaims all warranties and representations, whether expressed, implied or otherwise statutory, concerning the product,
including without limitation any warranty of merchantability or tness for a particular purpose. Aztech shall not be liable in any event for any consequential,
indirect, incidental, special, exemplary, punitive or enhanced damages resulting from the use, maintenance or operation of the product.
The manufacturer makes no warranty or representation that the product constitutes a re alarm system or is compliant with any requirements prescribed by
any applicable state or laws, codes, regulations and/or other specications that may be set out by relevant authorities having jurisdiction (collectively referred
to as “regulations”). You shall be solely responsible for compliance with all regulations.
To the maximum extent permitted by applicable law, you agree to hold harmless and indemnify, including legal fees, the manufacturer and their personnel
against any third party claims or nes by authorities that arise or are alleged to have arisen as a result of negligent or intentional act or omission by you or
breach by you of any the terms herein or any violation of any regulations.
4
ATTENTION
This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of this product by a person responsible for their safety.
Children should be supervised to ensure that they do not play with this product.
The instruction concerning persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge is not
applicable.
If the supplied cable is damaged, contact Aztech, its service agent or similarly qualied persons for replacement, in order to avoid a hazard.
Important safety instructions for users to strictly follow:
• The minimum installation distance from the bottom of the Smart Curtain to the oor is 2.5m.
• Do not allow children to play with xed controls. Keep remote controls away from children.
• Frequently examine the installation for imbalance and signs of wear and damage to cables and moving parts. Do not use if repair or adjustment is necessary.
Follow these important safety installation instructions to prevent severe injury:
• Before installing the motor, remove any unnecessary cables and remove any equipment that is not needed for powered operation.
5
PACKAGE CONTENTS
• Smart Curtain X 1
• Easy Start Guide X 1
• Warranty Card X 1
PRODUCT DESCRIPTION
The Smart Curtain Motor, controllable via the Kyla app on a mobile device or the curtain remote control, provides improved flexibility over traditional manual curtains. The curtain can
be adjusted to open or close based on different scene settings, in accordance to the comfort and environment of the user.
PRODUCT FEATURES
Wide-range power supply: 100–240 VAC for global compatibility
Various controls: Through the app, Light Touch function, external wired switch, or the Curtain Remote Control (optional accessory)
Light Touch function: After powering on, pull the curtain slightly about 15cm, the curtain will open/close automatically
Low-noise operation: High-precision drive for smooth and gentle operation
Multiple limit points: Automatically remember the window width to determine limit points such as fully open, half-open, and quarter-open, reducing conguration time.
App control: Control and manage the device via the app.
Scene control: Preset the Smart Curtain and other Kyla devices into one scene and control them simultaneously.
Automation control:
Operates the Smart Curtain automatically when the sensor (separate smart device) is triggered, e.g. draws the curtain close when someone opens the door.
6
SPECIFICATIONS
Model: KCTR-610-WR
Input: 100–240 VAC, 50–60 Hz
Maximum Current: 0.2 A
Maximum Power: 45 W
Operating Temperature: -20–70°C
Operating Humidity: ≤ 85% RH
Connectivity: 2.4 GHz WiFi, RF 433 MHz
Track Length: 1/2/4 m
Maximum Load: 50 kg (Curtain with 4m Track)
Rated Torque: 1.5 N.m
Working Speed: 10 cm/s
Material of Housing: PC, White
Mounting Type: Wall/Ceiling Mount
Product Dimensions: L50 x W65 x H247 mm
Certificate(s): FCC, CE, IMDA
7

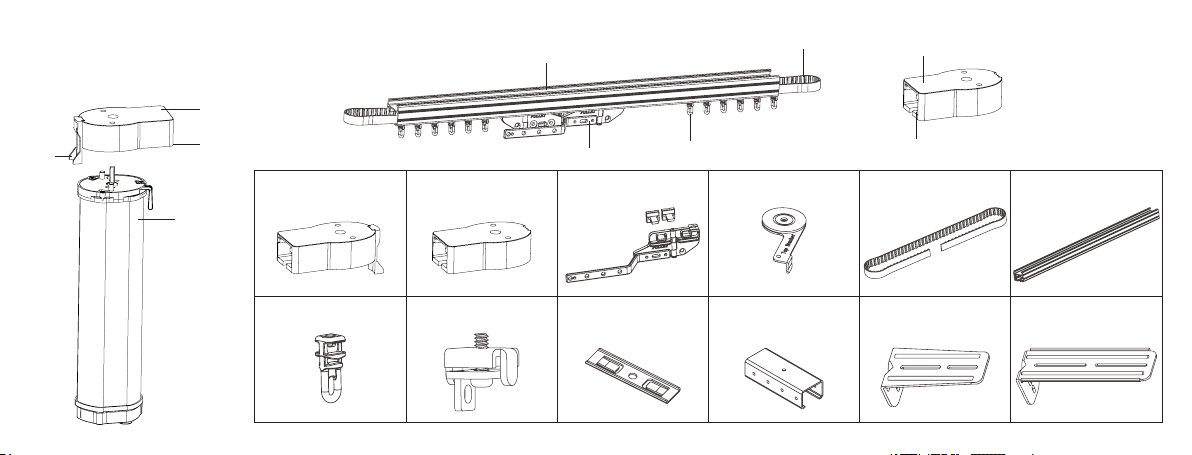

STRUCTURE AND INSTALLATION KIT
Hook
Master box
Lock
Curtain
motor
Master box Sub box Pulley Ceiling bracket Belt Track
Hanger Lock Splice Connector Single track bracket Double track bracket
Track
Belt
Pulley Hanger
Sub box
Lock
8
INSTALLATION GUIDELINES
ATTENTION: The minimum installation distance from the bottom of the Smart Curtain to the oor is 2.5m
Distance between two brackets ≤ 500mm Ceiling bracket Single track Double track (two curtains) Duel tracks (fabric and silk curtains)
9

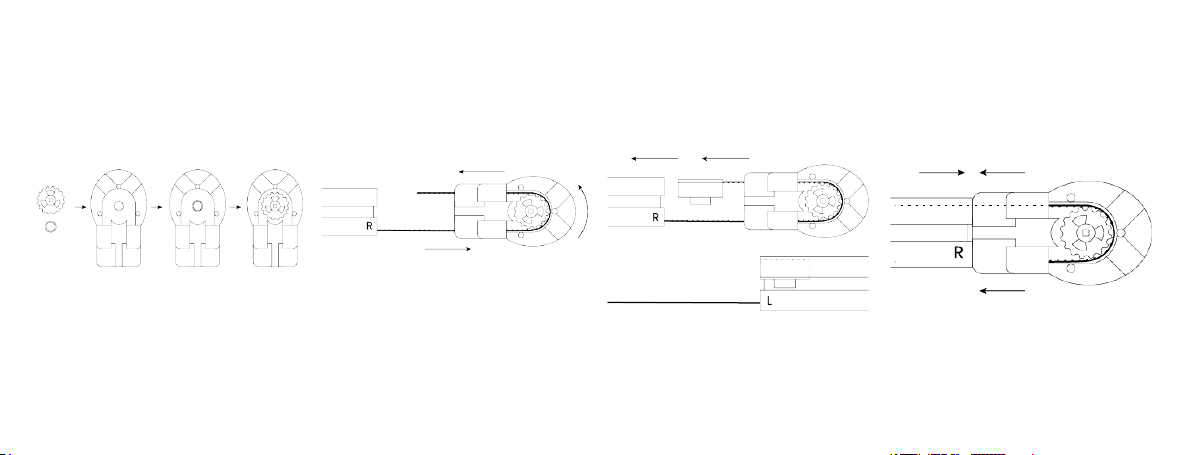

INSTALLING THE CURTAIN TRACK
1. Attach the buckle and clip at the end
of the belt. 2. Attach the pulley on the buckle. 3. Slide the pulley through the track. 4. Detach both the buckle and pulley
from the belt.
10
INSTALLING THE CURTAIN TRACK
5. Place the gear into the end cap. 6. Insert the belt into the end cap
through the gear. 7. Place the buckle and pulley at the end
of the belt. Then slide the pulley until it
reaches the tip of the track.
8. Attach the end cap to the track.
11
INSTALLING THE CURTAIN TRACK
9. Measure 12cm belt between the front
end of the belt and the front end of
the case.
10. Slide the pulley out until the belt
(measured at 12cm) reaches the tip
of the track. Then hold the pulley in
position.
11. Gently remove the end cap from the
track with the belt being pulled out
simultaneously.
12. Joint two pulley with a metal nut
holder.
12
INSTALLING THE CURTAIN TRACK
13. Assemble the metal plate onto the
pulley. 14. Attach two buckles onto the track with
one teeth gap. 15. Attach the assembled piece in step 13
onto the buckle. 16. Slide the pulley through the track and
attach back the end cap.
13

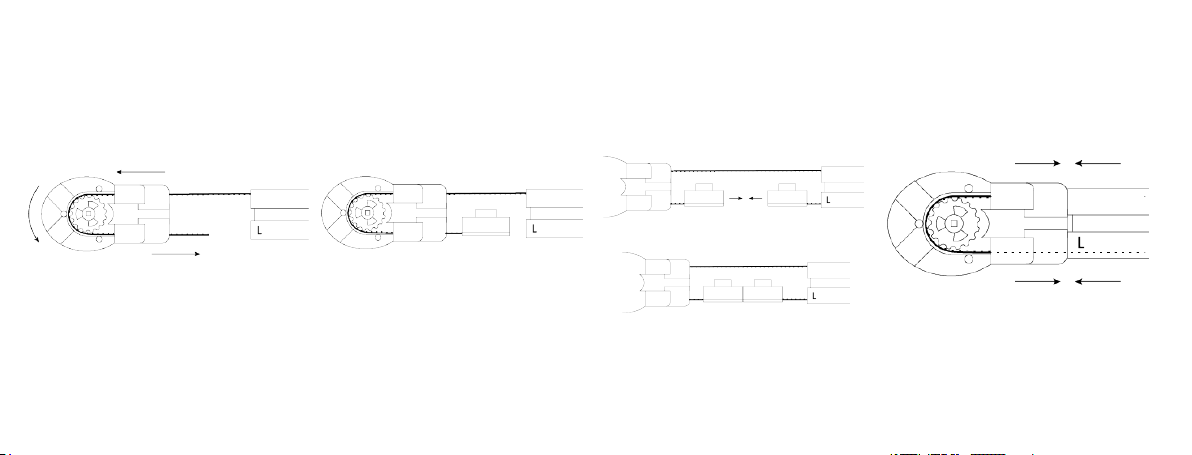

INSTALLING THE CURTAIN TRACK
17. Insert the belt through the gear box. 18. Attach the buckle at the tip of the belt. 19. Attach another buckle on the other
tip of the belt and joint the 2 ends
together.
20. Slide the pulley through the track and
attach the front end simultaneously.
14
INSTALLING THE CURTAIN TRACK
21. Insert 8 curtain rings into the track for
both sides. (Total 16 pieces). 22. Screw in all the remaining metal
pieces on both sides to cover the gear
boxes and lock the curtain rings.
15

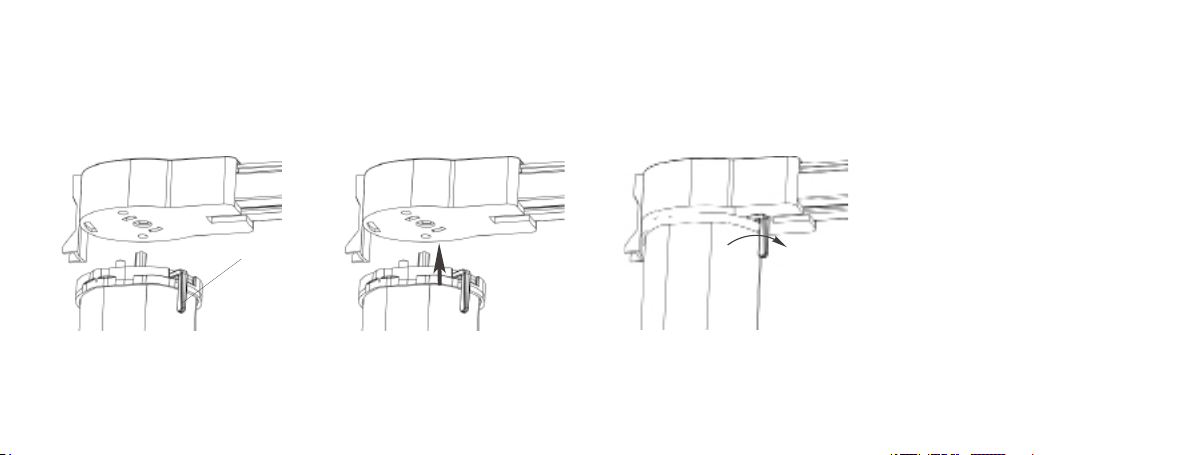

INSTALLING THE CURTAIN MOTOR
1. Check and keep the lock lever on the
left. 2. Attach the motor to the master box. 3. Push the lock lever to the right to the
lock the attachment. CAUTION:
• Ensure the lock lever is in the correct
position as illustrated.
• The ceiling must be strong enough to
support the track, motor and curtain.
Lock lever
16
REMOVING THE CURTAIN MOTOR
1. Push the lock lever to the left to unlock
the curtain motor. 2. Detach the motor from the master
box. CAUTION:
• Ensure the lock lever is in the correct
position as illustrated.
• The ceiling must be strong enough to
support the track, motor and curtain.
Lock lever
17
OVERVIEW
LED STATUS INDICATOR
RESET / PAIRING BUTTON ACTION RESULT STATUS
Press Once Blink continuously Device is in Remote Control Pairing Mode
NOTE: Red LED will blink for approximately 30 seconds before connection time-out.
Press and hold for at least 5 seconds Blink continuously Device is in WiFi Pairing Mode
NOTE: Red LED will blink for approximately 120 seconds before connection time-out.
Press twice (less than 1 seconds
between two press action) Blink once Motor direction reversed
Power cable
RJ22 Connector Port
Red LED indicator
Reset/Pairing button
18
PAIRING THE DEVICE WITH THE APP
1. Download and login to Kyla App from Google Play/App Store.
Requirement:
• iOS 12.0 or later
• Android 5.0 or later
2. Put the device in WiFi Pairing Mode via one of the following methods:
• Power on the device for the rst time.
• Reset the device.
4. From the app, select Add Device > Curtains and Roller Blind > Smart Curtain > Search Device
> Kyla-CurtainMotor-xxxx
NOTE: If the device is undetectable, reset the device and try again. After pairing
completes, the Smart Curtain calibrates itself to detect the length of the curtain track.

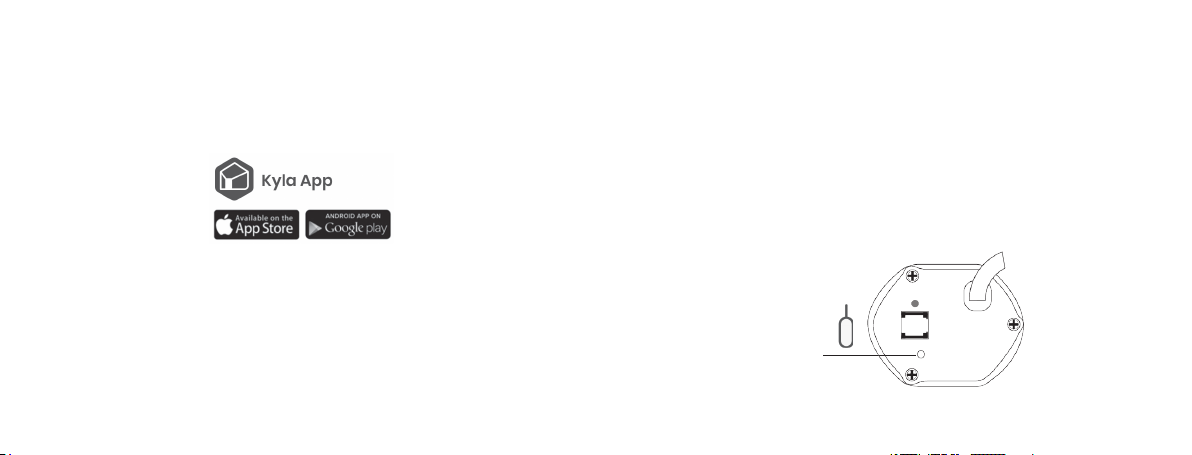

RESETTING THE DEVICE
Press and hold the Reset/Pairing button using a small pin for at least 5 seconds until the red LED
blink continuously.
Reset / Pairing Button
