Kystar KS600 User manual

Full Color LED Video processor KS600 User Manual
Full Color LED Video Processor
KS600
User Manual
Beijing KYSTAR Technology Co.,LTD

Full Color LED Video processor KS600 User Manual
Cautions
Dangerous
 There is high voltage in the device .Non professionals please
do not dismantle the device in case of danger.
Warning
●Pay attention to water proof and moisture proof work
●Keep away from fire or hot environment
●Strange noise,smoking or odd smell appears,unplug the power plug
and contact dealer
●Forbid to plug/unplug VGA and DVI signal cables
Attention
1Read the user manual carefully and keep it for further use.
2Unplug the power plug when there is thunder and lightning or long
time disuse;
3. The device is not suitable for nonprofessionals,please use under
professionals instructions;
3Do not slip anything into the blowhole of the device in case of any
damage or incident;
4Keep the device away from water or moisture environment.
5Keep the device away from cooling fin or other hot environment
6Tidy up and place the power cable properly in case of damage
7Unplug the power plug of the device and contact us for repair when
blow situation happens
●Liquid splashed into the device
●Device falling or case damage
●Obvious dysfunction or performance difference

Full Color LED Video processor KS600 User Manual
Catalogue
I.Product Overview......................................................................5
II.Product Features......................................................................6
III.Technical Parameters..............................................................3
IV.Work diagram ..........................................................................5
V. Panel ........................................................................................6
Front...........................................................................................6
Back...........................................................................................7
VI.Connection and installation...................................................8
Connection diagram ...................................................................8
Installation procedure .................................................................8
VII.Device debug .........................................................................9
Wizard mode--4 steps to achieve setup......................................9

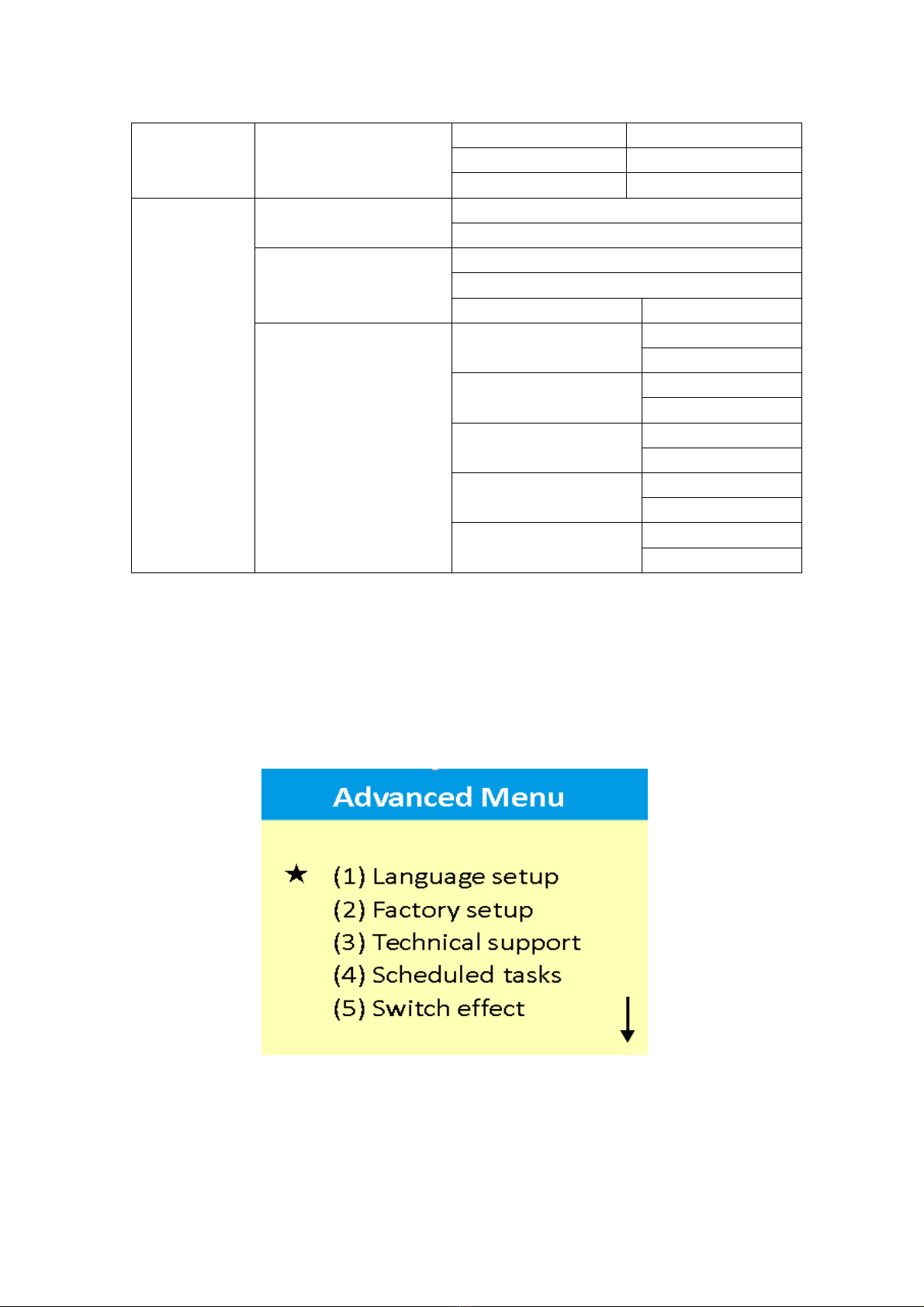

VIII.Control Menu.......................................................................17
1Language ........................................................................18

Full Color LED Video processor KS600 User Manual
2Factory settings...............................................................19
3Technical support.............................................................19
4Scheduled task................................................................19
5Transition effect...............................................................19
6VGA setting ......................................... 󳫪󳇀
󳫪󳇀󳫪󳇀
󳫪󳇀

󰳻󰅫󲅏
󰳻󰅫󲅏󰳻󰅫󲅏
󰳻󰅫󲅏


7Contast setting.................................................................19
8Image statics ...................................................................19
9Sound setting ..................................................................19
10)Expert setting...................................................................19
IX .FAQ ...........................................................󳫪󳇀
󳫪󳇀󳫪󳇀
󳫪󳇀

󰳻󰅫󲅏
󰳻󰅫󲅏󰳻󰅫󲅏
󰳻󰅫󲅏


Technical support and Contact Info .............................................20

Full Color LED Video processor KS600 User Manual
I. Product overview
With the rapid development of LED industry and the continuous expansion of
application needs, a variety of control requirements intended for large-screen control
system come into being. Ho ever, due to the limitations of large-screen control
system in image processing, screen control and signal format conversion, the control
system of LED large screen has some eaknesses in the follo ing aspects:
1. The signal source access format of LED large screen control system is limited.
Currently, only digital DVI signal is used, and many signal sources (e.g. VGA) can’t be
displayed on the LED large screen directly through the control system;
2. The traditional signal acquisition card is poor in image processing, and the image
resolution ill be reduced significantly hen the signal format is converted;
3. The control system of LED large screen can only capture and display the images of
corresponding points on the LED large screen; ho ever, in some sites, the customer
may need to display any size or the full computer desktop;
4. With the shrinking of LED screen pitch and increasing of screen points, the era that
single picture displays on single screen no longer exists. More application
requirements and display requirements are prominent, and the control system of LED
big screen can better meet customer needs in coordination ith other peripherals.
To solve these problems, the company has developed a variety of video processing
products. With advanced control and image processing technology, the products can
not only s itch bet een signals fast and stably, but also process the images in
multiple levels. In addition, the product can be controlled by the equipment
keyboard and PC, hich are easy to operate.

Full Color LED Video processor KS600 User Manual
II定 Product features
1.Operate by f
ront panel independently,knob and numbering key bring
more convenience for the operation.
2.PC software control,achieve prompt operation visually.
3.Fade in/out,perfect switch
4.Brightness and contrast control,enhance image display effect.
5.Picture zoom in/out freely( adjust picture pixel by pixel ,the minimum size can be 1
pixel)
6.Motion compensation,avoid trailing of pictures
7.Noise reduction(reduce noise stain)
8.6-channel HD video signal inputs,2-channel video outputs
9.Max input resolution is 1920*1080, max output user-defined resolution is
1920*1200
10.Key lock function,prevent misoperation after debug
11.5 modes save and call
12.Wizard setting
13.Standard 1.5U,convenient for carry and installation

Full Color LED Video processor KS600 User Manual
III.Technical parameters
Video processor adapts latest patent video processing technology and
has AIAO (any format input ,corresponding format output )video conversion
ability.CVBS,HDMI,VGARGBand DVI-D can be processed and enhanced
to meet practical applications.Below is the detailed specification:
CVBS(BNC input)
Number of Inputs 2
Supported Standards PAL/NTSC
Signal Level 1Vpp±3db (0.7V Video+0.3v Sync )
75Ω
HDMI Input
Number of Inputs 1
Supported Standards
EDID/DDC2B
Signal Level 1Vpp±3dB (0.7V Video+0.3v Sync )
75Ω
VGA(DB15 Input)
Number of Inputs 1
Interface type Standard DB15 socket
Supported Standards VGA-UXGA
Signal Level RGBHsyncVsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω
black level: 300mV Sync-tip: 0V

Full Color LED Video processor KS600 User Manual
DVI Input
Number of Inputs 1
Interface type Standard DVI-D socket
Resolution supported
SMPTE: 625/25 PAL, 525/29.97
NTSC, 625/50p PAL, 525/59.94p
NTSC, 1080P60,1080i50, 1080i59.94/60, 720p50
and 720p59.94/60
VESA: 800×600@60Hz1024×768@60Hz
1280×768@60Hz1280×1024@60Hz
1600×1200@60Hz
Signal level TMDS signal level165MHz bandwidth
Standard DVI 1.1
DVI Output
Number 2
Interface type Standard DVI-D
Resolution supported
1024×768@60Hz,1280×1024@60Hz
1366×768@60Hz,1440×900@60Hz
1600×1200@60Hz1680×1050@60Hz
1920×1080@60Hz,1920x1200@60Hz
Signal level TMDS electrical level165MHz bandwidth
Others
CE standard
BS EN 55013:2001+A1:2003+A2:2006
BS EN 61000-3-2:2006+A2:2009
BS EN 6100-3-3:2008
BS EN 55020:2007
BS EN 6006:2002+A1:2006+A11:2008
PC or central control system
control RS232
Power 85-264V 2A IEC-3 power interface
Work environment 0°C~45°C
Humidity 10% to 90%
Product guarantee period 3 years

Full Color LED Video processor KS600 User Manual
IV.Work diagram
LED screen
Sending card
Video processor
PC Laptop Camera DVD

Full Color LED Video processor KS600 User Manual
V.Panel

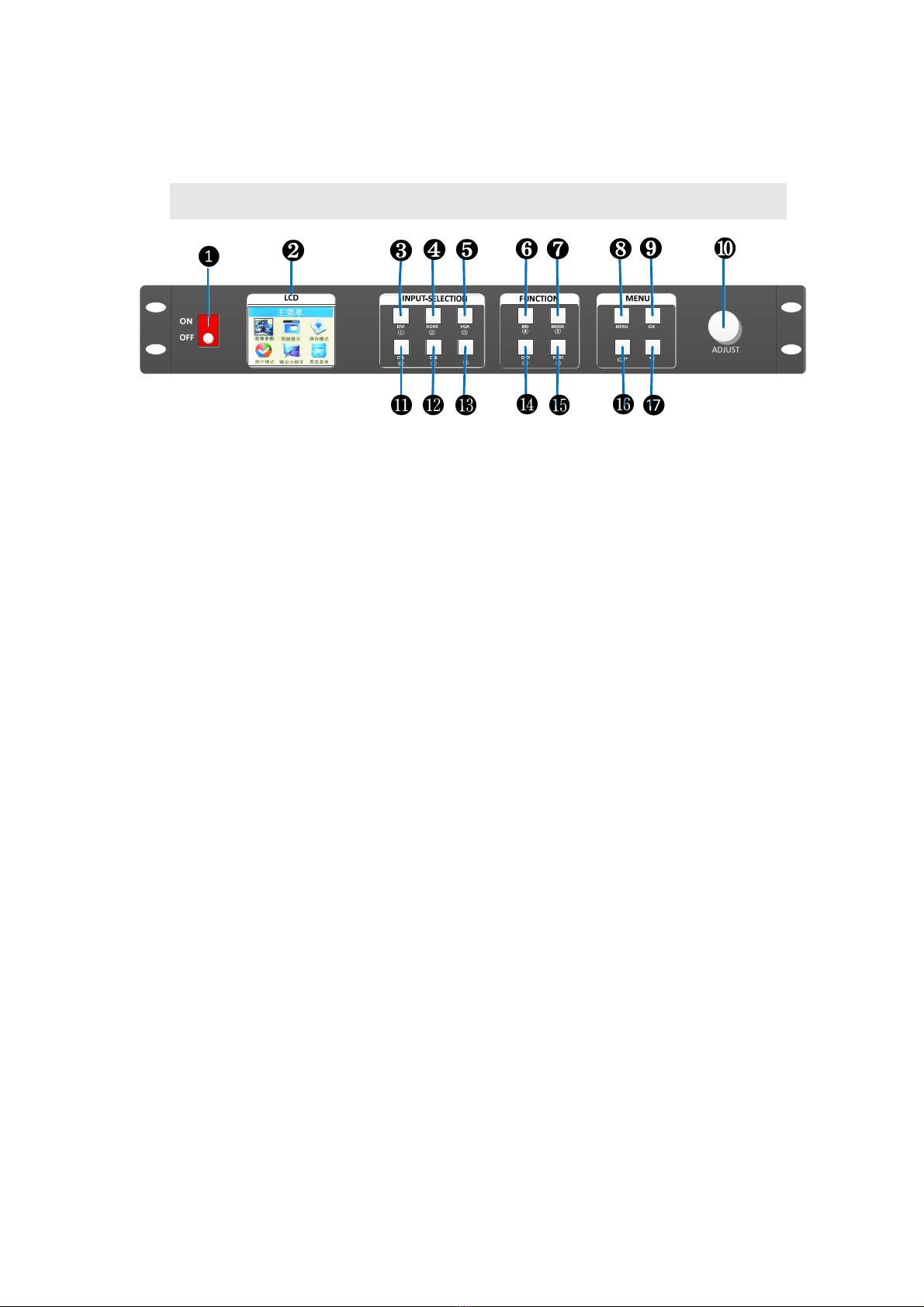

Front Panel


POWER:device switch,OFF—power offON—power on


LCD:text display screen,display menu,parameters etc.


DVI:digital signal key


HDMI:HD multi-media key


VGA:analog signal key


BRI:Brightness setting


MODE:User mode call


MENU:Menu key


OK:Confirm keypress it and enter next profile under navigation mode


ADJUST:Increase or decrease key,press down to confirm


/

CV1~2:CVBS key


Reserved key:Number 8


OUT:make switch between blank and normal screen output(For blue
screen ,please use know)


PART:part and full switch


Wizard key:user navigation mode,work as step key when set data


Arrow:return key

Full Color LED Video processor KS600 User Manual
Back Panel


COM -1:Connect PC software


COM-2-:For multi-device cascade


HDMI:HDMI signal input port for laptop etc.


DVI:DVI signal input port for PC etc.


VGA: VGA signal input port for Laptop etc.


 

CV-1/2:CVBS interface for cameras etc.




DVI-OUT1/2:DVI output port for sending card etc.


Power port: 220V power port




CARD-1/2--sending card slots,provide 5V power

Full Color LED Video processor KS600 User Manual
VI.Connection and installation

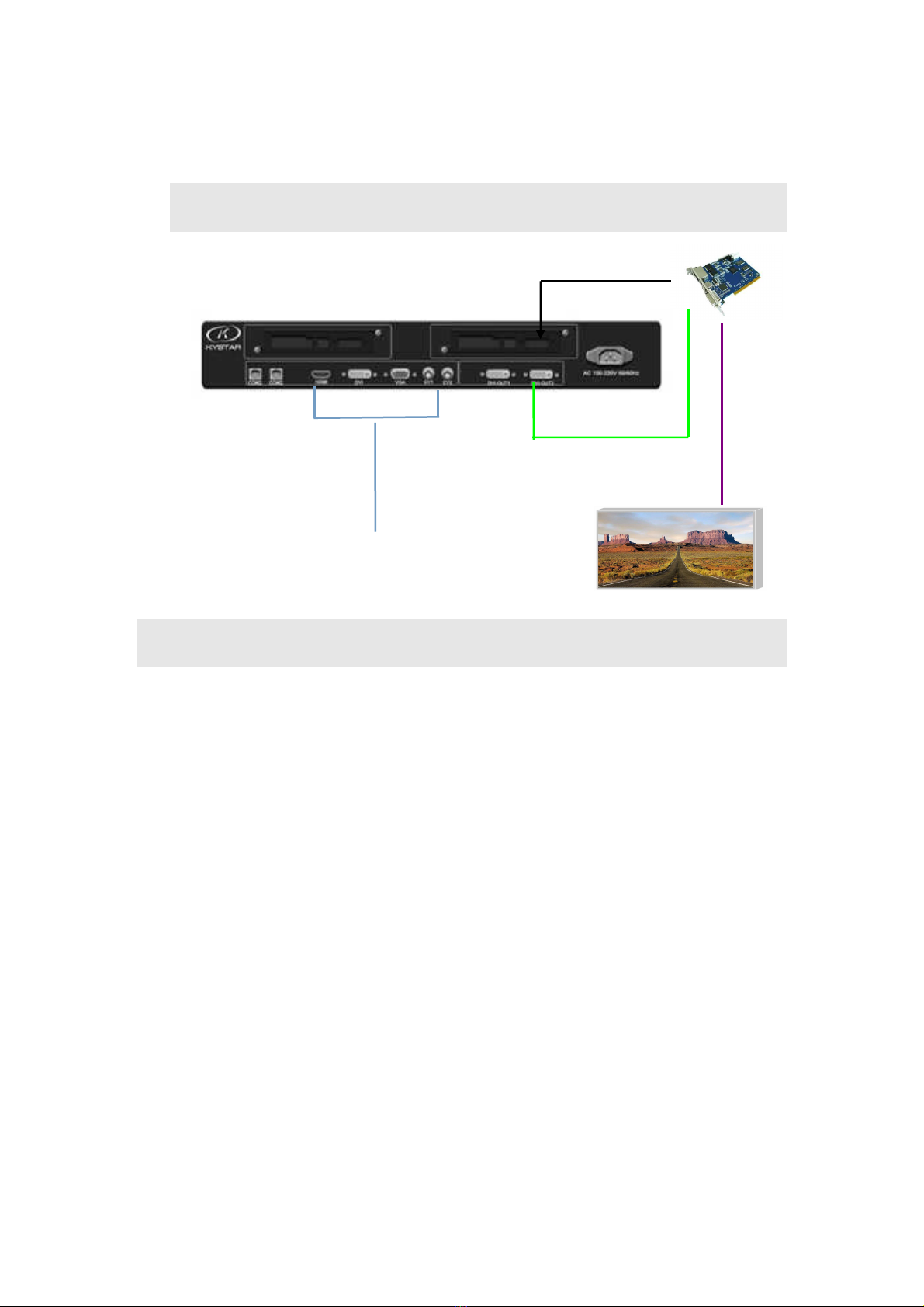

Connection Diagram
Installation Procedure
1.Make sure the led screen displays image normally when the graphics card controls
sending card directly and the video processor is absent.
2. Make connection as above chart, connect DVI port of graphics card to the DVI-IN of
the processor,then connect DVI-OUT of the processor to sending card.
3.Power on the video processor after cables are connected accurately.
Note: For the convenience of customers, the sending card can be loaded or unloaded in the
processor, i.e. the sending card can be installed in the processor and po ered by the processor,
hich can get rid of the shackles of desktop po er supply. The installation method is as follo s:
① Remove the fixing corner of the sending card;
② Loosen the knob on the rear panel, pull it out and remove the temporary baffle;
③ A small four- ire plug is reserved in the processor. It corresponds to the ire groove in
the sending card. Connect it and fix the sending card on the video processor;
④ Reinstall and fix the dra er box, and connect the superimposed DVI interfaces.
installation
Signal source
DVI cable
Network cable
LED screen

Full Color LED Video processor KS600 User Manual
VII. Equipment Debugging
Navigation mode -- finish setting in 4 steps
The navigation is applicable to most cases. It is simple to set up. Follo the prompts
to debug in steps and achieve the desired display effect. When the po er is
connected, the processor automatically enters navigation mode (or click to enter
navigation mode). Point the remote control to IR part and then click the s itch to
take effect (subsequence is the same as button):
Click “OK” to enter “Large Screen Parameters Setup”:
“Large Screen Parameters” are the actual pixels of the LED screen, hich are
1920*1080 by default.
Navigation mode
Welcome to use the navigation!
 [OK]
Cancel
Tips: Press OK to enter the next step
Press ESC to return to the previous step
Turn the knob to change
Turn on
Large Screen Parameters Setup
Width 1920 Step×1
Height 1080
Tips: Press OK to enter the next step
Step 1

Full Color LED Video processor KS600 User Manual
Ps- to modify the value: 1) Adjust ith the knob (CCW: -; CW: +), use to change the step
length;
2) Enter ith number keys directly to change.
To select input source, press the Source button on the front panel directly.

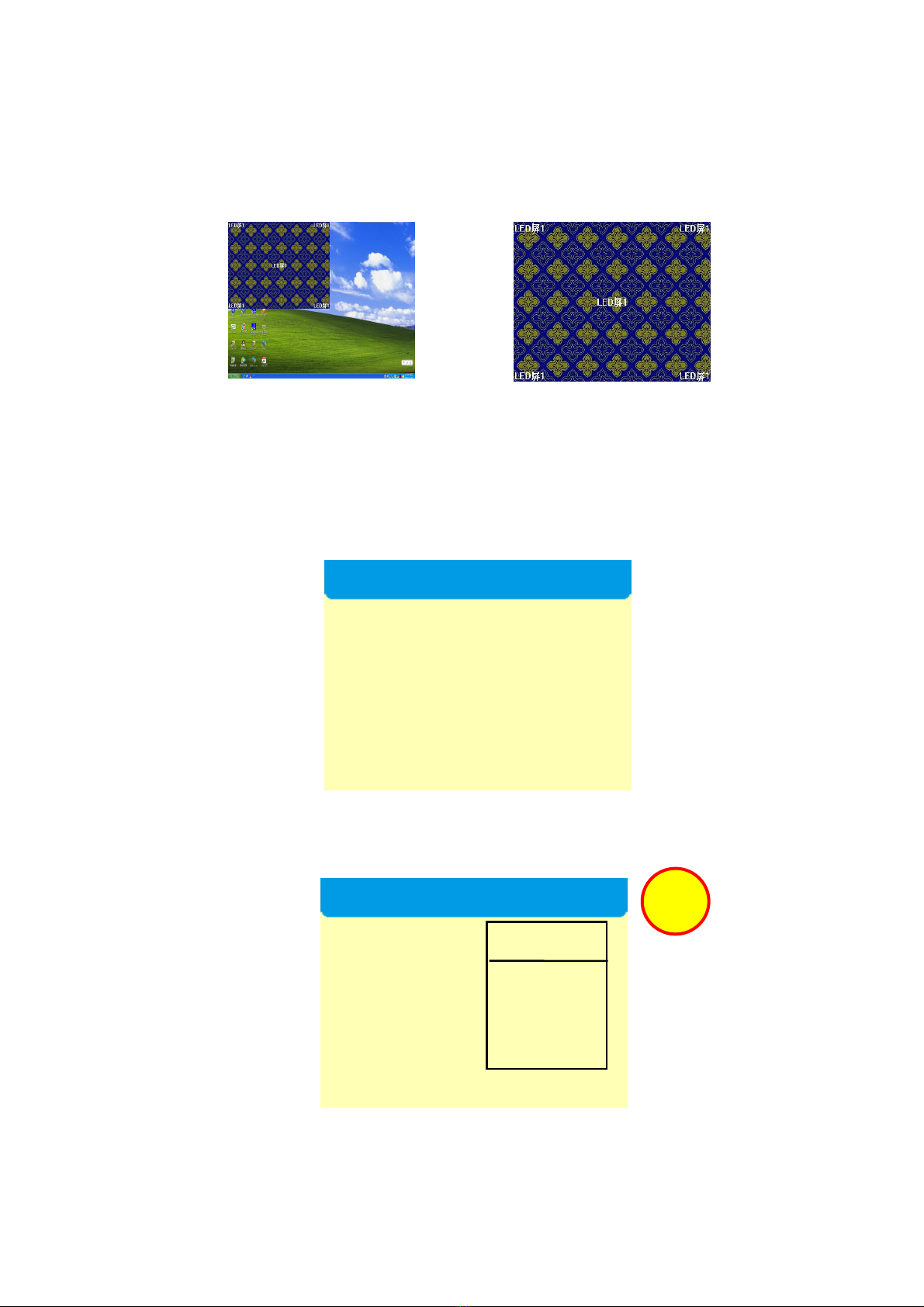

In this interface, you can select hether to capture part image of the input source
and display on the large LED screen.
Ps- “part display” usually displays the LED studio in full screen, and can s itch to desktop
panoramic display at any time.
Input source: DVI
Tips: Press OK to enter the next step
Step 2
Select Input
Navigation
Tips: Turn the knob to change
Press OK to enter the next step
Step 3
Whether need part display?
 [No]
Yes

Full Color LED Video processor KS600 User Manual
Panorama Mode
Part Mode
"Position" - the position starting capture; "size" - the capture size; the interface is as follo s:
Part Display
Horizontal position 0
Vertical position 0 Step×1
Screen idth 0
Screen height 0
Select Save Step 4
 [Mode 1] Tip
Mode 2
Mode 3
Mode 4
Mode 5

Full Color LED Video processor KS600 User Manual
The last step is to save the settings, of hich "Mode 1" is the mode called
automatically after starting.
Navigation is Successful
Welcome to use the navigation!
The navigation ends
The processor setup completes. In the process of use, use the front panel to s itch
the signal directly. If "part display" is needed, click to s itch the current signal
source bet een part and panorama. If more than one mode is saved, use to
call different modes.
Thank you again for using our video processor. For other details, please refer to the
follo ing section

Full Color LED Video processor KS600 User Manual
VIII. Control Menu
output
resolution
1024×768@60Hz,1280×1024@60Hz
1366×768@60Hz,1440×900@60Hz
1600×1200@60Hz1680×1050@60Hz
1920×1080@60Hz1920x1200@60Hzuser-defined
Advanced
Language Englis错 C错inese
C错inese
Factory setting Confirm
Cancel
Tec错nical support Contact sales 未400-0000-267
Sc错eduled task
Open
Close
Transition effects
Straig错t cut
Special effects
VGA setting
Horizontal start default
Vertical start default
Horizontal widt错 default
Vertical 错eig错t default
Contrast setting Contrast ratio 128
Main Menu
Main MenuMain Menu
Main Menu Option
OptionOption
Option Defaulte
DefaulteDefaulte
Defaulted value
d valued value
d value
Image parameters
Horizontal start 0
Vertical start 0
Horizontal widt错 1920
Vertical 错eig错t 1080
Part
Horizontal star 0
Vertical start 0
Horizontal widt错 0
Vertical 错eig错t 0
Save mode
Save mode 1
Save mode 2
Save mode 3
Save mode 4
Save mode 5
user mode
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5

Full Color LED Video processor KS600 User Manual
Red 128
Green 128
Blue 128
image statics Image statics
Image active
Sound setting
mute
output
Volume 50
Expert setting
Mode s错ort key Open
Close
keyboard lockout
Open
Close
Play type Play Video
Browse pictures
Play memory Open
Close
Upgrade online Confirm
Cancel
The features of the first four options have been described. The output resolution ill
change automatically hen you set screen parameters and can also be selected
manually. The meaning of each option in the "Advanced Menu" is explained belo :
(1) Language selection

Full Color LED Video processor KS600 User Manual
The default language of the video processor is Chinese. You can s itch the
language bet een Chinese and English through the Advanced menu.
(2) actory setup
If the video processor has too many data or the settings are confused, you can
restore the factory settings.
(3) Technical support
To get better customer service, please call 400-0000-267.
(4) Scheduled tasks
Turn on scheduled tasks and start playback automatically at specified time.
(5) Switch effect
Include straight cutting and special effects (fade). When there are special effects,
the image looks novel
Advanced Menu
 ( 6) VGA setup
(7) Contrast setup
(8) Still image
(9) Sound setup
(10) Expert setup
(6) VGA setup
Due to VGA signal shift, solve the problem through VGA setting.
(7) Contrast setup
The video processor integrates contrast setting function, hich can directly
control the brightness and contrast of the LED screen, as described in the control
menu table.
(8) Still image
This function includes active images and still images, equivalent to the start and
pause function of player.
(9) Sound setup
The video processor integrates audio output. The AUDIO of the video processor
can be set to mute or output and the volume can be adjusted.
(10) Expert setup

Full Color LED Video processor KS600 User Manual
Include five functions: mode shortcut, keypad lock, play type, playback memory
and online upgrade.
①When the mode shortcut is turned on, the numbers 1-5 on the front panel
only correspond to five user modes
②To prevent misuse of the equipment, the video processor provides keypad
lock function; hen turned on, press MENU for ten times to unlock.
③The playing types include video playback and picture bro sing. The video and
pictures can be put on the LED screen for vie ing.
④Playback memory is the current playback progress. When you s itch back to
the source, it ill resume the playback.
⑤Online upgrade is used to upgrade video processor soft are: copy the
upgrade program to the USB flash drive, plug into the processor, and click on this
feature to upgrade.
IX. FAQ
