l-com RS-422 User manual

USB TO RS-422 / RS-485 Adapter
User’s Manual
UTS-422 / UTS-485 / UTS-M12 / UTS-M14-(DB-9 Connector)
UTS-422TB / UTS-485TB-(Terminal block Connector)
UTS-200J / UTS-200J2 / UTS-200J5-(RJ-11 Connector)

USB to RS-422 / RS-485 Adapter
1
Table of Contents
Introduction .................................................................................................................................... 2
System Requirements ............................................................................................................ 2
Features................................................................................................................................... 2
Specification:- ......................................................................................................................... 2
Windows OS Installation Guide .................................................................................................... 9
Driver Installation thru the FTDI Driver Package....................................................................... 11
Windows 98SE Installation Guide............................................................................................... 14
Uninstalling Instruction........................................................................................................ 19
Troubleshooting.................................................................................................................... 21
Windows 2000 Installation Guide ............................................................................................... 22
Uninstalling Instruction........................................................................................................ 27
Troubleshooting.................................................................................................................... 29
Windows CE Installation Guide .................................................................................................. 30
Troubleshooting.................................................................................................................... 32
Windows XP Installation Guide................................................................................................... 37
Uninstalling Instruction........................................................................................................ 46
Troubleshooting.................................................................................................................... 47
Windows VISTA(Win 7, 8, 8.1, 10) Installation Guide ................................................................ 49
Uninstalling Instruction........................................................................................................ 54
Troubleshooting.................................................................................................................... 55
MAC OS X Installation Guide ...................................................................................................... 57
Uninstalling instruction........................................................................................................ 61
Troubleshooting.................................................................................................................... 62
Regulatory Compliance ............................................................................................................... 64

USB to RS-422 / RS-485 Adapter
2
Introduction
This Adapter is designed to make massive data communication become quick and simple through
an USB port of PC. By taking the advantage of the feature of USB port and Serial port, it provides
an easier and more convenient connectivity than ever for efficient and friendly interaction between
RS-422 or RS-485 devices and your computer systems.
The interface of RS-422 and RS-485 are very common adopted in data acquisition world. Both
standards feature reliable performance of full-duplex or half-duplex multi-drop communication
network with faster data rates and longer communication distance than RS-232. Application
devices include telecommunication units, LAN, data concentration, data multiplexers, ISDN, POS,
industrial controls, etc.
System Requirements
Windows : 98 / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10; Windows Server 2003 / 2008 / 2008R2 / 2012
/ 2012R2
WinCE : V4.2 ~ V7.0
Mac OS : 8.x / 9.x / 10.x
Linux : Kernel 1.5.0 or above
The system is equipped with USB Host Controller
Features
Reliable performance of full-duplex or half-duplex multi-drop communication
Fully compliant concurrent operation
Plug and play and hot-swapping
15KV ESD Protection
Supports data transmission at high rates over long distance (4,000ft.)
Supports devices include telecommunication units, LAN, data concentration, data
multiplexes, ISDN, POS, industrial controls, etc.
Specification:-
DB-9 Connector
Model No. UTS-485 UTS-422 UTS-M12 UTS-M14
Chipset FTDI
Interface RS-485 RS-422 RS-422/RS-485
Compliant USB Version USB 1.1 & 2.0
Data transfers rate 300 to 3M baud
Mode Selection Auto Slide Switch
Upstream USB A / M USB B / F
Connector Device DB-9 / M*1 DB-9/M*2 DB-9/ M*4
Power Mode Bus
Cable Length 1.1M 0.6M 1.8M
Housing PVC Molding Plastic Aluminum

USB to RS-422 / RS-485 Adapter
Terminal Block Connector
Model No. UTS-422TB UTS-485TB
Chipset FTDI
Device Interface RS-422 RS-485
Communication Mode Full-duplex-Multi-drop Half-duplex-Multi-drop
Compliant USB Version USB 1.1 & 2.0
Data transfers rate 300 to 3M baud
Upstream USB A / M
Connector Device Shield*1 and Terminal Block*4
Power Mode Bus
Cable Length 1M
Housing Plastic
RJ-11 Connector
Model No. UTS-200J2 UTS-200J5 UTS-200J
Chipset FTDI
Device Interface RS-422 RS-485 RS-422/RS-485
Compliant USB Version USB 1.1 & 2.0
Data transfers rate 300 to 3M baud
Selection Mode Auto Slide Switch
Upstream USB Type A Male
Connector Device RJ-11 4P phone jack/Female*2
Power Mode Bus
Cable Length 1M
Housing Plastic
LED light Indication
Power/Link--- unit is ready for use.
RX---Receive Data (Data is being sent from RS-422 or RS-485 device to USB port)
TX---Transmit Data (Data is being sent from USB port to RS-422 or RS-485 device).
3

USB to RS-422 / RS-485 Adapter
PIN Assignments
DB-9Connector
RS-422(DB-9M)
Pin# Description
1. TX-
2. TX+
3. RX+
4. RX-
5. GND
6. RTS-
7. RTS+
8. CTS+
9. CTS-
DB-9 DB-9
1 TX- RX- 4
2 TX+ RX+ 3
3 RX+ TX+ 2
4 RX- TX- 1
5 G G5
6 RTS- CTS- 9
7 RTS+ CTS+ 8
8 CTS+ RTS+ 7
9 CTS-
RTS- 6
RS-485(DB-9M)
Pin# Description
1. D-
2. D+
3.
4.
5. GND
6.
7.
8.
9.
DB-9 DB-9
1 D- D- 1
2 D+ D+ 2
4

USB to RS-422 / RS-485 Adapter
TerminalBlock
Pin# Definition Description
1. TX+
2. TX TX-
3. RX+
4. RX RX-
5. G GND
1 TX+ RX+ 3
2 TX- RX- 4
3 RX+ TX+ 1
4 RX- TX- 2
5 GND GND 5
1. D+ D+ 1
2. D- D- 2
D+ 3
D- 4
Pin# Definition Description
1. D+
2. 1 D-
3. D+
4. 2 D-
5. G GND
1 D+
2 D-
3 D+ D+ 3
4 D- D- 4
UTS-422TB
RX TX
G -+-+
5 4 3 2 1
UTS-485TB
2 1
G -+-+
5 4 3 2 1
5

USB to RS-422 / RS-485 Adapter
UTS-485TB
Termination Resistors :
6
Loopback
UTS-485TB Loopback
Jumper Pin J6 J7 Function Status
Setting Jumper
Plugged
Jumper
Un-Plugged OFF (Default)
Setting Jumper
Un-Plugged Jumper Plugged ON
UTS-485TB Termination Resistor
120 Ω
Jumper Pin J1 Function Status
Setting Jumper Plugged ON (Default)
Setting Jumper Un-Plugged OFF

USB to RS-422 / RS-485 Adapter
RJ-11 Connector
RS-422 RS-485
PC# 2PC# 1
RX-
RX+
TX- 5
4
2
3 RX-
RX+
TX-
5
4
2
3
RJ-11
TX+ RJ-11 TX+
▲Point to Point:
RS-422 (Full Duplex Mode)
PIN2 : RX+
PIN3 : RX-
PIN4 : TX-
PIN5 : TX+
RS-485 ( Half Duplex Mode)
PIN4 : D -
PIN5 : D+
7RJ-11
RJ-11
RJ-11 D-
D+
4
5
PC# 1
▲Point to Point:
4
5
D-
D+
▲Multi-Drop:
5
4
PC# 1 PC# 4
5
4
RJ-11 RJ-11
D+
D-
D+
D-
D-
D+
5
4
PC# 3PC# 2
D-
D+
5
4
PC# 2
RJ-11

USB to RS-422 / RS-485 Adapter
UTS-200J / UTS-200J5
Termination Resistors :
8
Loopback
UTS-200J / UTS-200J5 Termination Resistor
120 Ω
Jumper Pin J1 J2 Function Status
Jumper
Plugged
Jumper
Plugged
Setting ON (Default)
Jumper
Un-Plugged
Setting Jumper
Un-Plugged OFF
UTS-200J / UTS-200J5 Loopback
J6 J7
Jumper Pin Function Status
N.B. Termination Resistors / Loopback alteration available for models shown only. Please
do not remove jumpers on other Models to avoid malfunction.
Setting Jumper
Un-Plugged
Jumper
Plugged OFF (Default)
Setting Jumper
Plugged Jumper UN-Plugged ON

USB to RS-422 / RS-485 Adapter
Windows OS Installation Guide
Driver can be installed through Windows Update automatically (Internet connection needed)
The FTDI drivers that have passed the WHQL tests are available for download using Windows Update.
OS requirements: Windows 7/8/8.1/10 or later.
Please go below ways for easy installation.
1. You may plug the device into host computer. And then it will pop up ‘Installing device driver software’ from
the taskbar of the screen. (Fig. 1) Click and connect to the Windows Update.
2. It will check your computer OS and download the applicable driver at the Windows Update automatically.
Fig. 1
3. The program goes ‘Searching Windows Update’ from ‘Driver Software Installation’. (Fig. 2)
Fig. 2
4. When the applicable driver is detected, it will run ‘Installing device driver software’. (Fig. 3)
Fig. 3
5. Then it shows ‘USB Serial Port (COM8) installed’. Click ‘Close’ and go next step. (Fig. 4)
9

USB to RS-422 / RS-485 Adapter
10
.
Fig. 4
6. OM8)
controllers’. (Fig. 5) Congratulation! You have finished installing the USB to Serial device successfully.
Check ‘Device Manager’ of Control Panel from the computer OS and there shows USB Serial Port (C
under ‘Ports (COM & LPT)’; the other one shows USB Serial Converter under ‘Universal Serial Bus
Fig. 5
is busy on access databank of Microsoft’s Support link. Please try again or install driver of CD-ROM
3. Check your computer configuration if it is disabled on Windows Update wizard.
NOTE: It may occur when driver is not installed successfully, please check below steps.
1. There
provided.
2. Check your internet if it is failed to access Microsoft’s Support link.

USB to RS-422 / RS-485 Adapter
11
river Installation thru the FTDI Driver Package
river can be installed through the FTDI driver package of the CD-ROM provided.
1. Double click ‘Setup_v2.12.00 WHQL Certified For Windows OS_x86.x64.exe’
D
D
2. It will pop up ‘FTDI CDM Drivers’ from the screen. Click ‘Extract’ and go next step.

USB to RS-422 / RS-485 Adapter
12
3. Extracting Files
4. Click ‘Next’ to continue.

USB to RS-422 / RS-485 Adapter
13

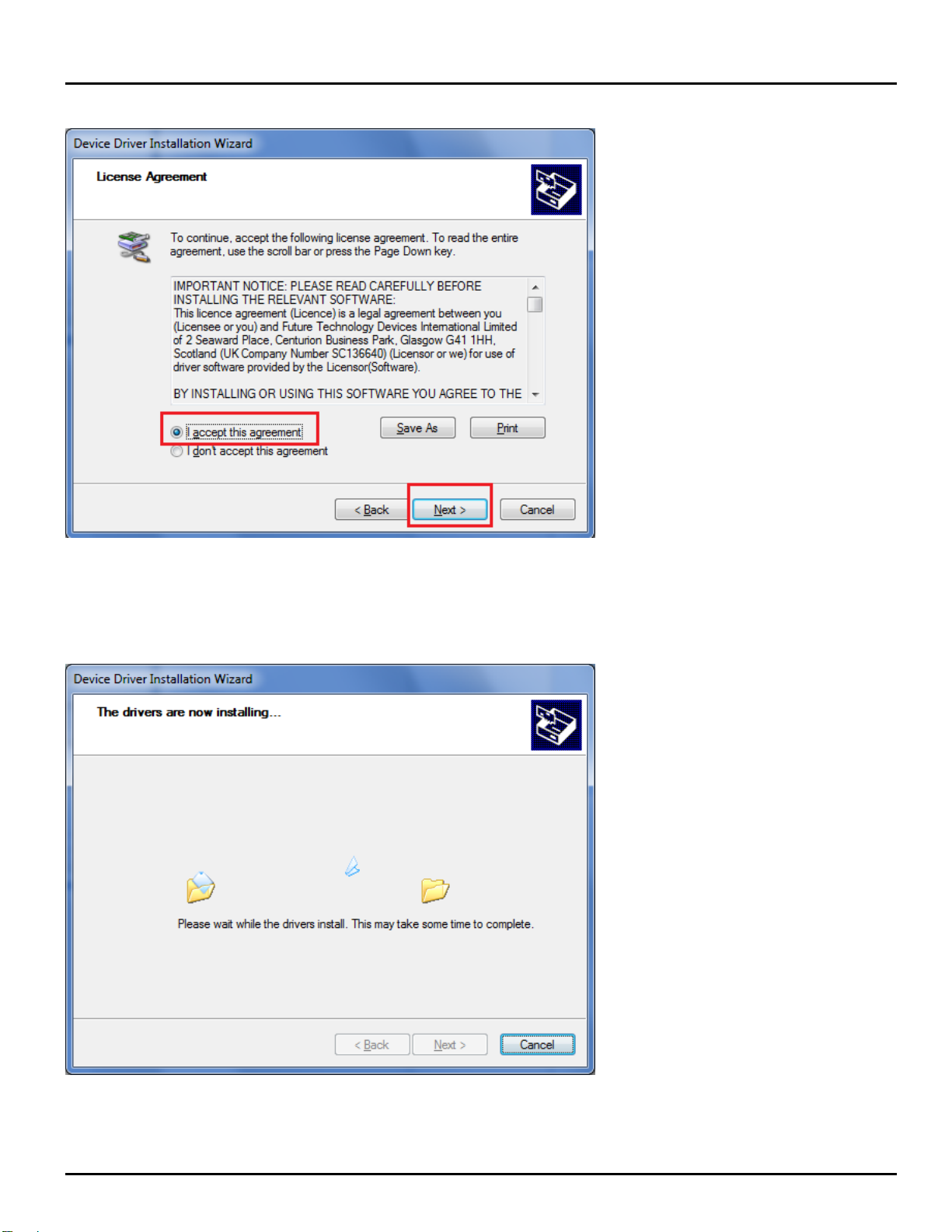

5. Select ‘I accept this agreement’ and click ‘Next’.
6. The Device Driver Installation Wizard will detect your computer OS and install the applicable driver
automatically.

USB to RS-422 / RS-485 Adapter
14
7. While the Device Driver Installation Wizard is completing, click ‘Finish’ to exit.
Windows 98SE Installation Guide
If a device of the same type has been installed on your machine before and the drivers that are about to be
stalled are different from those installed already, the original drivers need to be uninstalled. Please refer to
ownload the latest available drivers from the FTDI website and unzip them to a location on your
d New
Hardware Wizard. Windows may display a message reading "Building driver database" at this point
which may take a few minutes to pass. Click "Next" to proceed with the installation.
in
the uninstalling instruction.
D
PC.
Connect the device to a spare USB port on your PC. This will launch the Windows Ad

USB to RS-422 / RS-485 Adapter
15
elect "Search for the best driver for your device. (Recommended)." as shown below and then click "Next". S
· locate the driver files. Once the files have been located, click "Next" to proceed with the installation. Check the box next to "Specify a location" and uncheck all others as shown below. Click "Browse" and

USB to RS-422 / RS-485 Adapter
Windows may display a message reading "Building driver database" at this point which may take a
few minutes to pass. Once Windows has found the required files, click "Next" to install the device.
If the driver being installed does not have Microsoft WHQL signature files (.CAT files), the wizard will request
a driver disk to attempt to find them. Click "OK" on the "Insert Disk" message box.
The following window will appear to assist in locating the file. To proceed with the installation without
the .CAT file, click "Skip File".
If the driver being installed is Microsoft WHQL certified, then the .CAT files will be located with the
16

USB to RS-422 / RS-485 Adapter
other driver files and should be installed automatically.
Windows should then display a message indicating that the installation of the serial converter driver
was successful. The COM port emulation driver must now be installed. Click "Finish" to complete
the installation of the serial converter and proceed to the COM port emulation driver.
Under Windows 98SE, the COM port emulation driver will be automatically installed from the same location
as the serial converter driver. However, if the driver is not WHQL certified as explained above for the serial
converter driver, the wizard will ask for the location of .CAT files. Click "OK" on the "Insert Disk" message
box.
The following window will appear to assist in locating the file. To proceed with the installation without
the .CAT file, click "Skip File".
17

USB to RS-422 / RS-485 Adapter
If the driver being installed is Microsoft WHQL certified, then the .CAT files will be located with the other
driver files and should be installed automatically.
Open the Device Manager (located in "Control Panel\System" then select the ""Device Manger" tab) and
select "View devices by type". The device appears as an additional COM port with the label "USB Serial
Port".
Please note:
1. For multiple-port converter, each port has to be installed with the driver individually, i.e.
you have to repeat this installation procedure 2 times (2-port converter) or 4 times (for
4-port converter).
2. If you have any
difficulties with the drivers we provided in this CD, you may download
the updated or appropriate versions from FTDI Web site
www.ftdichip.com/Drivers/VCP.htm, supported device “FT232BL(M)”.
18

USB to RS-422 / RS-485 Adapter
Uninstalling Instruction
To uninstall drivers, follow the instructions below:
Disconnect any devices that are attached to the PC.
Open the Add/Remove Programs utility located in "Control Panel\Add/Remove Programs". Select "FTDI
USB-Serial Converter Drivers" from the list of installed programs.
Click the "Add/Remove" button. This will run the FTDI uninstaller program. Click "Continue" to run the
uninstaller or "Cancel" to exit.
19
