Tina 3A/3Aps Adapter unit
Product Manual

2TLC172125M0201 Rev.F 2
Read and understand this document
Please read and understand this document before using the products. Please consult ABB
with any questions or comments.
Suitability for use
ABB shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of products in the customer’s application or use of the product.
Third party certificates for the products are available at https://new.abb.com/low-
voltage/products/safety-products. This information by itself is not sufficient for a complete
determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be
given. This is not intended to be an exhaustive list of all possible uses of the products, nor is
it intended to imply that the uses listed may be suitable for the products:
•Outdoor use, uses involving potential chemical contamination or electrical
interference, or conditions or uses not described in this document.
•Nuclear energy control systems, combustion systems, railroad systems, aviation
systems, medical equipment, amusement machines, vehicles, and installations
subject to separate industry or government regulations.
•Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE ABB PRODUCT IS PROPERLY RATED AND INSTALLED FOR
THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
Descriptions and examples show how the product works and can be used. It does not mean
that it fulfills the requirements for all types of machines and processes. The buyer/user is
responsible for installing and using the product according to applicable standards and
regulations. We reserve the right to make changes to the product and the documentation
without prior notice.

2TLC172125M0201 Rev.F 3
Table of Contents
1Introduction ............................................................................................................................... 4
1.1 Purpose of document ................................................................................................................ 4
1.2 Intended audience...................................................................................................................... 4
1.3 Reading prerequisites................................................................................................................ 4
1.4 Special notes................................................................................................................................ 4
2Safety ...........................................................................................................................................5
2.1 Safety precautions ......................................................................................................................5
3Product description................................................................................................................... 6
4Installation...................................................................................................................................7
4.1 Installation precautions .............................................................................................................7
4.2 Testing safety functions ............................................................................................................7
5Connections ............................................................................................................................... 8
5.1 Connection examples ................................................................................................................ 9
6Functions ...................................................................................................................................10
6.1 LED Indications ..........................................................................................................................10
6.2 Information output signal attributes....................................................................................10
7Maintenance .............................................................................................................................. 11
7.1 Maintenance precautions ........................................................................................................ 11
8Troubleshooting .......................................................................................................................12
8.1 LED indications ..........................................................................................................................12

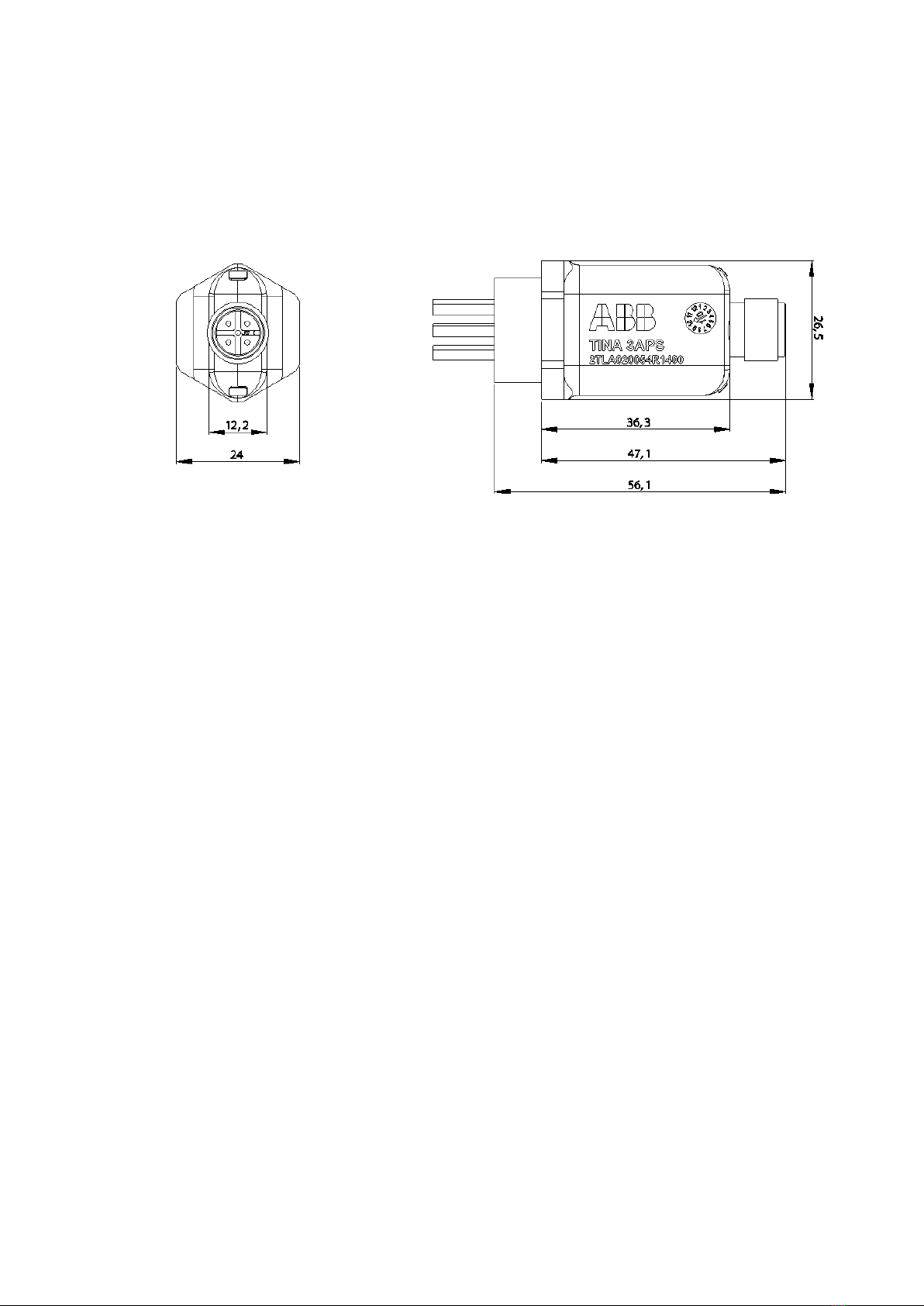

9Dimensions................................................................................................................................13
10 Technical data ...........................................................................................................................14

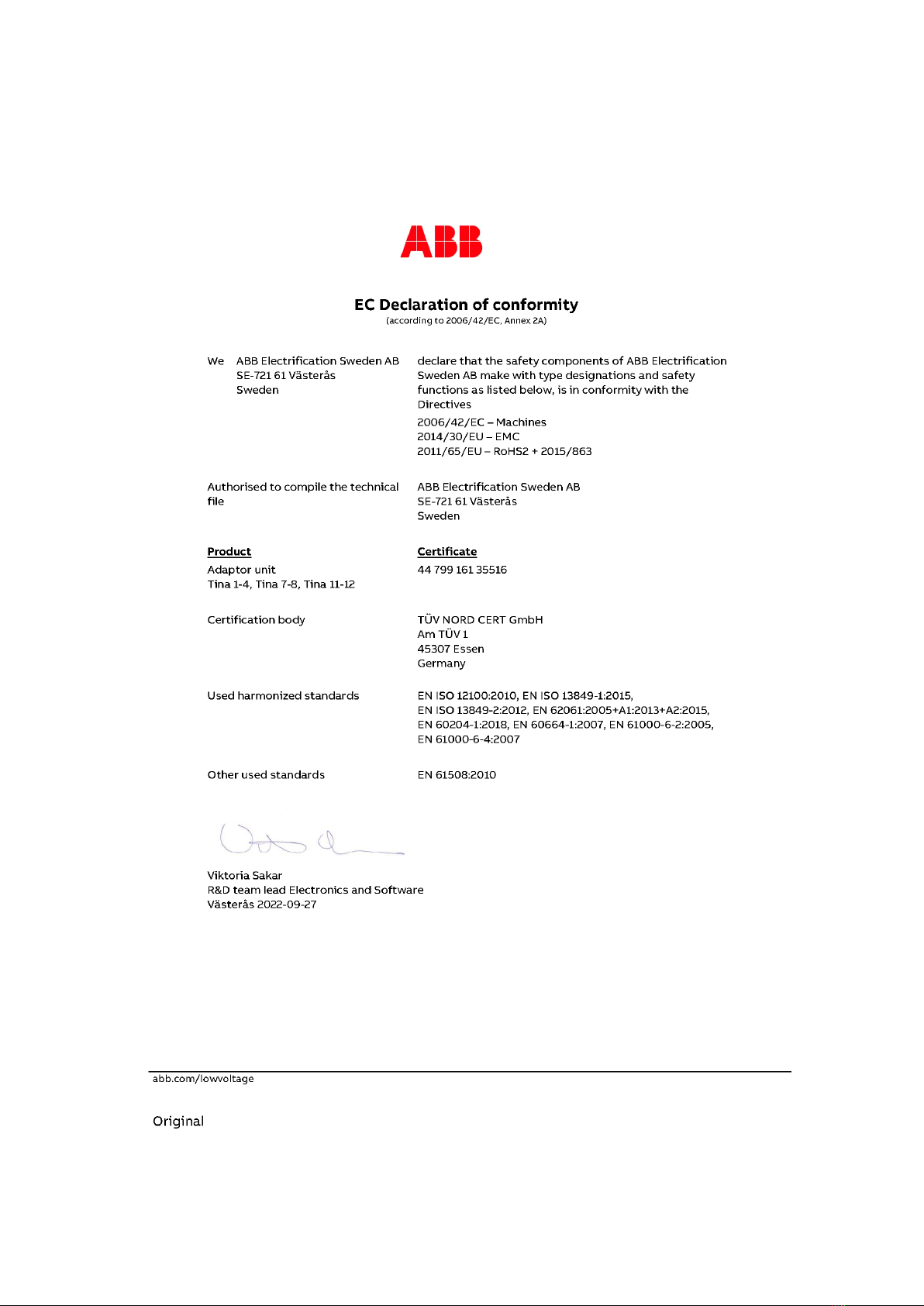

11 Declaration of conformity .......................................................................................................16

2TLC172125M0201 Rev.F 4
1Introduction
1.1 Purpose of document
The purpose of this document is to describe the functions and to provide instructions for
installation, operation, maintenance and troubleshooting of the product.
1.2 Intended audience
This document is intended for authorized personnel.
1.3 Reading prerequisites
It is assumed that the reader of this document has knowledge of the following:
•Basic knowledge of ABB safety products
•Knowledge of machine safety
1.4 Special notes
Pay attention to special notes in the document:
Warning!
Risk of severe personal injury!
An instruction or procedure which, if not carried out correctly, may result in
injury to the technician or other personnel.
Caution!
Risk of damage to the equipment!
An instruction or procedure which, if not carried out correctly, may damage
the equipment.
Note!
Important or explanatory information.

2TLC172125M0201 Rev.F 5
2Safety
2.1 Safety precautions
The safety precautions must be followed during installation, operation, maintenance and
troubleshooting.
It is the responsibility of the user to ensure the correct overall functionality.
Warning!
Carefully read through the entire product manual before using the device.
Warning!
The devices shall be installed by authorized personnel following applicable
Safety regulations, standards and the Machinery directive.
Warning!
Failure to comply with instructions, operation that is not in accordance
with the use prescribed in the instructions, improper installation or
handling of the device can affect the safety of people and the plant.
Warning!
For installation and prescribed use of the product, the special notes in the
instructions must be carefully observed and the technical standards
relevant to the application must be considered.
Warning!
In case of failure to comply with the instructions or standards, especially
when tampering with and/or modifying the
product, any liability is
excluded.

2TLC172125M0201 Rev.F 6
3Product description
Tina 3A and Tina 3Aps are used to adapt safety devices with mechanical contacts to the
DYNlink safety circuit monitored by a safety controller or a safety PLC. Examples of such
safety devices are emergency stops and switches or light curtains and light beams with
internal relay outputs.
Tina 3A is intended for safety devices prepared with a M20 entry. This allows easy installation
of the adapter unit within the physical enclosure of the safety device while keeping the status
LED visible on the outside of the housing.
Tina 3A/3Aps is equipped with a LED for visual status information of the safety device and
the DYNlink safety circuit.
Tina 3A is also equipped with a M12 5-pole connector for easy connection to the DYNlink
safety circuit.
Tina 3Aps is identical to Tina 3A but also equipped with two additional connection cables for
external power supply.
The Tina 3A/Tina 3Aps adapter unit is intended for use in safety circuits in accordance with
EN 60204-1.

2TLC172125M0201 Rev.F 7
4Installation
•The Tina unit shall be attached to the M20 entry before the safety loops are connected to
the device.
•See max. tightening torques in chapter “Technical data”.
4.1 Installation precautions
Warning!
To maintain highest safety level and reduce risk of electrical interference the
unit
shall be installed within the same physical encapsulation as the safety
device.
Warning!
The safety loop cables (safety loop A and B) shall be as short as possible
(max. 300 mm), as longer cables increase the risk for electrical interference.
Warning!
All safety functions
shall be tested before starting up the system.
4.2 Testing safety functions
After each step the status of the input can be read on the monitoring device.
Steps for testing
LED indication
DYNlink signal output
1. Interrupt the DYNlink safety
circuit before the unit to be
tested
Green/red flashing
Shall go low
2
. Close the DYNlink safety
circuit
Green
Shall
generate a DYNlink
signal
3. Interrupt safety loop A
and/or B
Red
Shall go low

2TLC172125M0201 Rev.F 8
5Connections
Connection cables
to mechanical contacts and power supply (Tina 3Aps only)
Brown
+24 VDC (Tina 3Aps only)
Blue
0 VDC (Tina 3Aps only)
Green
Safety loop A1-A2
Orange
Safety loop B1-B2
M12 5-pole male connector, A-coded
to DYNlink safety circuit
1
Brown
+24 VDC
2
White
DYNlink signal input
3
Blue
0 VDC
4
Black
DYNlink signal output
5
Grey
Information output
Note!
See connection cable cross section area and cable length in chapter
'Technical data/General'.
Caution!
All cable colors according to ABB standard cables
.
Warning!
Information output signals
shall
never
be used for safety purpose(s).
Warning!
The connection cables are not monitored and shall therefore be installed
within the same physical enclosure as the safety device to maintain the
highest safety level (fault exclusion, refer to EN ISO 13849-2:2012, Annex D).
Warning!
The safety loops shall not be used for purposes other than intended. All
tampering with safety loops can lead to serious risk to life.
Brown
Blue
Green (x2)
Orange (x2)
Tina 3Aps
only
M12 5-pole male connector

2TLC172125M0201 Rev.F 9

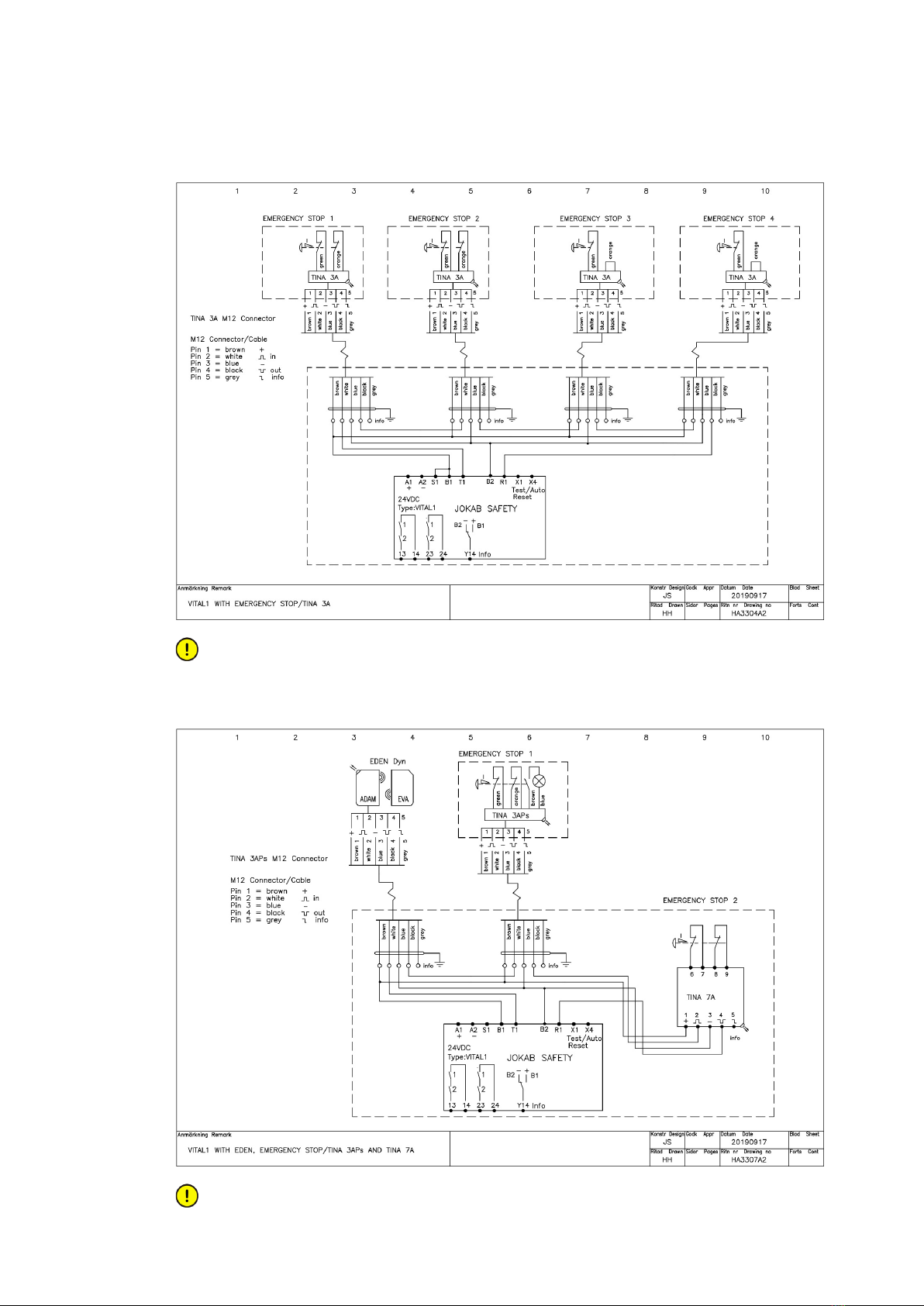

5.1 Connection examples
Tina 3A
Caution!
All cable colors according to ABB standard cables.
Tina 3Aps
Caution!
All cable colors according to ABB standard cables
.

2TLC172125M0201 Rev.F 10
6Functions
6.1 LED Indications
LED indication
Description
DYNlink state
Green
DYNlink input signal,
both safety
loops closed
OK
Green/red flashing
DYNlink input open or 0 VDC,
both safety loops closed
Interrupted before this
unit
Red
One or both safety loops open
Interrupted in this unit
6.2 Information output signal attributes
The information output of the unit is set depending on the state of the internal safety loop
A/B:
Safety loops (A and B)
Information output
One or both safety loops open
Low
Both safety loops closed
High
The delay for switching the information output signal:
Information output signal switch
High -> Low
Low -> High
Delay
~ 60 ms
~ 10 ms
Note!
If any of the safety loops are open longer than 70 ms the information
output is set low for approximately 1.2
s. If any of the safety loops stay open
the information output stays low. If any of the safety loops are open
for less
than 50 ms the information output will stay high.
Warning!
Information output signals
shall
never
be used for safety purpose(s).

2TLC172125M0201 Rev.F 11
7Maintenance
Maintenance shall be done in accordance with a risk assessment for the individual
application.
7.1 Maintenance precautions
Warning!
The safety functions and the mechanics shall be tested regularly
, at least once
every year to confirm that all the safety functions are working properly
(EN 62061:2005+A1:2013+A2:2015, EN ISO 13849-1:2015).
Warning!
In
case of breakdown or damage to the product, contact ABB. Do not try to
repair the product yourself since it may accidentally cause permanent
damage to the product, impairing the safety of
the device which in turn could
lead to serious injury to personnel.

2TLC172125M0201 Rev.F 12
8Troubleshooting
8.1 LED indications
LED indication
Probable cause
Action
Red
Device pushed/opened
Check status of the device.
Bad connection between
loops (
A and/or B) and
device terminals
Check terminals and fasten them
carefully
.
+24 VDC connected to
DYNlink signal input
Check if there is +24 VDC on
DYNlink signal input. If yes, check
cable connections or the unit
before.
No LED
light
Loss of power supply
Check
+24 VDC / 0 VDC power
supply.
Green (but no DYNlink
output detected)
Defective DYNlink signal
input to unit
Check the DYNlink input or the unit
before.
Weak lights
Unit is defective
Replace the unit.

2TLC172125M0201 Rev.F 13
9Dimensions
All dimensions are in mm.
Tina 3A/Tina 3Aps

2TLC172125M0201 Rev.F 14
10 Technical data
Further information about the product and accessories is found at:
new.abb.com/low-voltage/products/safety-products
Stated technical data apply when power supply voltage is +24 VDC and ambient temperature
is +25 °C, unless stated otherwise.
Manufacturer
Address
ABB
Electrification Sweden AB
SE
-721 61 Västerås
Sweden
Order code/Ordering data
2TLA020054R0200: Tina 3A Adapter 2 contacts M12-5
2TLA020054R1400: Tina 3Aps Adapter 2 contacts
+
supply M12
-5
Power supply
Required power supply type
PELV/SELV, n
ot intended to be connected to a DC
distribution network.
Note:
A DC distribution network is defined in
IEC
61326-3-1:2017 as “Local DC electricity supply
network in the infrastructure of a certain site or
building intended for connection of any type of
equipment”.
Operating voltage
+24 VDC +15 %, -25 %
Total c
urrent consumption
Maximum: 35 mA
RMS
Note:
Total current consumption is the supply current when there is no information
output current, no current on Tina 3 Aps power output. Valid over the operating voltage
and ambient temperature range.
DYNlink signal
DYNlink Input signal voltage
Minimum: 8 V
RMS
Maximum: 15 VRMS
DYNlink
Output signal voltage
Minimum: 8 V
RMS
Maximum: 15 VRMS
Note:
The purpose of stating the voltage in RMS is to facilitate the measurement of the
square-wave DYNlink signal with a multimeter.
Time delay
between DYNlink
input and output signal (TDELAY)
Maximum: 70 µ
s
Information output
Output voltage high
low
Nominal: Operating voltage
- 2 VDC
Maximum: 2 VDC
Output current
Maximum: 10 mA
Safety loop output
Current through safety device
contacts
Closed, nominal: 2
mARMS
Wetting, nominal: 12
mA for 700 µs after closing
contact
Short circuit current between
contacts
Nominal: 12
mA
Loop resistance
Closed, maximum: 500
Ω
Open, minimum: 20 kΩ

2TLC172125M0201 Rev.F 15
Power output (Tina 3Aps only)
Source current
Maximum: 1 A
General
Protection class
IP67
Ambient temperature
Operation:
-10 to +55 °C
Storage: -30 to +70 °C
Humidity range
35 to 85 % (with no icing or condensation)
Housing material
TPU
Connectors
M12 5
-pole male connector
Cables
Conductor
cross section area: 0.34 mm2 (AWG 22)
Length: 300 mm
Insulation: PVC
Conductor material: Tinned stranded copper
Tightening
torque
M12 connector: 0.6 Nm
M20 nut: 2-2.3 Nm
Size (L x W x H)
56 x 27 x 24 mm
Weight
~ 30 g
Color
Black
Directives / Harmonized standards
Conformity
European Machinery Directive 2006/42/EC
EN ISO 12100:2010
EN 62061:2005+Cor.:2010+A1:2013+A2:2015
EN ISO 13849
-1:2015
EN 60204-1:2018
IEC/EN 61508-1…7
SIL3, PFHD = 4.50·10-9
EN 62061
SIL3
EN ISO 13849-1
PL e, category 4
Certificates
TÜV Nord, cCSAus
Information for use in USA/Canada
Pollution degree
2
Altitude
2000 m (max)
Humidity
80% max for temperatures up to 31 °C
Indoor use statement
For indoor use
only

2TLC172125M0201 Rev.F 16
11 Declaration of conformity
EC Declaration of conformity

2TLC172125M0201 Rev.F 17
UK Declaration of conformity
