La Cornue G RAND PALAIS 180 User manual

RANGES & COOKTOPS
« Centenaire »
GRAND PALAIS 180
CHÂTEAU 165
CHÂTEAU 150
CHÂTEAU 120
CHÂTEAU 90
CHÂTEAU 75
Installation, operation
and maintenance
manual
CHÂTEAU SERIES
La Cornue 1908
La Cornue
2008
1908
ANSI/CGA Standard
Designation
85KJ

Read all instructions before using this appliance. Save these instructions for future reference.
Page 1
LA CORNUE Installation Guide Château Series Centenaire
08NOTINSTAL100/USA-5
November 2011 Anna Kowalczyk
USA & CANADA
— Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
— Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING: IF THE INFORMATION ON THIS
MANUAL IS NOT FOLLOWED EXACTLY, AFIRE, ELEC-
TRIC SHOCK OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
CAUTION
DO NOT STORE ITEMS OF INTEREST TO CHILDREN IN CABINETS ABOVE A RANGE
OR ON THE BACKGUARD OF A RANGE - CHILDREN CLIMBING ON THE RANGE TO
REACH ITEMS COULD BE SERIOUSLY INJURED.
WARNING
(Only for the models
Château 90 & Château 75)
THE ANTI-TIP DEVICE SUPPLIED
WITH THE RANGES CHATEAU 90 &
CHATEAU 75 MUST BE CORRECTLY
FITTED WHEN THE APPLIANCE IS
INSTALLED. THIS WILL REDUCE
RISK OF TIPPING OF THE APPLIAN-
CE FROM ABNORMAL USAGE OR
BY EXCESSIVE LOADING OF THE
OVEN DOOR.
IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.
Page 2LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
IMPORTANT SAFETY INSTRUCTIONS
uProper Installation - Be sure your appliance is properly instal-
led and grounded by a qualified technician.
The installation of your La Cornue appliance must conform with
local codes or, in the absence of local codes, in the USA with the
"National Fuel Gas Code", ANSI Z223.1NFPA 54, latest edition, and,
in Canada, with CAN/CGA - B149.1, and CAN CGA - B149.2,
"Installation Code for Gas Burning Appliances".
The appliance must be electrically installed and grounded in
accordance with local codes or in the absence of such codes with the
latest edition of the "National Electrical Code", ANSI/NFPA 70 in the
USA, and CSA C22.2 "Canadian Electrical Code” - in Canada.
Important - Save the installation instructions for the local electrical
inspector’s use.
In The Commonwealth Of Massachusetts
This product must be installed by a licensed plumber or gas fitter
when installed within the Commonwealth of Massachusetts.
A “T” handle type manual gas valve must be installed in the gas
supply line to this appliance.
WARNING: NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with materials such
as aluminum foil. Doing so blocks airflow through the oven
and may cause carbon monoxide poisoning. Do not use alu-
minum foil to line surface unit drip bowls or oven bottoms, except
as suggested in the manual. Improper installation of these liners
may result in a risk of electric shock, or fire.
WARNING: NEVER use this appliance as a space heater
to heat or warm the room. Doing so may result in carbon
monoxide poisoning and overheating of the oven
This book contains many important safety messages.
Always read and obey all safety messages.
Installer: Leave these instructions with the appliance

Read all instructions before using this appliance. Save these instructions for future reference.
Page 3
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they have been given supervision or ins-
truction concerning use of the appliance by a person responsible for
their safety.
All our cooking appliances are intended for domestic use only; i.e., not
professional. In the event of non-domestic use, the manufacturer shall
not incur any liability, and the warranty shall be considered void.
USA & CANADA
IMPORTANT SAFETY INSTRUCTIONS
In Case of Fire
Do not use water on grease fires. Never pick up a flaming
pan. Turn the controls off. Smother a flaming pan on a
cooktop burner by covering the pan completely with a well fitting
lid or baking tray. If available use a multipurpose dry chemical or
foam-type fire extinguisher.
If fire is in an oven pan, smother by closing oven door. Open doors
and windows or if a hood is fitted turn it on to remove smoke and
odor.
To Prevent Fire or Smoke Damage
Before using the range make sure all the packing materials have
been removed. Always keep the area around the range free from
combustible materials, gasoline, and other flammable vapors and
liquids.
If the range is installed near a window, proper precautions should
be taken to prevent curtains from blowing over the burners.
NEVER leave any items on the range cooktop. The hot air from
an oven vent may ignite flammable items and may increase pressu-
re in closed containers, which may cause them to burst. Many aero-
sol-type spray cans are EXPLOSIVE when exposed to heat and may
be highly flammable. Avoid their use or storage near an appliance.
Many plastics will burn and most are damaged by heat. Keep plas-
tic items away from parts of the range that may become warm or
hot. Do not leave plastic items on the cooktop as they may burn,
melt or soften if left too close to a vent or a lighted burner

Read all instructions before using this appliance. Save these instructions for future reference.
Page 4LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
uPurchaser of this appliance must post in a prominent location instructions to
be followed in the event the user smells gas. This information shall be obtai-
ned by consulting your local gas supply company.
uKeep appliance area free and clear from combustibles.
uIt is essential that the kitchen where your appliance will be installed has
excellent ventilation to the outside for steam and combustion gases removal.
uVENTILATING HOODS:
- Clean Ventilating Hoods Frequently - Grease should not be allowed to
accumulate on hood or filter.
- When flaming foods under the hood, turn the fan on.
uDo not use air recycling systems.
u“La Cornue” can provide customers with hoods in materials matching the
appliance. The hoods are sold without blower systems since every installation
is unique. The individual requirements are best handled by a professional
ventilation specialist.
uAdequate clearance must be provided for air openings into the combustion
chamber.

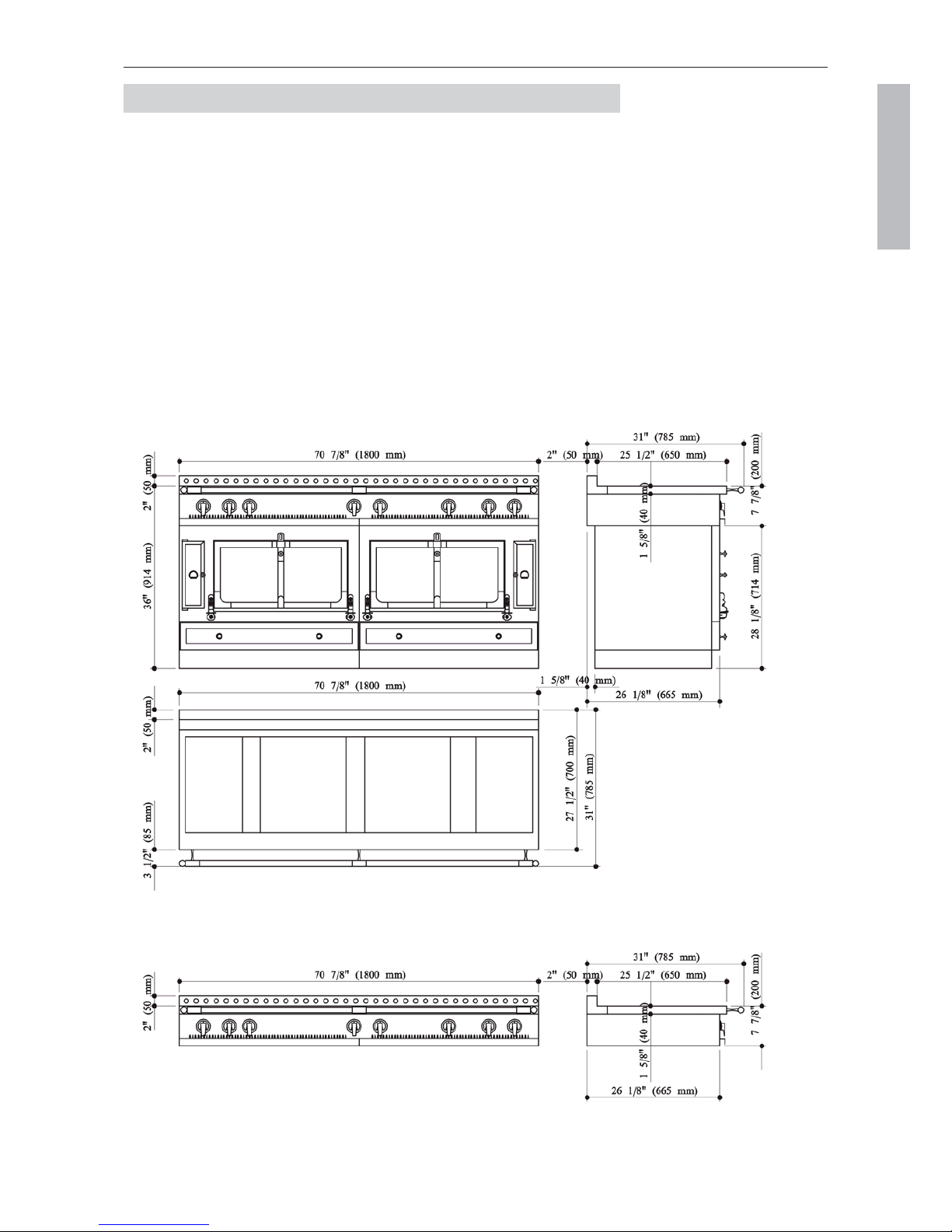

uMinimum clearances to combustible construction see item 1.2. page 35.
uAdequate clearance must be provided for proper operation and servicing of
the appliance.
uA manual valve must be installed in an accessible location in the gas piping
external to the appliance for the purpose of turning on or shutting off gas to
the appliance.
uThe range and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5 kPa).
uThe appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.
Page 5
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
uLeak testing of the appliance shall be conducted according to the
manufacturer’s instructions.

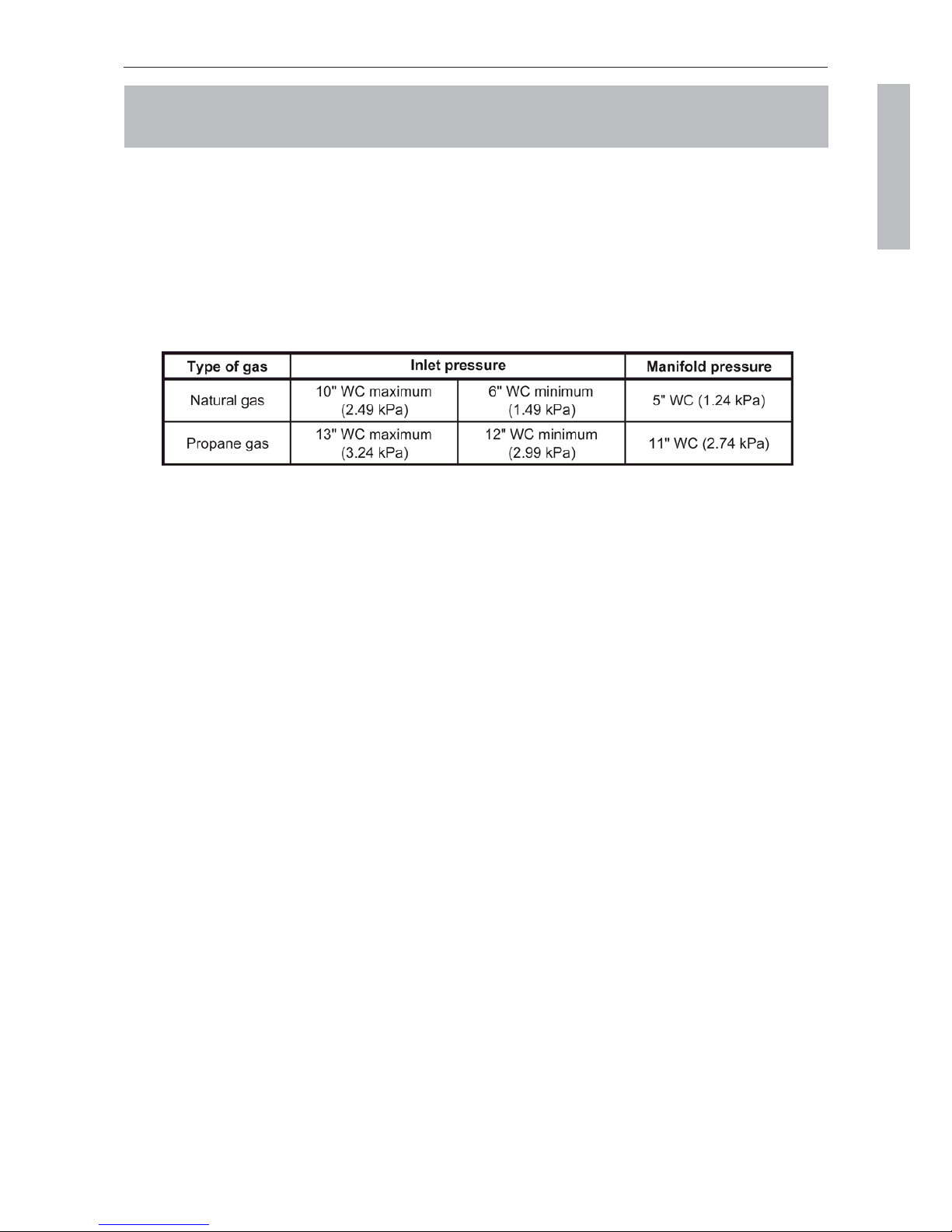

uThe inlet gas supply pressure to the appliance must be within the following limits:
uKeep this manual for future reference.
uDo Not Leave Children Alone - Children should not be left alone or
unattended in area where appliance is in use. They should never be allo-
wed to sit or stand on any part of the appliance.
Do not allow children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting in serious
burns or other injury.
Teach them not to play with controls or any other part of the range.
Destroy the carton and plastic bags after unpacking the range. Never allow
children to play with packaging material.
uWear Proper Apparel - Loose-fitting or hanging garments should never
be worn while using the appliance.
uUser Servicing - Do not repair or replace any part of the appliance
unless specifically recommended in the manual. All other servicing should
be referred to a qualified technician.
uUse Proper Pan Size - This appliance is equipped with more surface
units of different size. Select utensils having flat bottoms large enough to
cover the surface unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact and may result
in ignition of clothing. Proper relationship of utensil to burner will also
improve efficiency.
uThe top burner flame size should be adjusted so it does not extendbeyond the
edge of the cooking utensil. This instruction is based on safety considerations.
IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.
Page 6LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
uUse Only Dry Potholders or Oven Gloves - Moist or damp potholders
on hot surfaces may result in burns from steam. Never let a potholder
touch hot heating elements.
Do not use a towel or other bulky cloth in place of a glove. They might
catch fire if they touch a hot surface.
Use dry oven gloves when applicable - using damp gloves might result in steam
burns when you touch a hot surface. Never operate the range with wet hands.
uNever Leave Surface Units Unattended at High Heat Settings -
Boilover causes smoking and greasy spillovers that may ignite.
uMake Sure Reflector Pans or Drip Bowls Are in Place - Absence of
these pans or bowls during cooking may subject wiring or components
underneath to damage.
uGlazed Cooking Utensils - Only certain types of glass, glass/ceramic,
ceramic, earthenware, or other glazed utensils are suitable for range-top
service without breaking due to the sudden change in temperature.
uUtensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Units - To reduce the risk of burns, ignition of flam-
mable materials, and spillage due to unintentional contact with the uten-
sil, the handle of a utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
uDEEP FAT FRYERS: Use extreme caution when moving the grease kett-
le or disposing of hot grease.
uDo Not Soak Removable Heating Elements - Heating elements
should never be immersed in water.
uUse Care When Opening Oven Door - Let hot air or steam escape
before removing or replacing food.
uDo Not Heat Unopened food Containers - Build-up of pressure may
cause container to burst and result in injury.
uDo not use the oven for storage - This instruction is based on safety
considerations. Flammable materials should not be stored in an oven, the
range storage drawer or near the cooktop burners. This includes paper,
plastic and cloth items, such as cookbooks, plasticware and towels, as well
as flammable liquids. Do not store explosives, such as aerosol cans, on or
IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.
Page 7
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
IMPORTANT SAFETY INSTRUCTIONS
near the appliance.
Flammable materials may explode and result in fire or property damage.
uKeep oven vent ducts unobstructed.
uPlacement of Oven Racks - Always place oven racks in desired location
while oven is cool. If rack must be moved while oven is hot, do not let
potholder contact hot heating element in oven.
uTo avoid personal injury, do not sit, stand or lean on oven doors or
drawer.
Leaning, sitting or stepping on the doors or drawer of this range can result
in serious injuries and also cause damage to the range. Do not allow anyo-
ne to climb, stand or hang on any part of the range.
uWear Suitable Clothing - Never wear loose-fitting or hanging clothes
while using the range. Be careful when reaching for items stored in cabi-
nets over the cooktop. Flammable material could be ignited if brought in
contact with a burner flame or hot surface and may cause severe burns.
uImportant Safety Notice and Warning - The California Safe Drinking
Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the
Governor of California to publish a list of substances known to the State of
California to cause cancer or reproductive harm, and requires businesses
to warn customers of potential exposures to such substances.
This appliance contains or produces a chemical or chemicals which can
cause death or serious illness and which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Users of this appliance are hereby warned that the burning of gas can
result in low-level exposure to some of the listed substances, including
benzene, formaldehyde and soot, due primarily to the incomplete com-
bustion of natural gas or liquid petroleum (LP) fuels. Properly adjusted
burners will minimize incomplete combustion.
Exposure to these substances can also be minimized by properly venting
with an open window or using a ventilation fan or hood.
To reduce the risk from substances in the fuel or from fuel combustion
make sure this appliance is installed, operated, and maintained according
to the instructions in this booklet.
uQuality of Flames - On Natural Gas the burners’ flames should be a
blueish color with, at most, a slight yellowish fringe. On Propane gas the

Read all instructions before using this appliance. Save these instructions for future reference.
Page 8LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
flames may be “softer”. The cooktop burner flames may have a slight yel-
lowish tip.
If the flame burns with a long white tip you should call for service.
MAKE SURE THE FLOW OF COMBUSTION AND VENTILATION AIR TO
THE RANGE IS UNOBSTRUCTED.
DO NOT TOUCH SURFACE UNITS, AREAS NEAR UNITS, HEA-
TING ELEMENTS OR INTERIOR SURFACES OF OVEN - Surface
units and heating elements may be hot even though they are dark
in color. Areas near surface units and interior surfaces of an oven
may become hot enough to cause burns.
During and after use, do not touch, or let clothing or other flam-
mable materials contact surface units, areas near units, heating
elements or interior surfaces of oven until they have had sufficient
time to cool. Other surface of the appliance may become hot
enough to cause burns - among these surfaces are oven vent ope-
nings and surface near these openings, oven doors, etc.
IMPORTANT: Never keep pet birds in the kitchen or in rooms
where the fumes from the kitchen could reach. Birds have a very
sensitive respiratory system. Fumes released due to overheated
cooking oil, fat, margarine and overheated non-stick cookware
may be harmful.
You can find this manual on following web sites:
www.lacornueusa.com www.purcellmurray.com
www.lacornue.com/ca www.agamarvel.com
USA & CANADA
IMPORTANT SAFETY INSTRUCTIONS

Page 9
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
Le Château 150
Dear Customer,
Thank you for choosing the La Cornue cooking product. We hope that you will derive a lot of enjoyment
from cooking delicious meals with it.
The aim of this document is to make you familiar with the potential provided by a professional quality
product designed for discriminating individuals, and to facilitate its maintenance.
Above all, a La Cornue product is manufactured using noble and pure materials. The choices made for
some components, such as brass for the burners and cast-iron for the gas simmering plate, are the
result of criteria of technicality and professional performance, which are not attainable with other
materials or protective treatments. We are very much attached to the authenticity of our stoves and
we are convinced that you will appreciate them even more as you use them.
In order to make sure that you will be satisfied with your product for a long time, we recommend that
you follow the advice given in this manual.
Thank you for choosing us,
Kind regards, Xavier Dupuy
President

Contents CONTENTS
Page 10 LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
CONTENTS
Page
IMPORTANT SAFETY INSTRUCTIONS ............................................................. 1
DESCRIPTION ........................................................................................................... 11
1. Le Grand Palais 180 ..................................................................................... 12
2. Le Château®165 .......................................................................................... 15
3. Le Château®150 .......................................................................................... 18
4. Le Château®120 .......................................................................................... 22
5. Le Château®90 ............................................................................................ 26
6. Le Château®75 ............................................................................................ 30
INSTALLATION .......................................................................................................... 33
BEFORE DELIVERY .............................................................................................. 33
1. Safety requirements ...................................................................................... 33
2. Electrical supply ............................................................................................ 34
3. Gas supply ..................................................................................................... 34
4. Installation .................................................................................................... 34
HANDLING INSTRUCTIONS .................................................................................. 35
ASSEMBLY INSTRUCTIONS ................................................................................... 37
1. Handrail installation ..................................................................................... 37
2. Riser installation ........................................................................................... 37
3. Height adjustment ......................................................................................... 37
4. Gas chimney protection installation ............................................................. 38
CONNECTIONS .................................................................................................... 38
1. Nameplate label ............................................................................................ 39
2. Electrical connection ..................................................................................... 39
3. Gas connection .............................................................................................. 41
OPERATION .............................................................................................................. 43
1. Tests ............................................................................................................... 43
2. Starting with the ovens ................................................................................. 44
3. Starting with the cooktop elements .............................................................. 45
MAINTENANCE ......................................................................................................... 46
IMPORTANT INFORMATION .................................................................................. 46
1. Adjustment of the low flame settings ........................................................... 47
2. Fuel conversion ............................................................................................. 47
3. Converting for High Altitude ........................................................................ 49
4. Gas Pressure Regulator ................................................................................. 49
5. Replacing the oven light ............................................................................... 50
ELECTRICAL DIAGRAMS ...................................................................................... 51
1. Gas cooktop electronic ignition ..................................................................... 51
2. Electric Cooktop section ................................................................................ 52
3. Gas Oven - electronic ignition ...................................................................... 53
4. Electric Oven ................................................................................................. 54
WARRANTY .............................................................................................................. 55
ADDRESS ................................................................................................................. 56

Installation Guide Centenaire
08NOTINSTAL100/USA-5
D
DE ES SC CR RI IP PT TI IO ON N
The La Cornue “Château Centenaire” series consist of 6 models of stoves and hobs:
- Le Grand Palais 180, width 70 7/8“ (1,800 mm).
- Le Château 165, width 65“ (1,650 mm).
- Le Château 150, width 59“ (1,500 mm).
- Le Château 120, width 47 1/4“ (1,200 mm).
- Le Château 90, width 35“ (900 mm).
- Le Château 75, width 29 1/2“ (750 mm).
Refer to nameplate to determine type of gas for wich appliance is equiped.
Gas input ratings for each kind of burner (BTU/hr):
Electrical power supplied by each heating element (W):
DESCRIPTION Description
Page 11
LA CORNUE
USA & CANADA

2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 reversible gas snack griddle
2 round electric plates
2 gas burners (small burner at the rear)
2 gas hotplates
2 round electric plates
N6
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 gas lava rock grill
2 round electric plates
N4
N1
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 gas burners (small burner at the rear)
The "Le Grand Palais 180" range, one of the models of the "La Cornue" series consists of:
— 2 thermostatically-controlled large vaulted ovens, gas and electric (only ranges).
— One cooktop bounded at the rear by a stainless steel backsplash creating a gap between
the range and the wall, thus ensuring the removal of burnt gases and smells (ranges and
cooktops).
Le Grand Palais 180 DESCRIPTION
Page 12 LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
1.
1. D DESCRIPTION ESCRIPTION "L "LE EG GRAND RAND P PALAIS ALAIS 180" 180"
HOB CONFIGURATIONS
2 gas burners (small burner at the rear)
2 gas hotplates
2 gas burners (small burner at the rear)
N0
NC
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 round electric plates
NM

Ranges Cooktops
— Appliance height: 36” (914 mm) 7 7/8” (200 mm)
— Height with backsplash: 38” (964 mm) 9 7/8” (250 mm)
— Width: 70 7/8” (1,800 mm) 70 7/8” (1,800 mm)
— Weight: 280 to 320 kg, 100 to 130 kg according to the models
(617 to 705 lbs) (220 to 286 lbs)
— Depth to the wall:
- Front: 26 1/8” (665 mm)
- Rail: 31” (785 mm)
- Hob edge: 27 1/2” (700 mm)
Thickness: 1
5/8” (40 mm)
DESCRIPTION Le Grand Palais 180
Page 13
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
DIMENSIONS
Cooktop - model TGP
Range - model GPA

GAS SUPPLY INFORMATION
For each gas type and for each model, the tables below summarize the total electric power (W)
and the input ratings (BTU/hr).
Le Grand Palais 180 DESCRIPTION
Page 14 LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
ELECTRIC SUPPLY INFORMATION

DESCRIPTION Le Château®165
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 round electric plates
LM
2 gas burners (small burner at the rear)
2 gas hotplates
2 round electric plates
LC
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 reversible gas snack griddle
2 round electric plates
L6
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 gas lava rock grill
2 round electric plates
L4
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 gas burners (small burner at the rear)
L1
2 gas burners (small burner at the rear)
2 gas hotplates
2 gas burners (small burner at the rear)
L0
Page 15
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
HOB CONFIGURATIONS
The "Le Château 165" range, one of the models of the "La Cornue" series consists of:
— 2 thermostatically-controlled vaulted ovens, 1 large gas oven and 1 small electric oven
(only ranges).
— One cooktop bounded at the rear by a stainless steel backsplash creating a gap between
the range and the wall, thus ensuring the removal of burnt gases and smells (ranges and
cooktops).
2.
2. D DESCRIPTION ESCRIPTION "L "LE EC CHÂTEAU HÂTEAU®
®165"
165"

Cooktop - model THR
Range - model CHR
Ranges Cooktops
— Appliance height: 36” (914 mm) 7 7/8” (200 mm)
— Height with backsplash: 38” (964 mm) 9 7/8” (250 mm)
— Width: 65” (1,650 mm) 65” (1,650 mm)
— Weight: 260 to 290 kg, 90 to 130 kg according to the models
(573 to 639 lbs) (198 to 286 lbs)
— Depth to the wall:
- Front: 26 1/8“ (665 mm)
- Rail: 31” (785 mm)
- Hob edge: 27 1/2” (700 mm)
Thickness: 1
5/8” (40 mm)
DIMENSIONS
Le Château®165 DESCRIPTION
Page 16 LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA

DESCRIPTION Le Château®165
Page 17
LA CORNUE Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
For each gas type and for each model, the tables below summarize the total electric power (W)
and the gas input ratings (BTU/hr).
ELECTRIC SUPPLY INFORMATION
GAS SUPPLY INFORMATION

2 gas burners (small burner at the rear)
2 gas hotplates
2 round electric plates
KC
2 gas burners (small burner at the rear)
1 gas hotplate
1 gas lava rock grill
2 round electric plates
KD
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 round electric plates
KM
2 gas burners (small burner at the rear)
1 gas hotplate
1 reversible gas snack griddle
2 round electric plates
KZ
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
1 reversible gas snack griddle
K9
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 gas lava rock grill
K5
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
1 gas lava rock grill
K6
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
1 reversible gas snack griddle
K8
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner at the rear)
2 round electric plates
K3
2 gas burners (small burner at the rear)
2 gas hotplates
2 gas burners (small burner at the rear)
K0
2 gas burners (small burner at the rear)
1 gas hotplate
1 maxi burner
2 gas burners (small burner at the rear)
K1
The "Le Château 150" range, one of the models of the "La Cornue" series consists of:
— 2 thermostatically-controlled small vaulted ovens, gas and electric (only ranges).
— One cooktop bounded at the rear by a stainless steel backsplash creating a gap bet-
ween the range and the wall, thus ensuring the removal of burnt gases and smells
(ranges and cooktops).
Le Château®150 DESCRIPTION
Page 18 LA CORNUE
Installation Guide Centenaire
08NOTINSTAL100/USA-5
USA & CANADA
HOB CONFIGURATIONS
3.
3. D DESCRIPTION ESCRIPTION "L "LE EC CHÂTEAU HÂTEAU®
®150"
150"
