La Crosse Technology 617-148TXT User manual

SET UP GUIDE
MODEL NUMBER: 617-148TXT
WIRELESS CHARGING
ALARM CLOCK

Table of Contents
BASICS
OUTDOOR SENSOR
Initial Setup
Buttons
LCD Display
LCD Display Brightness
Auto-Dim
Display Modes
Display Mode Options
Use the +/- buttons on
the back of the clock to
adjust the values.
02
Initial Setup
Power Up

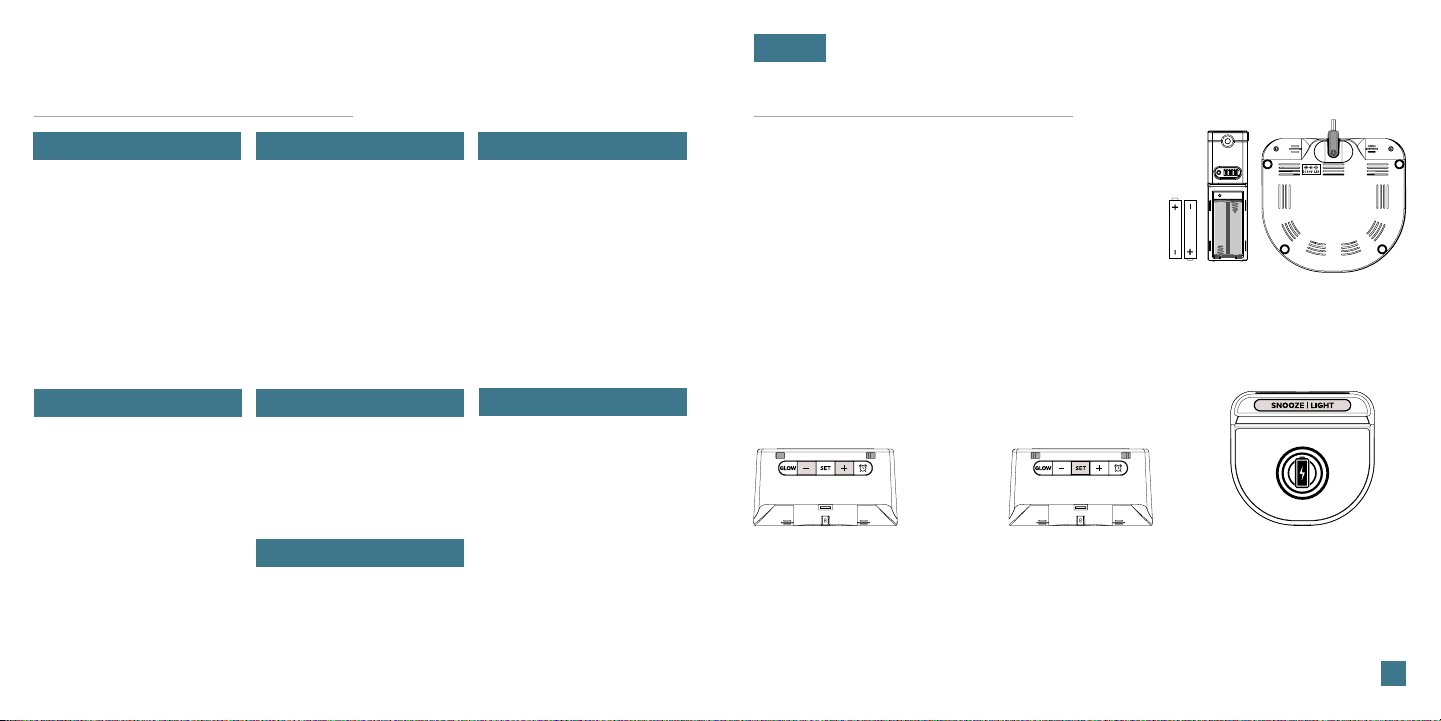

Settings Menu Order
1. Insert 2 AA batteries into your Outdoor Sensor.
2. Insert the 5V Power Adapter into an outlet, and then
into the Power Jack on the bottom of the alarm clock.
3. A greeting will appear and then bring you into your
Settings Menu. Use the instructions below to adjust your
settings.
4. Position your outdoor sensor in a shaded location.
See page 12 for details.
Note: To access the Settings Menu after this startup,
press and hold the SET button.
• Language • Hour • Minutes •Year •Month •Date
• Fahrenheit/Celsius •Thank you
Press the SNOOZE/LIGHT
button at anytime to exit.
02
03
04
04
05
05
06
APPENDIX
ALARM
Setting the Alarm
Activate/Deactivate
Snooze Duration
07
07
08
GLOW LIGHT
Glow Light Selection
Glow Light Brightness
09
09
CHARGING
BASICS
Press the SET button
to confirm selection
and move to next
step.
Language: Whichever language is selected, the following instructions and weekday
will be presented in that language.
Weekday: Weekday will set automatically after year, month, & date settings are
adjusted.
Position Outdoor Sensor
Optional Sensor Shield
Search for Outdoor Sensor
12
13
13
Specifications
Factory Reset
Warranty
Recycling & Disposal
Cautions
Care & Maintenance
Statements
14
14
16
16
16
17
17
5W Wireless Charger
Phone Compatibility
Wireless Charging FAQs
1 Amp USB Charging Port
10
10
11
12
AA
AA
Bottom View
Power Jack
SUPPORT
Support Information
Stay in Touch
15
15

03

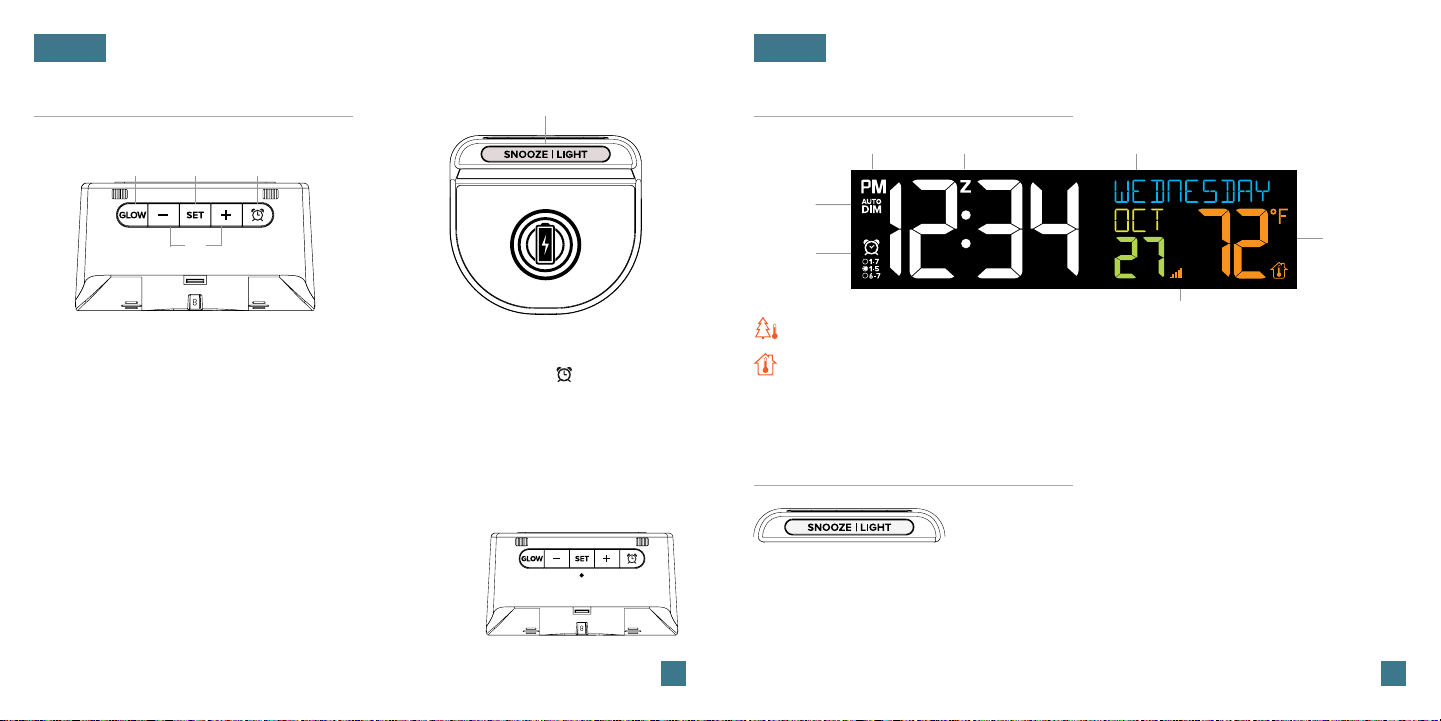

Buttons
BASICS
1. GLOW
4. PLUS/MINUS (+/-)
2. SET 3. ALARM
6. RESET
Press to change the Glow
Light color. Hold to turn Glow
Light o.
Press to activate/deactivate or
hold to enter alarm settings.
Press to increase/decrease
Glow Light Brightness. Press
to increase/decrease values in
Settings Menu, hold to change
values quickly.
Press to snooze sounding
alarm, adjust backlight, or hold
for Auto-Dim settings.
Press to change Display
Modes. Hold to enter
Settings Menu.
Top View
5
1
4
32
Back View
Press to factory reset
your clock
6
RESET
5. SNOOZE/LIGHT
04
LCD Display
BASICS
AM/PM
Indicator
Auto Dim
Indicator
Time
Alarm
Indicator
and Time
Weekday
and Calendar
Outdoor Sensor
Reception
Temperature
Snooze
Indicator
Outdoor Temperature
Indicator.
Indoor Temperature
Indicator.
LCD Display Brightness
Adjusting the LCD Display Brightness
Press the SNOOZE/LIGHT button on the top of the
clock to adjust the backlight intensity. There are 4
brightness levels, plus an o option.

05
Auto-Dim Settings
1.
2.
3.
4.
Hold the SNOOZE/LIGHT button to
enter the Auto-Dim Settings Menu.
Program your LCD display to automatically dim during preselected hour.
Press the +/- buttons to turn the
Auto-Dim feature on or o. Press
SNOOZE/LIGHT to confirm.
Press the +/- buttons to adjust the
starting hour. Press SNOOZE/LIGHT
to confirm.
Press the +/- buttons to adjust the
stopping hour. Press SNOOZE/LIGHT
to confirm and exit.
BASICS
The icon will appear on the LCD when activated.
06
Display Modes
Selecting the Display Mode
Press the SET button on the back of the clock
to select a display mode. Clock will stay on
selection.
BASICS
Display Mode Options
Time and Indoor Temperature.
Time and Outdoor Temperature.
Outdoor Temperature, Indoor
Temperature, Time is small.
Auto-Dim

07
Time Alarm

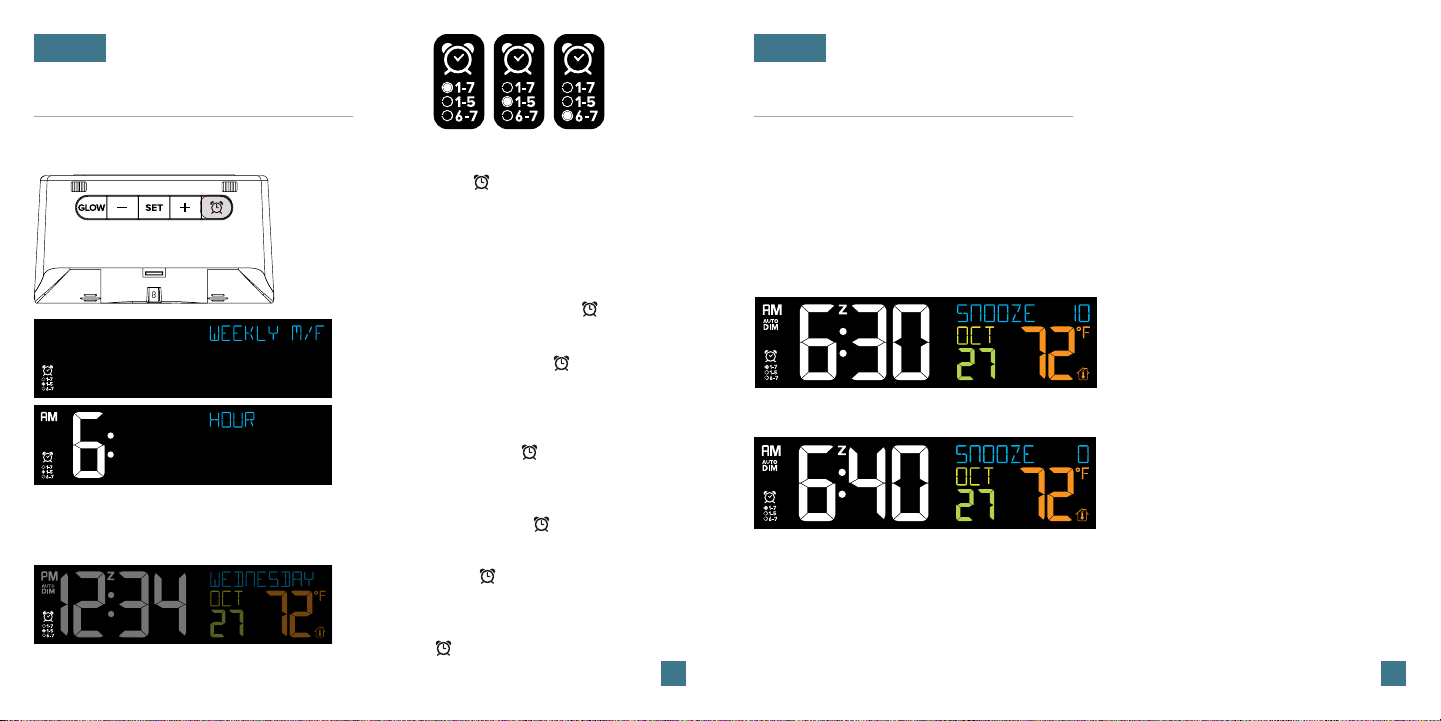

Activating & Deactivating the Alarm
Setting the Alarm
ALARM
1. Hold the button on the back
of the clock to enter the Alarm
Settings Menu.
2. Use the +/- buttons to select Daily
Alarm, Weekday M/F Alarm, or
SAT/SUN Alarm. Press to confirm.
4. Next, use the +/- buttons to set your
desired snooze duration (5 to 120
minutes). Press to confirm and
exit the Alarm Settings Menu.
Your sound alarm is now activated,
indicated by the icon on the LCD.
1.
2.
Press the button to activate/
deactivate the alarm and to view
your alarm time.
The icon will appear on the
LCD when the alarm is active.
3. Use the +/- buttons to set your
desired time. Press to confirm.
08
Time Alarm
Ascending Alarm
Snooze Duration Countdown
The alarm will increase in beep frequency over a 2-minute period.
After the 2-minute time frame, the alarm will stop if not snoozed or turned o.
ALARM
Note: The snooze feature can be repeated as many times as desired.
When your alarm sounds, Press the
SNOOZE/LIGHT button to snooze your
alarm for your preselected snooze
duration.
A countdown will appear on screen.
When the snooze time reaches “0,” the
alarm will sound again.
Set a Daily, Weekday, or Weekend only Alarm.

09
Glow Light Selection
Glow Light
1.
2.
Press the GLOW button to turn on the Glow Light and toggle
through the dierent light options.
Glow Light Color Selection Order:
Cycle | Red | Yellow | Green | Cyan | Dark Blue | Purple | White
Select Glow Light Color:
Press the GLOW button again to select an individual solid color.
When a single color is selected, it will remain on that color.
Select CYCLE to smoothly transition between all of the colors.
Glow Light Brightness
Use the +/- buttons to adjust the Glow Light brightness. It has 4
intensity levels plus an OFF option. Hold the GLOW button to turn
o the Glow Light.
10
CHARGING
5W Wireless Charger
Charging your Phone
Phone Compatibility
• Place your phone on the platform. Your
phone should sit flush and centered on
the charging pad.
• The blue Charging Indicator Light below
the LCD will be solid when your phone is
successfully charging.
• The light will flash slowly if your device is
not positioned properly or if your device is
not compatible with the wireless charging
technology. If this problem persists, try
removing any large/bulky cases.
Compatible with all Qi-Enabled devices:
• iPhone 8 or newer
• Galaxy S8 or newer
• Galaxy Note 8 or newer
Compatibility may vary based on phone model and/or case selection.
This list is not comprehensive. Please check your phone’s manual for details
regarding wireless charging capabilities.

11
CHARGING
Blue Charging
Indicator Light
Wireless Charging FAQs
Q. Why is the blue light blinking?
A. Phone is not centered on the charging pad.
A. Your phone must be Qi-Enabled to charge.
A. If the phone has a large/thick case, it may interfere with charging.
A. Foreign objects on the charging pad may make the light blink.
Q. Why is the table surface getting warm?
A. Ensure the clock is on a hard, clean surface.
A. Do not place on cloth, paper, or other items that may obstruct airflow.
A. Clear dust or other obstructions from the vents on the bottom of the clock.
Important:
Wireless charging uses magnetic induction to charge your compatible smartphone. Do not
place anything between your phone and the charging pad. Keep the charging pad clear of all
foreign objects. Magnetic mounts, magnetic cases, or other objects between your phone and
the wireless charger may reduce performance or damage magnetic strips or RFID chips found
in some credit cards, security badges, passports, and key fobs. If your phone case holds any
of these sensitive items, be sure to remove them before charging or make sure they are not
between the back of your phone and the charging pad.
12
USB Charging Port
CHARGING
There is a 1 Amp USB Charging Port located on
the right side of your alarm clock.
 Connect your external device’s USB charging
cable (not included) into the USB Charging Port.
 Charging times may vary.
 USB Power Output: 1 Amp maximum current Right View
1 Amp USB
Charging Port

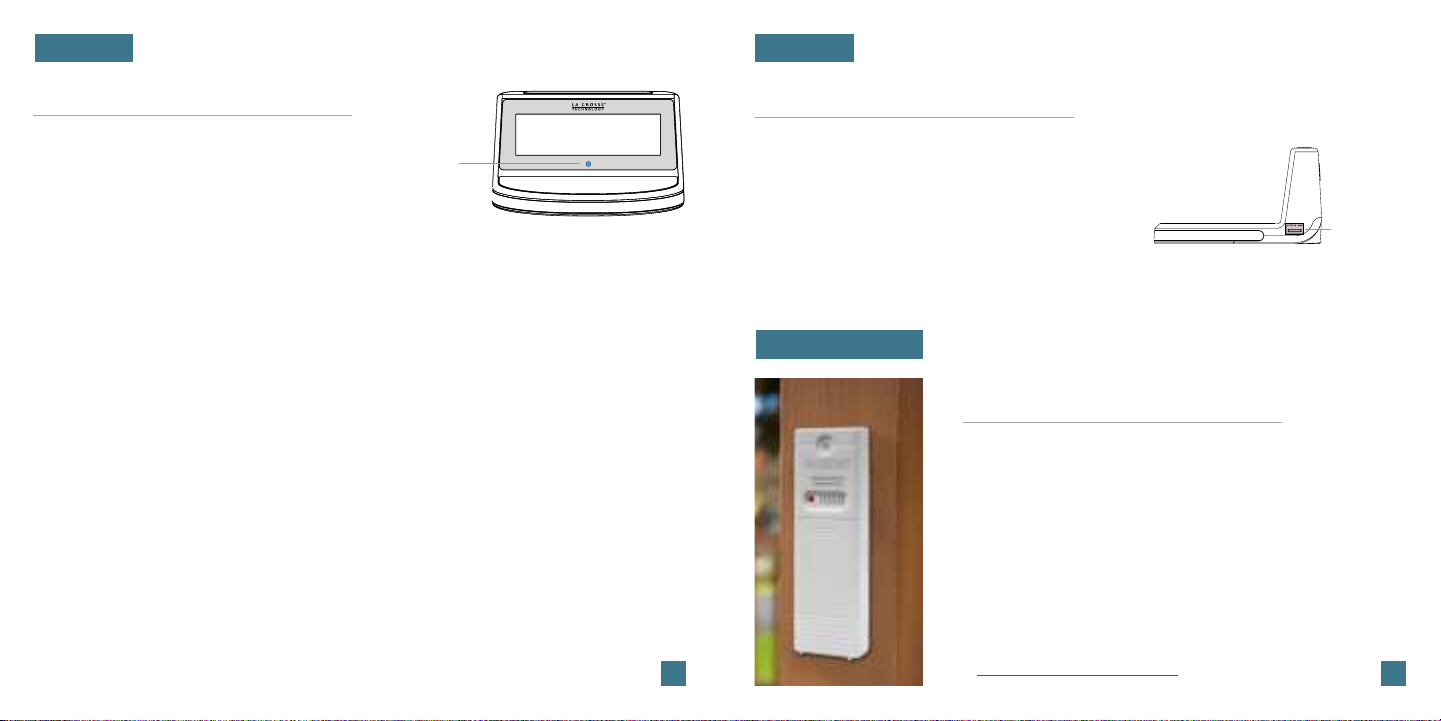

Location of your Outdoor Sensor is important for
accurate Temperature Readings.
 Mount the sensor vertically at least 6 feet o the
ground.
 Provide good airflow around the sensor.
 Direct sunlight can inflate the temperature reading, so
a north-side, shaded location is best.
 Be aware of heat sources such as sot or dryer
vents, windows or door frames.
 View our sensor mounting video here:
bit.ly/th_sensor_mounting
OUTDOOR SENSOR
Position Outdoor Sensor

OUTDOOR SENSOR
• If the sensor loses connection to the station for any reason, the station will show
NO after 30 minutes.
• The station will search for 3 minutes every hour to try and reconnect with the
sensor.
• To manually search for your outdoor sensor, hold the +button until the Reception
Icon starts to animate.
• The icon will disappear after 3 minutes if no reception is found, and NO will again
appear in the outdoor senor area.
• If the reception still doesn’t come back, install a new set of batteries in the outdoor
sensor and press the RESET button on the clock.
• When the sensor reception is received, the reception icon will remain solid and
readings will appear on the display.
Search for Outdoor Sensor
Optional Sensor Shield
• The optional Sensor Weather Shield is designed to protect your
outdoor sensor from rain and snow.
• This shield will oer limited protection from the sun’s heat.
• Optional purchase at: bit.ly/925-1418
Sold separately
13 14
APPENDIX
Specifications
Alarm Clock (617-148TXT)
Power Requirements: 5.0V Power Cord
(Included) HX13-0502500-AU-001
The plug on the power adapter is intended to
serve as the disconnect device, the socket-
outlet shall be installed near the equipment
and shall be easily accessible.
LCD Brightness: 4 Intensity Levels + OFF
(Programmable Auto-Dim Backlight Option)
Glow Light Brightness: 4 Intensity Levels
+ OFF
Programmable Snooze Duration: 5 to 120
Minutes
Indoor Temperature Range: 32°F to 99°F
(0°C to 37°C)
Wireless Charger Power Output: 5 Watts
USB Charging Port: 1 Amp Maximum Current
(Charging Cord Not Included)
Settings Backup: The time and alarm settings
will be saved for 3 minutes in the event it
loses power. Full battery backup for extended
times is not available.
Dimensions: 4.97” L x 5.34” W x 2.85” H
(12.62 cm L x 13.56 cm W x 7.24 cm H)
Outdoor Sensor (TX141-Bv4)
Temperature Range: -40°F to 140°F
(-40°C to 60°C)
Transmission Range: Over 330 ft. open air
(100 meters) RF 433MHz
Update Interval: About every 51 seconds
Power: 2-AA, IEC, LR6 batteries (not included)
Battery Life: Over 12 months
Dimensions: 1.57” L x 0.79” W x 5.12” H
(4.0cm L x 2.0cm W x 13.0 H cm)
Factory Reset: If you’re experiencing issues
with your clock, use a pen or paper clip to
press the factory RESET button on the back of
your clock.
Factory Reset
RESET

15
Follow La Crosse Technology on Facebook, Instagram, YouTube, and Twitter.
For detailed product videos, manuals, and more, visit our
website: bit.ly/617-148txt_support
Make sure to have your model number handy
(617-148TXT).
If you need additional support, get in touch with
our friendly customer support team:
Online: bit.ly/617-148txt
Phone Number: 1.608.782.1610
Representatives are available
Monday-Friday 8:00am to 6:00 pm CST.
Ask questions, watch setup videos, and provide feed-
back on our social media outlets.
Warranty
Recycling & Disposal Caution!
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on
this product, relating to manufacturing defects in materials and workmanship.
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
Please consider the environment when
deciding to dispose of this product.
Although household electronics are
generally safe to use on a daily basis,
incorrect disposal can cause negative
and potentially irreversible impacts on
our environment.
Check with local donation centers to
see if your product can be donated for
future use. If disposal is the only option,
federal agencies, local governments, and
certified retailers may have electronic
recycling programs in place. Programs
may vary based on location.
Please Recycle
The manufacturer is not responsible for
any radio or TV interference caused by
unauthorized changes or modifications
to this equipment. Such changes or
modifications could void the user authority
to operate the equipment.
All rights reserved. This manual may not
be reproduced in any form, even in part, or
duplicated or processed using electronic,
mechanical or chemical process without the
written permission of the publisher.
This booklet may contain errors or misprints.
The information it contains is regularly
checked and corrections are included
in subsequent editions. We disclaim any
responsibility for any technical error or
printing error, or their consequences. All
trademarks and patents are recognized.
La Crosse Technology, Ltd •2830 S. 26th Street •La Crosse, WI 54601
16
APPENDIX
Scan for Manual/FAQs
Scan for Support

Designed in La Crosse, Wisconsin • Made in China •Printed in China •DC 112221
APPENDIX
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
17
When batteries of dierent brand or type are used together, or new and old batteries are used together, some batteries may
be over-discharged due to a dierence of voltage or capacity. This can result in venting, leakage, and rupture and may cause
personal injury.
•Always purchase the correct size and grade of battery most suitable for the intended use.
•Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of
dierent types.
•Clean the battery contacts and also those of the device prior to battery installation.
•Ensure the batteries are installed correctly with regard to polarity (+ and -).
•Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to
this product.
•Remove used batteries promptly.
•For recycling and disposal of batteries, and to protect the environment, please check the internet or your local
phone directory for local recycling centers and/or follow local government regulations.
Care & Maintenance
