La Crosse Technology WT-5442U User manual

WT-5442
433 MHz
Radio Controlled Projection Alarm
Instruction Manual

2
TABLE OF CONTENTS
Topic Page
Inventory of Contents/ Additional Equipment 3
About WWVB 3-4
Quick Set-Up Guide 4
Detailed Set-Up Guide
Battery Installation 4-5
Program Mode
Programming Sequence 5-6
Function Buttons 6
Time Zone Setting 6-7
DST (Daylight Saving Time) Setting 7
Adjustable Snooze 7-8
Time Setting 8
Date Setting 8
Selecting °F or °C 8
12/24-Hour Setting 8-9
Features & Operations
Features 9
Radio-Controlled Time 9-10
Projection 10
EL Backlight 11
Indoor Temperature 11
Remote Temperature 11-12
Time Alarm 12
Changing Display Mode (viewing seconds) 13
Weather Forecast 13-14
Mounting 14
Maintenance & Care 15
Troubleshooting 16
Specifications 17
Warranty and Contact Information 18

3
INVENTORY OF CONTENTS
1) WT-5442 Alarm Clock
2) TX6U Remote temperature transmitter
3) AC adapter/transformer
4) Instruction manual and warranty card.
ADDITIONAL EQUIPMENT (not included)
1) Three fresh 1.5V AA batteries (optional for alarm clock)
2) Two fresh 1.5V AA batteries (for remote transmitter)
Note: Alkaline batteries are recommended for use in both pieces.
FEATURES OF PROJECTION ALARM
Operation of these features are in section III.
1. Radio-controlled time and date
2. Projection of time and/or remote temperature
3. EL backlight
4. Six modes of date/seconds/temperature display
5. Indoor temperature
6. Remote outdoor temperature
7. Dual alarms
1) Adjustable snooze
ABOUT WWVB (Radio Controlled Time)
The NIST (National Institute of Standards and Technology—Time and Frequency
Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits
the exact time signal continuously throughout the United States at 60 kHz. The
signal can be received up to 2,000 miles away through the internal antenna in the
Projection alarm. However, due to the nature of the Earth’s Ionosphere,
reception is very limited during daylight hours. The Projection alarm will search
for a signal every night when reception is best.
The WWVB radio station receives the time data from the NIST Atomic clock in
Boulder, Colorado. A team of atomic physicists is continually measuring every
second, of every day, to an accuracy of ten billionths of a second per day. These
physicists have created an international standard, measuring a second as
9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. For more detail,
visit http://www.boulder.nist.gov/timefreq.htm. To listen to the NIST time, call
[phone]. This number will connect you to an automated time, announced
at the top of the minute in “Coordinated Universal Time”, which is also known as
Greenwich Mean Time (GMT). This time does not follow Daylight Saving Time
changes. After the top of the minute, a tone will sound for every second. It is
possible that your Projection Alarm may not be exactly on the second due to the

variance in the quartz. However, the clock will adjust the quartz timing over the
course of several days to be very accurate; under 0.10 seconds per day.
QUICK SET-UP GUIDE
1) Insert two AA batteries into the remote transmitter.
2) Insert three AA batteries into the projection alarm and/or plug into
wall.
Note: When starting or restarting your projection alarm the remote
transmitter must be started first and then your alarm. After power is
supplied (either battery or AC) ensure that no buttons are pressed for 10
minutes. This will allow time for the projection alarm to communicate
with the remote transmitter as well as receive the WWVB signal.
Note: When using the AC adaptor, plug into the projection alarm first
and then into the electrical outlet (this will help avoid pressing any
buttons inadvertently).
3) Wait 10 minutes for WWVB reception and remote temperature.
4) If there is no WWVB reception, manually set the time and date
(instructions in the Program Mode).
5) Program the settings.
6) Mount the WT-5442 in a suitable location, where WWVB and
transmitter signals can be received.
7) Mount the transmitter where remote temperature measurement is
desired (on the North side of a house for example).
Note: The remote transmitter is weather resistant but not waterproof.
High humidity and mist will not damage the transmitter but direct rain will.
The maximum range between the transmitter and projection alarm is
80ft. open air (no obstructions). Any resistance (i.e. walls, furniture, etc)
between the two will decrease the effective operating range.
8) The projector will activate and remain on if the alarm clock is plugged
in. If only batteries are used, the projector will only be activated when
a button is pressed.
9) See the “Features” section III. for instructions on projection direction,
etc.
DETAILED SET-UP GUIDE
4
I. BATTERY INSTALLATION
A. REMOTE TEMPERATURE
TRANSMITTER
1. Remove the battery cover.
Observing the correct polarity,
install 2 AA batteries. The

batteries will fit tightly (to avoid start-up problems make sure that
they do not spring free during installation).
5
2. Replace the battery cover.
B. PROJECTION ALARM
1. Remove the battery
cover.
2. Observe the correct
polarity, and install 3 AA
batteries.
3. In addition or instead of
inserting batteries, the
AC adapter can be used. Simply plug the adapter into the receptacle
on the underneath of the alarm clock and then plug the adapter into
the outlet.
4. Replace the battery cover.
5. The projector will activate and remain on if the alarm clock is plugged
in. If only batteries are used, the projector will only be activated when
a button is pressed. The projection is a red light, not harmful under
normal usage, although care should be taken to not look directly into
the light.
Note: After power has been supplied (battery or AC) a tone will
sound, and the LCD (Liquid Crystal Display) will activate. The indoor
temperature and the remote temperature will be displayed (within
three to six minutes). Also, the time will appear as “-:--”. The WWVB
search is automatically initiated, and a tower icon appears and
flashes with the time colon (no tower icon will appear if the WWVB is
too weak to be detected, which is typical during daylight hours and
the time display will remain on “-:--”). While the WWVB search is
being conducted various numbers will appear in the time display.
After 10 minutes, the Projection Alarm will either display the WWVB
time, or discontinue the search if the time is not found. If the search
is cancelled “-:--” will remain in the time LCD. The Projection Alarm
will conduct a WWVB search every hour until the first signal is found.
Once the WWVB time is found, a search is automatically conducted
nightly at midnight. If the signal is found at midnight, the tower icon
will remain, if not, another search will take place every hour (until
6:00 am) until the signal is found successfully. If no signal is found
during this period, the tower icon will not appear and the clock will
search again at 12:00 am the next night.
II. PROGRAM MODE
To enter the Program Mode hold down the “SET” button for 1 second, until
the time zone (“-5” default) flashes in the lower left. The Program Mode

Guide is laid out in a manner that allows you to program each function
separately, or you can follow the instructions entirely to program the
Projection alarm. Complete programming is usually done for the initial
set-up, and will require you to skip step 1 of programming sections “D”
through “H”. Press the “SNOOZE” button at any time to exit the Program
Mode, or wait approximately 15 seconds for the Projection Alarm to
automatically return to normal operation.
A. PROGRAMMING SEQUENCE
Default (Factory) Setting
1. Time Zone Setting -5 (eastern standard time)
2. Daylight Saving Time ON/OFF ON
3. Adjustable Snooze 10 Minutes
4. Hour Setting 12: AM
5. Minute Setting :00
6. Year Setting 01 (2001)
7. Month Setting 1 (January)
8. Date Setting 1
9. Day Setting MO (Monday)
6
10. 12/24-hour Mode 12-hour
B. FUNCTION BUTTONS
There are 8 function buttons;
three on the front, four on the
back and one on the top of
the projection alarm. The
function buttons are labeled:
ALM1/HOUR, ALM2/MIN,
light intensity icon, DISPL,
light direction icon, SET,
MODE/+, and SNOOZE (the
top bar).
C. TIME ZONE SETTING
1. Hold down the “SET” button for 1 second, the time zone (“-5” default)
will flash in the Date LCD.
2. Press and release the “Mode/+” button to select the appropriate time
zone. There are 13 time zones to choose from based relative to the
international time standard of GMT (“Greenwich Mean Time”)(shown
as “0h” on display).

3. From –5h to –8h, a US map with the highlighted time zone will also
be displayed to the right of the time display.
-4h Atlantic Time
-5h Eastern Time (default setting)
-6h Central Time
-7h Mountain Time
-8h Pacific Time
-9h Alaskan Time
-10h Hawaiian Time
-11h, -12h Next two time zones West of HAW
0h Greenwich Mean Time
-1h, -2h, -3h Three time zones West of GMT
4. Press and release the “SET” button to confirm the time zone setting,
and to advance to DST (Daylight saving time) setting.
D. DST (DAYLIGHT SAVING TIME) SETTING
Note: The DST default is “On”, meaning that the WWVB will
automatically change the time according to Daylight Saving Time in the
spring and fall. For areas that do not recognize DST changes (Arizona
and parts of Indiana) turn the DST “OFF”.
1. Hold down the “SET” button for 1 second (the selected time zone will
flash); press the “SET” button once more until “On” flashes in the
lower left and “DST” flashes in the upper right.
2. Press and release the “Mode/+” button to turn the DST off, as will be
indicated by the display of “OFF” in the time LCD.
Note: Only turn the DST setting off if you live in an area that does not
change time for Daylight Saving Time.
3. Press and release the “SET” button to confirm the DST setting, and
to advance to select the length of the snooze.
E. ADJUSTABLE SNOOZE TIME
Note: The snooze length can be adjusted from 1 minute to 59 minutes.
This duration refers to the length of time the alarm will be disabled when
the “SNOOZE” bar is pressed. If set to “0”, activating the snooze will turn
off the alarm for 24 hours.
1. Hold down the “SET” button for 1 second (the selected time zone will
flash), press the “SET” button 2 more times, until “Sno” appears in
the lower left and duration (“:10” default) flashes in the time LCD.
2. Press and release the “Mode/+” button to advance the snooze time
from 0 (off) to 59 minutes.
7

8
3. Press and release the “SET” button to confirm the snooze setting,
and to advance to manually set the time.
F. TIME SETTING
Note: When the WWVB signal is found, that time will over-ride the
manually set time.
1. Hold down the “SET” button for 1 second (the selected time zone will
flash), press the “SET” button 3 more times, until the hour flashes in
the time LCD.
2. Press and release the “Mode/+” button to select the hour. Note:
when setting the hour, “PM” will appear to the left of the hour display,
if it is AM nothing will be displayed.
3. Press and release the “SET” button to confirm the hour setting, and
to advance to select the minutes.
4. Press and release the “+” button to select the minutes.
5. Press and release the “SET” button to confirm the time setting, and
to advance to manually set the date.
G. DATE SETTING
Note: When the WWVB signal is found, that date will over-ride the
manually set date.
1. Hold down the “SET” button for 1 second (the selected time zone will
flash), press the “SET” button 5 more times, until the year flashes in
the date LCD.
2. Press and release the “Mode/+” button to select the year.
3. Press and release the “SET” button to confirm the year, and to
advance to set the month.
4. The month will flash. Press and release the “+” button to select the
appropriate month.
5. Press and release the “SET” button to confirm the month, and to
advance to set the date.
6. The date will flash. Press and release the “Mode/+” button to select
the appropriate date.
7. Press and release the “SET” button to confirm the date, and to
advance to set the weekday.
8. The weekday will flash. Press and release the “Mode/+” button to
select the appropriate weekday.
9. Press and release the “SET” button to confirm the calendar settings,
and to advance to select either 12 or 24-hour time display.
H. 12/24-HOUR SETTING
Note: Setting to the 24-hour mode (also known as Military Time) will also
change the temperature to display in
° C instead of ° F.

9
III.
1. Hold down the “SET” button for 1 second (the selected time zone will
flash), press the “SET” button 9 more times, until the “12” or “24”
hour time display flashes in the time LCD.
2. Press and release the “Mode/+” button to toggle between 12 and 24-
hour time.
3. Press and release the “SET” button to confirm the 12/24-hour time
display, and to return to normal operation.

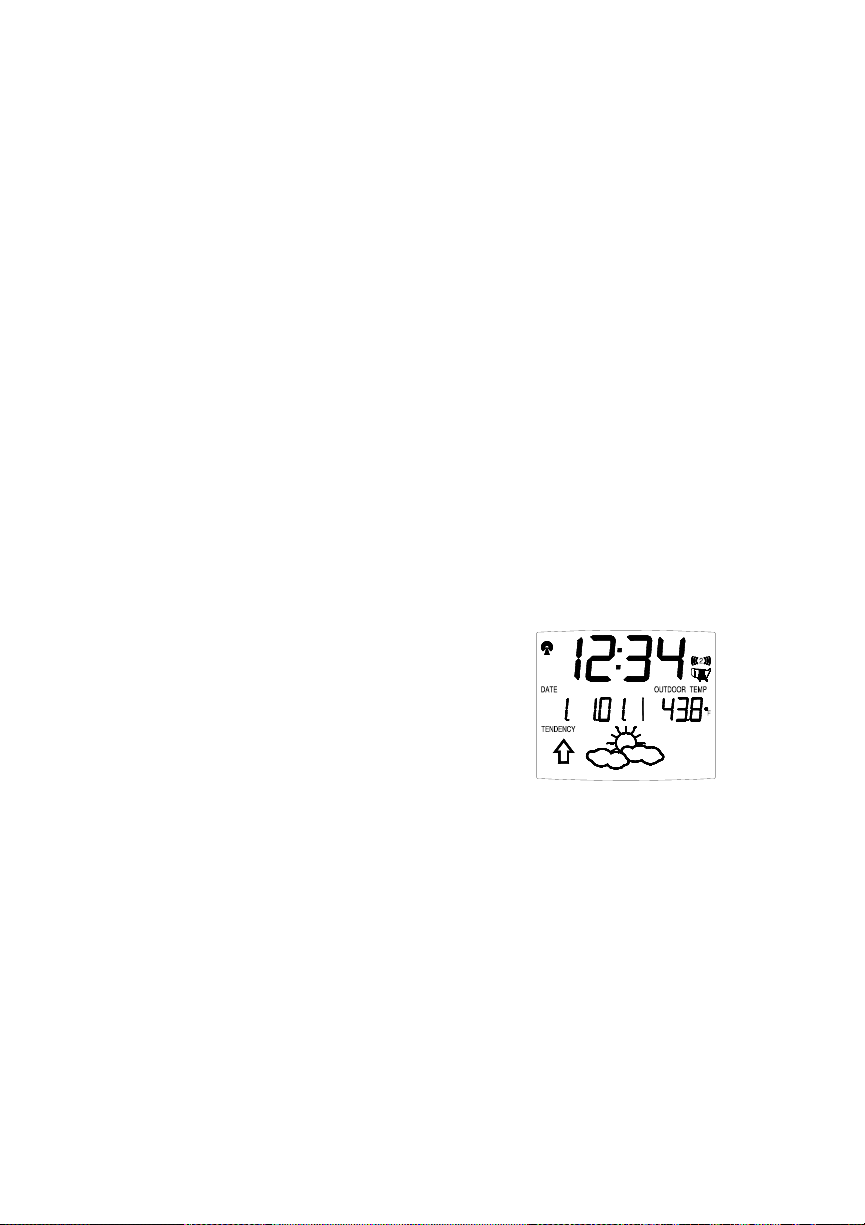

FEATURES & OPERATIONS
A. FEATURES
1. Radio-controlled time and date
2. Projection of time and/or remote temperature
3. EL backlight
4. Six modes of date/seconds/temperature display
5. Indoor temperature
6. Remote outdoor temperature
7. Dual alarms
8. Adjustable snooze
9. Forecast icon based on changing air pressure
B. RADIO-CONTROLLED TIME AND DATE
1. The projection alarm will automatically search for the time signal
upon initial set-up and every night.
2. When the signal is being received, there will be a “tower” icon
flashing to the left of the time display.
3. When the time signal has been received successfully, the tower icon
will remain steady until midnight.
4. The NIST (National Institute of Standards and Technology—Time
and Frequency Division) WWVB radio station is located in Ft. Collins,
Colorado, and transmits the exact time signal continuously
throughout the United States at 60 kHz. The signal can be received
up to 2,000 miles away through the internal antenna in the Projection
alarm.
5. Due to the nature of the Earth’s Ionosphere, reception is very limited
during daylight hours. The Projection alarm will search for a signal
every night when reception is best.
6. The WWVB radio station receives the time data from the NIST
Atomic clock in Boulder, Colorado. A team of atomic physicists is
continually measuring every second, of every day, to an accuracy of
ten billionths of a second per day. These physicists have created an
international standard, measuring a second as 9,192,631,770
vibrations of a Cesium-133 atom in a vacuum.
7. For more detail, visit http://www.boulder.nist.gov/timefreq.htm. To
listen to the NIST time, call [phone]. This number will connect

you to an automated time, announced at the top of the minute in
“Coordinated Universal Time”, which is also known as Greenwich
Mean Time (GMT). This time does not follow Daylight Saving Time
changes. After the top of the minute, a tone will sound for every
second.
8. It is possible that your Projection Alarm may not be exactly on the
second due to the variance in the quartz. However, the clock will
adjust the quartz timing over the course of several days to be very
accurate; under 0.10 seconds per day.
C. PROJECTION OF TIME AND/OR REMOTE TEMPERATURE
1. When plugged into an AC outlet, the projection alarm can
continuously project the time and/or remote temperature.
2. When operating on batteries alone, the Projection Alarm will only
project when a button is pressed.
3. The projection will auto-focus for display from three to six feet away.
A dark surrounding will be necessary to clearly see the projection.
4. The default is projecting time (Hour and Minutes). The Projection
Alarm can be set to project the time (M0), remote temperature (M1),
or alternating between time and remote temperature (M2) by
pressing and releasing the “DISPL” button. The selected display
mode will flash on the lower middle as “M0”, “M1” or “M2”.
5. The direction of the display can also be rotated 360°in 90°
increments by pressing the directional button. There is no display on
the LCD that signifies the direction.
10
6. The projector case can be rotated 180°to further help orient the
projected display.
Display Mode Light intensity
Display Direction
7. The intensity of the projection can be adjusted to three different
settings as well as turned “off” by pressing the light Intensity button.
When turned off, the projection will only come on when a button is
pressed. The intensity cannot be set for the projected display when
set to “off”. When only batteries are used, the intensity setting is set
to “off” with no other options.
