WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 1 | PAGE
WEATHER STATION WITH
FORECAST AND ATOMIC TIME
INSTRUCTION MANUAL
MODELS: 3081417V2
DC: 092221
FIND MANUALS, FAQS, AND MORE UNDER THE
SUPPORT TAB HERE: bit.ly/308-1417v2

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 2 | PAGE
TABLE OF CONTENTS
3. Power Up
3. Settings Menu
5. WWVB Atomic Time Signal
5. Adjustable Backlight
5. Pressure History Graph & Number
5. Pressure Units (InHg or hPa)
6. Progreammable Pressure Number
6. Weather Forecast Icons
7. Temperature & Humidity Alerts
8. HI/LO Temperature & Humidity Alerts
8. Temperature & Humidity Trend Arrows
8. Sensor Search
9. Change Batteries
9. Factory Restart
9. Sensor Weather Shield
10. We’re Here to Help!
10. Join the Conversation
10. Care and Maintenance
11. Specifications
11. Warranty Info
12. FCC Statement

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 3 | PAGE
POWER UP
1. Insert 2-AA batteries into your Outdoor Sensor.
2. Insert 3-AA batteries into your Weather Station.
3. Adjust time and date settings.
4. Once the Outdoor Sensor is reading to your station, place it outside in a shaded location.
Watch sensor mounting video: http://bit.ly/TH_SensorMounting
SETTINGS MENU
1. Hold the SET button to enter the Settings Menu.
2. Use the + or - button to adjust and SET to confirm.
3. Press the SEACH button at anytime to exit the Settings Menu.

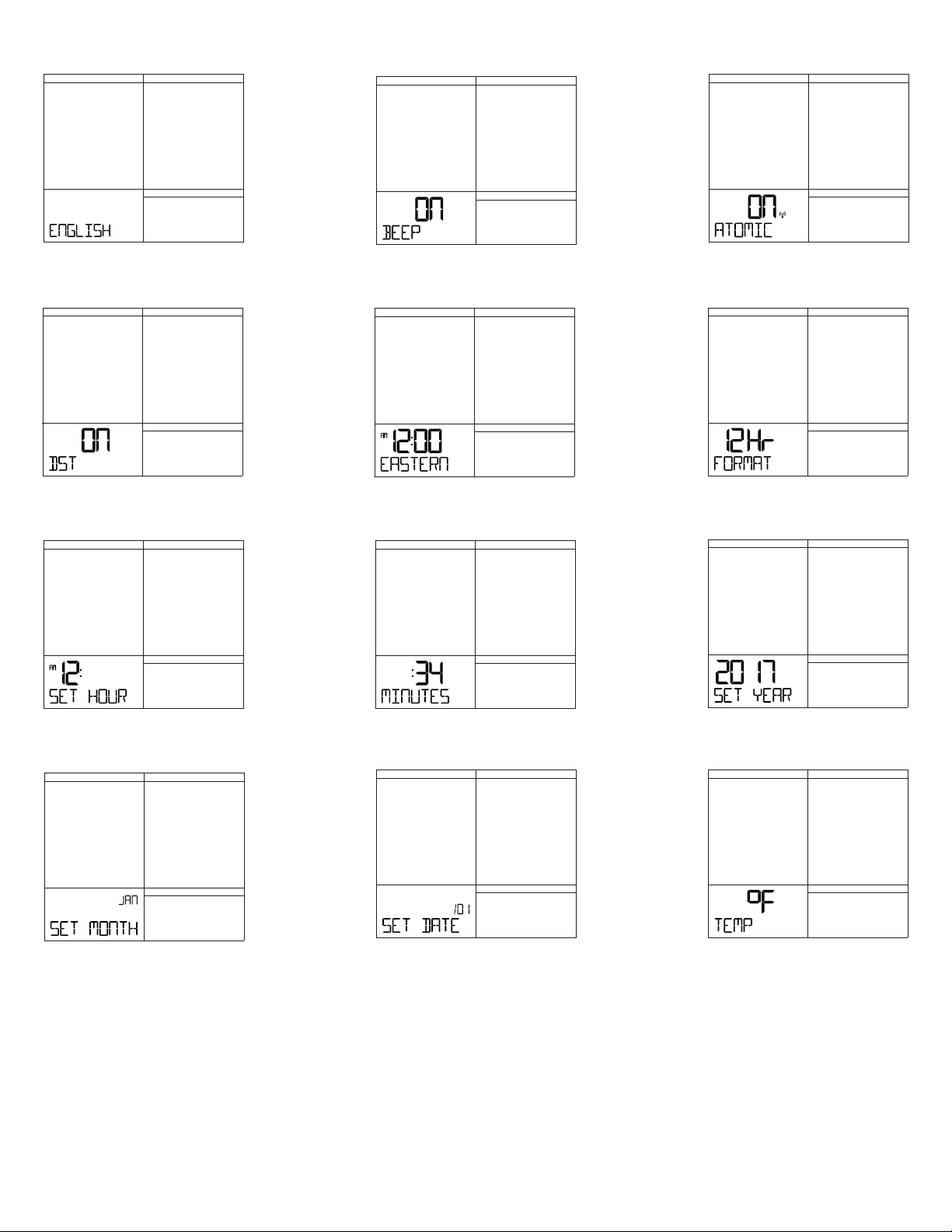

Settings Menu order:
• Language: (English, Español, Français)
• Beep ON | OFF
• Atomic ON | OFF
• DST ON | OFF (Daylight Saving Time)
• Time Zone
• 12Hr | 24Hr Format
• Hour
• Minutes
• Year
• Month
• Date
• Temperature Fahrenheit | Celsius
Note: When Español or Francais is selected, the following instructions and weekday will be presented in
that language.
Note: Weekday sets automatically when Year, Month and Date are set.
Time Zones

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 4 | PAGE
Language Beep ON |OFF Atomic ON | OFF
DST ON | OFF Time Zone 12Hr | 24Hr
Set Hour Minutes
Set Month Set Date Temp ˚F | ˚C
Set Year

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 5 | PAGE
WWVB ATOMIC TIME SIGNAL
• The station will automatically search for the atomic time signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.
• The Atomic Time Signal Icon will flash while searching, and be solid when connected.
• Press the SEARCH button anytime, to manually search for the atomic time signal.
• For information about WWVB visit: http://bit.ly/AtomicTime
PRESSURE HISTORY GRAPH & NUMBER
Read from left to right, the Pressure History Graph indicates the rise and fall in air pressure over the past 24
hours.
• The “0h” indicates the current hour, thus the current air pressure also.
• At every full hour the current air pressure is used as a basis for the display of a new graph bar.
• Air pressure trends can be determined by simply glancing at the bar graph.
A. If the bars are rising (higher on the right than the left) then the air pressure has a rising trend, and the
weather should improve.
B. If the bars are dropping (lower on the right than the left) then the air pressure has a falling trend, and
the weather should worsen.
• The bar chart will constantly scroll to provide visual interest. This cannot be turned o.
• The Relative Pressure numbers represent the currect Barometric Pressure reading from the pressure
sensor inside the weather station.
inHg
RELATIVE
PRESSURE
-24h -18h -12h -9h- 6h -3h0 h
PRESSURE HISTORY
PRESSURE UNITS (INHG OR HPA)
Inches of Mercury (inHg) is common in the USA.
• Press the PRESSURE button to toggle the pressure reading between Inches of Mercury and Hectopascal.
• The letters, INHG or HPA will show for 3 seconds. Other readings will remain.
• Station will stay on measurement selected.
inHg
RELATIVE
PRESSURE
FORECAST
INDOOR
OUTDOOR
-24h -18h -12h -9h- 6h -3h0 h
PRESSURE HISTORY
hPa
RELATIVE
PRESSURE
FORECAST
INDOOR
OUTDOOR
-24h -18h -12h -9h- 6h -3h0 h
PRESSURE HISTORY

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 6 | PAGE
FORECAST FORECAST FORECAST
FORECAST FORECAST FORECAST
SUNNY CLOUDSPARTLY SUNNY
RAIN SNOW
T-STORM
WEATHER FORECAST ICONS
• The Weather Forecast Icons are determined by the station’s barometric pressure reading. Please allow
7-10 days for barometric calibration.
• This is your pressure at your stations’ location and may vary slightly from your local reporting station.
• Six forecast icons use changing atmospheric pressure to predict weather conditions for the next 12-hours
with 70-75% accuracy.
• When Outdoor temperature is below 32˚F and the forecast is RAIN or T-STORM, the station will display
SNOW.
PROGRAMMABLE PRESSURE NUMBER
• The relative air pressure number is programmable: 23.62 to 32.48 InHg (800 to 1100 hPa).
• If not manually programed, please allow 7-10 days for the station to acclimate to your location. After this
time, you should begin to see accurate pressure graph readings automatically displayed on your station’s
screen.
Program Pressure Number:
1. Hold the PRESSURE button to set pressure number.
2. PRESSURE will show and Pressure Value will flash.
3. Press the + or - button to adjust the flashing pressure value.
4. Hold the + or - buttons to adjust quickly.
5. Press the PRESSURE button to confirm adjustments and exit.
6. Press the SEARCH button at any time to exit. inHg
RELATIVE
PRESSURE

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 7 | PAGE
To set alerts:
1. Hold the ALERTS button to enter alert set mode.
2. Outdoor HI temperature alert OFF will show.
3. If you wish to set this alert value, press the + or – buttons to arm this alert (ON).
4. When the alert is armed (ON) the alert value will flash (no additional button press)
5. Press the + or – buttons to change the alert value.
6. Press the ALERTS button to confirm and move to the next alert.
7. If you do not wish to set an alert, press the ALERTS button again to move the next alert.
(When the alert is OFF (disarmed) press ALERTS button to skip setting that alert value).
8. Press and release the ALERTS button until you get to the alert you wish to set.
9. To set the alert, first press the + or – buttons to turn the alert ON (armed).
10. When the alert is armed (ON) the alert value will flash (no additional button press)
11. Press the + or – buttons to change the alert value.
12. Press the ALERTS button to confirm and move to the next alert. Or press the LIGHT button to exit.
TEMPERATURE & HUMIDITY ALERTS
OUTDOOR OUTDOOR
OUTDOOR OUTDOOR
OUTDOOR OUTDOOR
OUTDOOR OUTDOOR
INDOOR INDOOR
INDOOR INDOOR
INDOOR INDOOR
INDOOR INDOOR
Outdoor Temperature Alerts Outdoor Humidity Alerts
Indoor Temperature Alerts Indoor Humidity Alerts

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 8 | PAGE
Active Alert:
• The alert icon will only show when the alert is active, and indicate HI or LO.
• When armed alert value is reached, station will beep 5 times, once each minute, until out of alert range.
• The flashing alert icon will indicate whether it is a LO or HI alert.
• Press any button to stop the temp alert sound.
• The alert icon will still flash while value is in alert range.
Disarm Alert:
1. Hold the ALERTS button to enter alert setting menu.
2. Press the ALERTS button until you see the alert you wish to disarm.
3. Press the + or - button to disarm the alert. The alert will not sound.
4. Press the SEARCH button to exit.
TEMPERATURE & HUMIDITY TREND ARROWS
• The UP and DOWN arrows indicate changes in temperature and humidity over the past hour.
• The arrows will update every 15 minutes and compare data from exactly one hour prior.
Temperature: arrow changes every 2 degrees Fahrenheit.
Humidity: arrow changes every 3% RH
SENSOR SEARCH
• If you are seeing dashes in place of outdoor temperature, first check your sensor batteries.
• Hold the SENSOR button for 3 seconds to search for the sensor. Sensor Reception icon will flash while
searching and be solid when sensor signal is received.
• If you regain connection while the sensor is mounted, great. If you do not regain connection, bring the
sensor within 10 feet of the station and search again.
Note:
• If the signal is lost, the RX will display the last data recorded from sensor for 10 minutes.
• After that 10 minutes if the signal does not come back then you will see dashes “--”.
• After 30 minutes, start looking for the sensor signal automatically.
All HI/LO temperature/humidity records reset automatically at 12:00 (midnight).
• Press the TEMP button once to view HI indoor and outdoor temperature/humidity records.
• Press the TEMP button a second time to view LO indoor and outdoor temperature/humidity records.
• Press the TEMP button a third time to view outdoor Heat Index.
• Press the TEMP button a fourth time to view outdoor Dew Point.
• Press the TEMP button again to return to normal display.
HI/LO TEMPERATURE & HUMIDITY RECORDS
INDOOR
OUTDOOR
INDOOR
OUTDOOR OUTDOOR OUTDOOR

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 9 | PAGE
CHANGE BATTERIES
We designed this station for convenience, so that a simple change of batteries does not lose your data or
require you to power down your station.
Sensor:
1. When Battery Indicator shows next to the Outdoor Temperature, replace batteries in your Outdoor
Sensor.
2. Then hold the SENSOR button for 3 seconds and your station will search for your sensor.
Station:
1. When Battery Indicator shows next to the Indoor Humidity, change batteries in the station.
2. After replacing the batteries in the station, it will automatically search for the sensor. Press the TX button
on the sensor to force a signal transmission. When outdoor temperature readings are received, set time
and date.
FACTORY RESTART
A factory restart of the station returns it to default settings, and “out of the box” condition and may resolve
connection issues.
1. Be sure there are fresh batteries in the sensor and station.
2. Hold the ALERTS and PRESSURE button together for 5 seconds to restart the station. This will clear all
settings and history. Station will automatically search for sensor.
SENSOR WEATHER SHIELD-NOT INCLUDED
The Sensor Weather Shield is designed to protect your outdoor sensor from rain and snow. This shield will
oer limited protection from the sun’s heat. Purchase at: http://bit.ly/925-1418

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 10 | PAGE
If you require additional support, call or customer support team based out of La Crosse, Wisconsin.
Phone: [phone]
Or fill out our online support request form here: bit.ly/contact_techsupport
Our knowledgeable support team is available: Monday-Friday, 8am-6pm CST
Ask questions, watch detailed setup videos, and provide feedback on our social media outlets!
WE’RE HERE TO HELP!
JOIN THE CONVERSATION
CARE AND MAINTENANCE
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard, Lithium, or Rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of time.
• Promptly remove expired batteries.

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 11 | PAGE
SPECIFICATIONS
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product
relating to manufacturing defects in materials & workmanship.
For Full Warranty Details, Visit: www.lacrossetechnology.com/support
WARRANTY INFO
Indoor:
Temperature Range: 32°F to 99°F (0°C to 37°C)
Humidity Range: 10% to 99% RH
Update Interval: About every 60 seconds
Relative Pressure Range: 23.62 to 32.48 inHg (800 to 1100 hPa)
Update Interval: About every 12 minutes
Outdoor:
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Humidity Range: 10% to 99% RH
Transmission Range: Over 330 feet (100 meters) in open air RF 433MHz
Update Interval: About every 51 seconds
Power Requirements:
308-1417v2: 3 “AA” LR6 Batteries (not included)
TX141TH-Bv3: 2 “AA” LR6 Batteries (not included)
Battery Life:
308-1417v2: Over 12 months with reputable batteries
TX141TH-Bv3: Over 24 months with reputable batteries
Dimensions:
308-1417v2: 6.88” L x 1.33” W x 6.37” H (17.5cm L x 3.4cm W x 16.2cm H)
TX141TH-Bv3: 1.57” L x 0.82” W x 5.11” H (3.98cm L x 2.08cm W x 12.98cm H)

WIRELESS WEATHER STATION WITH FORECAST & ATOMIC TIME 12 | PAGE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1 ) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or
processed using electronic, mechanical or chemical process without the written permission of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and
corrections are included in subsequent editions. We disclaim any responsibility for any technical error or
printing error, or their consequences.
All trademarks and patents are recognized.
WARNING: This product can expose you to chemicals including styrene, which is known to the State of
California to cause cancer. For more information go to: www.P65Warnings.ca.gov
FCC STATEMENT
