WS-2800

Wireless Professional Weather Center

Instructions Manual

TABLE OF CONTENTS

TABLE OF CONTENTS ................................................................................................ 34

INTRODUCTION........................................................................................................... 37

INVENTOR OF CONTENTS....................................................................................... 37

FEATURES:.................................................................................................................. 38

WIRELESS DISPLA ................................................................................................ 38

THERMO-H GRO SENSOR ..................................................................................... 38

WIND SENSOR ......................................................................................................... 38

RAIN SENSOR .......................................................................................................... 39

SETT NG UP: ............................................................................................................... 39

ADDITIONAL NOTES FOR THE SOLAR WIND AND RAIN SENSORS MODES ........ 40

MOUNT NG THE SENSORS AND PLACEMENT OF THE W RELESS D SPLAY:..... 41

WIND SENSOR ......................................................................................................... 42

RAIN SENSOR .......................................................................................................... 42

THERMO-H GRO SENSOR ..................................................................................... 42

HEAV WEATHER PC SOFTWARE......................................................................... 42

FUNCT ON KEYS:........................................................................................................ 43

SET KE .................................................................................................................... 43

▲UP ARROW KE ................................................................................................... 43

▼DOWN ARROW KE ............................................................................................ 43

ALARM KE .............................................................................................................. 43

MIN/MAX KE ........................................................................................................... 43

LCD SCREEN............................................................................................................... 44

MODE 1 DISPLA : .................................................................................................... 44

MODE 2 DISPLA : .................................................................................................... 44

MANUAL settings:....................................................................................................... 45

LCD CONTRAST SETTING....................................................................................... 45

MANUAL TIME SETTING: ......................................................................................... 45

12/24 HOUR TIME DISPLA SETTING: ................................................................... 46

CALENDAR SETTING: .............................................................................................. 46

°F/°C TEMPERATURE UNIT SETTING .................................................................... 47

WIND SPEED UNIT SETTING .................................................................................. 47

RAINFALL UNIT SETTING ........................................................................................ 48

RELATIVE AIR PRESSURE UNIT SETTING ............................................................ 48

RELATIVE PRESSURE REFERENCE VALUE SETTING......................................... 49

WEATHER TENDENC SENSITIVIT LEVEL SETTING ......................................... 49

STORM WARNING THRESHOLD VALUE SETTING................................................ 50

STORM ALARM ON/ OFF SETTING......................................................................... 50

WIND DIRECTION DISPLA T PE SETTING.......................................................... 50

FACTOR RESET PROCEDURE ............................................................................. 51

TO EXIT THE MANUAL SETTING MODE................................................................. 52

WEATHER ALARM OPERAT ONS.............................................................................. 52

THE FOLLOWING WEATHER ALARMS CAN BE ADDJUSTED IN ALARM SETTING

MODE ........................................................................................................................ 52

DEFAULT WEATHER ALARM VALUES: .................................................................. 53

PRESSURE ALARMS................................................................................................ 53

INDOOR TEMPERATURE ALARMS ......................................................................... 54

INDOOR HUMIDIT ALARMS................................................................................... 54

OUTDOOR TEMPERATURE ALARMS ..................................................................... 55

OUTDOOR HUMIDIT ALARMS............................................................................... 55

WIND GUST ALARM ................................................................................................. 56

WIND DIRECTION ALARM ....................................................................................... 56

24H RAINFALL ALARM ............................................................................................. 24

HYSTERES S ............................................................................................................... 58

WEATHER FORECAST AND WEATHER TENDENCY ............................................... 58

WEATHER FORECASTING ICONS: ......................................................................... 58

WEATHER TENDENC INDICATOR........................................................................ 59

A R PRESSURE H STORY (ELECTRON C BAROMETER W TH BAROMETR C

PRESSURE TREND) .................................................................................................... 59

W ND D RECT ON AND W ND SPEED MEASUREMENT........................................... 59

RA NFALL MEASUREMENT ....................................................................................... 60

V EW NG THE M N/MAX WEATHER DATA ................................................................ 61

RESET THE MINIMUM AND MAXIMUM WEATHER DATA...................................... 61

TOTAL RAINFALL AMOUNT..................................................................................... 61

CARE AND MA NTENANCE:....................................................................................... 61

SPEC F CAT ONS: ....................................................................................................... 62

INDOOR TEMPERATURE......................................................................................... 62

OUTDOOR TEMPERATURE / DEW POINT ............................................................. 62

INDOOR HUMIDIT .................................................................................................. 62

OUTDOOR HUMIDIT .............................................................................................. 62

WIND SPEED/ GUST ................................................................................................ 62

WIND CHILL/ DEW POINT ........................................................................................ 62

RAINFALL (24H ; TOTAL) ......................................................................................... 63

OUTDOOR DATA RECEPTION ................................................................................ 63

AIR PRESSURE ........................................................................................................ 63

TRANSMISSION RANGE .......................................................................................... 63

POWER CONSUMPTION.......................................................................................... 63

DIMENSIONS (L X W X H) ........................................................................................ 63

L AB L TY D SCLA MER.............................................................................................. 63

NTRODUCT ON

ongratulations on purchasing this state-of-the-art weather station. Featuring time,

date, calendar, weather forecast, wind gust and wind speed, indoor/outdoor

temperature and humidity, air pressure and rainfall, this weather station will provide

you with various weather information and weather forecasts.

Heavy Weather Pro software allows you to use a PC to monitor and record weather

data received from your wireless weather station via a proprietary USB device that was

provided with your 2800 series weather station.

ou can monitor and record a variety of data collected by your weather station including

both indoor and external values sampled by the various weather station sensors.

ou can also review weather history data, and analyze trends and tendencies over time

using the software's charts and graphing features.

Download the free Heavy Weather Pro PC software at:

www.lacrossetechnology.com/2810

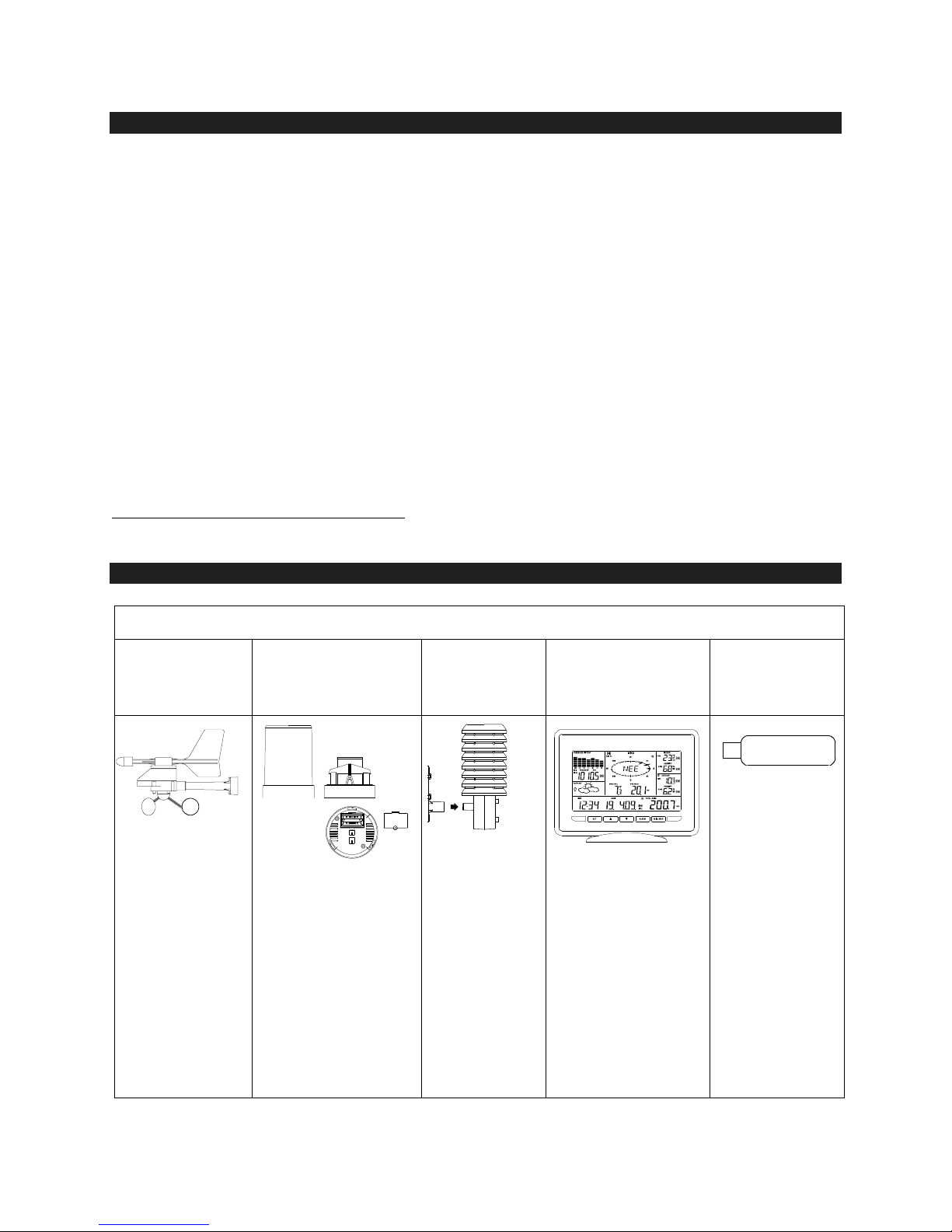

NVENTORY OF CONTENTS

Carefully open the package and check that the following contents are complete:

Wind Sensor Rain Sensor Thermo-

Hygro

Sensor

Wireless Display USB

Transceiver

• Mast holder

• Right angle

adaptor

• 1 x U-bolts

• 2 Washers

+ 2 Nuts

• Plastic

Reset Rod

• Base sensor,

funnel top

cover and

battery cover

(pre-

assembled)

• Rain

protection

cover

• Wall

mount

adapter

• Mounting

screws

• Plastic

anchors

for

screws

• Detachable

stand

• USB

wireless

interface

for PC

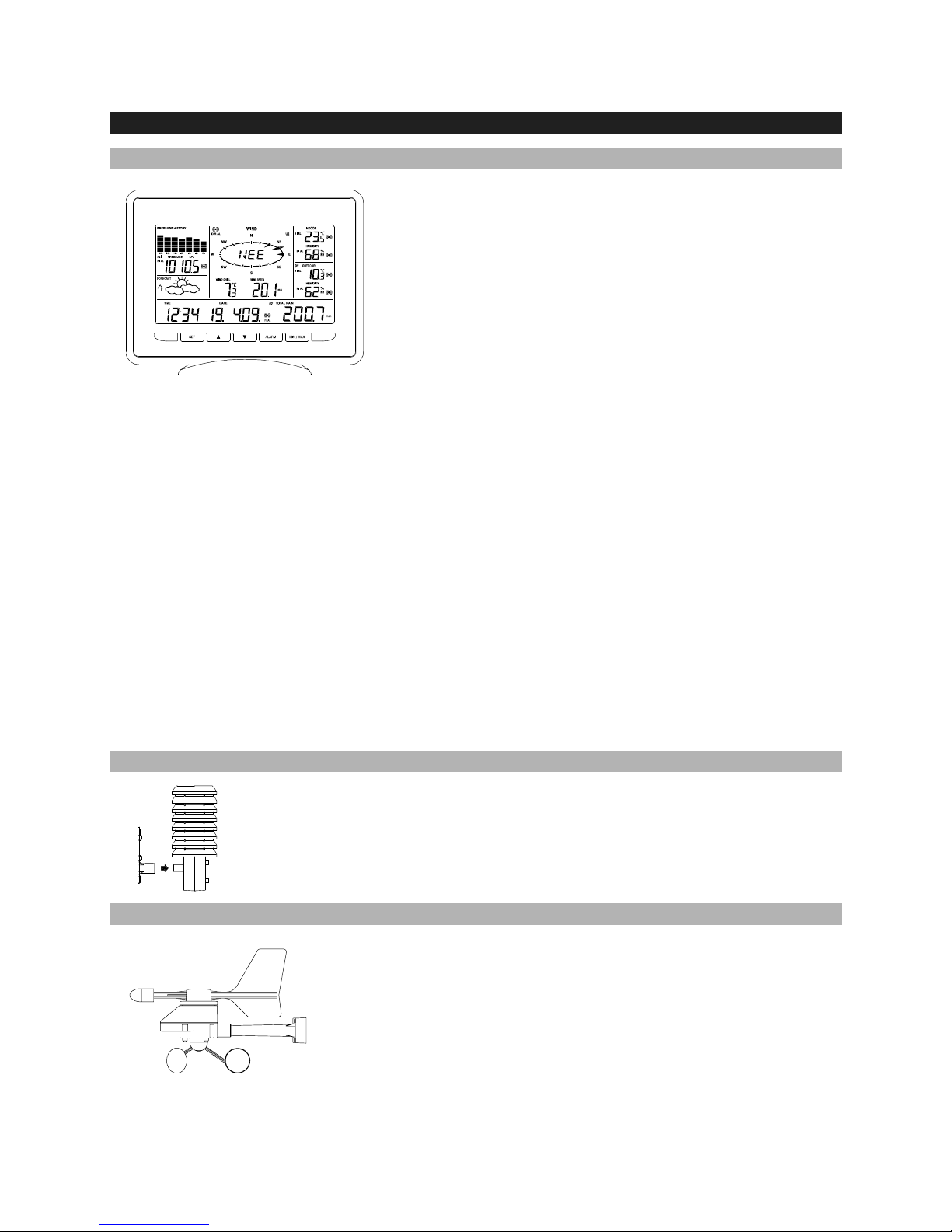

FEATURES:

W RELESS D SPLAY

• Time display in 12/24 hour time format

• Automatic time and date (PC time) update from USB

transceiver if connected

• Calendar display (date, month, year)

• Weather forecast with 3 weather icons (sunny,

cloudy, and rainy) with weather tendency indicator

• Temperature display in °C/°F

• Humidity display in RH%

• Dew point display in °F/°C

• Wind chill display in °F / °C

• MIN/MAX values of indoor/outdoor temperature, indoor/outdoor humidity, dew point

display with time and date of recording

• Relative air pressure reading in hPa/ inHg

• 24h/72h history graph selectable

• Wind speed displayed in km/h, m/s, mph, knots, and Beaufort scale

• Wind speed & direction with LCD compass display (16 steps/ 22.5 degree)

• MAX records for wind gust with time & date of recording

• Rainfall display in mm/inch

• Rainfall data for total rain, last hour, last 24h, last week, last month

• Weather alarm modes: temperature, humidity, wind gust, wind direction, air pressure,

24h rain and storm warning

• LCD contrast setting

• Storage of 1750 sets of weather records with user selectable recording interval from

1 minute to 24 hours

THERMO-HYGRO SENSOR

• Transmission of temperature and humidity data

• Transmission range: about 100 meters (Open field, free of

obstructions)

W ND SENSOR

• 100% solar-powered with built-in rechargeable alkaline

power cell

• High-efficient solar panels maintain operation throughout

all seasons

• Transmission range: about 50 meters (Open field, free of

obstructions)

RA N SENSOR

• 100% solar-powered with built-in rechargeable alkaline

power cell

• High-efficient solar panels maintain operation throughout

all seasons

• Self-emptying bucket

• Transmission range: about 50 meters (Open field, free of

obstructions).

SETT NG UP:

MPORTANT: Make sure to observe the correct polarity when inserting batteries. The

"+" markings on the batteries must line up with the diagrams inside the battery

compartments. nserting the batteries incorrectly may result in permanent damage

to the units. During the setup process, place the wireless display and the outdoor

sensors on a surface with 1-3 meters

between the sensors and the display. Only use

Alkaline Batteries for the Wireless Display and Thermo-hygro sensor,

rechargeable batteries may not work.

1. It is important to allow sufficient light to reach the

solar panel while activating the wind sensor.

Make sure the lights are on in the setup room

and the solar panel is facing a 60W light bulb or

brighter - do not cover with hands or other

objects. Remove the black protective foil on the

solar panel and use the provided plastic reset rod

to gently press the reset button once in the hole

on the bottom of the sensor.

2. Twist open the top of the solar rain sensor. Remove the securing tape from the

seesaw and the black protective cover from the solar panel. Swing the seesaw

once to ‘wake-up’ the rain sensor. The solar rain sensor should then be placed

under a bright environment in order to charge up the rechargeable batteries.

MPORTANT: Completely reset the rain sensor:

a. Unscrew the battery cover on bottom of the rain sensor and remove the

rechargeable batteries

b. Completely cover the solar panel to

block any light source

c. Wait 20s, then re-insert the 2 x AA

rechargeable batteries and re-screw the

battery compartment back

d. Wait 2s, and uncover the solar panel

e. Swing the seesaw once and put the rain

cover top back.

Press Reset Button on Bottom

of the Wind Sensor (Solar

Panel Must Face Light)

Unscrew Battery

Cover on Bottom on

the Rain Sensor

Cover

completely the

Solar Panel

Seesaw

Top view

f. Place the solar rain senor under bright environment to charge-up the

rechargeable batteries.

3. Insert two "C" size batteries into the thermo-hygro sensor with the correct polarity.

4. Insert three "C" size batteries into the wireless display with the correct polarity.

NOTE: Every time the wireless display receives data from the sensors, the

wireless icons will blink once and then return to solid if the last transmission

was successful. A wind speed or rainfall amount that reads "0" does not mean

reception failure, it means that there was no wind or rain at the time of the last

measurement. The thermo-hygro sensor syncs with the wind and rain sensors

and sends all outdoor sensor data to the display. The thermo-hygro sensor tries

for 7 minutes to sync to the wind sensor and for the rain sensor. If not successful

within 7 minutes, the thermo-hygro sensor will stop looking for the other sensors.

5. Setup troubleshooting: If the sensor data fails to display for any of the outdoor

sensors within 10 minutes, (“- - -“ is displayed), remove the batteries from all

units (except for the Wind Sensor) for 1 minute and start the Setup procedure

again at Step 1 and completely reset the solar Rain Sensor (see Step 2:

mportant).

ADD T ONAL NOTES FOR THE SOLAR W ND AND RA N SENSORS MODES:

DLE MODE

This mode aims to reduce the power consumption of the transmitter. Under this mode,

the sensor stops the transmission of signal, checks the battery voltage and detects the

solar cell condition. The IDLE mode happens if the battery voltage is low.

Note: The sensor will check and charge up the rechargeable battery automatically.

When it detects that the battery voltage is sufficiently charged up and high enough, the

transmission of signal starts again.

STOP MODE

It is the most energy saving mode. Under this mode, the transmitter stops the

transmission of signal. There is no checking of the battery voltage and no detection of

the solar cell condition. The STOP mode happens:

• f the user covers the solar cell for 10 seconds and presses the RESET

button (Wind Sensor).

• f the sensor(s) is(are) placed in the dark environment for 24 hours.

Note:

• To restart the Solar Wind sensor, user should spin the wind cups or place

the sensor in a bright environment, then press the RESET button once to

wake it up again.

• To restart the Solar Rain Sensor, should swing the seesaw or, follow the

SETTING UP, Step 2: Important instructions to completely reset the sensor.

MPORTANT! During the restart process, if the battery voltage is sufficiently high

enough, the transmission of signal starts again. However, if the battery voltage is low,

the sensor(s) enters the IDLE mode. User should place the sensor(s) under a bright

environment in order to charge up the rechargeable batteries.

MOUNT NG THE SENSORS AND PLACEMENT OF THE W RELESS D SPLAY:

MPORTANT: Ensure that all of the sensor data can be received at the intended

mounting locations before you drill mounting holes. The outdoor sensors have a

wireless range of 50 meters. Keep in mind that the 50 meters range equates to an

open air scenario with no obstructions. Each obstruction (roof, walls, floors, ceilings,

etc.) will reduce the range.

The thermo-hygro sensor measures outdoor temperature & humidity and collects the

data from the wind and the rain sensors and sends all outdoor weather data to the

wireless display, so the thermo-hygro sensor must be within the 100 meters wireless

range of the wireless display. This allows the wind and rain sensors to be placed

relative to the thermo-hygro sensor rather than the wireless display. See Wireless Data

Diagram above.

• The wind and rain sensors must be mounted within the 50 meters wireless range of

the thermo-hygro sensor and on the same side of the house.

• The wireless display must be within the 25 meters wireless range of the USB

transceiver to send weather data to the PC.

If the sensor wireless icons drop from the display as you move them into their

intended locations, the sensors may be too far from the wireless display. Try moving

the wireless display or the sensors closer and wait a few minutes to see if the wireless

icons display again. If the wireless icons are still not displayed after re-positioning

50 meters

(max.)

50 meters

(max.)

25 meters

(max.)

100 meters

(max.)

Wind Sensor

Solar Panels

Faces True South

Solar

Rain Sensor

* Wind and Rain Sensors should be located on

the same side o the house as the Thermo-

hygro Sensor to ensure the signal strength

the sensors or the wireless display, press and hold the ▲UP ARROW key for 2 seconds

to re-synchronize the wireless display with the sensors.

W ND SENSOR

The wind sensor must be installed with the front of the sensor (the solar panel)

facing true South, or the reported wind direction will not be accurate. Mount within the

50 meters wireless range of the thermo-hygro sensor and on the same side of the

house. The roof may or may not be an ideal mounting location. Secure the main unit to

the shaft of the mast holder. Use the right-angle adaptor if the wind sensor will be

mounted on a horizontal mast or surface.

Fasten the wind sensor to a suitable mast using the two U-bolts, washers and nuts

included. Note: Mount the wind sensor onto a mast so the wind can reach the sensor

unobstructed from all directions for an accurate reading. The ideal mast is between

15.75mm and 33mm in diameter. The wind sensor DOES NOT have replaceable

batteries, it consumes solar power and charges the internal battery pack automatically.

RA N SENSOR

The rain sensor should be mounted on a level surface in an open area and bright area

within the 50 meters wireless range of the thermo-hygro sensor and on the same side

of the house. Mount the rain sensor at least 0.30 meter off the ground level for optimum

wireless transmission. The rain sensor should be accessible to allow for period cleaning

of debris or insects.

THERMO-HYGRO SENSOR

The thermo-hygro sensor is "weather resistant", but not "water proof". To ensure an

extended life of your sensor, mount it in a semi-covered place out of the elements. An

ideal location for the thermo-hygro sensor is under the eaves on the North side of the

house to avoid the effects of sunlight. Mount the sensor 0.5 meter down from the eaves

to ensure optimum performance. This way the weather data collected by the sensor will

not be affected by the temperature of the air coming out of the attic.

To wall mount the thermo-hygro sensor, fix the wall holder onto the desired wall using

the included screws, plug the sensor firmly into the wall holder and replace the rain

cover if it is not already in place. Note: After mounting the units, if the weather data is

not received, press and hold the ▲UP ARROW key for 2 seconds to synchronize the

wireless display to the sensors.

HEAVY WEATHER PC SOFTWARE

Use your PC to store and graph the latest weather data collected by the weather station.

Download the Heavy Weather PC software from www.lacrossetechnology.com/2810.

The Heavy Weather Pro User's Guide available on the download page details the

computer requirements, installation and usage instructions.

FUNCT ON KEYS:

SET key

• Press and hold for 3 seconds to enter the SET mode, where the following can be

changed: LCD contrast, Manual time setting, 12/24 hour time display, Calendar

setting, ºF/ ºC temperature unit, Wind speed unit, Rainfall unit, Pressure unit,

Relative pressure reference setting, Weather tendency threshold setting, Storm

warning threshold setting and Storm Alarm On/ Off setting, Wind direction display

type, Factory reset

• Press to toggle between the display of Mode 1 or Mode 2:

• Mode 1: "Wind speed + outdoor temp + 24 hr. pressure history graph"

• Mode 2: "Gust + Dew Point temp + 72 hr. pressure history graph "

• In the weather alarm setting mode, press and release to switch the weather

alarm On/ Off

• In the weather alarm setting mode, press and hold to adjust the weather alarm

value
