WS-8300U
915 MHz Wireless Weather Station
Instruction Manual

2
TABLE OF CONTENTS
Introduction……………………………………………………………………………………..3
Inventory of Contents…………………………………………………………………………4
Quick Set Up……………………………………………………………………………………4
Detailed Set Up………………………………………………………………………………4-5
Battery Installation…………..………………………………………………………..4-5
12 or 24 Hour Time Display………..…………………………………………………..5
Time Setting………..……..…………………………………………………………….5
Features……………………………………………………………………………………….6-7
Minimum & Maximum Temperature and Humidity……………………..……………6
Resetting Minimum & Maximum Temperature and Humidity………..…………….6
Adding Additional Thermo-Hygro Sensors……………………………..…………….6
Viewing & Operating with Multiple Thermo-Hygro Sensors……………………...6-7
Mounting………………………………………………………………………………………...7
Troubleshooting……………………………………………………………………………..7-8
Maintenance & Care ……………..…………………………………………………………...8
Specifications………………………………………………………………………………..8-9
Warranty Information……………………………………………………………………...9-10

3

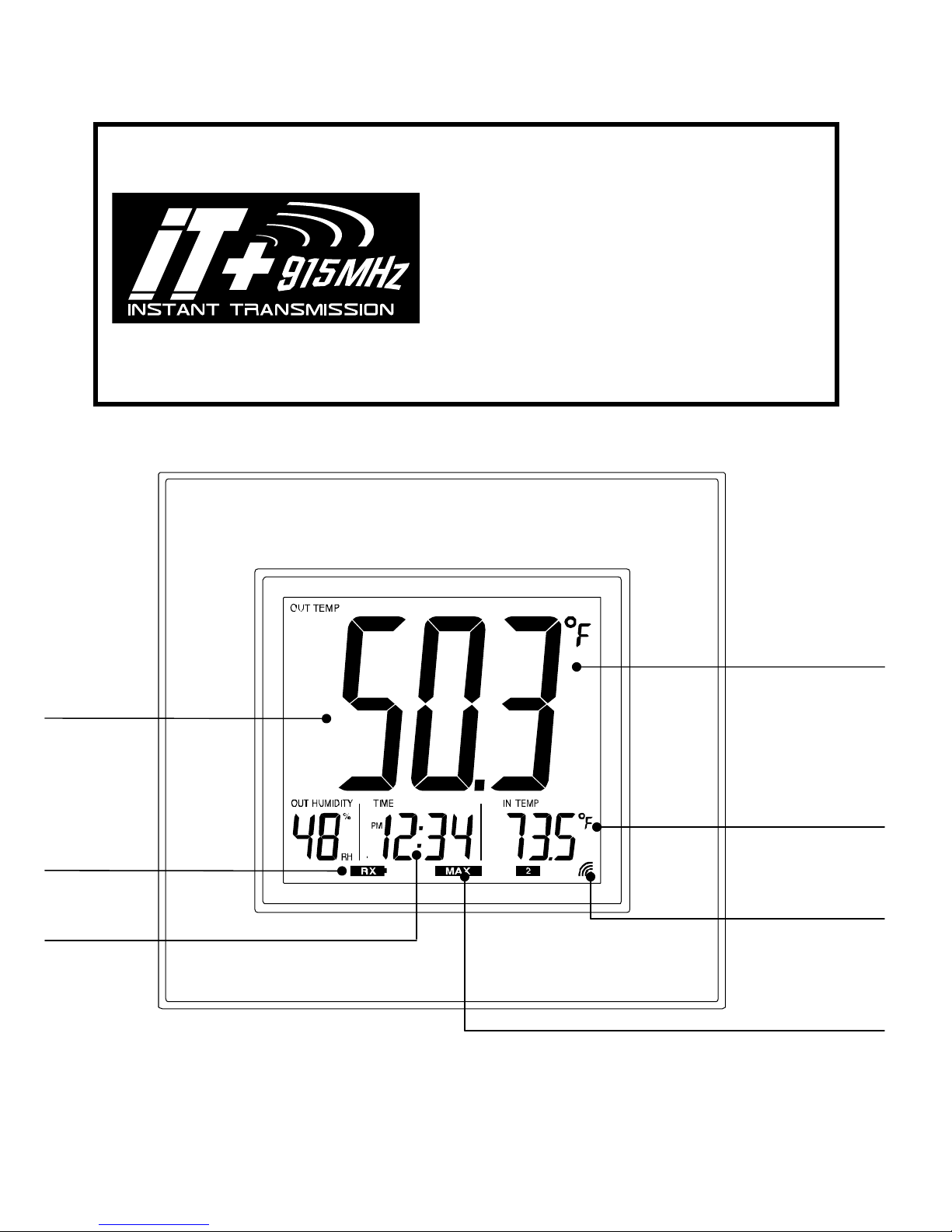

FIGURE 1
INSTANT TRANSMISSION is the state-of-
the-art new wireless transmission
technology, exclusively designed and
developed by LA CROSSE TECHNOLOGY.
INSTANT TRANSMISSION offers you an
immediate update (every 4 seconds!) of all
your outdoor data measured from the
sensors: follow your climatic variations in
real-time!
This product offers:
12 or 24 Hour
Time Display
Indoo
r
Temperature
(
°F or °C
)
Connection w
/
Sensor Icon
Outdoo
r
Temperature
(°F or °C)
Outdoor
Humidity (%RH
)
MIN/MAX
Temperature
& Humidity
Low Battery
Indicator

4
INVENTORY OF CONTENTS
1. Wireless Weather Station (Figure 1)
2. Wireless Thermo-Hygro Sensor (TX21U)
and mounting bracket. (Figure 2)
3. 3 each, 1/2” Philips screws.
4. One strip of double sided adhesive tape.
5. Instruction Manual and Warranty Card.
ADDITIONAL EQUIPMENT
(not included)
1. 1 Philips screwdriver.
2. 4 Fresh “AA” 1.5VAlkaline Batteries.
QUICK SETUP
Hint: Use good quality Alkaline Batteries; avoid rechargeable batteries.
1. Have the Wireless Weather Station and thermo-hygro sensor 3 to 5 feet
apart.
2. Batteries should be out of both units for 10 minutes.
3. Place the batteries into the thermo-hygro sensor first and next into the
Wireless Weather Station.
4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.
In this time the Wireless Weather Station and the thermo-hygro sensor will begin to
communicate with each other, and the display will show both the indoor temperature
and an outdoor temperature. If the Wireless Weather Station does not display both

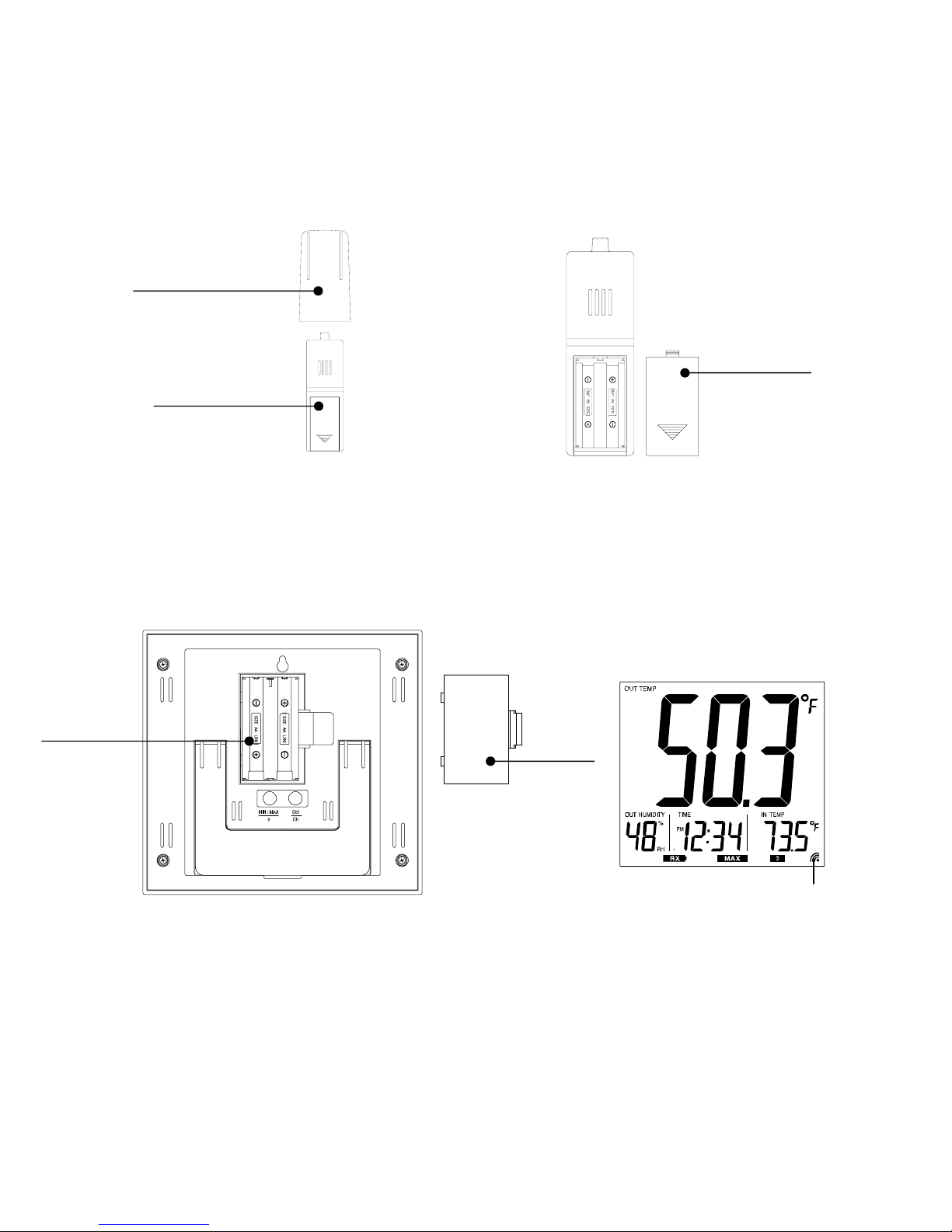

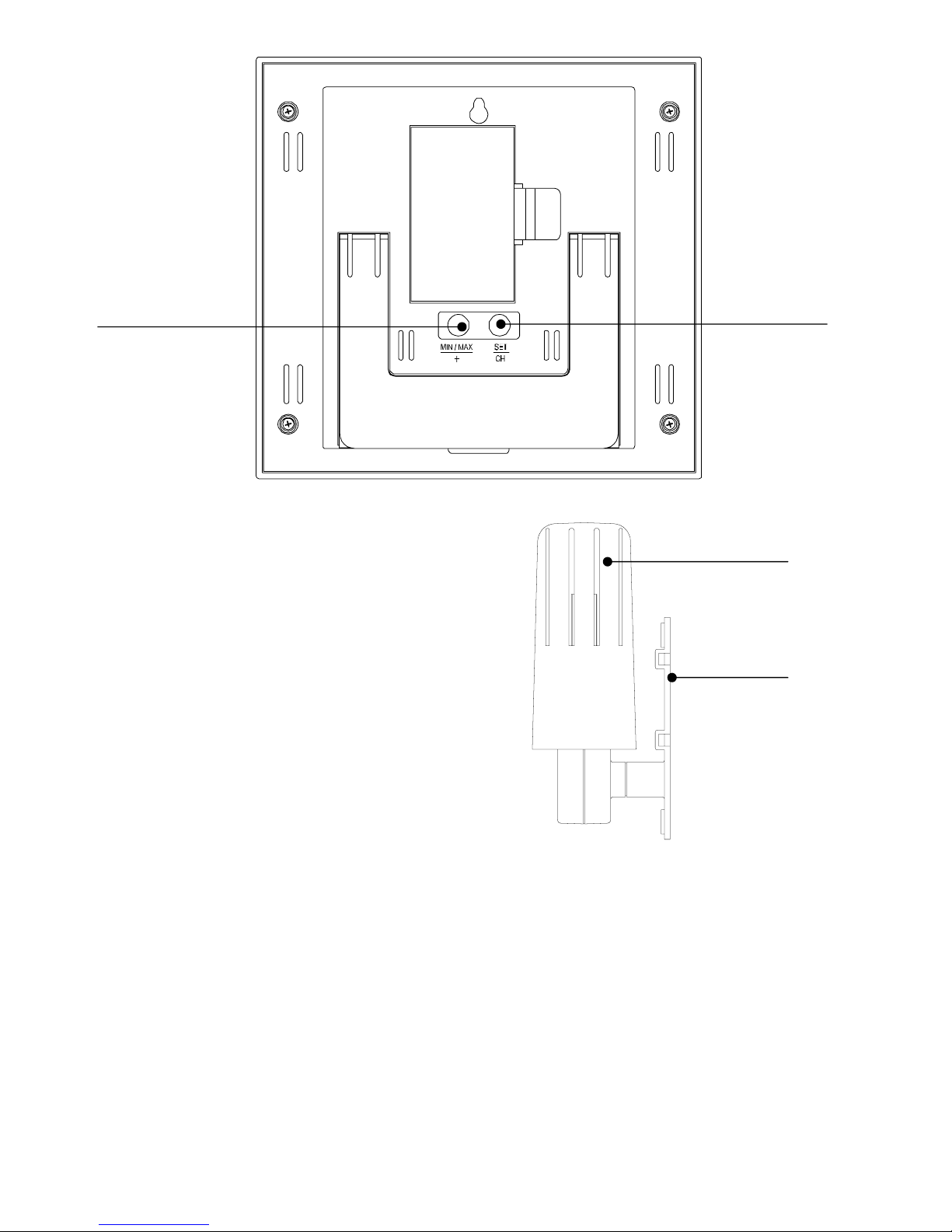

FIGURE 2
Wireless
Thermo-hygro
Senso
r
Mounting
Bracket
Set/Channel
Button
MIN/MAX / +
Button

5
temperatures after the 15 minutes, please retry the set up as stated above. After both
indoor and outdoor temperatures are displayed for 15 minutes you can place your
thermo-hygro sensor outdoors, and set your time.
The remote temperature sensor should be placed in a dry, shaded area. The remote
temperature sensor has a range of 330 feet. Keep in mind that the 330 feet is in open
air with no obstructions and that radio waves DO NOT curve around objects. Actual
transmission range will vary depending on what is in the path of the signal. Each
obstruction (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut signal range
in half.
Example: A wireless weather station receiver with a 330 feet range is mounted on an
interior wall, so that the signal has to pass through one interior wall, one exterior wall,
and across the 10 foot width of the room between the 2 walls. The first wall will reduce
the range to 165 feet, and the second wall will reduce the range to 87 feet. Factoring in
the 10 foot room, this leaves a maximum of 77 feet of remaining signal range.
This allowance is typically enough for a frame wall with non-metallic siding; however
certain materials can reduce range even further. Metal siding, stucco, and some types
of glass can reduce signal range by as much as ¾ or more, compared to the ½
reduction typical of most obstructions. It is possible to receive a signal through these
materials, however maximum range will be much less due to their tendency to absorb or
reflect a much larger portion of the sensor’s signal.
NOTE: Fog and mist will not harm your thermo-hygro sensor, but direct rain must be
avoided.
DETAILED SET UP GUIDE
I. BATTERY INSTALLATION (When one Thermo-hygro sensor is being used)
1. First, insert the batteries to the Thermo-hygro sensor (see “A. Thermo-hygro
sensor” below).
2. Within 2 minutes of powering up the sensor, insert the batteries to the
Temperature Station (see “B. Wireless Weather station” below). Once the
batteries are in place, all segments of the LCD will light up briefly. Following the
indoor temperature and the time as 12:00 will be displayed. If they are not shown
in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds
before reinserting them. Once the indoor data is displayed user may proceed to
the next step.
3. After the batteries are inserted, the Weather Station will start receiving data
signal from the sensor. The outdoor temperature and humidity should then be
displayed on the Weather Station. If this does not happen after 2 minutes, the
batteries will need to be removed from both units and reset from step 1 and the
signal reception icon is no longer shown.

6
A. THERMO-HYGRO SENSOR
1. Remove the Protective Rain Cover.
2. Remove the Battery Cover.
3. Observing the correct polarity, install 2 “AA” Alkaline Batteries—make sure they
do not spring free, or start-up problems may occur. Replace the Battery Cover.
B. WIRELESS WEATHER STATION
Note: After the batteries are installed, DO NOT press any buttons. This may interfere
with the signals, causing temperatures to register incorrectly.
1. Remove the Battery Cover on the back of the Wireless Weather Station.
2. Observing the correct polarity, install 2 “AA” Alkaline Batteries.
3. Replace Battery Cover.
4. Wait 15 minutes before pressing any buttons.
*When the signal is successfully received by the Weather Station, the icon will be
switched on. (If not successful, the icon will not be shown in LCD) So the user can
easily see whether the last reception was successful (icon on) or not (icon off). On the
other hand, the short blinking of the icon shows that a reception is being done now.
C. SELECTING 12 OR 24 HOUR TIME DISPLAY
1. Press and hold the SET/CH button for about 5 seconds.
Battery
Cover
Rain protection
cove
r
Battery
Compartment
Sensor signal
reception icon*
Battery
Compartment Battery
Cove
r

7
2. “12h” will begin to flash in the TIME section of the LCD
3. Press the MIN/MAX/+ button to toggle between “12h” and “24h” time.
Note:
•Selecting 12 hour time will automatically select °F as your temperature unit.
•Selecting 24 hour time will automatically select °C as your temperature unit.
4. Press and release the SET/CH button again to enter Time Setting.
D. TIME SETTING
1. After exiting the 12/24 Hour Setting, the hour will begin flashing in the time
display.
2. Press and release the MIN/MAX/+ button to select the desired hour.
Note: PM will appear to the left of the time display for PM hours. For AM hours, that
area will remain blank.
3. Press and release the SET/CH button again, and the minutes will begin to flash.
4. Press and release the MIN/MAX/+ button to select the desired minutes.
5. Press and release the SET/CH button to exit the SET UP mode.
Note: If no buttons are pressed for 10 seconds, the Wireless Weather Station will
automatically return to the normal display.
II. FEATURES
A. MINIMUM AND MAXIMUM TEMPERATURES AND HUMIDITY
1. Press and release the MIN/MAX button, “MIN” appears at the bottom of the LCD
and the recorded minimum temperatures and humidity are displayed.
2. Press and release the MIN/MAX button again to view maximum recorded
temperatures and humidity. “MAX” appears at the bottom of the LCD and the
maximum temperatures and humidity are displayed.
3. Press and release the MIN/MAX button once more to return to the current
temperatures and humidity.
B. RESETTING THE MINIMUM AND MAXIMUM TEMPERATURES AND HUMIDITY
To reset both the minimum and maximum temperatures and humidity—press and
hold the MIN/MAX button for 5 seconds.
C. ADDING ADDITIONAL REMOTE SENSORS (OPTIONAL)
The WS-8300U is able to receive signals from 2 additional thermo-hygro sensors . The
following are instructions for the set-up of thermo-hygro sensor units with the WS-
8300U. These extra sensors can be purchased through the same dealer as this unit.
1. Remove all the batteries from the receiver and sensor(s) and wait 60 seconds.
During these 60 seconds, press any button 20 times to discharge any excess
power.
2. Insert the batteries to the first Thermo-hygro sensor.
3. Within 2 minutes of powering up the first sensor, insert the batteries to the
Weather Station. Once the batteries are in place, all segments of the LCD will
light up briefly. Following the indoor temperature and the time as 12:00 will be

8
displayed. If they are not shown in LCD after 60 seconds, remove the batteries
and wait for at least 60 seconds before reinserting them.
4. The outdoor temperature and humidity from the first sensor (channel 1) should
then be displayed on the Weather station. If this does not happen and the signal
reception icon is not shown, after 2 minutes, the batteries will need to be
removed from both units and reset from step 1.
5. Insert the batteries to the second sensor as soon as the outdoor temperature and
humidity readings from the first sensor are displayed on the Weather station.
NOTE: You must insert the batteries into the second sensor within 30
seconds of reception of the first sensor.
6. The outdoor temperature and humidity from the second sensor and the "channel
2" icon should then be displayed on the Weather station. If this does not happen
after 2 minute, the batteries will need to be removed from all the units and reset
from step 1.
7. Insert the batteries to the third sensor as soon as the "channel 2" icon and
outdoor data are displayed on the Weather station. Then within 2 minutes, the
channel 3 outdoor data from the third sensor will be displayed and the channel
icon will shift back to "1" once the third sensor is successfully received. If this is
not happen, user shall restart the setting up from step 1.
NOTE: You must insert the batteries into the third sensor within 30 seconds of
reception of the second sensor.
IMPORTANT: Transmission problems will arise if the setting for multiple
sensors is not followed as described above. Should transmission problems
occur, it is necessary to remove the batteries from all units and start again the
set-up from step 1.
D. VIEWING AND OPERATING WITH MULTIPLE REMOTE SENSOR UNITS
1. To view the temperature of a different thermo-hygro sensor unit, press and release
the SET/CH button. A shift from one “boxed” number to the next should be
observed on the right side of the OUTDOOR LCD.
2. To view the Minimum/Maximum temperature & humidity : first select from which
thermo-hygro sensor to read data (indicated by the “boxed” number). Pressing and
releasing the MIN/MAX button will toggle through the minimum and maximum
indoor temperature, and the minimum and maximum outdoor temperature and
humidity.
3. To reset the Minimum/Maximum readings, press and hold the MIN/MAX button for
5 seconds.
III. MOUNTING
Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We
recommend that you mount the thermo-hygro sensor on an outside North-facing wall
(under the eve of a house is ideal). The sending range is 330 feet; obstacles such as
walls, stucco walls, concrete, and large metal objects will reduce the range. Place the
Wireless Weather Station and thermo-hygro sensor in their desired locations before

9
permanently mounting.
A. THERMO-HYGRO SENSOR
1. Remove the mounting bracket from the thermo-hygro sensor.
2. Mount using either screws or adhesive tape.
3. Reattach the thermo-hygro sensor to the mounting bracket.
B. WIRELESS WEATHER STATION
1. The Wireless Weather Station comes with the table stand
attached to the back of the Receiver. If you wish to use the table-
stand, simply place the Wireless Weather Station in an appropriate
location, and pull out on the attached stand.
2. To wall mount, push the table stand flat against the Wireless
Weather Station (if it isn’t already flat). Fix a screw (not included)
into the desired wall, and place the Wireless Weather Station onto
the screw using the hanging hole on the backside. Gently pull the
Wireless Weather Station down to lock the screw into place.
TROUBLESHOOTING
NOTE: For problems not solved, please contact La Crosse Technology via e-mail or
phone, or visit our website, www.lacrossetechnology.com
Problem: The LCD is faint
Solution: Replace batteries
Problem: No outdoor temperature is displayed.
Solution:
1) Bring any units from outside, inside and place the units 3 to 5 feet apart with
nothing in-between them.
2) Remove the batteries from all units.
3) Press one of the buttons on the Wireless Weather Station display at least 20
times to clear all memory. Verify that the display is blank before proceeding.
4) Using good quality alkaline batteries, place the batteries back into the outdoor
temperature sensor; making sure they are installed according to the diagrams in
the battery compartment.
5) Taking care not to press any buttons, reinstall the batteries in the Wireless
Weather Station according to the diagram in the battery compartment.
6) Do not press any buttons for at least 15 minutes after installing the batteries.
(This is to let the units establish a good connection.)
7) During the course of the 15 minutes an outdoor temperature should appear on
the display. You can now put your sensor(s) back outside.
MAINTENANCE AND CARE
•Extreme temperatures, vibration, and shock should be avoided to prevent damage to
the units.

10
•Clean displays and units with a soft, damp cloth. Do not use solvents or scouring
agents; they may mark the displays and casings.
•Do not submerge in water.
•Do not subject the units to unnecessary heat or cold by placing them in the oven or
freezer.
•Opening the casings invalidates the warranty. Do not try to repair the unit. Contact
La Crosse Technology for repairs.
SPECIFICATIONS
Transmitting
Frequency 915 MHz
TEMPERATURE MEASURING RANGES
Indoor 14.1°F to 139.8°F with 0.2°F
resolution.
Outdoor -39.8 °F to 139.8°F with 0.2°F
resolution.
HUMIDITY MEASURING RANGE
Outdoor(%RH) 1% to 99%
Transmitting range Maximum 330 feet (100m) open
space
TEMPERATURE CHECKING INTERVAL
Indoor Every 15 seconds
Outdoor Every 4 seconds
BATTERIES—(Alkaline recommended)
Thermo-Hygro Sensor 2 x AA, 1.5V
Wireless Weather
Station 2 x AA, 1.5V
DIMENSIONS (H x W x D)
Receiver 5.47 x 5.47 x 0.94 in
(139 x 139 x 24 mm)
Thermo-Hygro
Sensor 5.34 x 2.26 x 2.24 in
(135.6 x 57.3x 62 mm)
Battery life Up to 24 Months (need to
confirmed!)

11
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on products
purchased and used in North America and only to the original purchaser of this product.
To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for
problem determination and service procedures. Warranty service can only be
performed by a La Crosse Technology, Ltd authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to La Crosse
Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and
products become the property of La Crosse Technology, Ltd and must be returned to La
Crosse Technology, Ltd. Replacement parts and products assume the remaining
original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd
will pay all expenses for labor and materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty, or if a product is examined which is
not in need or repair, you will be charged for the repairs or examination. The owner
must pay any shipping charges incurred in getting your La Crosse Technology, Ltd
product to a La Crosse Technology, Ltd authorized service center. La Crosse
Technology, Ltd will pay ground return shipping charges to the owner of the product to a
USA address only.
Your La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by accident,
unreasonable use or neglect (including the lack of reasonable and necessary
maintenance); (2) damage occurring during shipment (claims must be presented to the
carrier); (3) damage to, or deterioration of, any accessory or decorative surface; (4)
damage resulting from failure to follow instructions contained in your owner’s manual;
(5) damage resulting from the performance of repairs or alterations by someone other
than an authorized La Crosse Technology, Ltd authorized service center; (6) units used
for other than home use (7) applications and uses that this product was not intended or
(8) the products inability to receive a signal due to any source of interference.. This
warranty covers only actual defects within the product itself, and does not cover the cost
of installation or removal from a fixed installation, normal set-up or adjustments, claims
based on misrepresentation by the seller or performance variations resulting from
installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH
THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT
TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS
PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH.

12
This warranty gives you specific legal rights. You may also have other rights specific to
your State. Some States do no allow the exclusion of consequential or incidental
damages therefore the above exclusion of limitation may not apply to you.
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: [phone]
Fax: [phone]
e-mail:
[email protected]
(warranty work)
[email protected]
(information on other products)
web:
www.lacrossetechnology.com
Questions? Instructions? Please visit:
www.lacrossetechnology.com/8300
All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or
processed using electronic, mechanical or chemical procedures without written permission of the
publisher.
This handbook may contain mistakes and printing errors. The information in this handbook is regularly
checked and corrections made in the next issue. We accept no liability for technical mistakes or printing
errors, or their consequences.
All trademarks and patents are acknowledged.
