La Crosse Technology WS-9014 User manual

17
868 MHZ TEMPERATURE STATION
INSTRUCTIONS MANUAL
INTRODUCTION:
Congratulations on purchasing this innovative 868MHz Temperature Station which displays the time with up
to the minute indoor and up to three outdoor temperature readings. To en oy the full benefits of this
innovative product, please read this operating manual.

18

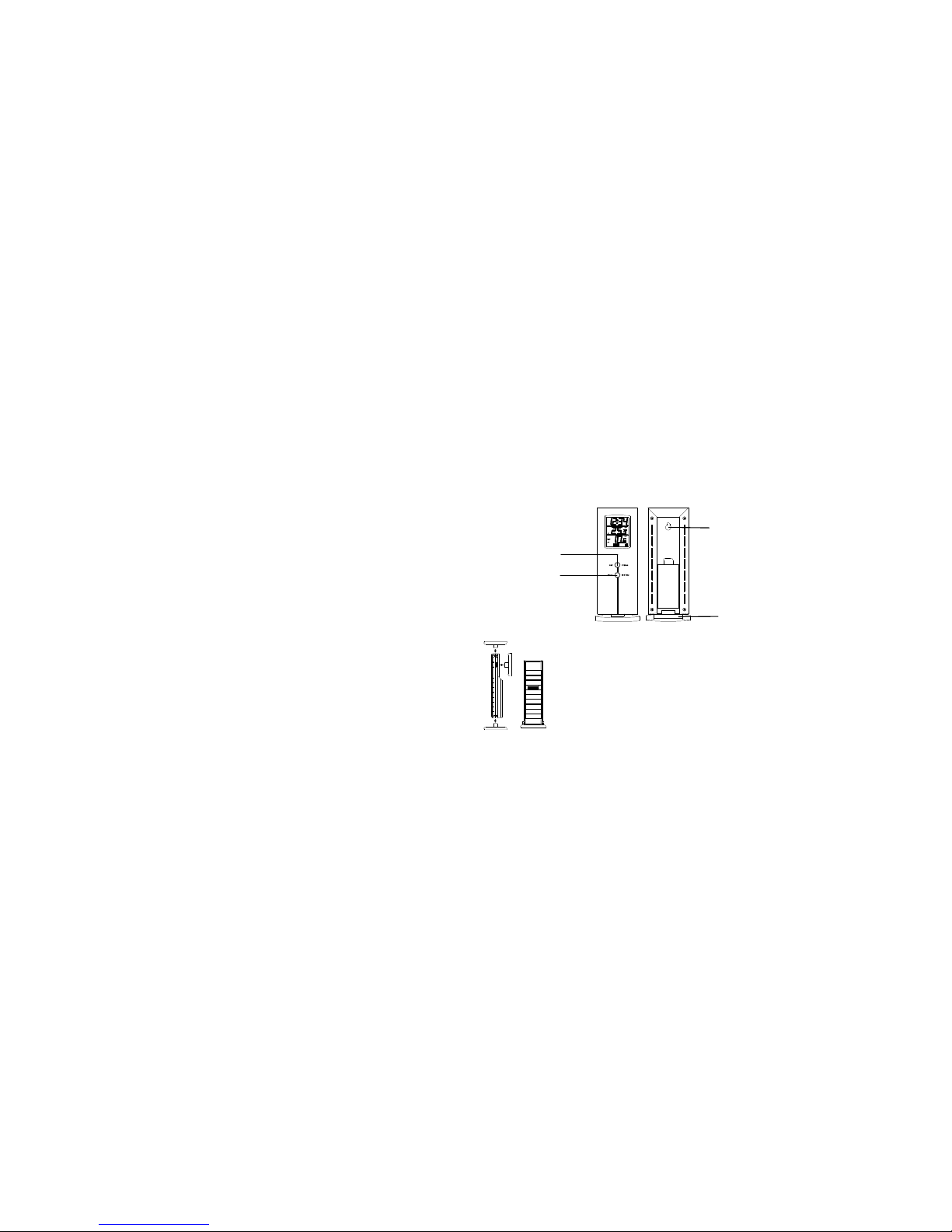

Temperature Station:
Temperature Transmitter:
• Remote transmission of outdoor temperature to weather station by 868
MHz signal
• Wall mounting case
• Mounting at a sheltered place. Avoid direct rain and sunshine
SET CHANNEL key
RESET + MIN MAX
key
Hanging hole
Detachable stand

19
FEATURES:
• LCD clock in 12 or 24 hour time display
• Indoor and outdoor temperature reading in degree Celsius (°C) or degree Fahrenheit (°F)
• Can receive up to three Outdoor transmitters
• Indoor and outdoor temperature with Minimum and Maximum records
• Wireless transmission at 868 MHz
• Signal reception intervals at 4 seconds
• Table standing or wall mountable (detachable table stand)
SETTING UP:
WHEN ONE TRANSMITTER IS USED
1. First, insert the batteries in the transmitter (see “How to install and replace batteries in the
Temperature Transmitter” below).
2. Within 2 minutes of powering up the transmitter, insert the batteries in the Temperature
Station (see “How to install and replace batteries in the Temperature Station” below).
Once the batteries are in place, all segments of the LCD will light up briefly. Following the
indoor temperature and the time as 0:00 will be displayed. If these information are not
displayed on the LCD after 60 seconds, remove the batteries and wait for at least 60 seconds
before reinserting them. Once the indoor data is displayed user may proceed to the next step.
3. After the batteries are inserted, the Temperature Station will start receiving data signal from
the transmitter. The outdoor temperature data should then be displayed on the Temperature
Station. If this does not happen after 2 minutes, the batteries will need to be removed from
both units and reset from step 1.

20
4. In order to ensure sufficient 868 MHz transmission however, the distance between the Weather
Station and the transmitter should not be more than 100 meters (see notes on “Positioning” and
“868 MHz Reception”).
Note:
In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts.
Always wait at least 1 minute after removing the batteries before reinserting, otherwise start up and
transmission problems may occur.
WHEN MORE THAN ONE TRANSMITTER IS USED
1. User shall remove all the batteries from the Weather Station and transmitters, and wait 60 seconds.
2. Insert the batteries in the first transmitter.
3. Within 2 minutes of powering up the first transmitter, insert the batteries in the Temperature Station.
Once the batteries are in place, all segments of the LCD will light up briefly. Following the indoor
temperature and the time as 0:00 will be displayed. If these information are not displayed on the LCD
after 60 seconds, remove the batteries from both units and wait for at least 60 seconds before
reinserting them.
4. The outdoor temperature data from the first transmitter (channel 1) should then be displayed on the
Temperature Station. Also, the signal reception icon will be displayed. If this does not happen after 2
minutes, the batteries will need to be removed from both units and reset from step 1.
5. Insert the batteries in the second transmitter as soon as the outdoor temperature readings from the
first transmitter are displayed on the Temperature Station.
Note : User shall insert the batteries into the second transmitter within 45 seconds after the
Temperature Station displays the information of the first transmitter.
6. The outdoor temperature from the second transmitter and the "channel 2" icon should then be

21
displayed on the Temperature Station. If this does not happen after 2 minutes, the batteries will need
to be removed from all the units and reset from step 1.
7. Insert the batteries in the third transmitter as soon as the "channel 2" icon and outdoor data are
displayed on the Temperature Station. Then within 2 minutes, the channel 3 outdoor data from the
third transmitter will be displayed and the channel icon will shift back to "1" once the third transmitter
is successfully received. If this is not happen, user shall restart the setting up from step 1.
Note : User shall insert the batteries into the third transmitter within 45 seconds after the
Temperature Station displays the information of the first transmitter. Or immediately after reception of
the second transmitter is finished.
8. In order to ensure sufficient 868 MHz transmission however, the distance between the Weather
Station and the transmitter should not be more than 100 meters (see notes on “Positioning” and
“868 MHz Reception”).
IMPORTANT:
Transmission problems will arise if the setting for additional sensors is not followed as described above.
Should transmission problems occur, it is necessary to remove the batteries from all units and start again
the set-up from step 1.

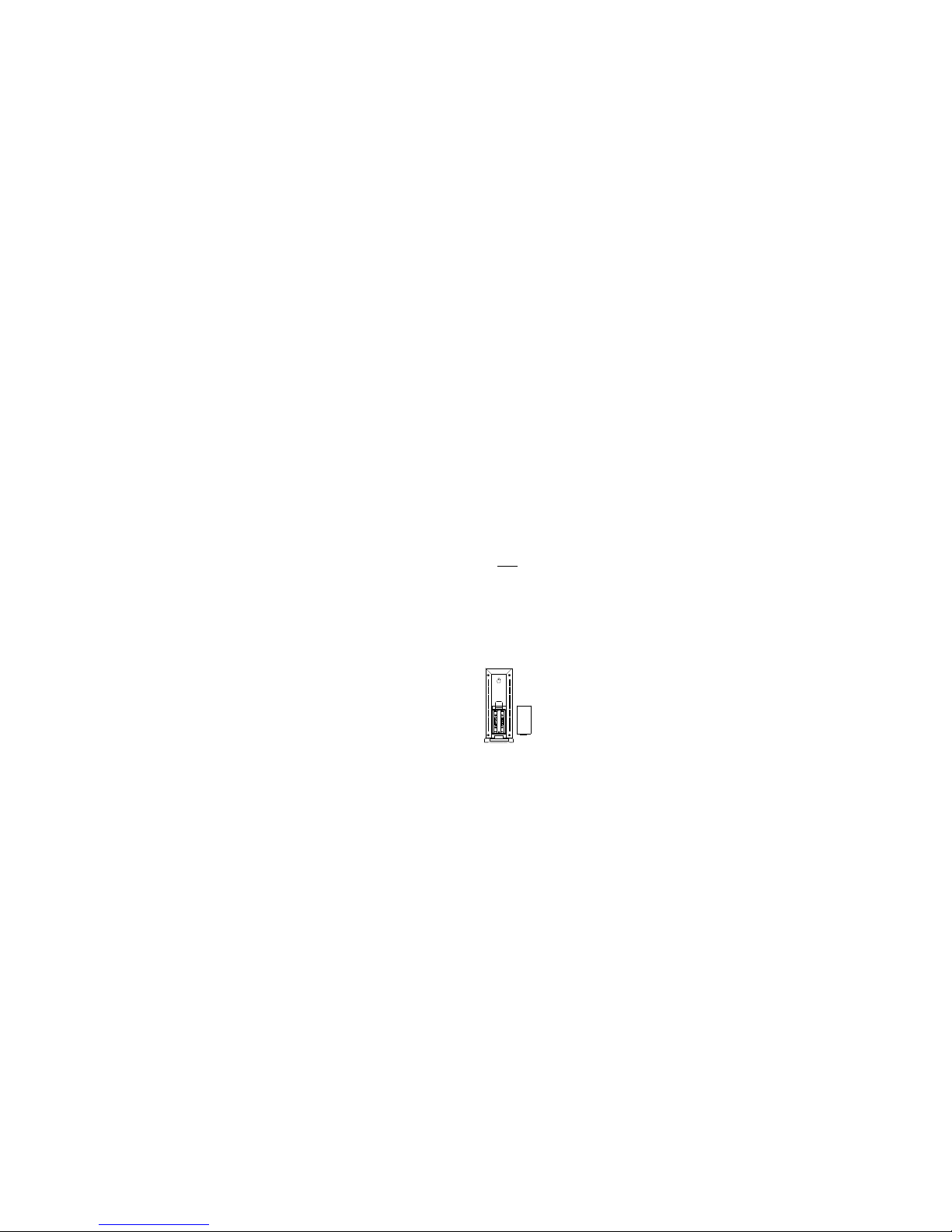

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION
The Temperature Station uses 2 x AA, IEC LR6, 1.5V batteries. If the batteries need
to be replaced, the low battery symbol will appear on the LCD.
To install and replace the batteries, please follow the steps below:
1. Insert finger or other solid ob ect in the space at the bottom center of the
battery compartment and lift up to remove the cover.
2. Insert batteries observing the correct polarity (see marking).

22
3. Replace compartment cover.
HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
The Temperature Transmitter uses 2 x AA, IECLR6, 1.5V batteries. To install and
replace the batteries, please follow the steps below:
1. Slide the battery cover downwards and remove.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery cover.
Note:
In the event of changing batteries in any of the units, all units need to be reset by
following the setting up procedures. This is because a random security code is assigned
by the transmitter at start-up and this code must be received and stored by the Temperature Station in the
first three minutes of power being supplied to it.
BATTERY CHANGE:
It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of
these units.
Please participate in the preservation of the environment. Return used batteries to an
authorized depot.
LCD SCREEN
The Temperature Station’s LCD is comprised of three lines and once the batteries are inserted, all the
segments will light up momentarily before displaying:

23
Time
Indoor Temperature
in ºC or °F
Outdoor
Temperature
in ºC or °F Outdoor transmission signal*
Transmitter identification number
1. Time “_;_ _”
2. Indoor and outdoor temperature in degree Celsius (°C) or Fahrenheit (°F)
* When the signal is successfully received by the Weather Station, the outdoor transmission icon will be
switched on. (If not successful, the icon will not be shown on LCD). The user can then easily see whether
the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon
shows that a reception is currently taking place.
12 OR 24 HOUR SETTING:
After the batteries are inserted, set the time display as follow:
1. Press and hold the “SET CHANNEL” key about 3 seconds to enter the set mode

24
2. Either a “: 12h” or “: 24h” will appear on the LCD. If “: 12h” is displayed then the current time display
is set to 12-hour time. If “: 24h” is displayed then the current time is set to 24-hour time.
3. To alternate between the two times display mode, simply press the “RESET + MIN MAX” key.
4. When the desired time display is selected, press the “SET CHANNEL” key once more to enter the
Time setting mode.
Note:
When the time display is set as 12-hour mode, the temperature unit will be set to °
°°
°F; when the time
mode is in 24-hour format, the temperature unit will be set to °
°°
°C.
TIME SETTING:
Following from the 12 or 24 hour setting mode.
1. The Hour digit in the time section starts flashing
2. Using the “RESET + MIN MAX” key, enter the hours of the current time and then followed by
pressing the “SET CHANNEL” key to move into the minutes mode
3. Again, using the “RESET + MIN MAX” key, enter the minutes of the current time (by holding the key
down, the digits are incremented in steps of five) and then finally followed by pressing the
“SET CHANNEL” key to exit the setting mode. Your Temperature Station is now fully operational.
USING THE TEMPERATURE STATION:
INDOOR TEMPERATURE:
The indoor temperature is displayed on the second line of the LCD under the time. The Temperature
Station’s built in sensor automatically measures the temperature once the batteries are inserted.

25
MINIMUM AND MAXIMUM INDOOR TEMPERATURE RECORDINGS:
By pressing the “RESET + MIN MAX” key the current indoor temperature will alternate between the
minimum, maximum and current temperature recordings (also changes for outdoor temperature). Once a
new indoor temperature high or low is reached, it will automatically set into the Temperature Station’s
memory.
OUTDOOR TEMPERATURE READING:
The outdoor temperature reading is on the bottom line of the LCD under the indoor temperature. The
Temperature Station receives the outdoor temperature via 868 MHz frequency when the batteries are
inserted into the transmitter within the 2 minutes of the setting up time (See Setting up above).
Note: Should the outdoor temperature not be received within 2 minutes after inserting the batteries into
a transmitter, then see “Checking 868 MHz reception” below.
MINIMUM AND MAXIMUM OUTDOOR TEMPERATURE READING:
By pressing the “RESET + MIN MAX” key the current indoor and outdoor temperature will alternate between
the minimum, maximum and current temperature recordings. Once a new outdoor temperature high or is low
reached, it will automatically be set into the Temperature Station’s memory.
RESETTING THE MINIMUM AND MAXIMUM TEMPERATURE RECORDING:
By pressing and holding down the “RESET + MIN MAX” key for about 3 seconds, both the indoor and
outdoor minimum and maximum temperature recordings will be reset to the current indoor and outdoor

26
temperatures. Only the outdoor temperature display on the LCD will be reset. To reset an outdoor
temperature moves to the desired transmitter no.
OUTDOOR TEMPERATURE 1, 2, AND 3
If the more than one transmitter is being used, to alternate between the temperature readings of transmitter
1, 2, and 3, simply press the “SET CHANNEL” key. If the reading is from transmitter 1, then the
identification numbers 1 will be displayed in the outdoor temperature section of the LCD. The same will
apply to the next transmitter and so on. However, if only one transmitter is used, no identification number
will be displayed on the LCD.
CHECKING FOR 868 MHz RECEPTION:
In normal surroundings (for example away from interfering sources such as TV sets), the outdoor
temperature can usually be easily received within 2 minutes. If the outdoor temperature is not displayed on
the LCD after 2 minutes, then check the following:
1. The distance of the units should be at least 1.5 - 2.0 meters away from interfering sources such as
computer monitors or TV sets.
2. Avoid placing the units onto or in the immediate proximity of metal doors, window frames or
structures.
3. Using other electrical products such as headphones and speakers that operate on the same signal
(868 MHz) can prevent the transmission pick up.
4. Neighbours using electrical products operating on the 868 MHz signal can also cause interference.
In most severe cases, the reception is only possible once all other electrical products using the 868
MHz are switched off.
5. Within thick concrete rooms such as basements and tower blocks, the 868 MHz signal can be
weakened (avoid placing near metal frames and structures).

27
6. Transmission can be affected by exposure to extreme temperature conditions. For example, if the
weather has been extremely cold (under -25ºC) for an extended period of time then the transmission
signal may be weakened. (Please bears this in mind when positioning the transmitter).
Note: Should after checking the above list and the outdoor temperature is still not received, then reset the
units (see Resetting the Temperature Station below).
RESETTING THE TEMPERATURE STATION:
1. Remove the batteries from the Temperature Station and the transmitter(s)
2. Wait at least 30 seconds and repeat the procedures specified in Setting up above.
POSITIONING
TEMPERATURE STATION:
The Temperature Station comes complete with a detachable stand that gives the option
of table standing or wall mounting. To wall mount:
1. Fix a screw into the desired wall, leaving the head extended out the by about
5mm.
2. Using the Temperature Station’s hanging hole, carefully hang it onto the screw.
Note: Always ensures that the unit locks onto the screw head before releasing.

28
OUTDOOR TRANSMITTER:
The sensor is supplied with a holder that may be attached to a wall with the two
screws supplied. The sensor can also be position on a flat surface by securing the
stand to the bottom to the transmitter.
To wall mount:
1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the sensor onto the bracket.
Note:
Before permanently fixing the transmitter wall base, place all units in the desired
locations to check that the outdoor temperature readings are receivable. In event that
the signal is not received, relocate the transmitter(s) or move them slightly as this may
help the signal reception.
The mounting surface can, however, affect the transmission range. If for example the unit is attached to a
piece of metal, it may then either reduce or increase the transmitting range. For this reason, we recommend
not placing the unit on any metal surfaces or in any position where a large metal or highly polished surface
is in the immediate proximity (garage doors, double glazing, etc.). Before securing in place, please ensure
that the Weather station can receive the 868MHz signal from the Temperature transmitter at the positions
that you wish to situate them.

29
The Temperature Transmitter simply clicks in or out of the holder. When inserting or removing the
Temperature Transmitter from the wall holder please hold both units securely.
CARE AND MAINTENANCE:
• Avoid placing the units in areas prone to vibration and shock as these may cause damage.
• Avoid areas where the units can be exposed to sudden changes in temperature, i.e. direct sunlight,
extreme cold and wet/moist conditions as these will lead to rapid changes in temperature which
reduces the accuracy of readings.
• When cleaning the LCD and casing, use a soft damp cloth only. Do not use solvents or scouring
agents.
• Do not submerge the units into water.
• Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new
batteries of the recommended size.
• Do not make any repairs to the units. Please return them to the original point of purchase for repair by
a qualified engineer. Opening and tampering with the units may invalidate its guarantee.
SPECIFICATIONS:
Temperature measuring range
Indoor : -9.9ºC to +59.9ºC with 0.1°C resolution
14.2ºF to 139.8ºF with 0.2ºF resolution
(“--.-” displayed if outside this range)
Outdoor : -39.9ºC to +59.9ºC with 0.1°C resolution
-39.8ºF to +139.8ºF with 0.2ºF resolution
(“--.-” displayed if outside this range)

30
Interior data checking intervals
Indoor Temperature : Every 15 seconds
Outdoor temperature data checking interval: Every 4 seconds (or every 15 minutes if data are lost and
display “--.-“)
Transmission range : up to 100 meters (open space)
Power consumption
Temperature Station : 2 x AA, IEC LR6, 1.5V batteries
Transmitter : 2 x AA, IEC LR6 1.5V batteries
Battery life for both units : Approximately 24 months (Alkaline batteries recommended)
Dimensions (L x W x H):
Temperature Station : 60 x 31 x 157 mm (table stand excluded)
Transmitter : 38.2 x 21.2 x 128.3 mm (wall bracket excluded)
LIABILITY DISCLAIMER
• The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in
wild country and/or in unauthorized grounds strongly damages the environment
• Please contact your local or/and regional authorities to retrieve the addresses of legal dumping
grounds with selective collection
• All electronic instruments must from now on be recycled. User shall take an active part in the reuse,
recycling and recovery of the electrical and electronic waste.
• The unrestricted disposal of electronic waste may do harm on public health and the quality of
environment.
• This product must however not be thrown in general rubbish collection points.
• As stated on the gift box and labeled on the product, reading the “User manual” is highly
recommended for the benefit of the user.

31
• The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any
consequences that occur should an inaccurate reading take place.
• This product is not to be used for medical purposes or for public information.
• The specifications of this product may change without prior notice.
• This product is not a toy. Keep out of the reach of children.
• No part of this manual may be reproduced without written consent of the manufacturer.
R&TTE Directive 1999 5 EC
Summary of the Declaration of Conformity : We hereby declare that this wireless transmission device does
comply with the essential requirements of R&TTE Directive 1999/5/EC.
