La Crosse Technology WS-9210U User manual

WS-9210U
Wireless 433 MHz
Radio-controlled Temperature Station
Instruction Manual

2
Topic Page
Inventory of Contents/Additional Equipment 3
About WWVB 4
Quick Set-Up Guide 5
Detailed Set-Up Guide
Battery Installation 6
Program Mode
Programming Sequence 7
Function Keys 7
12/24 Hour Time Setting 7-8
Time Zone Setting 8
Daylight Saving Time Setting 8-9
Time Setting (WWVB & Manual) 9-10
Setting Day, Date and Year 10
Selecting °F or °C 11
Setting the LCD Contrast 11
Features
Indoor Temperature 12
Outdoor Temperatures 12
Minimum & Maximum Records (Indoor,
Outdoor & Resetting)
13
Alarm (Setting, Snoozing & Stopping) 14
Additional Remote Temperature Sensor
Units (Set-Up, Viewing & Operation)
14-15
Mounting 16-17
Troubleshooting 18
Maintenance & Care 18
Specifications 19
Warranty Information 19-21
Table Of Contents

3
INVENTORY OF CONTENTS
1. The weather station (Figure 1).
2. One TX6U remote temperature sensor with mounting bracket (Figure 2).
3. Three each, ½” Philips screws.
4. One strip double-sided adhesive tape.
5. Instruction Manual and Warranty Card.
*LCD = Liquid Crystal Display
ADDITIONAL EQUIPMENT (not included)
1. Two, fresh AA 1.5V batteries for indoor weather station.
2. Two, fresh AA 1.5V batteries for remoter temperature sensor.
3. One, Philips screwdriver for mounting.
Figure 2
Mounting Bracket
Wireless Temperature Sensor

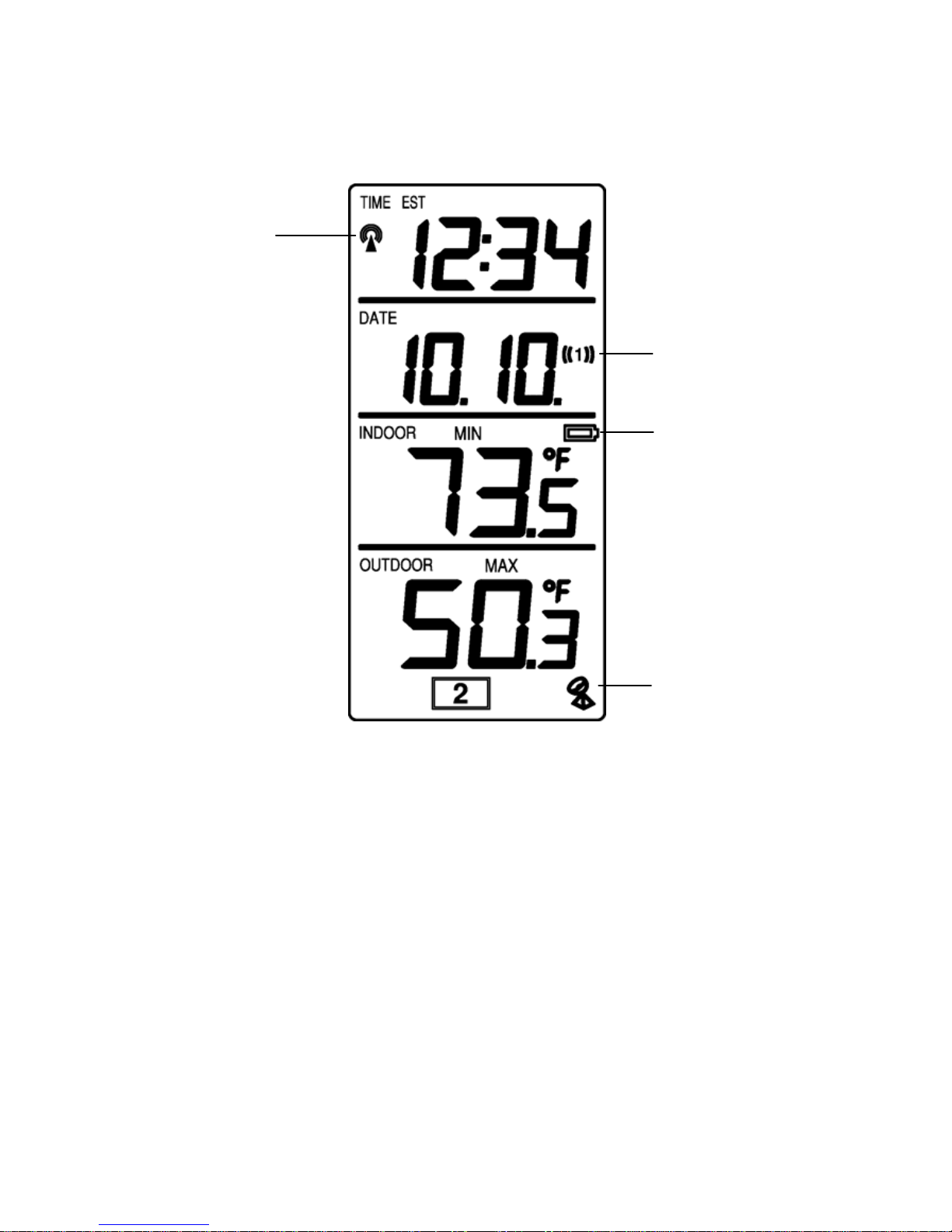

Time LCD
Date LCD
Indoor LCD
Outdoor LCD
Fi
g
ure 1

4
ABOUT WWVB (Radio Controlled Time)
The NIST (National Institute of Standards and Technology—Time and Frequency Division)
WWVB radio station is located in Ft. Collins, Colorado and transmits the exact time signal
continuously throughout the United States at 60 kHz. The signal can be received up to 2, 000
miles away through the internal antenna in the weather station. However, due to the nature of
the earth’s ionosphere, reception is very limited during daylight hours. The weather station
will search for a signal every night when reception is best. The WWVB radio station derives
its signal from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is
continually measuring every second, of every day, to an accuracy of ten billionths of a second
per day. These physicists have created an international standard measuring a second as
9,192,631,770 vibrations of a Cesium-133 atom in a vacuum.
For more information on WWVB and the atomic clock please see the NIST website at
http://www.boulder.nist.gov/timefreq/stations/wwvb.htm.

5
QUICK SET-UP GUIDE
Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.
1. Have the indoor weather station and remote temperature sensor 3 to 5 apart.
2. Batteries should be out of both units.
3. Place the batteries into the remote temperature sensor first then into the
indoor weather station.
(All remote temperature sensors must be started before the indoor weather
station).
4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.
In this time the indoor weather station and remote temperature sensor will start to talk to each
other and the indoor weather station will show both the indoor temperature and an outdoor
temperature. If the indoor weather station does not display both temperatures after the 15
minutes please retry the set up as stated above. After both indoor and outdoor temperatures
are displayed for 15 minutes you can place your remote temperature sensor outdoors and set
your time.
The remote temperature sensor should be placed in a dry, shaded area. The remote
temperature sensor has a range of 80 feet. Any walls that the signal will have to pass through
will reduce distance. An outdoor wall or window can have up to 30 feet of resistance and an
interior wall can have up to 20 feet of resistance depending upon the type of construction.
Your distance plus resistance should not exceed 80 ft. in a straight line.
NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be
avoided.
To complete the set up of your indoor weather station after the 15 minutes have passed please
follow the steps on pages 8 and 9.
Note: The remote temperature sensor transmits a signal every 3 minutes; after the
batteries have been installed, the indoor weather station will search for the signal
for a duration of 5 minutes. If there is no temperature reading in the OUTDOOR
LCD after 5 minutes, make sure the units are within range of each other or repeat
the battery installation procedure.

6
DETAILED SET-UP GUIDE
I. BATTERY INSTALLATION
A. REMOTE TEMPERATURE SENSOR

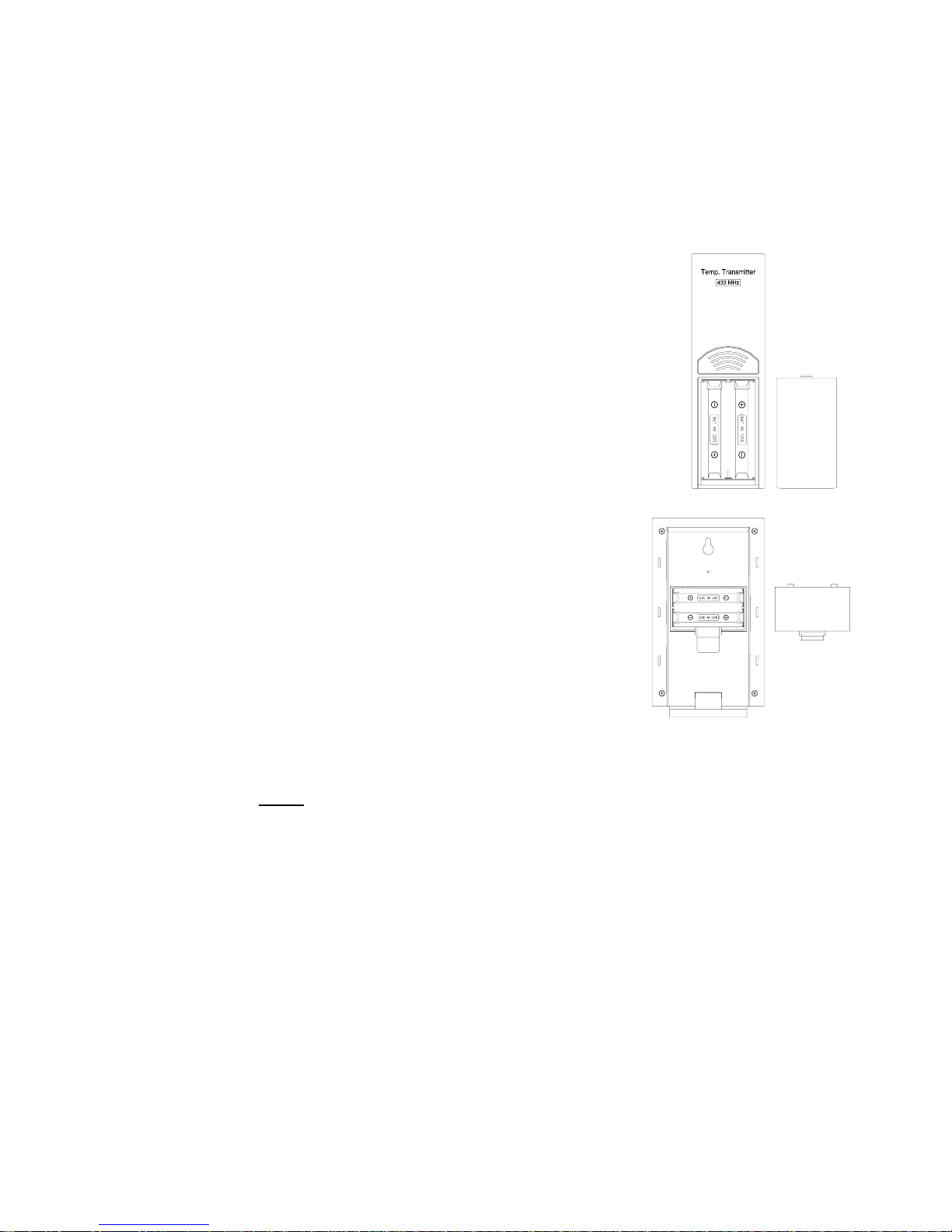

1. Remove the mounting bracket. The bracket
snaps on and off easily.
2. Remove the battery cover, by sliding the
cover down.
3. Observing the correct polarity install 2 AA
batteries. The batteries will fit tightly (to
avoid start-up problems make sure they do
not spring free).
4. Replace the battery cover by sliding
upwards. Be sure battery cover is on
securely.
B. INDOOR WEATHER STATION
1. Remove the battery cover. To do this,
insert a solid object in the space
provided at the lower-central position
of the battery cover, then push up and
pull out on the battery cover.
2. Observe the correct polarity, and
install 2 AA batteries.
3. Replace the battery cover.
Note: Immediately after the batteries have been installed, each LCD
(Liquid Crystal Display) will flash and a tone will sound. Within a few
seconds the indoor temperature will be displayed. If not, then remove the
batteries for 10 seconds and reinstall. If the outdoor temperature is not
displayed within four minutes, remove batteries from both units, wait 10
seconds, and reinstall. The time will show -:-- and start searching for the
WWVB signal. If it successfully receives the time signal (usually at night),
it will display the correct time (default is Eastern).

7
PROGRAM MODE
Programming Note: If 30 seconds are allowed to pass or either the IN or the OUT
button is pressed during programming modes, the unit will set the last information
entered—the display will stop flashing and return to normal time-date readings. If
you don’t leave the program mode during the programming of sections III through
IX, you can advance to step 3 of the next program setting. If you do leave the
program setting (or want to program a specific setting) follow each instructional
step to program that setting.
I. PROGRAMMING SEQUENCE
The sequence for programming the indoor weather station and the default (factory)
settings are:
1. 12/24 hour time setting 12 hour
2. Time Zone Zo -5 (eastern)
3. Daylight Saving Time 1 (on)
4. Time – hour 12
5. Time – minute 00
6. Date – day of the week mo (Monday)
7. Date – month 1 (January)
8. Date – day of the month 1
9. Date – Year 1999
10. Temperature °F
11. LCD (liquid crystal display) contrast 5
12. End of sequence
The programming instructions are given in a manner so that each setting is done
separately. On initial set-up and after inserting new batteries to program all
functions simply disregard the first two steps of each section starting with the Time
Zone Setting.
II. FUNCTION KEYS
The function keys are operated by pressing the key
corresponding to the operation that you want to perform.
III. 12 OR 24 HOUR TIME SETTING
1. Press and hold the “SET” button for 3 seconds or until “12 h” flashes
in the DATE LCD.

8
2. Press and release the “CH” button to toggle between 12 and 24-hour
time.
3. Press and release the “SET” button to confirm the 12/24-hour setting
and to advance to Time Zone Setting.
IV. TIME ZONE SETTING
The default time zone is EST, “Zo -5” (Eastern
Standard Time), to change this setting:
1. Press and hold the “SET” button for 3
seconds or until “12 h” OR “24 h” flashes
in the DATE LCD.
2. Press and release the “SET” button 1 more time to enter the Time
Zone setting mode.
3. The default Time Zone “Zo-5” will flash in the DATE LCD.
4. Select your appropriate time
zone using the “CH” button.
During selection of the Time
Zone, the 3 letter
abbreviations for the time
zones found in North
America will flash across the
top of the TIME LCD.
Observe the chart below,
showing the corresponding
abbreviations, time zones,
and codes.
5. Press and release the “SET”
button to confirm and advance to the Daylight Saving Time setting.
V. DAYLIGHT SAVING TIME (DST) SETTING
1. Press and hold the “SET” button for 3
seconds or until “12 h” or “24 h” flashes
in the DATE LCD.
2. Press and release the “SET” button 2
more times to reach the DST selection
mode.
3. “DST 1” is the default setting and will be flashing in the DATE
LCD.
4. Press and release the “CH” button to select “DST 0” or “DST 1.”
5. “DST 0” indicates that the feature is off and the WWVB will not
change times automatically. “DST 1” indicates that the feature is on
and the WWVB will change times automatically.
Time Zones
GMT 0
Atlantic -4
EST; Eastern -5
CST; Central -6
MST; Mountain -7
PST; Pacific -8
ALA; Alaska -9
HAW; Hawaii -10

9
Note: Some locations (Arizona and parts of Indiana) do not follow
Daylight Saving Time and should select “DST 0.”
6. Press and release the “SET” button to confirm and advance to the
Time setting mode.
VI. TIME
There are two methods by which the time can be set:
A) Automatically via WWVB reception or
B) Manually.
A. WWVB (Remote Control Time)
This method requires you to do nothing except wait for the signal to be
received and to select a time zone. Reception usually takes approximately
6-10 minutes during optimal conditions. The best conditions for reception
is at night, between midnight and 6:00 AM—when there is less
atmospheric interference. To keep your time as accurate as possible, the
weather station conducts a WWVB search every night between these
hours and overrides any manually set time. The WWVB tower icon
(appearing in the TIME LCD) will flash when a signal-search is in
progress, will remain steady when the signal has been received and
nothing will be displayed in all other situations. If the WWVB time has
not been received after 10 minutes of battery installation, you may
manually set the time or leave the time function alone (once reception has
occurred the WWVB time will over ride the manual time and set
automatically).
B. MANUAL TIME SETTING
1. Press and hold the “SET” button for 3 seconds or until “12h”
flashes in the DATE LCD.
2. Press and release the “SET” button 3 more times.
3. The hour digit (default of “12” should be flashing in the TIME
LCD).
4. Press and release the “CH” button to change the hour. Press the
“CH” button once and the hour will increase by one, twice and the
hour will increase by two, etc.
5. Press and release the “SET” button to confirm the hour setting and
to advance to the minute setting mode.
6. The minute digits should be flashing. Press and release the "CH”
button to change the minutes—increasing the minutes by
increments of 1 with each press of the “CH” button.

10
7. Press and release the “SET” button to confirm the minutes and to
advance to the Day, Date, and Year setting mode.
Note: In 12h mode, “PM” will appear to the left of the time during PM
hours. If the time is not within the PM hours, nothing will be displayed.
Be sure to set the time to the correct AM/PM time to ensure automatic
reception at optimal times.
VII. SETTING THE DAY, DATE, AND YEAR
1. Press and hold the “SET” button for 3 seconds, or until “12 h” or “24
h” flashes in the DATE LCD.
2. Press and release the “SET” button 5 more times to reach the
Weekday setting mode.
Note: “MO” (representing Monday) is the default setting for the
weekday, “1.1” is the default setting for the numeric month and day, and
“1999” is the default setting for the year. The day, date, and year will be
automatically set once the WWVB signal is received. However, the day,
date, and year can be manually set and will flash respectively in the
DATE LCD during manual programming.
3. The weekday will be flashing in the
DATE LCD, press and release the
“CH” button to change the weekday.
4. Press and release the “SET” button
to confirm, and to enter the numeric-
month setting mode.
5. The numeric-month will be flashing in
the DATE LCD. Press and release the
“CH” button to select to the current
month.
6. Press and release the “SET” button to confirm the numeric-month,
and to enter the numeric-day setting mode.
7. The numeric-day will be flashing,
press and release the “CH” button to
select the current day.
8. Press and release the “SET” button to
confirm and to enter the year setting
mode.
9. The default-year will be flashing, press and release the “CH” to
select the appropriate year.
10. Press and release the “SET” button to confirm and to advance to the
°F or °C setting mode.

11
VIII. SELECTING °F OR °C
1. Press and hold the “SET” button for 3 seconds, or until “12h” or
“24h” flashes in the DATE LCD.
2. Press and release the “SET” button 9 times to reach the °F or °C
setting mode.

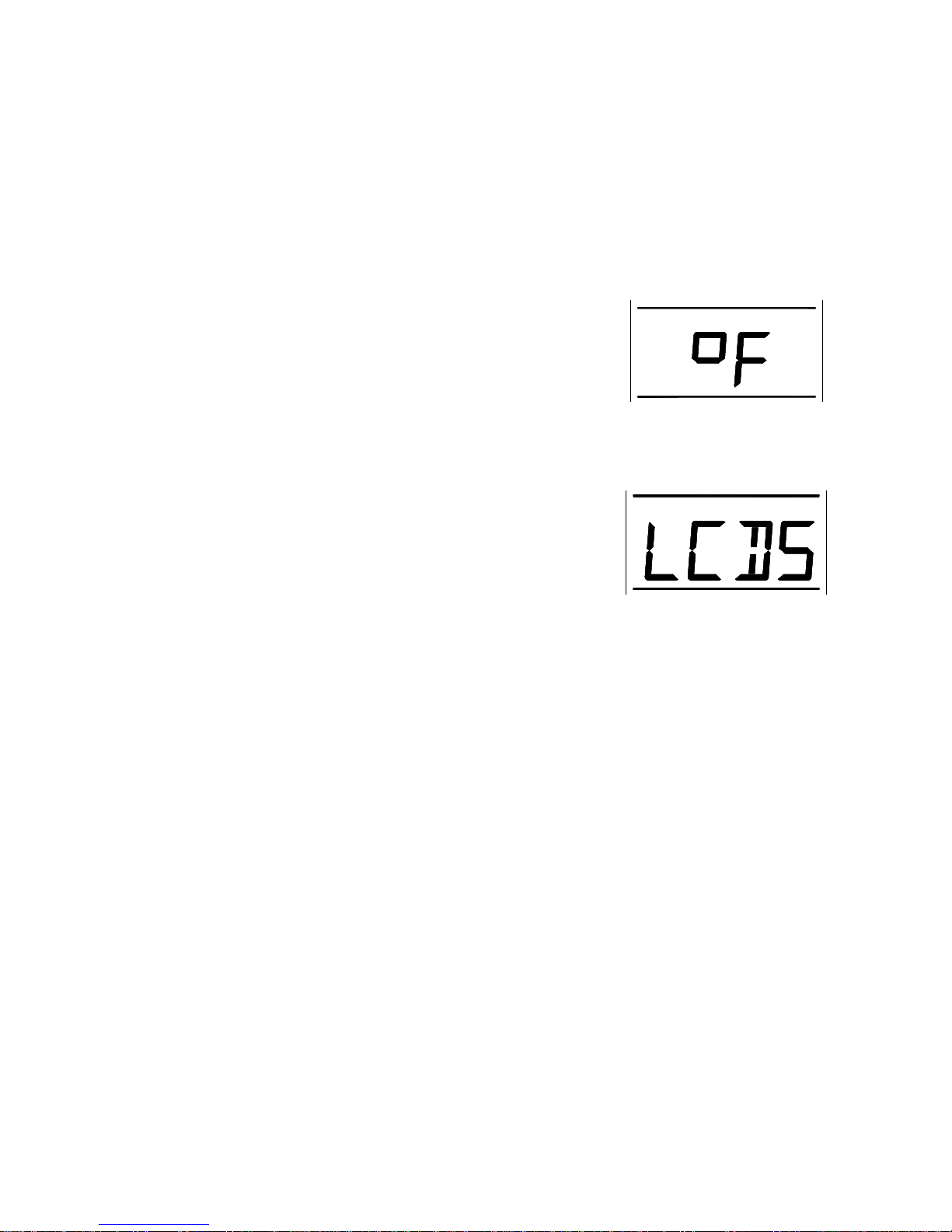

3. “°F” is the default setting, and should
be flashing in the DATE LCD.
4. Press and release the “CH” button to
shift °F to °C and back.
7. Press and release the “SET” button to
confirm your selection and to advance to the LCD contrast setting.
IX. SETTING THE LCD CONTRAST
1. Press and hold the “SET” button for
3 seconds or until “12h” or “24h”
flashes in the DATE LCD.
2. Press and release the “SET” button
10 more times to reach the LCD contrast setting mode.
3. The default setting—“Lcd 5” will flash in the DATE LCD.
4. There are 8 LCD contrast levels to choose from—“Lcd 0” is the
lightest and “Lcd 7” is the darkest.
5. Press and release the “CH” button to toggle through the settings.
6. Press and release either the “IN” or “OUT” buttons to confirm all
the settings and to exit the manual-programming mode (or wait 15
seconds for the unit to automatically return to the normal display
mode).

12
FEATURES OF THE WS-9210U
I. INDOOR TEMPERATURE
The current indoor temperature is displayed in the INDOOR LCD and is updated
every 10 seconds.
II. OUTDOOR TEMPERATURE
The outdoor temperature is viewed in the OUTDOOR LCD. The outdoor
temperature is updated every five minutes. When there is more than one remote
temperature sensor unit in operation, a “boxed” number will appear to the right of
the temperature. This indicates which remote temperature sensor unit (1, 2, or 3) is
currently displaying its data in the OUTDOOR LCD. (This feature is explained in
further detail in section VI—Adding Remote Temperature Sensors).
Satellite icon (indicates
outdoor transmission)
Alarm icon
WWVB Tower Icon
(indicates time reception)
Low Batter
y

13
III. MINIMUM AND MAXIMUM TEMPERATURE RECORDS
The WS-9210U keeps a record of the MINIMUM and MAXIMUM temperature and
the time and date of their occurrence—for both the indoor and outdoor modes.
A. VIEWING THE INDOOR TEMPERATURE RECORDS
1. Press the “IN” button once. “MIN” appears above the indoor
temperature in the INDOOR LCD indicating that the minimum
temperature and the time and date of occurrence are displayed. The
minimum records will display for 20 seconds.
2. Press the “IN” button again (once while “MIN” is still displayed,
twice otherwise). “MAX” appears above the indoor temperature in
the INDOOR LCD indicating that the maximum temperature and the
time and date of occurrence are displayed.
3. While “MAX” is still displayed press the “IN” button again to return
to the current data display. By waiting 20 seconds during either the
minimum or the maximum readings the unit will automatically return
to current data readings.
B. VIEWING THE OUTDOOR TEMPERATURE RECORDS
1. Press the “OUT” button once. “MIN” appears above the outdoor
temperature in the OUTDOOR LCD, indicating that the minimum
temperature and the time and date of occurrence are displayed. The
minimum records will display for 20 seconds.
2. Press the “OUT” button again (once while “MIN” is still displayed,
twice otherwise). “MAX” appears above the outdoor temperature in
the OUTDOOR LCD, indicating that the maximum temperature and
the time and date of occurrence are displayed.
3. While “MAX” is still displayed press the “OUT” button again to
return to the current data display. By waiting 20 seconds during
either the minimum or the maximum readings the unit will
automatically return to current data readings.
C. RESETTING THE MIMIMUM AND MAXIMUM RECORDS
1. All the indoor records (minimum and maximum) will be reset after
the “IN” button is pressed and held for 5 seconds.
2. All the outdoor records (minimum and maximum) will be reset after
the “OUT” button is pressed and held for 5 seconds.

14
IV. ALARM FUNCTION
A. SETTING THE ALARM (alarms 1 and 2)
Note: There are two alarms that can set. Each alarm will sound for a
complete duration of 2 minutes.
1. Press and hold the “AL1” button for 5 seconds or until the alarm-
time display flashes in the DATE LCD.
2. Press and release the “IN” button to set the alarm hours, press and
release the “OUT” button to set the alarm minutes.
3. Press the “AL1” button or wait 15 seconds for the unit to
automatically confirm the alarm time and return to display the date in
the DATE LCD as normal.
4. The ((1)) icon, appearing in the DATE LCD, indicates that the alarm
is set to sound at the programmed time.
5. Programming the alarm time automatically activates the alarm to
sound at the programmed time. To deactivate the alarm, press the
“AL1” button (removing the ((1)) icon from the screen). To
reactivate the alarm, press the “AL1” button again.
6. After each activation or deactivation, the programmed alarm time is
displayed. Wait 15 seconds and the date will display in the DATE
LCD again.
7. To set, activate and deactivate alarm 2, follow the directions above
for alarm 1—using the “AL2” button instead of the “AL1” button.
The ((2)) icon will represent activation and deactivation of Alarm 2.
B. SNOOZING AND STOPPING THE ALARM
1. The snooze function is activated by pressing any one of the following
buttons: “SET”, “IN”, “OUT” or “SNZ”.
2. To turn the alarm off completely, press any of these buttons: “CH”,
“AL1”, “AL2” or “DATE”.
3. The snooze function will last for 5 minutes before the alarm begins to
sound again. Either the ((1)) or the ((2)) icon will flash during the
snooze mode.
V. ADDING OUTDOOR REMOTE CONTROL SENDERS (OPTIONAL)
The WS-9210U is able to receive signals from 3 different remote temperature
sensors. The remote temperature sensor model(s) that you choose will come with

15
their own set of instructions. Follow these instructions for a complete guide to
setting up. Following are some brief instructions for the basic set-up of remote
temperature sensor units with the WS-9210U. These extra remote temperature
sensors can be purchased through the same dealer as this unit, or by contacting La
Crosse Technology directly. A TX6U will monitor temperature only, a TX3U will
monitor temperature and display the temperature on its LCD, and the TX3UP will
monitor the temperature via a probe for measuring soil or water temperatures..
Note: When setting up multiple units it is important to remove the batteries from all
existing units in operation. Then insert batteries into all the remote temperature
sensor units in numeric sequence. Second, install batteries into the indoor weather
station. Transmission problems will arise if this is not done correctly and if the
total time for set-up exceeds 6 minutes.
A. SET-UP OF MULTIPLE UNITS
1. It is necessary to remove the batteries from all units currently in
operation.
2. Remove the battery covers to all remote temperature sensor units.
3. Place all remote temperature sensor units in a numeric sequential
order.
4. In sequential order, install batteries (follow the same battery
installation procedures seen in section I. A) of the Detailed Set-Up
Guide).
5. Install batteries into the indoor weather station.
6. Follow the Detailed Set-Up Guide for programming and operating
instructions.
B. VIEWING AND OPERATING WITH MULTIPLE REMOTE
TEMPERATURE SENSOR UNITS
1. To view the temperature of a different remote temperature sensor
unit, press and release the “CH” button. A shift from one “boxed”
number to the next should be observed in the OUTDOOR LCD.
2. To view the Minimum/Maximum temperature: first select which
remote temperature sensor to read data from (indicated by the
“boxed” number), then press and release the “MIN/MAX” button.
Pressing this button once will display the minimum temperature and
the date and time the data was recorded. Pressing this button a
second time (while “MIN” is still displayed, otherwise press the
button twice) will display the same data for the maximum recordings.
3. To reset the Minimum/Maximum readings, it is necessary to select
which remote temperature sensor you wish to reset. Press and hold

16
the “OUT” button for 5 seconds, the records for the selected remote
temperature sensor unit will be reset.
MOUNTING
Note: Before permanently mounting ensure that the indoor weather station is able
to receive WWVB signals from the desired location. Also, extreme and sudden
changes in temperature will decrease the accuracy of the indoor weather station
and changes in elevation will result with inaccurate weather forecasting for the next
12 to 24 hours. These changes will require a 12 to 24 hour wait before obtaining
reliable data. To achieve a true temperature reading, avoid mounting where direct
sunlight can reach the remote temperature sensor. We recommend that you mount
the remote temperature sensor on a North-facing wall. The sending range is 80ft—
obstacles such as walls, concrete and large metal objects can reduce the range.
Place both units in their desired location and wait approximately 15 minutes before
permanently mounting to ensure that there is proper reception. The indoor weather
station should display a temperature in the OUTDOOR LCD within 4 minutes of
setting up.
I. THE REMOTE TEMPERATURE SENSOR
The remote temperature sensor can be mounted in two ways:
•with the use of screws, or
•using the adhesive tape.
A. MOUNTING WITH SCREWS
1) Remove the mounting bracket from the remote temperature
sensor.
2) Place the mounting bracket over the desired location.
Through the three screw holes of the bracket, mark the
mounting surface with a pencil.
3) Where marked, start the screw holes into mounting surface.
4) Screw mounting bracket onto the mounting surface.
Ensure that the screws are flush with the bracket.
B. MOUNTING WITH ADHESIVE TAPE
1) With a nonabrasive solution, clean and dry the back of the
mounting bracket and the mounting surface to ensure a
secure hold. The mounting surface should be smooth and
flat.

17
2) Remove the protective strip from one side of the tape.
Adhere the tape to the designated area on the back of the
mounting bracket.
3) Remove the protective strip from the other side of the tape.
Position the remote temperature sensor in the desired
location, ensuring that the indoor temperature station can
receive the signal.
II. THE INDOOR TEMPERATURE STATION
The indoor temperature station can be mounted in two ways:
with the table stand or
on the wall with the use of a wall hanging screw (not included).
A. USING THE TABLE STAND
1) The indoor temperature station comes with the table stand
already mounted. If you wish to use the table-stand all that
is required is to place the indoor temperature station in an
appropriate location.
B. WALL MOUNTING
1) Remove the table stand. To do this, pull down on the stand
from the rear and rotate forward.
2) Fix a screw (not included) into the desired wall leaving
approximately 3/16 of an inch (5mm) extended from the
wall.
3) Place the indoor temperature station onto the screw using the
hanging hole on the backside. Gently pull the station down
to lock the screw into place.

18
TROUBLESHOOTING
Problem: No reception of WWVB time signal.
Solution: 1) Wait overnight for signal.
2) Be sure indoor weather station is at least 6 feet from any electrical devices such
as televisions, computers or other radio-controlled clocks.
3) Remove batteries for five minutes, reinsert and leave the unit alone overnight
without pressing buttons.
4) If there are still problems, contact La Crosse Technology.
Problem: Hour is incorrect (minute and date are correct).
Solution: Be sure correct time zone and daylight saving time is selected.
Problem: The LCD is faint
Solution: 1) Set the LCD contrast to a higher number
2) Replace batteries
Problem: No outdoor temperature is displayed.
Solution: 1) Remove all batteries, reinsert into remote temperature sensor first, then into the
indoor temperature station.
2) Place remote temperature sensor closer to the indoor temperature station.
3) Be sure all batteries are fresh.
NOTE: For problems not solved, please contact La Crosse Technology.
MAINTENANCE AND CARE INSTRUCTIONS
 Extreme temperatures, vibration and shock should be avoided to prevent damage to
the units.
 Clean displays and units with a soft, damp cloth. Do not use solvents or scouring
agents. They may mark the displays and casings.
 Do not submerge in water.
 Immediately remove all low powered batteries to avoid leakage and damage.
 Opening the casings invalidates the warranty. Do not try to repair the unit. Contact
La Crosse Technology for repairs.

19
SPECIFICATIONS
Temperature measuring range:
Indoor: 32°F to 139°F with 0.2°F resolution
(0°C to 59.9°C with 0.1°C resolution)
“OFL” displayed if outside this range
Outdoor: -21.8°F to 157.2°F with 0.2°F resolution
(-29.9°C to 69.9°C resolution) “OFL”
displayed if outside this range
Indoor temperature checking interval: Every 10 seconds
Outdoor temperature checking
interval:
(Remote Temperature Sensor)
Every 1 minute
Outdoor temperature reception:
(Indoor Weather Station)
Every 5 minutes
Transmission Range: 80 feet (in open space)
Power Supply:
Indoor Weather Station: 2 x AA, IEC LR6, 1.5V
Remote Temperature Sensor: 2 x AA, IEC LR6, 1.5V
Battery life cycle: Approximately 12 months
Recommended battery type: Alkaline
Dimensions (H x W x D)
Indoor Weather Station (without
stand):
5.75 x 3.37 x 1.25 inches
(146 x 86 x 32 mm)
Remote Temperature Sensor: 5.04 x 1.57 x 0.9 inches
(128 x 40 x 23 mm)
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on products
purchased and used in North America and only to the original purchaser of this
product. To receive warranty service, the purchaser must contact La Crosse
Technology, Ltd for problem determination and service procedures. Warranty service
can only be performed by a La Crosse Technology, Ltd authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.

20
La Crosse Technology, Ltd will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and
products become the property of La Crosse Technology, Ltd and must be returned to
La Crosse Technology, Ltd. Replacement parts and products assume the remaining
original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd
will pay all expenses for labor and materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty, or if a product is examined which
is not in need or repair, you will be charged for the repairs or examination. The owner
must pay any shipping charges incurred in getting your La Crosse Technology, Ltd
product to a La Crosse Technology, Ltd authorized service center. La Crosse
Technology, Ltd will pay ground return shipping charges to the owner of the product to
a USA address only.
Your La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by accident,
unreasonable use or neglect (including the lack of reasonable and necessary
maintenance); (2) damage occurring during shipment (claims must be presented to
the carrier); (3) damage to, or deterioration of, any accessory or decorative surface;
(4) damage resulting from failure to follow instructions contained in your owner’s
manual; (5) damage resulting from the performance of repairs or alterations by
someone other than an authorized La Crosse Technology, Ltd authorized service
center; (6) units used for other than home use (7) applications and uses that this
product was not intended or (8) the products inability to receive a signal due to any
source of interference.. This warranty covers only actual defects within the product
itself, and does not cover the cost of installation or removal from a fixed installation,
normal set-up or adjustments, claims based on misrepresentation by the seller or
performance variations resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR
PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF
CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights specific
to your State. Some States do no allow the exclusion of consequential or incidental
damages therefore the above exclusion of limitation may not apply to you.
