Laars FT Series User manual

User's Manual
WARNING
If the information in this manual is not
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
nearby phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
Installation and service must be performed
supplier.
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
, property damage, or
death. Improper installation and/or operation will void the warranty.
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d’incendie ou d’explosion
ou pour éviter tout dommage matériel, toute
blessure ou la mort.
Ne pas entreposer ni utiliser d’essence ou ni
le à proximité de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE
GAZ:
•Ne pas tenter d’allumer d’appareils.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones dans lebâtiment où vous vous
trovez.
• Appelez immédiatement votre fournisseur de
gaz depuisun voisin. Suivez les instructions
du fournisseur.
•Si vousnepouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L’installation et l’entretien doivent être assurés par
ou par le fournisseur degaz.
User's Manual for
•
•Propane Gas (LP) - Field-Convertible
Document 1511
Floor Standing, Modulating
Gas, Condensing, Heating Only Boiler
Model FTHF199N
199,000 BTU/h
H2420000-

1. Familiarizing yourself to
THE FT
The FT is a floor standing, condensing and
fully modulating, residential boiler.
This Users Manual will guide you into the basics
of operating your FT
Please reference the Installation and Operation
Manual for complete details ).
Page 2
CONTENTS Pgs -
1. Familiarizing yourself with the FT ..........................2
2. Caring For Your FT................................................4
3. Start Up and Shut Down. ......................................4
4. Control Display and Operation .........................5-10

Page 3
#Name of Component
1Pressure Relief Valve
2Air Vent (air eliminator)
3Boiler Return Connection
4Boiler Supply Connection
5Vent Pipe Collar
6Boiler Pressure Gauge
7Air Intake Collar
8Gas Inlet Adapter
9Air/ Gas Venturi
10 Gas Valve
11 BLDC Fan (Blower)
12 Low Water Cut O󰀨
13 Burner High Limit Switch
14 Flame Detecting Sensor
15 Manual Power Switch (ON / OFF)
16 Heat Exchanger
17 Main PCB
18 Boiler Pump
19 Blocked Condensate Switch
20 Condensate Trap
21 Condensate neutralizer and Drain pump
(optional equipment)
22 Drain Valve
23 Low Loss Header
24 Terminal Block
25 Overheat Temperature Sensor
26 Sight Glass
27 Igniter
28 Exhaust Pipe
29 Control Panel and Display
30 Air Pressure Sensor
1.1 Names of Components
1
2
3
54 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
27
29
30
User's Manual - The FT Series Floor Standing, Heating Only Boiler

Page 4
3. Shut Down and Restart
3.1 To Start the FT
If drained, please refer to the Install and
Operating Manual to ensure that the complete
‘Setup’ procedure has been followed before
starting this boiler. A complete ‘Setup’ must be
performed by a qualied service person.
3.2 Shutting Down the FT
1. Turn o󰀨 the main electrical disconnect switch.
2. Close all manual gas valves.
3. If freezing is anticipated, drain the FT and be
sure to also protect building piping from freezing.
All water must be removed from heat exchanger
and condensate trap or else damage from
freezing may occur. Please refer to the Install
and Operating Manual.
This step to be performed by a qualied service person.
2. Caring For Your FT
Your FT will require very little maintenance.
However, as with any ne appliance there are certain
steps that should be taken to ensure continuing
optimum performance.
2.1 General Care
Keep the area around the FT clean and free from
combustible materials, gasoline and other ammable
liquids and vapors.
The FT must be completely isolated and
protected from any source of corrosive chemical fumes
such as trichlorethylene, perchlorethylene, chlorine,
etc.
Keep bottom and top openings on the boiler free
for proper ventilation of interior components.
Do not obstruct or block a free ow of air to the
boiler to ensure proper ventilation.
If desired, clean the jacket surfaces with a
damp cloth and mild detergent. Do not use ammable
cleaning materials.
If sidewall vented, keep the vent terminal clear
of obstructions — do not allow snow to cover the vent
terminal. Clean the intake screen often, and then
develop an appropriate maintenance schedule.
2.2 Annual Inspection of Flue and Vents
Visually inspect the vent pipe once a year. Should
any deterioration exist, have the a󰀨ected parts replaced
by a qualied service person.
2.3 In the Event of a Power Failure
The FT can not be operated during an electrical
power outage. If there is an extended power outage with
danger from freezing, then the FT (and all other water
systems) should be drained completely. When draining
the boiler, turn o󰀨 main electrical disconnect switch.
When placing back in service, refer to Section 3 of this
Manual for instruction. All draining and lling must only
be done by a qualied service person.
2.4 Full Service Every Year
In addition to the annual visual inspections, a
qualied service agency should conduct a detailed
inspection of all ue product carrying areas of the boiler
and its venting system.

Page 5
4. The Control Display and Operation
Page 55
SECTION 5 Control Display and Operation
5.1 Control Dial and Buttons
• Temperature Speci cations
Operating ambient Temperature Range : -10 to 60°C.
Operating Relative Humidity up to: 90% at 40°C.
Shipping & Storage Temperature Range of : -20 to 80°C.
Buttons Functionality
PRESS (Tap) PRESS and HOLD (5 seconds)
A Display Power Turns Control Display ON / OFF
B Modes Tap to return to menu (If Display Power was On )
Status Display Mode
(If Display Power was O󰀨 )
Installer Mode
C
Heating
Water
CH set-point change mode
(Maxium 82 °C(180°F))
D
Time / Date
Set
No Change To SET: Year/Month/Week/Day/Time/Min
E
Scroll / Select
Menu select or value
up(+)/down(-) or setting dial.
The Control Display has a Control Dial (E), 4 buttons (A, B, C, D), and a Liquid
Crystal Display (with 72 back-lit segments). This section of this manual gives
instruction on how to navigate into the many functions of the FT and to change
temperature set points, set system variables and controller parameters.
Status Light
(constant green
when operating
normally)
WARNING
Do not use this appliance if any part has been under
water. Immediately call a quali ed service technician
to inspect the appliance and to replace any part of
the control system and any gas control that may have
been under water.

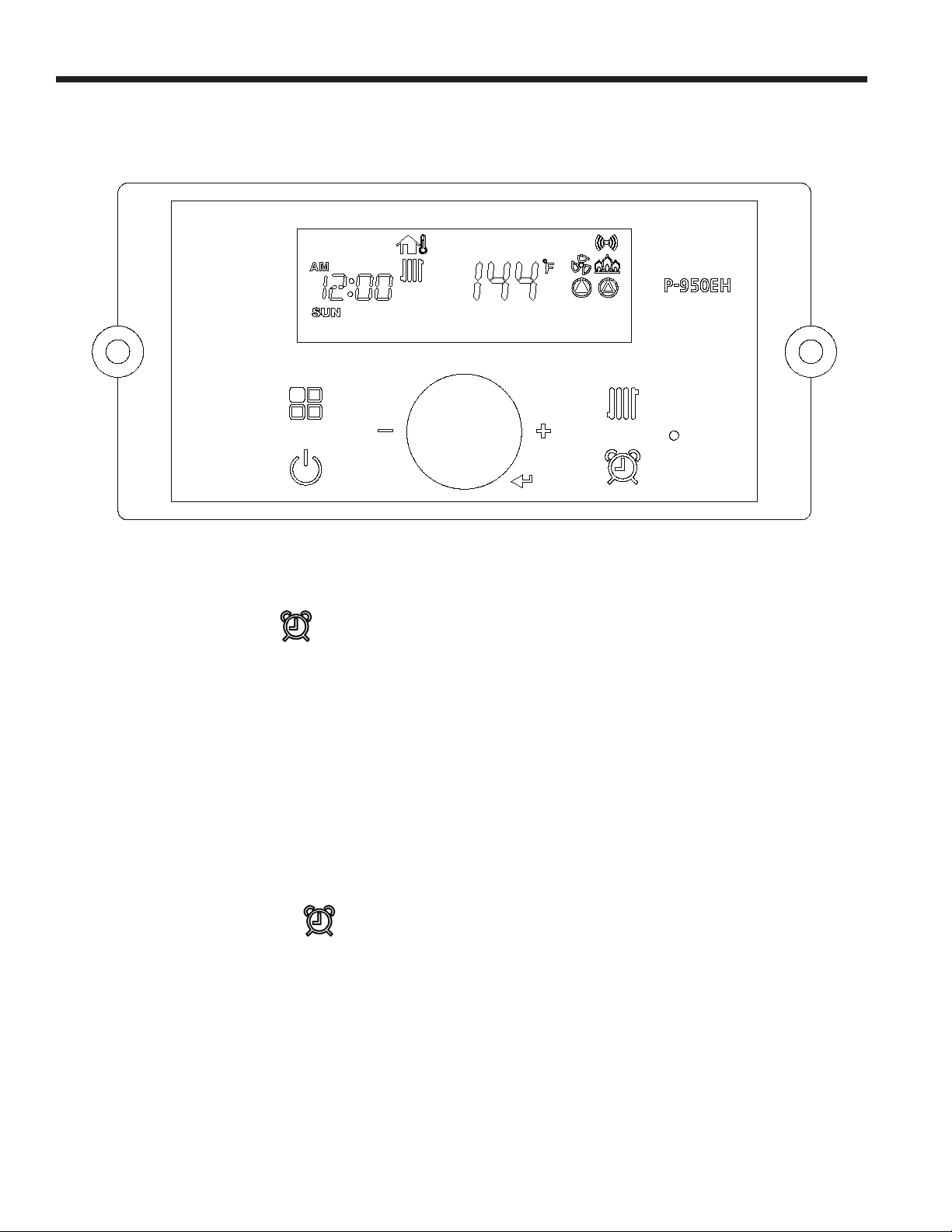

The Control Display
55page
BC
E
AD
User's Manual - The FT Series Floor Standing, Heating Only Boiler

Page 6
Page 56
5.2 LCD Overview
The LCD will illuminate when a user action is detected (a button is pressed) and will turn back o󰀨 after 20 seconds.
Symbol Name Description
Service Reminder mode Service Reminder mode indication
Outside Temperature Mode Outside Temp setting indication
Anti-freeze mode Anti-freeze mode indication
Storage mode Storage mode indication
Information mode Information mode indication
Communication state Communication state indication
Time setting mode Time /Dispaly/Install mode indication
Fan operating mode Fan operating mode indication
Flame signal Flame Signal indication
CH pump mode CH pump mode indication
Storage pump mode Storage pump mode indication
Internal boiler pump Internal Boiler pump mode indication
Celsius mode Indicated as Celsius temperature
Fahrenheit mode Indicated as Fahrenheit temperature
Heat demand mode Heat demand mode indication
DAY mode Current day mode indication
Cascade System connecting
mode
Cascade System connecting mode
indication
Cascade System operating mode Cascade System operating mode
indication
4. The Control Display and Operation (continued)

Page 7
The FT Series Heating Only, Boiler Page 57
5.3 Operating Mode
Operating Mode
After the Power is turned on, and/or the Control Display is turned on , the Control Display
will go through a ‘Start Up’ checklist and brie y show a sequence of diagnostic codes before
entering into the ‘Operating Mode. It will then display the following information.
The Control Display can operate through user and service modes that have speci c LCD output
and dedicated controls:
• Set-point change mode • Lock mode • Error mode • Status display mode
• Outside Temperature mode • Installer mode
* Control Display will not allow changing of button in case of lock mode activated.
Indicate Indicator
Current Operating Temperature Set-Point
If the Fan is operating
If a  ame is detected
Celsius or Fahrenheit or
Date and Time indicator
If Outside Temperature Sensor is operating
If there is a Demand for Central Heat (CH)
If CH pump state is operating
If Internal recirculation pump is operating
If Communication state is activated
57page
BC
E
AD
User's Manual - The FT Series Floor Standing, Heating Only Boiler

Page 8
Page 58
The P-950EH Control Display does NOT have a daily timer or programmable thermostat.
Setting the Clock
a. Press and hold the ‘Clock button’ for about 5 seconds. Set the ‘Year’ by turning the dial E. And
then, press the dial E to Save.
b. Set the ‘MON’ (Month) by turning the dial E to the desired month number. Then press the dial E to Save.
c. Set the ‘DATE’ (1-31, Day of the Month) by turning the dial E. Then press the dial E to Save.
d. Set the ‘HOUR’ (1-24, Hour of the Day) by turning the dial E. Then press the dial E to Save.
e. Set the ‘MIN’ (1-60, Minute of the Hour) by turning the dial E. Then press the dial E to Save.
f. Set the ‘Day’ (Sun - Sat) by turning the dial E. Then press the dial E to Save.
To Exit at any time, tap the button.
5.4 Setting the Clock
57page
BC
E
AD

Page 9
The FT Series Heating Only, Boiler Page 59
5.5 CH Set Point Change Mode
CH Set point Change Mode
Indicate Indicator
Current CH Temperature Set-Point
Celsius or Fahrenheit or
If Communication state is activated
If  ame is detected
Date and Time indicator
If CH pump is operating
If there currently a Demand for Central Heat (CH)
Default CH set-point is 140°F (60°C)
CH set-point range is 130°F ~180°F (54°C ~ 82°C)
To change CH Setpoint, press the C button. The CH Icon and current
CH Setpoint will  ash.
Turn the E dial clockwise to increase, and counterclockwise to decrease CH setpoint, until
desired temperature is reached.
Press E dial to save changes and to Exit.
57page
BC
E
AD
User's Manual - The FT Series Floor Standing, Heating Only Boiler

Page 10
Page 60
5.6 Status Display Mode
Digital Display
Status Display Parameter
Description
O: ot Outdoor temperature Current outdoor sensor temperature
A: In 0-10 V display Current voltage of (0-10V input)
b: tt CH target temperature in cascade system Current CH target temperature or Current
System target temperature in a cascade system
C: It CH return water temperature Current CH return water temperature
d: Fr FAN speed ( rpm) Current FAN speed ( RPM)
E: oP CH supply temperature (Operating temperature) Current heating temperature
F: Eh Exhaust gas temperature Current exhaust gas temperature
H: dH
Indirect DHW tank temperature
* If temperature sensor is not connected
then it will display with 0°F (0°C).
Current DHW tank temperature
I: oH Overheat water temperature Current Overheat water temperature
L: rt
1: PH
Burner Operation
Time
Time for supply power
L: rt on display
on sub menu
Unit : 1000hour
2: rh Time for burner
operation Unit : 1hour
3: rH Time for burner
operation Unit : 1,000hour
4: It Cycle for ignition Cycle : 10 times the
displayed unit
5: IH Cycle for ignition Cycle : 10,000 times the
displayed unit
M:
CC
SELF Percentage of self units running. Percentage of self units running.
ALL Capacity for all operating
cascade units
Percentage of all cascade units running.
This screen shows the overal cascade power output. The
range of this value of boilers communicating with theMaster
x 100. For example, if 8 boilers are connected and
communicating, the maximum cascade power is 800%.
Range: 0-100%
F1 – F
19 Capacity for individual boilers Percentage of each cascade units running. Ex. F1, F2, ….
N: St
System Temperature (cascade
mode) * If system temperature
sensor is not connected then it will
display with 0°F (0°C).
Current System Temperature (cascade mode)
NOTE: For Cascading
Installations, please refer to
document 1349 ‘Cascading
the FT Series Boiler’,
available online.
60page
BC
E
AD
To view any Status Parameter,
Press and Hold Button B to get into the Status Display Mode.
Rotate Dial E until you  nd the Parameter that you wish to view. Tap Dial E to enter that Parameter as
required. Dial E to save and to exit the Status Information Menu. To go back to the Operation Screen
Press button B.

Page 11

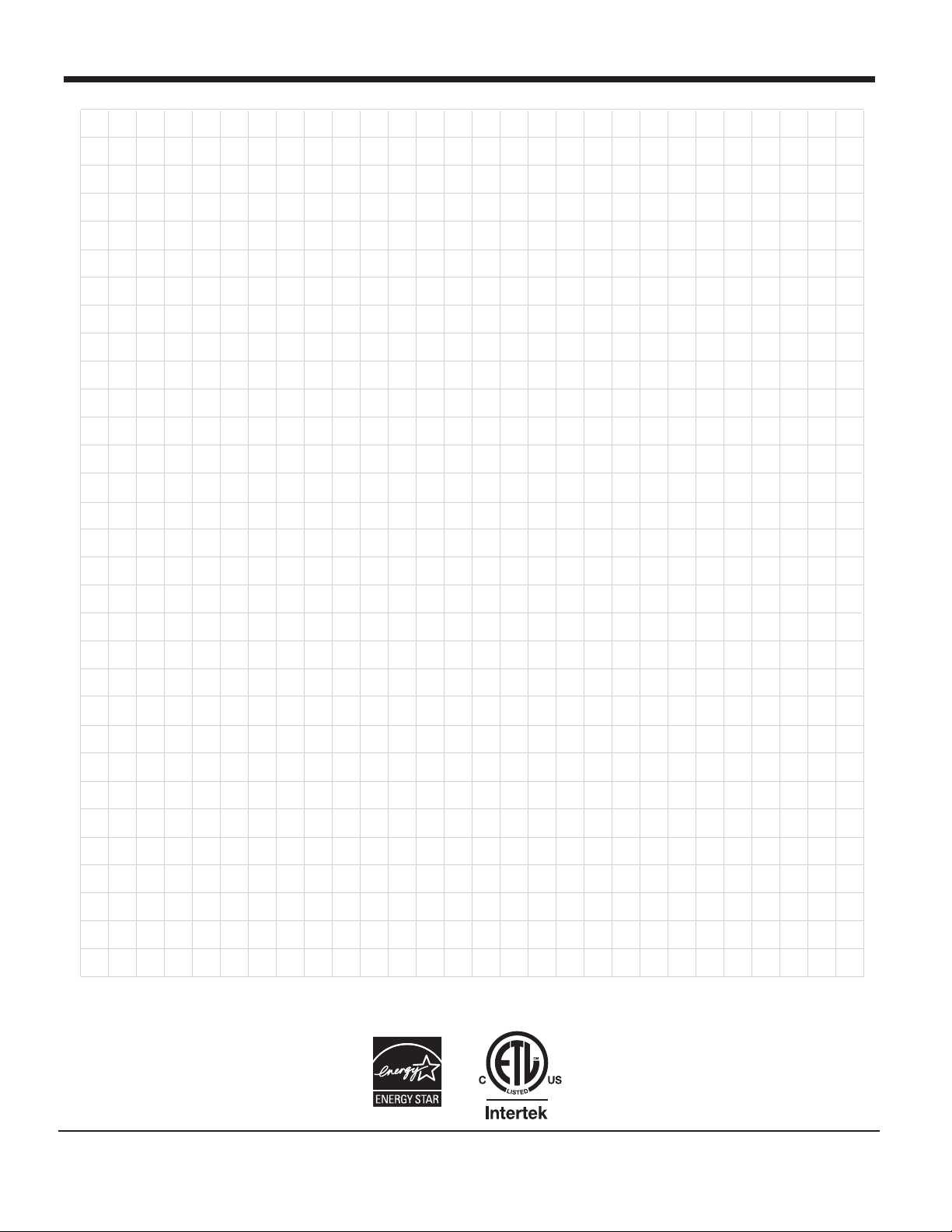

Notes:
User's Manual - The FT Series Floor Standing, Heating Only Boiler

Dimensions and specications subject to change without notice in accordance with our policy of continuous product improvement.
Notes:
20-07 Document 1484
H2420000-
Customer Service and Product Support: 800.900.9276 • Fax [phone]
20 Industrial Way, Rochester, NH, USA 03867
User's Manual - The FT Series Floor Standing, Heating Only Boiler
