Mini-Combo id
Model MCH
Induced Draft
Residential Gas-Fired
Space/Water Heater

Page 2 LAARS HEATING SYSTEMS
TABLE OF CONTENTS
SECTION 1.
General Information
1A. Hazards and Your Safety —
Hot Water Can Scald!...................................3
SECTION 2.
Installation ................................................. 3
2A. Location........................................................5
2B. Heater Placement.........................................5
2C. Piping ...........................................................5
2D. Wiring ...........................................................6

Mini-Combo id
Page 3
SECTION 1.
General Information
WARNING
This manual supplies information on the application,
installation and operation of the indirect water
heater unit. A complete instruction manual of the
operation of the hydronic boiler (Document 1080) is
supplied along with this manual. Both manuals
should be reviewed completely before proceeding
with the installation.
• Failure to follow the instructions provided may
result in personal injury, death or substantial
property damage.
• Any modifications to the boiler, water tank, gas
and water connections, or wiring may void
warranty.
• Consult the factory or local factory
representative with any questions or problems
regarding this equipment.
Hazards and Your Safety — Hot Water
Can Scald!
Consumer Product Safety Commission and some
states/provinces recommend a temperature setting of
130°F (54°C) or less. The water heater thermostat is
factory set to approximately 120°F (49°C). If
thermostat will be set above factory setting, install an
anti-scald valve at either the water heater or at each
hot water faucet.
• Tempering valves are not anti-scald valves since
they do not have a positive shutoff in case cold
water supply fails. They are not recommended
for shower/tub service. If needed, install an anti-
scald valve at each shower/tub.
• Water heated to a temperature suitable for
clothes washing, dish washing and other
sanitizing needs can scald and cause permanent
injury.
• Children and elderly, infirm, or physically
handicapped persons are more likely to be
injured by hot water. Never leave them
unattended in a bathtub or shower. Never allow
small children to use a hot water tap or draw
their own bath. If anyone using hot water in the
building fits this description, or if state/province
laws or local codes require certain water
temperature at hot water taps, take special
precautions:
Install an anti-scald valve at water heater or at
each hot water faucet, bath, and shower outlet.
Use lowest practical temperature setting.
• Studies have indicated that dangerous bacteria
can form in potable water distribution system if
certain minimum water temperatures are not
maintained. Contact local health department for
more information.
SECTION 2.
Installation
This installation must conform with the
instructions in this manual and, where applicable:
• Local, state, provincial, and national codes, laws,
regulations and ordinances.
• In Canada — CAN/CGA B149.1 or B149.2
installation Code.
Where the recommendations made in this manual
differ from local or national codes, the local or
national codes take precedence.
2A. Location
This water heater/boiler unit is not intended for
outdoor installation. Select a convenient location
where water leakage from the tank or connections will
not result in damage to areas adjacent to the appliance
or to lower floors of the structure. When a safe
location cannot be found, install a suitable drain pan
under the appliance, and pipe it to an adequate drain.

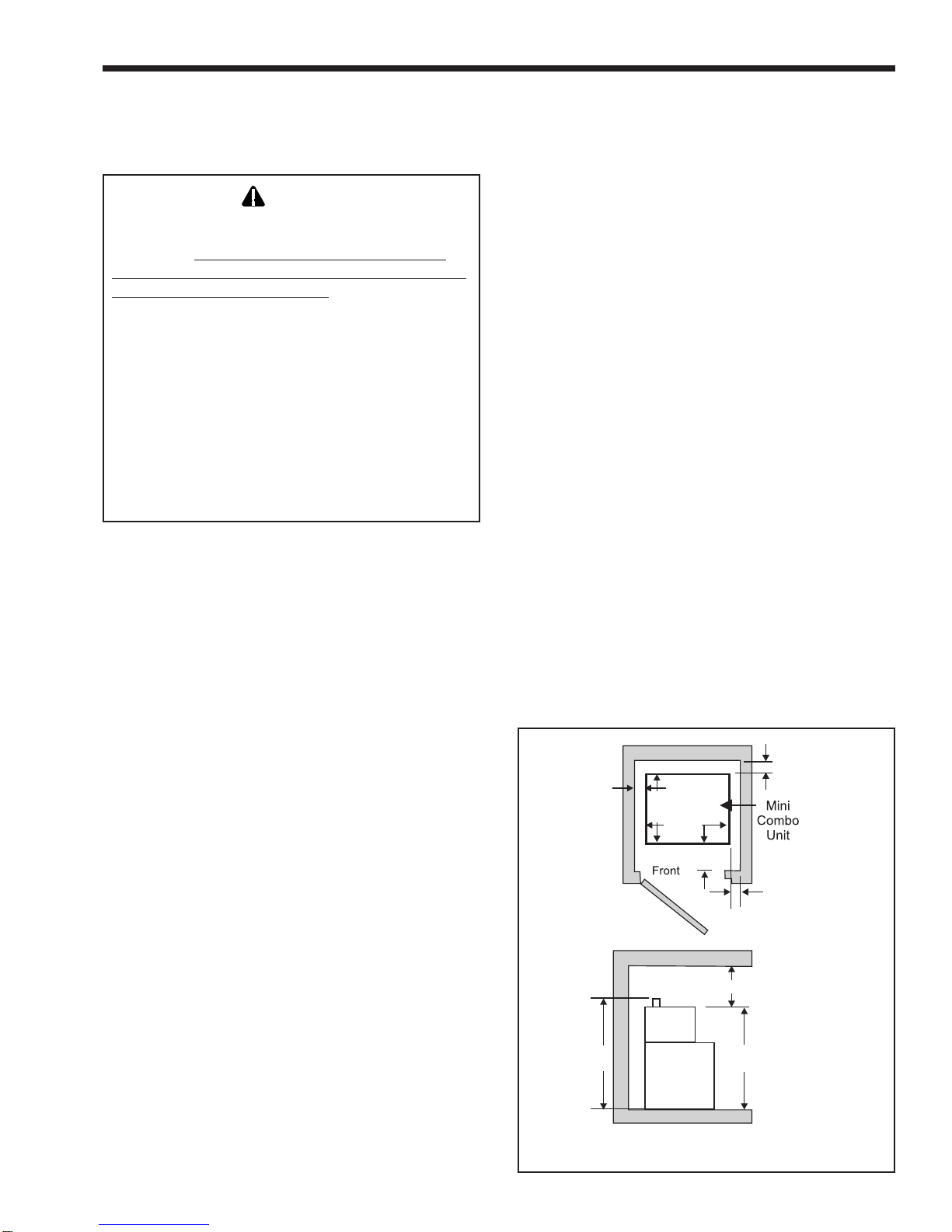

Figure 1. Closet Installation.
Top Clearance
29
(737)
2
(51)
2
(51) 25.25
(641)
23 (584)
4 (102)
2 (51)
Dimensions
shown in inches
(mm).
57.75
(1467)
63.5
(1613)

Page 4 LAARS HEATING SYSTEMS
Boiler
Space Heatin
g
-
Refer to Document 1080
Tank
Figure 3. Piping Schematic.
Cold
Water
Supply
Hot
Water
Supply
Mini-Combo
Tank
Cold Water
Inlet
Shut Off
Valve
Expansion
Tank
Union
Check Valve
or
Back-Flow
Preventer
Figure 4. Typical Expansion Tank Installation.
Figure 2. Dimensional Information.
Dimensions inches mm
Size A
50 14 356
75 15 381
100 16 406
125 17 432
Boiler In/Out NPT
(all sizes) 1¼
Gas NPT (all sizes) ½*
Domestic Hot Water (all sizes)
Inlet/Outlet NPT ¾
Minimum clearances from
combustible surfaces:
Left Side: 2" 51mm
Right Side: 2" 51mm
Rear: 2" 51mm
Front: 4" 102mm Top: 23" 584mm
Service clearances:
Allow 4" 102mm on each side
for piping access.
*¾" for model 125 Natural.
60
(1521)
28
(711)
41.5
(1054)
32.5
(826)
7
(178)
24
(610)
24
(610)
.75
(19)
62.5
(1588)
Domestic
Hot Water
Outlet
Cold Water
Inlet
Side View Front View
Check Valve
Tank
Pump
Boiler Flue Collar 4 (102)
Dimensions shown
in inches (mm).
7
(178)
24
(610)
Tank
Aquastat
Drain
Valve
Tank
Relief
Valve

Mini-Combo id
Page 5
persons. Attach run-off tube to T&P valve and
run tube within 6" (152mm) from floor. No
reducing couplings, valves, or any other type of
restriction is to be installed in this line. This run-
off tube must be installed to allow free and
complete drainage of both valve and run-off tube.
• Filling Storage Water Tank
1. Open hot water faucet in house to allow air
in the tank and in piping to escape.
2. Open shut-off valve(s) in cold water supply
line.
3. Open shut-off valve(s) in hot water supply
line.
2B. Heater Placement
The heater must be placed to provide clearances
on all sides for maintenance and inspection. Allow 4
inches on each side for piping access. There must also
be minimum distances maintained from combustible
surfaces. Figure 1 shows minimum clearance from
combustible surfaces. The Mini-Combo unit can be
installed in a closet, as long as the minimum
clearances are maintained. Special attention should be
paid to the air supply opening to the closet. Refer to
Table 1.
Figure 5. MCH Schematic.
Net Free Area — square inches sq. cm
Model Inside Air Outside Air
MC50 100 645 15 97
MC75 100 645 20 129
MC100 100 645 25 161
MC125 125 806 32 206
Area indicated is for one of two openings: One at floor level and
one at the ceiling, so the total free area would be double the
figures indicated. Refer to Document 1080 for more information.
Table 1. Minimum Recommended Air Supply.
2C. Piping
• To prevent damage to the unit, all soldering is to
be done prior to assembling the cold and hot
water, and any other connections to the tank.
• Use suitable pipe dope or tape.
• Before piping the boiler to the heating system,
be sure to install the system check valve
(provided with the unit) onto the inlet (return)
tee of the boiler with arrow pointed downward
(see Figure 3).
• If anti-freeze is used in boiler system, local codes
may require a backflow preventer on cold supply
line. Use anti-freeze specifically intended for
hydronic heating system. Inhibited propylene
glycol is recommended.
WARNING
Do not use automotive or ethylene glycol anti-
freeze, or any undiluted anti-freeze. This can
cause severe personal injury, death or substantial
property damage.
If a backflow preventer, pressure reducing valve
or check valve is in cold water supply, install an
expansion tank on cold water supply line (see
Figure 4) to prevent normal thermal expansion from
repeatedly forcing open the T&P relief valve.
• T&P relief valve's discharge piping must be
directed so that hot water flows away from all

Page 6 LAARS HEATING SYSTEMS

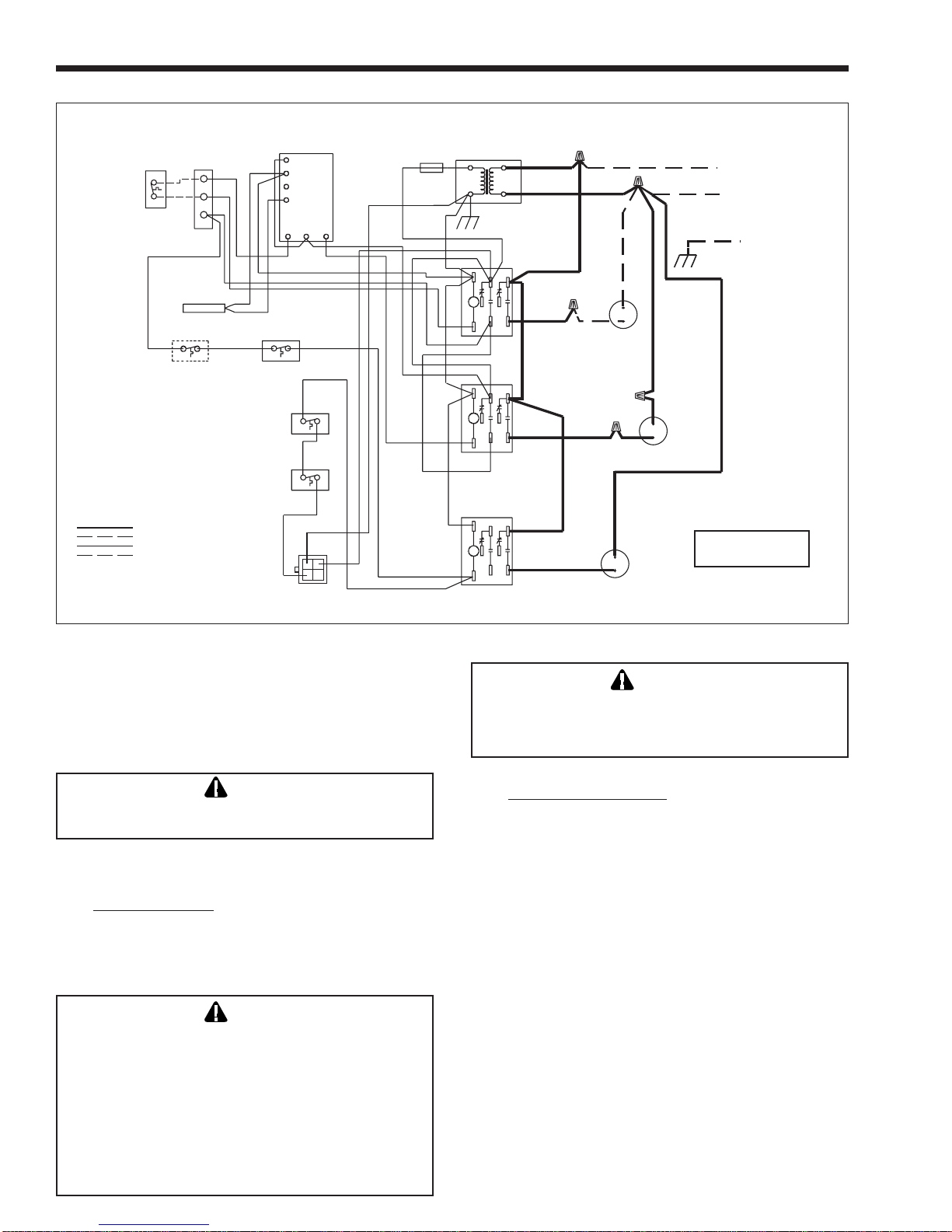

Figure 6. Wiring Diagram.
WARNING
Electrical shock can cause severe personal injury or
death. Disconnect power supply to the boiler before
doing any electrical work.
Electrical Connection (see Figures 5 and 6).
1. Remove the two screws attaching the front cover
of the control box.
2. There are six wires coiled in the area on the right
side of the control box, supplied with wire nuts:
2 black wires twisted together, 3 white wires
twisted together, and a brown wire.
3. Follow the schematics in Figures 5 and 6.
Remove the wire nut from the two black wires,
and connect the hot lead from a 115 volt power
supply to both wires. Secure the three wires in
the wire nut.
4. The three white, neutral wires should be joined
to the other neutral lead coming from the 115
volt power supply, and the neutral lead coming
from the pump (space heating).
5. The brown wire attaches to the hot side of the
space heating pump.
H2021000A
BK - BLACK
W-WHITE
R-RED
Y-YELLOW
BL - BLUE
BR - BROWN
O-ORANGE
P-PURPLE
G-GREEN
BL/Y - BLUE/YELLOW STRIPE
BR/Y - BROWN/YELLOW STRIPE
115V-FACTORY WIRED
115V-FIELD WIRED
24V-FACTORY WIRED
24V-FIELD WIRED
IF ANY OF THE ORIGINAL WIRE (AS
SUPPLIED WITH THE APPLIANCE) MUST
BE REPLACED, IT MUST BE REPLACED
WITH APPLIANCE WIRING MATERIAL
SUITABLE FOR 105 DEGREES C OR ITS
EQUIVALENT
HOT
TANK
AQUASTAT
BR
WALL
THERMOSTAT
(FIELD
SUPPLIED)
P
24V
COM
SEN
NC NO
COM
TRANSFORMER BK
24V 115V
R
Y
Y
G
W
ZONE
PUMP
RELAY GROUNDING
CONDUCTOR
NEUTRAL
115/60HZ
POWER SUPPLY
BK
BK
BR
PUMP
(FIELD
SUPPLIED)
W
TANK
PUMP
BR
TANK
PUMP
RELAY
INDUCER
BL
Y
INDUCER
MOTOR
RELAY BR
OP
Y
GASVALVE
MOLEX
BL
R
R
P
Y
Y
PRESSURE
SWITCH
ROLL-OUT
SAFETY
SWITCH
BL
P
O
R
HIGH
LIMIT
AQUASTAT
(OPTIONAL)
SENSOR
R
BL
R
W
R
R
W
A
TERMINAL
STRIP R
R
R
143
26 5R
143
26 5R
143
26 5
MODEL MCH
BK
Y
W
4. When water discharges from the faucet,
close it. Check for system leaks and repair
if necessary.
• Filling and connecting boiler pipes:
Consult the JV boiler manual, Document 1080.
Caution
Never use water heater/boiler unless it is
completely filled with water.
2D. Wiring
Priority System: Under this wiring the storage
tank will be supplied before space heating. This will
insure that it gets adequate hot water flow from the
boiler to maintain a fully rated delivery of domestic
hot water.
Caution
In this priority mode, any demand for space heating
is postponed until the storage water tank has
reached set temperature. This delay in supplying
the space heating zones is usually not noticed by
the inhabitants of the living spaces. However, in the
event of certain storage water tank malfunctions,
space heating could be delayed indefinitely. If
undetected and un-corrected, freezing damage to
piping could result.

Mini-Combo id
Page 7
Figure 7. Sequence of Operation.
115 Volts Supply
Transformer
Tank Stat
(common)
Domestic Demand
(N.C.) Heating Demand (N.O.)
Tank Pump
(energized)
High Limit
Switch
Inducer
Energized
Fan Proving
Switch
Heating Pump
(energized)
Flame Roll-Out
Safety Switch
Main Gas Valve
(energized)
Boiler On
Sequence of Operation

Page 8 LAARS HEATING SYSTEMS
Figure 8. Parts Identification.

Mini-Combo id
Page 9
# Qty Part # Description
1 1 20085700 Weldment, Panel, Base
2 1 20085600 Weldment, Panel, Top
3 1 20086300 Weldment, Panel, Door
4 1 20086400 Panel, Side, Right
5 1 20127900 Weldment, Panel, Side, Left
6 1 20085900 Panel, Rear
7 1 20086500 Panel, Access
8 1 20084000 Bracket, Mounting, Left
9 4 20085400 Bracket, Support, Tank
10 2 P2019200 Cross, Black Iron, 1¼" NPT
11 4 P2014800 Fitting, Brass Compression,
7/8" OD x ¾"
12 1 A2085600 Valve, Check, ¾" NPT
13 7.2ft P2015000 Tubing, Copper, Type “L”, 7/8" OD
14 1 A2085700 Valve, Drain, Tank, ¾" NPT
15 1 E0205000 Temperature Control, Electronic
16 1 A2085400 Valve, Relief, Temp & Pressure
17 1 A2085301 30 Gal. Water Tank,
Double Wall HX
1 A2085300 30 Gal. Water Tank,
Single Wall HX
18 2 20087300 Door Latch Assembly
19 1 A0066500 Pump, Circulator
20 1 A2086600 Valve, Check, 1¼" NPT
21 1 A2087600 Handle, Door
22 2 A2086700 Flange, Pump, ¾" NPT
23 1 A2085900 Well, Immersion, ¾" NPT
24 1 A2000400 Gauge, Pressure/Temperature
25 1 A2000600 Gauge, Temperature
26 1 20084001 Bracket, Mounting, Right
27 1 E2103100 Sensor

Page 10 LAARS HEATING SYSTEMS

Mini-Combo id
Page 11

H2100200B
Waterpik Technologies, Inc.
6000 Condor Drive, Moorpark, CA 93021 • 805.529.2000 • FAX [phone]
20 Industrial Way, Rochester, NH 03867 • 603.335.6300 • FAX [phone]
480 S. Service Road West, Oakville, Ontario, Canada L6K 2H4 • 905.844.8233 • FAX [phone]
www.laars.com Litho in U.S.A. © Laars Heating Systems 0005 Document 2101B
