LAAWA GT3011 User manual

Operators Manual
GT3011 CBE911423
Original instruction
WARNING: Read the instructions before using the product
Before initial start-up, please read through these operating instructions carefully
prior to using the machine. Keep the instructions safe and pass them on to any
subsequent user so that the information is always available.
Serial Number:

2
CONTENTS
Contents 2
Specifications 2
General Safety Rules 3-7
Electrical Information 7-9
Symbols 10
Know Your String Trimmer 11
Assembly 12-13
Operation 14
Maintenance 15-16
Troubleshooting 17
Disposal and Recycling 17
Warranty 18
CE 19
SPECIFICATIONS
Grass Trimmer GT3011
Type Corded
Voltage 220-240 V~50Hz
Power 530W
Speed 9700 RPM
Line Size 1.4mm
Cutting Swath 300mm
Cutting Line Length 2X5m
Weight 2.5 kg
LpA sound pressure level 85 dB(A) K=3dB
LWA sound power level measure 94 dB(A) K=2 dB
LWA sound power level guarantee 96 dB(A)
Vibration at the handlebars ahv 3.7m/s2
, K=1.9m/s2

3
GENERAL SAFETY RULES
IMPORTANT
When using equipment, the following safety precautions
must be followed to avoid injuries and damage.
•Read all operating instructions carefully and comply with them. It is
important to understand these instructions and to acquaint yourself
with the machine, its correct usage and all safety requirements.
•Keep this manual in a safe place so that the information is
avail -able at all times.
•If you give the equipment to any other person, give them
these operating instructions as well.
We accept no liability for damage or accidents which result
from non-compliance with these instructions.
WARNING
Be extra careful when using mains-powered appliances. Basic safety
precautions, including the following, should always be followed to
reduce the risk of fire, electric shock and personal injury.
•Before use, check the supply and extension cord for signs of
damage or ageing. If the cord becomes damaged during use,
disconnect the cord from the supply immediately. DO NOT TOUCH
THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not
use the appliance if the cord is damaged or worn.
•Read the instructions carefully. Be familiar with the controls
and proper use of the equipment.
•Keep the extension cord away from the cutting elements.
•Wear eye protection.
•Never allow children or people unfamiliar with these instructions
to use the trimmer.
•Avoid using the trimmer if by-standers, especially children or
pets, are nearby.
•Use the trimmer only in daylight or good artificial light.
•Never operate the trimmer with damaged guards or shields or
without guards or shields in place.

4
GENERAL SAFETY RULES
•Switch on the motor only when yours hands and feet are a
safe distance from the cutting means.
•Never fit metal cutting elements to this trimmer.
•Use only the manufacturer’s recommended replacement parts
and accessories.
•Always disconnect the trimmer from the mains when leaving
the trimmer unattended.
•Disconnect the trimmer from the mains before carrying out
maintenance or cleaning work.
•Inspect and maintain the trimmer regularly. Have the
trimmer repaired only by an authorized repairer.
•Take care against injury from the blade(s) on the grass guard for
controlling the cutting line length. After adjusting or extending
new cutter line, always return the trimmer to its normal operating
position before switching on.
•Always ensure that the ventilation openings are kept clear
of debris.
•When not in use, store the trimmer in a clean, dry place.
•If the supply cord is damaged, it must immediately be replaced by
a qualified service agent to avoid further risk of electrocution or
injury.
•Ensure you are familiar with the controls and proper use of
the equipment
•Before use, always check the supply and extension cord for
signs of damage or ageing.
•If the cord becomes damaged during use, disconnect the plug
from the mains supply immediately. Do not touch the cord
before disconnecting the plug from the mains supply.
•Never use the lawn trimmer if the cords are damaged or worn.
•Warning, cutting elements continue to rotate after the
motor is switched off.
•Keep extension cords away from cutting elements at all times.
•For the safe operation of this machine, it should always be used
together with a residual current device (RCD) with a tripping
current of not more than 30 mA.

5
GENERAL SAFETY RULES
ATTENTION
Danger. The cutting line continues to rotate for a few
moments after the motor is switched off.
SAVE THESE INSTRUCTIONS FOR USE AT A LATER DATE
Precautionary Measures Work area
•Do not expose the appliance to rain. Do not use the appliance
in damp or wet conditions.
•Only use the appliance in daylight or good artificial light.
Personal protection
•Wear stout shoes or boots to protect your feet. Do not operate
the appliance wearing open-toed sandal or when barefoot.
•Wear long trousers to protect your legs.
Using your appliance
•Be sure that the appliance is switched off before connecting it
to the mains supply.
•Stay alert at all times. Watch carefully what you are doing.
Use common sense.
•Do not operate the appliance when you tired, under effect of alcohol
or medicines.
•If the appliance begins to vibrate abnormally, switch it off and
remove the plug from the socket. Allow rotating parts to stop
and inspect the appliance for damage and loose part.
•Never pull the cord to disconnect the plug from the socket.
Keep the cord away from heat, oil and sharp edges.
•If the main cable becomes damaged during use. Switch the appli
ance off and disconnect the plug from the mains immediately. Do
not touch the main cable before disconnect from the mains.
Safety of others
•Do not allow any person unfamiliar with these instructions
to operate the appliance.
•Do not allow by-standers or animal to come near the work area
or to touch the appliance or mains cable.
•Remember that the operator maybe held responsible for the
accidents or hazards occurring to other people or their property.

6
GENERAL SAFETY RULES
After use
•Switch off, remove the plug from the socket and ensure that
moving parts have stopped rotating before leaving the appliance
unattended and before changing, cleaning or inspecting any
parts of the appliance.
•When not in use, the appliance should be stored in a dry
place and out of reach of children.
Inspection and repairs
•Before use, check the appliance for damaged or defective parts.
Check for misalignment and seizure of moving part, broken
parts, damage to guards and switches or any other conditions
that may affect its operation.
•Do not use the appliance if any part is damaged or defective. Do
not use the appliance if the switch does not turn it on and off.
•Never use the appliance when any guard or housing
element is damaged or not in place.
•Ensure that the appliance will operate properly and perform
its intended function.
•Have any damaged or defective parts repaired or replaced
an authorized repair agent.
•Before use, check the mains cable for signs of damage,
ageing or wear.
•Do not use the appliance if the mains cable is damaged or defective.
•If the mains cable is damaged or defective it must immediately be
repaired by an authorised repair agent to avoid any further hazard.
•Never attempt to remove or replace any parts other than
those specified in this manual.
General safety during usage
This tool is double insulated; therefore no earth wire is required.
Always check that the power supply corresponds to the voltage
on the rating plate.
•Before using the appliance, check that your cutting path is free
from sticks, stones, wire and any other dangerous objects that
may cause damage or be projected
•Only use the appliance in the correct position, with the cutting line
near the ground. Never switch the appliance on in any other position.

GENERAL SAFETY RULES
•Switch on the appliance only when hands and feet are at a
safe distance from the cutting line.
•Avoid any body contact with the cutting line while the appliance is
running.
•Do not work on steep slopes, be sure of your footing. Be
aware that freshly cut grass is damp and slippery.
•Use only the appropriate of cutting line. Never use metal
cutting line or fishing line.
•After extending new cutting line, away return the appliance to
its normal operating position before switching on.
•Take care to keep the mains cable away from the cutting
line. Always be aware of the position of the cable.
•This appliance can be used by children aged from 16 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children. Pls keep product out of reach of children.
ELECTRICAL INFORMATION
WARNING
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR
DAMAGE TO THE TOOL, USE PROPER CIRCUIT
PROTECTION. YOUR GRASS TRIMMER IS WIRED AT THE
FACTROY FOR 230 V OPERATION. TO AVOID SHOCK OR
FIRE, IF THE EXTENSION CORD IS WORN, CUT OR DAMAGED
IN ANY WAY, REPLACE IT IMMEDIATELY.
DOUBLE INSULATED
The grass trimmer is double insulated to provide a double
thickness of insulation between you and the tool’s electrical
system. All exposed metal parts are isolated from the internal metal
motor components with protective insulation.
7

8
ELECTRICAL INFORMATION
WARNING
USE ONLY IDENTIFICAL REPLACEMENT PARTS WHEN
SERVICING THE GRASS TRIMMER, TO AVOID INJURY.
WARNING
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF
NORMAL SAFETY PRECAUTIONS WHEN OPERATING
THIS GRASS TRIMMER.
WARNING
TO AVOID ELECTROCUTION:
1. Use only identical original replacement parts when servicing
a tool with double insulation. Servicing should be performed
by a qualified technician by agreed Service Center.
2. Do not use in wet or damp areas or expose to rain.
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, ground-
ing provides the path of least resistance for electric current, and
reduces the risk of electric shock. This tool is equipped with a
POLARIZED plug. The plug MUST be plugged into a matching
grounded extension cord in accordance with All local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the
properly grounded extension cord, have the proper outlet installed
by a qualified electrician.

ELECTRICAL INFORMATION
CAUTION
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY
GROUNDED. IF UNCERTAIN, HAVE IT CHECKED BY A
CERTIFIED ELECTRICIAN.
WARNING
THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO
NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
Make sure your extension cord is properly wired and in good electri-
cal condition. Always replace a damaged extension cord or have it
repaired by a qualified person befor use. Keep extension cords away
from sharp objects, excessive heat and damp or wet areas.
Before connecting the motor to the power line, make sure the
switch is in the OFF position and the electric current is identical to
that stamped on the motor nameplate. Running at a lower voltage
will damage the motor.
WARNING
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED,
THE EXTENSION CORD AND RECEPTACLE MUST STILL BE
GROUNDED WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRICAL SHOCK.
9

10
SYMBOLS
Some of the following symbols may be used on this product. Please
study them and learn their meaning. Proper interpretation of these
symbols will allow you to operate the product better and safer.
Precaution that involve your safety
You must read the operating instructions carefully.
Pay attention that bystanders are not injured by objects thrown out from the
machine. Keep bystanders a safe distance away from the machine.
Wear eye protection.
Wear ear protection.
Disconnect from the mains supply before any maintenance work.
Do not use the machine in the rain or leave it outdoors when it is raining.
Noise level specification Lwa in dB.
Double-insulated construction
CE certificate
Do not dispose of electrical equipment in domestic waste.

11
Flowerguard hoop
Cord retention mechanism
Main handle in Soft-Grip
Safety ON/OFF switch
Coil holder
Secondary Wire
Protection handle
Main handle control button
Tube lockring
Telescopic tubing
Electric
extension
holder
Mains cable
Motor housing anglebutton
Motor housing
Stop wheel
Nylon wire
Wire guard with wire cutter
Fig.1
KNOW YOUR STRING TRIMMER
KNOW YOUR STRING TRIMMER (See Figure 1.)
The safe use of this product requires an understanding of the information on the product and in this
operator’s manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
ASSEMBLY
WARNING
Before assembly, make sure that the grass trimmer is switched off and
unplugged.

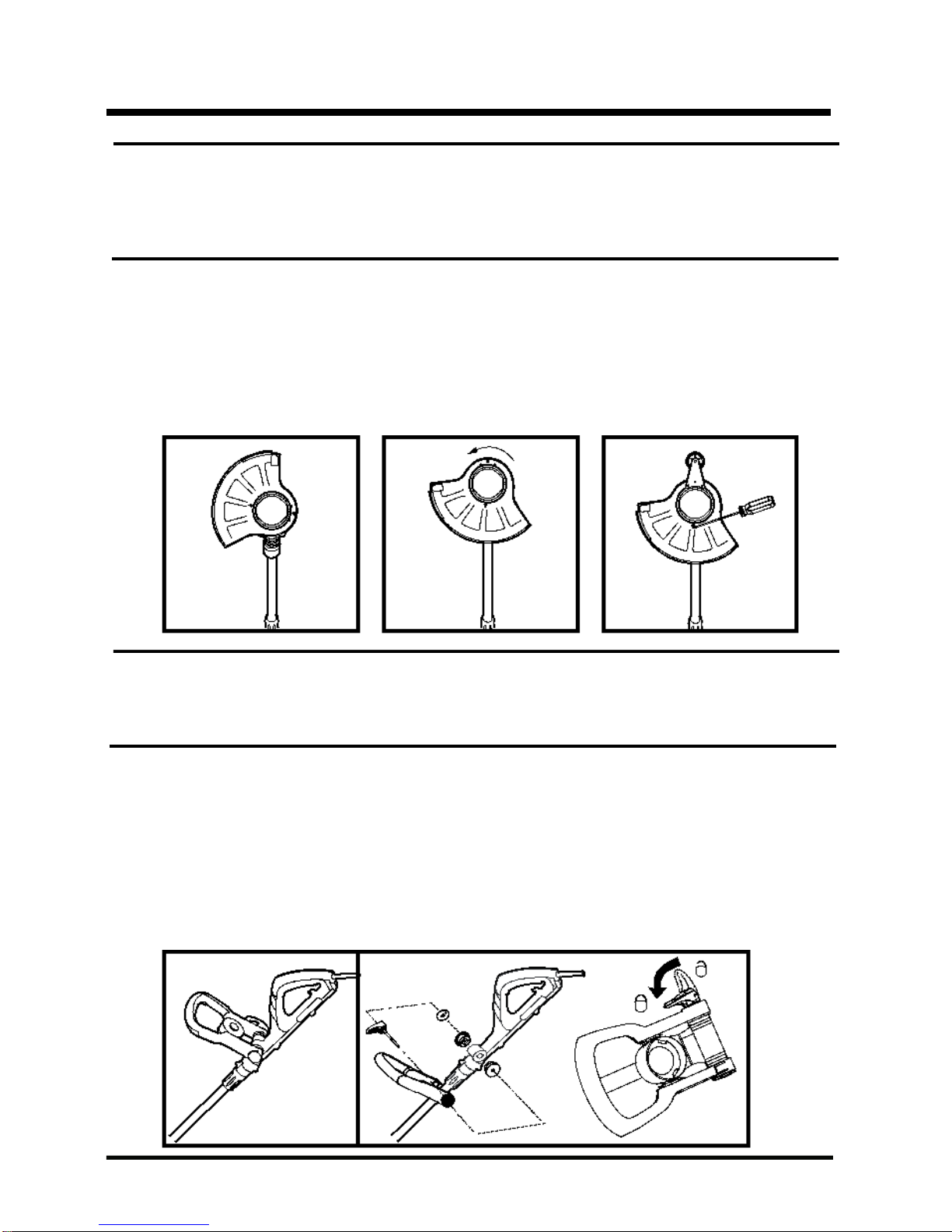

Fitting the guard (See Figure 2 & Figure 4.)
1.Position housing on machine as indicated
2.Rotate housing into correct location
3.Fix housing with the screws
4.Fix support wheel (for vertical cutting) with the screws
WARNING
Never use the grass trimmer unless the guard is properly fitted.
Fitting the secondary handle (See Figure 5 & Figure 6.)
1.Position handle as shown
2.Adjust handle to desired angle
3.Make a note of setting you have chosen
4.Pass bolt across support and handle
5.Fix screw from other side. Do not over-tighten.
12

Fig. 7
Fig. 8
Fig. 9
13
ASSEMBLY

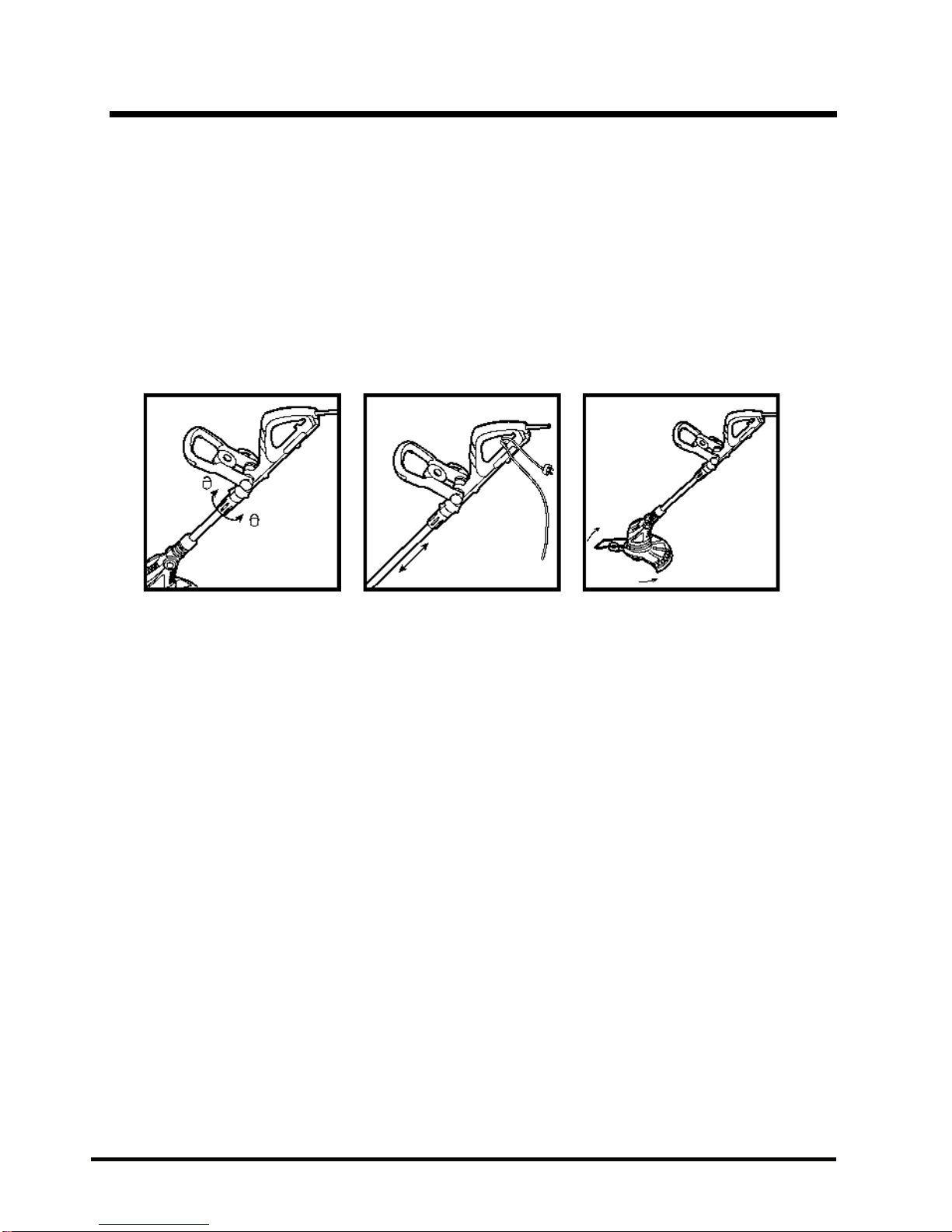

Adjusting suitable cutter position (See Figure 7 & Figure 9.)
1.Unscrew tube lock ring.
2.Slide tubing to desired length
3.Tighten tube lock ring.
4.Press motor housing angle button to pivot into desired cutting position (fig 9). Release button.
(This facilitates cutting under obstacles).
5.To add an extension cable, connect an approved external extension to trimmer cable and
attach it to holder, as shown in fig. 8.
Unwinding cutter wire
Check state of cutter wire before starting machine. Wire needs to be long enough to achieve
desired cut. If necessary press winder button and pull out suitable length of wire.
Stopping/starting trimmer
1. Ensure a secure stance and hold on to the trimmer with two hand. Do not deposit the cutting
head on the ground.
2. To switch on depress the ON/ OFF switch. Release the switch to switch off.

Fig. 10
Fig. 11
Fig. 12
Fig. 13
OPERATION
After starting trimmer, allow motor to turn over for a few seconds before cutting grass. Cutter wire
automatically adjusts length of the two ends of wire.
Now you can start work.
If wire is finished up, you cannot achieve desired cut.
You should occasionally tap cutter head on the ground to feed extra wire.

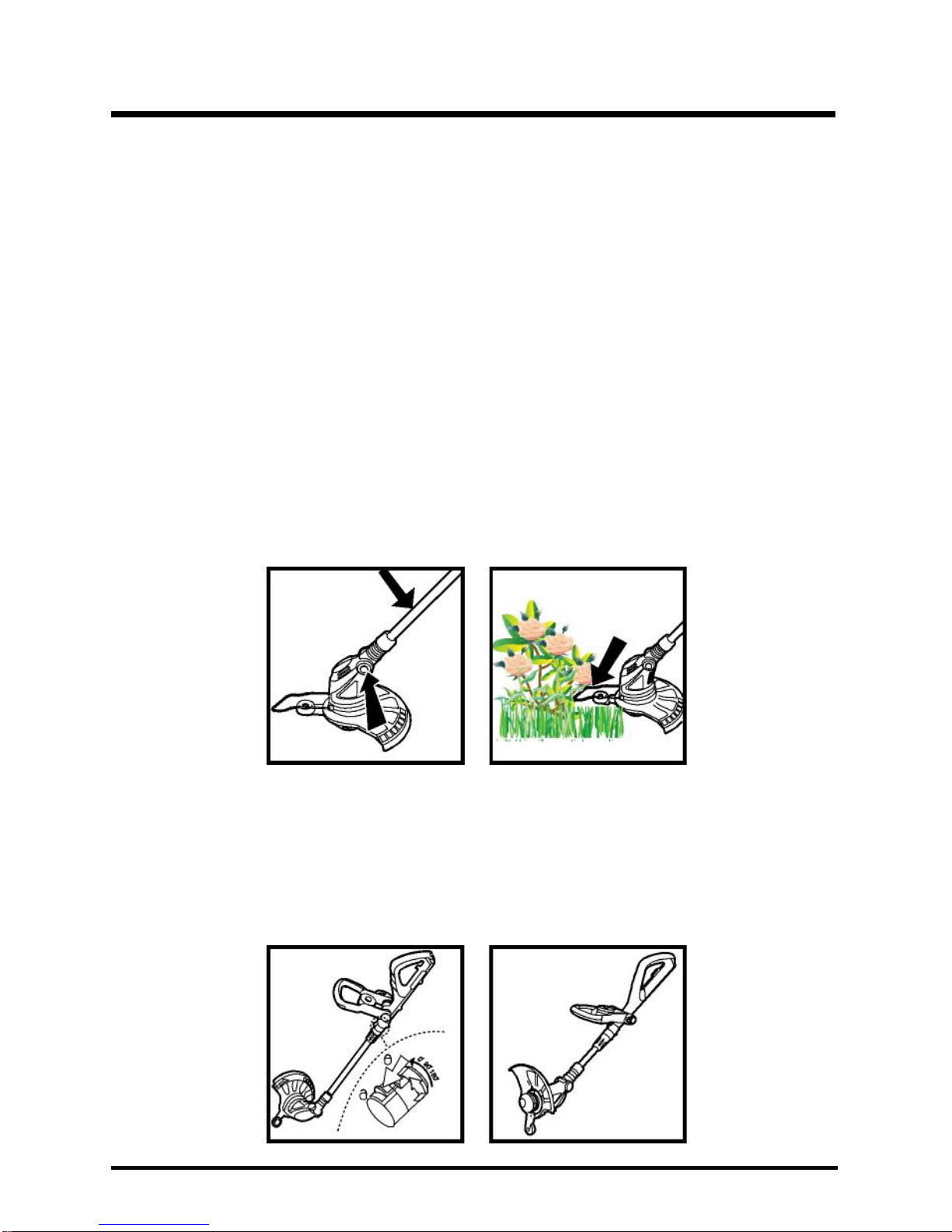

Tips on horizontal cutting (See Figure 10 & Figure 11.)
•Always start appliance before cutting grass.
•Hold machine with both hands.
•Swing gently from one side to the other, from left to right, with trimmer at angle of 30°.
•Cut long grass in stages.
•Never cut damp or wet grass.
•Do not exceed trimmer capacity. Always use it at full speed.
•Do not touch stones, concrete or fencing with trimmer.
•The wheel is designed to facilitate cutting next to fences and walls.
•As soon as you feel the motor slowing down, reduce the load.
•Open out flower guard hoop to prevent cutting flowers and flower beds (fig 11)
Tips on vertical cutting (See Figure 12 & Figure 13.)
•Press main handle control button.
•Pivot main handle by 90° or 180°. Beware: Head turns only in one direction.
•Always start appliance before cutting grass.
•Hold machine with both hands
•Use stop wheel to move trimmer forward effortlessly.
14

15
Fig. 15
①
②
③
④
⑤
①
②
③
④
Fig. 14
MAINTENANCE
Your grass trimmer has been designed to operate over a long period of time with a minimum of
maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
WARNING
Before performing any maintenance, switch off and unplug the tool.
•Regularly clean the ventilation slot in your grass trimmer using a soft
brush or dry cloth.
•Regularly clean the cutting line and spool using a soft brush or dry cloth.
•Regularly use a blunt scraper to remove grass and dirt from the
underneath of the guard.
Fitting a new spool of cutting line (See Figure 14 & Figure 15.)
•Unplug appliance.
•Press cover clips ①and remove cover from head ③.
•Remove empty coil ②.
•Clean all grass and dust from head before inserting new coil.
•Rotate it to correct position.
•Pass the two nylon wires across the two openings ⑤.
•Pull out about 10 cm of wire on each side.
•Line up cover clips ①in notches in head ⑤.
•Secure cover and check proper engagement in notches.
WARNING
If nylon wires stick out from protective housing, trim them to correct length with
a pair of scissors.

16
⑦
Fig. 16
⑥
⑥
Fig. 18
①
Fig. 17
MAINTENANCE
WARNING
If the cutting lines protrude beyond the trimming blade, cut them off so that they
just reach the blade.
Winding new line onto a spool (See Figure 16 & Figure 17 & Figure 18.)
•Only use 1.4mm replacement line
•You may wind new cutting line onto an empty spool.
•Replacement packs of cutting line are available from dealer.
•Remove the empty spool from the grass trimmer as described above.
•Remove any remaining cutting line from the spool.
•First feed 10cm of cutting line ⑥ into the two eyelet ⑦ in the upper section of the spool as show
•Wind the cutting line onto the spool in the direction of the arrow. Make sure to wind the line
on neatly and in layers. Do not criss-cross.
•Feed cutting line ⑥ into the two eyelet ⑦ in the upper section of the spool as show
•Finish winding, Produce as described above to fit the spool on the grass trimmer. Do not forget
to release the cutting line from the parking slot.
Use LawnMaster replacement spool; part # 121004101
WARNING
Only use the appropriate original type of cutting line.

TROUBLESHOOTING
If your grass trimmer seems not to operate properly, follow the instruction below. If
this does not solve the problems, please contact your local agreed Service Center
WARNING
Before proceeding, switch off and unplug.
Tool runs slowly
•Check that the spool housing can rotate freely. Carefully clean it if necessary.
•Check that the cutting line does not protrude more than 10cm from the spool housing. If it
does, cut it off so that it just reaches the line trimming blade.
Automatic line feed does not work.
•Keep the tabs depressed and remove the spool cover from the housing.
•Pull the cutting line until it protrudes 10cm from the housing. If insufficient cutting line
is left on the spool, install a new spool of cutting line as instructed above.
•Align the tabs on the spool cover with the cut outs in the housing.
•Pushing the cover onto the housing until it snaps securely into place.
•If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the
blade.
•If the automatic line feed still does not work or the spool is jammed, try the following
suggestion:
•Carefully clean the spool cover and housing.
•Remove the spool and check if the lever can move freely.
•Remove the spool and unwind the cutting line, then wind it on neatly again as describe
above. Replace the spool as instructed.
DISPOSAL AND RECYCLING
Machines do not belong with domestic waste.
The unit is supplied in packaging to prevent its being damaged in transit. This
packaging is raw material and can therefore be reused or can be returned to the raw
material system. The unit and its accessories are made of various types of material,
such as metal and plastic. Defective components must be disposed of as special
waste. Ask your dealer or your local council.
17

18
WARRANTY
We recommend you check the product is in good condition immediately after purchase and
read the instructions carefully before use.
In no cases can the guarantee give rise to a refund of direct or indirect damages or liabilities of any
sort.
This guarantee does not cover:
1. Abnormal use not conforming with instruction manual
2. Inadequate maintenance
3. Poor combination or inadequate lubrication
4. Use for professional or hiring purposes
5. Assembly, adjustment and starting procedures
6. Any damage or loss caused during transit or transfer
7. Any damage due to impact or dropping
8. Appliance packing and transit / transport charges
9. Stated normal consumable items such as knives, blades, spark plugs, spool, wire, tree
support for knives, cables, wheels, hub-caps and collection sacks, etc.
10.Downtime charges or appliance hire in case of breakdown.
Guarantee automatically lapses if:
1. Modifications are made to machine without manufacturer’s approval
2. Non-original or unapproved parts are installed
Manufacturer declines any public liability arising from improper use not complying with normal
standards and/or with ruling regulations and from inadequate maintenance.
No repairs made or parts replaced can possibly lead to an extension of initial guarantee validity.
PLEASE CONTACT YOUR DEALER TO CHECK IN DETAILS THE SPECIFIC WARRANTY
CONDITIONS OF THIS PRODUCT.

EC Declaration of conformity
Serial number :
We company, GARDIF SAS
ZAC de l’Europe
60 rue de Bruxelles
77310 PONTHIERRY France
the undersigned, Bruno VAN ELSLANDE, General Manager,
the person authorized to compile the technical file : Yuxi WANG, quality engineer
declare that the following product under brand : LAAWA
product model : Electric Grass Trimmer 530W GT3011
(Factory model: GT3011 / GARDIF Ref. : CBE911423)
(the electric grass trimmer is a device with flexible nylon wire or similar cutting devices, flexible
and non-metallic, and intended only for casual work cutting grass on edges as well as small
grass plots or inaccessible surface on private plots)
complies the requirements of Machines Directive 2006/42/CE
and also complies with the following Directives :
- Low Voltage Directive 2014/35/UE
- EMC Directive 2014/30/UE
- Outdoor Noise Directive 2000/14/CE and Directive 2005/88/CE
- ROhS Directive 2011/65/UE
and national regulations transposing them.
Also complies the following harmonized norms: EN 60335-1:2012/A11:2014;
EN60335-2-91:2014; EN62233:2008; EN55014-1/A2:2011; EN55014-
2/A2:2008; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 62321:2009
Conformity assessment process Directive 2000/14/CE, Annex VI and Directive 2005/88/CE
(cutting width 300mm)
Notified body: 0036 TUV SUD Industrie Service GmbH
Westendstrasse 199, 80686 München,
Germany
Measured sound power level: LWA m: 94 dB (A)
Guaranteed sound power level: LWA g: 96 dB (A)
Done in Ponthierry, 1.st November 2016
Bruno VAN ELSLANDE, General Manager
