Labgear HDSR300 User manual

1
SAFETY INSTRUCTIONS ........................................................................................................3
1. INSTALLATION OF STB.................................................................................................4
1.1 FRONT PANEL.................................................................................................................4
1.2 REAR PANEL................................................................................................................... 4
1.3 CONNECTION ..................................................................................................................5
1.4 REMOTE ..........................................................................................................................7
2. MAIN MENU ......................................................................................................................8
3. EDIT CHANNEL................................................................................................................ 8
3.1 TV CHANNEL LIST ..........................................................................................................8

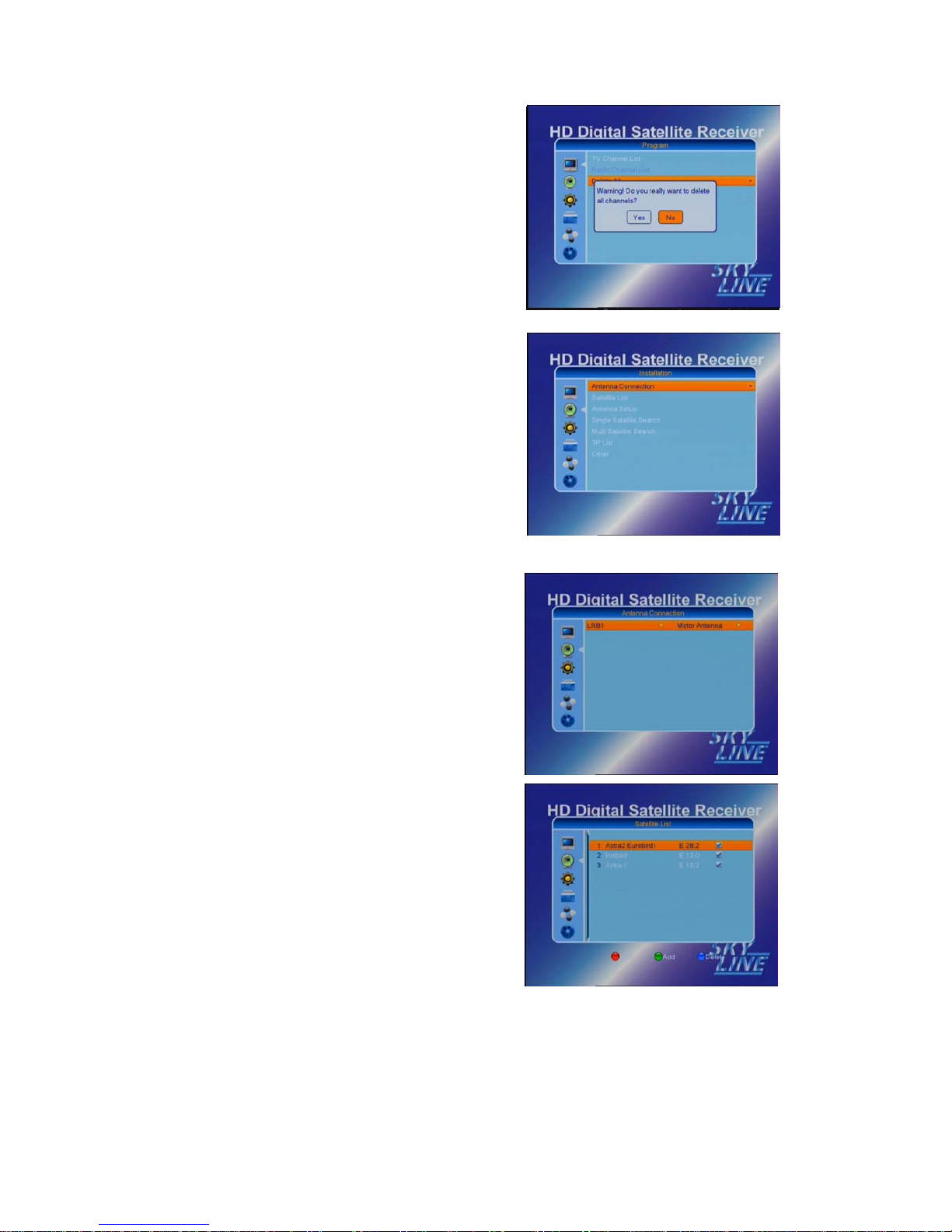

3.2 DELETE ALL ..................................................................................................................10
4. INSTALLATION ..............................................................................................................10
4.1 ANTENNA CONNECTION ...............................................................................................10
4.2 SATELLITE LIST.............................................................................................................10
4.3 ANTENNE SETUP ..........................................................................................................11
4.4 SINGLE SATELLITE SEARCH......................................................................................... 11
4.5 MULTI SATELLITE SEARCH...........................................................................................11

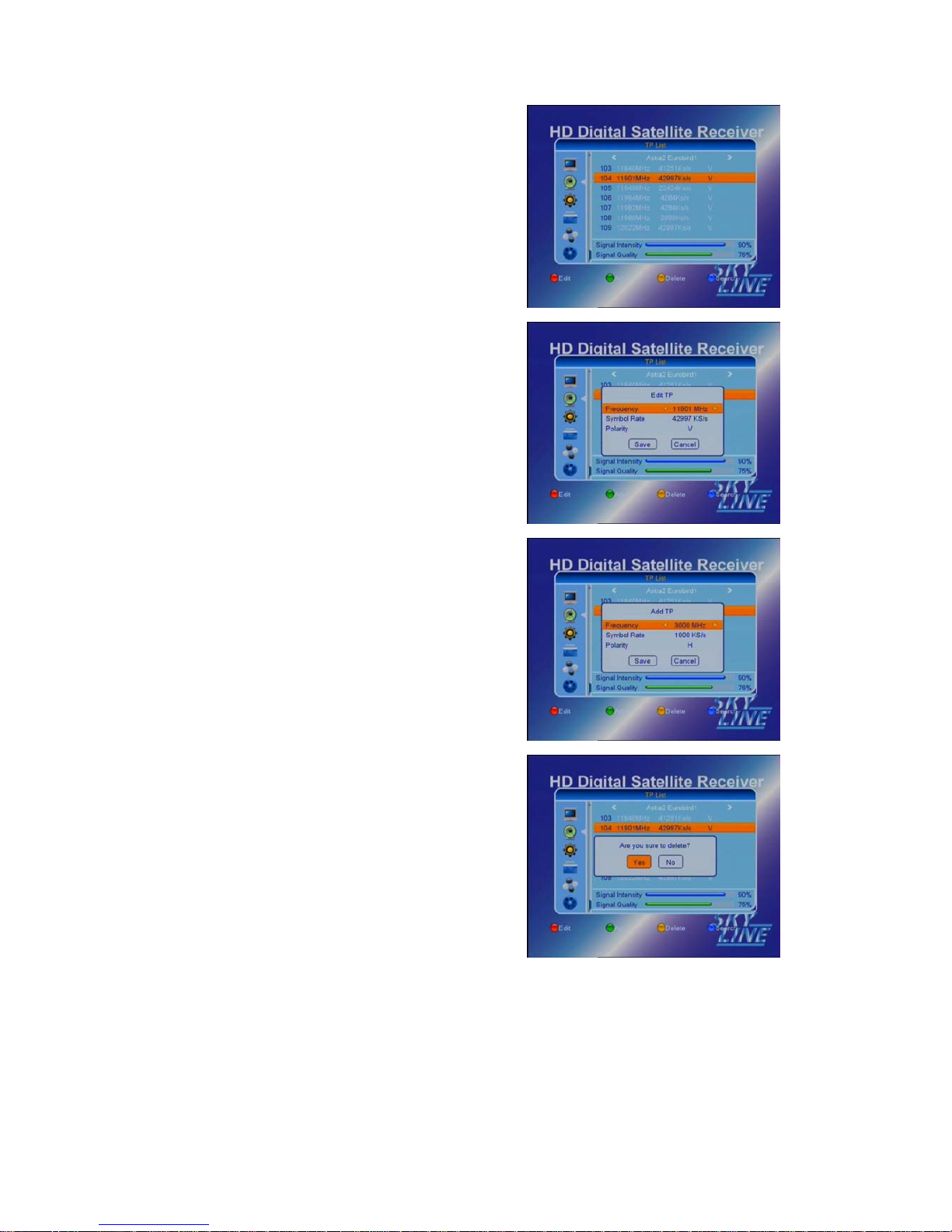

4.6 TP LIST .........................................................................................................................12
4.7 OTHER ..........................................................................................................................13
5. SYSTEM SETUP ..............................................................................................................13

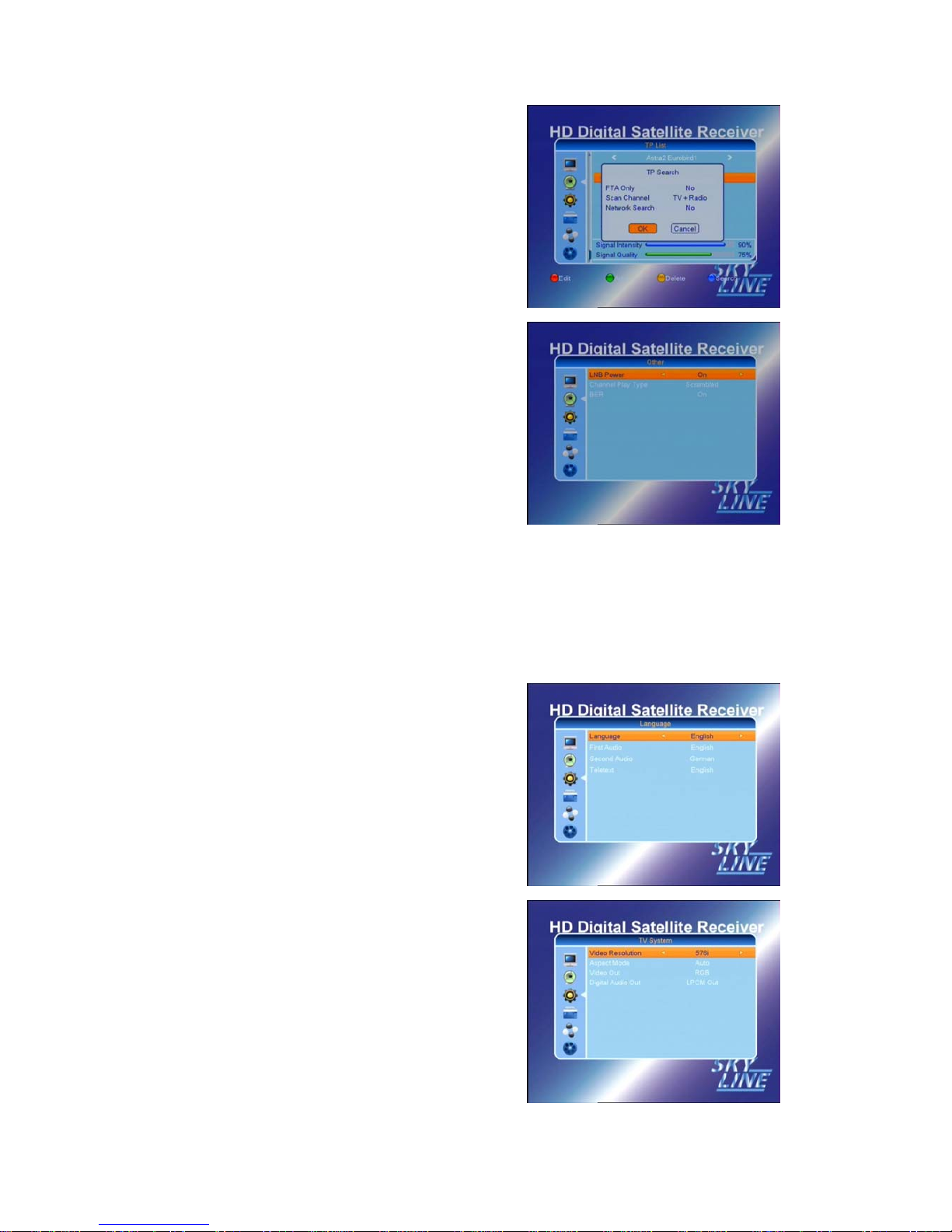

5.1 LANGUAGE..................................................................................................................13
5.2 TV SYSTEM ................................................................................................................13

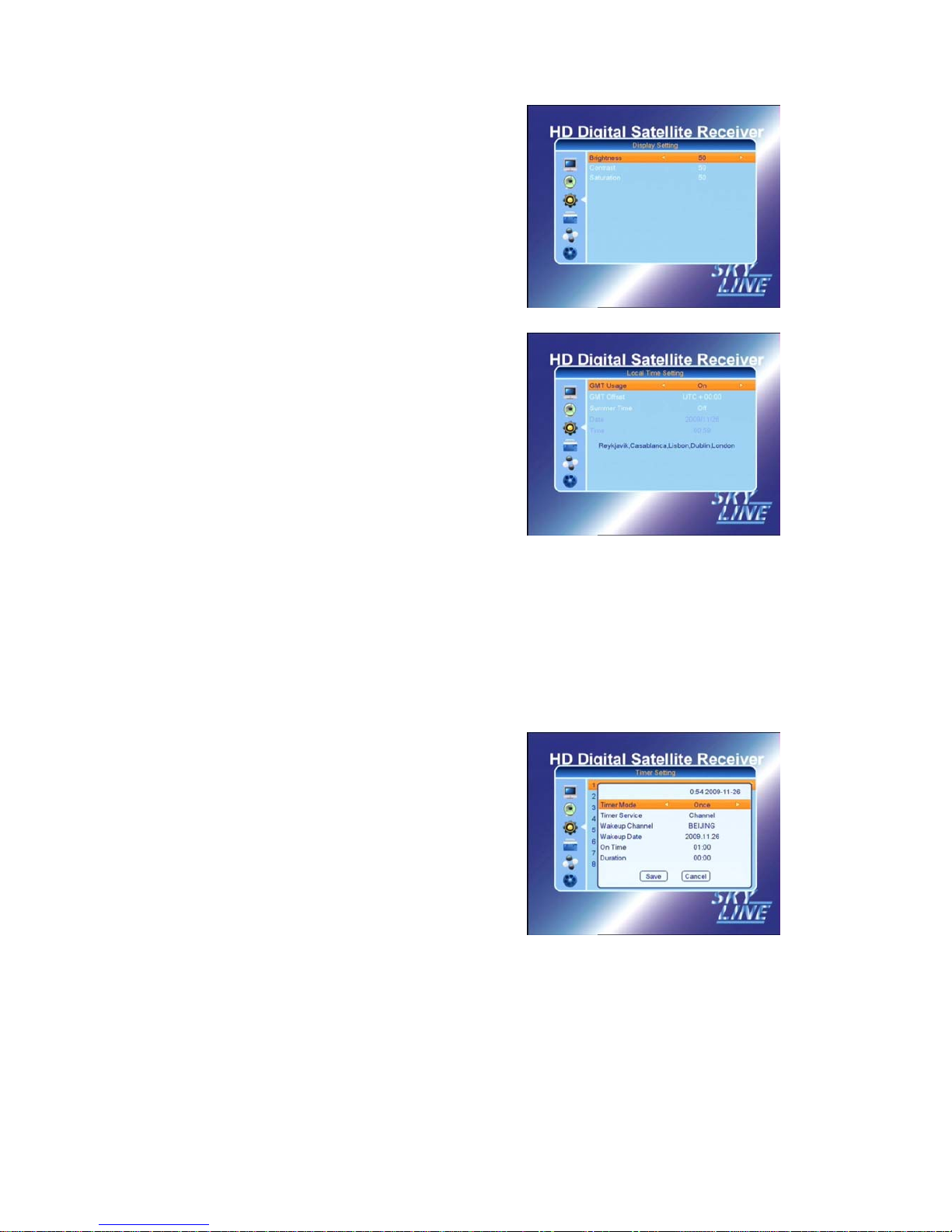

5.3 DISPLAY SETTING ......................................................................................................14
5.4 LOCAL TIME SETTING.................................................................................................14
5.5 TIMER SETTING ..........................................................................................................14
5.5 PARENTAL LOCK ........................................................................................................15
5.6 OSD SETTING............................................................................................................15
5.7 FAVORITE ...................................................................................................................15
6. TOOLS...............................................................................................................................15

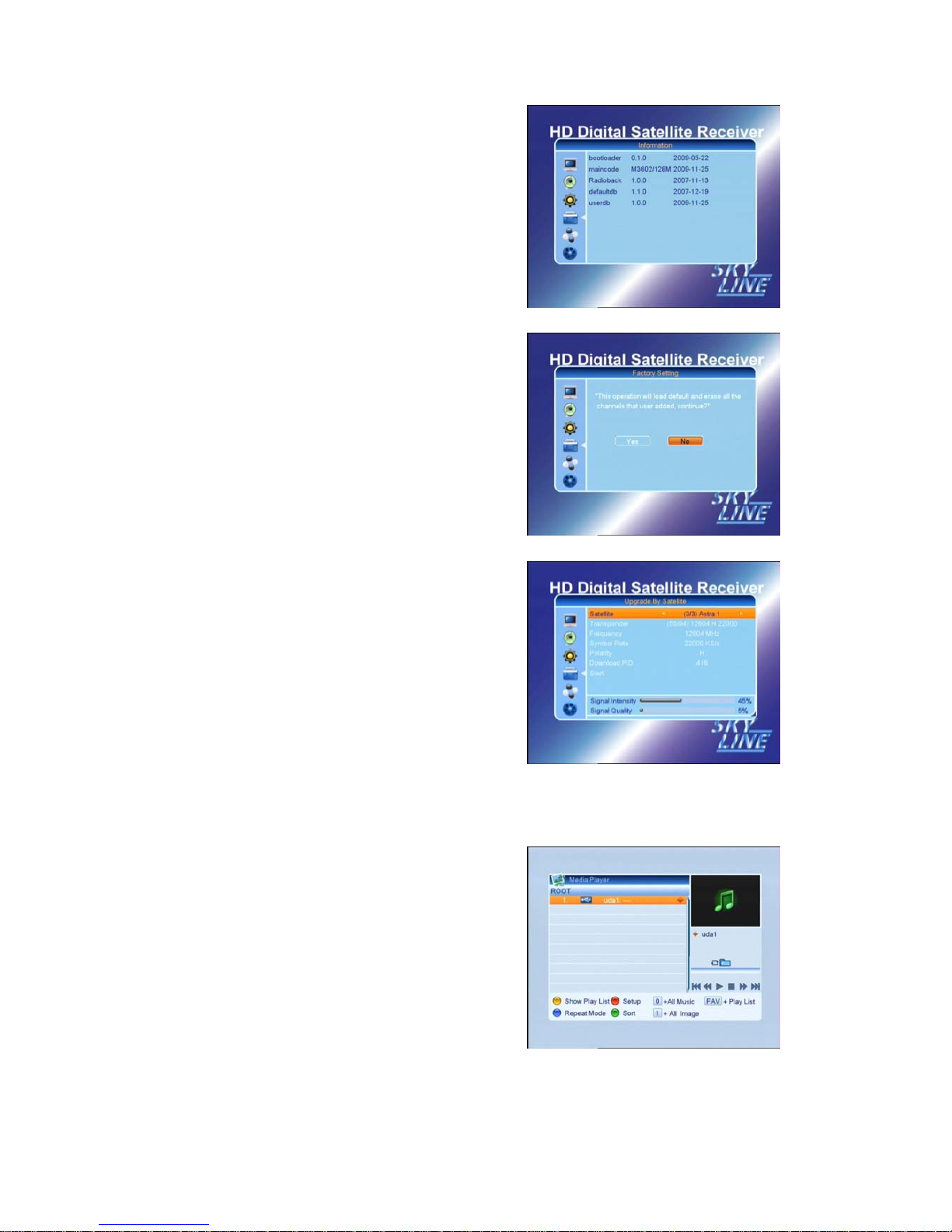

6.1 INFORMATION................................................................................................................16
6.2 FACTORY SETTING .......................................................................................................16
6.3 SW UPDATE BY OTA ...................................................................................................16
6.4 UPDATE BY USB ..........................................................................................................16
6.5 USB ..............................................................................................................................16
6.6 REMOVE USB DEVICE SAFELY.....................................................................................16

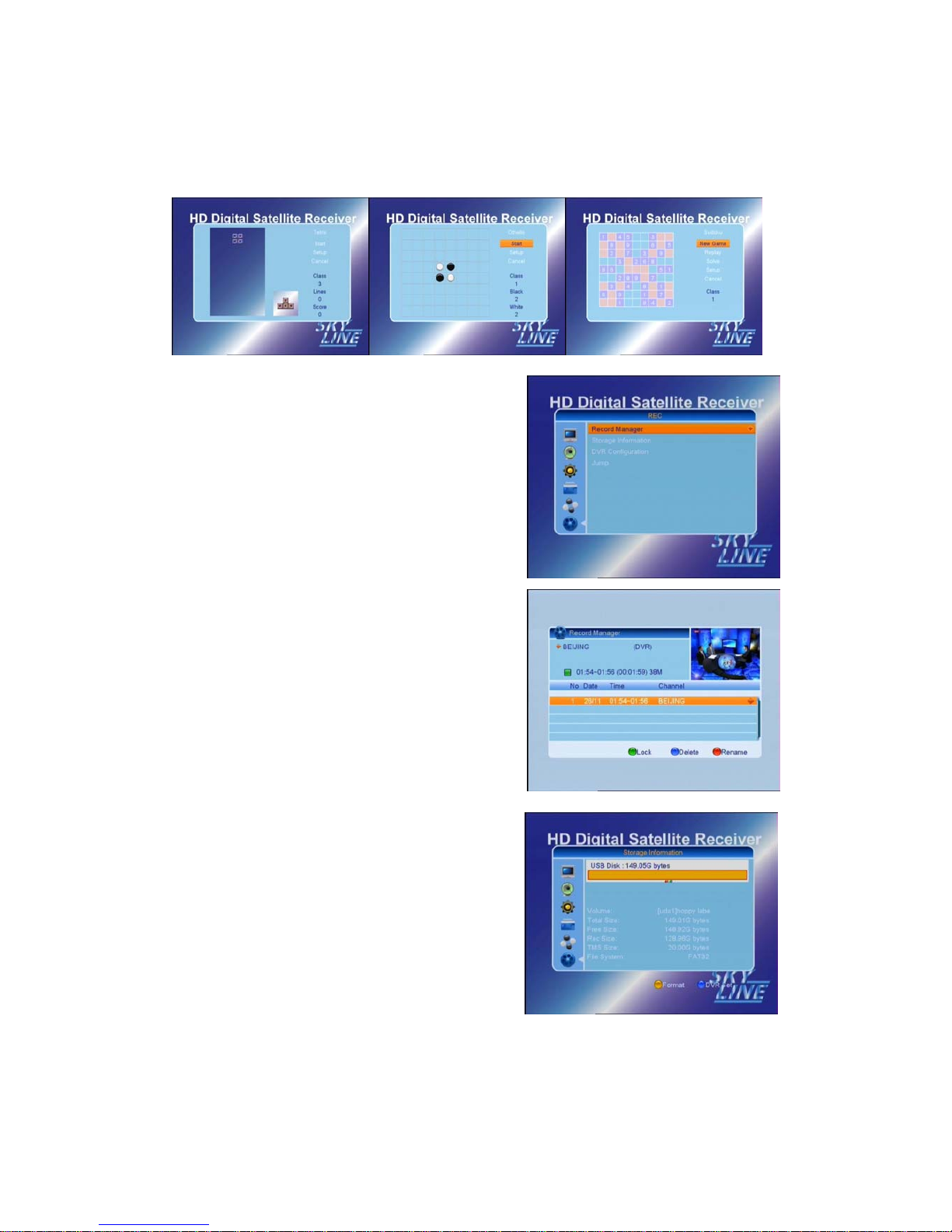

7. GAME ................................................................................................................................17
8. REC(RECORD) ................................................................................................................17
8.1 RECORD MANAGER ......................................................................................................17
8.2 STORAGE INFORMATION ..............................................................................................17

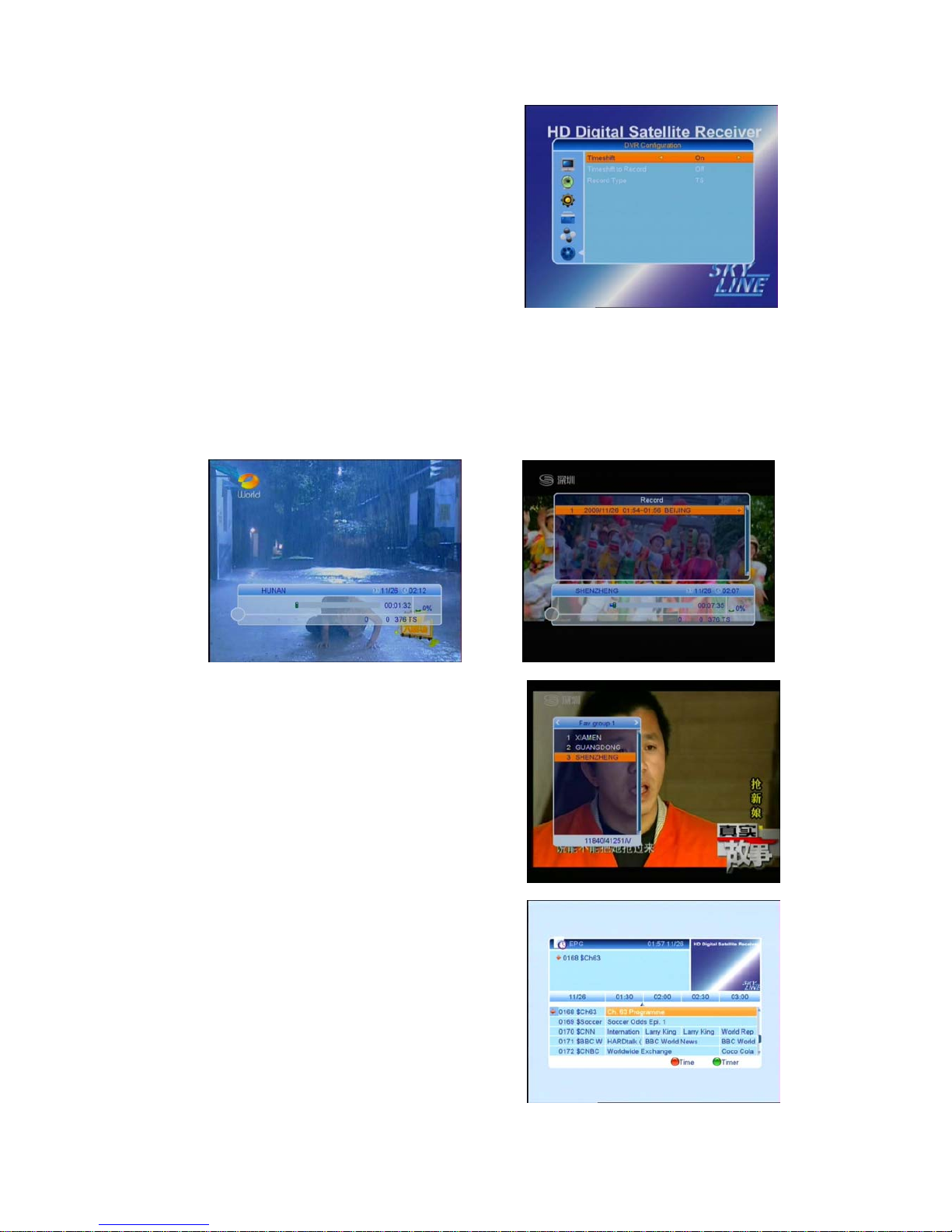

8.3 DVR CONFIGURATION ...............................................................................................18

2
8.4 JUMP .............................................................................................................................18
9. OTHER FUNCTIONS INTRODUCTION.....................................................................18
9.1 PROGRAM INFORMATION..............................................................................................18
9.2 FAVORITE LIST..............................................................................................................18
9.3 PROGRAM GUIDE .........................................................................................................18
9.4 VOLUME CONTROL .......................................................................................................19
9.5 RECORD PROGRAM ......................................................................................................19
10. TECHNICAL SPECIFICATION..................................................................................20
11. TROUBLESHOOTING .................................................................................................21

3
SAFETY CAUTION：
Safety Instructions
DO NOT INSTALL YOUR RECEIVER:
•In a closed or poorly ventilated cabinet;
•Directly on top of or under any another equipment;
•On a surface which might obstruct the ventilation slots.
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:
•To direct sunlight or near any other equipment that generates heat;
•To rain or intense moisture;
•To any shock which may cause permanent damage to your receiver;
•To any magnetic objects, such as loudspeakers, transformers, etc.;
•To intense vibration;
•Never open the cover. It is dangerous to touch the inside of the receiver due to high
voltage currents and possible electrical hazards. Your warranty will be void if the receiver
has been opened.
•When the receiver is not used for a long period of time, you should unplug the power cord
from the wall socket.
•Do not use a damaged power cord. It may cause a fire or an electrical shock.
•Do not touch a power cord with wet hands. It may cause an electric shock.
•Place the receiver in a well-ventilated environment.
•When you are connecting the cables, be sure that the receiver is disconnected from the
mains supply voltage.
•Do not use your receiver in a humid environment.
Make sure you read this user manual before installing your receiver.
Main features:
zSlim design (230mm)
zMPEG-2, MPEG-4/ H.264 decoding
zFull USB2.0 for software updates, music playing, image viewing and recording
z256 Colour On Screen Display
zParental control
zFavorite lists
zTimer
zEPG/TTX/SUBTITLE supported
zDigital sound through optical output(S/PDIF)
zPVR ready supported

4
1. Installation of STB

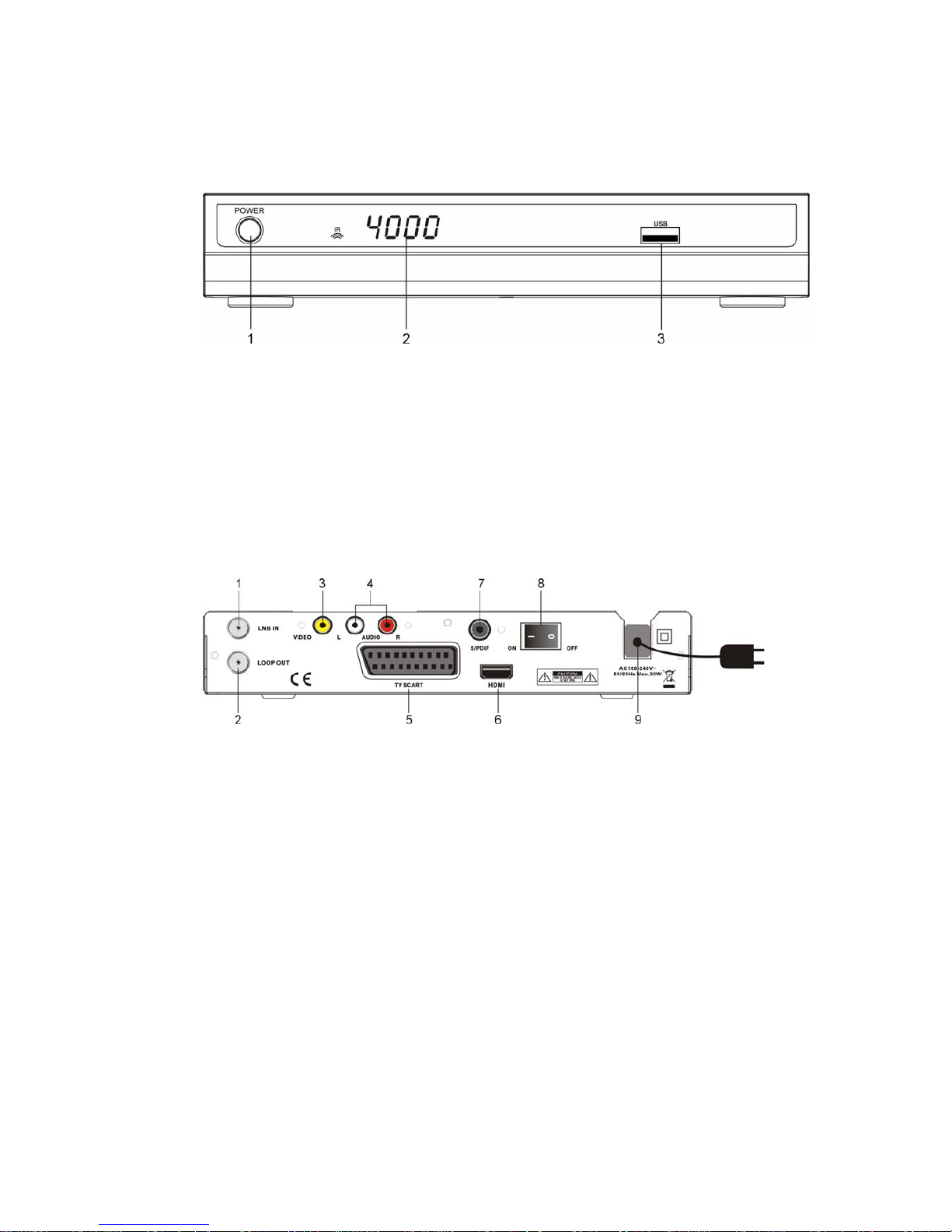

1.1 Front Panel
1.POWER Button
Turns the receiver On/Off
2. Display (4-digi 7-segment)
4-digi displays channel information; In Standby mode, 7-segment displays local time
3. USB2.0 Port
For PVR function, software updates, and other USB functions
1.2 Rear Panel
1. LNB IN
Connect the Satellite Dish LNB.
2. LOOP OUT
Output the Dish LNB IN signal.
3. AUDIO Right and Left
These connectors give you the possibility to connect the audio signal to an external
amplifier, or the audio input of your TV.
4. VIDEO
This connector has a composite CVBS video signal for additional VCR-connections.
5. TV SCART Connector
Use this connector to connect your receiver with your TV set using a SCART cable.
6. HDMI
Use this connector to connect your receiver with your TV set using a HDMI cable.
7. S/PDIF
Use this coaxial output to connect your receiver to the input of your digital audio amplifier.
8. Power ON/OFF Switch
9. Power Cord
Your receiver requires a current of 100~240V AC (Auto-selectable), 50~60Hz
+/-5%.

5
Make sure to check the power specification before connecting your receiver
to the wall outlet.
1.3 Connection
Note: Before connect this HD receiver to other devices, please shut down all
devices to be connected.
zConnecting to TV
1. Connect the satellite signal from the LNB to the LNB IN connector.
2. Connect the receiver to your TV set through the options of HDMI cable, SCART cable
or a RCA cable.
zConnecting to Digital Audio Amplifier
Connect S/PDIF connector at the back of your receiver to appropriated input of your
Digital Audio
zConnecting to Dish
Aiming a satellite dish and LNB to the correct longitude and Azimuth (angle of elevation)
of a satellite is a specialist job, and best to be done by a professional installer.
<Connecting a fixed satellite dish to your receiver>
Make your choice of which satellite you want to receive your signals from, and have your
installer aim your dish at the requested satellite. For English language channels this will
be Astra 2, Eurobird 1.
Connect an F type coax cable to your LNB and the other end directly to the LNB IN
connector of your receiver.

6
<Connecting multiple fixed dishes to your receiver using a DiSEqC 1.0 switch>
If you want to watch programmes from more than one satellite (For instance from Astra
and from HotBird) it is suggested to use fixed dishes and a DiSEqC 1.0 switch. Have your
installer aim the dishes at the requested satellites and connect the LNBs with coax cables
to the IN connectors of the DiSEqC 1.0 switch. Connect the OUT connector of the
DiSEqC 1.0 switch tothe LNB IN connector at the back of your receiver.
<Connecting a dish on a motorized positioner to your receiver>
Another option to watch programmes from multiple satellites is by mounting a dish to a
motorized DiSEqC 1.2 positioner.
Have your installer mount the dish to the positioner, set the correct azimuth (angle of
elevation) and let him set the centrepoint for your positioner.
Connect the LNB with a coax cable to the LNB IN connector of the positioner, and
connect the OUT connector of the positioner to the LNB IN connector at the back of your
receiver.
zTurn on your TV, and select correct input.
zPlug the receiver power cord into the 240V/100V AV power socket on the wall.
zPress the “POWER Switch” on the rear panel of the receiver to start. Wait a
moment till the “Lock light” (yellow color) is on. Then press the “POWER” button
on the front panel.

7
1.4 Remote
:Switches between operational and standby modes.
: Press to temporarily cut off the sound.
0-9: Enter number or select a channel number to watch.
AV: Switches between AV aspect ratios format.
TV/R: Switch between TV and Radio mode.
MENU: Displays the main menu.
EXIT: Returns to the previous menu or escape from the item
OK: Confirm.
: Move cursor up/down/left/right, page up/down, Vol +/-.
FAV: Press to display the TV favorite list.
EPG: Shows the EPG (Electronic Program Guide) only when
menu is off.
V+/V-: Volume+/-.
AUDIO: Display the Audio Select window.
INFO: Shows information of the current channel. When a
USB device is connected, double click will bring you to
Record list
ZOOM: Magnify the picture.
P+/P-: Page up or down in menu list.
SAT: Switches between the satellites.
TEXT: Shows current service’s Teletext On Screen Display
SUB: Shows the list of subtitled languages the current
channel supports. Also turns on and off.
RCL: Switches to last channel watched.
.
.
PVR Function:
:
Rewind: x2, x4, x8, x16, x24
:
Fast forward: x2, x4, x8, x16, x24
:
Reverse slow motion: x1/2, x1/4, x1/8 (This function is not available on H.264 coding as
used by some HD channels like BBC HD).
:
Forward slow motion: x1/2, x1/4, x1/8
:
Start playing/ Release pause.

STOP/ Activate USB menu.
||
Pause.

Records a live programme.

8
2. Main Menu
This HD receiver contains a facilitated user
interface, this function is to make user easy to call
all device functions.
Operation Steps: Press “MENU”, you can see this
main menu.
zWhen no menu is appeared on the screen,
you press the【MENU】key that will display the main menu.
zWhen menu appears on the screen, press the【MENU】or 【EXIT】key
this will return to the up-level menu.
z【OK】：When press the “OK” key this will select the current sub-level menu item.
z【】：Will move the selection up or down.

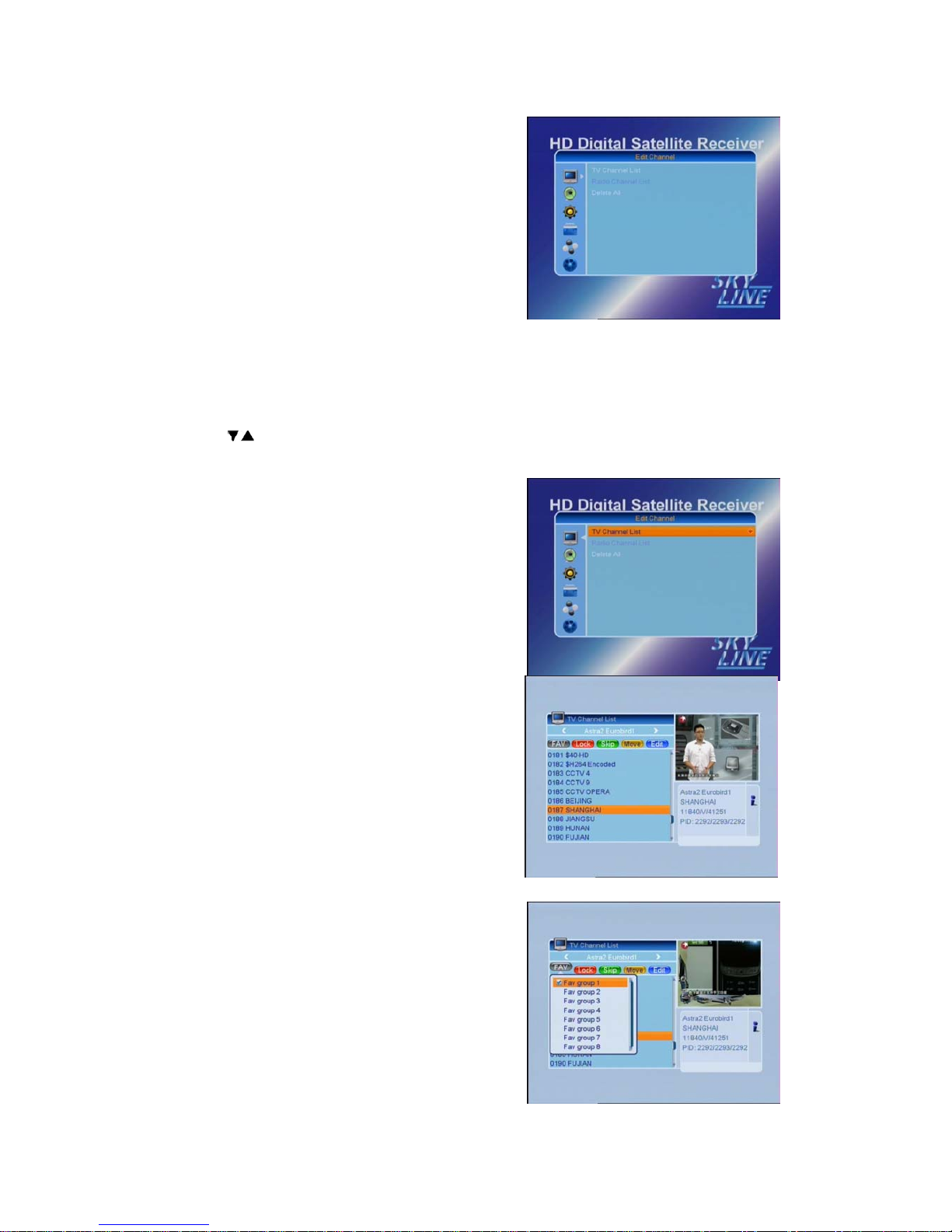

3. Edit Channel
Use the main menu, you can press UP or
DOWN key to select “Edit Channel” icon.
From this menu, we can select “TV Channel
List” , “Radio Channel List” and “Delete All”
items.
3.1 TV Channel List
You can add channels to a favorite group, lock
channel, skip channel, move channel and edit
channel in the “TV Channel List” Menu.
3.1.1 FAV
In “TV Channel List” menu, you can select a
channel by pressing UP/DOWN key, then press
“FAV” key and “OK” key to enter the favorite
group list, press UP/DOWN to select a favorite
group, and press “OK” key to confirm, press
“EXIT” key to add the channel to this favorite
group.

9
3.1.2 Lock
In “TV Channel List” menu, you can select a
channel by pressing UP/DOWN key, then press
the “RED” key and then the “OK” key to lock this
channel. Press “OK” again to cancel lock.
3.1.3 Skip
In “TV Channel List” menu, you can select a
channel by pressing UP/DOWN key, then press
the “GREEN” key and then the “OK” key to skip.
Press “OK” again to cancel skip.
3.1.4 Move
In “TV Channel List” menu, you can select a
channel by pressing UP/DOWN key, then press
the “YELLOW” key and then the “OK” key to
mark it, press UP/DOWN key to move this
channel to the position where you want to move.
Press the “OK” key to store the channels in its
new position.
3.1.5 Edit
In “TV Channel List” menu, you can press the
“BLUE” key to edit the channel list. In “Edit”
menu, you can sort, edit and delete channel.
zSort
You can sort channels with options of ‘Name
A-Z’, ‘Name Z-A’, and ‘Free/Scrambled Lock’ by
pressing “RED” key.
zEdit
You can rename channels by pressing “GREEN” key.
zDelete
You can delete channels by pressing the “BLUE” and “OK” keys.
