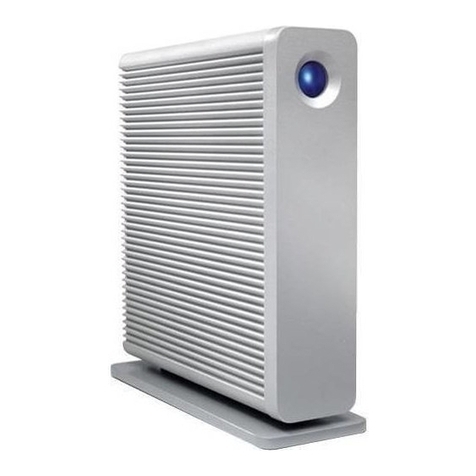

LaCie d2 Network 2 User manual

UP TO
68 MB/s
SPEED
*
Active Directory
Heat Sink Cooling
d2 network 2
DESIGN BY NEIL POULTON
Professional Storage Server
Gigabit Ethernet | USB 2.0

Essential Networking Solution
The LaCie d2 Network 2 offers professional, reliable, central
storage for instantly storing, sharing, and backing up from any
PC or Mac®on your network, and best of all, it’s fully compatible
with Windows®, Mac, and Linux operating systems. Manage your
home or small office network easily with this full-featured file server,
recommended for networks with up to 200 users. The d2 Network 2
is perfectly suited for quiet environments or for professional IT
server rooms thanks to its 19" rackmount capability.**
• Fast access to your NAS—performance up to 68 MB/s*
• Complete backup solution for data integrity
• Advanced power management options
• Dynamic DNS remote access
Simple, User-Friendly Administration
With the d2 Network 2’s new widget-based dynamic web
interface, administration is easy, convenient and secure. Thanks
to DHCP and Apipa support, network configuration is fast and
automatic. The product integrates easily with existing Windows
domains using Active Directory and it allows user, groups, share
and quota management. Access to administration pages and
shares is easy using LaCie Network Assistant and, on top of that,
it can provide its administrator notifications via email of events
like backup, disk failure, high temperature, etc.
A Complete Backup Solution
Get extra security and increase data portability by backing up your
LaCie d2 Network 2— on your own schedule — to an external
hard drive through its USB and eSATA ports using the built-in copy
system. The LaCie d2 Network 2 also comes with Genie®Backup
Manager Pro™ for Windows and Intego®Backup Manager Pro™ for
Mac to install on each PC/Mac for client backups to the NAS. This
software lets you reliably and efficiently back up your documents,
emails, settings, or other digital assets; it supports compressed,
encrypted, or image backups and initiates a computer recovery
program in case of general crash. Also, the LaCie d2 Network 2 is
compatible with Mac OS X v10.5 Leopard, including Time Machine®,
making it an ideal partner for your Mac.
d2 Network 2
External HDD
Mac
Router Internet
Laptop
HTTP, FTP,
BitTorrent
PC
Storage and Networking
d2 Network 2

Remote Access
With Automatic Port Forward, you can take advantage of
UPnP-IGD/NAT-PMP compatible routers and easily access your
d2 Network 2 remotely. With the Dynamic IP integration you
can create your own Internet address for your NAS. Thanks to its
advanced file browser based in Ajaxplorer you can also easily
see, download and use your documents stored in your LaCie
d2 Network 2.
Eco Management
The LaCie d2 Network 2 helps you to reduce power
consumption by switching to idle mode (where the disk spins
off) after a determined inactivity time. Also, you can schedule
a deep sleep on/off mode according your needs. Thanks to
the Wake-on-LAN feature, the d2 Network 2 can be switched
back to operating mode from the client side. In addition, it
also integrates UPS support*** through its USB port to ensure
proper shutdown in case of power failure. On top of that, its
exclusive aluminum fanless heat sink design makes it your
ecological partner— it’s recyclable and ROHS-compliant.
EXCLUSIVE D2 HEAT SINK DESIGN
Provides 60% more area for
heat dissipation and high reliability
Aluminum
Heat Sink
Design
Standard
Design
Save Energy
Box Content
LaCie d2 Network 2•
Ethernet cable•
USB 2.0 cable•
External power supply•
Drive stand for upright use•
Utilities CD-ROM with software and User Manual•
Quick Install Guide•
Minimum System Requirements
Computer with an Ethernet network adapter•
Latest version of: Windows XP, Windows Vista• ®, Windows Vista
64-bit, Windows 7 / Mac OS X 10.5, 10.6 / Linux 2.6
Minimum free disk space: 600MB recommended•
Web browsers: Internet Explorer• ®7.0, Firefox®3.0, Safari®3.0,
or Chrome 2.0 or higher
Dynamic DNS
FTP / HTTP(S)
USB Direct Connection
You can connect your d2 Network 2 directly to your computer
through a USB cable to access a dedicated USBShare folder of up to
500GB like a normal external hard drive. This unique feature allows
you to gain extra flexibility and mobility for customized usage. So
you’ll be able to format this USBShare in your preferred file system
using your computer.
d2 Network 2
PC / Mac
eSATA
Expansion Port
USB 2.0 Direct
Connection Port
USB 2.0
Expansion Port
Gigabit Ethernet
Power connector
Lock Slot
ON/OFF

*Tests performed using IOZone tool in SMB file systems. PC used: Core2 Quad 2.66 GHz, 4GB RAM, Gigabit Ethernet Switch Netgear GS108, Network Adapter
Intel PRO/1000 PT Quad Port, OS Vista Professional 64-bit. Performance depends on file system used, file size, and may vary from one drive to another.
**Accessory for rack sold separately.
***Refer to our website for list of supported printers.
1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 10–15% less).
Refer to our website for list of supported printers.
 OFF mode: product in standby.
© 2010, LaCie. The LaCie logo is a trademark of LaCie. Other products and brand names mentioned herein may be trademarks or
registered trademarks of their respective owners. Specifications and appearance are given as guidelines and may change without notice.
www.lacie.com 100308
301504 301505 301506
1TB 1.5TB 2TB
1 x Gigabit Ethernet 10/100/1000 Base-TX
1 x USB 2.0 (type B)
1 x eSATA
1 x USB 2.0 (type A)
OS with 64KB I/O – Read: up to 50MB/s; Write: up to 35MB/s
OS with 1MB I/O – Read: up to 68MB/s; Write: up to 40MB/s
File Server: SMB, AFP, FTP, HTTP, HTTPS
Others: Apple Bonjour, BitTorrent, NTP, DHCP, Apipa
Via FTP or HTTP. Dynamic DNS services optional.
Direct access to NAS using LaCie Network Assistant
Customizable widget-based interface
PC to NAS: encrypted, compressed, scheduled, remote (FTP)
Data restore and data disaster recovery available
NAS to DAS: via built-in copy engine
Hard disk quota management
Time Machine compatible
Print server
Torrent client for standalone downloads
NTFS read and write support for external hard disk
Users, groups, and shares management. Private and public access.
Active Directory support
UPnP A/V and DLNA Media Adapter compatible
Remote photo thumbnails; MP3 file streaming
iTunes®(DAAP) server
LaCie Network Assistant for Windows, Mac, and Linux
Genie Backup Manager Pro software for Windows
Intego Backup Manager Pro software for Mac
Automatic standby mode; Scheduled ON/OFF
Wake-on-LAN
Uninterrupted Power Supply (UPS) support***
Recyclable: Aluminum, ROHS]
Heat sink aluminum body
Fanless
60 x 168 x 183 mm / 2.4 x 6.6 x 7.2 in.
1.8 kg / 4 lbs.
3-year limited
Item Number
Capacity
Interfaces
Expansion Ports
Burst Transfer Rate*
(Over Ethernet)
Network Protocols
Remote Access
Administration
Backup Solutions
Special Features
Security Access
Multimedia
Bundled Software
Environment and Power
Cooling System
Dimensions (WxDxH)
Weight
Warranty
Premium 3-Year Warranty
The LaCie d2 Network 2 comes with a 3-Year Limited Warranty. For superior service,
it also comes with an optional Advance Care Option, which can be purchased
separately online within 30 days of the purchase date. Under the Advance Care
Option, LaCie will immediately swap out the product without it needing to be
returned first for minimal interruption of your workflow. LaCie covers all freight costs.
Availability depends on the sales area. See www.lacie.com for details.
ADVANCE
CARE OPTION
d2 network 2
DESIGN BY NEIL POULTON
