LAEGENDARY DIGGER Excavator User manual

2
www.LAEGENDARY.com
Introduction
Terms of Use
Safety Precautions
What’s in the Box
Quick Start
Radio System
Accessories Installation
Replacement Parts
Warranty
LAEGENDARY RC Construction Collection
.................................................................................................3
................................................................................................4
................................................................................5-6
.......................................................................................7
.............................................................................................8-10
........................................................................................11-15
..........................................................................16
.............................................................................17-18
......................................................................................................19
...........................20-23
TABLE OF CONTENTS

INTRODUCTION
Introduction
3www.LAEGENDARY.com
Thank you for purchasing the DIGGER Excavator.
This manual contains the instructions you will need to operate and maintain your model so
that you can enjoy it for years to come. However, please be advised that this model is a
hobby-grade Excavator which will require maintenance and replacing parts. Rest assured that
LAEGENDARY is a team of professionals who aim to provide the highest level of factory
support possible.
We know you’re excited about getting your new model on the road, but it’s very important
that you take some time to read through the User’s Manual. This manual contains all the
necessary setup and operating procedures that will allow you to unlock the performance
potential that LAEGENDARY engineers designed into your model. Also, be sure to read and
follow the precautions and warnings in this manual and on any labels or tags attached to your
model. They are there to educate you on how to operate your model safely and also get
maximum life and performance from your model. Even if you are an experienced
R/C enthusiast, it’s important to read and follow the procedures in this manual.
Thank you again for choosing LAEGENDARY. We work hard every day to assure you receive
the highest level of customer satisfaction possible. We truly want you to enjoy your new model!
You can find all replacement parts on our website at www.laegendary.com
If you have any questions about your model or its operation,
call LAEGENDARY Customer Support at 646 389-8009 or
E-mail: [e-mail].

4
www.LAEGENDARY.com
TERMS OF USE
This product is surrendered by LAEGENDARY to the purchaser with the understanding that
the purchaser accepts the responsibility that driving this model and using the enclosed
accessories in a careless, improper, or unsafe manner can result in serious injury or death.
Also, the purchaser assumes all liability resulting from any misuse, unsafe handling, failure
to follow instructions, or any action that constitutes a violation of any applicable laws or
regulations. LAEGENDARY shall not be liable for personal injury, loss of property, or loss
of life resulting from the use of this product under any circumstances, including intentional,
reckless, negligent, or accidental behavior. LAEGENDARY shall also not be liable for any
special, indirect, incidental, or consequential damages arising out of the assembly, installation,
or use of their products or any accessory or chemical required to use their products. By the
act of operating / using the product, the user accepts all resulting liability and releases
LAEGENDARY of any and all liability associated with its use.
If you as the user do not accept liability of Usership, LAEGENDARY requests that you do not
use this product. Do not open any of the enclosed materials. Return the model to
LAEGENDARY but please be advised that we absolutely cannot accept an item for return
or exchange after it has been used or is otherwise no longer in as-new condition.
All information contained in this User’s Manual is subject to change without notice. For the
most updated version of the User Manual, please visit our website.
LAEGENDARY reserves the right to make changes and improvements to products without
incurring any obligation to incorporate such improvements into products previously sold.
If you have any questions about your model or its operation, call LAEGENDARY Customer
Support at 646 389-8009 or E-mail: [e-mail]
FCC Compliance
This device contains a module that complies with the limits for a Class B digital device as
described in part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection against
harmful interference in residential settings. This product generates, uses and can radiate radio
frequency energy, and, if not operated in accordance with the instructions, may cause harmful
interference to radio communications. The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC and Industry
Canada for an uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20 centimeters between the radiator and your body or bystanders and
must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation Frequency: 2402~2480 MHz
Terms of use

We want you to safely enjoy your new model. Operate your model sensibly and with
care, and it will be exciting, safe, and fun for you and those around you. Failure to
operate your model in a safe and responsible manner may result in property damage
and serious injury. The precautions outlined in this manual should be strictly followed to
help ensure safe operation. You alone must see that the instructions are followed and
the precautions are adhered to.
Safety
Precautions
5www.LAEGENDARY.com
Safety Is Your Responsibility!
Do not stand directly in front or behind the vehicle while operating to avoid personal
injury from rocks, sticks, or other thrown objects, especially during full throttle starts.
Keep any spectators and animals at a safe distance.
Wearing eye protection is recommended.
CHARGING AND DISCHARGING BATTERIES HAS THE POTENTIAL FOR FIRE,
EXPLOSION, SERIOUS INJURY, AND PROPERTY DAMAGE IF NOT PERFORMED AS PER
THE INSTRUCTIONS. BEFORE USE, READ AND FOLLOW ALL MANUFACTURER’S
INSTRUCTIONS, WARNINGS AND PRECAUTIONS.
NEVER ALLOW CHILDREN UNDER THE AGE OF 14 TO OPERATE THE VEHICLE
WITHOUT THE SUPERVISION OF A RESPONSIBLE, KNOWLEDGEABLE ADULT.
THIS IS NOT A TOY.
WARNING: RISK OF INJURY!
WARNING! CAUTION! DANGER! FIRE HAZARD!

6
www.LAEGENDARY.com
Safety
Precautions
IMPORTANT POINTS TO REMEMBER
• Your model is not intended for use on public roads or congested areas where its
operation can conflict with or disrupt pedestrian or vehicular trac.
• Never, under any circumstances, operate the model in crowds of people. Your model
could cause injury if allowed to collide with anyone.
• Because your model is controlled by radio, it is subject to radio interference from many
sources that are beyond your control. Since radio interference can cause momentary
losses of radio control, always allow a safety margin in all directions around the model in
order to prevent collisions.
• The motor, battery, and electronic speed control can become hot during use. Be careful
to avoid getting burned.
• Don’t operate your model at night, or anytime your line of sight to the model may be
obstructed or impaired in any way.
• Most importantly, use good common sense at all times.
• Disconnect the Battery: Always disconnect the battery from the vehicle when not in
use.
• Insulate the Wires: Always insulate exposed wiring with heat shrink tubing to prevent
short circuits.
• 2S Li-Ion: The vehicle can accept a maximum input voltage of 7.4 volts (2s Li-Ion).
Always adhere to the minimum and maximum limitations.
• Transmitter on First: Switch on your transmitter first before switching on the speed
control to prevent runaways and erratic performance.
• Don’t Get Burned: The motor can become extremely hot during use, so be careful not
to touch them until they cool. Supply adequate airflow for cooling.
• Use the Factory-Installed Connectors: Do not change the battery and motor
connectors. Improper wiring can cause fire or damage to the vehicle.

What’s in
the box?
7www.LAEGENDARY.com
WHAT’S IN THE BOX?
2 x USB Chargers
2 x 2s Batteries
Remote Control

INSTALLING THE BATTERY PACK
1. Slide the battery buckle and remove the battery cover
2. Connect the batteries to the power port of the excavator, then place it in the
battery box
3.Install the battery cover, rotate the battery cover lock. Battery installation completed.
8
www.LAEGENDARY.com
Quick Start

INSTALLING THE BATTERY PACK
Connect the white port of the Li-Ion battery to the USB charging port, as shown in the
below Figure, and ensure the port can be connected tightly and correctly. Insert the
USB charging plug into the power adapter, and perform charging
USB Charger Lights Indicator
a) The power light turns solid red when plugged into the outlet
b) The green light flashes when the battery is connected
c) The green light turns solid when charging is complete
9www.LAEGENDARY.com
Quick Start

CHARGING AND HANDLING PRECAUTIONS
•CHARGING TIME: ~4 hrs for a 2S 1200 mAh Li-Ion battery.
• DO NOT leave the charger and batteries unattended while charging, discharging, or
any time that the charger is ON with batteries connected. If there are any signs of a
malfunction or in the event of an emergency, unplug the charger from the power source
and disconnect the batteries from the charger.
• DO NOT charge the battery for longer than 5 hours.
• ALWAYS unplug the charger and disconnect the batteries when not in use.
• REMOVE the batteries from your vehicle before charging.
• DO NOT let any exposed battery contacts or wires touch each other. This will cause
the battery to short circuit and create the risk of fire.
• During the charge process watch for swollen or ballooning cells. If this happens,
immediately disconnect the charger and move the battery in a fireproof place for 15
minutes. Do not attempt to charge again.
• NEVER charge batteries on wood, cloth, carpet or on any other flammable material.
• ALWAYS charge batteries in a well-ventilated area.
• REMOVE flammable items and combustible materials from the charging area.
• DO NOT place objects on top of the charger or batteries.
-Any battery involved in a crash should be removed and observed in a fireproof space
for 15 minutes before continuing to use.
• If any battery or battery cell is damaged in any way, do NOT charge, discharge, or use
the battery.
• DO NOT disassemble, crush, short circuit, or expose the batteries or cells to flame or
any other source of ignition.
• DO NOT expose the batteries and charger to water or moisture.
• ALWAYS store battery packs safely out of the reach of children and pets.
• DO NOT charge batteries under ANY of the following conditions:
- Batteries that are hot to the touch.
- Batteries that are not expressly stated by the manufacturer to be suitable to accept
the power output (voltage and amperage) the charger delivers during the charging
process.
- Batteries that are damaged or defective in any way.
Examples of damage or defects include, but are not limited to, batteries with dented
cells, damaged or frayed wires, loose connections, fluid leaks, corrosion, plugged vents,
swelling, cell deformity, impact damage, melted components, or any other signs of
damage.
- Battery packs that have been altered from original manufacturer configuration.
- Non-rechargeable batteries (explosion hazard).
- Batteries that have missing or unreadable labels, preventing you from properly
identifying the battery type and specifications.
10
www.LAEGENDARY.com
Quick Start

11 www.LAEGENDARY.com
Radio System
22CH 2.4GHz RADIO SYSTEM

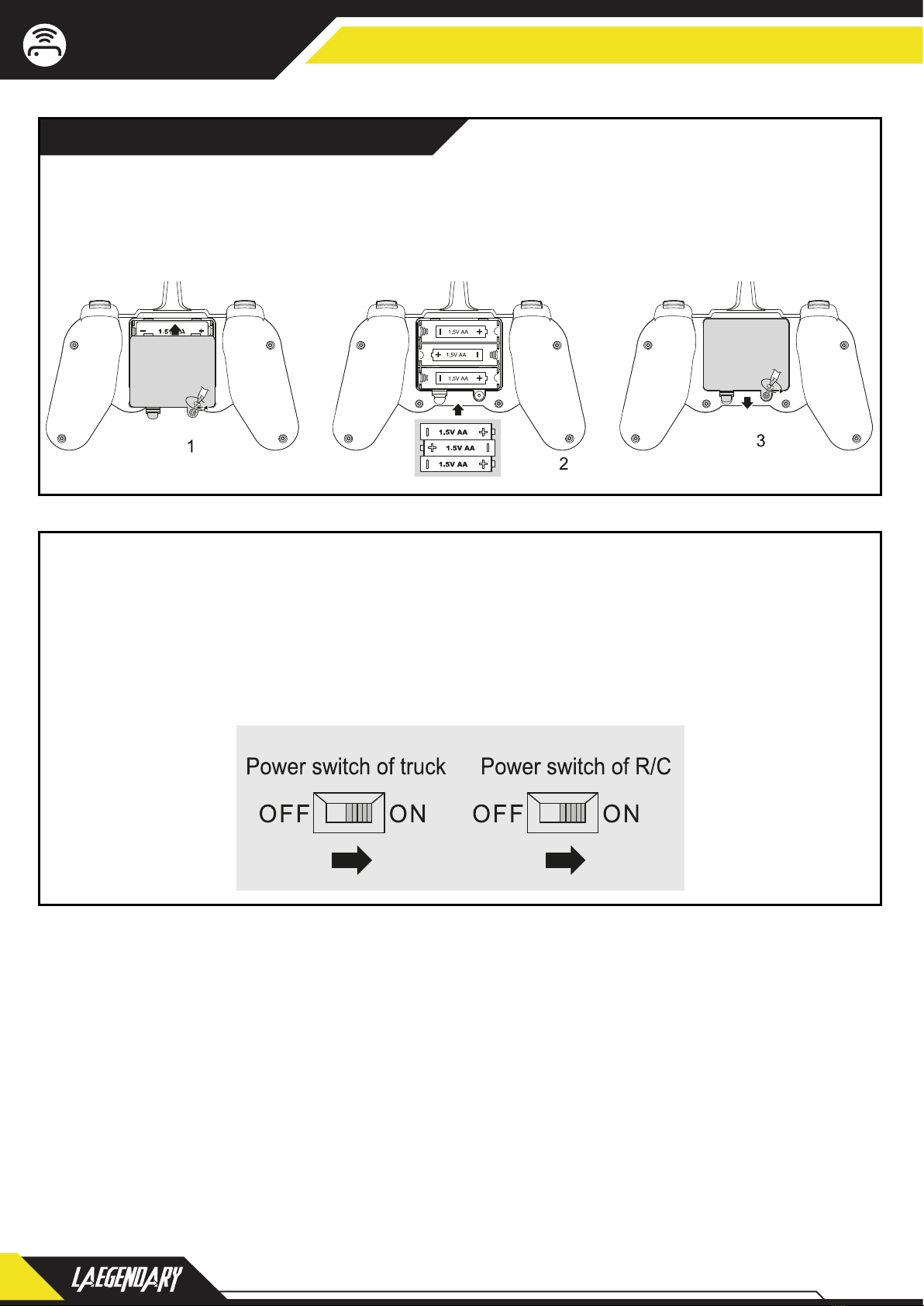

1. Open the battery compartment cover using a screwdriver.
2. Insert 3 AA fully charged batteries with correct polarities (batteries are not included.)
3. Install the battery cover and tighten the screw.
Remote Control Battery Installation:
When operating the vehicle for the first time, please:
1. Install the batteries into the excavator and the remote control.
2. Turn on the power button on the vehicle.
3. Turn on the power button on the remote control.
The vehicle is turned on and frequency is automatically paired. When binding is
successful, a frequency pairing sound “beep” is given.
Binding Process:

Radio System
12
www.LAEGENDARY.com
REMOTE CONTROL OVERVIEW
Remote Control Operating Instructions
1. Control of lights and sound:
Press the left button once to turn
the sound on. Press once more to
turn the sound o.
Press the right button once to turn
the light on. Press once more to turn
the light o.

13 www.LAEGENDARY.com
Radio System
2. Digging Arm and Platform Control:

Radio System
14
www.LAEGENDARY.com
2. Excavator Driving Control:

3. Accessories Installation (Accessories are sold separately)
15 www.LAEGENDARY.com
Accessories
Installation

No. DG-1000
Complete Set of Screws
-
1 Set
-
Product Name
Remarks
Quantity
Specifications
No. DG-2000
Receiver
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2001
Launch Plate
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2002
Big Arm Gearbox
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2003
Small Arm Gearbox
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2004
Rotating Gearbox
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2005
Right Drive Gearbox
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2006
Left Drive Gearbox
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-2007
Lights
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3000
Metal Bucket
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3001
Big Arms
-
1x2
-
Product Name
Remarks
Quantity
Specifications
No. DG-3002
Top Shell
-
1x1
-
Product Name
Remarks
Quantity
Specifications
16
www.LAEGENDARY.com
Replacement
Parts

No. DG-3003
Under Top Shell
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3004
Bottom Shell
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3005
Under Bottom Shell
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3006
Driver Cabin
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3007
Front Wheel
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3008
Rear Wheel
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3009
Track Pad
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-3010
Foam
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-4000
Remote Control
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-4001
Li-Ion Battery
-
1x1
7.4V 2S 1200 mAh
Product Name
Remarks
Quantity
Specifications
No. DG-4002
USB Charger
-
1x1
-
Product Name
Remarks
Quantity
Specifications
No. DG-4003
Drill
-
1x1
-
Product Name
Remarks
Quantity
Specifications
17 www.LAEGENDARY.com
Replacement
Parts

No. DG-4004
Grabber
-
1x1
-
Product Name
Specifications
No. DG-4005
Steel Mill
-
1x1
-
Product Name
Remarks
Quantity
Remarks
Quantity
Specifications
18
www.LAEGENDARY.com
Replacement
Parts

To guarantee you have the best experience we oer a 1-year warranty covering defects in materials,
workmanship and assembly on all our products*.
To ensure that you don't invalidate the terms of the warranty please read and understand this
booklet.
*If a defect in materials, workmanship or assembly is found BEFORE the product has been used, we
will exchange the entire product, if the product is returned complete and in perfect condition in its
original packaging. **
IT IS THE PARENTS' OR GUARDIANS' RESPONSIBILITY TO ENSURE MINORS RECEIVE
APPROPRIATE GUIDANCE AND/OR SUPERVISION WHEN USING OR WORKING ON THIS PRODUCT.
THIS IS A COMPLEX HIGH PERFORMANCE RC MODEL AND MUST BE TREATED WITH CARE AND
RESPECT.
LAEGENDARY has made every eort to ensure your product is as strong and durable as possible.
However, it is still possible to break or cause damage by crashing or misuse. Most Dump Truck parts
are consumables and will wear with use (servo, dierential, tires, shafts, bumpers, shocks, arms etc).
More extreme or frequent use will increase the wear rate of these components. Always check these
parts before and after using your vehicle and replace before failure. All the parts of this vehicle are
available to be purchased separately, or as small sets, to allow you to get years of use from your
Dump Truck. The bodyshell is not just for looks, it is also designed to protect vital areas of the
running gear and electronics from damage.
LAEGENDARY DOES NOT operate a new for old warranty once the product has been used.
Once the product has been used we oer a component level warranty and will replace the defective
component(s) at our discretion.
Warranty is only valid if the items were purchased directly from LAEGENDARY (purchases from
third party sellers will not be covered under the warranty)
COVERED BY WARRANTY
- 1 year warranty for the Remote Control and USB charger;
- 6 months for the Motor and ESC;
*excludes damages caused by the user, including but not limited to incorrect maintenance.
NOT COVERED BY WARRANTY
- All other parts not mentioned above, such as but not limited to: Servo, Dierential, Shocks, Axels
Arms, Wheels, etc
- Component failure or premature wear as a result of crash damage
- Lack of maintenance, improper use or abuse
- Water damage or problems resulting from water intake
- Bodyshells once they have been painted and/or used
** In many cases it is faster and more cost eective for the user to fit replacement parts to the product
so we maintain the right to request this of the user.
Replacement parts are available for sale on our website at :
www.laegendary.com
19 www.LAEGENDARY.com
Warranty

RC CONSTRUCTION
COLLECTION
You can find more models at:
www.laegendary.com
