Laguna Tools DAKE BG-60V Operating and maintenance manual

Dake Corporation Phone: [phone] www.dakecorp.com
1809 Industrial Park Dr Fax: [phone]
Grand Haven, MI 49417
DAKE 3 WHEEL METAL BELT GRINDER
Model BG-60V
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 1 REV042023
TABLE OF CONTENTS
DAKE STANDARD LIMITED WARRANTY............................................................ 2
RETURN & REFUND POLICY .............................................................................. 4
DAKE STANDARD TERMS & CONDITIONS OF SALE ........................................ 5
SPECIFICATIONS ................................................................................................ 6
SAFETY ................................................................................................................ 7
SET UP & OPERATION........................................................................................ 8
ELECTRICAL............................................................................................... 8
CHOOSING A BELT .................................................................................... 9
IDLER WHEEL ALIGNMENT ....................................................................... 9
MAINTENANCE .................................................................................................. 10
LUBRICATION........................................................................................... 10
TROUBLESHOOTING ........................................................................................ 11
EXPLODED PARTS VIEW & PARTS LIST ......................................................... 13
ORDERING INFORMATION ............................................................................... 16

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 2 REV042023
DAKE STANDARD LIMITED WARRANTY
Finished Machines
−Dake warrants to the original purchaser the finished machine manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 1 year (12 months) from the delivery date to the end user.
Parts
−Dake warrants to the original purchaser the component part manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 30 days from the delivery date to the end user.
The standard limited warranty includes the replacement of the defective component part
at no cost to the end user.
Sale of Service (Repairs)
−Dake warrants to the original purchaser the component part repaired by Dake
Corporation at the manufacturing facility to be free from defects in material and
workmanship under normal use and service within 90 days from the return date to the
end user, as it pertains to the repair work completed. The standard limited warranty
includes repair of the defective component part, at no cost to the end user.
Warranty Process
−Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any
portion of the product that proves defective in materials or workmanship. The
manufacturer retains the sole right and option, after inspection, to determine whether to
repair or replace defective equipment, parts or components. The manufacturer will
assume ownership of any defective parts replaced under this warranty.
−All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, Dake Customer Service
must be contacted for approval:
•Phone: [phone]
•Email: [e-mail]
−When contacting Dake, please have the following information readily available:
- Model #
- Serial #
- Sales Order #
−Purchasers who notify Dake within the warranty period will be issued a Case number
and/or a Return Material Authorization (RMA) number. If the item is to be returned per
Dake’s request, the RMA number must be clearly written on the exterior packaging. Any
item shipped to Dake without an RMA will not be processed.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 3 REV042023
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
(a) Part installation or machine service was not completed by a certified professional, and
is not in accordance with applicable local codes, ordinances and good trade practices.
(b) Defects or malfunctions resulting from improper installation or failure to operate or
maintain the unit in accordance with the printed instructions provided.
(c) Defects or malfunctions resulting from abuse, accident, neglect or damage outside of
prepaid freight terms.
(d) Normal maintenance service or preventative maintenance, and the parts used in
connection with such service.
(e) Units and parts which have been altered or repaired, other than by the manufacturer
or as specifically authorized by the manufacturer.
(f) Alterations made to the machine that were not previously approved by the
manufacturer, or that are used for purposes other than the original design of the
machine.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 4 REV042023
RETURN & REFUND POLICY
−Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase,
we are here to help.
Returns
−All Dake manufactured / distributed machines, parts and couplings include a 30-day
return option. These policies are valid from the date of final shipment to the end user.
−To be eligible for a return, the item must be unused and in the same condition as
received.
−All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, Dake Customer Service
must be contacted for approval:
•Phone: [phone]
•Email: [e-mail]
−Once the return request has been approved by Customer Service, a representative will
supply a Return Material Authorization (RMA) number. The returned item must have the
provided RMA number clearly marked on the outside packaging. Any item received
without an RMA number clearly visible on the packaging will not be processed.
−An RMA number can only be provided by the Dake Customer Service team and must be
obtained prior to the return shipment.
Refunds
−Once the item has been received and inspected for damages, a representative will notify
the requestor referencing the provided RMA number.
−If the return is approved, a refund will be issued to the original method of payment, less a
20% restocking fee. The restocking fee may be waived if an order is placed at the time of
return with like-value merchandise.
−Transportation costs are the responsibility of the end user and will not be credited upon
return approval.
−Any item that is returned after the initial 30 days or has excessive/obvious use will not be
considered for a full refund.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 5 REV042023
DAKE STANDARD TERMS & CONDITIONS OF SALE
All proposals and quotations for the original sale of our products are subject to the following terms and conditions:
ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven,
Michigan.
APPLICABLE LAWS: This quotation or acceptance shall be governed in all respects by the laws of the State of
Michigan.
CANCELLATION: We reserve the right to cancel and/or refuse to complete your order if, in our opinion, you have
not established credit to promptly meet the payment terms of your order. Any cancellation from the Purchaser may
be subject to a 10% cancellation fee for any of our non-standard machinery upon the discretion of Dake. All custom
or special quotes will not be eligible for cancellation, nor returns.
DELIVERY: The proposed shipment date is an estimate and is contingent upon causes beyond Dake’s control.
Under no circumstances shall Dake have any liability for loss of use or for any direct or consequential damages
resulting from delay. All shipments from the Dake facilities are F.O.B.
FREIGHT CLAIM: Damage freight claims must be submitted to Dake within thirty (30) days of shipment from
Dake’s facility. If shipment for order was set up by the Purchaser, Dake is not liable to handle the freight claims.
PERMITS AND COMPLIANCE: Dake shall not be responsible for obtaining any permits, inspections, certifications,
or licenses required for the installation or use of the equipment. Dake makes no promise or representation that the
equipment or any services to be furnished by Dake will conform to any federal, state, or local laws, ordinances,
regulations, codes or standards.
PRICES: Unless otherwise agreed to in writing, all prices are F.O.B. our plant in Grand Haven, Michigan and
Grand Prairie, Texas. In any event, the quoted prices for component parts become invalid ten (10) days after date
of quotation, and machinery may become invalid sixty (60) days after date of quotation. Unless otherwise specified
in Dake’s quotation, installation services and final on-site adjustments are not included in the quotation.
TAXES: Prices do not include taxes. If any sales, use or similar tax is payable to Dake in connection with any
transaction or part thereof between the Purchaser and Dake with respect to goods delivered, the Purchaser will,
upon demand, pay to Dake the amount of any such tax. If you are tax exempt, please include your exemption
document when submitting your order.
TERMS OF PAYMENT: Terms of payment are as stated in Dake’s quotation subject to credit approval by our home
office. Dake will invoice Purchaser when the equipment is completed and ready for shipment. Payment terms run
from invoice date. Purchaser may be required to issue a down payment before production of order and shipment, at
the discretion of Dake Accounting. For credit card purchases, a 3.5% processing fee may be applicable to the
order. The following states are exempt from the 3.5% processing fee: CA, CO, KS, OK, TX, FL, NY, CT, MA, and
ME. Dake’s preferred method of payment is as follows: ACH Wire and credit card. Checks will be accepted but may
cause delay in order processing. Below is our billing address:
1809 Industrial Park Drive, Grand Haven, MI 49417
WARRANTY If, within a period of one (1) year from date of shipment, any part of any equipment sold by Dake is defective in
material or workmanship and is so found after inspection by Dake, it will be replaced or repaired at the option of Dake, providing
the equipment has been given normal and proper usage and is still the property of the original Purchaser. Purchased
components such as Micro Drop mist system or the like, installed as a part of Dake equipment are warranted only to the extent
of the original Manufacturer’s warranty. Dake is not responsible for any service work performed unless authorized in advance.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER
WRITTEN, ORAL OR IMPLIED (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR
PARTICULAR PURPOSE). UNDER NO CIRCUMSTANCES SHALL DAKE BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 6 REV042023
SPECIFICATIONS
Model Number
961006
Horsepower
1.5HP
Voltage
110V Single Phase
Amps
10A
Belt Included
60 Grit 1.5” x 60”
Belt Speed
800-8000 FPM
Base
46” x 23”
Height
23”
Weight
75 lbs.
−In the space provided record the serial number and model number of the machine. If
contacting Dake this information must be provided to assist in identifying the specific
machine.
Serial No.
Model No.
Install Date:

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 7 REV042023
SAFETY
This is the safety alert symbol. When you see this symbol on your press be alert to the
potential for personal injury.
Employer is responsible to perform a hazard/PPE assessment before work activity.
Follow recommended precautions and safe operating practices.
•Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised
people to use this machine. When machine is not being used, disconnect power, remove
switch keys, or lock-out machine to prevent unauthorized use.
•Only use machine in clean, dry, and safe environment. Make sure there are no flammable or
combustible materials near the machine. Sparks cause from metal can cause ignition.
•Always disconnect machine from power supply BEFORE making adjustments, changing
tooling, cleaning or servicing machine.
•Only allow qualified service personnel to do electrical installation or repair work, and always
disconnect power before accessing or exposing electrical equipment.
•Always wear approved safety glasses or a face shield when operating or observing
machinery.
•Do not wear clothing or jewelry that can be caught in moving parts. Always tie back or cover
long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
•Dust created by machinery operations may cause cancer, birth defects, eye damage,
raspatory issues or long-term respiratory damage. Be aware of dust hazards associated with
each workpiece material.
•Always wear hearing protection when operating or observing loud machinery.
•Do not set or leave tools on machine while machine is in use.
•Make sure machine is on stable ground, movement during operation increases risk of injury
or machine damage.
•Turn machine off when not in use, never leave machine running unattended.
•Inspect machine before each use for damaged or loose parts.
•The gap between moving grinding belt and table/support creates a pinch point for fingers or
workpieces; the larger this gap is, the greater the risk of fingers or workpieces getting caught
in it. Minimize the risk of pinch and crush injuries by adjusting table/support to no more than
1/16" away from belt.
•Always use a jig when working on small workpieces, always keep fingers at least 2” away
from work area.
•Do not wear gloves while grinding.
•Worn or damaged grinding belts can fly apart and throw debris, or aggressively grab
workpiece, causing injury from operator loss of workpiece control. Always inspect belt before
operation and replace if worn or damaged.
•Only grind against direction of sandpaper travel, ensure workpiece is properly supported,
and avoid introducing sharp edges into moving belt on the leading side of the workpiece.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 8 REV042023
SET UP & OPERATION
1. Make sure to place machine on a flat, level surface or workbench.
a. If a work bench is used, ensure workbench is reinforced
properly to support machine weight and fasten machine to
workbench using the 4 mounting holes on the bottom of the
machine.

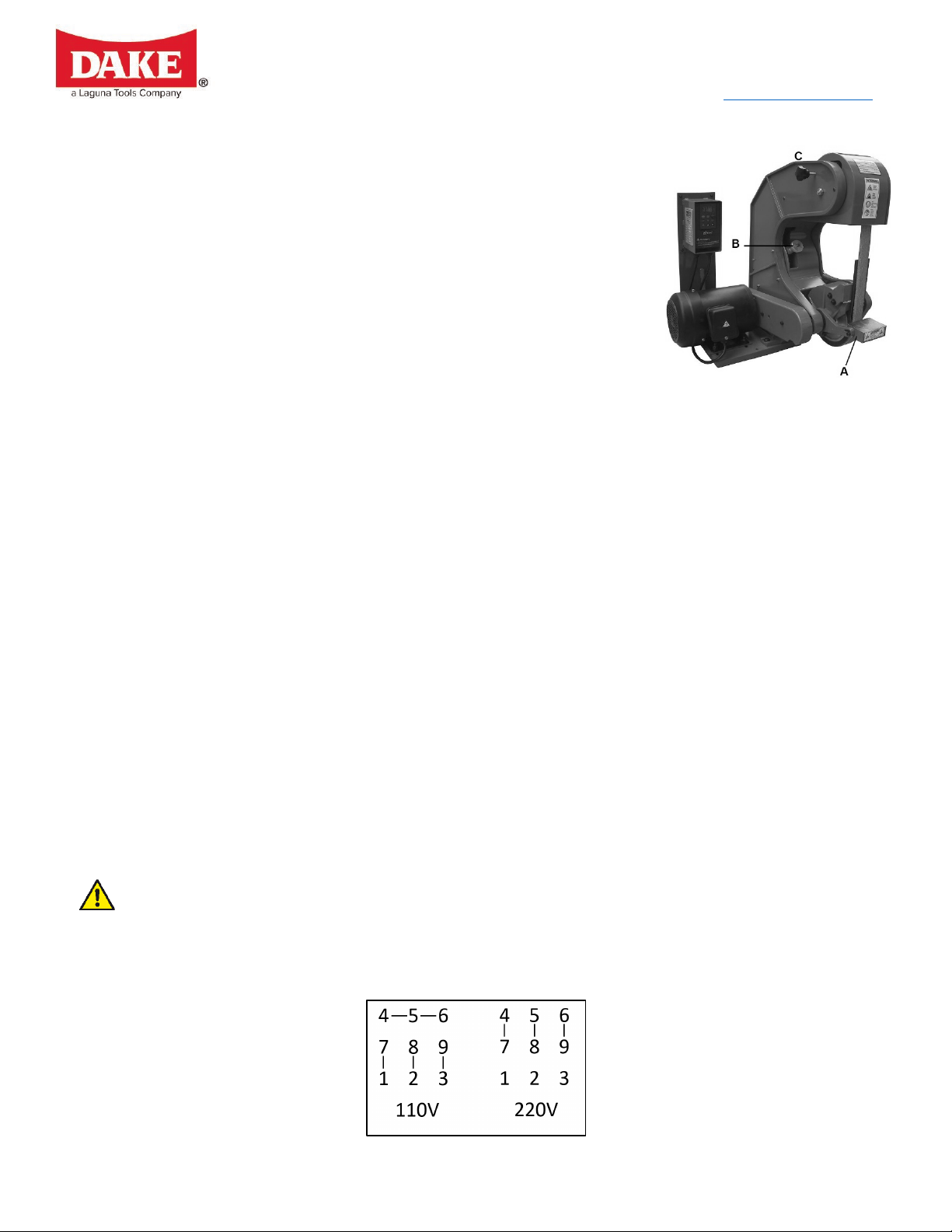

2. Adjust work support (A) so that it is no further than 1/16” to 1/8”
from the wheel face.
3. Ensure belt is tensioned correctly, to do this raise the tensioning
handle (B). Listen for mechanical “clicks”, 3 to 8 clicks sufficiently
tensions the belt.
a. To reduce or release belt tension, raise the tensioning handle slightly then press the
button in the center of the handle, move handle downwards slightly to reduce tension,
or move down all the way to release belt tension completely.
4. Connect machine to power supply, machine comes pre-wired to operate at 110V single
phase.
5. Start machine by pressing the ON button, the belt should rotate smoothly with the belt
traveling downwards.
a. If machine belt runs in reverse (upwards) the leads must be reversed in the motor
cover. Diagram will be on inside of the motor cover.
6. Check belt tracking, if the belt does not stay in the center of the contact wheel use the
tracking adjustment knob (C) on the upper left corner. Turn adjustment knob clockwise to
move the belt left, and counterclockwise to move belt right on contact wheel.
7. Use the UP and DOWN arrow keys on the control panel to change belt speed.
8. Using a firm grasp to hold the material, place the material on the work support and slide it in
toward the belt allowing the material to remain on the work support. Be aware of any
potential for the belt to catch or snag the material and causing and ejection.
9. When job is complete, hit the stop STOP button to stop belt travel.
ELECTRICAL
Machine is shipped pre-wired to operate 110V single phase.
Electrical wiring must be done by an electrician or qualified service personnel in
accordance with all applicable codes and standards.
Motor can be re-wired to 220V Single Phase, follow motor wiring diagram found on the inside of
the motor cover.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 9 REV042023
If an extension cord is needed for operation, ensure the cord is in good condition and fits the
below requirements. Undersized cords decrease voltage and lead to power loss and
overheating. All cords should use a ground wire and plug-in.
Length
Amp Rating
25ft
50ft
100ft
1-12
16 AWG
16 AWG
14 AWG
13-16
14 AWG
12 AWG
12 AWG
17-20
12 AWG
12 AWG
10 AWG
21-30
10 AWG
10 AWG
NO
MATERIAL SELECTION
Dust created by machinery operations may cause cancer, birth defects, eye damage,
raspatory issues or long-term respiratory damage. Be aware of dust hazards associated with
each workpiece material.
•Materials must be clean and dry (no oil).
•Material dimension must not exceed the capacity of the machine.
CHOOSING A BELT
Machine uses 1.5” x 60” belt.
Belt Material
Operation
Aluminum Oxide
Finishing, Ferrous metals
Zirconia Alumina
Finishing, Ferrous metals, some steels
Ceramic
Aggressing grinding, deburring. Heat sensitive metals
Silicon Carbide
Cutting, stock removal. Cast iron, steel, non-ferrous metals.
IDLER WHEEL ALIGNMENT
When making machine adjustments make sure machine is not connected to power supply.
If idler wheels are removed or replaced, they must be re-installed with proper alignment. Failure
to properly align the wheels will lead to premature failure of the wheels. Premature failure may
appear as at least one of the following:
•Outer diameters being excessively worn such that the wheels lose their factory crown,
•Wear to a truncated form, or
•Become out of balance.
1. After disconnecting machine from power, install rear idle wheel so that the inside bearing
surface is approximately 0.06” from the wheel support. Secure wheel with locking set screw.
2. Install front idle wheel so that the inside bearing surface is approximately 0.06” from it’s
bearing support. Secure wheel with locking set screw. Replace in pairs.
3. Loosen retaining nut that locks the upper wheel adjusting screw. Using screw adjust the
upper wheel until the center is in line with the center of the contact wheel.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 10 REV042023
4. Repeat step 3 to adjust rear idler wheel in line with the upper idler wheel and contact wheel.
Tighten locking nuts.
5. Install new belt. Roll the belt manually to observe how it tracks. If belt does not track properly
repeat steps 3 & 4 until belt tracks properly.
6. Reconnect machine to power and turn on to observe belt tracking. Turn the machine off
immediately if you see the belt start to track off the wheels. The belt may track slightly to one
side or the other.
7. Adjust tracking control to move belt either way on face of contact wheel to finish adjusting
belt tracking.
MAINTENANCE
When making machine adjustments/repairs make sure machine is not connected to power
supply.
Before each use:
•Loose nuts and bolts
•Worn or damaged belt
•Worn or damaged wires
•Blow out metallic filings from wheels
•Empty spark tray (as needed)
•Safety guards are in place and operational
•Any safety concern or damaged part
Weekly Maintenance:
•Lubricate threaded components and sliding devices
•Clean and inspect sliding surface underneath the top side of the belt
•Apply rust inhibitive lubricant on all non-pointed surfaces
•Inspect edges of the rubber contact wheel. Replace wheel is edges become rounded
Monthly Maintenance:
•Apply 2 drops of light machine oil to the rear wheel support to rear wheel handle interface.
•Check v-belt tension. If you can hear the belt hitting the belt guard when the motor starts,
v-belt requires re-tensioning. Remove the 4 bolts that secure the motor to machine base
and slide motor towards rear of the machine, tighten 4 bolts back down.
LUBRICATION
•Bearings are permanently sealed and lubricated.
•Once a month apply 2 drops of an ISO 32 oil. Release and apply belt tension to distribute
oil.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 11 REV042023
TROUBLESHOOTING
Symptom
Possible Cause
Possible Solution
Machine does not
start, or
power supply
breaker
immediately trips
after startup.
1. E-Stop depressed/at fault
2. Incorrect power supply voltage or
circuit size.
3. Power supply circuit breaker
tripped or fuse blown.
4. Wiring broken, disconnected or
corroded.
1. Remove E-Stop over to reset. Replace
if at fault.
2.
Ensure correct power supply voltage
and circuit.
3.
Ensure circuit is free of shorts. Reset
circuit breaker or replace fuse.
4.
Fix broken wires or
disconnected/corroded.
Machine stalls or
is underpowered.
1. Excessive feed pressure applied
2. Wrong workpiece material (metal)
3. Machine undersized for task
4. Motor overheated
5. Extension cord too long
6. Motor at fault
1. Clean belt and reduce workpiece
pressure
2. Use correct size/type of metal
3. Clean/replace belt, reduce feed
rate/grinding depth
4. Clean motor, let cool, and reduce
workload.
5. Move machine closer to power supply,
use shorter extension cord.
6. Replace motor
Machine has
vibration or noisy
operation.
1. Belt not tracking correctly
2. Motor or component loose
3. Motor mount loose/broken
4. Idler wheels out of alignment
1. Ensure belt is tracking correctly
2. Replace damaged or missing
bolts/nuts or tighten if loose
3. Tighten/replace
4. Adjust idler wheel alignment
Machine vibrates
excessively (non-
motor related).
1. Incorrect grinding belt tension
2. Broken/defective belt
3. Drive wheel cap screw missing or
loose
1. Make sure tension is locked in
tensioning position
2. Replace belt
3. Replace or tighten screw
Grinding belt
slaps or vibrates
excessively.
1. Incorrect grinding belt tension
2. Belt tracking not set correctly
3. Broken/defective belt
4. Idler or drive wheel loose
1. Make sure tension is locked in
tensioning position
2. Ensure grinding belt is set correctly
3. Replace belt
4. Tighten idler or drive wheel
Grains easily rub
off belt.
1. Belt has been stored in damp
environment
2. Belt has been smashed or folded
3. Belt is too old
1. Replace belt, store replacements in
cool, dry area.
2. Replace belt, do not bend or fold belt
3. Replace with new belt
Grinding belt slips
during use.
1. Incorrect grinding belt tension
2. Excessive feed pressure
1. Make sure tension lever is locked in
tensioning position
2. Clean belt then reduce workpiece
pressure
Grinding belt will
not track properly.
1. Incorrect grinding belt tension
2. Belt is stretched unevenly
3. Contact wheel is worn
1. Make sure tension lever is locked in
tensioning position
2. Replace belt
3. Replace contact wheel
Belt tracks to one
side under load.
1. Belt tracking is not set correctly
1. Make sure belt is tracking properly
Deep grinding
grooves or
1. Excessive feed pressure applied
1. Clean belt and reduce workpiece
pressure

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 12 REV042023
Symptom
Possible Cause
Possible Solution
scratches in
workpiece.
2. Workpiece held in same spot on
belt for too long
3. Grinding belt too coarse
4. Contact wheel damaged
2. Keep workpiece moving when grinding
3. Use a finer belt grit
4. Replace contact wheel
Snake-shaped
marks on
workpiece.
1. Belt loaded up with material
2. Belt is damaged
1. Clean belt
2. Replace belt
Belt clogs quickly.
1. Excessive feed pressure applied
2. Belt is worn or damaged
3. Workpiece material softer metal
more prone to belt-clogging
1. Clean belt and reduce workpiece
pressure
2. Replace belt
3. Reduce feed pressure or use coarser
belt
Excessive
grinding belt
replacement.
1. Not using full width of grinding
surface
2. Excessive feed pressure
1. Move workpiece back and forth
grinding surface when grinding
2. Clean belt and reduce workpiece
pressure
Workpiece
frequently gets
pulled out of hand
when grinding.
1. Not properly supporting your
workpiece against the work rest
2. Leading edge or sharps grab onto
grinding belt
1. Use work rest to support workpiece
2. Change angle or orientation of
workpiece so that piece is not digging
into incoming direction of the belt

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 13 REV042023
EXPLODED PARTS VIEW &
PARTS LIST

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 14 REV042023
Item
Description
Part No
Qty
1
Variable Frequency Drive
1
2
Work Support for Variable Speed Drive
1
3
Washer, Lock (M4)
4
4
Nut, Hex Thin (M4-0.7)
4
5
Motor
1
6
Key
1
7
Nut, Hex Thin (M10-1.5)
1
8
Screw, Soc Set, (Cup Pt. M8-1.25x10mm)
1
9
Knob, Star (M8-1.25x35mm)
1
10
Screw, Soc Head Button (M5-0.8x35mm)
5
11
Compression Spring
1
12
Bracket, Pivot Block
1
13
Screw, Soc Head Button (M5-0.8x12mm)
6
14
Washer, Flat (M12)
3
15
Pivot Block
1
16
Washer, Flat (M8)
1
17
Screw, Soc Set (M8-1.25x?)
1
18
Washer (M5)
18
19
Screw, Soc Cap (M5-0.8x20mm)
78740
2
20
Pivot Block Mount
1
21
Spring Pin (Ø6x50mm)
1
22
Tracking Body
1
23
Fixed Shaft
1
24
Base Plate
1
25
Screw, Slotted C’Sink Head (M5-0.8x40mm)
4
26
Tension Arm
1
27
Nut, Hex Thin (M6-1.0)
5
28
Rachet
1
29
Copper Bushing
1
30
Screw, Hex Button Hd. (M5-0.8x12mm
6
31
Screw, Soc. Set (Cup Pt. M8-1.25x8mm)
2
32
Compression Spring
1
33
Retaining Ring (Shaft Ø15mm)
5
34
Bearing (6202-2Z)
6
35
Idler Wheel
2
36
Shaft
2
37
Nut, Hex Thin (M12-1.75)
1
38
Screw, Cross head (M6-1.0x20mm)
1
39
Washer (#6)
11
40
Eyebolt
1
41
Rear Wheel Support
1
42
Washer, Lock (6mm)
1
43
Washer, Flat (4mm)
5
44
Rivet, Semi Tubular (Ø4x15mm)
1
45
Screw, Flat Head (Ø5x12mm)
1

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 15 REV042023
46
Pawl
1
47
Pipe Nipple
1
48
Strip
1
49
Compression Spring
1
50
Button
1
51
Knob
1
52
Nut, Hex Thin (M5-0.8)
12
53
Washer, Lock (#3)
3
54
Nut, Hex Thin (M3-0.5)
3
55
Spring Pin (Ø2.5x10mm)
1
56
Safety Guard
1
57
Hinge
1
58
Screw, Soc. Cap (M3-0.5x8mm)
3
59
Door
1
60
Pin
1
61
Screw, Soc. Cap (M10-1.5x30mm)
4
62
Bushing
1
63
Contact Wheel Bearing Assembly
1
64
Work Support for Arm
1
65
Guard for Contact Wheel
1
66
Screw, Soc. Set (Cup Pt. M5-0.8x10mm)
1
67
Robber Grommet
1
68
Nut, Hex Thin (M14-2.0)
1
69
Washer for Spring Flange
1
70
Contact Wheel
1
71
Bushing
1
72
Screw, Soc. Cap (M6-1.0x25mm)
2
73
Work Rest
1
74
Spring Pin (Ø3x10mm)
1
75
Screw, Soc. Cap (M6-1.0x30mm)
1
76
Screw, Soc. Cap (M5-0.8x16mm)
2
77
Bracket for Platen
1
78
Platen
1
79
Screw, Soc. Cap (M6-1.0x20mm)
1
80
Bolt, Hex Head (M10-1.5x40mm)
1
81
Washer, Flat (#10)
12
82
Base
1
83
Main Frame
1
84
Screw, Flat Hd. (M6-1.0x40mm)
3
85
Standoff for Guard
2
86
Bolt, Cup Hd. Squ. Neck (M10-1.5x35mm)
1
87
Pulley
1
88
V-Belt
1
89
Key (5x5x20mm)
1
90
Shaft
1
91
Pulley
1

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
961006 16 REV042023
92
Guard for V-belt
1
93
Nut, Hex (M10-1.5)
302794
4
94
Screw, Cross Head (M4-0.7x12mm)
4
ORDERING INFORMATION
Please contact factory for current prices.
Parts are available for direct purchase from Dake or through a distributor. When placing a parts order,
you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
Factory in Grand Haven, MI.
