DAKE FG-75 Belt Grinder
Instructional Manual
1809 Industrial Park Dr.
Grand Haven MI, 49417
Phone: [phone]
E-mail: [e-mail]

961003 2 REV012021
TABLE OF CONTENTS
DAKE STANDARD LIMITED WARRANTY........................................ 3
RETURN & REFUND POLICY .......................................................... 5
DAKE STANDARD TERMS & CONDITIONS OF SALE .................... 6
SPECIFICATIONS .......................................................................... 11
UNCRATING & ASSEMBLY ........................................................... 13
MAINTENANCE .............................................................................. 26
REMOVING THE BELT................................................................... 27
REPLACING THE BELT.................................................................. 34
TROUBLE SHOOTING ................................................................... 38
ELECTRICAL DIAGRAM................................................................. 38
EXPLODED PARTS VIEW.............................................................. 39
PARTS LIST.................................................................................... 40

961003 3 REV012021
DAKE STANDARD LIMITED WARRANTY
Finished Machines
Dake warrants to the original purchaser the finished machine manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 1 year (12 months) from the delivery date to the end user.
Parts
Dake warrants to the original purchaser the component part manufactured or distributed
by it to be free from defects in material and workmanship under normal use and service
within 30 days from the delivery date to the end user. The standard limited warranty
includes the replacement of the defective component part at no cost to the end user.
Sale of Service (Repairs)
Dake warrants to the original purchaser the component part repaired by Dake
Corporation at the manufacturing facility to be free from defects in material and
workmanship under normal use and service within 90 days from the return date to the
end user, as it pertains to the repair work completed. The standard limited warranty
includes repair of the defective component part, at no cost to the end user.
Warranty Process
Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any
portion of the product that proves defective in materials or workmanship. The
manufacturer retains the sole right and option, after inspection, to determine whether to
repair or replace defective equipment, parts or components. The manufacturer will
assume ownership of any defective parts replaced under this warranty.
All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, the Warranty
Representative at Dake Customer Service must be contacted for approval:
Phone: [phone]
Email: [email protected]
When contacting Dake, please have the following information readily available: - Model #
- Serial # - Sales Order #
Purchasers who notify Dake within the warranty period will be issued a Case number
and/or a Return Material Authorization (RMA) number. If the item is to be returned per
Dake’s request, the RMA number must be clearly written on the exterior packaging. Any
item shipped to Dake without an RMA will not be processed.

961003 4 REV012021
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
a) Part installation or machine service was not completed by a certified professional,
and is not in accordance with applicable local codes, ordinances and good trade
practices.
b) Defects or malfunctions resulting from improper installation or failure to operate
or maintain the unit in accordance with the printed instructions provided.
c) Defects or malfunctions resulting from abuse, accident, neglect or damage
outside of prepaid freight terms.
d) Normal maintenance service or preventative maintenance, and the parts used in
connection with such service.
e) Units and parts which have been altered or repaired, other than by the
manufacturer specifically authorized by the manufacturer.
f) Alterations made to the machine that were not previously approved by the
manufacturer, or that are used for purposes other than the original design of the
machine.

961003 5 REV012021
RETURN & REFUND POLICY
Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase,
we are here to help.
Returns
All Dake manufactured / distributed machines and parts include a 30-day return option.
These policies are valid from the date of final shipment to the end user.
To be eligible for a return, the item must be unused and in the same condition as
received.
All requested warranty claims must be communicated to the distributor or representative
responsible for the sale. Once communication has been initiated, Dake Customer
Service must be contacted for approval by the distributor or representative: Phone: (800)
937-3253 Email: [email protected]
Once the return request has been approved by Customer Service, a representative will
supply a Return Material Authorization (RMA) number. The returned item must have the
provided RMA number clearly marked on the outside packaging. Any item received
without an RMA number clearly visible on the packaging will not be processed. An RMA
number can only be provided by the Dake Customer Service team and must be obtained
prior to the return shipment.
The item must be shipped and received back to Dake within 30 days from being issued
the RMA number, or the return will be void and nonreturnable.
Refunds
Once the item has been received and inspected for damages, a representative will notify
the requestor referencing the provided RMA number.
If the return is approved, a refund will be issued to the original method of payment, less a
20% restocking fee. The restocking fee may be waived if an order is placed at the time of
return with like-value merchandise.
Transportation costs are the responsibility of the end user and will not be credited upon
return approval.
Any item that is returned after the initial 30 days or has excessive/obvious use will not be
considered for a full refund.

961003 6 REV012021
DAKE STANDARD TERMS & CONDITIONS OF SALE
All proposals and quotations for the original sale of our products are subject to the following terms and
conditions:
ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven,
Michigan.
APPLICABLE LAWS: This quotation or acceptance shall be governed in all respects by the laws of the
State of Michigan.
CANCELLATION: We reserve the right to cancel and/or refuse to complete your order if, in our opinion,
you have not established credit to promptly meet the payment terms of your order. Any cancellation
from the Purchaser may be subject to a 10% cancellation fee for any of our standard machinery and/or
component parts upon the discretion of Dake. All non-standard or special quotes will not be eligible for
cancellation, nor returns.
DELIVERY: The proposed shipment date is an estimate and is contingent upon causes beyond Dake’s
control. Under no circumstances shall Dake have any liability for loss of use or for any direct or
consequential damages resulting from delay. All shipments from the Dake facilities are F.O.B.
FREIGHT CLAIM: Lost or damage freight claims must be submitted to Dake within thirty (30) days of
shipment from Dake’s facility. If shipment for order was set up by the Purchaser, Dake is not liable to
handle the freight claims.
PERMITS AND COMPLIANCE: Dake shall not be responsible for obtaining any permits, inspections,
certifications, or licenses required for the installation or use of the equipment. Dake makes no promise
or representation that the equipment or any services to be furnished by Dake will conform to any
federal, state, or local laws, ordinances, regulations, codes or standards.
PRICES: Unless otherwise agreed to in writing, all prices are F.O.B. from our plants in Grand Haven,
Michigan, Grand Prairie, Texas, and Riverside, CA. In any event, the quoted prices for component parts
become invalid ten (10) days after date of quotation, and machinery may become invalid sixty (60) days
after date of quotation. Unless otherwise specified in Dake’s quotation, installation services and final
on-site adjustments are not included in the quotation.
TAXES: Prices do not include taxes. If any sales, use or similar tax is payable to Dake in connection with
any transaction or part thereof between the Purchaser and Dake with respect to goods delivered, the
Purchaser will, upon demand, pay to Dake the amount of any such tax. If you are tax exempt, please
include your exemption document when submitting your order.

961003 7 REV012021
TERMS OF PAYMENT: Terms of payment are as stated in Dake’s quotation subject to credit approval by
our home office. Dake will invoice Purchaser when the equipment is completed and ready for shipment.
Payment terms run from invoice date. Purchaser may be required to issue a down payment before
production of order, at the discretion of Dake Accounting. For credit card purchases, a 2% processing
fee may be applicable to the order. The following states are exempt from the 2% processing fee: CA,
CO, KS, OK, TX, FL, NY, CT, MA, and ME.
WARRANTY: If, within a period of one (1) year from date of shipment of the original order, any part of
any equipment sold by Dake is defective in material or workmanship and is so found after inspection by
Dake, it will be replaced or repaired at the option of Dake, providing the equipment has been given
normal and proper usage and is still the property of the original Purchaser. Purchased components such
as Micro Drop mist system or the like, installed as a part of Dake equipment are warranted only to the
extent of the original Manufacturer’s warranty. Dake is not responsible for any service work performed
unless authorized in advance.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, OR IMPLIED (INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE). UNDER NO
CIRCUMSTANCES SHALL DAKE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES

961003 8 REV012021

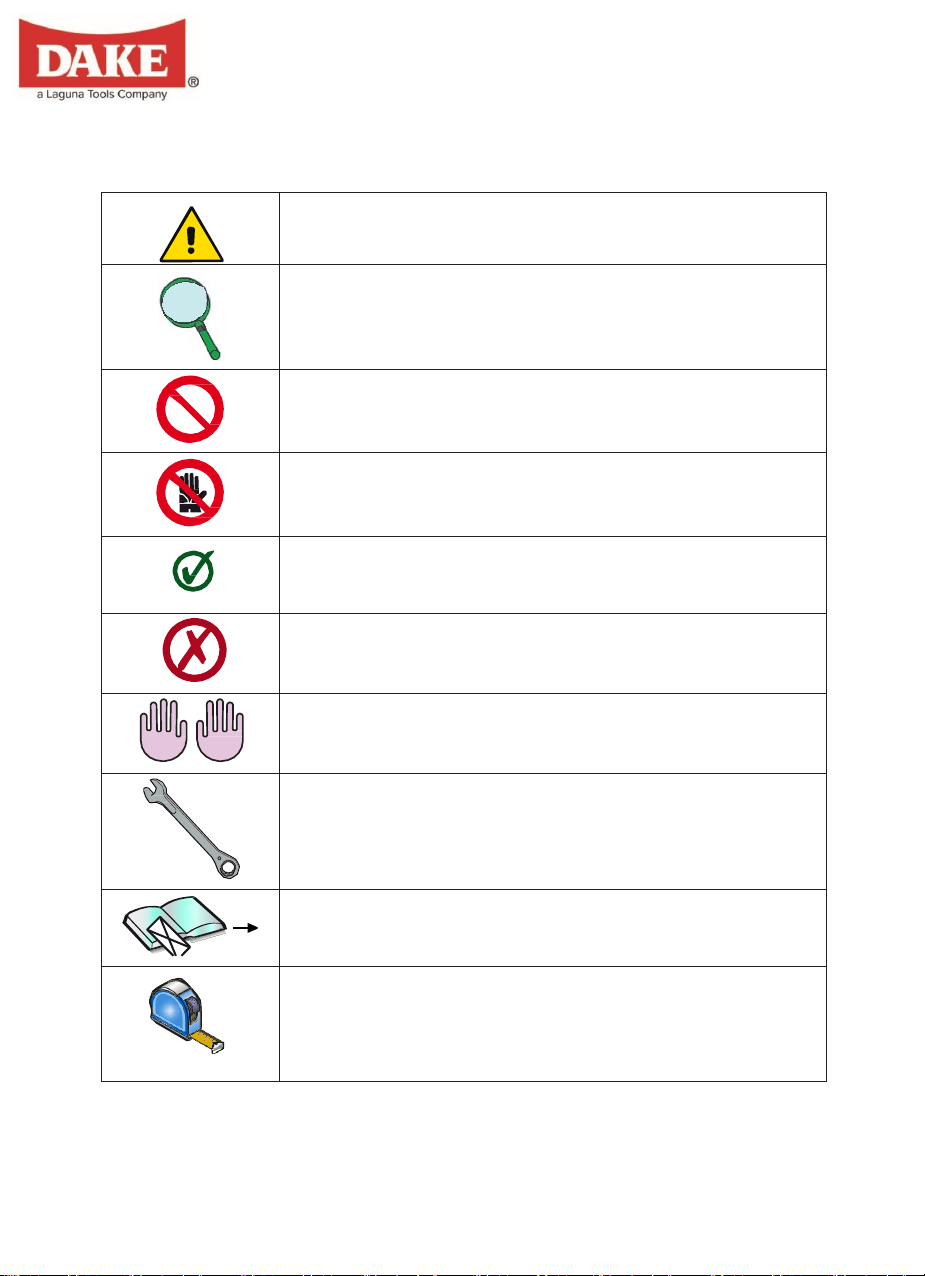

DANGER-WARNING!
Note
PROHIBITION
Use of work gloves is prohibited
Correct
NOT correct
USE
MAINTENANCE
Read thepage identified by the symbol
Measurements and distances to be observed

961003 9 REV012021
FG-75
0 2
1
577

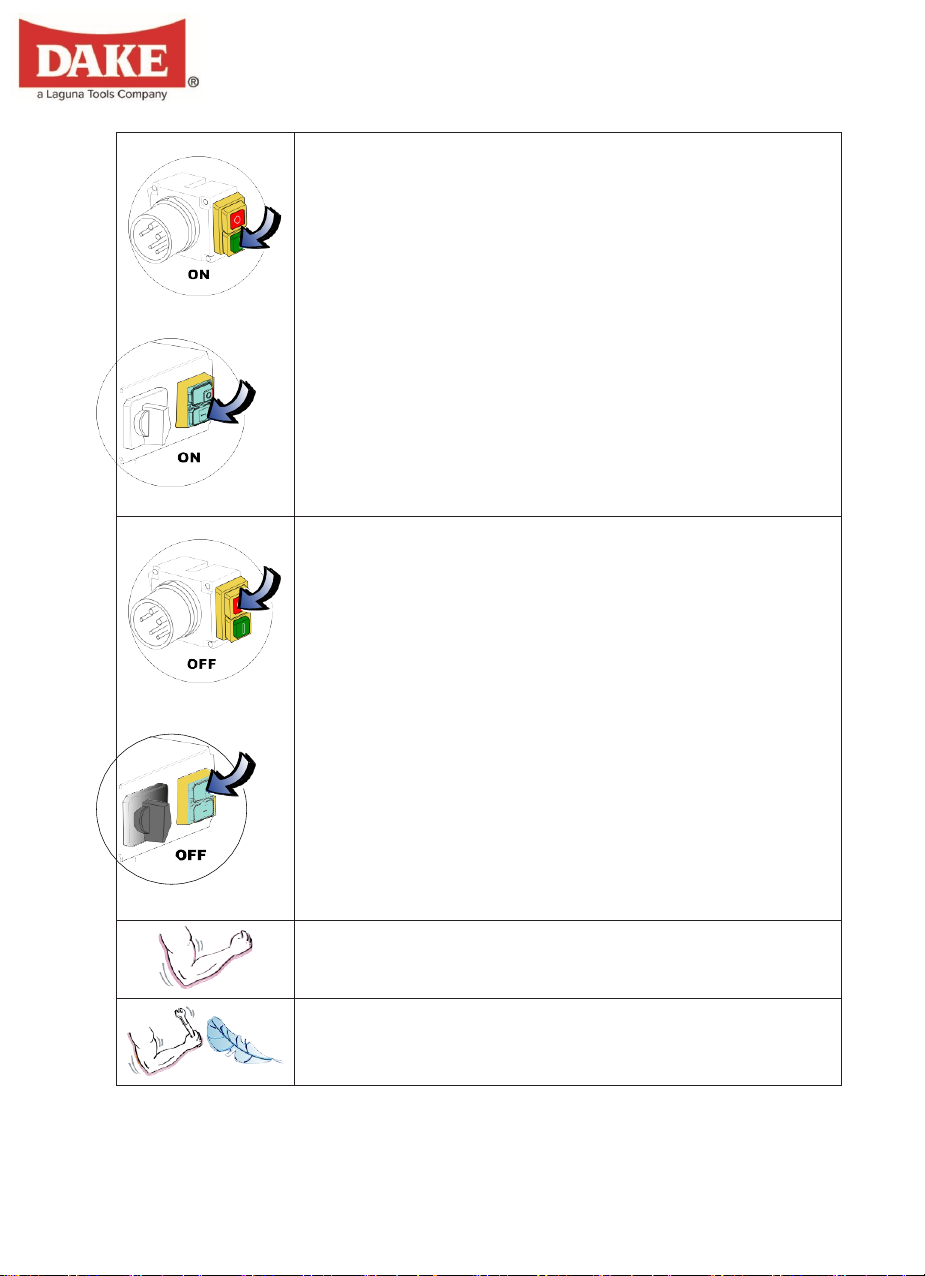

SWITCH ONthemachine
FG-75
0 2
1
577
SWITCH OFF the machine

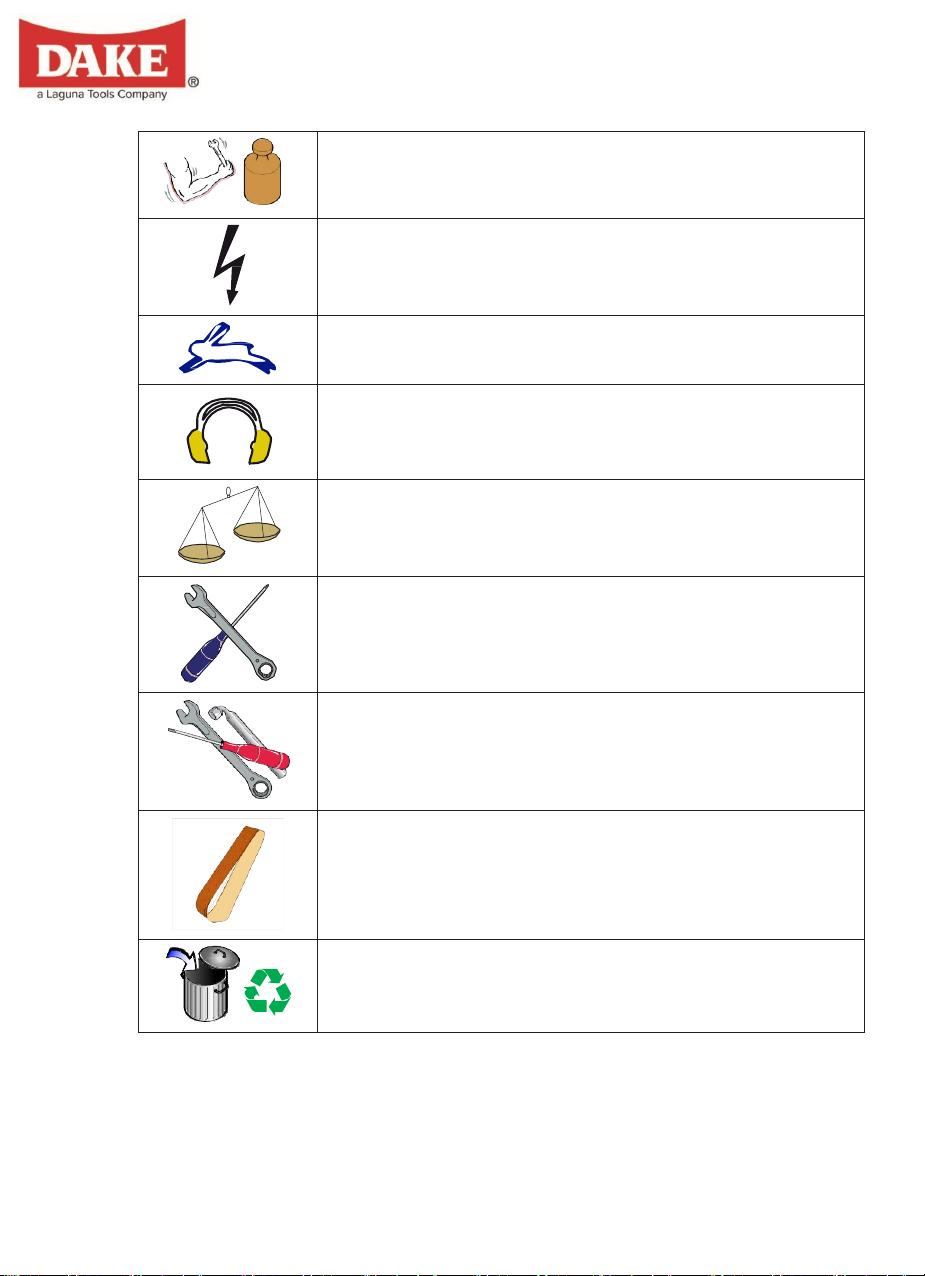

Power
Operationtobe performedwith CARE

961003 10 REV012021
Operationtobeperformed withFORCE
Voltage/Frequency
Speed
Noise
Weight
ADJUSTMENTS
ASSEMBLY
Operations using the SANDER
ObjecttobeRECYCLED

961003 11 REV012021
Model Number
961003
Machine Type
Horizontal Mounted Belt Grinder
Belt Size
3” x 79”
Horsepower
4 HP
Contact Wheel Size
3” x 8”
Belt Speed
6,600 FPM
Grinding Plane
3” x 21”
Electrical Components
CE Approved
Weight
139 lbs.
Work Height
22”- 48”
Base Dimensions
17” x 21”
Machine Width
22”
Machine Length
39”
Overall Height
43”
Voltage
Available 230V 3-Phase
Available 460V 3-Phase (required extra external transformer).
*A qualified Electrician should wire machine to main service.
SPECIFICATIONS

961003 12 REV012021
1 3
6 5
15
8
3 10
1 2
12
6
9 5
7 13
11 14
4
FG-75
8
10
13
14
16
577

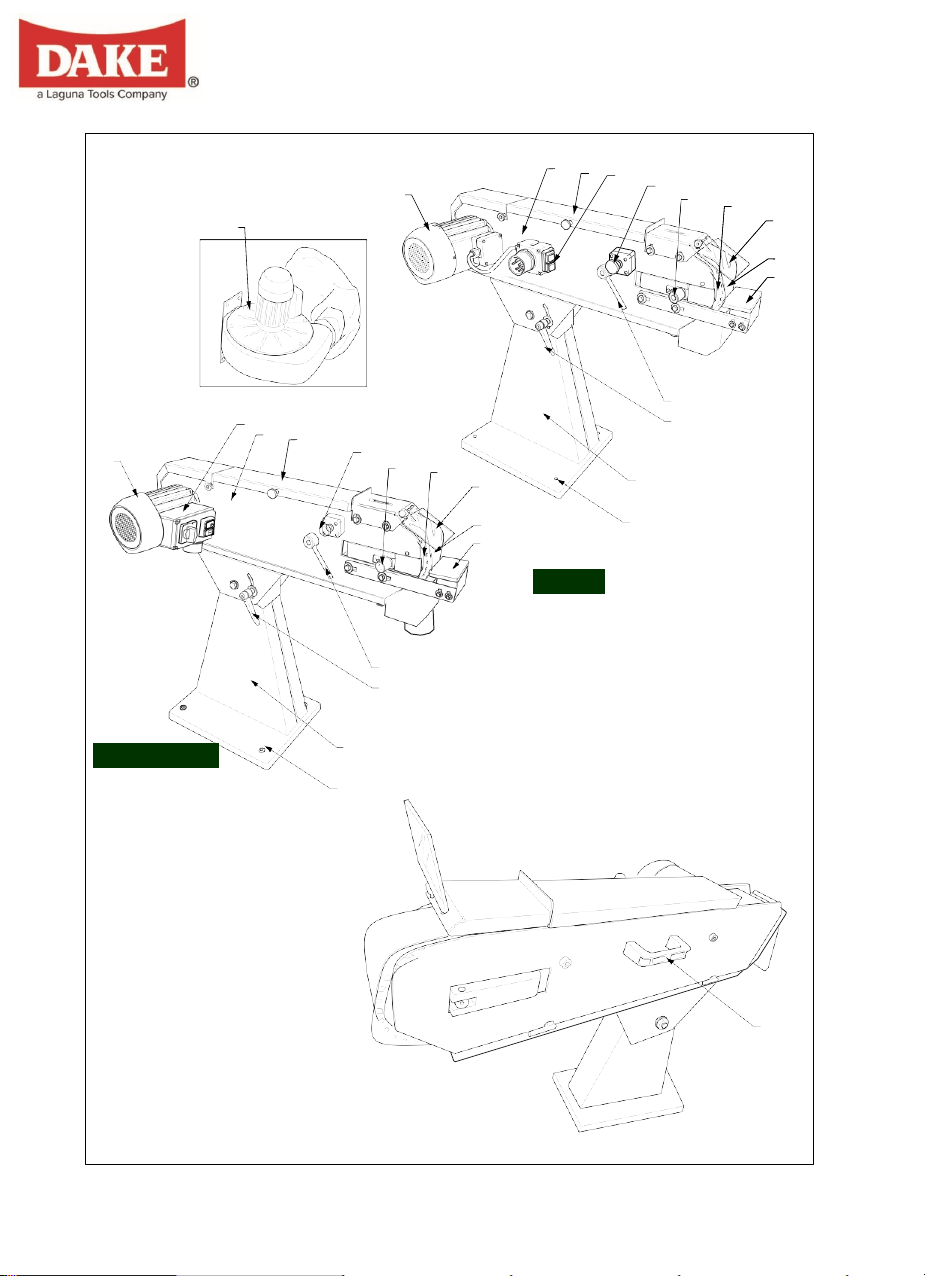

1. Machine body
2. Movable guard
3. ON/OFF switch
4. Support surface
5. Rubber-coated pulley
6. Motor
7. Adjustable safety shield
8. Quick locking lever
9. Belt adjustment knob
10. Lever to unblock graduation-scale
11. Belt
12. Emergency stop
13. Base
14. Fixing holes
15. Integrated extraction system (optional)
16. Handle
17. User Manual
*ANOTHER MODEL IS SHOWN, THERE MAY BE SLIGHT DIFFERANCES*
2
12
9
7
11
4

961003 13 REV012021
x 1
x 1
18
17
A

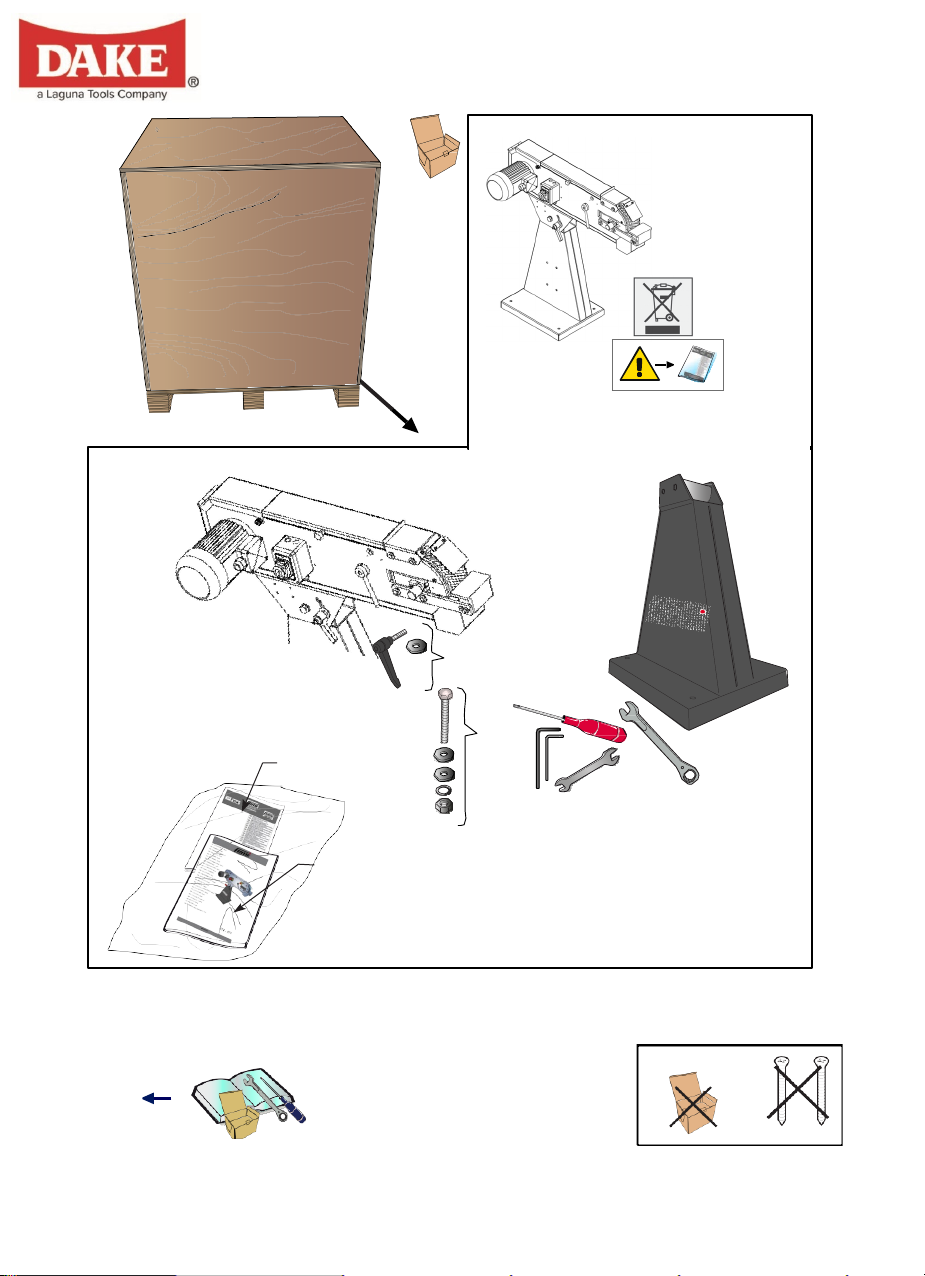

UNCRATING & ASSEMBLY

961003 14 REV012021

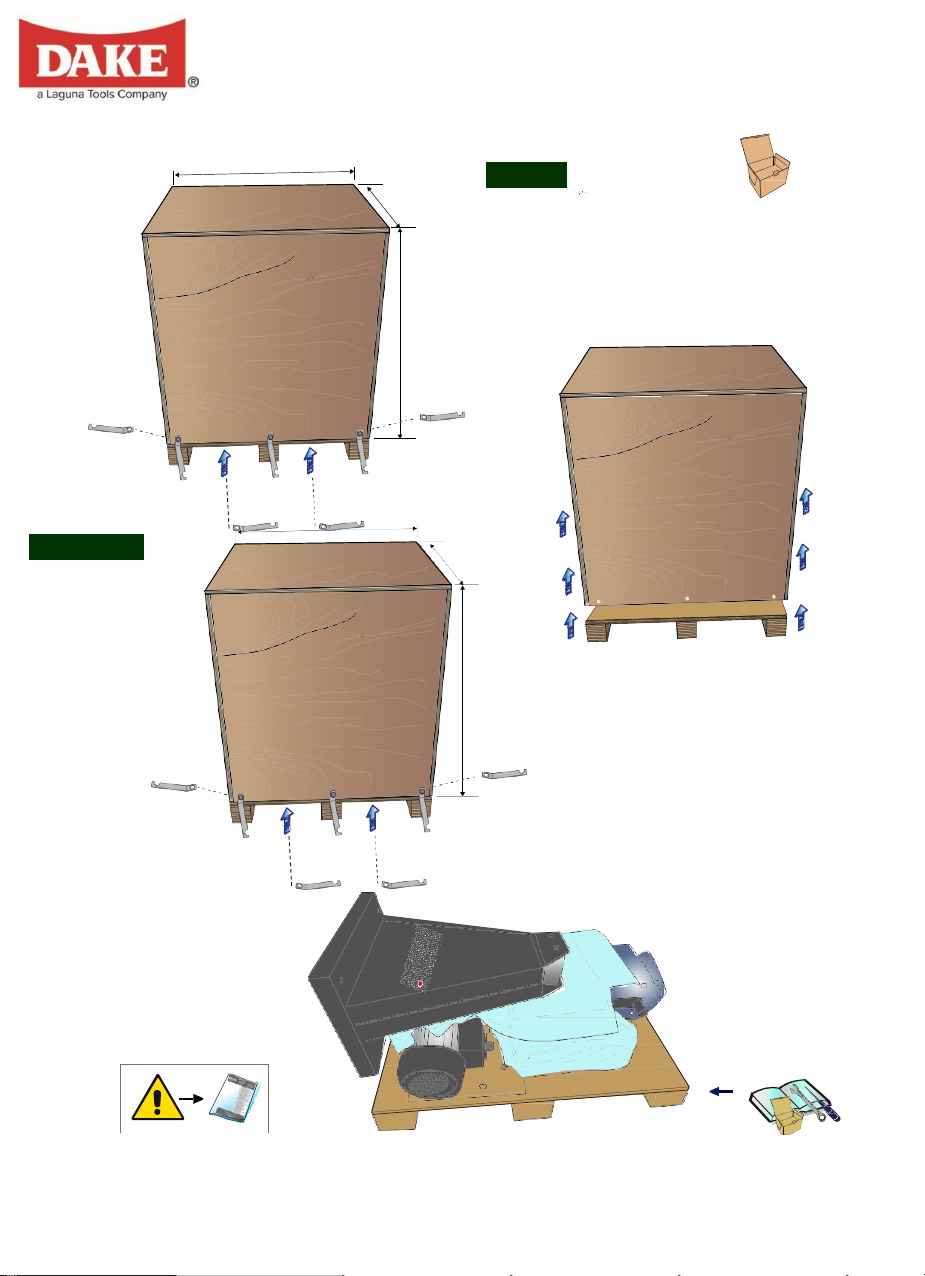

580 cm
480 cm FG-75
1000 cm
1
1
577
540 cm
2
610 cm
1000
cm
3

961003 15 REV012021

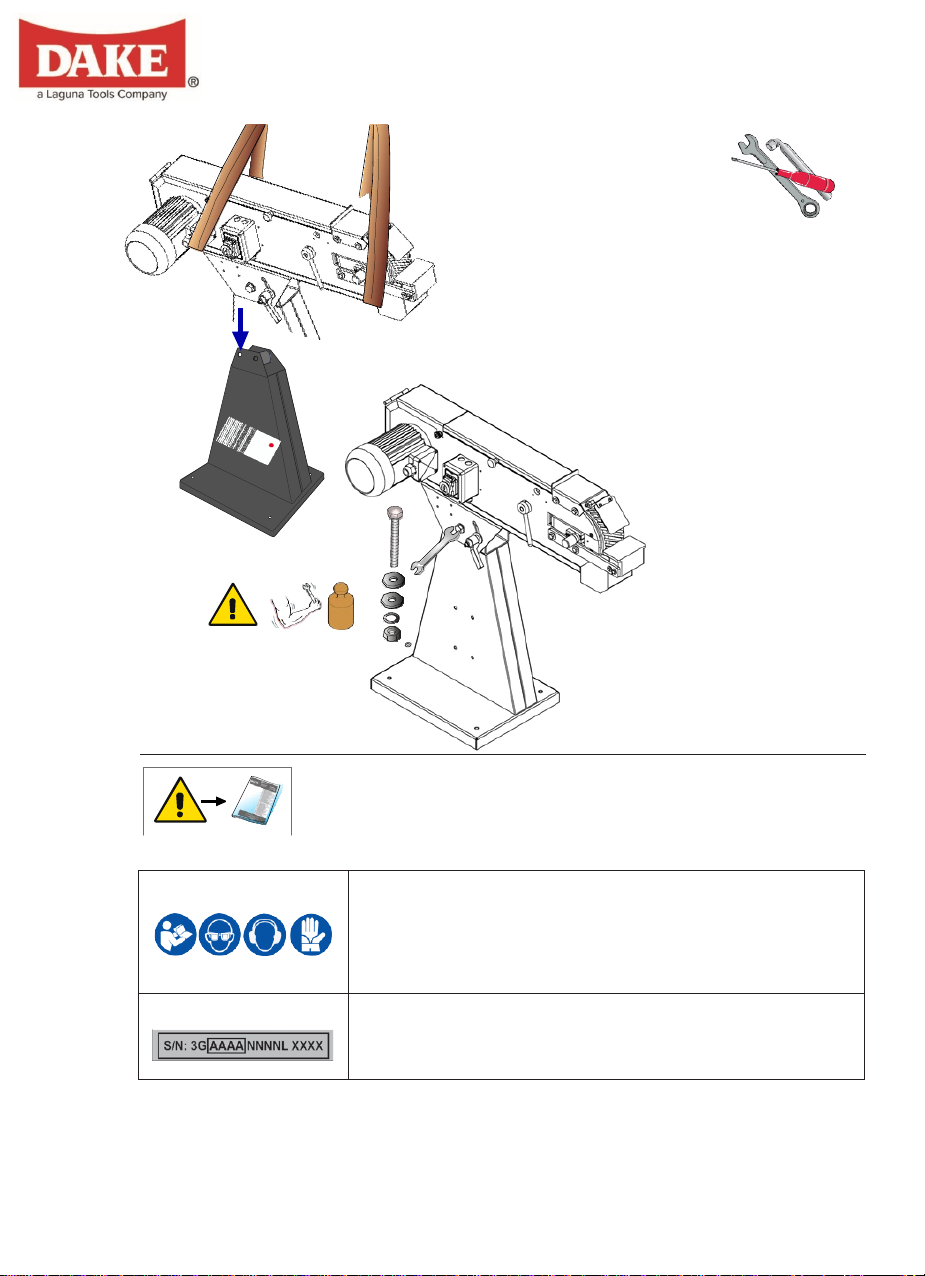

Use personal protective equipment
Serial numberandYearof manufacture
1
2

961003 16 REV012021

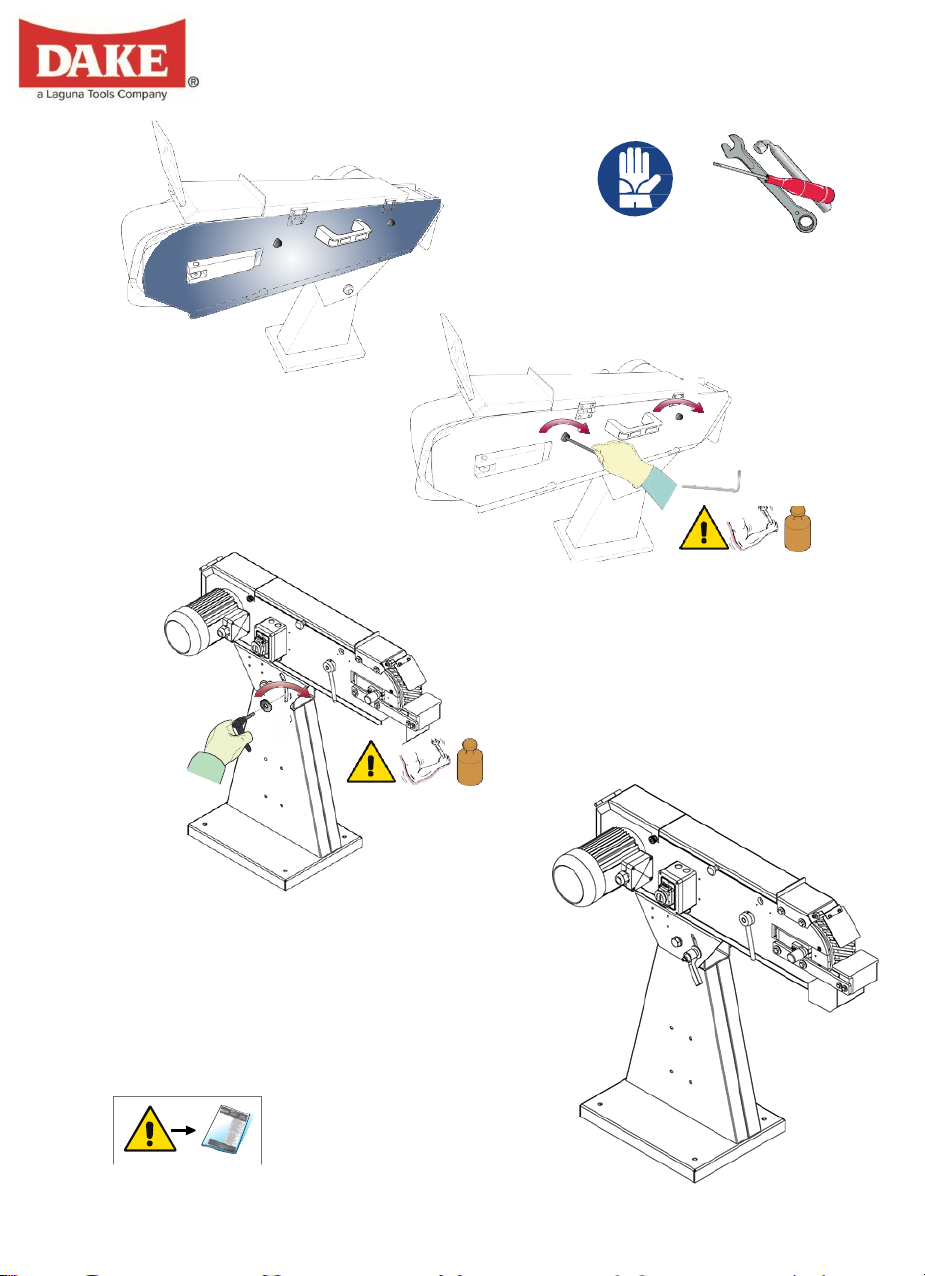

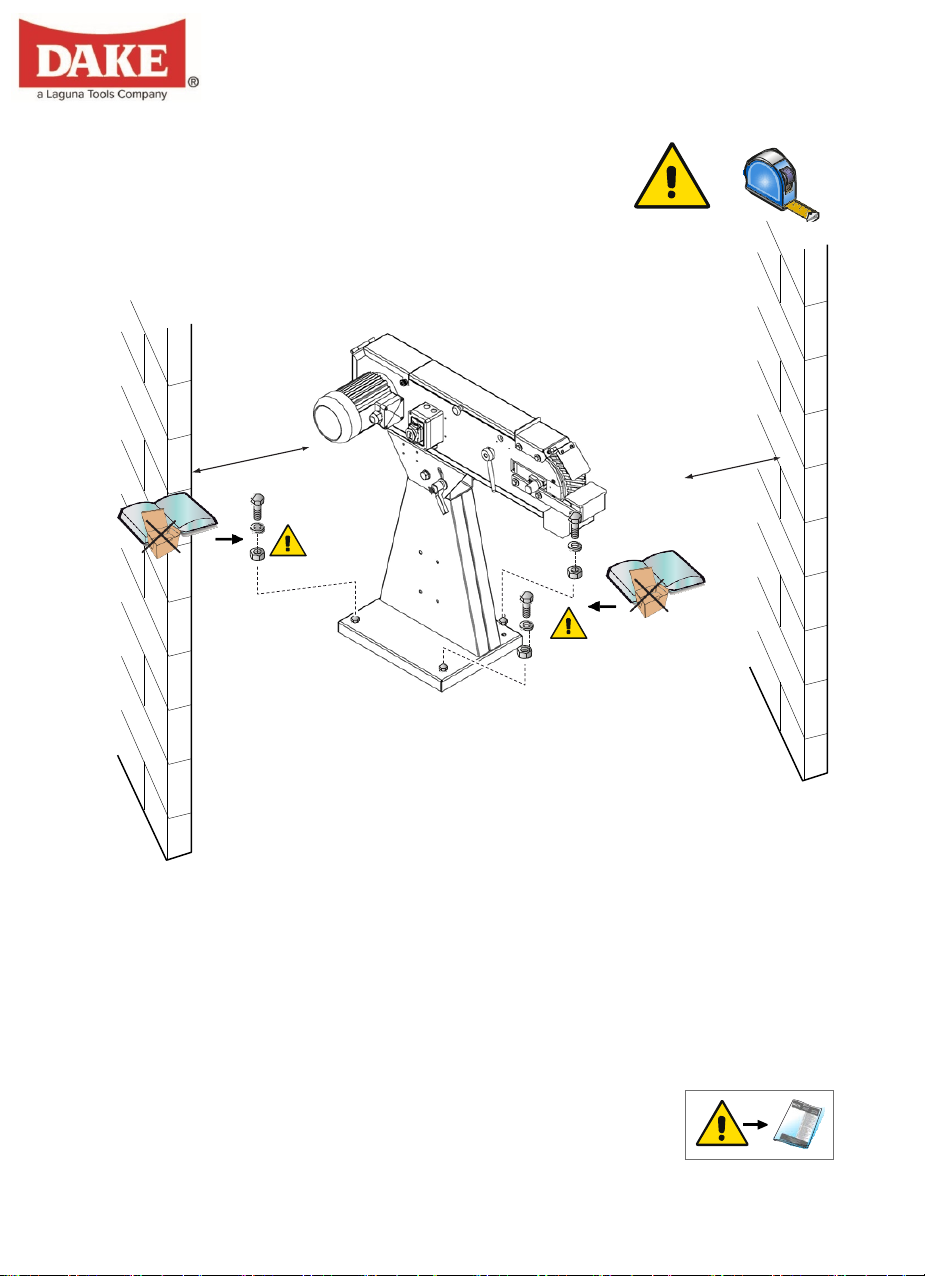

800 mm
A
800 mm
A

961003 17 REV012021
FG-75
1
2
3
4

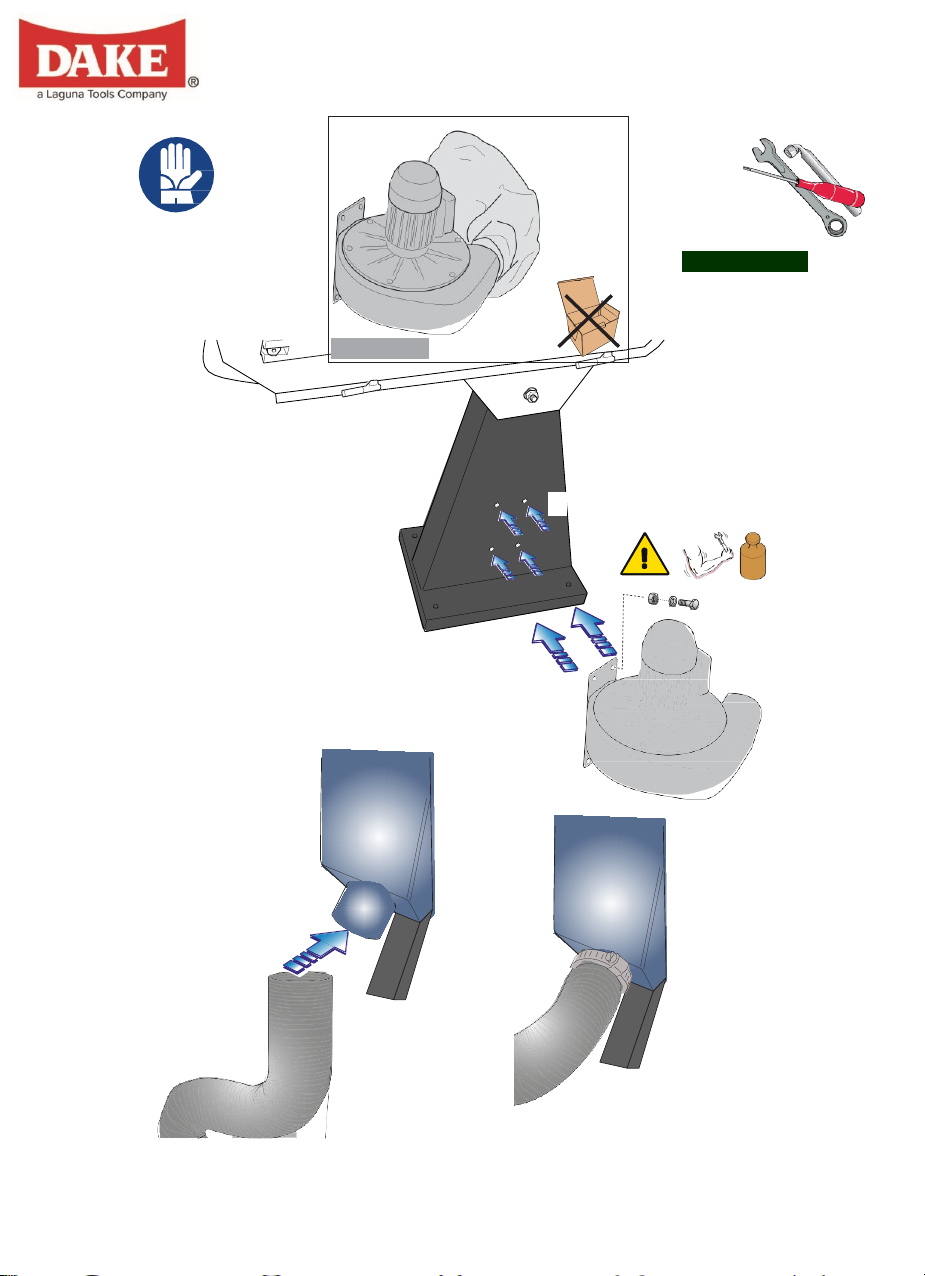

ASP020

961003 21 REV012021
1
1
2 2
1

961003 22 REV012021

961003 23 REV012021
PERMITTED USE
USE The machine has been designed and built to perform operations involving
the removal of material (such as smoothing, sanding, grinding or sharpening) on
any type of metal or similar materials, with the workpiece being held in the
hands.
FORBIDDEN USE
IT is forbidden to:
• OPERATE ON NON-METALS, ORGANIC MATERIALS AND/OR FOOD STUFFS.
• OPERATE ON MATERIALS WHICH MAY RELEASE TOXIC SUBSTANCES DURING THE
WORK
PROCESS.
THIS MACHINE IS NOT SUITABLE FOR USE IN POTENTIALLY
EXPLOSIVE ENVIRONMENTS.
RESIDUAL RISKS
Friction or abrasion hazard
This risk is due to the presence of the rotating tool.
Precautions to be taken
• When working with the tool do not wear work gloves.
• Keep hands away from the work area.
• Never remove cutting residues or workpiece fragments when the tool is rotating.
Solid material ejection hazard
This risk is due to the presence of the rotating tool.
Precautions to be taken
• Whenworkingwiththetool,alwayswearthenecessarypersonalprotectiveequipment:safety
goggles, safety shoes.
INFORMATION CONCERNING NOISE
The noise values indicated are emission levels and not necessarily safe operating levels.
While there is a correlation between emission levels and exposure levels, this cannot reliably
be used to determine whether or not further safety precautions are needed. Factors
which influence the real level of a worker's exposure include the duration of exposure, the
characteristics of the working environment, other sources of noise, for example the number of
machines or operations being carried out in the near vicinity. Furthermore, levels of safe
exposure may be fixed differently from one country to another. This information does however
help the machine user to better assess the hazards and risks.
IT IS ADVISABLE TO USE SUITABLE HEARING PROTECTION SUCH
AS EARMUFFS OR EARPLUGS.
INFORMATION ON ELECTROMAGNETIC COMPATIBILITY
Electromagnetic emissions from the machine do not exceed the limitsdefined by the relative
standards
for theenvisagedconditions of use.
CHECK THAT THE POWER SUPPLY SYSTEM IS EQUIPPED WITH A
THERMOMAGNETIC CIRCUIT BREAKER TO PROTECT ALL
CONDUCTORS FROM SHORT CIRCUIT AND OVERLOADS.
