LAIA B&H PC PRO User manual

Copyright © 2020 Laia · www.laiatech.com
All rights reserved
LAIA B&H PC PRO
User- manual

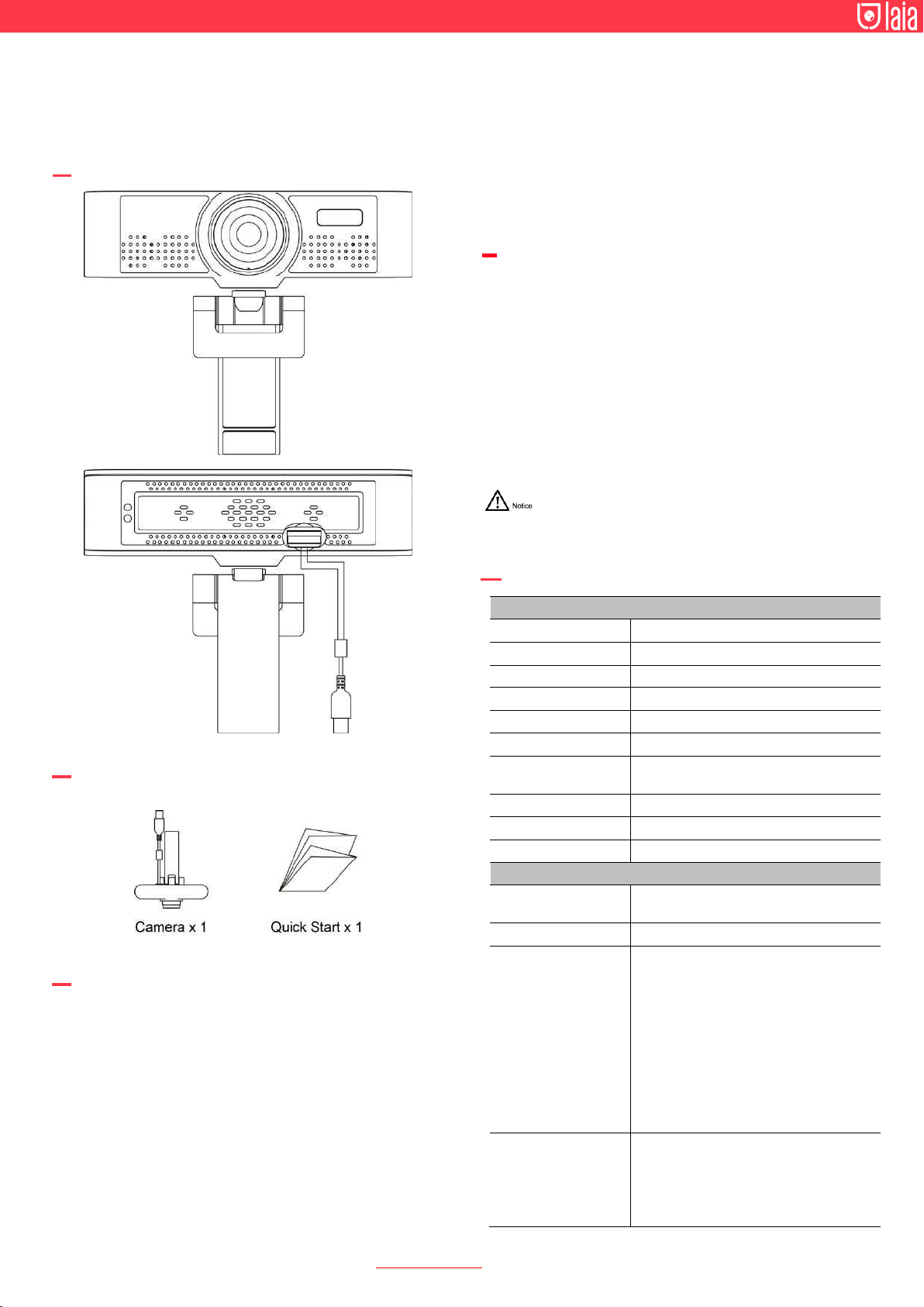

1Product Appearance
2 Packing List
Low-light
The application of 2D and 3D noise reduction algorithm greatly reduces
the image noise. Even under the condition of ultra-low illumination, it still
keeps the picture clean and clear, and the SNR of image is as high as
55dB. Easy installation
Standard damping rotary shaft support, suitable for market 100% monitor,
easy installation, stable and reliable.
4Safety Precautions
Careful transportation
Transportation, custody and installation process to prevent heavy
pressure, violent vibration, immersion damage to the product.
Careful installation
This product should be placed on the smooth desktop. The shell of the
product is an organic material and is strictly prohibited from contact with
any liquid, gas or solid material that may cause corrosion to the shell.
Do not unauthorized disassemble
This product has no parts which can be repaired by the user. The damage
caused by the user's own disassembly is not covered by warranty.
Electromagnetic fields at specific frequencies may affect image of machine.
5Product Specifications
3Product Features
1080P Full HD Wide Angle
Support 1080P full HD, and can provide 1080@30fps/25fps image coding
output. At the same time, it is compatible with 720P equal resolution
downwards, with wide field of view angle, and the maximum horizontal field
angle can be more than 84 degree.
USB 2.0
Full-featured USB 2.0 interface, power supply, video and audio all in one, it
can also support audio and video calls.
Built-in Microphone
Built-in microphone array, it can pick up sound distance up to six meters,
unique noise suppression algorithm, make your voice perfect presentation.
Camera
Sensor
1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens Mount
M12
Lens
Focus: f=3.5mm, FOV: 84°
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push,
Manual, VAR
Camera bracket
bracket with damper
Digital Noise Reduction
2D, 3D digital noise reduction
Backlight Compensation
Support
USB Features
Operate System
Windows XP/2003/VISTA/7/8/10、
Linux、Mac OS
Color / Compression
MJPEG/YUY2/H.264
Resolution
MJPEG: 1600x896 (default), 160x120,
176x144, 320x240, 352x288, 640x480,
720x576, 1280x720, 1024x768,
1024x576, 960x540, 848x480, 800x600,
800x448, 640x360, 480x272, 424x240,
320x180, 1920x1080
YUY2: 1920x1080 (default), 160x120,
176x144, 320x240, 352x288, 640x480,
1280x720, 960x540, 640x360, 480x272,
424x240, 320x180
Resolution
H.264: 1600x896 (default), 160x120,
176x144, 320x240, 352x288, 640x480,
720x576, 1280x720, 1024x768,
1024x576, 960x540, 848x480, 800x600,
800x448, 640x360, 480x270, 424x240,

Copyright © 2020 Laia · www.laiatech.com
All rights reserved
Avoid using
The camera should avoid shooting particularly bright objects, such as
sunlight, lights, etc.
The camera should not work under unstable lighting conditions,
otherwise the image will flash.
Do not use around facilities that can transmit high-power radio waves,
such as television station or radio-transmitting station.
Troubleshooting
Image have jitter after the camera is properly connected.
1) Check whether the camera installed position be stabled.
2) Check whether have vibrating machinery or object near the camera.
8
When the monitor thickness is less than or equal to 170mm, the mounting method can
be selected to mount the conference camera product on the monitor. The specific
installation is shown inthe following figure: This form is compiled in accordance with SJ/T 11364.
Ο: Indicates that the content of the hazardous substance in all homogenized
materials of the component is subject to the limit specified in GB/T 26572.
x: Said the hazardous substance in at least one of the components
homogenized material content in excess of the GB/T 26572 limit
requirements, and there are no mature alternatives.
7
Camera maintenance
If the camera is not in long-term use, please disconnect the power switch
after use.
Use soft cloth or cotton paper to remove dust from the camera housing.
When cleaning the camera lens, please use dry soft cloth to wipe, if dirt is
serious, use neutral cleaner gently. Do not use strong or corrosive
detergent, lest the lens scratch, affect the image effect.
Toxic and harmful substances
320x180, 1920x1080
USB Communication
Protocol
UVC 1.0
Input/Output Interface
USB Interface
1 x USB 2.0: Type A
Physical Parameter
Input Voltage
5V (USB power supply)
Current Consumption
0.27A
Operating Temperature
-10°C ~ 40°C
Storage Temperature
-40°C ~ 60°C
Power Consumption
1.4W
Size
118mm x 37.2mm x 30.8mm (without
bracket)
Net Weight
0.093 Kg (without bracket)
MTBF
＞30000h
Part Name
Toxic or harmful substances or elements
(Pb)
(Hg)
(Cd)
(CrVI)
(PBB)
(PBDE)
Metal
x
Ο
Ο
Ο
Ο
Ο
Plastic
Ο
Ο
Ο
Ο
Ο
Ο
Glass
x
Ο
Ο
Ο
Ο
Ο
Circuit board
x
Ο
Ο
Ο
Ο
Ο
Power
x
Ο
Ο
Ο
Ο
Ο
Attached
x
Ο
Ο
Ο
Ο
Ο
6 Maintenance and Troubleshooting
Maintenance and Troubleshooting
