LAIA Broadcaster 4K ToTal User manual
User Manual
Copyright © 2021 Laia · www.laiatech.com All rights reserved
Broadcaster 4K ToTal
User Manual
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which were
referred to in this document are for reference only. We may change, delete, or update any content
at any time and without prior notice.
=============================================================================
This is class A production. Electromagnetic radiation at specific frequencies may affect the image
quality of TV in home environment.
Broadcaster 4K ToTal User Manual
Copyright © 2021 Laia · www.laiatech.com All rights reserved
Catalogue
1 Note
............................................................................................................................ 1
2 Packing List
................................................................................................................ 1
3 Quick Start
.................................................................................................................. 1
4 Product Installation
..................................................................................................... 2 5 About Product
............................................................................................................. 2
5.1 Features
.................................................................................................................................... 2
5.2 Product Specification
................................................................................................................. 3
5.3 Interfaces and Buttons
.............................................................................................................. 5
5.4 Dimension
................................................................................................................................. 5
5.5 Remote Control
......................................................................................................................... 6
5.6 RS232 Interface
........................................................................................................................ 7
5.7 VISCA Network
......................................................................................................................... 7 5.8 Serial
Communication Control ................................................................................................... 8 6 GUI
Settings ............................................................................................................... 8
6.1 MENU
........................................................................................................................................ 8
6.2 EXPOSURE
.............................................................................................................................. 8
6.3 COLOR
..................................................................................................................................... 9
6.4 IMAGE
....................................................................................................................................... 9
6.5 P/T/Z
....................................................................................................................................... 10
6.6 NOISE REDUCTION
............................................................................................................... 10
Broadcaster 4K ToTal User Manual
Copyright © 2021 Laia · www.laiatech.com All rights reserved
6.7 SETUP
.................................................................................................................................... 10
6.8 COMMUNICATION SETUP
.................................................................................................... 11
6.9 RESTORE DEFAULT
.............................................................................................................. 11 7 Network Function
...................................................................................................... 11
7.1 Operating Environment ........................................................................................................... 11
7.2 Equipment Installation ............................................................................................................. 11
7.3 Internet Connection ................................................................................................................. 11
7.4 Camera Controlled by LAN ..................................................................................................... 12
7.4.1 Setup IP
Address.................................................................................................................. 12
7.4.2 Visit/Access Camera
............................................................................................................ 12
7.5 Camera Controlled by WAN .................................................................................................... 13
7.5.1 Setup IP Controlled by Dynamic DNS .................................................................................. 13
7.5.2 Dynamic DNS Visit Camera ................................................................................................. 13
7.5.3 VLC Stream Media Player Monitor ....................................................................................... 13
7.6 Camera Parameter Setup ....................................................................................................... 14
7.6.1 Homepage Introduction ........................................................................................................ 14
7.6.2 Video Settings ...................................................................................................................... 15
7.6.3 Image Settings ..................................................................................................................... 16
7.6.4 Audio Settings ...................................................................................................................... 17
7.6.5 System Settings ................................................................................................................... 17
7.6.6 Network Settings .................................................................................................................. 17
7.6.7 Device Information ............................................................................................................... 18
7.7 Download the Upgrade Program ............................................................................................. 18
8 Maintenance and Troubleshooting ........................................................................... 18
Copyright © 2021 Laia · www.laiatech.com 1 All rights reserved
Broadcaster 4K ToTal
User Manual
1 Note
lElectric Safety
Installation and operation must accord with
electric safety standard.
lUse Caution to Transport
Avoid stress, vibration or soakage in transport,
storage and installation.
lPolarity of Power Supply
The power supply of this product is +12V, the
max electrical current is 1.5A. Polarity of the
power supply plug drawing shows as below.
lInstallation Precautions
Do not grasp the camera lens when carrying it.
Don’t touch camera lens by hand. Mechanical
damage may be caused by doing so. Do not
use in corrosive liquid, gas or solid environment
to avoid any cover (plastic
3 Quick Start
material) damage. Make sure there is no
obstacle within rotation range.
Please never power on before installation is
completed.
lDo not Dismantle the Camera We are not
responsible for any unauthorized modification
or dismantling.
Specific frequencies of electromagnetic field
may affect the image of the camera!
2 Packing List
Check all the supplied accessories:
Name
Quantity
Camera
1
AC Power Adaptor
1
Power Cable
1
RS232 Cable
1
1)
Please check connections are correct before starting.
Copyright © 2021 Laia · www.laiatech.com 2 All rights reserved
Broadcaster 4K ToTal
User Manual
USB 3.0 Cable
1
Remote Control
1
2P Phoenix Head
1
User Manual
1
Copyright © 2021 Laia · www.laiatech.com 3 All rights reserved
Broadcaster 4K ToTal
User Manual
2) Connect the DC 12V power cord to the supplied power adapter and connect the power adapter
to a power outlet. The power indicator on the front panel of the camera is on.
3) After the camera is powered on, it starts to initialize, right up to the limit position, and then both
horizontal and vertical go to the middle position, the motor stops running, and the initialization is
completed (Note: If preset 0 is saved, PTZ will be move to preset 0).

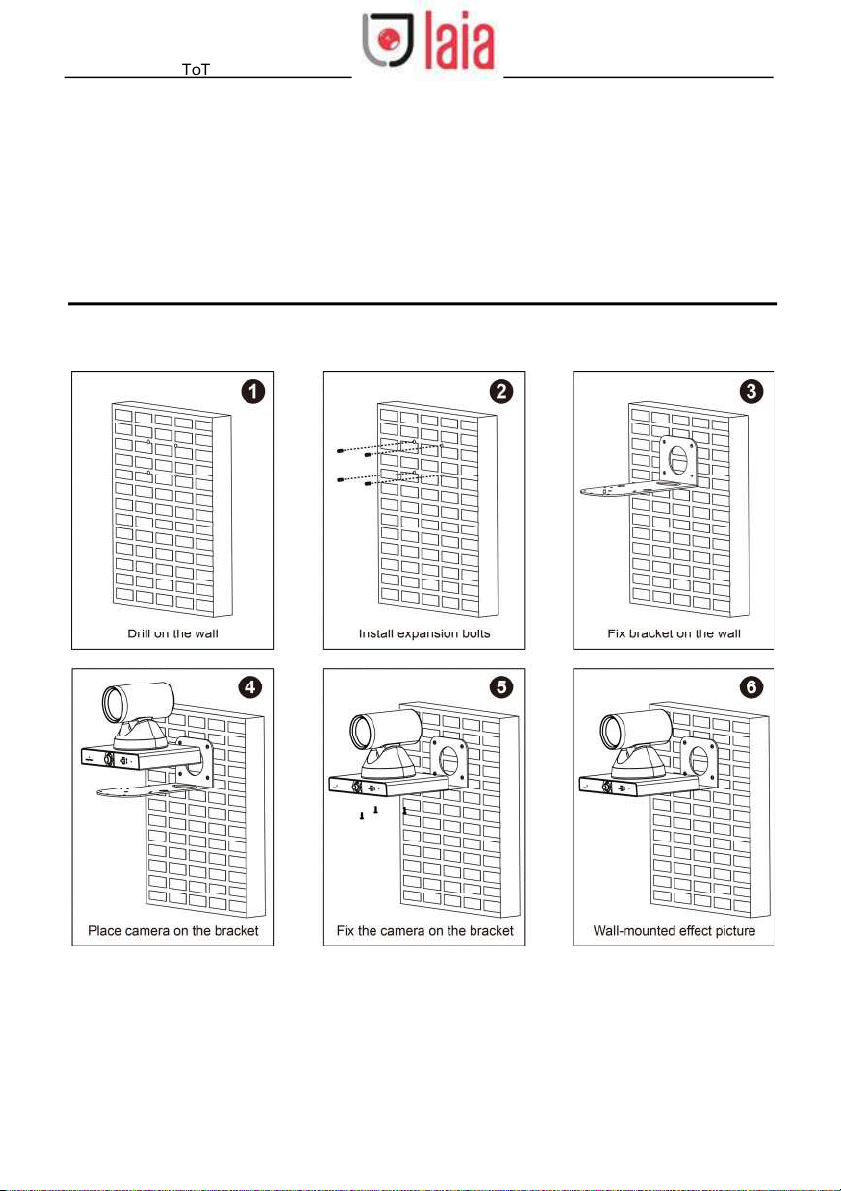

Product Installation
When the monitor thickness is >170mm or when it is required to be mounted on a wall, the wall
mounting method can be selected. The specific installation steps are shown in the following figure.
Copyright © 2021 Laia · www.laiatech.com 4 All rights reserved
Broadcaster 4K ToTal
User Manual
5 About Product
5.1 Features
lIntegrated Design
Integrated design, can output panoramic and
close-up multi-channel HD video at the same
time.
lIntelligent Teaching Tracking
Built-in leading image recognition and tracking
algorithm, you can achieve smooth and natural
tracking without any auxiliary positioning
camera or tracking host. Different cameras can
be installed to achieve teacher tracking or
student tracking.
lLens Replaceable 5.2 Product Specification
Name
Integrated UHD Tracking
Camera
Camera
Video System
4K@30fps, 4K@25fps,
1080P@60fps,
1080P@50fps,
1080I@60fps,
1080I@50fps,
1080P@30fps,
1080P@25fps,
720P@60fps,
Sensor
1/2.5'', CMOS,
Effective Pixel: 8.51M
Scanning Mode
Progressive
Lens
12x, f = 4.4mm ~ 52.8mm,
F1.8 ~ F2.6
Teacher
Camera Lens
f=8mm, F1.8, angle of view
is about 48°
Student
Camera Lens
f=3.24mm, F1.8, angle of
view is about 84°
Copyright © 2021 Laia · www.laiatech.com 5 All rights reserved
Broadcaster 4K ToTal
User Manual
The panoramic lens is replaceable and compatible
with M12 interface lenses, then making it easy to
respond to different classroom scenes. l
Adjustable Viewing Angle
The panoramic lens angle can be adjusted up and
down (-15° ~ +15°), which is very convenient for
engineering installation and debugging.
lSame Video Style
The panoramic machine and the close-up machine
adopt the same image processing scheme to ensure
the brightness, color and style of the two images are
consistent.
l71° Wide-angle Lens
Close-up camera use 71° wide-angle high quality
lens, support 12x optical zoom and 16x digital zoom.
l4K UHD
Using 1/2.5 inch high-quality UHD CMOS sensor with
a maximum size of 8.51 million pixels, it can achieve
4K (3840x2160) high-resolution high-quality images.
And backward compatible with multiple resolutions
such as 1080P, 720P. lBuilt-in G-sensor
Support automatic image flip function, convenient for engineering installation.
lBuilt-in Microphone
Built-in microphone array for omnidirectional sound pickup and good noise
suppression algorithm for perfect speech presentation.
lLow Light
The application of 2D and 3D noise reduction algorithm greatly reduces image noise.
Even under the condition of ultra-low illumination, it still keep the picture clean and
clear, and the SNR of image is as high as 55dB.
lRemote Control
Through the RS232 and RS485 serial port, the camera can be controlled remotely.
Vertical Rotation
Range
Audio
±30°
Compression
AAC
Pan Speed
Range
1.61° ~ 75.56°/s Audio Bit Rate
96Kbps, 128Kbps,
256Kbps
Tilt Speed
Range
0.44° ~ 15°/s
Protocols
TCP/IP, HTTP, RTSP,
RTMP/RTMPS, ONVIF,
DHCP, SRT, Multicast
H & V Flip
Support
Conference
Camera Lens
f=2.8mm, F1.8, angle of
view is about 110°
Digital Zoom
16x
Minimum
Illumination
0.5 Lux @
(F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One
Push, Manual, VAR
Backlight
Compensation
Support
Digital Noise
Reduction
2D & 3D Digital Noise
Reduction
Signal Noise
Ratio
≥55dB
Horizontal Angle
of View
71° ~ 8.2°
Vertical Angle of
View
42.7° ~ 4.5°
Horizontal
Rotation Range
±170°
Copyright © 2021 Laia · www.laiatech.com 6 All rights reserved
Broadcaster 4K ToTal
User Manual
Input/Output Interface
Image Freeze
Support
Network
Interface
1 x RJ45: 10M/100M
Adaptive Ethernet Port
Number of
Preset
255
USB Interface
1 x USB 2.0: Type A female
jack
Preset Accuracy
0.1°
USB Features
1 x USB 3.0: Up to
4K@30fps compressed
video and 1080P original
video can be output
Operate System
Windows 7, Windows 8,
Windows 10, Mac OS X,
Linux, Android
Communication
Interface
1 x RS232 IN: 8pin Min
DIN, Max Distance: 30m,
Protocol: VISCA / Pelco-D
/ Pelco-P
Color System /
Compression
YUY2 / MJPEG / H.264 /
H.265
Video Format
l YUY2:
max to 1080P@30fps
lH.264 AVC/SVC:
max to 2160P@30fps
l MJPEG:
max to 2160P@30fps
1 x RS232 OUT: 8pin Min
DIN, Max Distance: 30m,
Protocol: VISCA network
use only
USB Audio
Support
1 x RS485: 2pin phoenix
port, Max Distance:
1200m, Protocol: VISCA /
Pelco-D / Pelco-P
USB Video
Communication
Protocol
UVC 1.1~1.5
UVC PTZ
Support
HDMI Interface
1 x HDMI: Version 1.3
Network Features
Audio Interface
1 x LINE IN: 3.5mm Audio
Interface
Video
Compression
H.264/H.265/MJPEG
3G-SDI Interface
1 x 3G-SDI: BNC type,
800mVp-p, 75Ω, Along to
SMPTE 424M standard
Video Stream
First Stream,
Second Stream
Power Jack
JEITA type (DC IN 12V)
First Stream
Resolution
3840x2160, 1920x1080,
1280x720, 1024x576,
960x540, 640x480,
640x360
Physical Parameter
Input Voltage
DC 12V / PoE (802.3af)
Copyright © 2021 Laia · www.laiatech.com 7 All rights reserved
Broadcaster 4K ToTal
User Manual
Second Stream
Resolution
3840x2160, 1920x1080,
1280x720, 1024x576,
720x576, 720x408,
640x360, 480x270,
320x240, 320x180
Current
Consumption
1.25A (Max)
Operating
Temperature
-10°C ~ 40°C
Storage
Temperature
-40°C ~ 60°C
Video Bit Rate
32Kbps ~ 51200Kbps
Power
Consumption
15W (Max)
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 25fps,
60Hz: 1fps ~ 30fps
Size
200 x 176.5 x 164mm
Net Weight
About 1.73Kg
Copyright © 2021 Laia · www.laiatech.com 8 All rights reserved
Broadcaster 4K ToTal
User Manual
5.3
Interfaces and Buttons
Item
Name
1
Network Interface
2
USB 2.0 Interface
3
RS232 IN Interface
4
RS232 OUT Interface
5
RS485 Interface
6
HDMI Interface
7
LINE IN Interface
8
3
G-SDI Interface
9
USB 3.0 Interface
10
DC 12V Interface
11
Power Switch
5.4
Dimension
Copyright © 2021 Laia · www.laiatech.com 9 All rights reserved
Broadcaster 4K ToTal
User Manual
Press this button to enter standby mode. Press
it again to enter normal mode. Note: Power
consumption in standby mode is approximately
half of the normal mode
2. Number Key
To set preset or call preset.
3. *Key
Used with other buttons.
4. Preset Key
Set preset: Store a preset position. [SET
PRESET] + Numeric button (0-9): Setting a
corresponding numeric key preset position.
Clear preset: Erase a preset position.
[CLEAR PRESET] + Numeric button (0-9) Or:
[*]+[#]+[CLEAR PRESET]: Erase all the preset
individually.
5.5
Remote Control
Key Description
1
.Standby Key
5
.HOME Key
Confirm menu, enter the submenu or the PTZ
will back to the middle position after pressed it
6
.Return Key
Return back the last level menu
7
.Zoom Key
Slow Zoom: Zoom In [+] or Zoom Out [-] slowly
Fast Zoom: Zoom In [+] or Zoom Out [-] fast
8
.Left/Right Setting Key
Press with 1 button and 2 button setting the
direction of the Pan-Tilt.
l
Simultaneously press L/R Set +1[STD]:
set the Pan-Tilt turn the same direction as
the L/R Set.
l
Simultaneously press L/R Set +2[REV]:
set the Pan-Tilt turn the opposite direction
as the L/R Set.
9
.Focus Key
Used for focus adjustment.
Press [AUTO] adjust the focuses on the center
of the object automatically.
Press [MANUAL] adjust the focus on the
center of the object manual.
MANUAL button, and adjust it with [Far]
(
Focus on far object) and [NEAR] (Focus on
near object).
10
.Selection Key
Press the button corresponding to the camera
you want to operate with the remote controller.
11
.#Key
Used with other buttons.
12
.IR Remote Control Key
[*]+[
＃
]+[F1]:
Address 1
[*]+[
＃
]+[F2]:
Address 2
[*]+[
＃
]+[F3]:
Address 3
[*]+[
＃
]+[F4]:
Address 4
13
.Reset Key
Copyright © 2021 Laia · www.laiatech.com 10 All rights reserved
Broadcaster 4K ToTal
User Manual
14. PTZ Control Key
Press arrow buttons to perform panning and
tilting. Press [HOME] button to face the camera
back to front.
15. Menu Key
MENU: enter or exit OSD MENU.
No.
Function
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
GND
7
IR OUT
8
NC
Copyright © 2021 Laia · www.laiatech.com 11 All rights reserved
Broadcaster 4K ToTal
User Manual
BLC ON/OFF: Press this button to enable the backlight compensation. Press it again to disable the
Copyright © 2021 Laia · www.laiatech.com 12 All rights reserved
Broadcaster 4K ToTal
User Manual
backlight compensation. NOTE:
l
l
The correspondence between the camera and Windows DB-9 pin:
16
.Backlight Key
Copyright © 2021 Laia · www.laiatech.com 1 All rights reserved
Broadcaster 4K ToTal
User Manual
5.8 Serial Communication Control
lRS232 Communication Control The
camera is controlled via RS232. The RS232
serial port parameters are as follows:
Baud rate: 2400/4800/9600/38400;
Starting position: 1 bit
Data bit: 8 bits
Stop bit: 1 bit
Check digit: None
lRS485 Communication Control
Control camera via RS485, half duplex mode:
Baud rate: 2400/4800/9600/38400;
Starting position: 1 bit
Data bit: 8 bits
Stop bit: 1 bit
Check digit: None
After power on, the camera goes to the upper
right limit and then back to the middle position.
The zoom lens is pulled to the farthest position,
auto focus, and the aperture is adjusted to the
default value. If the camera has preset 0 saved,
the camera will be set to position 0 after the
initialization is completed. At this point, the user
can use the serial port command to control the
camera. lList of protocols (omitted)
The serial port of the camera follows the
VISCA/Pelco-D/Pelco-P standard protocol. If
secondary development is required, the
camera can be controlled according to the
standard protocol.
6 GUI Settings
6.1 MENU
Press [MENU] button to display the main menu
on the normal screen, using arrow button to
move the cursor to the item to be set. Press the
[HOME] button to enter the corresponding sub-
menu.
MENU
Exposure
Color
P/T/Z
Noise Reduction
Setup
Communication Setup
Restore Default
[Home] Enter
[Return] Exit
6.2 EXPOSURE
Move the main menu cursor to [EXPOSURE],
and press [HOME] key enter the exposure
page, as shown in the following figure.
EXPOSURE
Mode Auto
ExpCompMode On
ExpComp +1
Backlight Off
Gain Limit 15
Anti-Flicker 50Hz
Meter Average
DRC 0
Select Item
Change Value
[Return] Back
Mode: Exposure mode, optional items: Auto,
Manual, SAE, AAE, Bright.
ExpCompMode: Exposure the compensation
mode, optional items: On, Off (Effective only in
Auto mode).
Copyright © 2021 Laia · www.laiatech.com2 All rights reserved
Broadcaster 4K ToTal
User Manual
ExpComp: Exposure the compensation value,
optional items: -7 ~ 7 (Effective only in
ExpCompMode item to On).
Backlight: Set the backlight compensation,
optional items: On, Off (Effective only in Auto
mode).
Bright: Intensity control, optional items: 0 ~ 17
(Effective only in Bright mode).
Gain Limit: Maximum gain limit, optional items:
0 ~ 15 (Effective only in Auto, SAE, AAE, Bright
mode).
Anti-Flicker: Anti-flicker, optional items: Off,
50Hz, 60Hz (Effective only in Auto, AAE,
Bright mode).
Meter: Optional items: Average, Center, Smart,
Top.
Iris: Aperture value, optional items: F1.8, F2.0,
F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0,
F9.6, F11.0, Close (Effective only in Manual,
AAE mode).
Shutter: Optional items: 1/30, 1/60, 1/90, 1/100,
1/125, 1/180, 1/250, 1/350, 1/500, 1/725,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000,
1/6000, 1/10000 (Effective only in Manual,
SAE mode).
Gain: Optional items: 0 ~ 7 (Effective only in
Manual mode).
DRC: DRC strength, optional items: 0 ~ 8.
6.3 COLOR
Move the main menu cursor to [COLOR], and
press [HOME] key enter the color page, as
shown in the following figure.
COLOR
WB Mode Auto
RG Tuning +2 BG
Tuning +2
Saturation 110%
Hue 7
AWB Sens High
Select Item
Change Value
[Return] Back
WB-Mode: White balance mode, optional items:
Auto, Indoor, Outdoor, One Push, Manual,
VAR.
RG Tuning: Optional items: 0 ~ +10 (Effective
only in Auto mode); -10 ~ +10 (Effective only in
One Push, VAR mode).
BG Tuning: Optional items: 0 ~ +10 (Effective
only in Auto mode); -10 ~ +10 (Effective only in
One Push, VAR mode).
Saturation: Optional items: 60% ~ 200%.
Hue: Optional items: 0 ~ 14.
AWB Sens: The white balance sensitivity,
optional items: Low, Middle, High. RG: Red
gain, optional items: 0 ~ 255 (Effective only in
Manual mode). BG: Blue gain, optional items: 0
~ 255 (Effective only in Manual mode). Color
Temp: Optional items: 2500K ~ 8000K
(Effective only in VAR mode).
6.4 IMAGE
Move the main menu cursor to [IMAGE], and
press [HOME] key enter the image page, as
shown in the following figure.
3
© 2021 Laia · www.laiatech.com All rights reserved
Broadcaster 4K ToTal
User Manual
Luminance 7
Contrast 7
Sharpness Auto
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma EXT
Style Default
LDC Off
Select Item
Change Value
[Return] Back
Luminance: Brightness adjustment, optional
items: 0 ~ 14.
Contrast: Contrast adjustment, optional items: 0
~ 14.
Sharpness: Sharpness adjustment, optional
items: Auto, 0 ~ 15.
Flip-H: Image flipped horizontally, optional
items: On, Off.
Flip-V: Image Flip Vertical, optional items: On,
Off.
B&W-Mode: Optional items: On, Off. Gamma:
Optional items: EXT, PC, 0.45, 0.5,
0.56, 0.63.
Style: Optional items: Default, Outdoor, Cozy,
Norm, Bright, PC.
LDC: Optional items: Off, -10 ~ +10.
6.5 P/T/Z
Move the main menu cursor to [P/T/Z], and
press [HOME] key enter the P/T/Z page, as
shown in the following figure.
P/T/Z
SpeedByZoom
On
AF-Zone
Center
AF-Sense
Normal
L/R Set
STD
Display Info
On
Image Freeze
Off
Digital Zoom
Off
Call Preset Speed
18
Pre Zoom Speed
Select Item
Change Value
[Return] Back
5
SpeedByZoom: The depth of field scale switch,
optional items: On, Off.
AF-Zone: Interested in focusing area, optional
items: Top, Center, Bottom. AF-Sense:
Automatic focusing sensitivity options, optional
items: Low, Normal, High.
L/R Set: Optional items: STD, REV.
Display Info: Optional items: On, Off.
Image Freeze: Optional items: On, Off.
Digital Zoom: Optional items: Off, 2x, 4x, 8x,
16x.
Call Preset Speed: Optional items: 1 ~ 24.
Pre Zoom Speed: Optional items: 0 ~ 7.
6.6 NOISE REDUCTION
Move the main menu cursor to [NOISE
REDUCTION], and press [HOME] key enter the
noise reduction page, as shown in the following
figure.
NOISE REDUCTION
NR2D-Level Off
NR3D-Level Auto
Select Item
Change Value
[Return] Back
NR2D Level: 2D noise reduction, optional items:
Off, 1 ~ 10.
NR3D Level: 3D noise reduction, optional items:
Off, Auto, 1 ~ 9.
6.7 SETUP
Move the main menu cursor to [SETUP], and
press [HOME] key enter the setup page, as
shown in the following figure.
4
© 2021 Laia · www.laiatech.com All rights reserved
Broadcaster 4K ToTal
User Manual
SETUP
Language EN
DVI Mode HDMI
Video Format 1080P30
HDMI FRAME Feature
SDI FRAME Panorama
Current Menu Feature
Select Item
Change Value
[Return] Back
Language: Optional items: EN, Chinese,
Russian.
DVI Mode: Optional items: DVI, HDMI.
Video Format: Optional items: 1080P30,
4KP29.97, 4KP25, 4KP30, 1080P25, 1080P60.
HDMI FRAME: Optional items: Feature,
Panorama.
SDI FRAME: Optional items: Feature,
Panorama, Interweave.
Copyrigh
t
Current Menu: Optional items: Feature,
Panorama.
6.8 COMMUNICATION SETUP
Move the main menu cursor to
[COMMUNICATION SETUP], and press
[HOME] key enter the communication setup
page, as shown in the following figure.
COMMUNICATION SETUP
Protocol VISCA
V_Address 1
V_AddrFix Off
Net Mode Serial
Baudrate 9600
Select Item
Change Value
[Return] Back
Protocol: Control protocol type, optional items:
Auto, VISCA, PELCO-D, PELCO-P.
V_Address: Optional items: 1 ~ 7.
(Effective only in Auto, VISCA protocol).
V_AddrFix: Optional items: On, Off (When set
to On, useless in 88 30 01 FF Command).
P_D_Address: Optional items: 0 ~ 254.
(Effective only in Auto, PELCO-D protocol).
P_P_Address: Optional items: 0 ~ 31.
(Effective only in Auto, PELCO-P protocol). Net
Mode: Set the serial port network control,
optional items: Serial, Paral.
Baudrate: Serial port baud rate, optional items:
2400, 4800, 9600, 38400.
6.9 RESTORE DEFAULT
Move the main menu cursor to [RESTORE
DEFAULT], and press [HOME] key enter the
restore default page, as shown in the following
figure.
RESTORE DEFAULT
Restore? No
Change Value
[Home] OK
[Return] Back
Restore: Confirm restore factory settings,
optional items: Yes, No.
Copyright
Note: Press [HOME] button to confirm, all
parameter restore default, include IR Remote
address and VISICA address.
7 Network Function
7.1 Operating Environment
Operating System: Windows 7/8/10, Mac OS X,
Table of contents
Other LAIA Digital Camera manuals
