Laipac Lola HT 2 User manual

1
Lola HT 2
User's Manual
Version 2.2
June 1st 2021
Copyright Reserved 2021 Laipac Technology Inc.

2
1.IntroductiontoLolaHT2
1.1LolaHT2Overview
LolaHT2isanLTEGNSSIoTmoduledesignedtobeembeddedinsideTrimble'sTotalStation
LandSurveyequipment.LolaHT2hastwomodels:LOLAHT2‐NandLOLAHT2‐E

1.2Features
LTEbands:
EG91–NA(usedbyLolaHT2‐N):
oLTEFDD:B2/B4/B5/B12/B13
oWCDMA:B2/B4/B5
EG91–E(usedbyLolaHT2‐E):
oLTEFDD:B1/B3/B7/B8/B20/B28A
oWCDMA:B1/B8
oGSM/GPRS:900/1800MHz

•LEDsforindicatingGNSS,LTE&BatteryStatus
•Built‐inLi‐IonPolymerrechargeablebattery
•High‐SensitivityGNSSreceiverwithAGPSsupport
•Powerbuttonforpoweringon/off
•SmartLogdesignedtostoredynamicwaypointoutsideofthecellcoverage
•Reportreal‐timepositionsbasedonpresettimeintervalordistancetravelled
•20geofencesettingwithcrossingfencealert
•Over‐speedwarningandImpactalert
•Versatileworkingmodefordiverseapplications
•Bluetooth(optional)


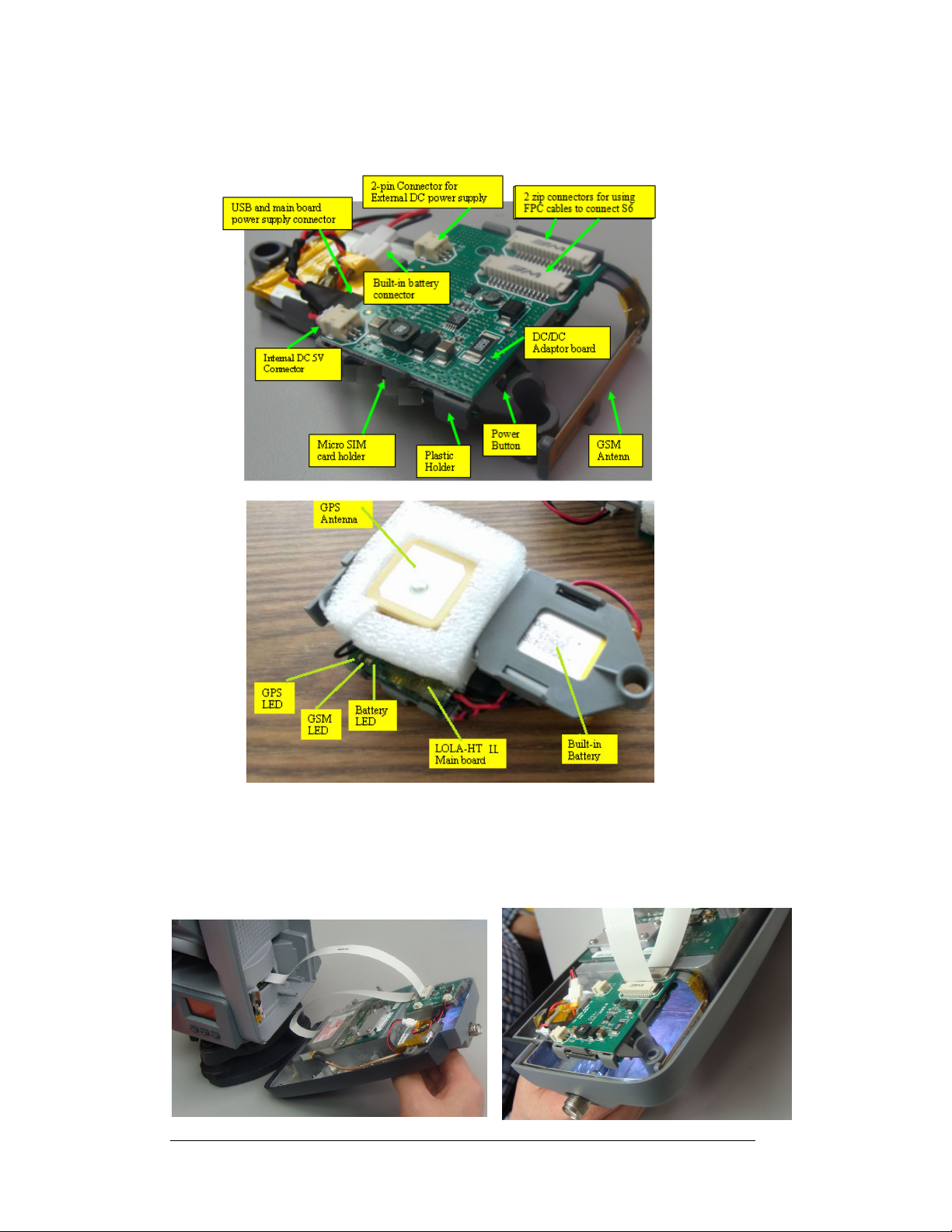

1.3HardwareDiagram
















3
LOLAHT2review
1.4InstallationwithTrimbleTotalStation
ThefollowingpicturesdemonstratetheinstallationofLolaHT2withTrimbleTotalStation.
LolaHT2istobeinstalledfromtheTotalStation'sbatterysidecover.Detailsofthe
installationprocesswillnotbediscussedinthisdocumentduetothesensitivityofthe
informationunderTrimble'scopyright.








4
2.Specifications
2.1LTESpecification
Multi‐bandLTEmodule(Quectel)
EG91–NA(usedbyLolaHT2‐N)
oLTEFDD:B2/B4/B5/B12/B13
oWCDMA:B2/B4/B5
EG91–E(usedbyLolaHT2‐E)
oLTEFDD:B1/B3/B7/B8/B20/B28A
oWCDMA:B1/B8
oGSM/GPRS:900/1800MHz

OutputPower:
oClass3(23dBm±2dB)forLTEFDD
oClass3(24dBm+1/‐3dB)forWCDMA
oClass4(33dBm±2dB)forEGSM900
oClass1(30dBm±2dB)forDCS1800
oClassE2(27dBm±3dB)forEGSM9008‐PSK
oClassE2(26dBm±3dB)forDCS18008‐PSK

DataSpeed
LTE:
oLTEFDD:Max10Mbps(DL)/Max5Mbps(UL)
UMTS:
oDC‐HSDPA:Max42Mbps(DL)
oHSUPA:Max5.76Mbps(UL)
oWCDMAMax384Kbps(DL)/Max384Kbps(UL)
GSM:
oEDGE:Max296Kbps(DL)/Max236.8Kbps(UL)
oGPRS:Max107Kbps(DL)/Max85.6Kbps(UL)

2.2GNSSSpecification

ItemValueUnits
Channels33TrackingChannels;99Acquisition
Channels;210PRNChannels
Channels
RFFrequency1575.42–GPS;1602.5625‐GLONASSMHz
Positionupdaterate1Hz
Positionaccuracy<10Meters
Velocityaccuracy0.1m/s
Timeaccuracy1uS
Coldstartacquisitiontime35Seconds
Warmstartacquisitiontime35Seconds
Hotstartacquisitiontime<1Seconds

5
Maximumvelocitytracked515m/s
Maximumaltitudetracked18,000Meters
TrackingSensitivity‐165dBm
NavigationSensitivity‐160dBm

2.3Electrical&EnvironmentalSpecs&HardwareandFirmware

ItemMinTypicalMaxUnits
Li‐Ionpolymerbatteryvoltage33.74.2V
ExternalDCinputvoltagerange91232V
CurrentConsumptionwhileconnecting(Battery
chargingstate)
50210218mA
CurrentConsumptioninoperationmode(Idling)202533mA
Currentconsumptioninoperationmode(Reporting)90120180mA
Currentconsumptioninpoweroffmode‐4‐mA
PeakCurrent(<100mS)‐‐500mA
Ambientoperatingtemperature‐20‐60°C
Storagetemperature‐20‐40°C

Note:
Theaboveparametersareforreference;theymaychangebasedonthefirmware.LolaHT2
worksinalow‐powermode.Thecurrentconsumptionissubjecttochangeinareaswith
lowercellularsignalstrengthscomparedwithareasofhighersignalstrength.

3.OperationProcedure
3.1Powerbuttonanditsoperation


ThePowerButtonistheonlyoperationbuttononthedevice.WhenLolaHT2isunder
"NormalMode",thepowerbuttonisusedforpoweringonandoffthedevice.

6
Poweron:Pressandholdthepowerbuttonover3seconds;theGNSSLEDand
theLTELEDwillbeflashing.
Poweroff:Pressandholdthepowerbuttonforover3seconds;theGNSSLED
andtheLTELEDwillbeturnedoff.

3.2HowtoresetLolaHT2
ThefollowingimageshowsLolaHT2withanonboardbackupbattery.Bydisconnectingthe
2pinconnectorandreconnectingitwillresetthedevice.











IfLolaHT2isinstalledinsidetheTotalStation,pleaseresetLolaHT2followingthesteps:

(1) OpentheRadio/Batterysidecover,removethemainbattery
(2) Waitfor5secondsandre‐insertthemainbatteryandclosetheRadio/Batterysidecover















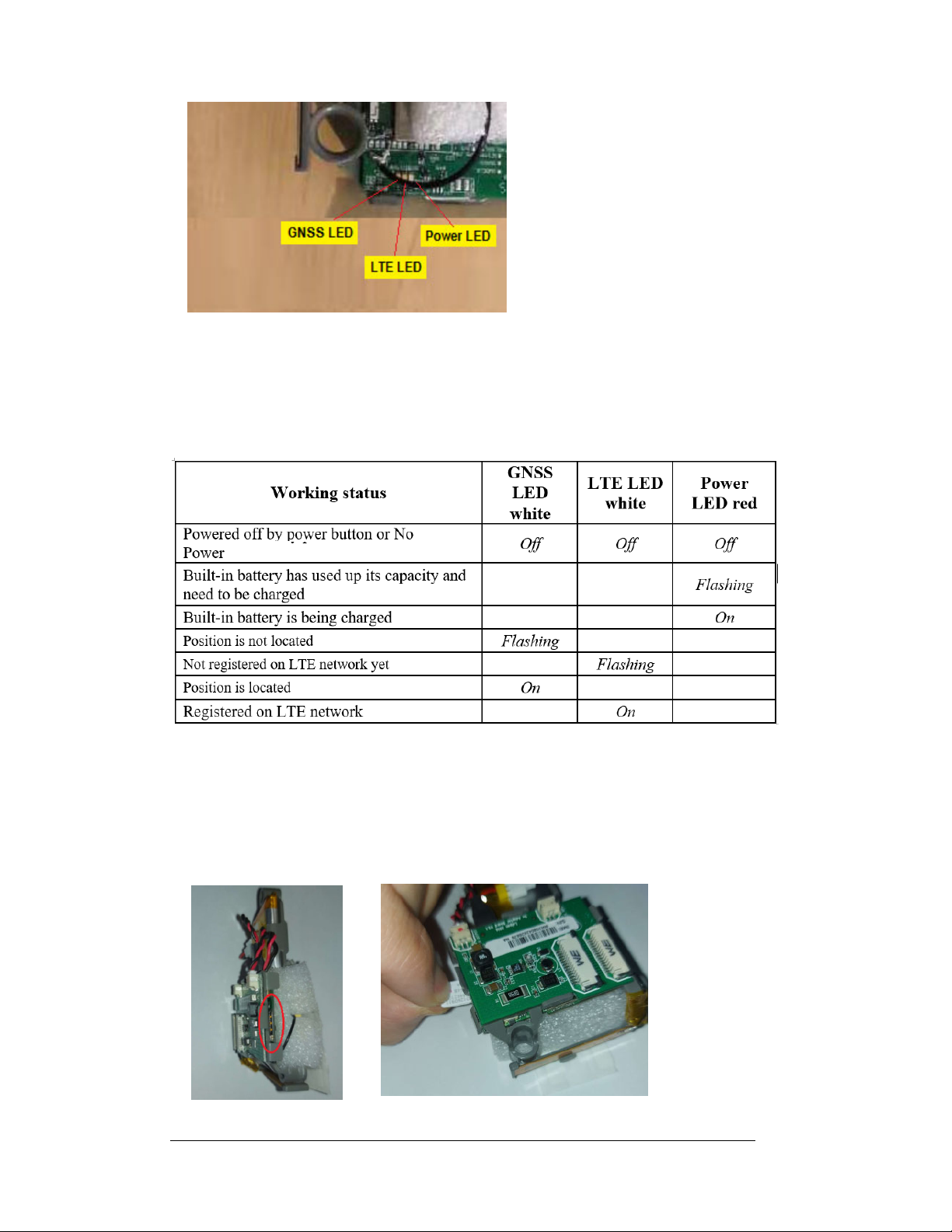

3.3LOLAHT2workingstatusbyLEDs
Thereare3LEDindicatorsonLolaHT2




2 pin connector is used to connect the
battery and the main board

7









●GNSSLED(Whitecolour)
●LTELED(Whitecolour)
●PowerLED(Redcolour)

ThefollowingtabledescribestheworkingstatusofLolaHT2byLEDs:


3.4SIMCardRequirement
LolaHT2modulecomeswithanembedded4GNanoSIMwithglobalcoverage.TheSIM
numberwillberequiredfortheactivationofthemoduletoconnectwiththeL2Pserver.

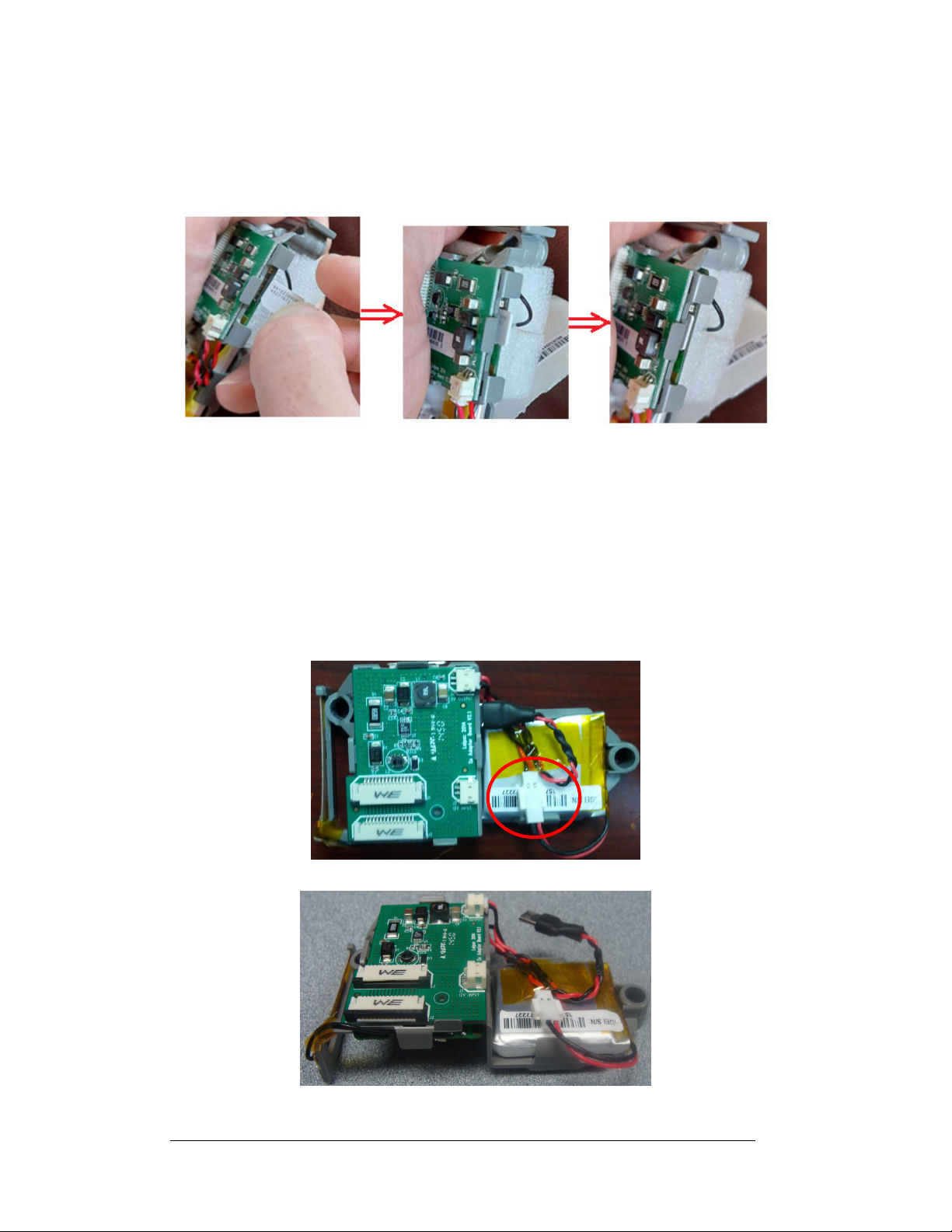

ToreplacetheSIM,findtheSIMcardsocketinbetweenthefoamandtheupperboard.












8
InsertaNano‐SIM,andpushtheNano‐SIMtotheend,anditwillbelocked.
SeetheorientationoftheNano‐SIMbeforeinsertingtheSIM.











4.InstallationoftheUtilitySoftware
LolaHT2isconfiguredwithfactorydefaultbeforeshipping.UserscanalsoconfigureLolaHT
2withLocationNowsuiteutilitysoftware(orL2Putilitysoftware).Thisutilitysoftwarecan
performtheconfigurationandfirmwareupdate.
Beforeperformingtheconfigurationprocesswiththeutilitysoftware,makesurethe
following:
The2pinconnectorremainsconnected
SIMcardmustbeactivated


RemovetheconnectionbetweentheDC/DCadaptorboardandthemainboard



9
ConnecttheUSBpoweradaptortochargethebackupbatteryover30min,disconnect
thecharger.
Thisstepensuresthedevicehavingenoughpowertocompletetheconfiguration
processandrestart.

Waitfor20seconds,pressthepowerbuttonformorethan3secondstoturnoffthe
LolaHT2.Thisstepensuresthatthedeviceisgeneratingaresetwhenitisconnected
totheutilitysoftware.



Now,runtheLocationNowSuiteutilitysoftware













10
ConnectLolaHT2totheLaptop'sUSBportwithamicroUSBcable.
LolaHT2willconnectwiththeutilitysoftware.Ifthereisanewerfirmwareinthe
server,theutilitysoftwarewillnotifyafirmwareupgrade.









































11
Note:
Theusercanignorethenoticeof"Pleaseresetthedevicetocontinue"ifthefactorydefault
settingistobeusedfortheapplicationwithTotalStation.
UnplugtheUSBcabletodisconnecttheLolaHT2withthelaptop,waitfor20
secondsandpressthepowerbuttontoturnofftheLOLAHT2.
ReconnecttheUSBbetweenDC/DCadaptorboardandthemainboard











Processflowchart











 













End
Unplug the connector between DC/DC adaptor and main board
Run LocationNowSuite utility
Connect device to computer through Micro USB cable
Utility will check the existing firmware version, if it is not the
latest one
,
user will be asked to u
p
date this device’s firmware
Re-plug the connector between DC/DC adaptor and main board
Star
t
Download the latest firmware to the device
Download the standard configuration to the device

12
Note:
LolaHT2shippingfromthefactorywillhavethefollowingcharacteristics:
•The2pinconnectorbetweenthebackupbatteryandthemainboardisdisconnected
•TheembeddedNanoSIMcardisdeactivated



ORDERING&CONTACTINFORMATION

ReorderNumbers:
1. LolaHT2–N
2. LolaHT2–E
LaipacTechnologyInc.
25ValleywoodDr.Unit11
MarkhamOntarioL3R5L9Canada
email:[email protected]
https://www.laipac.com
FCCStatement(USA)/Part15oftheFCCRules

TheLolaHT2hasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment
generates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedin

13
accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnowarrantythatinterferencewillnotoccurinaparticularinstallation.If
thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan
bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrect
theinterferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmenttoanoutletonacircuitdifferentfromthatto
whichthereceiverisconnected.
Consultthedealeroranexperiencedradioortelevisiontechnicianfor
help.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust
acceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
WARNING!ExposuretoRadioFrequencyRadiation:theradiatedoutputpowerofthisdevice
isbelowtheFCCandIndustryCanadaradiofrequencyexposurelimits.
Thisdevicemustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor
transmitter.FCCrequirestheusertobenotifiedthatanychangesormodificationsmadeto
thisdevicethatarenotexpresslyapprovedbythemanufacturermayvoidtheuser's
authoritytousethedevice.
RSSCanada


ThisdevicecomplieswithIndustryCanada'slicense‐exemptRSSstandards.Operationis
subjecttothefollowingtwoconditions:
1. Thisdevicemaynotcauseinterference;and
2. Thisdevicemustacceptanyinterference,includinginterferencethatmaycause
undesiredoperationofthedevice.
RFRadiationExposureStatement:
1. TocomplywiththeCanadianRFexposurecompliancerequirements,thisdeviceand
itsantennamustnotbeco‐locatedoroperatinginconjunctionwithanyother
antennaortransmitter.
2. Forbody‐wornoperation,thisdevicehasbeentestedandmeetsRFexposure
guidelineswhenusedwithanaccessorythatcontainsnometal.Useofother
accessoriesmaynotensurecompliancewithRFexposureguidelines.
ICES‐003(Canada)

14
ThisdigitalapparatusdoesnotexceedtheClassBlimitsforradionoiseemissionsfrom
digitalapparatussetoutintheinterference‐causingequipmentstandardentitled:"Digital
Apparatus",ICES‐003oftheCanadianDepartmentofCommunications.Thisdevicecomplies
withIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothefollowing
twoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustaccept
anyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.
IndustryCanadaICES‐003ComplianceLabel:CANICES‐3(B)/NMB‐3(B)
IndustryCanadastatement
ThisdevicecomplieswithRSS‐210ofIndustryCanada.
Operationissubjecttothefollowingtwoconditions:Thisdevicemaynotcauseinterference,
andthisdevicemustacceptanyinterference,includinginterferencethatmaycause
undesiredoperationofthedevice.
ThisclassBdigitalapparatuscomplieswithCanadianICES‐003.ThisclassBdigitalapparatus
complieswithCanadianNMB‐003.
EUROPE



