Laipac S911 Lola User manual

Copyright 2012 by Laipac Technology Inc.
User’s Manual
Revision 1.46

2
CONTENTS
4 For your safety
4 About your device
4 Network Services
6Chapter 1: SIM card Installation Instruction
7 Preparation before installation of SIM card
7 A valid SIM card
7 Special tools for installation
7 SIM card Installation Steps
11 Care and Maintenance
12
Chapter 2: Utility Configuration
13 Introduction
13 Installation of Bracelet Utility
17 Installation of USB Driver
19 Configuring Bracelet
19 -Start bracelet Utility
20 -Enter into Configuration Mode
21 -Configuring Bracelet by using default configuration file
22 -Acquiring parameters of configuration from Bracelet
23 -Bracelet configuration example
27 -Saving Parameters
27 Exit Configuration Mode
28 Chapter 3: Operation Instructions
29 Scope
29 Features
30 Keys
30 Operation Instruction
30 Charging
30 Power On Unit
30 Initialization
31 Main menu
31 Operation
31 -Emergency Call
32 -Emergency Call Phone Book
32 -Calling
32 -Talking
33 Phone Book
33 -Phone Book Selection
34 Short Message

3
34 -Short Message Selection
35 Instant Geo Fence
35 Geo Fence setting
35 My Position
36 Show Current Position
36 Speed & Heading
36 Configuration
36 Configuration Selection Submenu
37 Other Operations
38 Remote Setting

4
For Your Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.
Road Safety Comes First
Do not use the device for talk and text when wireless phone use is prohibited or
when it may cause danger.
Interference
All wireless devices may be susceptible to interference, which could affect
performance.
Switch Off In Hospitals
Switch the device off near medical equipment.
Switch Off In Aircraft
Follow any restrictions. Wireless devices can cause interference in aircraft.
Switch Off When Refuelling
Do not use the device at a refueling point. Do not use near fuel or chemicals.
Switch Off Near Blasting
Follow any restrictions. Do not use the device where blasting is in progress.
Qualified Service
Only qualified personnel may install or repair this product.
Batteries
Use only approved batteries. Do not connect to incompatible products.
Back Up Copies
It is recommended to save the phone book record and important settings.
Connecting To Other Devices
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect with incompatible products.
Emergency Calls
Ensure the phone function of the device is switched on and in service.

5
About Your Device
The wireless device described in this guide is approved for using GSM
850/900/1800/1900 networks. Contact your service provider for more information about
which GSM frequency your service provider is using. When using the features in this
device, obey all laws, respect privacy, and the legitimate rights of others.
Network Services
In order to use the S-911 Bracelet Locator, you must have GSM service from a wireless
service provider and subscribe with LocationNow. Many of the features in this device
depend on the features of the GSM provider to function. These network services may not
be available with all providers meaning you may have to make specific arrangements
with your service provider before you can utilize the network services. Your service
provider may need to give you additional instructions for their use and explain what
charges will apply. Some networks may have limitations that affect how you can use
network services in your area.

6
-Chapter 1 -
SIM card
Installation Instruction

7
Introduction
This document describes the SIM card installation procedure used for the S-911 Bracelet
Locator.
1.0 Preparation before installation of SIM card
1.1 A valid SIM card
A valid SIM (Subscribe Identity Module) card must be provided by the user in order to
use the Bracelet. Your local GSM Carrier will be able to provide you a GPRS DATA and
voice enabled SIM card.
The SIM card must be a 3V SIM, the bracelet is not compatible with the older 5V version
SIM cards.
1.2 Special tools for installation
(1) 2 special Phillips screwdrivers are needed for the SIM card installation, one is 1.4mm
in size and the other is 1.6mm in size.
(2) 1 long nose pliers (refer to Fig1).
Fig1. 1.6/1.4 mm Philips screwdrivers and long nose pliers
2.0 SIM card installation steps
(1) Push the Power on/off button to turn off the power supply (refer to Fig2).
Power on/off button (RED)
Fig2. Power on/off button (RED)

8
(2) Gently push the wristband pin with a 1.6mm size Philips screwdriver about 4mm deep
until pin comes out of the other end of the wristband. (refer to Fig3).
Fig 3. Push the pin out of the wristband
(3) Same operation on the second pin (refer to Fig4).
Fig 4. Example of 2 pins sticking out of the wristband

9
(4) Slowly pull the 2 pins out with long nose pliers (rubber band will also work) and
place them somewhere safely so you don’t loose them. (Refer to Fig5).
Fig 5. Pull out the 2 pins with long nose pliers
(5) Gently unscrew and take out the 4 rear case screws with a 1.4mm size Philips
screwdriver and place them somewhere safely so you don’t loose them. (Refer to Fig6).
Fig 6. Unscrew the 4 rear case screws

10
(6) Gently open the Bracelet main case (refer to Fig7).
Do not touch the PCB or any component inside. The ESD
(electrostatic discharge) can damage the unit permanently.
Fig 7. Please don’t touch the PCB or any components inside.
(7) Fully insert a valid SIM card into the SIM card holder, label-up. You will see that the
bottom edge of the SIM card firmly contacts the bottom line of the card holder. (Refer to
Fig 8).
Fig 8. Fully insert SIM card into the card holder
(8) Close the main case carefully, and gently fix the 4 screws, refer to Fig 5 and Fig 6.
(9) Reinstall and secure the wristbands carefully by gently pushing the 2 pins into
wristbands, refer to Fig 4.

11
CARE AND MAINTENANCE
Your device is a product of superior design and craftsmanship. The suggestions below
will help you protect your warranty coverage.
Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode the electronic circuits.
Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not attempt to open the device other than as instructed in this guide.
Do not drop, knock, or shake the device on purpose. It will trigger the tamper alert
to the monitoring centre.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.

12
- Chapter 2 -
Utility Configuration

13
Introduction
As a personal tracking device, if the bracelet wants to work with any Tracking Service
provider’s platform, such as www.LocationNow.com from Laipac Technology Inc. it
should properly be integrated with Protocol and API.
Also, to support future application firmware upgrades for the bracelet, it needs a tool to
download firmware.
Bracelet Utility is a tool to meet the requirements above.
Quick Start manual only touches the configuration function part of this utility. It
introduces:
●How to install this utility
●How to configure Bracelet by using default configuration file
1. Installation of bracelet Utility

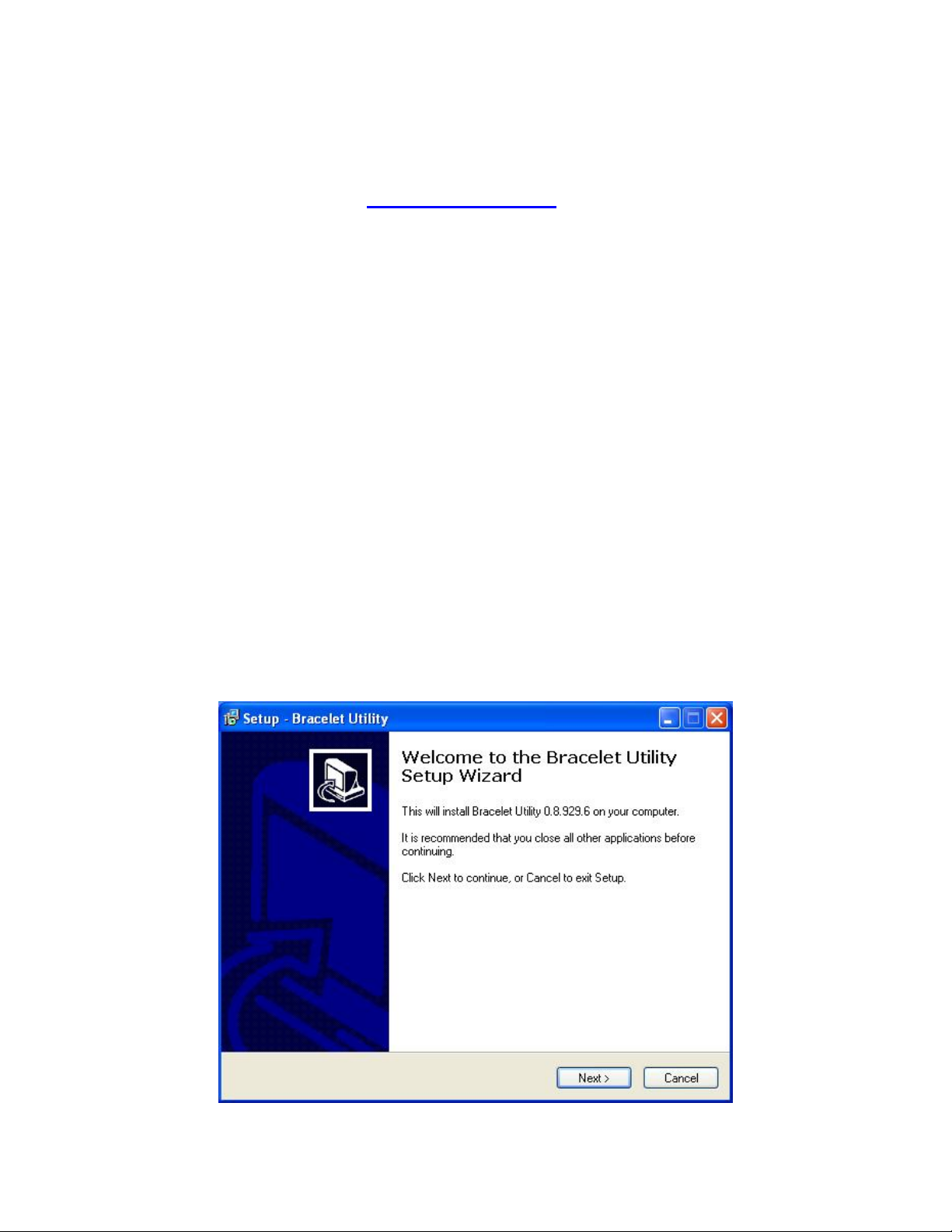

Step 1: Run the installation program.
Run the "Bracelet Setup.exe" program to start Setup Wizard. These steps apply to
Windows XP, Windows Vista, and Windows 7 Users.

14

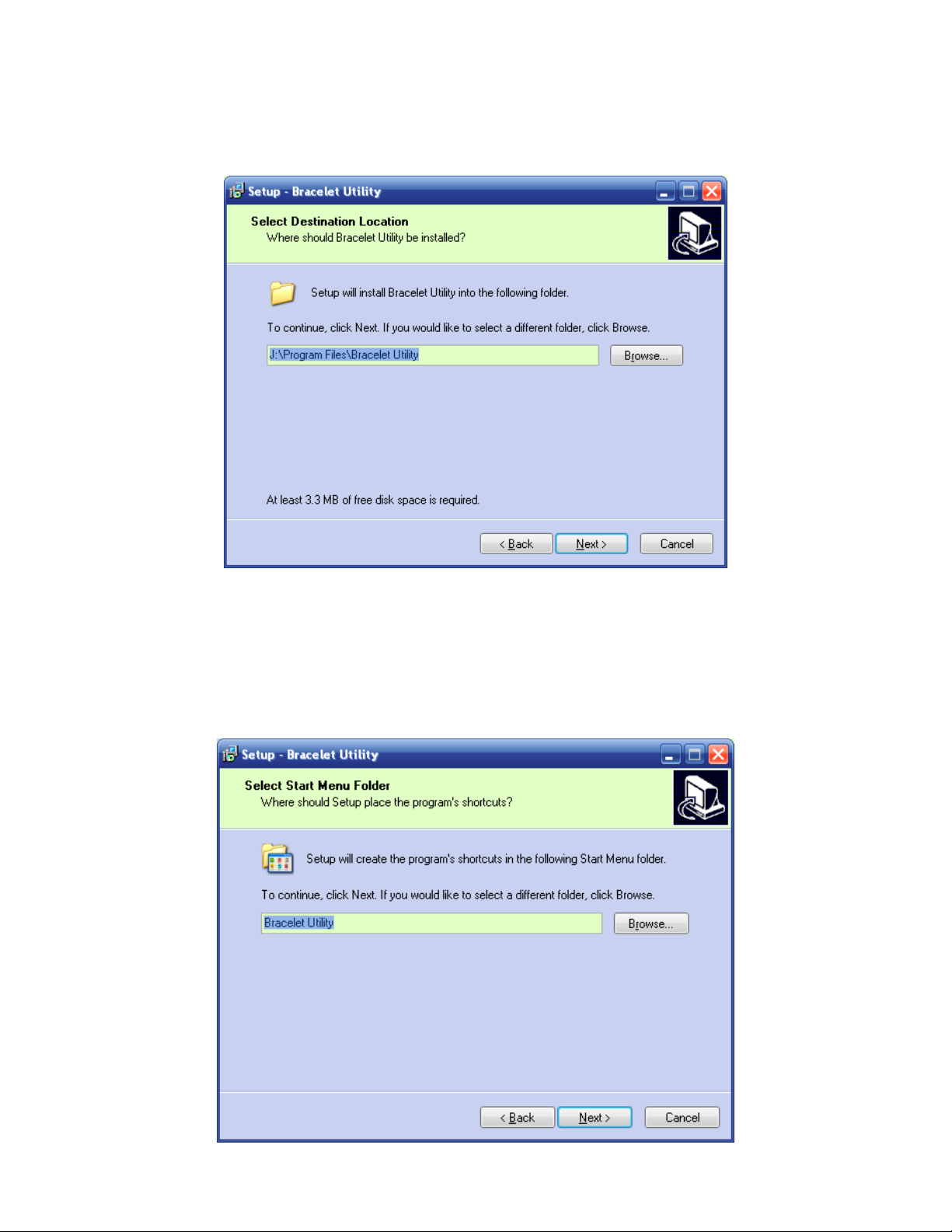

Step 2: Press the "Next" button to enter the page to Select Destination Location.
Step 3: If you don’t want use the default folder, please type the name of the new folder
and in box or press "Browse" open dialog to select another desired folder, then press the
"Next" button to enter the next page.

15
Step 4: Select the Start Menu Folder, and then press the "Next" button to go to the next
page.
Step 5: If you want to create a shortcut icon on your desktop, please check the "Create a
desktop icon" item. Then press the "Next" button to go to the next page.

16
Step 6: If nothing needs be changed, press the "Install" button. Otherwise, you can press
the "Back" button to go back to the previous page.

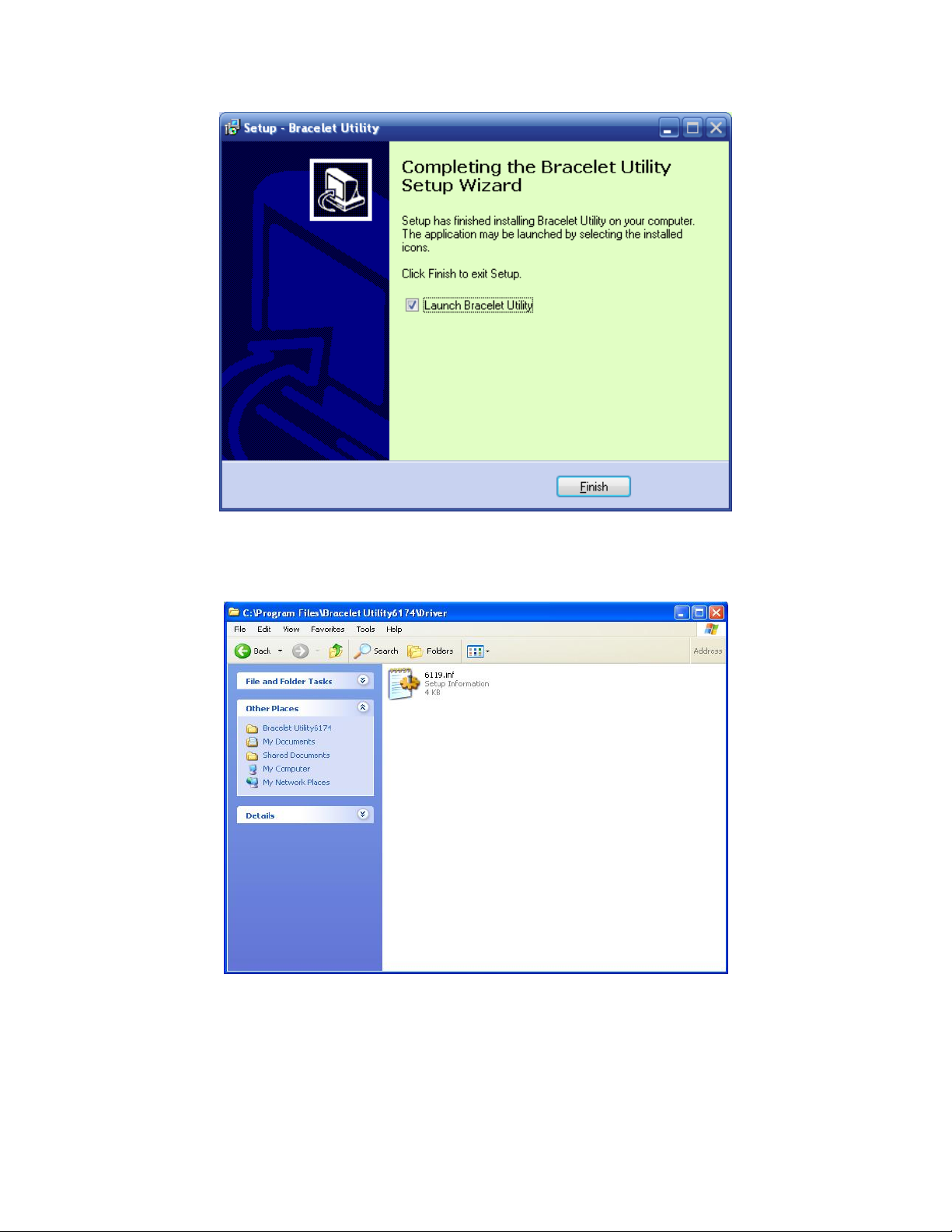

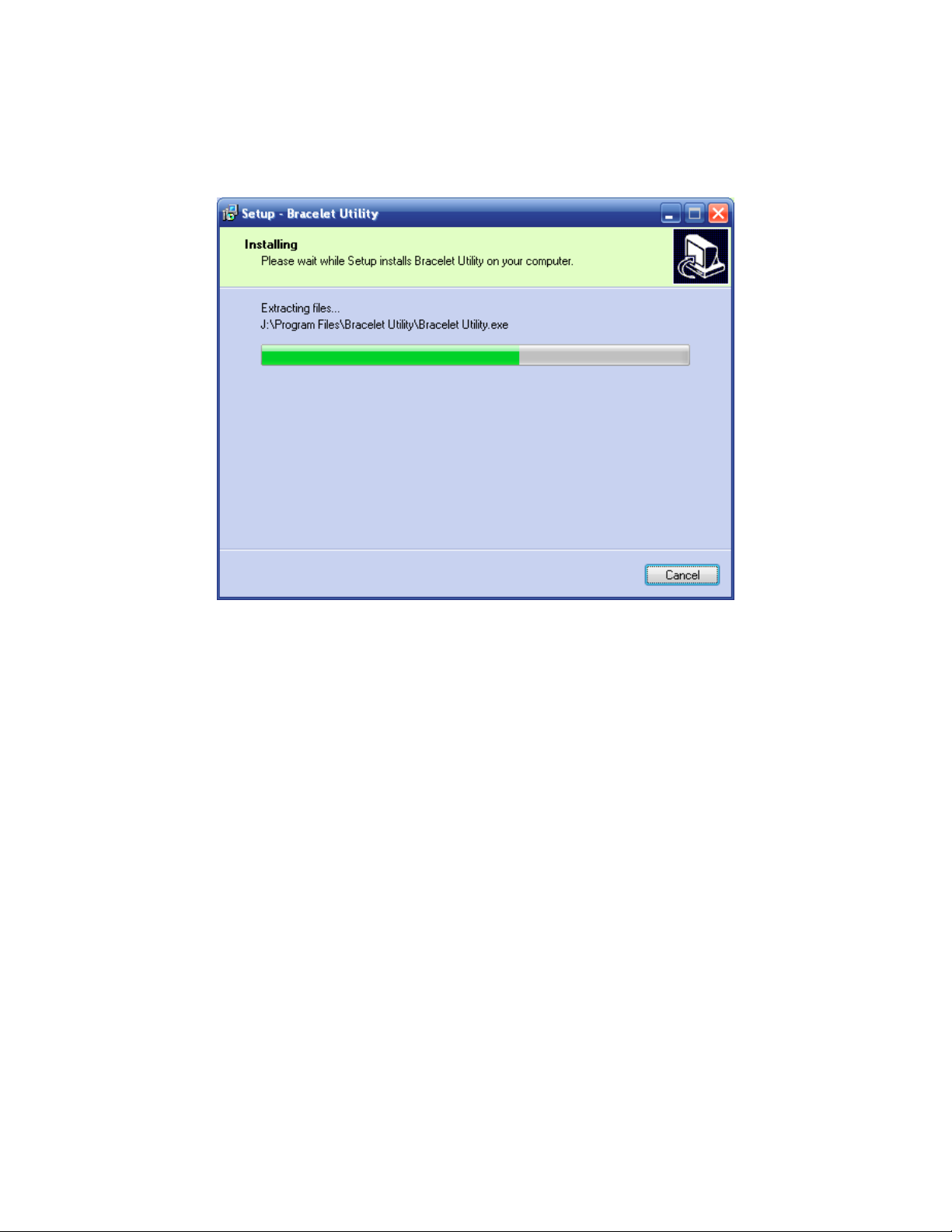

Step 7: After extracting the files to destination directory, the installation is finished. The
last step is optional which will ask if you want launch the Utility immediately. If you do
not want to run the utility, uncheck the "Launch Bracelet Utility" item and press "Finish"
to complete the installation. If the item is checked, the Utility will run after the
installation dialog is closed.

17
Windows 7 users, must download the replacement 6119.inf file, delete the existing one
from its default location suggested below, and place the downloaded 6119.inf file in its
place.

18
2. Installation of USB Driver
Step 1 - Locate the “Install Driver” file from “Start, Programs, Bracelet Utility, and click
Install Driver”. For Windows Vista/7 users, right click “Install Driver” and select “Run
as Administrator”.
When accessed, the below window will appear.
Step2 - Click the Install button and wait for it to finish installing. Sometimes this
window will appear with a program not responding error. Once finished, close the
window.

19
Step3 - Open the utility (Right click and run as administrator for 64 bit operating
systems) and select configuration.
Step4 - Connect Bracelet and PC with USB cable
Step5 - Turn on or Reset the Bracelet and ignore the display shown on Bracelet LCD
screen

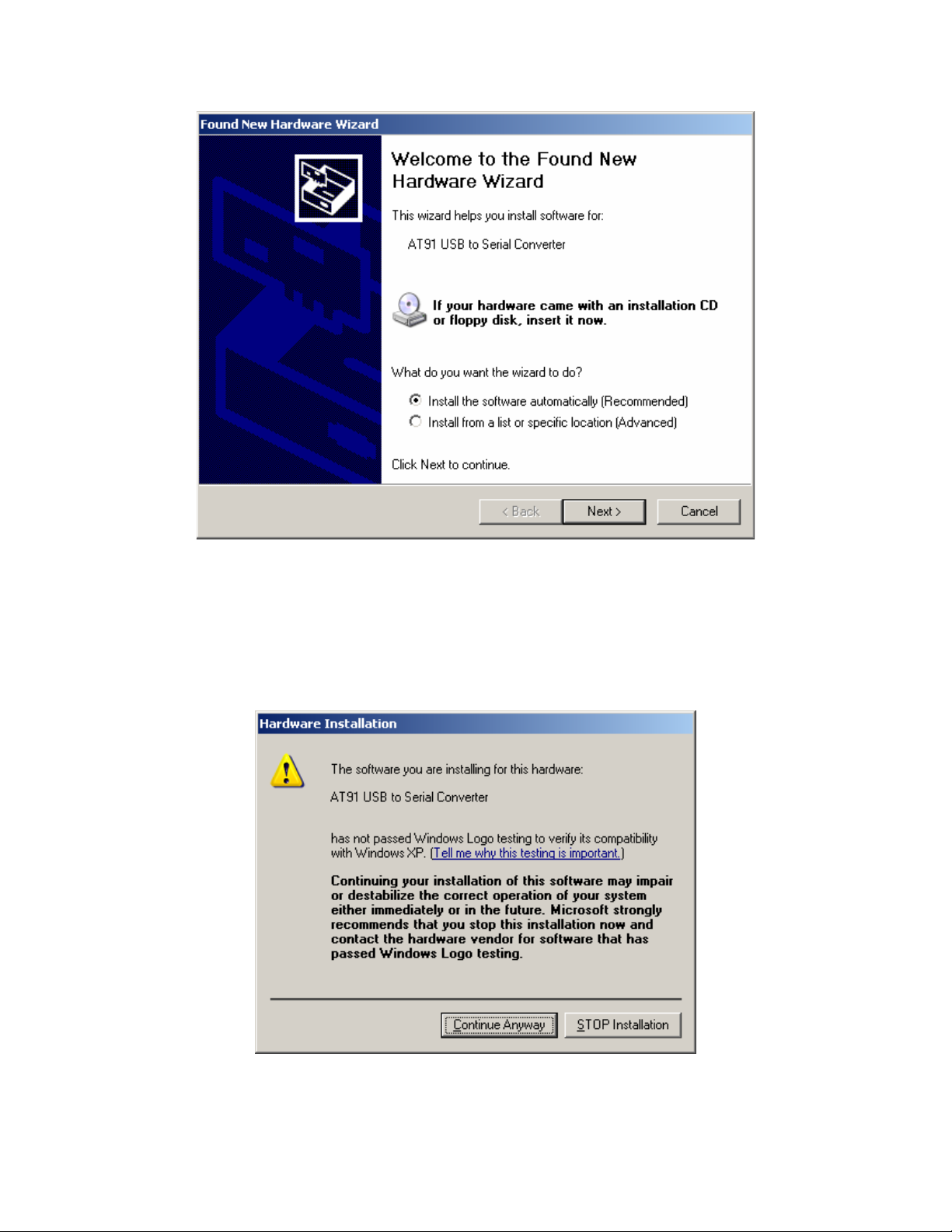

Step6 – Found New Hardware Wizard will appear for USB Driver Installation
After several seconds the PC screen will show the above window, then, check “Yes, this
time only” and click “Next” button

20
Select “Install the software automatically (Recommend)” and click “Next”
Remark
If the following message pops up, click “Continue Anyway”.
Once the automatic USB driver installation has completed, please click “Finish”. The
bracelet will reset and in some instances, windows will state that the drivers may not be
successfully installed. Ignore this and reset the bracelet again to continue.
