Lamona LAM 6700 User manual

LAM 6700
-

EN
1
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
excellent service.
We recommend you read this user manual carefully before operating the product
and keep it safe for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Follow the instructions, especially those for safety.
• Please carefully read any other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful tips.
A Possible hazards to health and property.
BWarning possibility of electric shock.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
CONTENTS
1 Your refrigerator 3
2 Warnings 4
Electrical Requirements .....................5
Warning! This Appliance Must Be
Earthed .............................................5
Energy Saving Tips............................6
3Installation 7
Points to be considered if transporting
your refrigerator .................................7
Before operating your refrigerator ......7
Electrical connection..........................7
Disposing of the packaging ...............8
Disposing of your old refrigerator .......8
Replacing the interior light bulb .........9
Reversing the doors ........................11
4 Preparation 22
5 Using your refrigerator 23
Temperature Setting ........................24
Defrost ............................................24
6 Maintenance and
cleaning 25
Protection of plastic surfaces ..........25
7 Recommended solutions
for any problems 26

EN
3
C Figures are shown place in this instruction manual are schematic and may not
correspond exactly with your product.There may be items shown that are not
present in your product.
1Your refrigerator
1- Control Panel
2-Illumination lamp
3- Movable shelves
4- Defrost water collection channel -
Drain tube
5- Crisper cover
6- Chiller drawer humidity control
(non removable)
7- Crisper drawer (non removable)
8- Egg compartment
9- Adjustable door shelves
10-Bottle shelf
11-Bottle holder
12-Wine rock
7
4
3
6
5
1
28
11
12
9
10

EN
4
•DO NOT connect your appliance to
the electricity supply until all packing
and transit protectors have been
removed.
• Leave to stand for at least 4
hours before switching on to allow
compressor oil to settle if transported
horizontally.
• If you are discarding an old
refrigerator with a lock or latch fitted to
the door, disable the lock/latch, ensure
that it is left in a safe condition to prevent
the entrapment of young children.
• This fridge/freezer must only be
used for its intended purpose i.e the
storing and freezing of edible foodstuff.
• Do not dispose of the appliance on a
fire. This appliance which is among the
latest range introduced is particularly
environment friendly. Your appliance
contains non CFC / HFC natural
substances in the cooling system
(Called R600a) and in the insulation
(Called cyclopentane) which are
potentially flammable if exposed to fire.
Therefore, take care not to damage, the
cooling circuit / pipes of the appliance
in transportation and in use. In case of
damage do not expose the appliance
to fire or potential ignition source and
immediately ventilate the room where
the appliance is situated.
• We suggest you contact your local
authority for disposal information and
facilities available.
• See Installation Instructions on page
8 for information on suitable location.
• To obtain the best possible
performance and trouble free operation
from your appliance it is very important
to carefully read these instructions.
• On delivery, check to make sure that
the product is not damaged and that all
the parts and accessories are in perfect
condition.
• Ensure that the plug remains readily
accessible. Do not use multiple adapter
bar or extension cable.
• Failure to observe these instructions
may invalidate your right to free service
during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant
circuit.
• Do not use electrical appliances
inside the food storage compartments
of the appliance, unless they are
of the type recommended by the
manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.
• This appliance is not intended for
use by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to
ensure that they do not play
with the appliance.
2Warnings

EN
5
Electrical Requirements
Before you insert the plug into the
wall socket make sure that the voltage
and the frequency shown on the rating
plate inside the appliance corresponds
to your electricity supply.
Rating label is on the left hand side of
fridge inner liner.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
Should the mains lead of the appliance
become damaged or should it need
replacing at any time, it must be
replaced by a special purpose made
mains lead which can only be obtained
from a LAMONA Authorised Service
Agent.
Warning! This Appliance
Must Be Earthed
If the fitted moulded plug is not suitable
for your socket, then the plug should be
cut off and an appropriate plug fitted.
Destroy the old plug which is cut off as
a plug with bared cord could cause a
shock hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this appliance
incorporates a 13 A fuse. Should the
fuse need to be replaced an ASTABEAB
approved BS 1362 fuse of the same
rating must be used. Do not forget
to refit the fuse cover. In the event of
losing the fuse cover the plug must not
be used until a replacement fuse cover
has been fitted.
Important! Fitting A Different Plug
As the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug
proceed as follows: (See diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to
the terminal in the plug marked ‘L’ or
coloured red.
With alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor or
in the main fuse box. If in doubt contact
a qualified electrician.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
6
Energy Saving Tips
1- Ensure your appliance is installed in
a well ventilated area.
2- Ensure the time between buying
chilled/frozen food and placing them in
your appliance is kept to a minimum,
particularly in summer. We recommend
you use a cool bag or a special carrier
bag to carry frozen food.
3- Do not leave the door (s) of your
appliance open longer than necessary
and ensure they are closed properly
after each opening.
4- Defrost frozen food in the fridge
compartment, so that frozen food acts
as an ice pack to assist cooling in the
fridge.

EN
7
3 Installation
BPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered if
transporting your refrigerator
1.Your refrigerator must be emptied and
cleaned prior to any transportation.
2.Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3.Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1.Is the interior of the refrigerator dry and
can the air circulate freely in the rear
of it?
2.Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3.Plug the refrigerator into the wall outlet.
When the fridge door is open, the
fridge compartment interior light will
come on.
4.You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may
also give rise to noise, even if the
compressor is not running and this is
quite normal.
5.Front edges of the refrigerator may feel
warm. This is normal. These areas
are designed to be warm to avoid
condensation
Electrical connection
Connect your product to an earthed
socket which is being protected by a
fuse of the appropriate size.
Important:
• The connection must be in compliance
with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal to
your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.

EN
8
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions. Do not dispose of
them along with the normal household
waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
causing harm to the environment.
•You may consult your authorised dealer
or waste collection centre of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator, cut
off the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.
1. Install your refrigerator in a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.

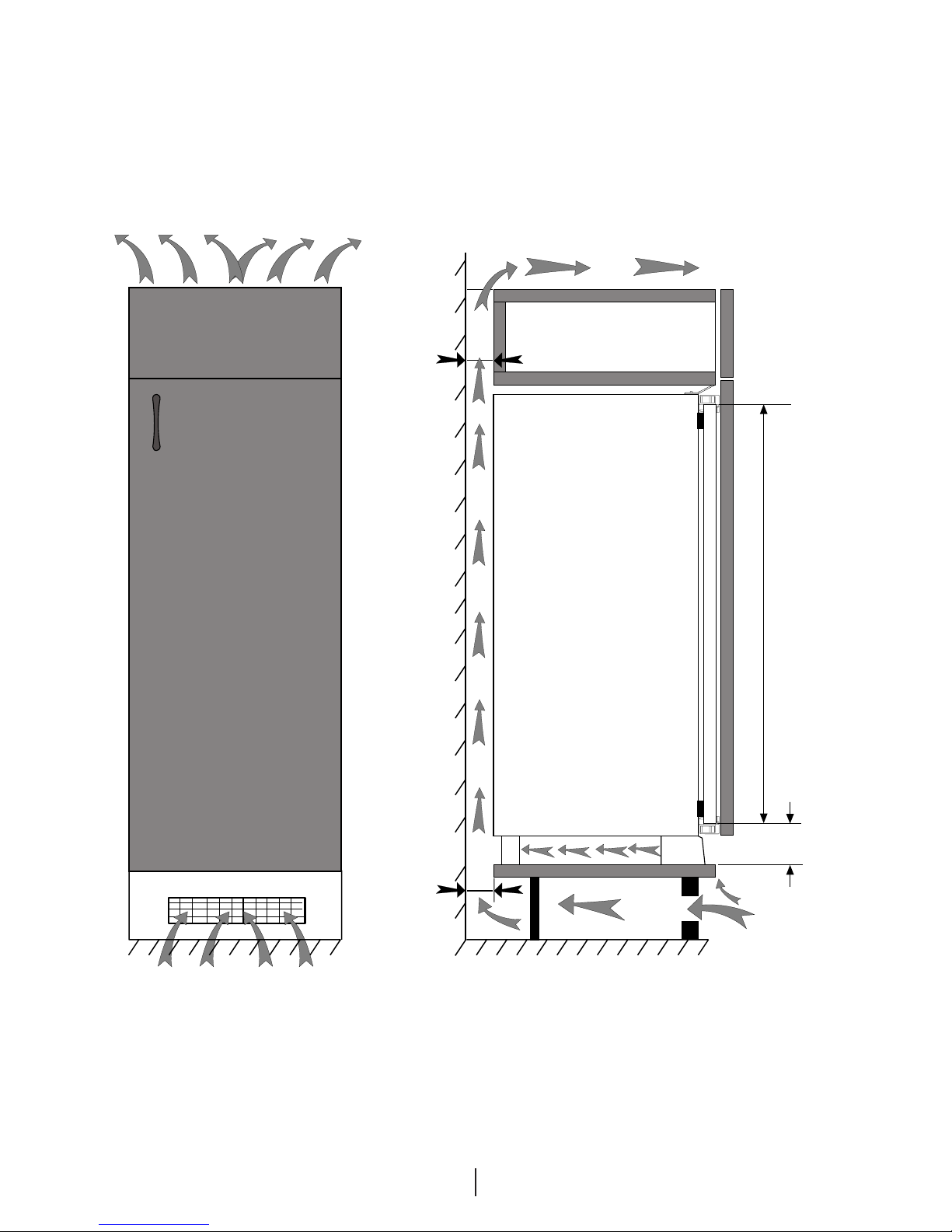

3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance from the ceiling
and at least 5 cm from the wall. If the
floor is covered with a carpet, your
product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even floor
surface to prevent rocking.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.

EN
9
Replacing the interior light
bulb
Should the light fail to work, proceed
as follows.
1- Switch off at the socket outlet and
pull out the mains plug.
You may find it useful to remove
shelves for easy access.

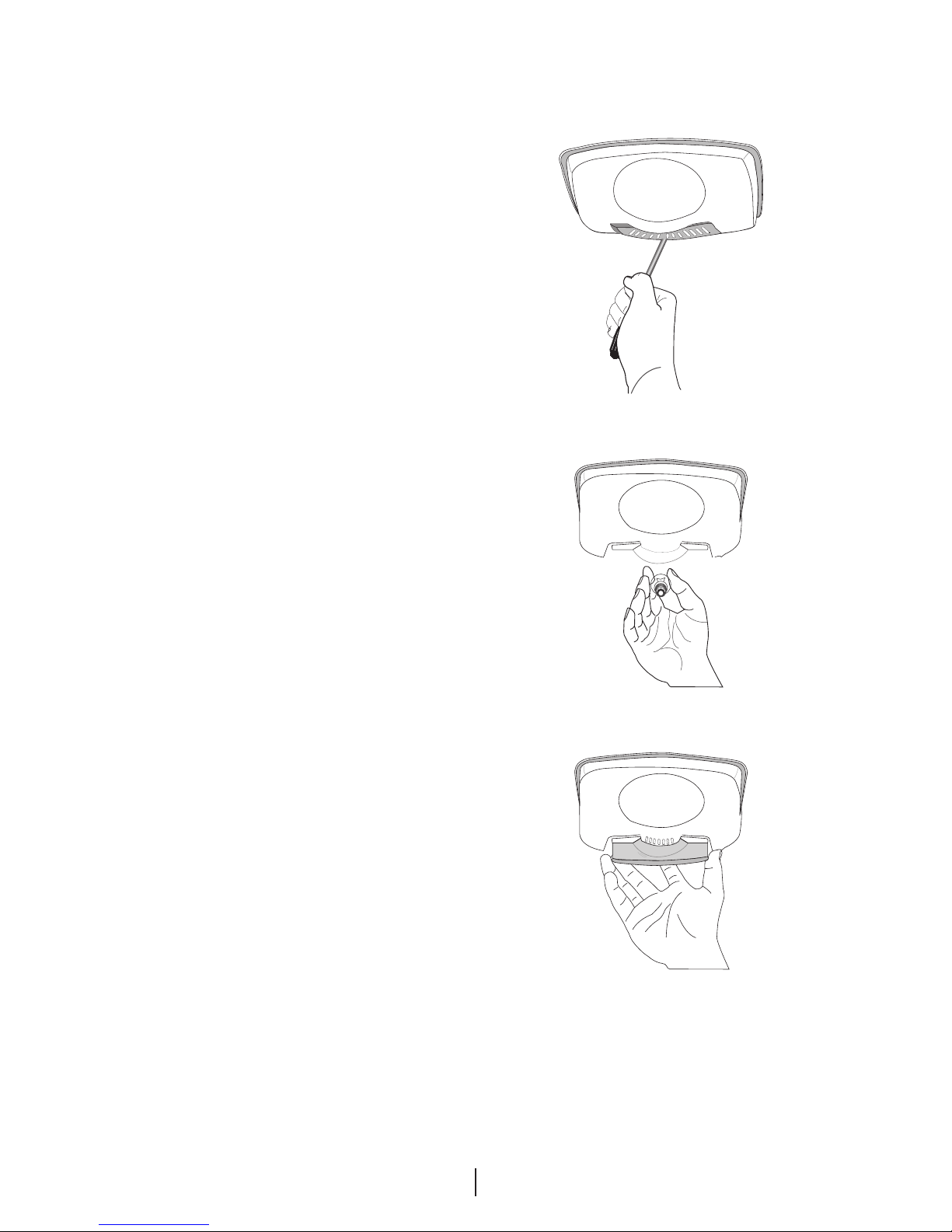

2- Use a flat tipped screwdriver to
remove the light diffuser cover.
3- First check that the bulb hasn’t
worked loose by ensuring it is screwed
securely in the holder. Replace the plug
and switch on.
If the bulb works, replace the light
cover by inserting the rear lug and
pushing up to locate the front two lugs.
4- If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the bulb with
a new 15 watt (max) screw cap (SES)
bulb.
5- Carefully dispose of the burnt-out
light bulb immediately.
Replacement light bulb can easily be
obtained from a good local electrical or
DIY store.

EN
10
The following guidelines and
recommendations are suggested to
obtain the best results and storage
hygiene.
1.The larder fridge is suitable for the
short term storage of fresh food and
drinks.
2.Cooked dishes must be stored in
airtight covered containers.
3.Fresh wrapped produce can be
placed on the shelf. Fresh fruit and
vegetables should be cleaned and
stored in the salad crisper bin.
4.Bottles can be placed upright in the
door rack.
5.To store raw meat and fish place
either on the lowest shelf or in the
chiller compartment (recommended).
Do not allow to come into contact with
cooked food to avoid contamination.
For safety, only store raw meat for two
to three days. Fish should be stored in
the chiller compartment
6.Keep the food packed, wrapped or
covered. Allow hot food and beverages
to cool before placing them in the
fridge. Do not store poisonous
or dangerous substances in the
refrigerator. High proof alcohol must
be stored upright in sealed containers.
Left over canned food should not be
stored in the can.
7.Some fruit and vegetables suffer
damage if kept at temperatures near 0
degrees centigrade. Therefore wrap
pineapples, melon, cucumbers,
tomatoes and similar produce in
polythene bags.
8.Do not leave frozen food at room
temperature to thaw; the best way to
defrost food is to put it in the fridge
to thaw slowly. Make sure to avoid
defrosting food or food juices drip onto
other food.
9.For hygiene reasons, always wrap
food using a suitable packaging
material before storing in your
appliance to avoid contact with the
appliance surface.
10. Chiller Drawer humidity controls
This has been designed to keep
your vegetables fresh, without losing
moisture. For this purpose, cold air
circulates around the crisper. The
amount of cold air passing out of
the crisper can be regulated with the
controls found on the front of its cover.

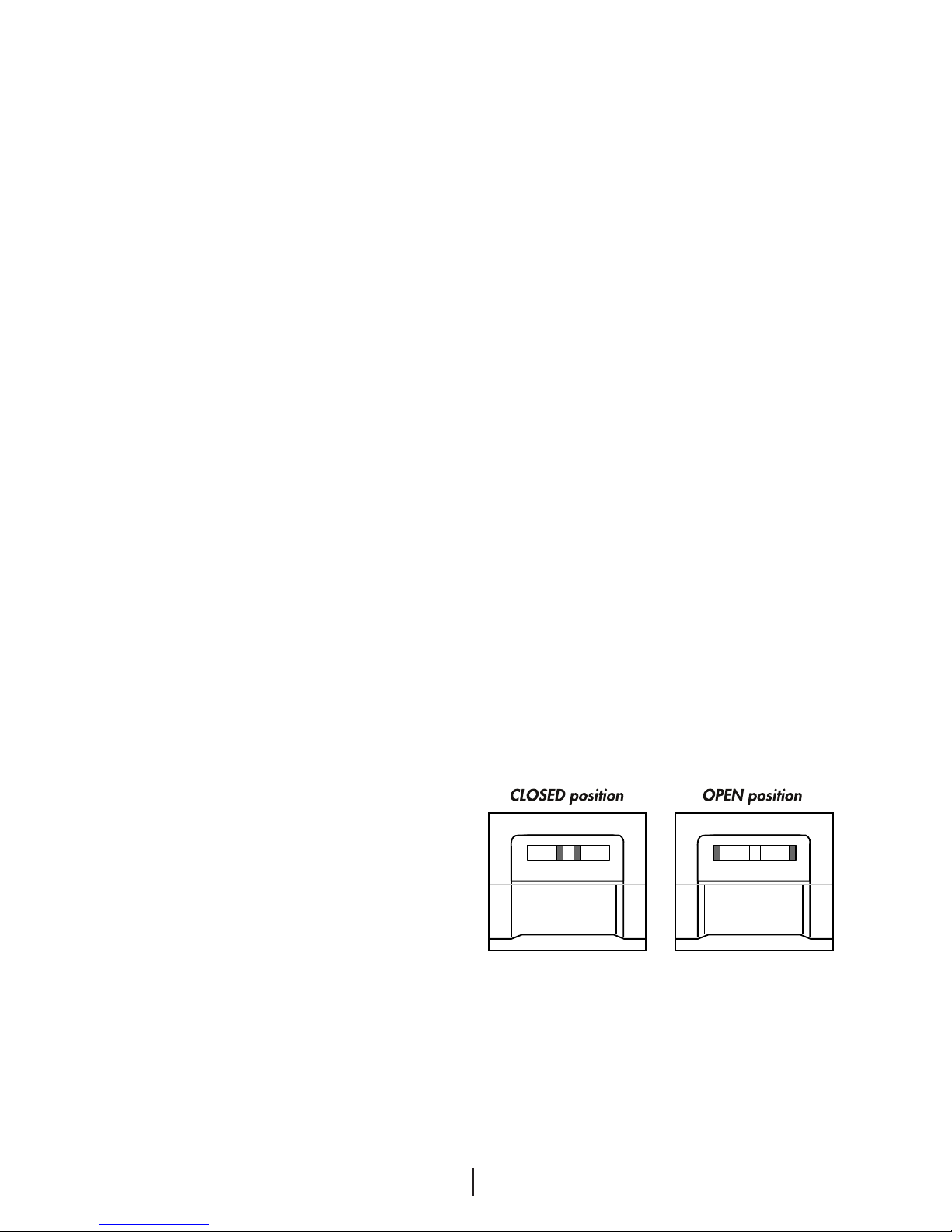

You may set the humidity-control slider
to the position appropriate to adjust
the degree of moisture and coldness
of the foodstuffs inside. If you want
these to cool further, set the control
to “Open”, if you want them to cool
less but retain their moisture for a long
period, set it to “Closed”. Positions in
between allows you to regulate cooling
and moisture-retention as you desire.
(See the below diagram)
11. Door open alarm will bleep after
the door has been left open for over 1
(One) minute

EN
11
Reversing the doors
1
2
1
2
4
3
8
7
5
6
8
7

EN
12
REVERSING THE DOOR

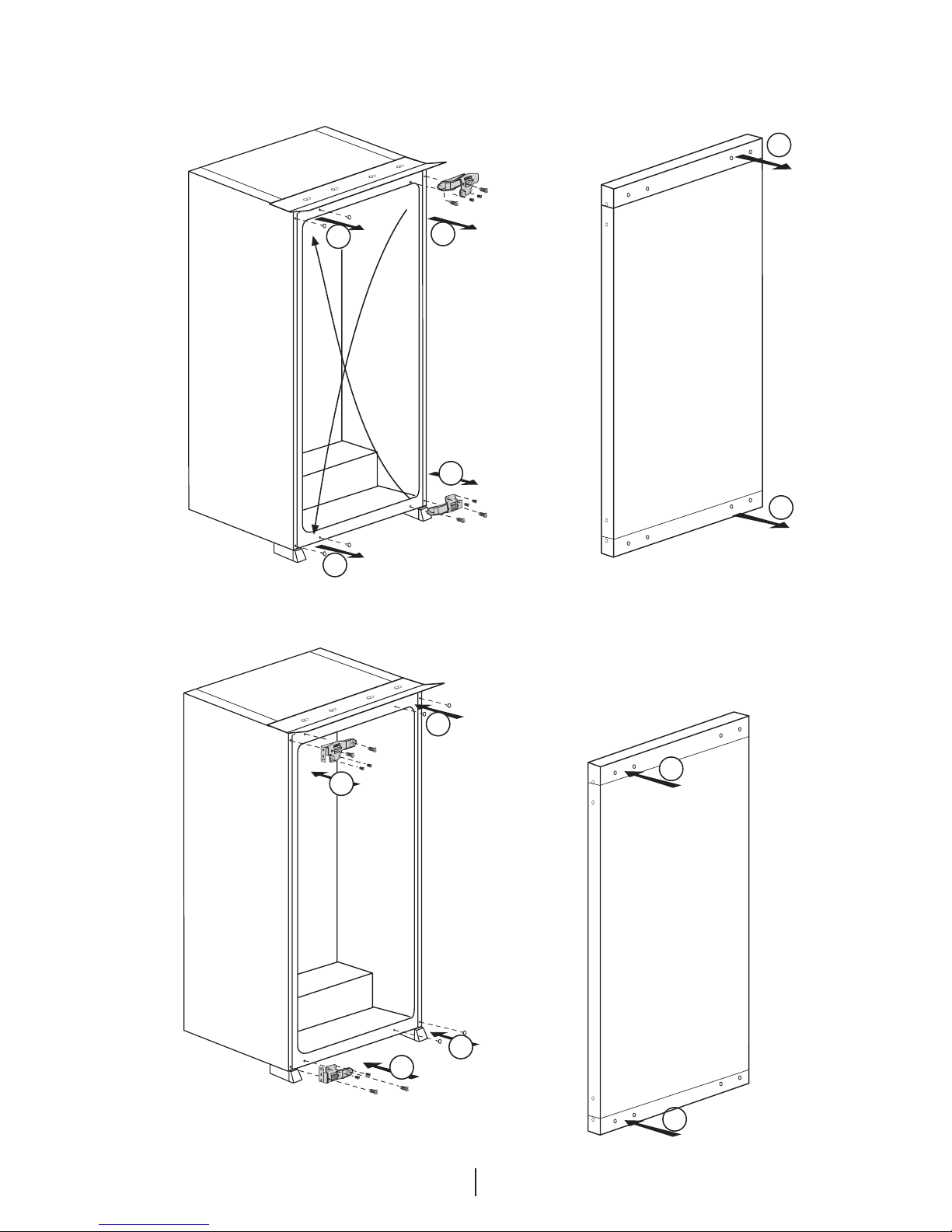

Follow the step by step instructions and the diagram below. Numbers in brackets
refer to diagrams
1. Switch off at the socket outlet and
pull out the mains plug.
2. Remove all food, loose items and
fittings from inside the appliance and
door shelves.
3. Unscrew the bolts and remove
the upper and bottom hinges from the
cabinet and door.(1) (2)
4. Remove stoppers. (3) (4)
5. Fit the stoppers on the opposite
side. (5) (6)
6. Reposition the upper hinge on the
opposite side as bottom hinge (7)
7. Reposition the bottom hinge on
the opposite side as upper hinge. (8)
Locate the door and tighten the bolts
fixing the door.
To change door from R/H to L/H
please follow procedure below:
1.Carefully remove the lower then the
upper Torx screws that hold the door to
the hinges.
2.Open hinges fully then carefully
remove the self tap countersunk screws
holding the hinges to the cabinet.
3.Remove the plastic covers from the
L/H hinge fixing points and carefully re
insert in the R/H holes.
4.Carefully place the self tap screws
into the new fixing points applying
gentle pressure until they start to bite (at
this point it may help to have someone
at the back of appliance to support).
5.For ease of fixing we recommend
screwing all the way in, and then ease
back out.
6.Re fit hinge
7.Tighten the screws firmly.
8.Re fit door, loosely fixing the top
screws first, and then fit the lower
screws.
9.When all screws fitted; tighten firmly
and check door for alignment.

EN
13

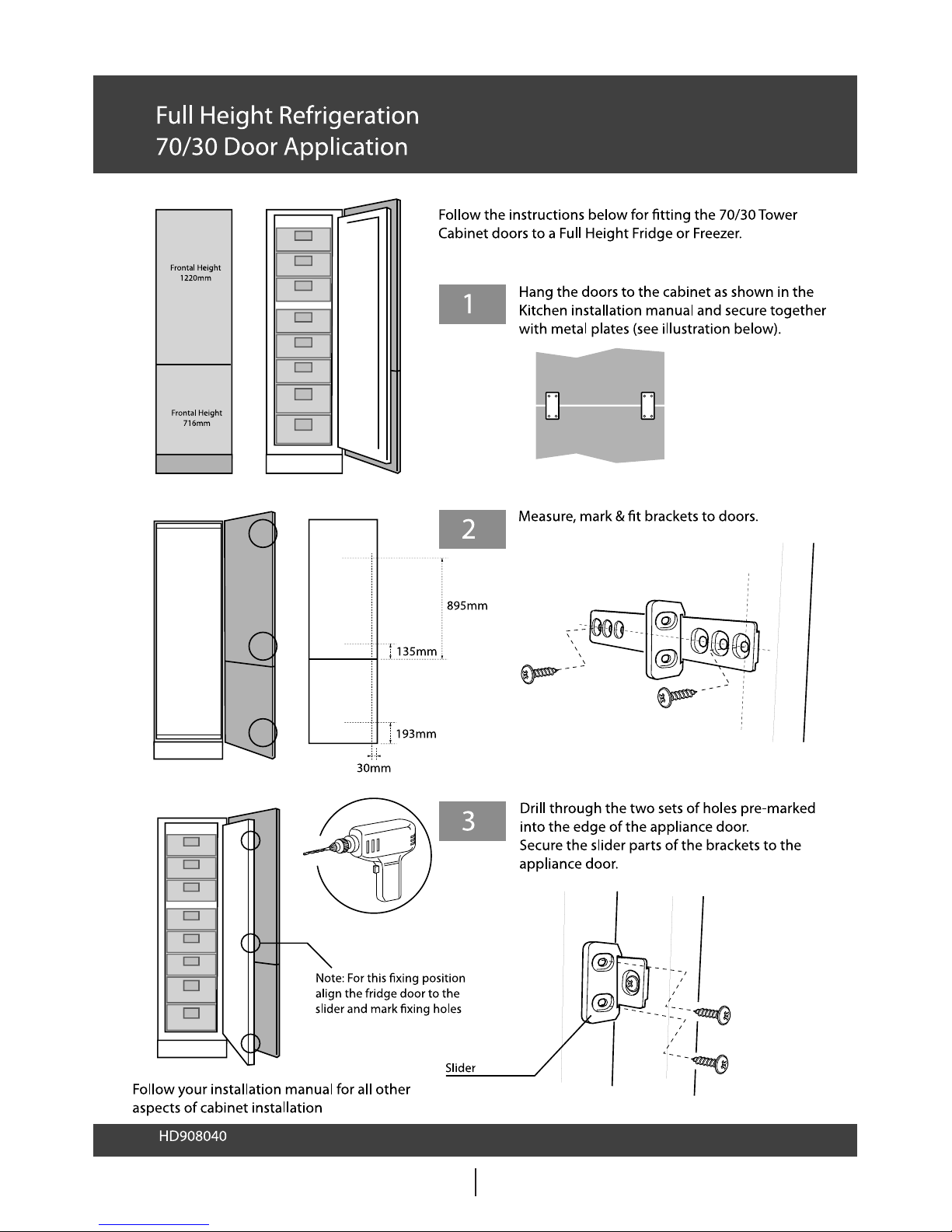

EN
14

EN
15

EN
16

EN
17

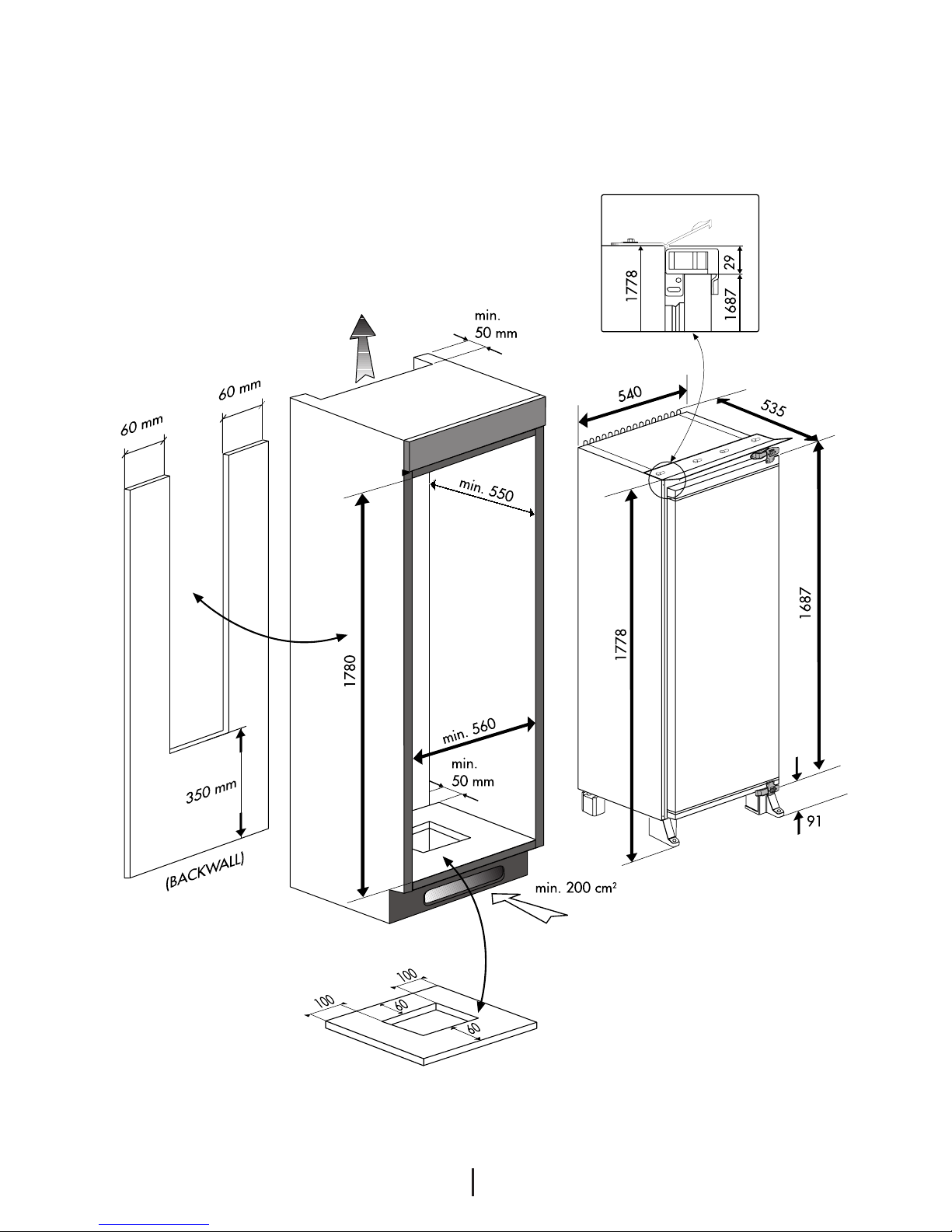

91
200 cm 2
200 cm 2
min.50 mm
min.50 mm
1687

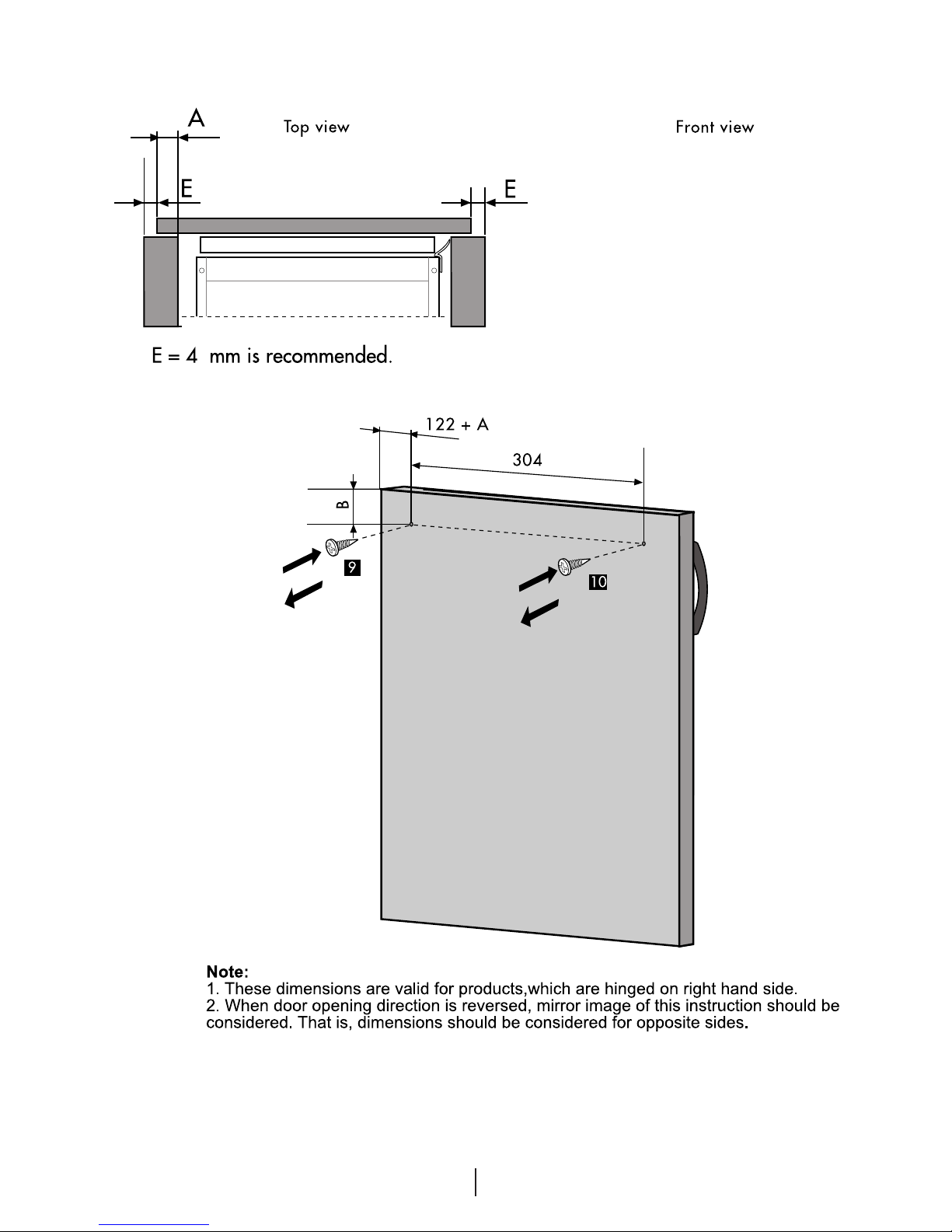

EN
18

EN
19
