1. GENERAL SAFETY
RULES
!This appliance is intended to
be used in household and
similar applications such as:
- Staff kitchen areas in shops, offices
and other working environments;
- Farm houses;
- By clients in hotels, motels and
other residential type environments;
- Bed and breakfast type environments.
(See Guarantee page.) A different
use of this appliance to a normal
household domestic use
environment is not recommended.
If the appliance is used in a
manner inconsistent with this it
may reduce the life of the
appliance and may void the
manufacturer’s warranty. Any
damage to the appliance or other
damage or loss arising through
use that is not consistent with
domestic or household use (even if
located in a domestic or household
environment) shall not be accepted
by the manufacturer to the fullest
extent permitted by law.
!This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
!Children should be supervised
to ensure that they do not play
with the appliance.
!Children of less than 3 years
should be kept away unless
continuously supervised.
!If the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
!Only use the hose-sets
supplied with the appliance for
the water supply connection
(do not reuse old hose-sets).
!Water pressure must be between
0.05 MPa and 0.8 MPa.
!Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
!After installation, the appliance
must be positioned so that the
plug is accessible.
!The maximum load capacity of
dry clothes depends on the
model used (see control panel).
!To consult the product technical
specification please refer to the
manufacturer website.

!
EN
5
!The technical details (supply
voltage and power input) are
indicated on the product rating
plate
!Make sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
!The use of converters, multiple
sockets or extension cords is
strongly advised against
!Before cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
!Do not pull on the power cord
or appliance to unplug the
machine.
!Make sure there is no water in
the drum before opening the
door.
!Do not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
!When moving, do not lift the
washing machine by the knobs
or detergent drawer; during
transport, never rest the door on
the trolley. We recommend two
people lift the washing machine.
!In the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance.
Immediately contact the
Customer Service Centre and
only use original spare parts.
Failure to observe these
instruction may jeopardise
appliance safety.
Electrical connections and
safety instructions
WARNING:
water may reach very high
temperatures during the
wash cycle.

!
6
2. INSTALLATION

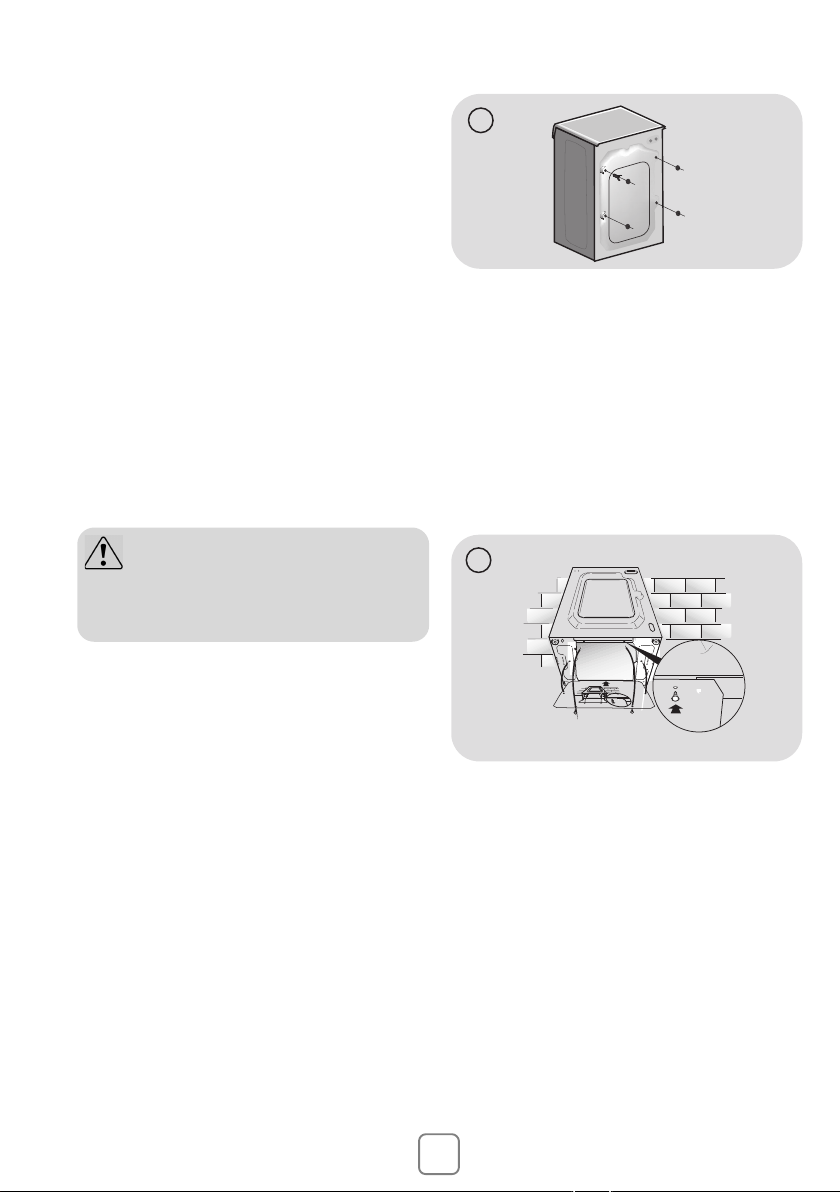

!Remove the 4transportation
screws (A) on the back and
remove the 4flat washers, rubber
bungs and plastic spacer tubes
(B) as illustrated in figure 1.
! During the removal of the screws
occasionally spacer tubes fall
inside the product, these can be
remove by tilting the product forward
and recovering them from the floor
or inside the base of the machine.
!Cover the open transportation screw
holes with the 4plastic caps
included in the instruction bag.
!Place the corrugated plastic sheet,
found on top of the appliance during
the unpacking process, into the base
of the appliance as shown in figure 2.
A
A
A
A
B
B
B
B
1
2
WARNING:
keep packaging materials
away from children.

!
EN
7
!

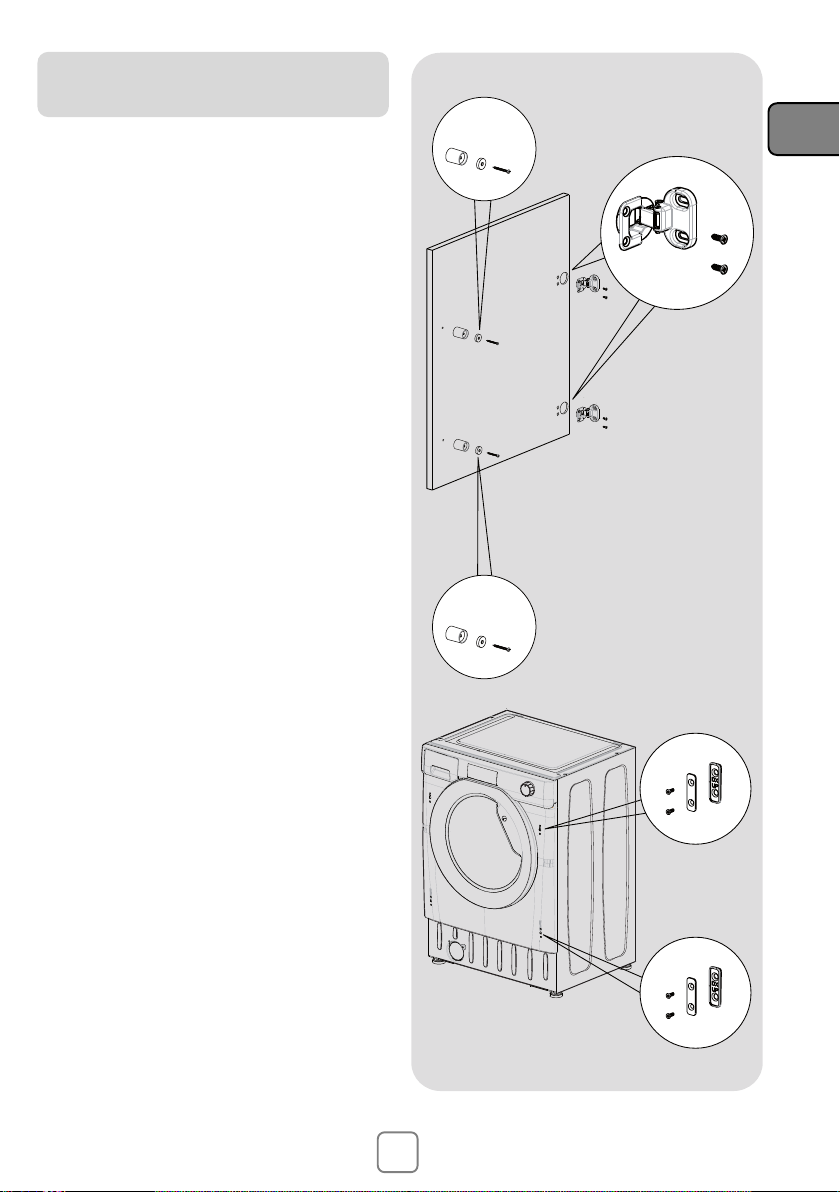

Fix the hinges in place with the
4 screws provided (A).
!
Fix the magnet (B) in place
using screw (C).
!Mount the plate (D) on the right
or left-hand side, depending on
your installation requirements.
Place the plastic support (E)
under the plate and fix it in
position with screw (F).
Instructions for mounting the
furniture door
D
E
F
D
E
F
A
BC
BC
!
Measure, mark and drill upper
hinge hole in frontal (387.5 mm
and closure magnet on the right
or left-hand side depending on
your requirements. Mark the
screw hole positions, then drill
out these positions.
It is possible to mount the hinges
from bottom pre-drilled hole).

!
8
!

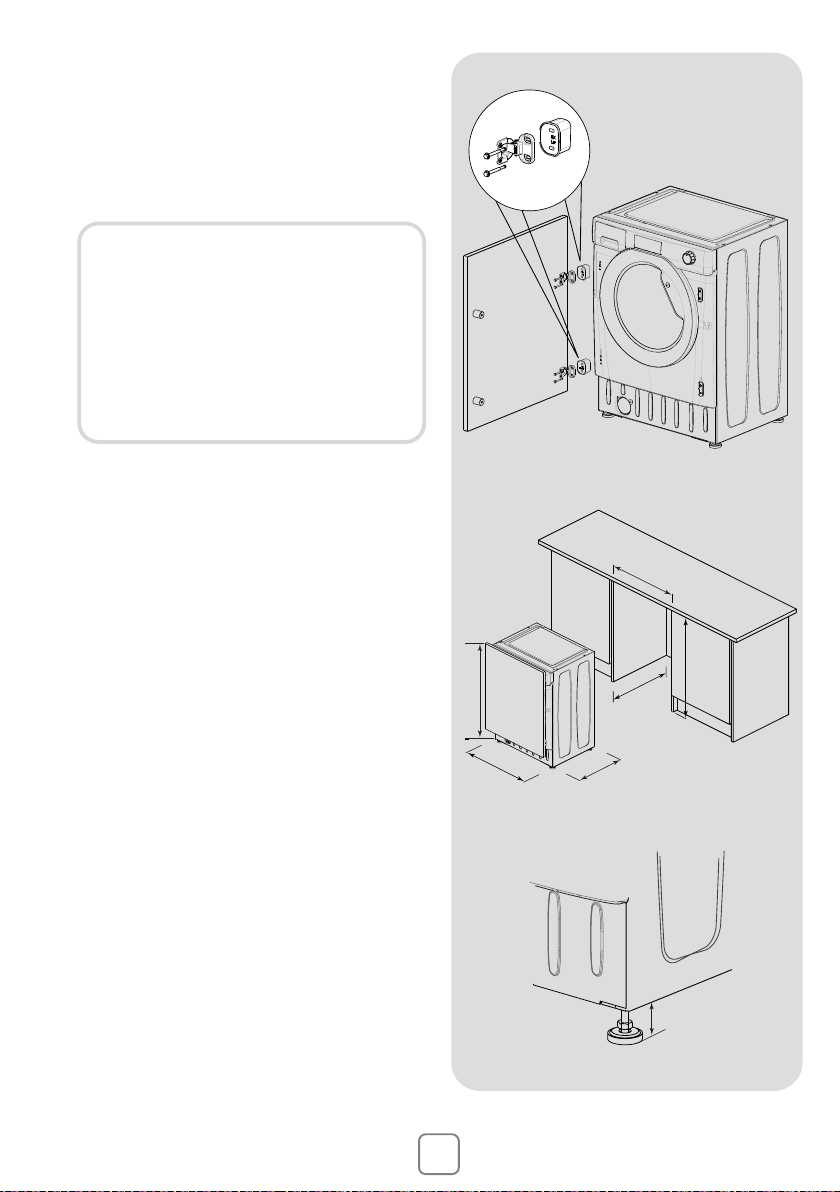

Mount the furniture door to the
front of the washer using the
hinges. Place the spacers
under the hinges (I)
and then
fix in position with screw (H).
!
Slide the washer
into an
opening of
the size indicated in
the diagram opposite. A furniture
plinth may be run across the front
of the appliance, but its height will
be dictated by the height the
washer is set at.
!
The 4 adjustable feet allow the
height of the washer to be
adjusted from 820 mm to a
We suggest mounting the
furniture door so that it opens
towards the left, which is the
same direction as the porthole
door. This will leave more
space when you are loading
washing into the appliance.
570
596
600
min.
575
HI
820 min.
825 min.
25-30 mm
maximum of 840 mm.
Raise the feet to your desired
height and then fully tighten the
washer.
lock nut to the base of the

!
EN
9

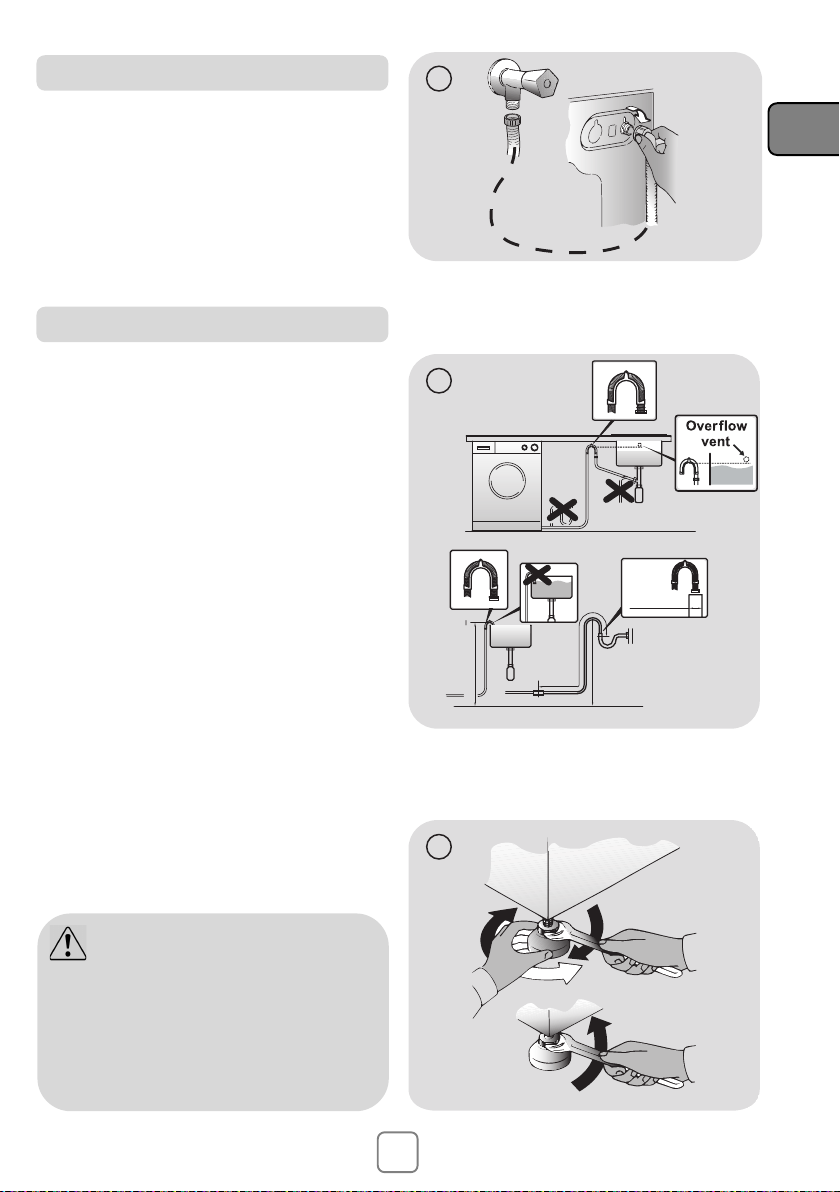

!Connect the water hose to the water
supply tap (fig. 3) only using the hose
supplied with the appliance (do not
reuse old hose-sets).
!The washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an under
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or
trapping the drain hose (fig. 4).
!Make final adjustments to feet if
necessary to align frontals as illustrated in
figure 5:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
c. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
!Plug in the appliance.
3
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
4
A
B
C
8
5
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Installation faults are not covered by
the manufacturers warranty.
Hydraulic connections
Setting

!
10
3. DETERGENT DRAWER
The detergent draw is split into 3
compartments as illustrated in figure:
!compartment "1": for prewash detergent;
!compartment “ ”: for fabric softeners,
additives etc. (Dilute concentrated
softeners).
!compartment "2": for washing detergent.
2
1
Modern water and energy efficient
washing machines need less detergent
than older machines.
We recommend you try to reduce the
quantity of detergent you use.
WARNING:
only use liquid additive products; the
washing machine is set to
automatically dose additives at each
cycle during the last rinse.
WARNING:
Do not overfill detergent section.
Some detergents are not designed for
use in the dispenser drawer but are
supplied with their own dispenser that
is placed in the drum directly.
