LANBO LB80BC User manual

1
LANBO
USER MANUAL
FOR MODEL:
LW28D/LW46D/LW72D/LW142D/LW165D/LW306D
LB36BD/LW3370B
LW33S/LW52S/LW155S/LW177S/LW321S
LW133DD/LW162DD/LW144T
LB80BC/LB148BC

2
Dear User,
Congratulations to you to get a new appliance and also thank you for
purchasing from us.
Here are some warm tips for you to use the product better.
Before use:
1. After the new appliance arrived, please leave it alone for about 12 hours
before connecting with power.
2. Set the suitable temperature for your wine:
Merlot, Shiraz and Cabernet Sauvignon - Anywhere from 64-66℉
Chardonnay and Chablis - Between 48-52℉
Pinot Noir - 60-64℉
Dessert Wines, Sparkling wine or Champagne - 40℉
Pinot Grigio and Sauvignon Blanc - 45-48℉
When using:
1.Please make sure the door is closed well and don’t open and closed the
door too often to disturb the storage environment of the wine.
2.Put every wine bottle a suitable place and try not to move them until you
want to enjoy them. Stillness is essential in allowing wines to age well and
continue to drink beautifully.
Register your product:
LANBO promises to supply 12 months whole parts and 36 months compressor
warranty. Register your product on LANBO’s official website will get a 12
months warranty extension and priority customer support.

3
Customer service:
If you need our help, please send email to [e-mail] .
Our customer service team are always here to help you.
Thanks for all your trust and support!

4
Catalogue
Important Safety Notes------------------------------------------------ 5
Structures -----------------------------------------------------------------7
Installation ---------------------------------------------------------------13
Operation Instruction --------------------------------------------------14
Care and Maintenance ------------------------------------------------25
Troubleshooting ---------------------------------------------------------27
Data Parameters --------------------------------------------------------28
WARRANTY INFORMATION --------------------------------------- 31

5
1. Important Safety Notes:
Warnings
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follow these basic precautions:
Read all instructions before using the wine cooler.
Do keep the children away from the wine cooler. Never allow children to
operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a
fire hazard or explosion.
While wine cooler stops working, please call our after-sell service
department or other related technicians to check and repair. Never do it by
yourself in case of accident.
Once the power cord is damaged, find a professional technician or
electrician to change a new one. Never do it by yourself or continue to use
so as to avoid danger.
Do make sure that the plug is pulled while cleaning, moving or repairing.
Keep ventilation openings in the appliance enclosure clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting
process other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance unless they are of the type recommended by the
manufacturer.
-Save these instructions-
Notes
In order to avoid damage of door seal, please make sure the door totally opened while
pulling out the movable shelves.
Place the cooler closed to power socket.

6
Once the cooler is stored with wines, please do not move it again.
Make sure the cooler placed in proper place in order to avoid that the compressor in the
back could be easily touched.
Do not start the wine cooler too frequently. The interval should be at least 5 minutes.
Before you throw away your old wine cooler: Take off the door. Leave the shelves in
original place so that children may not easily climb inside.
If the wine cooler with R600a, flammable and explosive articles should not be put in or near
the cabinet, to avoid the fire or explosion.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Please keep this use manual carefully, if you lost the use manual,
please contact with us at [e-mail]
The instructions shall include the substance of the following: This
appliance is intended to be used in household and similar applications
such as:
– Staff kitchen areas in shops, offices and other working environments;
– Farm houses and by clients in hotels, motels and other residential
type environments;
– Bed and breakfast type environments;
– Catering and similar non-retail applications.
Parameters and appearance of the product may be different from the manual, does not
affect the normal use of the product.

7
2. Structures

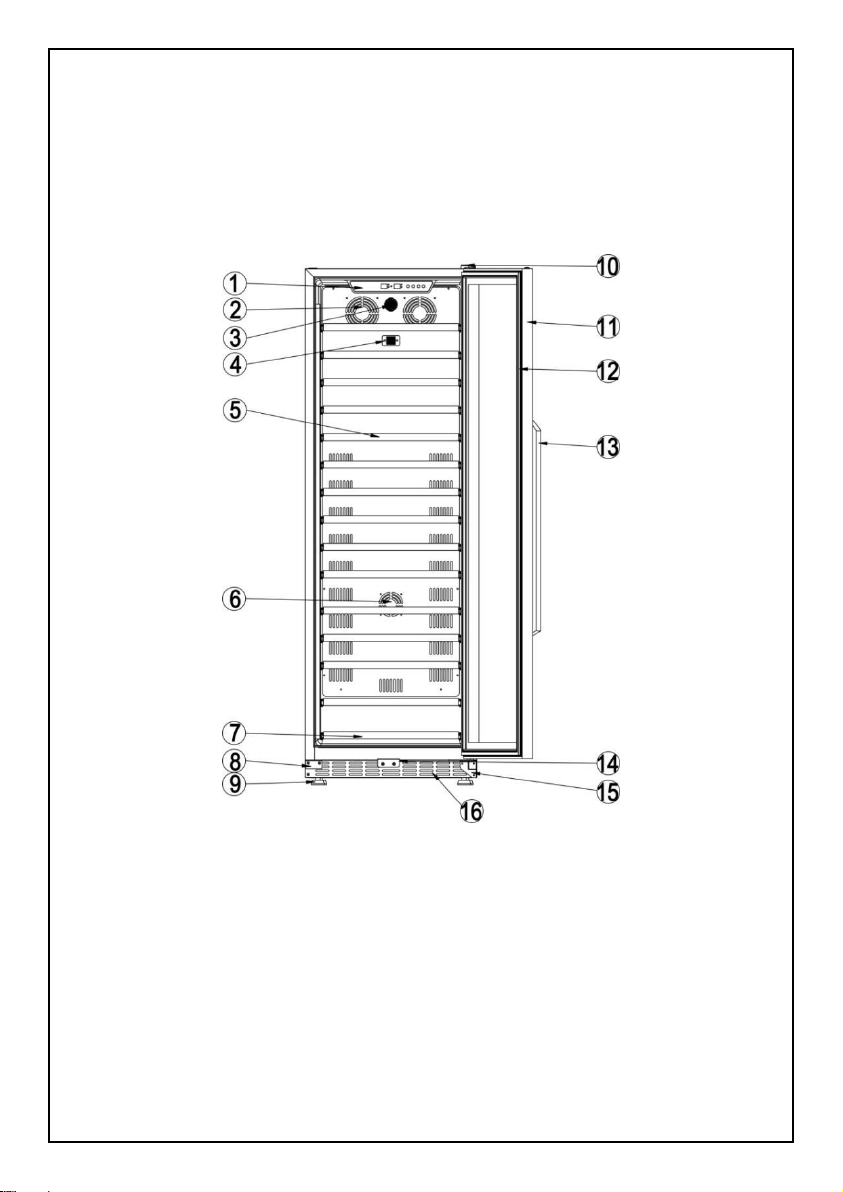

1.LW33S/LW52S/LW155S/LW177S/LW321S structure diagram：
(1) Control panel (2) The fan of evaporator (3) Carbon filter (4) Sensor
(5) Full wooden shelf (6) Heating fan (7) Small wooden shelf (8) Prevent
fall device of the door (9) Adjustable feet (10) Upper hinge (11) Glass
door with lock (12) Door gasket (13) Handle (14) Lock hook (15) Lower
hinge (16)The front vent

8

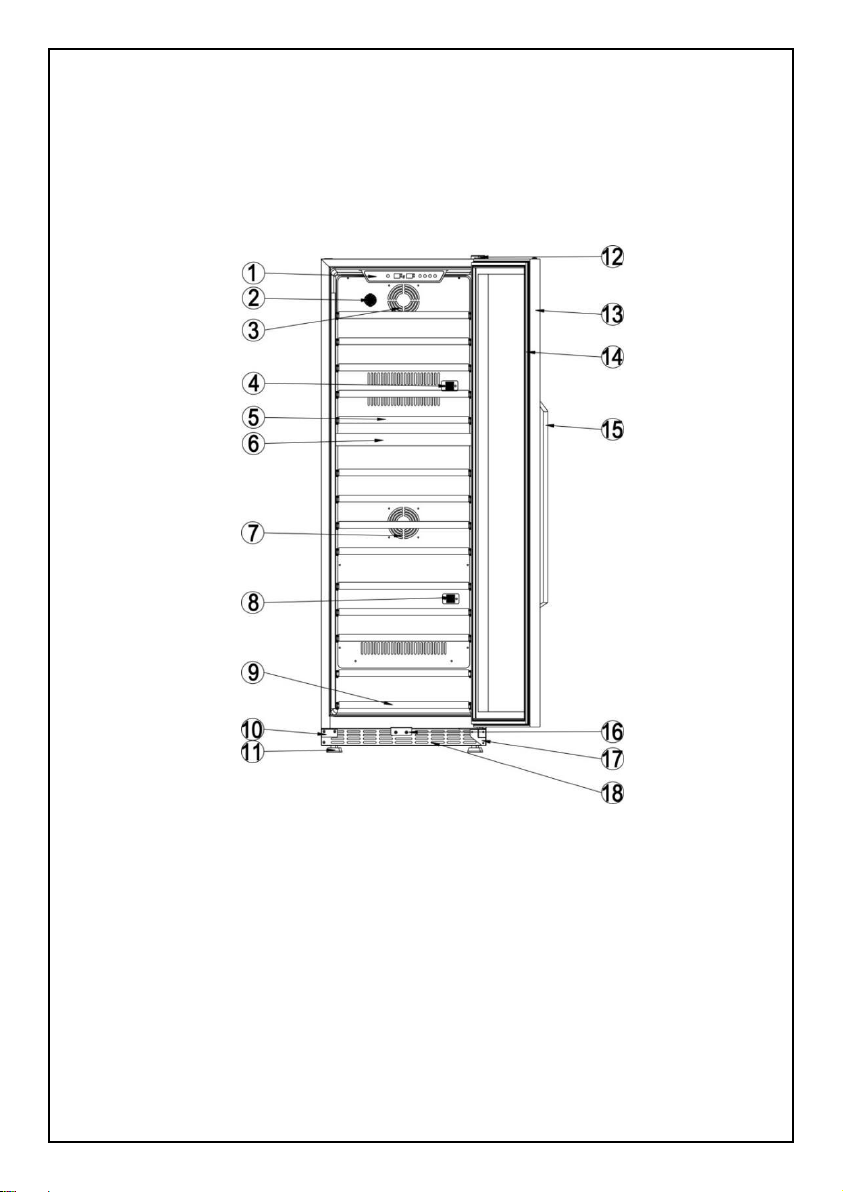

2. LW28D/LW46D/LW72D/LW142D/LW165D/LW306D structure
diagram:
(1) Control panel (2) Carbon filter (3) The fan of evaporator (4) The upper
sensor (5) Full wooden shelf (6) Baffle plate (7) Heating fan (8) The lower
sensor (9) Small wooden shelf (10) Prevent fall device of the door
(11) Adjustable feet (12)Upper hinge (13) Glass door with lock (14) Door gasket
(15) Handle (16) Lock hook (17) Lower hinge (18)The front vent

9
3. LW133DD/LW162DD structure diagram：
(1) Control panel (2) The fan of evaporator and heater (3) Carbon filter (4) Full
wooden shelf (5) The upper sensor (6) Baffle plate (7) The fan of evaporator
and heater (8) The lower sensor (9) Small wooden shelf (10) Prevent fall
device of the door (11) Lock hook (12)Upper hinge (13) Glass door with
handle/gasket (14) Middle hinge (15) Glass door with handle/gasket (16) Lower
hinge (17) Adjustable feet (18) The front vent

10

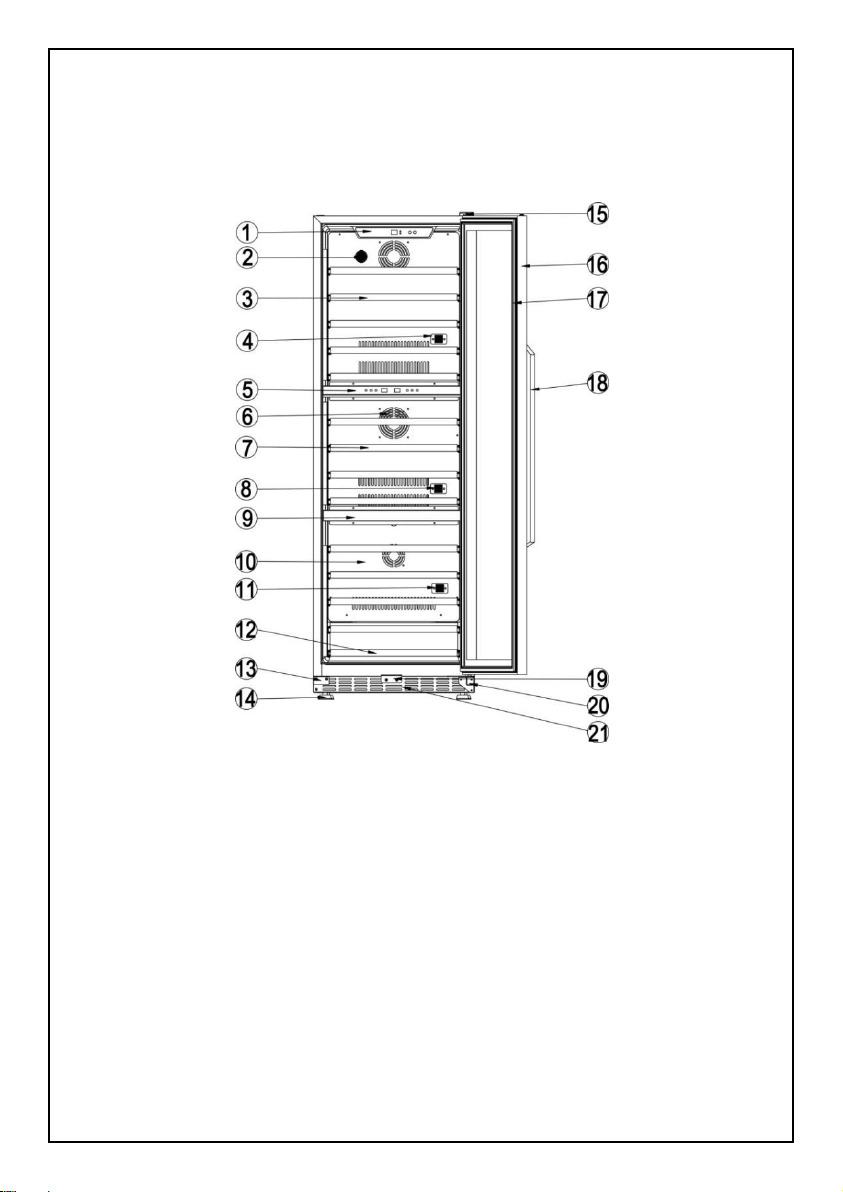

4. LW144T structure diagram：
(1) Upper control panel (2) Carbon filter (3) Full wooden shelf (4) The upper
sensor (5) Middle control panel (6) Middle fan (7) Full wooden shelf (8) The
middle sensor (9) Baffle plate (10) The back air-duct Board (11) The lower
sensor (12) Small wooden shelf (13) Prevent fall device of the door
(14) Adjustable feet (15) Upper hinge (16) Glass door with lock (17) Door
gasket (18) Handle (19) Lock hook (20) Lower hinge (21) The front vent

11
5.LB80BC /LB148BC structure diagram：
(1) Control panel (2) Wire shelf (3) Glass shelf (4) Small wooden shelf
(5) Lock hook (6) Prevent fall device of the door (7) Adjustable feet (8) Upper
hinge (9) Glass door with lock/ gasket (10) Handle (11) Lower hinge
(12) The front vent

12

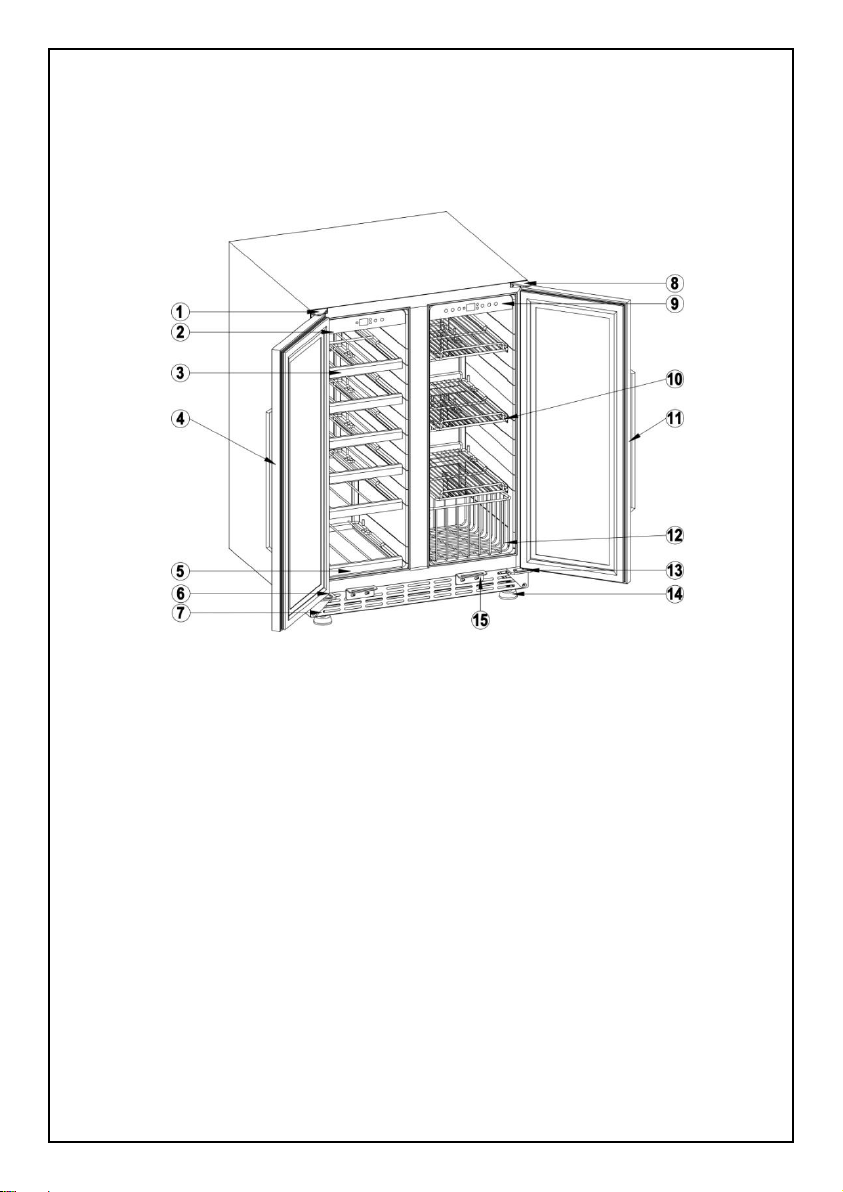

6.LB36BD/LW3370B structure diagram:
(1)Left upper hinge (2) Left Control panel (3) Big wire shelf with wooden
cover (4) Left glass door with lock / gasket & handle (5) Small wire shelf with
wooden cover (6) Left lower supporter of the door (7) The front vent
(8) Right upper hinge (9) Right Control panel (10) Wire shelf (11) Left
glass door with lock / gasket & handle (12) Wire basket (13) Right lower
supporter of the door (14) Adjustable feet (15) Lock hook

13
3.Installation
Before Using Your Wine Cooler / Beverage Cooler
Remove the exterior and interior packing.
Before connecting the wine cooler / beverage cooler to the power source,
let it stand upright for approximately 12 hours. This will reduce the
possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water with a soft cloth.
The cooler is specially designed for wine storage, please do not put in
other goods.
Installation:
The cooler should be placed independently so as to make sure good heat
dissipation. The back of the cooler should be away from the wall 10cm at
minimum.
Place your wine cooler / beverage cooler on a floor that is strong enough to
support it when it is fully loaded. To level your wine cooler, adjust the front
leveling leg at the bottom of the wine cooler.
Locate the wine cooler / beverage cooler away from direct sunlight and sources
of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and heat sources may increase electrical consumption. Extreme cold
ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug in the proper power socket. Make sure that the shape and voltage of the
socket is consistent with the nameplate on the back of the cooler.

14
5. Operation Instruction
4.1 Control Panel Below (LW33S/LW52S/LW155S/LW177S/
LW321S/LB80BC/LB148BC)：
◎Display Windows
·RUN light：Indicator light of compressor working. While the compressor operating,
the red light is on. While it stops operating, the red light is off.
·SETTING：Display of the temperature you set. The range of temperature setting is
0℃~37℃or 32℉~99℉.
·CHAMBER：Display of the actual temperature inside the cabinet; The range is
0℃~37℃or 32℉~99℉.
·℃/℉light：When the ℃light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎Button Operation
·SET Button ：Temperature setting button; Once you press the button, the
temperature increased 1℃or 1℉. Detail temperature setting range as
following:
For LB80BC is between: 3℃~18℃or 37℉~64℉;
For LB148BC is between: 1℃~18℃or 34℉~64℉;
For LW33S/LW52S/LW155S/LW177S/LW321S is between:5℃~18℃or 41℉~64℉.
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically off after 10 minutes all out of protecting the wines inside.
·℃/℉Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, it starts;
press it 3 seconds again, it stops.

15
4.2 Control Panel Below(LB36BD)：
◎Display Windows
·RUN light：Indicator light of compressor working. While the compressor operating,
the red light is on. While it stops operating, the red light is off.
·CHAMBER：Display of the setting and actual temperature inside the cabinet; The
range is 0℃~37℃or 32℉~99℉.
·℃/℉light：When the ℃light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎Button Operation
·“＋” “–” Button ：Temperature setting button; Once you press “ ＋” button, the
temperature increase 1℃or 1℉; if you want to decrease the temperature, press
the “-” button, the temperature decreased 1℃or 1℉each time.
Detail temperature setting range as following:
5℃~18℃or 41℉~64℉for the left zone, 4℃~10℃or 39℉~50℉for the right zone;
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically off after 10 minutes all out of protecting the wines inside.
·℃/℉Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, it starts;
press it 3 seconds again, it stops.

16
4.3 Control Panel Below(LW3370B/LW133DD/LW162DD)：
◎Display Windows
·CHAMBER：Display of the setting and actual temperature inside the cabinet; The
range is 0℃~37℃or 32℉~99℉.
·℃/℉light：When the ℃light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎Button Operation
·“＋” “–” Button ：Temperature setting button; Once you press “ ＋” button, the
temperature increase 1℃or 1℉; if you want to decrease the temperature, press
the “-” button, the temperature decreased 1℃or 1℉each time.
Detail temperature setting range as following:
For LW3370B is between: 5℃~18℃or 41℉~64℉for the left zone, 4℃~10℃or
39℉~50℉for the right zone.
For LW133DD/LW162DD is between: 5℃~18℃or 41℉~64℉both for upper and
lower zone.
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically off after 10 minutes all out of protecting the wines inside.
·℃/℉Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, it starts;
press it 3 seconds again, it stops.

17
4.4 Control Panel Below ( only for model LW144T):
(Upper Control Panel)
◎Display Windows
•CHAMBER: Display of the actual temperature of the upper chamber. The range is
0℃~37℃or 32℉~99℉.
◎Button Operation
“+” “–” Button: Temperature setting button. Each time you press the button “+”
button the temperature increased 1℃or 1℉. Or press “-” button the
temperature decreased 1℃or 1℉; Setting range is between 5℃~22℃or
41℉~72℉of upper zone.
(Middle and Lower Control Panel)
◎Display Windows
•MIDDLE CHAMBER：Display of the actual temperature of the middle chamber.
The range is 0℃~37℃or 32℉~99℉.
•LOWER CHAMBER：Display of the actual temperature of the lower chamber;
The range is 0℃~37℃or 32℉~99℉.
·℃/℉light：When the ℃light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.

18
◎Button Operation
•“+” “–” Button: Temperature setting button; If you need setting the temperature
of middle chamber, press the button one time, the screen of middle chamber
will be flashing, then press “+” or “-” to set the temperature of middle chamber,
setting range is between 5℃~12 ℃or 41 ℉~54 ℉. If you need setting the
temperature of lower chamber, press the button two times, the screen of
lower chamber will be flashing, press “+” or “-” to set the temperature of lower
chamber, setting range is between 12℃~22℃or 54℉~72℉.
· LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically off after 10 minutes all out of protecting the wines inside.
· ON/OFF button：Power on and off button; Press the button for 3 seconds, it starts;
press it 3 seconds again, it stops.

19

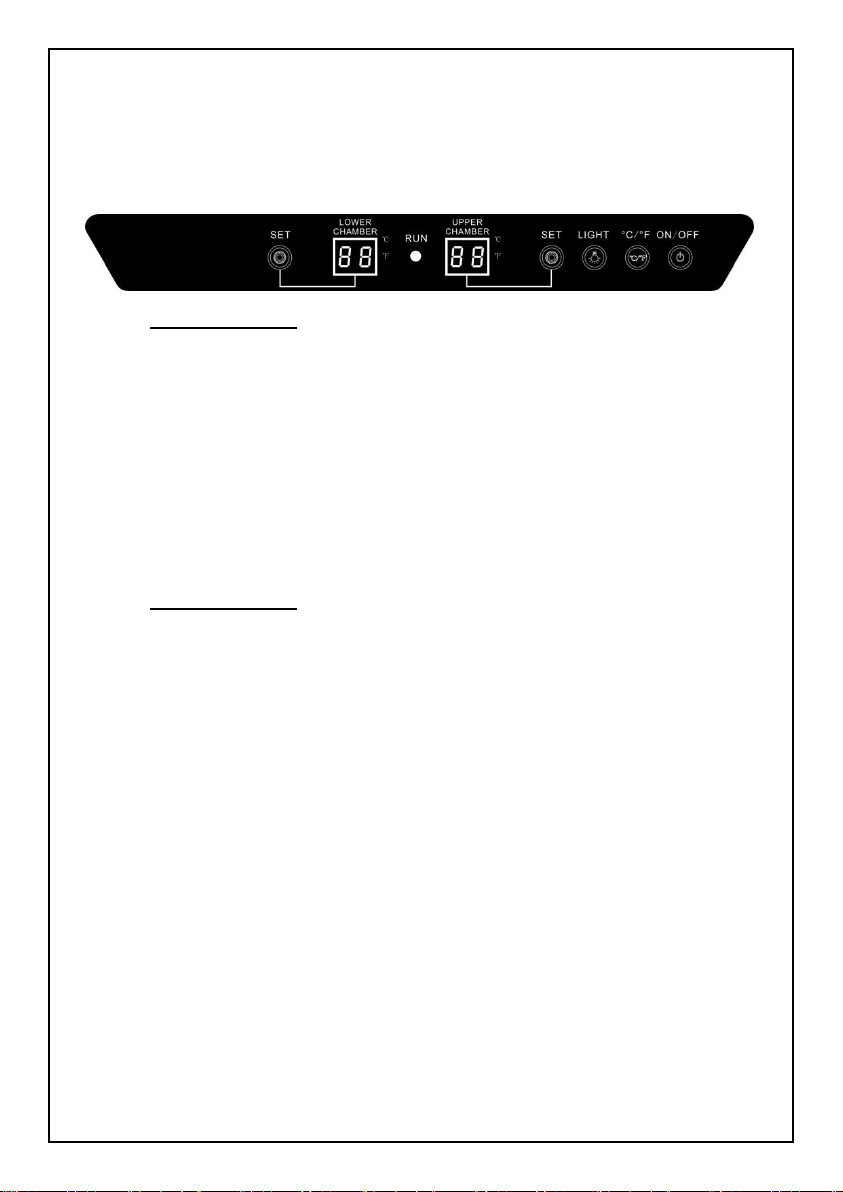

4.5 Control Panel Below (LW28D/LW46D/LW72D/LW142D/
LW165D/LW306D):
◎Display Windows
·RUN light：Indicator light of compressor working. While the compressor operating,
the red light is on. While it stops operating, the red light is off.
·UPPER CHAMBER：Display of the actual temperature of the upper chamber. The
range is 0℃~37℃or 32℉~99℉.
·LOWER CHAMBER：Display of the actual temperature of the lower chamber; The
range is 0℃~37℃or 32℉~99℉.
·℃/℉light：When the ℃light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎Button Operation
·SET Button：Temperature setting button; Once you press the button, the
temperature increased 1℃or 1℉. Detail temperature setting range as
following:
For LW28D/LW46D/LW72D/LW142D/LW165D/LW306D is between:
5℃~12℃or 41℉~54℉for upper zone, 12℃~18℃or 54℉~64℉for lower zone;
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically off after 10 minutes all out of protecting the wines inside.
·℃/℉Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, it starts;
press it 3 seconds again, it stops.

20
Note: This series of wine coolers has its delay protection function. The compressor
will start to work about 3 to 5 minutes after it is power connected or powered off.
Please use the wine cooler under the T type of climate. The temperature inside the
cabinet will fluctuate and influence the refrigerating effect if the surrounding
temperature is too high or too cold.

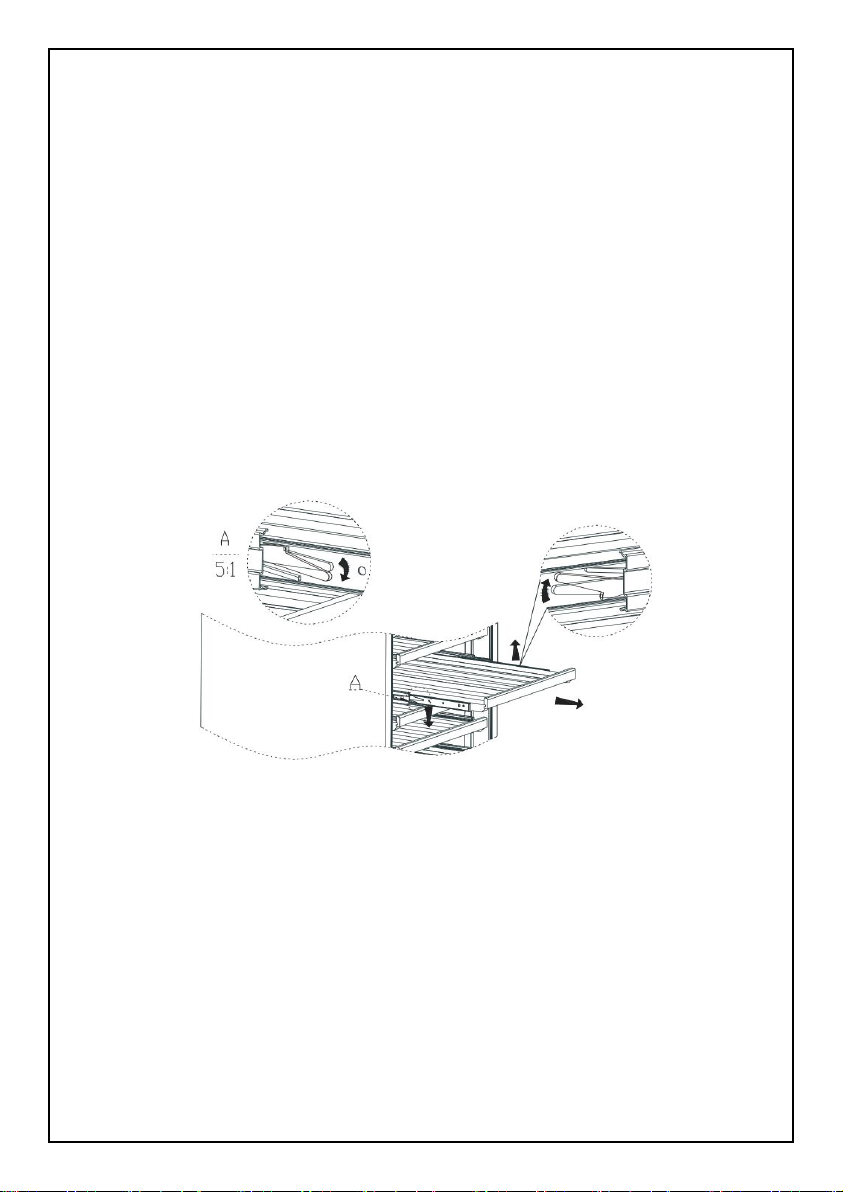

◎Shelf Change LW28D, LW46D,LW72D,LW142D,LW165D, LW306D,
LW133DD,LW162DD,LW33S,LW52S,LW155S,LW177S,LW321S,
LW144T
Do as the following shows if needing to pull out or change the shelves;
Firstly take out all the wines from the shelves and pull shelf out to the limit. Then
press down the left limit of sliding rail and meanwhile press up the right one, pull the
shelves out at this time. It could be easily pulled out if doing the three steps (Press
down left limit, press up the right one and puling out) at the same time.
