Titan TT-W2454SZ Installation manual

WINE STORAGE
USER GUIDE & SERVICE MANUAL
CLEANING, MAINTENANCE, AND MORE
TT-W2454SZ 24" Single Zone Single Door Wine Cooler

Table of Contents
Intro
Safety and Warning
Installation
1
2
Instructions Before Using
Important Safety Instructions2
4
5
6
7
8
9
10
11
12
13
14
Environmental Requirements
Electrical
Cutout Dimensions
Installation Clearance Requirements
Product Dimensions
Product Storage
Product Specifications
General Installation
Types of Installation
Handle&Shelf Installation
Shelf Installation
Door Swing Installation
Operation Instructions
Control Operation
Sounds
Defrosting
Maintenance
Cleaning
Troubleshooting
Warranty
15
15
19
19
20
22
23
USER GUIDE & SERVICE MANUAL
www.titan-appliances.com

1
Welcome To Titan Appliances
Congratulations on purchasing your Titan appliance! We at Titan offer quality products that compliment your
lifestyle. To learn more about our products please visit our website at www.titan-appliances.com.
This manual contains information on how to install, use and maintain your appliance to perform at its peak efficiency.
To safely transport your appliance in future, please save the original product packaging.
Before contacting customer service, please ensure that you have done the following:
Proof of Purchase:
For future reference, please write down the model number and serial number below.
Model Number:
Serial Number:
Date of Purchase:
Both the model number and the serial number are located on the product label on the back of your unit and are
needed for service under warranty. We suggest stapling your receipt to this manual as it serves as the proof of your
purchase and will be needed for service under your warranty.
Before contacting customer service, please ensure that you have done the following：
1. If the unit is damaged upon receipt, please contact the retailer or dealer that sold you the appliance right
away.
2. Please read this owner’s manual and follow the instructions and recommendations to properly install, operate
and maintain the unit.
3. Always refer to the trouble-shooting section of this owner’s manual as it contains valuable information and
suggestions on how to solve common issues.
4. For the latest information on this product and additional troubleshooting suggestions please visit our website
at www.titan-appliances.com
5. Should you need any help on the warranty service please contact our customer services at service@titan-
appliances.com
Contacts:
Titan Products, LLC
serv[email protected]
USER GUIDE
www.titan-appliances.com

Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk types:
SAFETY AND WARNING
Instructions Before Using Your Appliance.
Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep
track of all included parts and pieces before discarding packaging materials. It is advised that you
keep the original box and packaging materials in case you are ever to move or ship the appliance in
the future.
Clean the interior surface with a clean soft cloth. Allow the unit to stand for at least 24 hours before
use; this allows the cooling system time to settle from transit.
This owner’s manual is provided for reference use only. Specifications may change without prior
notice. Refer to the product label on the back of your unit for the latest technical information.
Important Safety Instructions
Improper handling can cause serious damage to the Titan appliance and/or injury to the user. This
appliance is designed for domestic indoor use only. Use of the unit for industrial or commercial or any
other purposes will void the warranty.
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
USER GUIDE
www.titan-appliances.com
2

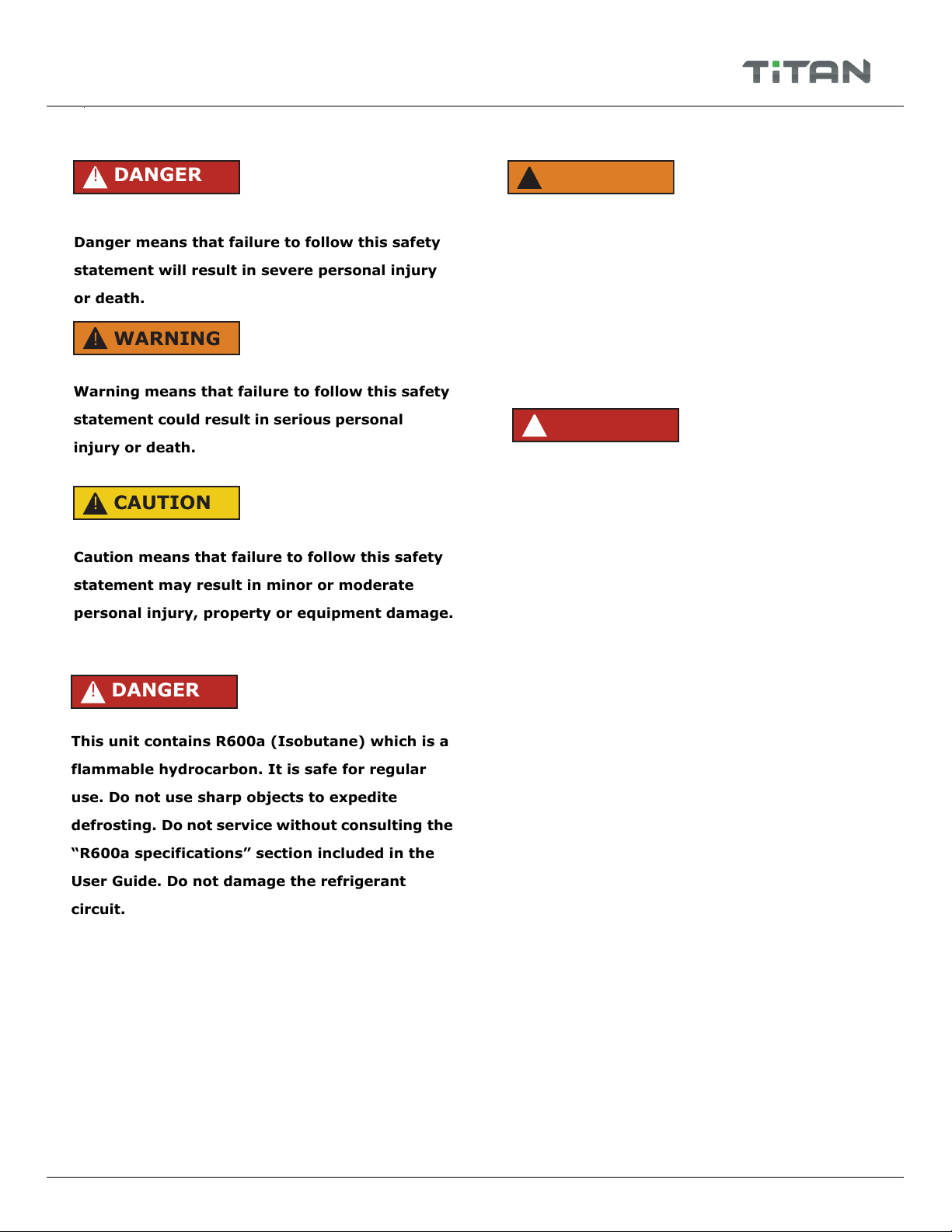

!DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury
or death.
!WARNING
Warning means that failure to follow this safety
statement could result in serious personal
injury or death.
!CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
!DANGER
This unit contains R600a (Isobutane) which is a
flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specifications” section included in the
User Guide. Do not damage the refrigerant
circuit.
!DANGER
RISK OF CHILD ENTRAPMENT. Before you
throw away your old refrigerator or freezer,
take off the doors and leave shelves in place so
children may not easily climb inside.
If the unit is being removed from service for
disposal, check and obey all federal, state and local
regulations regarding the disposal and recycling of
refrigeration appliances, and follow these steps
completely:
1.Remove all consumable contents from the unit.
2.Unplug the electrical cord from its socket.
3.Remove the door(s) and shelves(s).
USER GUIDE
www.titan-appliances.com
!WARNING
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
3

!CAUTION
Damages caused by ambient temperatures of 40°
F (4°C) or below are not covered by the warranty.
INSTALLATION
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F and 95°F.
Higher ambient temperatures may reduce the unit’s
ability to reach low temperatures and/or reduce ice
production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipments.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal and does not affect the
appliance's performance. The condensation will evaporate
when the humidity drops.
USER GUIDE
www.titan-appliances.com
4

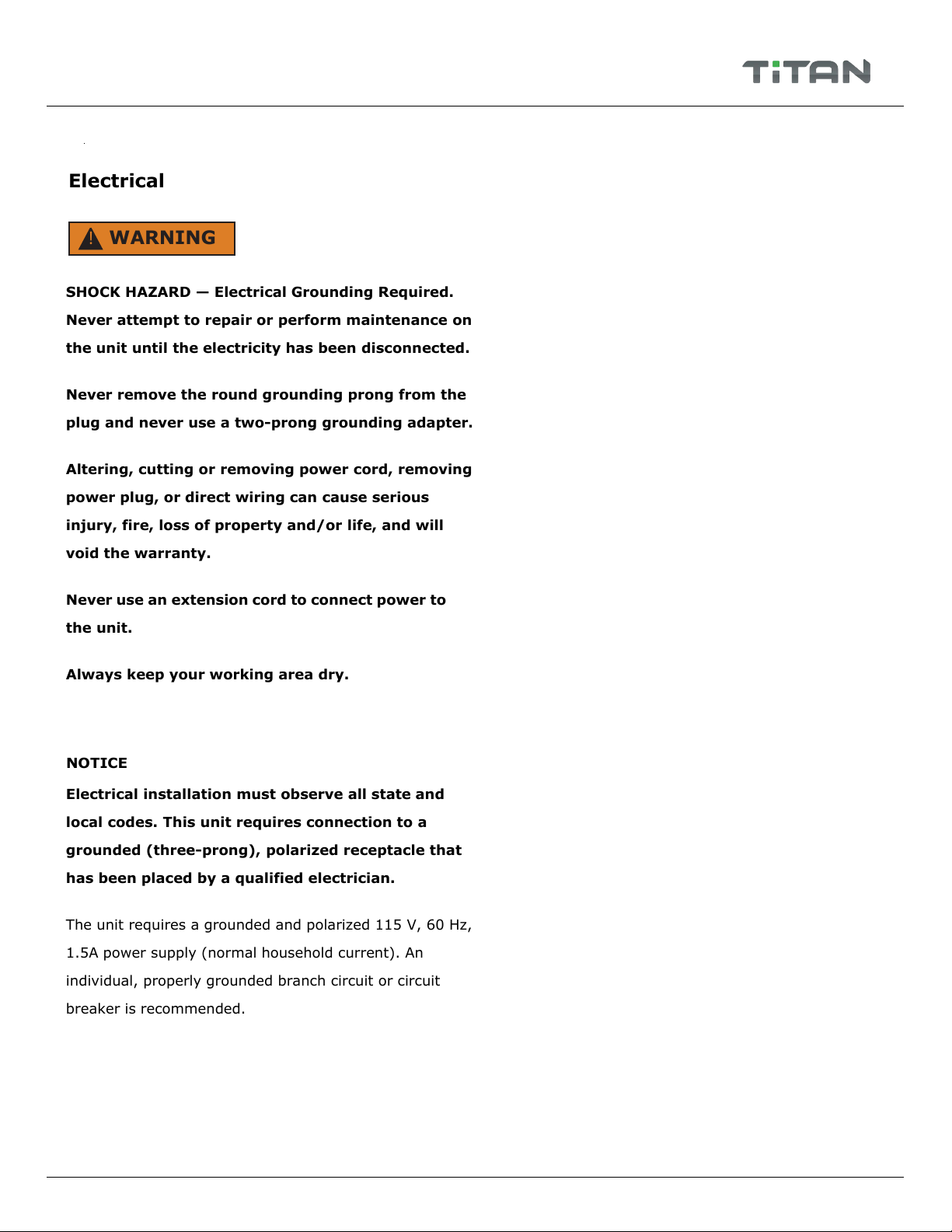

Electrical
!WARNING
SHOCK HAZARD — Electrical Grounding Required.
Never attempt to repair or perform maintenance on
the unit until the electricity has been disconnected.
Never remove the round grounding prong from the
plug and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing
power plug, or direct wiring can cause serious
injury, fire, loss of property and/or life, and will
void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle that
has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 V, 60 Hz,
1.5A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended.
USER GUIDE
www.titan-appliances.com
5

!CAUTION

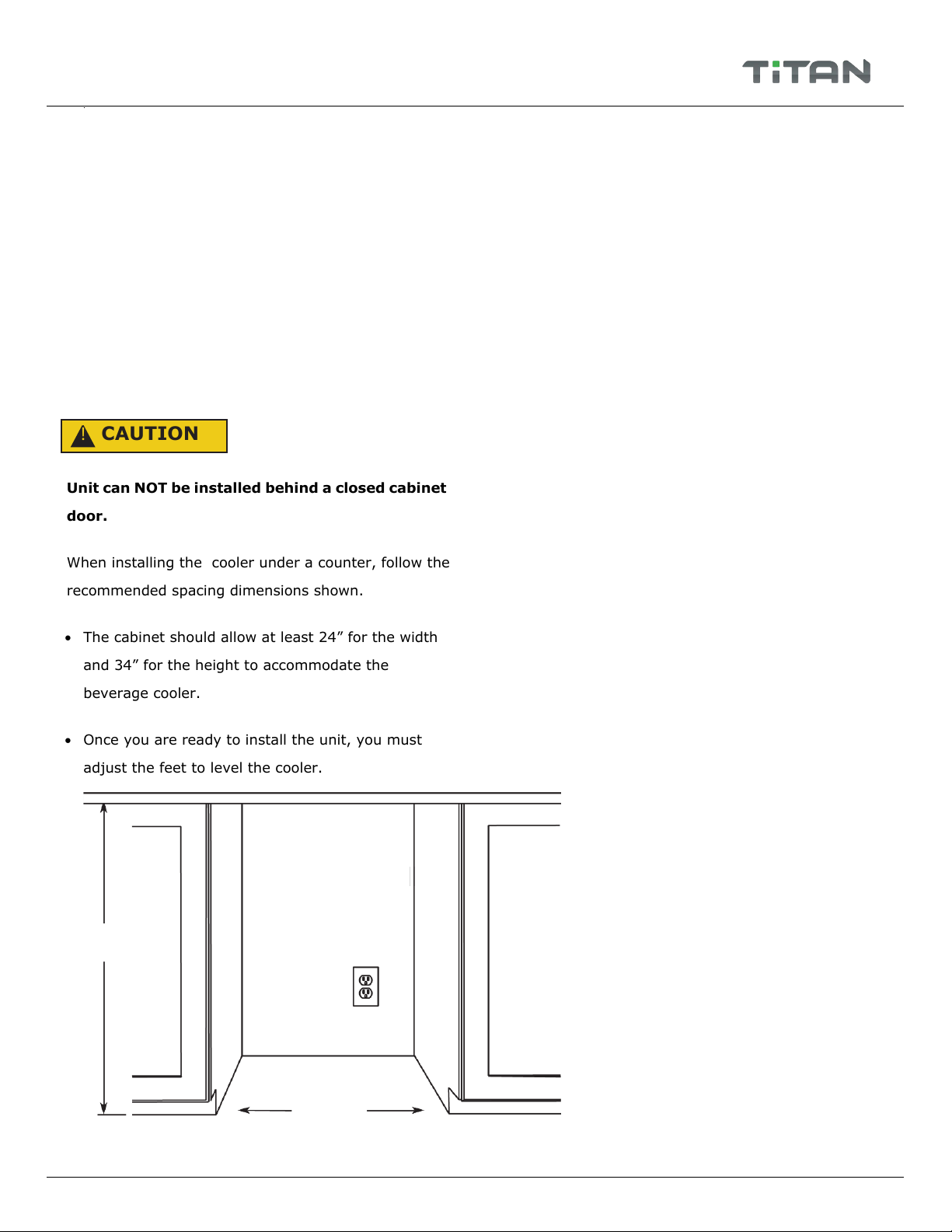

Unit can NOT be installed behind a closed cabinet
door.
When installing the cooler under a counter, follow the
recommended spacing dimensions shown.
•The cabinet should allow at least 24” for the width
and 34” for the height to accommodate the
beverage cooler.
•Once you are ready to install the unit, you must
adjust the feet to level the cooler.
Cutout Dimensions
PREPARE SITE
Your Titan product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
USER GUIDE
www.titan-appliances.com
6
34 Min"
24 Min"

⚫To ensure proper service access and ventilation, allow at least 2-3” of clearance at the back as shown in
the diagram.
⚫The installation should allow the unit to be pulled forward for servicing, if necessary.
⚫The power cable is located on the back right of the unit and has a length of 72” to accommodate multiple
outlet locations.
⚫An installation next to a wall will require a minimum 2-1/4" door clearance to accommodate the handle
Installation Clearance Requirements
When installing the cooler under a counter, follow the recommended spacing dimensions shown.
Units have a zero clearance for the door to open 90°, when installed adjacent to cabinets.
2 1/4 Min"
Top View
2-3"
Top View
Wall
Side View
1/5"
Back of Unit
Cabinet
Cabinet
USER GUIDE
www.titan-appliances.com
7

Product Dimensions
USER GUIDE
www.titan-appliances.com
8
33.86-34.84inch / 860-885mm
23.62inch / 600mm
23.82inch / 605mm

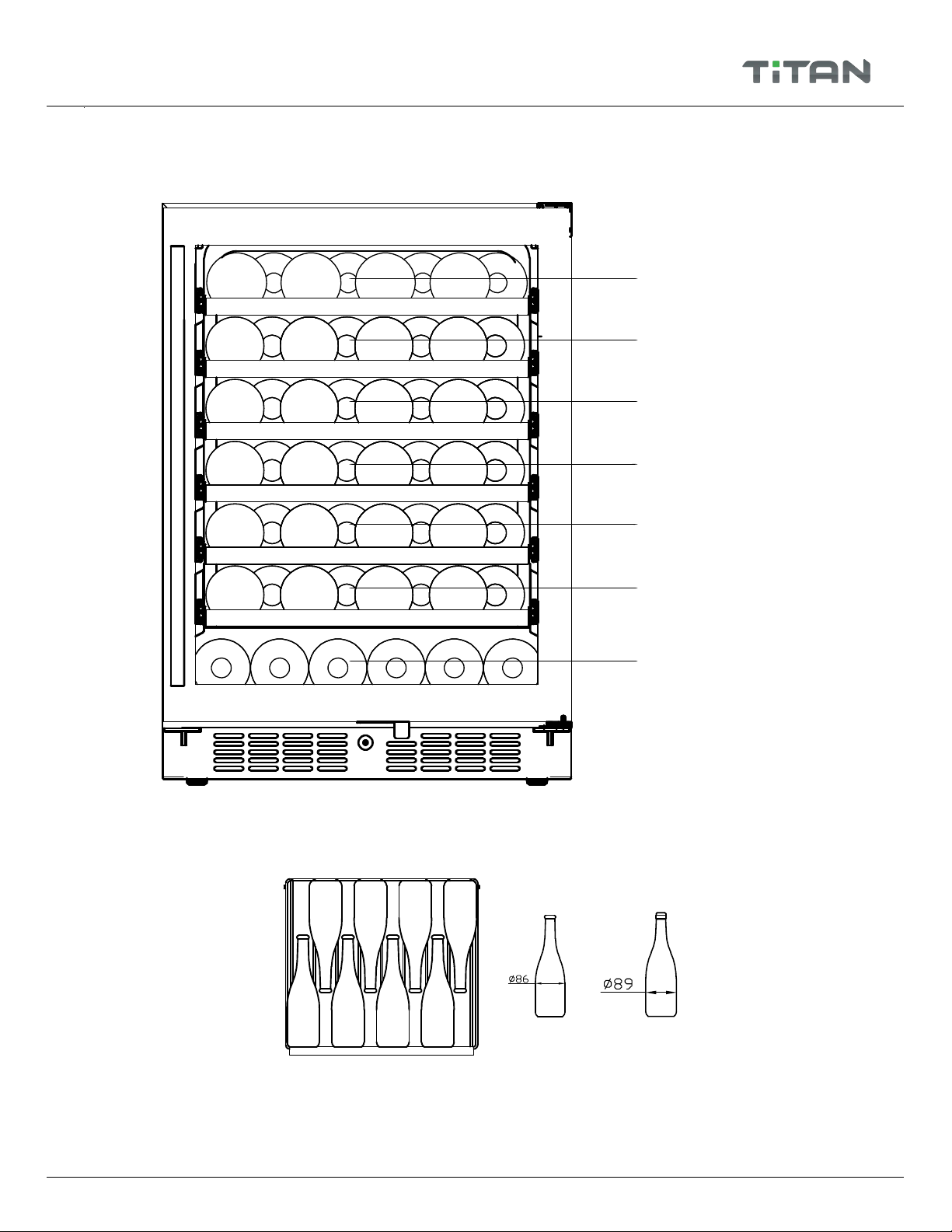

Storage Capacity
USER GUIDE
www.titan-appliances.com
9
Wine Shelf (6)
8 Bottles (φ89mm)
8 Bottles (φ86mm)
8 Bottles (φ86mm)
8 Bottles (φ86mm)
8 Bottles (φ86mm)
8 Bottles (φ86mm)
6 Bottles (φ86mm)
=
Total: 54 Bottles

Product Specification
DESCRIPTION OF PRODUCT
MODEL
VOLTAGE / FREQUENCY
AMPERAGE
COLOR
STORAGE CAPACITY
REFRIGERANT
TEMPERATURE RANGE
DIMENSIONS
W x H x D (in)
NET WEIGHT (lbs)
Note: Technical data and performance information are provided for reference only. Specifications are subject
to change. Check the rating label on the wine refrigerator for the most accurate information.
*The storage capacity is based on standard 750 ml. wine bottles.
USER GUIDE
www.titan-appliances.com
10
Single Zone Built-In Single Door Wine Cooler
TT-W2454SZ
AC 115 / 60 Hz
1.5 A
Black Cabinet with Stainless Steel Door
54 bottles
R600a
38° F to 72° F
23.82" X 33.86-34.84" X 23.62"
132

General Installation
Before installation, please check and ensure that:
1. The appliance should be installed in accordance with local electrical code requirements.
2. The appliance should be placed in a location that is strong enough to support its total weight –always assume
the weight when the appliance is fully loaded.
3. The appliance must be placed in its upright position for at least 24 hours before plugging in and powering on to
allow the compressor’s oil to settle.
Unpacking the Appliance
Before installation, please check and ensure that:
1. Always have two or more people to shift and install the unit to avoid back or other injuries.
2. Remove packaging materials carefully. Any shipping tape and glue from your appliance should be removed
before using.
3. Never use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners when removing the tape
or glue. These products can damage the surface of your appliance.
IMPORTANT:
Do not remove any safety, warning, or product information labels from your appliance.
Appliance Feet Adjustment
There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the
appliance is level. It is important that the appliance is level to minimize noise and vibration.
1. Move the appliance to the designated location.
2. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of
the chassis.
3. Slowly turn the leveling leg clockwise until the appliance is level.
USER GUIDE
www.titan-appliances.com
11

Types of Installation:
This appliance can be installed as a free standing or built-in unit. Keep in mind adequate ventilation and access
for service is a must.
1. For free-standing installation:
•Allows the installation of the appliance in almost any place you desire.
•Please follow the stated instructions for electrical requirements, and leveling of the appliance.
2. For built-in installation:
•Allows the installation of the appliance under a counter or in a kitchen cabinet. Please ensure to provide
the required clearance space around the appliance.
•Please make sure to allow adequate ventilation space around and in the back of the unit.
•Place the appliance in front of the installation location. Adjust the feet and place the unit flat on the floor
or on a platform depending on your installation requirements.
•If the electrical outlet for the appliance is behind the cabinet, plug in the appliance.
•Push the appliance into position.
•Do NOT install the unit behind a closed cabinet door.
Unit Installation Steps
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to entangle the cord.
3. Re-check the leveling, from front to back and side to side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/5"below the countertop.
4. Remove the interior packing material and wipe out the inside of the unit with a clean, water-dampened cloth.
5. To prevent damaging the door or door gasket, make sure the door is open at least 90-degrees when pulling
shelves out of the rail compartment.
6. The door opens to a maximum of 135 degrees with a door stop on the bottom hinge preventing the door from
opening further.
USER GUIDE
www.titan-appliances.com
12

Attentions:
Titan Products recommends allowing the unit to run overnight before loading with product. As warm
air rises, the temperature inside the unit tends
to be slightly warmer at the top and slightly
cooler at the bottom.
When plugged in, the unit will begin operating under the factory default settings. If the unit was
turned off during installation, simply press and the unit will immediately switch on. To turn the unit
off, press again.
Handle Installation
Open the door, carefully pull the door gasket around the area where the handle is to be installed, and remove
the two pre-installed decorative plugs from the front of the door. (Note: some models do not have decorative
plugs installed.)
Insert the Phillips head screws through the gasket side of the door and pass through the door.
Align the handle with the screws and hand-tighten use screwdriver until the handle is flush against the door
frame. (CAUTION: Do not over-tighten the screws as this may cause damage to the handle or to the stainless-
steel door.)
Carefully press the door gasket back into its original position.
!WARNING
Improper gasket installation will
result in condensation
USER GUIDE
www.titan-appliances.com
13

Wire Shelf Removal
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if applicable.
3. Line up the shelf notches with the rail posts as indicated below. This will require you to hold on to both
rails as you move the shelf to line up the posts with the notches on both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.
USER GUIDE
www.titan-appliances.com
14
Rail Posts
Notch
Rail
Rail

Operation Instruction
Check before operation
*Have you removed all packing materials and tape from the interior and exterior of the unit?
*Have you installed the unit properly by following the installation instructions?
*Has the unit been properly connected to the electrical outlet including proper grounding?
*Have you leveled the unit?
*Is the appliance properly located in an area where the ambient temperature is between 50°F and 95°F all
year round?
*Is the clearance of the unit at least 2 to 3 inches at the rear provided for proper air circulation?
Control Operation
FUNCTION COMMAND DISPLAY/OPTIONS
ON/OFF
Press and hold for 3 seconds Unit will immediately turn ON or OFF.
The interior light will cycle between three colors
Toggle between ℉/℃
Press and hold the Up and Down
buttons at the same time for 2
seconds and release
The temperature display will change between
℉ and ℃
Press and release
This wine cooler has a temperature range for both temperature zones from 38°F to 72°F (3°C to 22°C)
Energy Saving When this mode is turned on, the LED light and
display will be turned off .
Press to turn this mode ON/OFF
Down
Up Press and release
Press and release
Temperature will increase by 1 ℉ o r 1 ℃
Temperature will decrease by 1 ℉ o r 1 ℃
Interior Light
LED Display Displays the set temperature
Indicator Light Indicate that compressor is operating
USER GUIDE
www.titan-appliances.com
15

Power Button
Press and hold this button down for three seconds to power your unit on. Once pressed, the "Indicator Light"
will illuminate to indicate the unit is on and running. Press and hold this button for three seconds again and the
unit will power off and the "Indicator Light" will turn off.
Up Button
Press this button to increase the setting temperature by one (1) degree increments.
Lower Zone Temperature
Press this button to decrease the setting temperature by one (1) degree increments.
Interior Light
Press this button to cycle between three internal light colors.
This refrigerator is equipped with top internal lights, Deep Blue, Cloud White or Amber, illuminating the
interior to be seen through the glass door. You can choose to display each color of light in two
different modes: Display Mode and Automatic Mode.
*Display Mode
The internal lights will stay constantly illuminated whether the door is open or closed. Display Mode is a
custom/user-defined function, not a regular day to day function
*Automatic Mode
The internal lights will illuminate each time the door is opened and fade off once the door is closed. This feature
is triggered by a sensor located on the front vent. This sensor allows the refrigerator to recognize when the
door is open or closed.
*The default mode is Automatic Mode. To change between modes, press and hold the Interior Light button
for 3 seconds.
We run test every unit that we produce in our factory. Because of this, your model may default to any of the
above settings out of the box. Simply cycle through the progression of settings until you reach your desired
setting.
Tip: Close the door to determine if the light is currently in Display Mode or Automatic Mode. In Display Mode
the lights will remain on, and in Automatic Mode the lights will fade off once the door is closed.
USER GUIDE
www.titan-appliances.com
16

Sabbath Mode
Sabbath mode disables system responses to user-initiated activities and all external functions, including
lighting, display and audible alarms. The unit will maintain internal temperatures and set points.
. The interior light and control display To enable or disable Sabbath mode, Press the Energy Saving button
will go dark until the user disables Sabbath mode.
Although the display will not be visible, the temperature settings will remain active and preserve the internal
temperature. Sabbath mode will remain active until it is disabled by the user.
Temperature Memory
This appliance has a temperature memory function. The temperature setting is automatically saved. In case
of a power outage, the temperature setting will remain when power resumes.
Temperature Alarm
When the unit’s interior temperature is higher than 81°F (27°C), “HI” will display on the panel and a
buzzing alarm sound will go off. When the interior temperature is lower than 28°F (-2°C), “LO” will display
on the panel, the alarm and the malfunction indicator light will go off at the same time. In either case,
immediate attention is advised.
Door Alarm
This unit is equipped with an audible alarm to alert you when the door has been left open.
If at any time the door has been left open for more than 3 minutes, the alarm will sound and will continue to
sound until the door is closed completely or the unit is powered off.
USER GUIDE
www.titan-appliances.com
17
