Land Pride SB10 Series User manual

Table of Contents

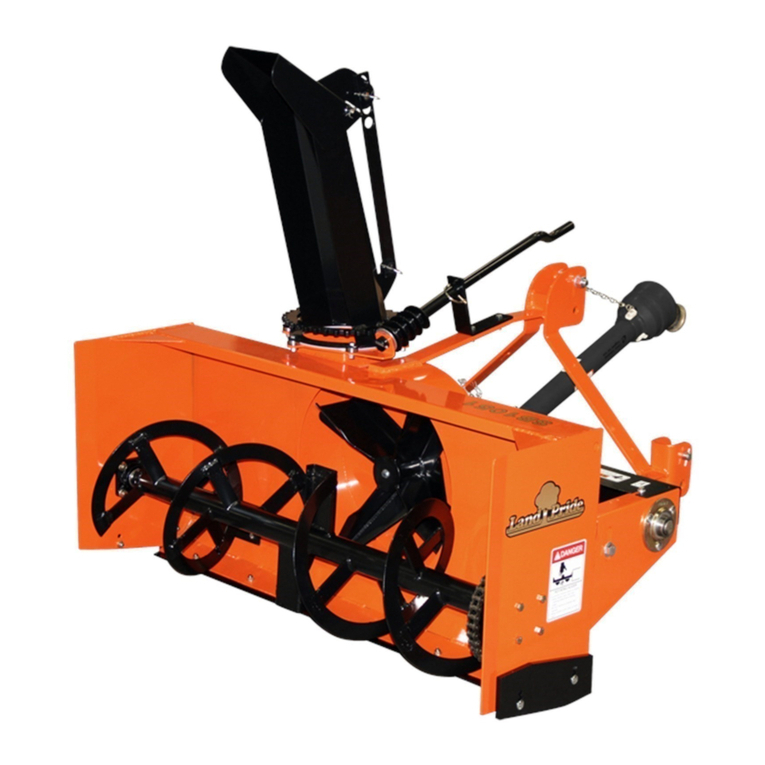

Cover illustration may show optional
equipment not supplied with standard unit.
Read the Operator’s Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
!
Printed
SB1051, SB1064, SB1574, & SB2584 with S/N 881640-
Snow Blowers
Operator’s Manual
2/11/21
370-027M
33234 SB10 Series Shown with Optional Hydraulic Chute Rotor and Hydraulic Chute Tilt

Table of Contents
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
© Copyright 2014 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this
product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Section 1: Standard Assembly & Set-up . . . . 8
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . 8
Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . 8
Dealer Set-up Instructions . . . . . . . . . . . . . . . . . . . . 8
Loading & Unloading . . . . . . . . . . . . . . . . . . . . . . 8
Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Section 2: Optional Assembly & Set-up . . . . . 9
Chute Rotation, Manual . . . . . . . . . . . . . . . . . . . . . . 9
Chute Rotation, Electric Motor . . . . . . . . . . . . . . . . 10
Chute Rotation, Hydraulic Motor . . . . . . . . . . . . . . 11
Chute Tilt, Manual . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chute Tilt, Electric Actuated . . . . . . . . . . . . . . . . . 12
Chute Tilt, Hydraulic Cylinder . . . . . . . . . . . . . . . . 12
Wear Bar, Lower . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Skid Shoes, Outer . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wear Bars, Outer . . . . . . . . . . . . . . . . . . . . . . . . . 13
Skid Shoes, Inner . . . . . . . . . . . . . . . . . . . . . . . . . 13
Section 3: Tractor Hook-up & Unhook . . . . . 14
Snow Blower Hook-up . . . . . . . . . . . . . . . . . . . . . . 14
Leveling The Snow Blower . . . . . . . . . . . . . . . . . . 14
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 15
Check Driveline Collapsible Length . . . . . . . . . . 15
Shorten Driveline . . . . . . . . . . . . . . . . . . . . . . . . 15
Check Driveline Maximum Length . . . . . . . . . . . 16
Check Driveline Interference . . . . . . . . . . . . . . . 16
Hydraulic Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . 17
Hydraulic Motor . . . . . . . . . . . . . . . . . . . . . . . . . 17
Hydraulic Cylinder . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . 17
Unhooking Snow Blower . . . . . . . . . . . . . . . . . . . . 18
Section 4: Adjustments . . . . . . . . . . . . . . . . . 19
Hitch Pin Locations . . . . . . . . . . . . . . . . . . . . . . . . 19
Standard 3-Point & Quick-Hitch Hook-up . . . . . . 19
Special 3-Point Hook-up . . . . . . . . . . . . . . . . . . . 19
Special Quick-Hitch Hook-up . . . . . . . . . . . . . . . 19
Chute Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Rotation . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electric Motor Rotation . . . . . . . . . . . . . . . . . . . . 20
Hydraulic Motor Rotation . . . . . . . . . . . . . . . . . . 20
Discharge Chute Tilting . . . . . . . . . . . . . . . . . . . . . 20
Manual Tilting . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electric Actuator Tilting . . . . . . . . . . . . . . . . . . . . 20
Hydraulic cylinder Tilting . . . . . . . . . . . . . . . . . . . 20
Inner Skid Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outer Skid Shoes . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outer Wear Bars . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Roller Chain Take-up . . . . . . . . . . . . . . . . . . . . . . . 22
Section 5: Operating Instructions . . . . . . . . . 23
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . 23
Inspection Procedures . . . . . . . . . . . . . . . . . . . . . . 23
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 24
General Operator Instructions . . . . . . . . . . . . . . . . 26
Section 6: Maintenance & Lubrication . . . . . 28
General Maintenance Information . . . . . . . . . . . . . 28
Tractor Maintenance . . . . . . . . . . . . . . . . . . . . . . . 28
Auger & Impeller Inspection . . . . . . . . . . . . . . . . . . 28
Shearbolt Protection . . . . . . . . . . . . . . . . . . . . . . . 29
Drive Shaft Shearbolt . . . . . . . . . . . . . . . . . . . . . 29
Driveline Shearbolt . . . . . . . . . . . . . . . . . . . . . . . 29
Chute Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Drive Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Inner Skid Shoes (Optional) . . . . . . . . . . . . . . . . . . 30
Outer Skid Shoes (Optional) . . . . . . . . . . . . . . . . . 31
Outer Wear Bars (Optional) . . . . . . . . . . . . . . . . . . 31
Lower Wear Bar (Optional) . . . . . . . . . . . . . . . . . . 32
Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 32
Ordering Replacement Parts . . . . . . . . . . . . . . . . . 32
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Shearbolt Sprocket Hub . . . . . . . . . . . . . . . . . . . 33
Auger Flange Bearings . . . . . . . . . . . . . . . . . . . . 33
Drive Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Driveline U-joints . . . . . . . . . . . . . . . . . . . . . . . . 34
Driveline Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Section 7: Specifications & Capacities . . . . . 35
Section 8: Features & Benefits . . . . . . . . . . . 37
Section 9: Torque Values Chart . . . . . . . . . . 38
Section 10: Warranty . . . . . . . . . . . . . . . . . . . 39

1
Important Safety Information
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Important Safety Information
s
These are common practices that may or may not be applicable to the products described in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read all
instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
sThe operator must not use drugs
or alcohol as they can change the
alertness or coordination of that
person while operating equipment.
The operator should, if taking
over-the-counter drugs, seek
medical advice on whether he/she
can safely operate the equipment.
sOperator should be familiar with all
functions of the unit.
sOperate controls from the driver’s
seat only. Never operate controls
from the ground.
sMake sure all guards and shields
are in place and secured before
operating implement.
sKeep all bystanders away from
equipment and work area.
sDo not leave tractor or implement
unattended with engine running.
sDismounting from a moving tractor
can cause serious injury or death.
sDo not allow anyone to stand
between tractor and implement
while backing up to implement.
sKeep hands, feet, and clothing
away from power-driven parts.
sWatch out for fences, trees, rocks,
wires, etc., while operating and
transporting implement.
sTurning tractor too tight may cause
hitched machinery to ride up on
wheels. This could result in injury
or equipment damage.
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert, and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control, and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of personnel involved in the operation,
transport, maintenance, and storage of equipment.
SB10 Series SB25 SeriesSB15 Series
Manual QR Locator
The QR (Quick Reference) codes below will take you to the Parts Manual for this
equipment. Download the appropriate App on your camera phone, open the
App, point your phone on the QR code, and take a picture.
Dealer QR Locator
The QR code below will link you
to available dealers for Land
Pride products.
!
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be guarded.
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
!WARNING
!CAUTION
!DANGER
For Your Protection
sThoroughly read and understand
the “Safety Label” section, read
all instructions noted on them.
OFF
REMOVE
Tractor Shutdown & Storage
sIf engaged, disengage PTO.
sLower attached implement to
ground, put tractor in park or set
park brake, turn off engine, and
remove switch key to prevent
unauthorized starting.
sWait for all components to come to
a complete stop before leaving the
operator’s seat.
sDetach and store implement in an
area where children normally do
not play. Secure implement
using blocks
and supports.

2
Important Safety Information
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Use Safety
Lights and Devices
sSlow moving tractors,
self-propelled equipment, and
towed implements can create a
hazard when driven on public
roads. They are difficult to see,
especially at night.
sFlashing warning lights and turn
signals are recommended
whenever driving on public roads.
Use A Safety Chain
sA safety chain will help control
drawn machinery should it
separate from the tractor drawbar.
sUse a chain with the strength
rating equal to or greater than the
gross weight of the towed
machinery.
sAttach the chain to the tractor
drawbar support or other specified
anchor location. Allow only
enough slack in the chain to
permit turning.
sDo not use safety chain for towing.
sMaximum transport speed for an
attached implement is 20 mph. DO
NOT EXCEED. Never travel at a
speed which does not allow
adequate control of steering and
stopping. Some rough terrains
require a slower speed.
sAs a guideline, use the following
maximum speed weight ratios for
an attached implement:
20 mph when weight of attached
implement is less than or equal to
the weight of machine towing the
implement.
10 mph when weight of attached
implement exceeds weight of
machine towing implement but
not more than double the weight.
sIMPORTANT: Do not tow a load
that is more than double the weight
of the machine towing the load.
Transport
Machinery Safely
sComply with state and local laws.
sUse towing vehicle and trailer of
adequate size and capacity.
sSecure equipment towed on a
trailer with tie downs and chains.
sSudden braking can cause a trailer
to swerve and upset. Reduce
speed if trailer is not equipped with
brakes.
sAvoid contact with any over head
utility lines or electrically charged
conductors.
sEngage parking brake when
stopped on an incline.
Practice Safe Maintenance
sUnderstand procedure before doing
work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
sWork in a clean dry area.
sLower attached implement to the
ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.
sAllow implement to cool completely
before working on it.
sDisconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before
welding on implement.
sDo not grease or oil implement
while it is in operation.
sInspect all parts. Make certain parts
are in good condition & installed
properly.
sRemove buildup of grease, oil, or
debris.
sRemove all tools and unused parts
from implement before operation.
These are common practices that may or may not be applicable to the products described in
this manual.

3
Important Safety Information
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
These are common practices that may or may not be applicable to the products described in
this manual.
Handle
Chemicals Properly
sProtective clothing should be
worn.
sHandle all chemicals with care.
sFollow instructions on container
label.
sAgricultural chemicals can be
dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.
sInhaling smoke from any type of
chemical fire is a serious health
hazard.
sStore or dispose of unused
chemicals as specified by the
chemical manufacturer.
Prepare for Emergencies
sBe prepared if a fire starts.
sKeep a first aid kit and fire
extinguisher handy.
sKeep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Wear
Protective Equipment
sWear protective clothing and
equipment appropriate for the job.
Clothing should be snug fitting
without fringes and pull strings to
avoid entanglement with moving
parts.
sProlonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
sOperating equipment safely
requires the operator’s full
attention. Avoid wearing radio
headphones while operating
machinery.
Keep Riders Off
Machinery
sNever carry riders or use
machinery as a personlift.
sRiders obstruct operator’s view.
sRiders could be struck by foreign
objects or thrown from the
machine.
sNever allow children to operate
equipment.
Avoid High
Pressure Fluids Hazard
sEscaping fluid under pressure can
penetrate the skin causing serious
injury.
sAvoid the hazard by relieving
pressure before disconnecting
hydraulic lines or performing work
on the system.
sMake sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
sUse a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
sWear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
sDO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately. Any
fluid injected into the skin or eyes
must be treated within
a few hours or
gangrene may
result.
Tire Safety
sTire changing can be dangerous
and should be preformed by
trained personnel using the
correct tools and equipment.
sWhen inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
sWhen removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.

4
Important Safety Information
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Safety Labels
Your Snow Blower comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Land Pride dealer. To find your nearest dealer,
visit our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of a credit card
or with a similar type straight edge.
33247
33247
33249
818-798C
Warning: Pinch Point Hazard
818-205C
Warning: Moving Parts Hazard
818-522C
Danger: Moving Parts Hazard
818-205C Rev. B
To prevent serious injury or death from
moving parts:
Do not operate with guard missing
Close & secure drive guard before starting
MOVING PARTS HAZARD
WARNING

5
Important Safety Information
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
818-130C
Caution: To avoid Injury or Machine Damage
33248
33248
33247
33248
818-858C
Warning: To Prevent Serious Injury or Death
818-634C
Danger: Rotating Auger

6
Important Safety Information
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
858-148C
Warning: Pinch Point Hazard
848-747C
Warning: High Pressure Fluid Hazard
Used only with hydraulic motor and hydraulic cylinders.
818-132C
Danger: Thrown Object Hazard
33248
33248
35476
Hydraulic Cylinder
Location
Hydraulic Motor
Location
33234
848-840C
Danger: Hands in Chute
2-Places: On both sides
of chute
Available after
Oct. 1, 2011

7
Introduction
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Pride dealer has trained personnel, repair parts, and
equipment needed to service the implement.
Serial Number
Model No. _____________Serial No.
_______________
For quick reference and prompt service, record model
number and serial number in the spaces provided above
and again on Warranty page 39. Always provide model
and serial number when ordering parts and in all
correspondences with your Land Pride dealer. Refer to
Figure 1 for location of your serial number plate.
Serial Number Plate Location
Figure 1
Further Assistance
Your dealer wants you to be satisfied with your new Snow
Blower. If for any reason you do not understand any part
of this manual or are not satisfied with the service
received, the following actions are suggested:
1. Discuss the matter with your dealership service
manager making sure that person is aware of any
problems you may have and has had the opportunity
to assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem, and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
[email protected]
76159
Introduction
Land Pride welcomes you to the growing family of new
product owners.
This Snow Blower has been designed with care and built
by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices
will help you get years of satisfactory use from this
machine.
Application
Land Pride offers the SB10, SB15, and SB25 Series of
Snow Blowers ranging from 51" up to 84" in width. They
are 3-point rear mounted units for attaching to tractors
ranging from 30 to 105 HP with Cat. l or Cat. ll hitches
and are Quick-Hitch adaptable. These Snow Blowers are
primarily designed to remove snow from driveways,
parking lots, and sidewalks. Optional front cutting edge
and inner or outer depth shoes can be purchased with all
models to increase the life of the units.
See “Specifications & Capacities” on page 35 and
“Features & Benefits” on page 37 for additional
information and performance enhancing options.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual, contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge, from our website at
www.landpride.com.
Terminology
See Figure 1: “Right” or “Left” as used in this manual is
determined by facing in the direction the machine will
operate while in use unless otherwise stated.
Definitions
Owner Assistance
The Online Warranty Registration should be completed
by the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
The parts on your Snow Blower have been specially
designed by Land Pride and should only be replaced with
genuine Land Pride parts. Contact a Land Pride dealer if
customer service or repair parts are required. Your Land
IMPORTANT: A special point of information related
to the following topic. Land Pride’s intention is this
information must be read & noted before continuing.
NOTE: A special point of information that the
operator should be aware of before continuing.

8
Section 1: Standard Assembly & Set-up
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Section 1: Standard Assembly & Set-up
Tractor Requirements
Tractor horsepower and hitch category should be within
the range noted below. Tractors outside the horsepower
range must not be used.
Tractor Horsepower Rating
SB10 Series . . . . . . . . . . . . . . . . . . . . .18 to 32 HP
SB15 Series . . . . . . . . . . . . . . . . . . . . . . .30-59 HP
SB25 Series . . . . . . . . . . . . . . . . . . . . . .43-105 HP
Hitch Type:
SB10 Series . . . . . . . . . . . . . . . . . . . .3-Point Cat. I
SB15 Series . . . . . . . . . . . . . . . . . . . .3-Point Cat. I
SB25 Series . . . . . . . . . . . . . . . . .3-Point Cat. I & ll
PTO Speed . . . . . . . . . . . . . . . . . . . . . . . . .540 RPM
Hydraulic Quick Disconnect Outlets (Optional)
Chute Rotational Adjustment . . . . . . . Duplex Outlet
Chute Tilt Adjustment . . . . . . . . . . . . Duplex Outlet
Tractor Weight . . . . . . . . . . . . . . .See Warning Below
!WARNING
Ballast weights may be required to maintain steering control.
Refer to your tractor’s operator’s manual to determine proper
ballast requirements.
Torque Requirements
Refer to “Torque Values Chart” on page 38 to
determine correct torque values for common bolts. See
“Additional Torque Values” at bottom of chart for
exceptions to standard torque values.
Dealer Set-up Instructions
When included, it is simpler to assemble the optional
outer skid shoes or outer wear bars before removing the
shipping crate. See “Skid Shoes, Outer” or “Wear Bars,
Outer” on page 13 for detailed installation instructions.
Loading & Unloading
Refer to Figure 1-1:
There are two lifting holes (one on each end panel).
These lift holes are provided for attaching a lift chain to
the Snow Blower during loading and unloading.
Lift Points
Figure 1-1
33248
Chute Assembly
Refer to Figure 1-2:
1. Remove bearing strap (#2A) from Snow Blower
housing. Keep cap screws (#3), bearing strap (#2A),
chute bearings (#7), lock washers (#5), and hex
nuts (#4) for reattachment of discharge chute (#1).
2. Position discharge chute (#1) so that it is facing
straight back as shown.
3. Keep chute facing straight back. Slide base of
discharge chute (#1) over UHMW chute bearing
ring (#6) until base of chute is fully under the other
two remaining bearing straps (#2B & 2C).
4. Reattach bearing strap (#2A) to Snow Blower
housing by inserting existing 3/8"-16 x 1 1/2" cap
screws (#3) through bearing strap (#2A), chute
bearings (#7), and Snow Blower housing flange.
5. Secure bearing strap with existing lock washers (#5)
and hex nuts (#4). Tighten nuts to the correct torque.
Chute Assembly
Figure 1-2
33255

9
Section 2: Optional Assembly & Set-up
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Section 2: Optional Assembly & Set-up
SB1064, SB1574, & SB2584
Chute Rotation Powered By Manual Drive
Figure 2-2
Chute Rotation, Manual
For SB1064, SB1574, & SB2584 Models
The following instructions are for Snow Blower model
numbers SB1064, SB1574, and SB2584 only.
Refer to Figure 2-2:
1. Slide 1 1/4" SAE flat washer (#7) onto spiral end of
chute adjustment tube (#2).
2. Insert spiral end of chute adjustment tube (#2)
through hole in mounting bracket (#1) as shown.
3. Insert opposite end of chute adjustment tube (#2)
into hole in chute adjustment mount (#3).
4. Attach adjustment mount (#3) to Snow Blower
mainframe as shown with two 3/8"-16 x 1 1/4" GR5
cap screws (#5) and hex flange lock nuts (#6).
Tighten lock nut to the correct torque.
5. Drive 1/4" x 1 1/2" roll pin (#9) through holes in spiral
end of chute adjustment tube (#2) until both ends of
the roll pin extends equally through both holes in
adjustment tube.
6. Insert rotation handle (#4) into chute adjustment
tube (#2) and secure with wire retaining pin (#8).
Make certain retaining wire is caught over end of pin
to keep pin from falling out.
33237
SB1051 Chute Rotation Powered By Manual Drive
Figure 2-1
Chute Rotation, Manual
For SB1051 Model
The following instructions are for Snow Blower model
number SB1051 only.
Refer to Figure 2-1:
1. Slide 1 1/4" SAE flat washer (#7) onto spiral end of
chute adjustment tube (#2).
2. Insert spiral end of chute adjustment tube (#2)
through hole in mounting bracket (#1) as shown.
3. Insert opposite end of chute adjustment tube (#2)
into hole in chute adjustment mount (#3).
4. Attach adjustment mount (#3) to Snow Blower
mainframe as shown with two 3/8"-16 x 1 1/4" GR5
cap screws (#5) and hex flange lock nuts (#6).
Tighten lock nut to the correct torque.
5. Drive 1/4" x 1 1/2" roll pin (#9) through holes in spiral
end of chute adjustment tube (#2) until both ends of
the roll pin extends equally through both holes in
adjustment tube.
6. Insert rotation handle (#4) into chute adjustment
tube (#2) and secure with wire retaining pin (#8).
Make certain retaining wire is caught over end of pin
to keep pin from falling out.
33238

10
Section 2: Optional Assembly & Set-up
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Chute Rotation, Electric Motor
Refer to Figure 2-3:
1. Rotate discharge chute clockwise until chute is
against chute stop and can not be rotated further.
2. Remove and discard bolts (#9) and bearing
strap (#2).
3. Press Oilite bushing (#20) into hole in electric
bearing mount (#7).
4. Insert electric bearing mount (#7) over output shaft of
electric motor (#21).
5. Insert base of electric motor (#21) into hub of electric
motor mount (#5). Make sure bearing mount (#7) is
beneath motor mount (#5).
6. Secure base of electric motor (#21) to hub of electric
motor mount (#5) with 1/2"-13 x 2" GR5 bolt (#12)
and hex lock nut (#14). Tighten lock nut to the correct
torque.
7. Attach electric motor mount (#5) and electric bearing
mount (#7) to underside of blower chute ring (#1)
with new 3/8"-16 x 1 3/4" GR5 bolts (#10), new
NOTE: Existing bearing strap (#2) is replaced with
new bearing strap (#8) and bolts (#9) are replaced
with new bolts (#10).
bearing strap (#8), chute bearings (#18), lock washers
(#16), and nuts (#13). Do not tighten nuts at this time.
8. Attach drive gear (#4) to electric motor (#21) with
1/8" x 1 1/4" long roll pin (#17). Drive roll pin fully into
hub of drive gear (#4).
9. Adjust electric motor mount (#5) and electric bearing
mount (#7) until drive sprocket (#4) has minimal
clearance between drive sprocket (#4) and chute
driven sprocket (#3).
10. Hold electric motor mount (#5) and electric bearing
mount (#7) in the adjusted position and tighten
3/8"-16 GR5 bolts (#10) to the correct torque.
11. Attach gear cover (#6) to electric bearing mount (#7)
with 1/4"-20 x 5/8" GR5 bolts (#11) and hex nylock
nuts (#15). Tighten nylock nuts to the correct torque.
12. Attach pinch point picture decal (#22) to gear
cover (#6). See “Safety Labels” on page 4 for
installation instructions.
13. Attach electric harness (#19) to electric motor (#21).
14. Coil wire harness around Snow Blower mainframe
for safe keeping.
15. Instructions for hooking-up wire harness to tractor is
covered in “Section 3: Tractor Hook-up & Unhook”
beginning on page 14.
Chute Rotation Powered By Electric Motor
Figure 2-3
33235

11
Section 2: Optional Assembly & Set-up
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Chute Rotation, Hydraulic Motor
Refer to Figure 2-4:
1. Rotate discharge chute clockwise until chute is
against chute stop and can not be rotated further.
2. Remove bolts (#9), bearing strap (#2), chute
bearings (#22), lock washers (#18), and nuts (#14).
3. Attach hydraulic mounting plate (#8) as follows:
SB1051 & SB1064 Models
Attach mounting plate (#8) stamped 51/64 to blower
chute ring (#1) with bolts (#9), existing strap (#2),
chute bearings (#22), lock washers (#18), and hex
nuts (#14). Do not tighten nuts at this time.
SB1574 Model
Attach mounting plate (#8) stamped 74 to blower
chute ring (#1) with bolts (#9), new strap (#7), chute
bearings (#22), lock washers (#18), and hex
nuts (#14). Do not tighten nuts at this time.
SB2584 Model
Attach mounting plate stamped 84 (#8) to blower
chute ring (#1) with bolts (#9), new strap (#7), chute
bearings (#22), lock washers (#18), and hex
nuts (#14). Do not tighten nuts at this time.
4. Continue to attach hydraulic mounting plate (#8) to
the Snow Blower with 3/8"-16 x 3/4" GR5 carriage
bolts (#11) and hex flange lock nuts (#15). Do not
tighten lock nut at this time.
5. Attach hydraulic motor (#19) to hydraulic mounting
plate (#8) with hex socket countersunk bolts (#12).
Tighten countersunk bolts.
6. Install gear spacer (#5) over output shaft of hydraulic
motor (#19).
7. Attach drive gear (#4) and key (#25) to output shaft of
hydraulic motor (#19) with M6 x 1 x 35 GR8.8
bolt (#13) and spring lock washer (#17). Tighten
M6 bolt to the correct torque.
8. Adjust hydraulic mounting plate (#8) until drive
sprocket (#4) has minimal clearance between drive
sprocket (#4) and chute driven sprocket (#3).
9. Hold hydraulic mounting plate (#8) in its adjusted
position and tighten 3/8"-16 GR5 bolts (#9 & #11) to
the correct torque.
IMPORTANT: Adjustment screws on hydraulic
motor are preset at the factory. Do not change
factory settings. Changing factory settings can
cause structural damage to the Snow Blower.
NOTE: Existing bearing strap (#2) is reused with
SB10 Series Snow Blowers. The SB15 and SB25
Series Snow Blowers uses new bearing strap (#7).
Chute Rotation Powered By Hydraulic Motor
Figure 2-4
10. Install gear cover (#6) as follows:
SB1051 & SB1064 Models
Attach gear cover (#6) stamped 370-534D to
hydraulic mounting plate (#8) with 1/4"-20 x 5/8"
GR5 bolts (#10) and hex nylock nuts (#16). Tighten
nylock nuts to the correct torque.
SB1574 & SB2584 Models
Attach gear cover (#6) stamped 370-613D to
hydraulic mounting plate (#8) with 1/4"-20 x 5/8"
GR5 bolts (#10) and hex nylock nuts (#16). Tighten
nylock nuts to the correct torque.
11. Screw 9/16" MORB x 9/16" MJIC adapters (#20) to
ports in hydraulic motor (#19) until tight.
12. Screw 3/8" x 60" long hydraulic hoses (#23) to
adapters (#20) until tight.
13. Screw quick disconnect couplings (#21) (couplings
furnished by customer) to other end of hydraulic
hoses (#23) until tight.
14. Attach High Pressure Fluid Decal 848-747C (#24) in
the location shown. See “Safety Labels” on page 4
for installation instructions.
15. Coil Hydraulic hoses (#23) around Snow Blower
mainframe for safe keeping.
35477

12
Section 2: Optional Assembly & Set-up
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Chute Tilt Powered By Manual Drive
Figure 2-5
Chute Tilt, Manual
Refer to Figure 2-5:
1. Attach lower single hole in adjustment tilt arm (#1) to
lower chute lug with adjustment pin (#2). Secure
adjust pin with hairpin cotter (#3).
2. Attach one of the multiple upper holes to the upper tilt
chute lug with adjustment pin (#2). Secure
adjustment pin with hairpin cotter (#3).
Chute Tilt, Electric Actuated
Refer to Figure 2-6:
1. Attach actuator rod ends (#1A & #1B) to both ends of
actuator (#7) with 1/2"-13 x 1 3/4" GR5 cap
screws (#3) and hex flange lock nuts (#4). Tighten
lock nuts to the correct torque.
2. Attach lower rod end (#1A) to lower chute lug with
adjustment pin (#2). Secure adjust pin with hairpin
cotter (#5).
3. Attach upper rod end (#1B) to tilt chute lug with
adjustment pin (#2). Secure adjust pin with hairpin
cotter (#5).
Chute Tilt, Hydraulic Cylinder
Refer to Figure 2-7:
1. Screw O-ring end of 9/16" elbows (#4A & #4B) into
hydraulic ports of cylinder (#3). Do not tighten
elbows at this time.
2. Screw 1/4" x 80" long hydraulic hose (#5) to
elbow (#4A) until tight.
3. Screw 1/4" x 85" long hydraulic hose (#6) to
elbow (#4B) until tight.
4. Attach base end of hydraulic cylinder (#3) to lower
chute lug with 1" x 2 3/4" clevis pin (#1). Secure
clevis pin with hairpin cotter (#2).
33245
Chute Tilt Powered By Electric Actuator
Figure 2-6
Chute Tilt Powered By Hydraulic Cylinder
Figure 2-7
5. Attach rod end of hydraulic cylinder (#3) to tilt chute
lug with 1" x 2 3/4" clevis pin (#1). Secure clevis pin
with hairpin cotter (#2).
6. Tighten elbows (#4A & #4B) to hydraulic
cylinder (#3) until tight.
7. Screw quick disconnect couplings (couplings
furnished by customer) to hydraulic hoses (#5 & #6)
until tight.
8. Attach High Pressure Fluid Decal 848-747C (#7) in
the location shown. See “Safety Labels” on page 4
for installation instructions.
33243
33244

13
Section 2: Optional Assembly & Set-up
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Wear Bar, Lower
Refer to Figure 2-8:
1. Attach wear bar (#1) to bottom of Snow Blower frame
with 3/8"-16 x 1" GR5 plow bolt (#2) and hex flange
lock nut (#3).
2. Tighten lock nut to the correct torque.
Lower Wear Bar Assembly
Figure 2-8
Skid Shoes, Outer
Refer to Figure 2-9:
1. Attach right-hand skid shoe (#1) to upper hole “A”
with 3/8"-16 x 1" GR5 carriage bolt (#2A) and hex
flange lock nut (#3).
2. Attach right-hand skid shoe (#1) to hole “B” or “C”
with 3/8"-16 x 1" GR5 carriage bolt (#2B) and hex
flange lock nut (#3).
3. Tighten lock nuts to the correct torque.
4. Repeat steps 1 and 3 above for the left-hand skid
shoe.
Outer Skid Shoe Assembly
Figure 2-9
33240
33241
Wear Bars, Outer
Refer to Figure 2-10:
1. Attach adjustable wear bars (#1) to either the upper
or to the lower holes in the side panels with
3/8"-16 x 1 1/4" GR5 carriage bolt (#2) and hex
flange lock nut (#3).
2. Tighten lock nuts to the correct torque.
Outer Wear Bar Assembly
Figure 2-10
Skid Shoes, Inner
Refer to Figure 2-11:
1. Attach skid shoe mounts (#3) to both sides of Snow
Blower frame with backing plates (#4),
3/8"-16 x 1" GR5 cap screws (#5), and hex flange
lock nuts (#6). Tighten lock nuts to the correct torque.
2. Insert skid shoes (#1) into skid shoe mounts (#3).
3. Install 1" spacer (#10), 1/2" spacer (#9), and four flat
washers (#7) over shaft of each skid shoe.
4. Secure skid shoes (#1) with 1/4" x 1 3/4" wire
retaining pins (#8).
5. Make certain wire retainers are caught over end of
pins to keep skid shoes from falling out.
Inner Skid Shoe Assembly
Figure 2-11
33242
33239

14
Section 3: Tractor Hook-up & Unhook
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Snow Blower Hook-up
Refer to Figure 3-1:
!DANGER
Tractor hook-up to equipment is dangerous and can result in
serious injury or death. Do not allow anyone to stand between
tractor and Snow Blower while backing-up to implement. Do
not operate hydraulic 3-point lift controls while someone is
directly behind tractor or near the Snow Blower.
A tractor with 3-point Category l hitch is required for
SB10 and SB15 Series. The SB25 Series will receive
Category l or ll 3-point hich.The lower 3-point arms must
be stabilized to prevent side-to-side movement. Most
tractors have sway blocks or adjustable chains for this
purpose.
1. Bolt, hex flange locknut, and Quick-Hitch bushing
are moved to the lower clevis holes as shown when
making a 3-point hooking-up. Review “Hitch Pin
Locations” on page 19 before hooking-up to tractor.
2. Slowly back tractor to the Snow Blower while using
tractor’s 3-point hydraulic control lever to align lower
3-point arm hitch holes with clevis hitch pin holes.
3. Engage tractor park brake, shut tractor engine off,
and remove key before dismounting from tractor.
4. Attach lower 3-point arms to clevises with hitch
pins (#2). Secure hitch pins with linchpins (#6).
5. Connect top center link hitch hole to upper clevis
hitch holes with hitch pin and hitch pin keeper.
(Hitch pin and keeper are supplied by customer.)
NOTE: Land Pride’s Quick-Hitch can be attached to
the tractor to provide quick and easy 3-point hook-
up and detachment. See your nearest Land Pride
dealer to purchase a Quick-Hitch.
NOTE: Review “Hitch Pin Locations” on page 19
before hooking tractor to Snow Blower.
33276
Move Bolt, Hex Flange Locknut, & Quick-Hitch Bushing
to Lower Hole AS Shown When Making A 3-Point Hook-
23998
Driveline Installation
Figure 3-1
Section 3: Tractor Hook-up & Unhook
Center 3-Point Hitch Pin And Hitch Pin Keeper Are Supplied By Customer For Upper Hitch Holes When Making A 3-Point Hook-Up.
Refer to Figure 3-2:
!CAUTION
If adjusted too long, the rotational handle for manual chute
rotation option can come in contact with tractor or create a
pinch point between tractor and Snow Blower causing bodily
injury.
6. Remove wire retaining pin (#2) and move rotation
handle (#1) in or out as needed to keep rotation
handle from making contact with tractor or creating a
pinch point between tractor and Snow Blower.
7. Replace wire retaining pin (#2). Make sure wire
retainer is caught over end of pin.
ManualYP Chute Rotation Handle
Figure 3-2
8. Return to tractor and slowly and carefully raise and
lower Snow Blower to ensure drawbar, tractor tires,
and other equipment on the tractor do not come in
contact with Snow Blower. If necessary, move or
remove tractor drawbar.
Leveling The Snow Blower
Refer to Figure 3-1:
1. Manually adjust one of the lower lift arms up or down
to level the Snow Blower from left to right.
2. Manually adjust length of top-center-link to level the
Snow Blower from front to back.
33290

15
Section 3: Tractor Hook-up & Unhook
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Driveline Installation
!DANGER
Do not engage tractor PTO while hooking-up and unhooking
driveline or while someone is standing near the driveline. A
person’s body and/or clothing can become entangled in the
driveline resulting in serious injury or death.
!DANGER
All guards must be installed and in good condition at all times
during operation!
!WARNING
Always disengage PTO, engage parking brake, shut tractor
engine off, remove switch key, and wait for PTO to come to a
complete stop before dismounting from tractor.
!WARNING
Some tractors are equipped with multispeed PTO ranges. Be
certain your tractor’s PTO is set for 540 rpm.
Refer to Figure 3-1 on page 14:
1. Park tractor on a level surface. Slowly engage tractor
3-point lift lever to raise Snow Blower until gearbox
input shaft is in line and level with tractor PTO shaft.
2. Place gear selector in park, set park brake, shut
tractor off, and remove switch key.
3. Support Snow Blower at this height with support
jacks or blocks to keep unit from drifting down.
4. Remove rubber protective sleeve (#7) from gearbox
input shaft and discard.
5. Unsnap one end of both access doors (#8) and
rotate doors open.
6. Slide shearbolt end of driveline (#9) onto gearbox
input shaft until hole in driveline yoke aligns with
groove in gearbox shaft. Insert 1/2"-13 x 3 1/2" GR2
cap screw (#3) and secure with hex nut (#4) and jam
nut (#5). Draw hex nut (#4) up snug (Do not tighten)
and then tighten jam nut (#5) against hex nut (#4).
IMPORTANT: Do not use a PTO adaptor with a
Quick-Hitch. A PTO adapter will increase strain on
the tractor’s PTO shaft resulting in possible damage
to shaft and driveline.
IMPORTANT: An additional driveline may be
required if Snow Blower is to be used on more than
one tractor, especially if a Quick-Hitch is used.
IMPORTANT: The driveline must be lubricated
before putting it into service. Refer to “Lubrication”
on page 34.
IMPORTANT: The tractor’s PTO shaft and Snow
Blower gearbox shaft must be aligned and level with
each other during installation of driveline.
7. Push/pull on driveline yoke to be sure it is securely
fastened to the gearbox shaft.
8. Rotate access doors (#8) closed and snap in place.
9. Pull back on driveline yoke collar and push driveline
yoke onto the tractor PTO shaft. Release pull collar
and continue to push driveline yoke forward until pull
collar locks in place.
10. Move driveline yoke back and forth several times to
make sure yoke is locked in place. If driveline yoke
will not lock in place, skip to “Check Driveline
Collapsible Length” on this page.
11. Attach safety chain (#1A) to Snow Blower frame or
gearbox cone. Re-latch safety chain to the inner
driveline shield.
12. Attach safety chain (#1B) to the tractor frame.
Re-latch safety chain to the outer driveline shield.
13. Continue with “Check Driveline Collapsible
Length”.
Check Driveline Collapsible Length
1. Make sure driveline is properly installed and level
before checking driveline collapsible length. (Refer
to “Driveline Installation” instructions on page 15.)
Refer to Figure 3-3 on page 16:
2. With driveline level, measure (“B” dimension) back
from universal joint shield to end of outer driveline
shield as shown in Figure 3-3. If measurement is less
than 1", then shorten driveline using instructions
provided below.
Shorten Driveline
Refer to Figure 3-3 on page 16:
Be sure to check driveline collapsed length first. If
required, shorten driveline.
1. Un-hook driveline and safety chain from tractor PTO
shaft. Pull outer and inner drivelines apart.
2. Reattach outer driveline to tractor PTO shaft. Pull on
inner and outer driveline yokes to be sure universal
joints are properly secured.
IMPORTANT: Two small safety chains are supplied
with the driveline. One must be attached to the inner
driveline shield and Snow Blower frame or gearbox
cone shield. The other chain must be attached to the
outer driveline shield and tractor frame. This will
keep driveline shields from rotating while implement
is operating.
IMPORTANT: A driveline that is too long can bottom
out causing structural damage to the tractor and
Snow Blower. Always check driveline collapsed
length during initial setup, when connecting to a
different tractor, and when alternating between a
Quick-Hitch and a standard 3-point hitch. More than
one driveline may be required to fit all applications.

16
Section 3: Tractor Hook-up & Unhook
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Driveline Shortening
Figure 3-3
3. Hold inner and outer drivelines parallel to each other:
a. Measure 1" (“B” dimension) back from outer
driveline universal joint shield and make a mark at
this location on the inner driveline shield.
b. Measure 1" (“B” dimension) back from the inner
driveline universal joint shield and make a mark at
this location on the outer driveline shield.
4. Remove driveline from tractor PTO shaft and
gearbox shaft.
5. Measure from end of inner shield to scribed mark
(“X” dimension). Cut off inner shield at the mark. Cut
same amount off the inner shaft (“X1” dimension).
6. Measure from end of outer shield to scribed mark
(“Y” dimension). Cut off outer shield at the mark. Cut
same amount off the outer shaft (“Y1” dimension).
7. Remove all burrs and cuttings.
8. Continue with “Check Driveline Maximum Length”.
Check Driveline Maximum Length
Refer to Figure 3-4:
The driveline maximum allowable length must, when fully
extended, have a minimum overlap of profile tubes by not
less than 1/2 the free length with both inner and outer
profile tubes being of equal length.
1. Apply multi-purpose grease to the inside of the outer
shaft and reassemble the driveline.
2. Assemble the two driveline profiles together with just
1/2 overlapping of the profile tubes as shown. Once
assembled, measure and record maximum
allowable length here. ________
23758
Driveline Maximum Extended Length
Figure 3-4
3. Continue with “Check Driveline Interference”.
Check Driveline Interference
1. Make certain driveline yokes and safety chains are
properly attached. See steps 10 -12 on page 15.
2. Start tractor and raise Snow Blower just enough to
remove support blocks from under the unit.
3. Slowly engage tractor hydraulic 3-point control lever
to lower Snow Blower while checking for sufficient
drawbar clearance. Move drawbar ahead, aside, or
remove if required.
Refer to Figure 3-5:
4. With PTO off, raise implement fully up to make the
following checks below. If driveline exceeds any of
the limits listed, set tractor 3-point lift limiter at a
height that will keep the driveline within its lift limits
and to avoid premature driveline breakdown.
•Driveline does not exceed 25o up.
•Driveline does not exceed maximum allowable
length recorded in step 2 under “Check Driveline
Maximum Length”.
Maximum PTO Driveline Movement During Operation
Figure 3-5
24804
Outer Shielding has been removed for clarity.
IMPORTANT: Avoid premature driveline breakdown.
A driveline that is operating must not exceed an
angle of 25 degrees up or down.
24872

17
Section 3: Tractor Hook-up & Unhook
2/11/21 SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M
Table of Contents
Hydraulic Hook-up
!DANGER
Hydraulic fluid under high pressure can penetrate skin. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. Use a piece of cardboard or wood
rather than hands when searching for hydraulic leaks. If
hydraulic fluid is injected into the skin or eyes, it must be
treated by a doctor familiar with this type of injury within a
few hours or gangrene may result. DO NOT DELAY.
There are two options requiring hydraulic hose hook-ups.
They are hydraulic motor for chute rotation and hydraulic
cylinder for chute tilting. Be sure tractor reservoir is filled
properly before operating hydraulic motor and/or
hydraulic cylinder. If tractor reservoir is low on hydraulic
fluid, there is a chance of drawing air into the system
causing jerky or uneven movements.
Hydraulic Motor
1. Locate hydraulic motor hoses and connect quick
disconnect couplings to a single duplex outlet on the
tractor. This is best if connected to the control lever
closest to the operator.
2. Set tractor control lever in the non-float position.
3. Cycle hydraulic system by rotating chute until it
points to the left at 90o to the direction of travel and
then rotating chute a 180o in the opposite direction
Do this several times to purge hydraulic motor of air.
4. Switch quick disconnect couplings at the duplex
outlet if chute does not rotate in the direction desired.
It is best if chute rotates to discharge to the right
when pushing control lever on the tractor forward.
Hydraulic Cylinder
1. Locate hydraulic cylinder hoses and connect quick
disconnect couplings to a single duplex outlet on the
tractor. This is best if connected to the control lever
next to the hydraulic motor control lever.
2. Set tractor control lever in the non-float position.
3. Cycle hydraulic system by extending and retracting
the cylinder several times to purge hydraulic cylinder
of air.
4. Switch quick disconnect couplings at the duplex
outlet if chute does not tilt in the direction desired. It
is best if discharge chute raises when pushing
control lever on the tractor forward.
Electrical Hook-up
There are two options requiring electrical hook-up. They
are electric motor for chute rotation and electric actuator
for chute tilt.
NOTE: It is not necessary to purge the hydraulic
system of trapped air if operation is sluggish. The
cylinder is double acting and will self purge itself of
air as hydraulic oil cycles back and forth through the
cylinder several times.
Refer to Figure 3-6:
1. Find a suitable location to mount control box (#1) on
the tractor. Usually this would be close to the
operator’s right-hand side on the tractor fender or
fender console. Exact location should be convenient
for operating toggle switches (#2 & #3).
2. Route power cable eyelets (#10 & #11) to tractor
power source or circuit breaker panel. A 10 Amp or
larger fuse/circuit breaker source should be used.
a. Connect red lead (#10) to a 12 VDC positive (+)
power source.
b. Connect black lead (#11) to a negative (-) 12 VDC
power source.
3. Connect power cable terminal (#13) to control box
terminal (#4).
4. Connect electric motor (chute rotation) and electric
actuator (chute tilt) to the control box as follows:
Electric Motor
Plug chute rotation wire harness (#7) to the red &
black terminal (#5). Verify opposite end of wiring
harness is plugged to the electric motor.
Electric Actuator
Plug chute tilt wire harness (#8) to the white & black
terminal (#6). Verify opposite end of wiring harness
is plugged to the electric actuator.
5. Check routing of wire harness (#7 & #8) to make
certain they will not become pinched or pulled apart.
Tie harness to Snow Blower and tractor as needed
with cable ties. Cable ties are supplied by customer.
Electrical Hook-up
Figure 3-6
33291
Chute Rotate
Wire Harness
Chute Tilt
White Toggle
Chute Rotate
Red Toggle
Chute Tilt
Wire Harness
Power
Terminal
10 Amp fuse
Red Wire
Positive (+)
Black Wire
Negative (-)
White/Black
Rotate Terminal
Red/Black
Tilt Terminal
Control
Box Mount

18
Section 3: Tractor Hook-up & Unhook
SB1051, SB1064, SB1574, & SB2584 with S/N 881640- Snow Blowers 370-027M 2/11/21
Table of Contents
Unhooking Snow Blower
1. See “Long Term Storage” on page 32 before
parking Snow Blower for a long period.
2. Park on a level solid surface and lower Snow Blower
to ground level or onto support blocks.
3. Engage tractor park brake, shut tractor engine off,
and remove switch key. Stay on tractor until PTO has
come to a complete stop.
4. Hydraulic Options:
a. With tractor shut off, move hydraulic control
levers back and forth several times to relive all
hydraulic pressure in hydraulic hoses.
b. Disconnect hydraulic hoses from tractor duplex
outlets.
c. Wrap hydraulic hoses around Snow Blower hitch
frame for storage and to keep dirt away of quick
disconnect couplings.
5. Electrical Options:
Refer to Figure 3-6 on page 17:
a. Disconnect electric motor (chute rotation) wiring
harness (#7) from control box (#1). Coil harness
up and tie to Snow Blower hitch frame.
a. Disconnect electric actuator (chute tilt) wiring
harness (#8) from control box (#1). Coil harness
up and tie to Snow Blower hitch frame.
b. Disconnect black negative (-) wire lead (#11) from
power source.
c. Disconnect red positive (+) lead (#10) from power
source.
d. Remove control box (#1) from tractor, wrap wiring
harness (#13) up in a coil and tie coils together to
keep coils from unwrapping.
e. Store wiring harness (#13) and control box (#1) in
a dry location.
6. Unhook driveline safety chain from tractor.
7. Pull back on driveline pull collar and hold while
pulling driveline yoke from tractor PTO shaft.
8. Support collapsed driveline off the ground to keep
dirt away from yoke end.
9. Unhook 3-point hitch from tractor and drive tractor
forward several feet.
10. Reinstall hitch pins and linchpins in Snow Blower
hitch for safe keeping.
11. Collapse driveline by pushing tractor end of driveline
towards Snow Blower gearbox.
