LANDY F-WP-N User manual

WORK PLATFORM
MODEL: F-WP-N

General
For us, the long lifecycle and efficiency of your new equipment is a priority. To keep the work platform in top
working condition,read this manual carefully before using the equipment.
Never let anyone operate or maintain the device without reading this manual carefully! Always make sure that
safety precautions are observed in use and maintenance. Keep this manual for future reference and make sure to
hand it over to a new owner.
The cornerstones of the product development of LANDY attachments are quality, durability and economy. The
products are engineered to be high-performing, safe and durable in professional use. Any feedback on our
products is welcome and contributes to the further development of our products. If you have any questions about
the use or maintenance of the work platform, please contact us by e-mail: [e-mail]
The manufacturer reserves the right for structural and technical changes without prior notice. Therefore, some
pieces of information given in the manual may have changed after printing this manual.
Read before use
Make sure you know your equipment before you start using it.
Equipment may be operated only by an individual who is thoroughly familiar with its use.
All operators must be properly instructed before use and maintenance of the equipment. Use by individuals with
insufficient instructions may pose serious risks to the operators themselves, to the environment and the
equipment.
When coupling the attachment to the base machine, make sure:
- that all locking cotters are intact and in order
- there is no pressure in the hydraulic system
- that hydraulic hoses are intact
- there is no skin contact to hydraulic oil when connecting hydraulic hoses
- not to pull by the hydraulic hoses, but only by the hydraulic fitting
During operation, pay attention to:
- safe, appropriate travel speed
- other traffic, people and animals
- danger zones and objects that block your view
- children
NEVER use the machine, if there is someone in the danger zone.
NEVER go under the attachment.
Check all bolts, nuts and hydraulic fittings for tightness after the first day of operation!
If the equipment is not likely to be used for a longer period of time, clean it thoroughly after use and lubricate as
instructed.

Table of contents
1. PURPOSE OF USE .............................................................................................................................................................. 4
2. SAFETY PRECAUTIONS ....................................................................................................................................................4
3. PARTS OF THE WORK PLATFORM ................................................................................................................................ 5
4. USING THE WORK PLATFORM ....................................................................................................................................... 9
5. OPERATING THE WORK PLATFORM .............................................................................................................................9
6. MAINTENANCE OF THE WORK PLATFORM .............................................................................................................. 10

1. PURPOSE OF USE
Designed for forklift use to safely carry out tasks of “short duration” and “occasional usage”such as maintenance
or stocktake.
2. SAFETY PRECAUTIONS
Make sure you know your equipment before you start using it. Equipment may be operated
only by an individual who is thoroughly familiar with its use.
Before connecting hydraulics to the base machine, make sure that:
- there is no-one between the attachment and the base machine
- the base machine is turned off and the parking brake is on.
When coupling the attachment to the base machine, make sure that:
- all locking cotters are intact and in order
- hydraulic hoses are intact
- there is no skin contact to hydraulic oil when connecting hydraulic hoses
- you do not to pull by the hydraulic hoses, but only by the hydraulic fitting.
During operation, pay attention to:
- safe, appropriate travel speed
- other traffic, people and animals
- danger zones and objects that block your view
- children
- use of turn signal when driving
NEVER use the machine, if there is someone in the danger zone
NEVER go under the attachment
During maintenance, the hydraulics of the base machine MUST be turned off. The base machine MUST also be
turned off and the parking brake MUST be applied. The equipment must be properly supported, if maintenance
can only be performed by going under the equipment. Never go under the equipment if it is not properly
supported.
Daily maintenance:
- check general condition of structures, make repairs if needed
- check the hydraulic hoses and fittings, and replace damaged parts
After every 50 hours of operation:
- lubricate points specified in later section of this manual
- check all bolts and nuts for tightness
WARNING! Pressurized hydraulic hoses and components!

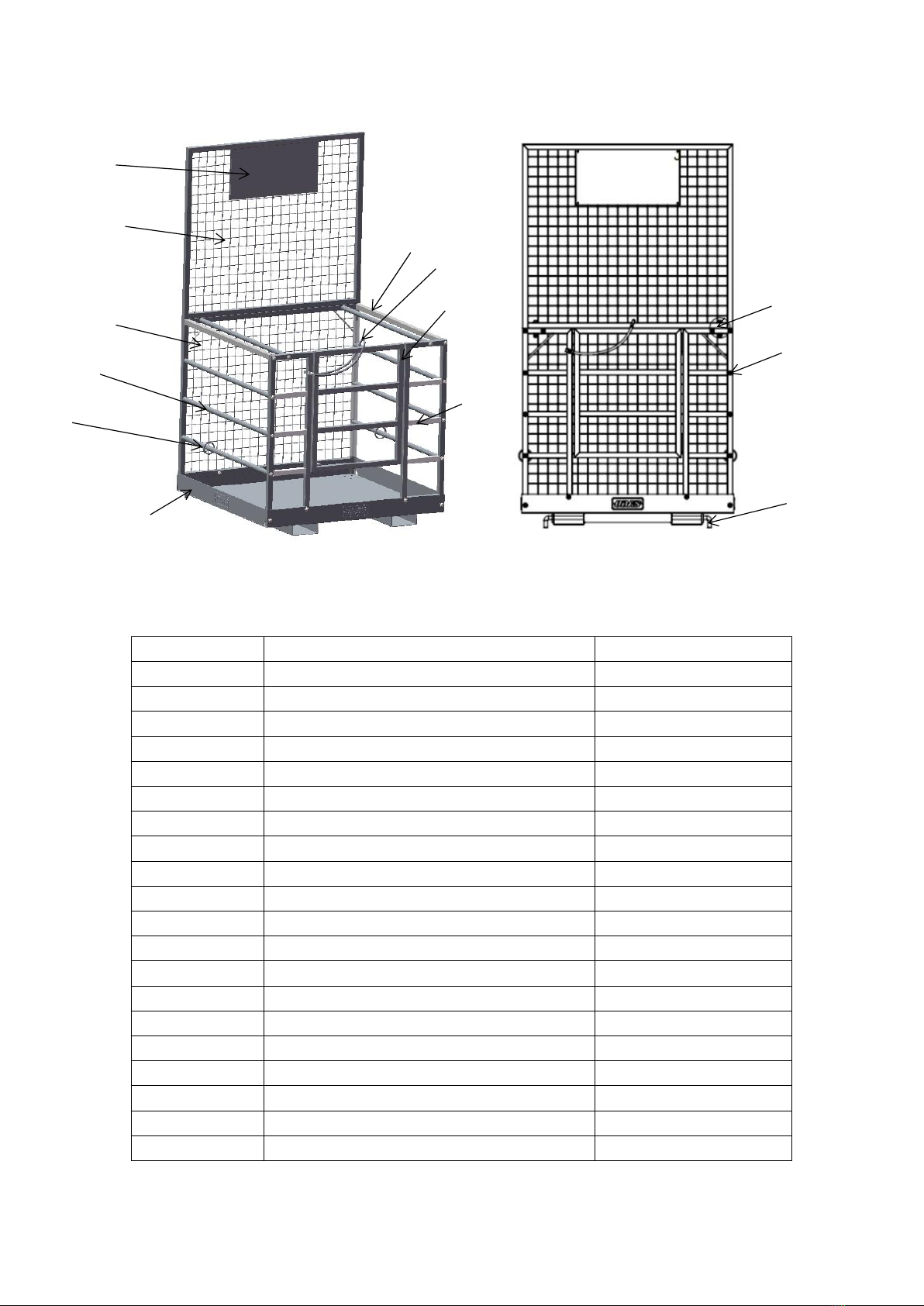

3. PARTS OF THE WORK PLATFORM
DIAGRAM NO.
DESCRIPTION
Qty
1
Security card + Rivet
1+4
2
Mesh Safety Screen
1
3
Rear Railing
1
4
Side Railing (Round)
8
5
Safety Ring
2
6
Frame Assembly
1
7
Side Railing (Square)
2
8
Door Lock
1
9
Front Railing
1
10
Safety Pins
2
11
Bolt(M12*60)
28
12
Bolt(M12*85)
2
13
Flat Washer
30
14
Spring Washer
30
15
Nut(M12)
10
16
Bolt(M10*60)
1
17
Flat Washer
1
18
Elastic Washer
1
19
Nut(M12)
1
20
Nut(M10)
1
16.17.18
19.20
9
12.13.14.15
11
0
8
7
10
0
2
6
5
4
3
1

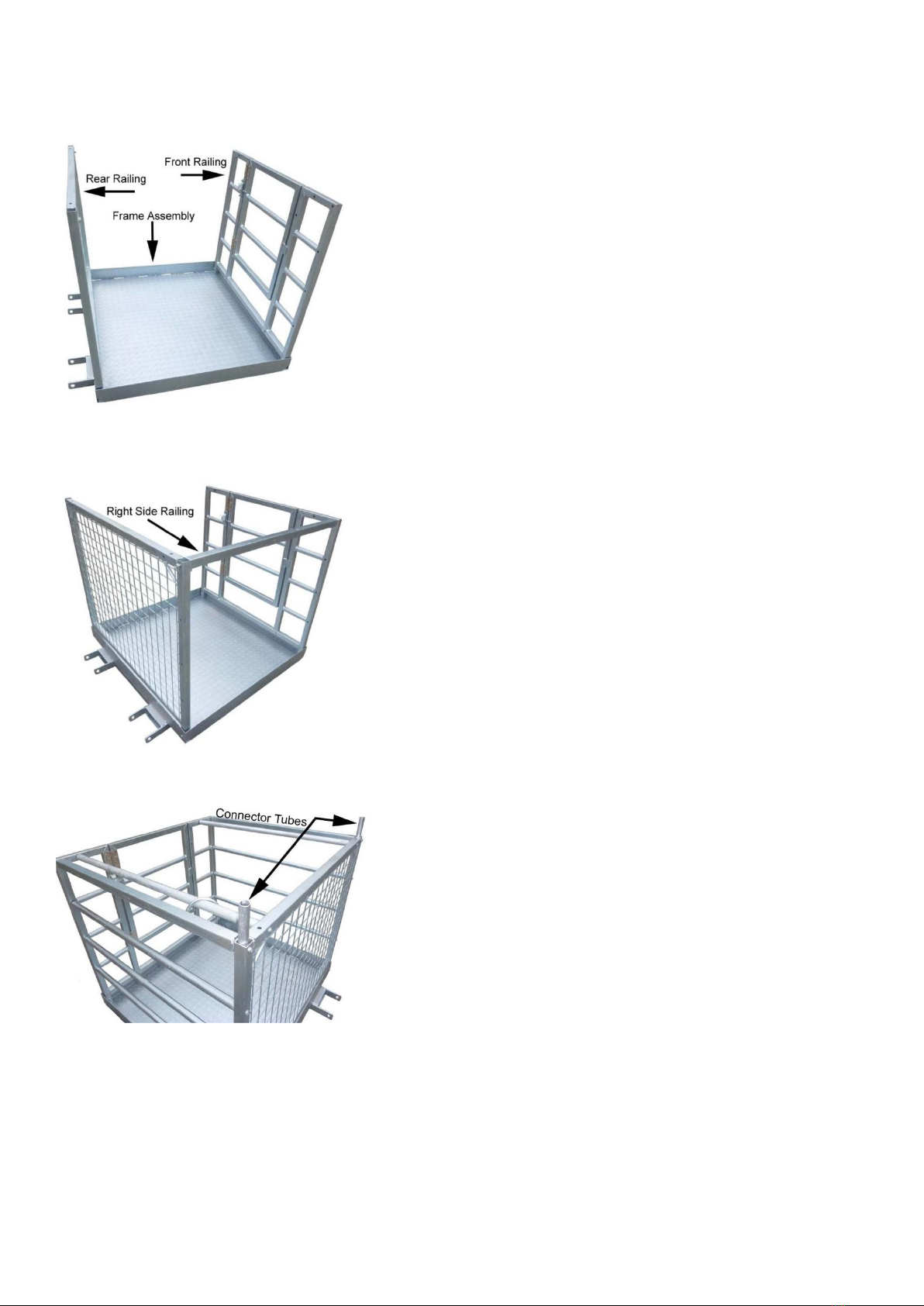

3.1 INSTALLATION INSTRUCTIONS
Step 1:
Step 2:
Step 3:
Place the Front Railing and Rear
Railing on the appropriate corner of the
Frame Assembly, loosely secure in
place with the inlcuded hardware, do
not fully tighten at this time.
Assemble the Right Side Railing and
Left Side Railing onto the Front Railing
and loosely bolt in place. Line up the
holes with the mating holes of the Rear
Railing and loosely bolt in place
utilizing the lower hole only.
Place the Connector Tubes into each
of the Rear Railing posts as shown,
hold in place by bolting thorugh the
appropriate side railing, the rear railing
corner posts and the connector tubes.

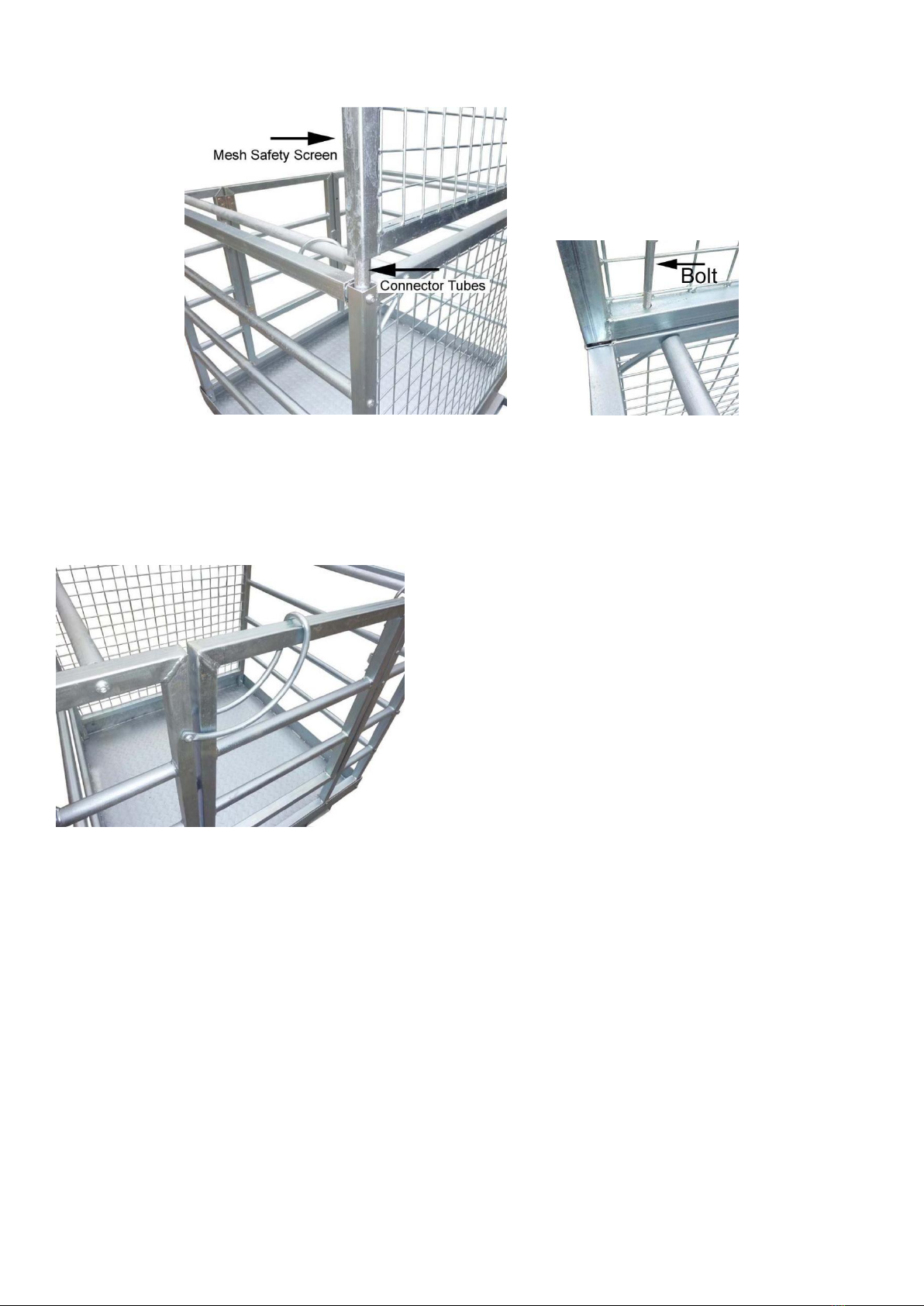

Step 4:
Step 5:
Set the Mesh Safety Screen on the Connector Tubes and bolt in
place. At this time, tighten all of the fasteners on the forklift cage.
Assemble the lock in position.

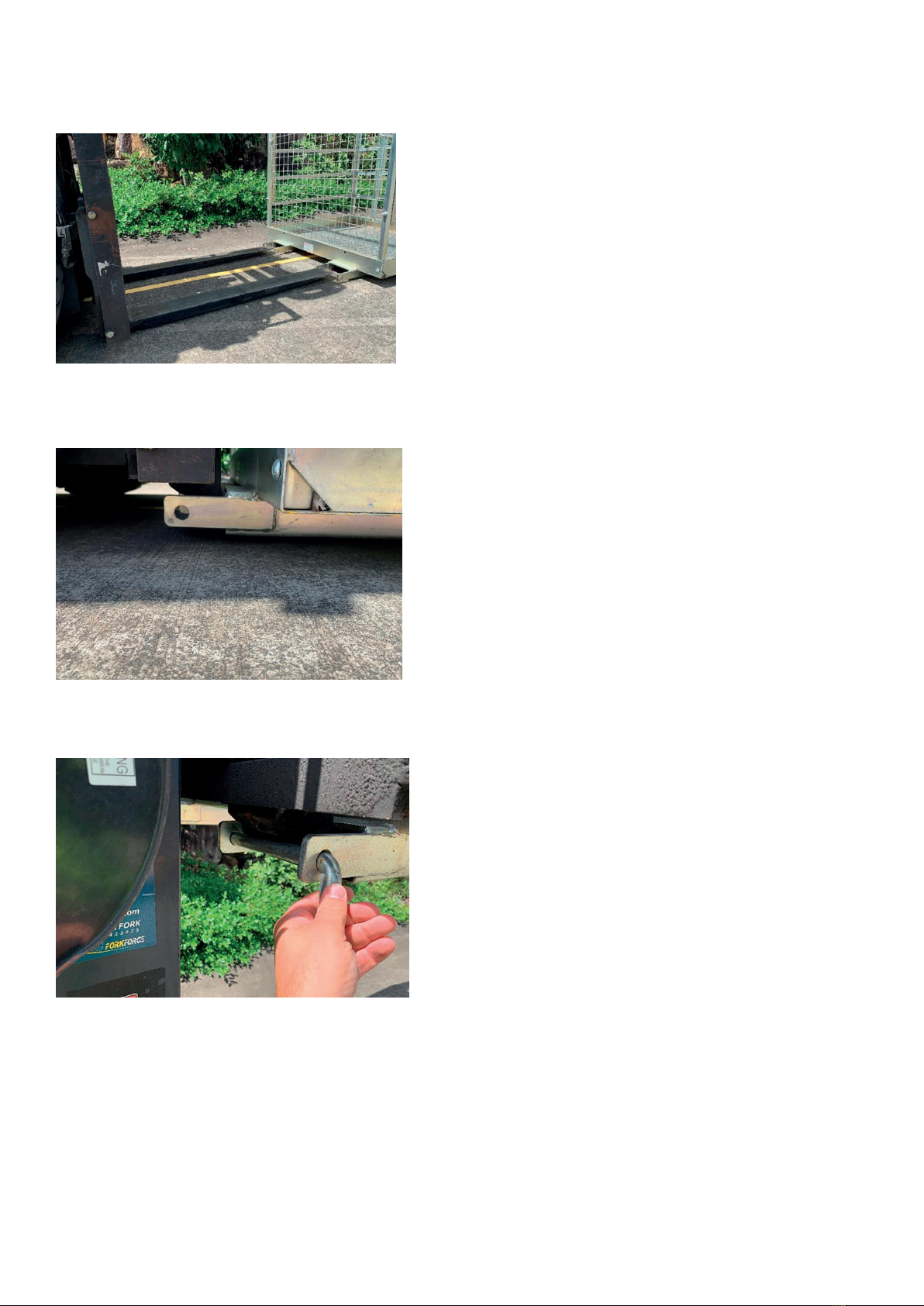

3.2 OPERATING INSTRUCTION
Step 1:
Step 2:
Step 3:
Install the F-WP-N working
platform to the forklift, move the
forks to the correct width, and
insert the both forks into the
pocket as shown in Figure 1.
Drive the forklift forward until the
back of the working platform is
firmly against the fork lever or fork
radius as shown in Figure 2.
Insert the locking pin through both
plates and repeat on the other side
as shown in Figure 3.

4. USING THE WORK PLATFORM
When attaching the work platform for the first time, make sure it is compatible with the base machine by following
the instructions below. Always check the compatibility when attaching the collecting sweeper to a new base
machine.
4.1. Attaching the work platform to the base machine
The work platform is attached to the base machine by welded or bolted quick hitches. The machine is connected
to connected to a hydraulic system.
Before using the work platform, MAKE SURE all locking cotters are secured and intact.
When coupling work platform to the base machine, please pay attention to the instructions on the use of the base
machine.
1. Make sure that the attachment and the base machine are compatible in terms of mechanical solutions,
hydraulics and electricity.
2. Apply parking brake. The work platform is attached to the coupler on the base machine. Attach the work
platform to the base machine, and make sure the locking cotter are secured.
3. Turn off the base machine and make sure the parking brake is applied.
4. Make sure there is no pressure in the base machine hydraulic system. When connecting, always make sure
the hydraulic connectors are clean and the hoses are intact.
5. Check carefully the attachment’s, the base machine’s and the fitting’s trajectory for collision. Make sure that the
needed space for hydraulic hoses and -attachments is adequate. Check that the brush roll rotates outwards from
the. If not, switch hoses in the base machine.
6. During first hours of operating the attachment, bolts, nuts and connectors might loosen up. Retighten them
after the first day of operating the attachment.
5. OPERATING THE WORK PLATFORM
Check following before using the work platform:
- work platform is installed properly to the base machine
- All locking cotters are in place
- Hydraulic hoses are attached properly
- Hoses are intact
- There are no oil leaks in attachment
- All functions are in order
- Learn the functions of the work platform in an enclosed area before actual usage.
- Observe all unusual activity and oil leaks when operating the work platform.
5.1. Using the work platform
1. Make sure that the attachment and the base machine are compatible in terms of mechanical solutions,
hydraulics and electricity.
2. Apply parking brake. The work platform is attached to the coupler on the base machine. Attach the work
platform to the base machine, and make sure the locking cotters are secured.
3. Turn off the base machine and make sure the parking brake is applied.
4. Make sure there is no pressure in the base machine hydraulic system. When connecting, always make sure
the hydraulic connectors are clean and the hoses are intact.
5. Check carefully the attachment’s, the base machine’s and the fitting’s trajectory for collision. Make sure that the
needed space for hydraulic hoses and -attachments is adequate. Check that the brush roll rotates outwards from
the. If not, switch hoses in the base machine.
6. Lift work platform front and back support legs. Lock them in upward position with locking cotters.
7. Keep the work platform in suitable distance from ground. The attachment could be damaged!

8. Stay alert for any abnormal behaviour and oil leaks also during driving.
5.2. Detaching the work platform from the base machine
1. Turn off the base machine, apply the parking brake and depressurize the system.
2. Detach the hydraulic hoses and protect hose ends with plugs.
3. Unlock the coupling mechanism and detach the device.
4. If the equipment is not likely to be used for a longer period of time, clean it thoroughly after operating and
lubricate as instructed. Remove water from irrigation system’s hoses. If possible, store the unit inside.
6. MAINTENANCE OF THE WORK PLATFORM
6.1 General safety precautions for the use and maintenance
- Comply with existing laws and regulations and the instructions given in this manual.
- Never go under an unsecured device.
- Always apply the parking brake of the base machine before performing any actions on the device.
- Only use tools that are in proper working order.
- Be careful with the pressurized hydraulic hoses and components.
- Make sure there is no pressure in the hydraulic system. Take into account the pressure accumulator.
- Make sure hydraulic fluids or greases do not leak to the ground.
- Use all necessary personal protectors.
6.2. Daily maintenance
In order to prevent further damages, it is important to inspect the device visually for possible defects. Inspect at
least the following daily:
- hydraulic hoses and components for possible leaks
- general mechanical functioning
6.3. Maintenance after first 10 hours of operation
- Lubricate, preferably with a grease or equivalent.
- Check all bolts and nuts for tightness.
6.4. Maintenance at 50-working hour intervals or on a weekly basis
- Lubricate, preferably with a grease or equivalent.
- Check the mechanical condition of the device for bends, distortions or breaches
- Check fastening bolts for tightness.
