Lanner electronics AP-687VF User manual

AP-687VF/F
Single Board Computer
for Slot 1 Processor
The contents & information in this
manual are subject to change without
prior notice. For reference only.
StockCheck.com

StockCheck.com
Downloaded from StockCheck.com

COPYRIGHT©
This document is a copyright of the original manufacturer, 1999. The original
manufacturer reserves the right to make improvements to the product(s) described in
this manual at any time without notice. This manual may not, in whole or in part, be
photocopied, reproduced, transcribed, translated, or transmitted in whatever form
without the written consent of the manufacturer, except for copies retained by the
purchaser for backup purposes. All rights are reserved.
TRADEMARKS
Pentiumis a registered trademark of Intel Corporation.
The following are trademarks or registered trademarks of their respective companies:
IBM, Intel, AMD, Cyrix, Award, AMI, Microsoft, Windows, Windows NT, Novell, SCO,
PC/104, PICMG, ALI, UMC, SMC, Winbond. Products mentioned in this manual are for
identification purposes only. All names of products or services appearing in this
manual are the trademarks or registered trademarks of their respective organizations
and companies.
Copyright 1999
Ver.No. 0.0
LEI-UM-AP687VF/F-000
Date : 06.10.1999
StockCheck.com
Downloaded from StockCheck.com

StockCheck.com
Downloaded from StockCheck.com

TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION 1
1.1 SPECIFICATIONS 2
1.2 ORDERING INFORMATION 3
1.3 PACKING CHECK LIST 3
CHAPTER 2 JUMPER SETTING AND CONNECTORS 4
2.1 BOARD OUTLINE OF AP-687VF/F 4
2.2 INSTALLING AND UPGRADING THE CPU 5
2.3 JUMPER SETTING OVERVIEW 7
2.4 JUMPER LOCATION FOR AP-687VF/F 8
2.5 JUMPER SETTINGS SUMMARY FOR AP-687VF/F 9
2.6 JUMPER SETTINGS FOR AP-687VF/F 10
2.7 I/O CONNECTORS LOCATION FOR AP-687VF/F 16
2.8 I/O CONNECTORS SUMMARY FOR AP-687VF/F17
2.9 SETTING STATUS INDICATORS AND CONTROL 18
C
ONNECTORS
2.10 I/O CONNECTORS DESCRIPTION 19
CHAPTER 3 AWARD BIOS SETUP 29
3.1 RUNNING AWARD BIOS 29
3.2 CMOS SETUP UTILITY 30
3.3 STANDARD CMOS SETUP 31
3.4 BIOS FEATURES SETUP 35
3.5 CHIPSET FEATURES SETUP 38
3.6 POWER MANAGEMENT SETUP 42
3.7 PNP/PCI CONFIGURATION 45
3.8 LOAD BIOS DEFAULTS 47
3.9 LOAD SETUP DEFAULTS 47
3.10 INTEGRATED PERIPHERALS 48
3.11 SUPERVISOR / USER PASSWORD 50
3.12 IDE HDD AUTO DETECTION 51
3.13 HDD LOW LEVEL FORMAT 51
3.14 SAVE & EXIT SETUP 51
3.15 EXIT WITHOUT SAVING 51
StockCheck.com
Downloaded from StockCheck.com

TABLE OF CONTENTS
CHAPTER 4 DRIVERS SUPPORT 52
4.1 DRIVER DISKETTE LIST 52
4.2 AGP DRIVER UTILITIES 52
APPENDIX A HOW TO USE WATCH-DOG TIMER 58
APPENDIX B TECHNICAL REFERENCE 59
GLOSSARY 61
TERMS AND CONDITIONS
RMA SERVICE REQUEST FORM
StockCheck.com
Downloaded from StockCheck.com

AP-686VF/F 1
CHAPTER 1.
INTRODUCTION
The AP-687VF/F is a full-size PentiumII and PentiumIII PCI/ISA single board
computer that is using the Intel 440 BX chipset, that supports the Ultra DMA-33 for
faster hard drive and the health monitoring hardware. The health monitoring hardware
detects and releases a sound alarm for any abnormal function of the operating voltage
& temperature of CPU or it’s cooling fan. For boosting operation, this motivated card
also supports sockets for a Flash Disk, three DIMMs.
Take note that the AP-687VF is a high power & full engine SBC with AGP display of
resolution up to 1600x1200 at 256 colors. It is a board that has so much for a deluxe
cost. It is all you got in this full engine SBC with so much features. No hassle of
going through the extra effort and cost of additional I/O cards.
The AP-687VF/F is built as a PCI/ISA expansion card that is simply upgraded by
changing one card from another without replacing the whole system. It provides the
primarily elements for building an IBM PC/AT compatible computer for a wide variety of
applications with system integration. The AP-687VF/F is fully compatible with the IBM
PC/AT which means virtually all the software written for the IBM PC/AT will run on the
AP-687VF/F SBC.
Other on-board features include two serial ports (RS-232 and RS-232/422/485), one
multi-mode parallel (ECP/EPP/SPP) port, a floppy drive controller, a keyboard interface
and a PS/2 mouse interface. The built-in high speed PCI IDE controller supports both
PIO and bus master modes. Up to four IDE devices can be connected, including large
hard disks, CD-ROM drives, tape backup drives and other IDE devices. Its 8-layer
printed circuit board combines with noise-tolerant and low power consumption CMOS
technology applied on the board makes AP-687VF able to withstand any harsh
industrial environments very well.
StockCheck.com
Downloaded from StockCheck.com

INTRODUCTION
AP-687VF/F 2
1.1 SPECIFICATIONS
❏Processor : For Slot 1 processor
IntelPentium
II or PentiumIII processor
❏Chipset : Intel 440BX chipset
SIS 6326 AGP chip (AP-687VF)
Winbond W83977EF I/O chipset compatible
❏System Memory : Three 168-pin DIMM sockets, support up to 768MB
SDRAM
❏BIOS : 256KB Award License BIOS
❏Flash Memory Disk : Reserved socket for DiskOnChip from M-System
support up to 144 MB Flash memory Disk
❏AGP Controller(AP-687VF) : SIS 6326 AGP chip, on-board 4 MB SGRAM
resolution up to 1600x1200 at 256 colors
❏IDE Drive Interface : Two PCI IDE port that support up to four IDE devices
and Ultra DMA/33
❏Floppy Drive Interface : One FDD port up to two floppy devices
❏Serial Port : Two COM ports, one RS-232 and one RS-
232/422/485 serial ports
❏Parallel Port : One multi-mode parallel port (SPP/EPP/ECP)
❏RTC Battery : Dallas RTC battery or compatible
❏PS/2 Mouse Connector : On-board 6-pin Mini-Din PS/2 mouse connector
❏Keyboard Connector : 5-pin header and 6-pin Mini-Din PS/2 keyboard
connectors
❏Watchdog Timer : 8 level time-out intervals (0.5/1/2/4/8/16/32/64 sec.)
❏Universal Serial Bus : Support two USB ports
❏IR Interface : Supports one IrDA header
❏Health Monitoring : Support CPU temperature alarm
❏Operating Temperature : 0°C~55°C (32°F~132°F)
❏Humidity : 10％~90％RH
❏Dimensions : 338 mm X 122 mm (131/4” X 45/6”)
❏Net weight : 340 g (0.748 lb.)
StockCheck.com
Downloaded from StockCheck.com

INTRODUCTION
AP-687VF/F 3
1.2 ORDERING INFORMATION
The AP-687VF/F single board computer are two versions, to order, please check the
requirement below:
Model No. Description AGP Flash Disk Socket
AP-687VF Single board computer for PentiumII, PentiumIII
Processor with AGP & Flash Disk Socket
✓✓
AP-687F Single board computer for PentiumII, PentiumIII
Processor with Flash Disk Socket
✓
1.3 PACKING CHECK LIST
Before you begin to install your card, please make sure that you received the following
materials as listed below:
Item Qty Remark
AP-687VF or AP-687F SBC 1 pcs AP-686VF or AP-687F Single Board Computer
Keyboard adapter cable 1 set 1×6-pin PS/2 to 5-pin AT keyboard connector
EIDE/Floppy cable 1 set 40-pin to 40-pin standard header flat ribbon cable
34-pin to 34-pin standard header flat ribbon cable
Printer and COM ports cable 1 set
26-pin female flat connector header to 25-pin male
D-Sub connector, 10-pin female flat connector
header to 9-pin male D-Sub connector
Keyboard Connector Cable 1 pcs 5-pin female to 5-female cable
Thermal Sensor Cable 1 pcs CPU temperature detection
Latch Clips 1 set Secured CeleronTM Processor
Drivers Utility 1 pcs CD-ROM (AP-687VF only)
User‘s manual 1 pcs AP-687VF/F user’s manual
StockCheck.com
Downloaded from StockCheck.com

AP-687VF/F 4
JUMPER SETTING AND CONNECTORS
The figure below shows the jumpers and connectors location on the AP-687VF/F:
2.1 Board Outline of AP-687VF/F
CHAPTER 2.
3
3
JP5 3
2
6 2
6
1
JP8
1
2
3
4
H
L
JP6
JP13
FAN1
JP4
1 5
JP3
1 3
USBC1
KCN1
AP-687VF
DIMM3
DIMM2
IR1
5
1
J4
5
1
J3
4
1
J2
JP1
1
1
1
1 3
JP11
2 1
7
8
JP12
1
10
9 JP14
PRT1
COM1 VGA1 PKB1 PMS1
COM2
1
FDC1
J1
RTC
BATTERY

IDE2 IDE1
DIMM1
TMR2
10
9
JP7
FAN2
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 5
2.2 INSTALLING AND UPGRADING THE CPU
To upgrade to a higher power PentiumII or PentiumIII CPU, simply remove the old
CPU and install to a new one; be sure to set the jumpers for the new CPU type and
speed.
WARNING!
Disconnect the power cord from your system when you intend to
work on it or you plan to open the chassis of your IPC. Do no
t
make connections when the power is turned on because the
sensitive electronic components could been damaged by the
sudden rush of power. Please only allow experienced electroni
c
technicians to do this job.
STATIC ELECTRICITY PRECAUTION!
Caution! Computer components are very sensitive to damage
from static electric discharge. Always ground yourself to remove
static charge build-up before touching the boards in the computer.
Use a grounding wrist strap at all time. Place all electroni
c
components on the anti-static pad for static-dissipation or in a
static-shielded bag when they are not in the chassis.
CAUTION!
Danger of Explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the batter
y
manufacturer’s instructions.
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 6



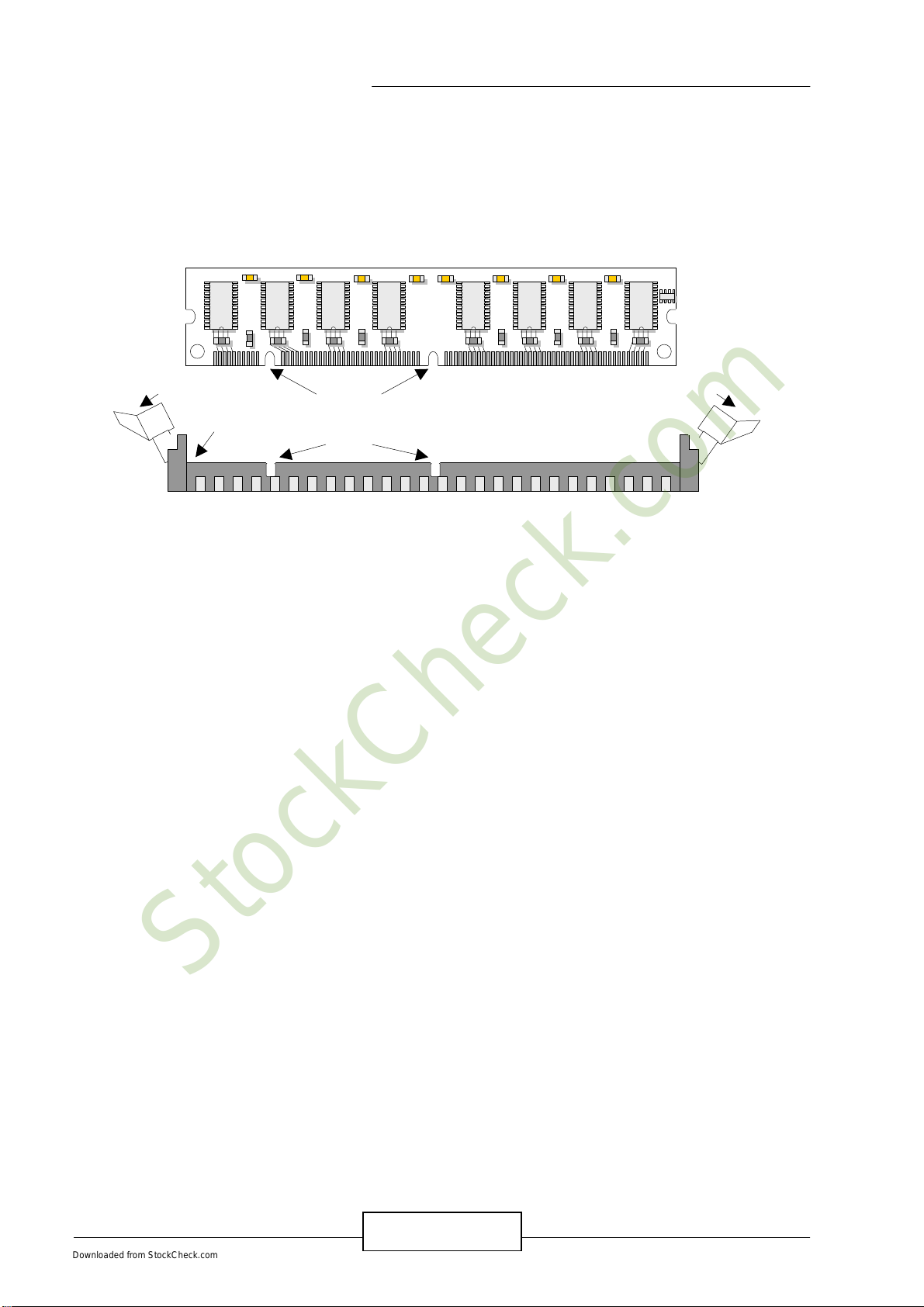

INSTALLING THE DIM MODULE:
A DIM module simply snaps into a socket on the system board. Pin1 of the DIM module
must correspond with Pin1 of the socket.
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notches” in the module aligned with the
“keys” on the socket.
3. Seat the module vertically into the socket. Make sure it is completely seated. The
tabs
will hold the DIMM in place.


INSTALLING NOTES FOR CeleronTM PROCESSOR:
1. Hold the SBC with the PCB component side facing you in an angle of 75° at a
distance 30cm.
2. Slide CeleronTM Processor against the left and right retention module to the Slot 1
socket, until a “click” sound is produced by the connection between the gold fingers
and connector pins.
3. The CeleronTM Processor is loosely withstanding against the Slot 1 connector, now
secure the guides of the latch pins (one at a time) to the edges of the CPU heat sink,
until a “click” sound is produced by the key against key way. Please take note the
retention modules and latch clippers have the left and right orientation marked on the
surface of the material.


REMOVING THE LATCH CLIPPERS
1. With the component side of SBC facing you, push the spring of the latch clipper(s)
from right to left for the left latch clipper and vice-versa for right latch clipper.
Pin1 Notch
Key
TabTab
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTINGS AND CONNECTORS
AP-687VF/F 7
2. Then remove the CeleronTM Processor by moving upward.
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 8


CPU TEMPERATURE SENSOR INSTALLATION PRCESS
1. Put the temperature sensor in the rivet hole of heat sink on CPU.
2. Adhered the holder to heat sink.
3. Put the wire on the holder and buckle the clip.
4. Place 2-pin female connector on TMR2 2-pin male header.
2.3 JUMPER SETTING OVERVIEW
In order to select the operation modes of your system, configure and set the jumpers on
the your SBC to match the need of your application. To set a jumper, a black plastic
cap containing metal contacts is placed over the jumper pins as designated by the
required configuration as listed in this section. A jumper is said to be “ on ” or “ 1-2 ”
when the black cap has been placed on two of its pins, as show in the figure below:
A pair of needle-nose pliers is recommended when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local sales representative before you make any changes. In general, you simply need
a standard cable to make most connections.
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 9
2.4 JUMPER LOCATION FOR AP-687VF/F
1
JP4
1
1
1
3
6
3
3
3
JP5
2
2
JP8
1
2
3
4
H
L
JP6
JP13
5
JP3
1 3
AP-687VF
JP1
1
JP11
2 1
7
8
JP12
1
10
9 JP14
JP7
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 10
2.5 JUMPER SETTINGS SUMMARY FOR AP-687VF/F
JUMPER FUNCTION
JP1 Select AGP Use INTA (AP-687VF Only)
JP3~JP7 Select Serial Port#2 Type
JP8 Select Watch-Dog Time Out Period
JP11 Select External CPU Clock
JP12 Select Internal CPU Clock Ratio
JP13 Select Clear CMOS Data
JP14 Select Flash Disk Address
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 11
2.6 JUMPER SETTINGS FOR AP-687VF/F
zJP1 : Select AGP Use INTA (AP-687VF)
JP1 AGP Use INTA
ON Enabled INTA ( Default )
OFF Disabled INTA
Default :
1
JP1
2
JP1
1
2
JP1
Enabled INTA
Disable INTA
1
2
JP1
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 12
zJP3, JP4, JP5, JP6, JP7 : Select Serial Port#2 Type
JP3 JP4 JP5 JP6 JP7 Serial Port#2 Type
1-2 1-2 1-2 1-2 1-2 RS-232 ( Default )
3-4 2-3 2-3 2-3 2-3 RS-422
5-6 2-3 2-3 2-3 2-3 RS-485
RS-232
RS-422
RS-485
JP6
3
1
3
3
JP3
JP4 JP7JP5
1
3
5
2
4
6 3
1 1 1
JP3
1
3
5
2
4
6
1 1 1 1
3 3 3 3
JP4
JP5
JP6
JP7
JP4
JP3
JP5
JP6
JP7
Default : JP6
3
1
3
3
JP3
JP4 JP7JP5
1
3
5
2
4
6 3
1 1 1
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 13
zJP8 : Select Watch-Dog Time Out Period
JP8 Time Out Period
1L 0.5 sec
2L 1 sec
3L 2 sec
4L 4sec (Default)
4H 8 sec
3H 16 sec
2H 32 sec
1H 64 sec
JP8
0.5 SEC
1 SEC
2 SEC
4 SEC
8 SEC
16 SEC
32 SEC
64 SEC
1
H
L
2 3 4
JP8
1 2 3 4
H
L
JP8
Default :
1
H
L
2 3 4
JP8
StockCheck.com
Downloaded from StockCheck.com

JUMPER SETTING AND CONNECTORS
AP-687VF/F 14
zJP11 : Select External CPU Clock
JP11 External CPU Clock
1-2 66 MHz
2-3 Auto Detect 66/100 MHz ( Default )
OFF 100 MHz
JP11
66MHz
A
uto Detect
1
2
JP11
100MHz
3
JP11
1
2
3
Default : JP9 1
2
3
StockCheck.com
Downloaded from StockCheck.com
