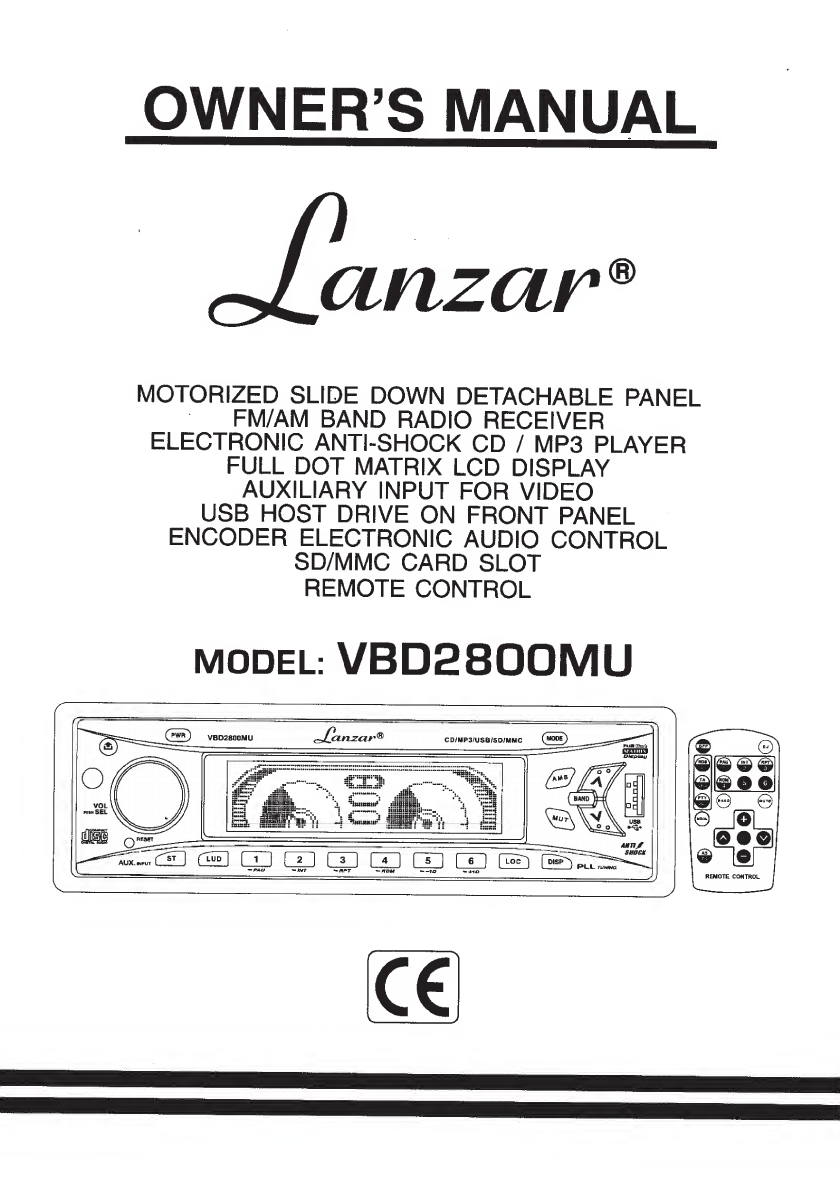

OWNER’S MANUAL
c£
anzar
MOTORIZED SLIDE DOWN DETACHABLE PANEL
FM/AM BAND RADIO RECEIVER
ELECTRONIC ANTI-SHOCK CD / MP3 PLAYER
FULL DOT MATRIX LCD DISPLAY
AUXILIARY INPUT FOR VIDEO
USB HOST DRIVE ON FRONT PANEL
ENCODER ELECTRONIC AUDIO CONTROL
SD/MMC CARD SLOT
REMOTE CONTROL
MODEL: VBD2800MU

FIGURE A
LOCATION OF CONTROLS
REMARK '
SIdiWfI'rtokse ™
OPERATING INSTRUCTIONS
1. POWER ON/OFF CONTROL
Press the button to turn the power “ON” or “OFF’.
?°’ e : <= a " ,um on ^ Passing any keys on the panel (except open/close button & disc elect
button). It will help the user who cannot find the power button in dark.
2. BAND SELECTOR
Each time this button is pressed, the radio band is changed.
3. PRE-SCAN/AUTO-STORE BUTTON
This button allows you to enjoy “Preset Memory Scan” function by pushing it shortly, and “Auto Memory"
function by pushing it more than 2 seconds.
' secondf SET MEM0RY SCAN > ' !t ca,,s the memorized station frequencies (from 1-6) automatically every 5
• AS (AUTO-STORE MEMORY) - It searches all station frequencies upward and memorize automatically 6
stations by catching the frequency which has scan-stop level, the memorized station is shown on LCD as
Channel 1 to 6”. After memorizing, auto-store memory function will be changed to “Preset Memory Scan”
function automatically. *
4. DISC SLOT
Holding the disc and insert into the disc slot. The disc mechanism will automatically engage into CD/MP3 play
5. LCD DIGITAL DISPLAY
The unit utilizes a dot matrix LCD display which shows functions of unit.
6. DISPLAY CONTROL
This button serves to show available information as following:
- Band and Frequency
- Time
- Track No. / Playing Time / Artist Name (if available) / File Name during CD or MP3 mode
7. MUTE CONTROL
Press the button to mute volume.
Page. 2

8. EJECT BUTTON
Press the button to eject the disc inside disc slot.
9. OPEN/CLOSE BUTTON / DETACHING PANEL BUTTON (FIGURE A)
* Press this button to show the disc slot in the main panel. Then, press once to close the disc slot.
* To detach the front panel, press this button so that the panel slide down from vertical to horizontal position.
Use thumb hold near the preset button between 3 and 4, and use other finger to hold the corrugated release
button at the back of the front panel while pulling. After the panel is released, the slide down metal frame
will automatically move backward until it locks to the original position.
* To re-'attach the panel, put the front pane! to the slide down metal frame by dipping it into place.
10. MODE SELECTION
Press this button to select Tuner, Compact Disc (CD/MP3), USB Memory or Memory Card (SD/MMC) mode.
11. STEREO / MONO CONTROL
Press this button to select “STEREO” or “MONO” reception.
12. LOUD CONTROL
Press this button to select “LOUD ON” or “LOUD OFF’ function.
13. LOCAL / DISTANT SELECTOR
Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press
this button again for distance.
14. VOLUME CONTROL
Rotate the button anti-clockwise to decrease or clockwise to increase volume level.
SETTING MENU SELECTION
* Press the button to show following “MODE”, “AUDIO” and “SETUP” menu for different setting of the unit.
* Rotate the button to view each particular menu and press the button to confirm selection.
MENU SUB-MENU OPERATION
MODE
(Tuner)
SEEK Seek mode 1 : up/down seek buttons perform fast tuning.
Seek mode 2 : up/down seek buttons will automatically tune in if pressed for more than one second.
LOCAL DX mode : For normal operation, press this button to receive as many stations as possible.
Local mode : Press this button to prevent strong local stations from overlapping weaker stations.
ST/MO Stereo sound : Press this button to select FM STEREO reception.
Mono sound : Press this button to select FM Mono reception.
MODE
(Compact Disc
USB Memory,
Memory Card)
SEARCH
Search particular MP3 track or file in compact disc, USB memory and memory card. Details can be
refered to the section "INSTRUCTION TO PLAY MP3 SONGS".
ESP
(Audio CD)
Esp 10s mode : setting 10 seconds electronic anti-shock timing for audio CD.
Esp 40s mode : setting 40 seconds electronic anti-shock timing for audio CD.
AUDIO
BASS - Press the button for Bass, Treble, Balance, Fader, EQ (EQ Off, Pop, Rock, Classic, Flat) and
Loud on/Off selection.
- Rotate VOL/SEL to adjust audio level setting.
- Press the button again to confirm the selection.
TRE
BAL
FAD
EQ
LOUD
SETUP BEEP
Not available on this model.
CONT
(CONTRAST)
Select the display brightness.
COLOR Not available on this model.
TITLE Logo : Factory preset logo will appear on display.
User define : User can input maximum 8 characters to show on the display.
VIEW
Positive view : Select positive view of the display.
Negative view: Select negative view of the display.
MULTI
Not available on this model.
CLOCK The clock can be set manually according to following procedure.
- While clock is flashing, rotate "VOL/SEL" control to set HOUR.
- Press "VOL/SEL” control to confirm HOUR setting and then rotate "VOL/SEL" control to set
MINUTE.
- Once clock setting is finished, press "VOL/SEL" control again to confirm your selection.
15/16. MANUAL UP/DOWN TUNING / TRACK SEEK UP/DOWN CONTROL
On radio mode, press the button will tune one frequency step higher or lower. Pressing the button more than 1
second can performs fast tuning function or auto tuning function.
Page. 3

On CD/MP3/USB-DRIV/MEM-CARD mode, press this button will locate the beginning of the track being played
or will locate the beginning of the next track. When pressing more than 2 seconds, it will move fast forward or
fast backward to a specific position of a CD/MP3 track.
17. S TATION PRESET BUTTON (1-6)
The PRESET BUTTONS on the unit are used to store station frequencies which you may wish to recall. Each
preset button can store FM1, FM2, FM3, MW1, MW2 band station frequency. Pressing the button momentarily
recalls the station frequency which was memorized. There are 6 preset buttons, giving you capability of storing
18FM / 12MW.
NOTE:'When the preset button to be memorized is kept pressed for more than 2 seconds, the receiving station
frequency will be stored in the button pressed. After this, the memorized station can be recalled by pressing the
button once.
On CD / MP3 / USB-DRIV / MEM-CARD Mode
• Preset 1 - press this button to pause the disc / file played.
• Preset 2 - press this button to scan the first 10 seconds of all the tracks on the selected disc / USB drive /
SD or MMC Card.
• Preset 3 - press this button to repeat the current track of the disc / USB drive / SD or MMC Card.
• Preset 4 - press this button to play disc / USB drive / SD or MMC Card at random order - Disc shuffle play.
• Preset 5 - press this button to search -10 track (for MP3 i USB-DRIV / MEM-CARD Mode only).
• Preset 6 - press this button to search +10 track (for MP3 / USB-DRIV / MEM-CARD Mode only).
18. U S B HOST
The unit is ready to play MP3 songs on an external USB device through the USB host directly on the front
pane!.
19. S D /MMC CARD SLOT
Holding the SD or MMC card and insert into the slot until you hear the lock sound (Figure 1). The unit will
automatically engage into MEM-CARD play mode. If you want to eject the SD or MMC card, just press the card
inward (Figure 2) until you hear the unlock sound and then release the SD or MMC card (Figure 3).
REMOTE CONTROL
Before You Start
Remove the transparency plastic thin plate (D) before
use and replace the CR2025(3V) lithium battery (E) if
necessary.
E
Page. 4

INSTRUCTION TO PLAY MP3 SONGS
IMPORTANT NOTES
•The MP3 file recording media acceptable to this unit are CD-R, CD-RW, USB flash memory and SD/MMC memory
•The MP3 formats acceptable are limited.
• Do not attemptto play a media containing non-MP3 files or non-MP3 files with MP3 extension. Otherwise, the CD
Mechanism/USB Drive/Memory Card Reader will not work properly. If “ERROR” is shown, it is suggested to reset the
radio by presssing the reset button.
PLAY ON MP3 SONG
•Insert the media with MP3 song in the disc slot /USB host/SD or MMC card slot. The unit will start playing and
checks all the files and folder on the media.
•If MP3 files and directories are recognized, the media will start playing.
•The MP3 files and directories are accessed according to the order written by the CD/fiash memory/SDorMMC
card writer.
TRACK SEARCH
•Press “VOL/SEL” button once and “MODE" menu will be shown on the display foryour selection.
•Press “VOL/SEL” button again to enter into “SEARCH” menu.
•Select track search and “0000” will appear on the display for you to enter track number.
• Rotate “VOL/SEL” button clockwise or anti-clockwise to shift number 0 - 9 in loop rotation.
• Press “VOL/SEL” button shortly to select the first digit.
• Repeat the same procedure to enter the other digits if required.
•After the track number is selected, press “VOL/SEL” button more than 2 seconds to start playing the selected
•If track number is not entered within 10 seconds, the unit will continue playing the currentfile.
FILE SEARCH
• Press “VOL/SEL” button once and “MODE” menu will be shown on the display for your selection.
•Press “VOL/SEL” button again to enter into “SEARCH” menu.
• Select “Explore search” and view available files in currentfolder by rotating “VOL/SEL” button.
• Press “VOL/SEL” button to play the selected file.
•If directories orfiles name is notentered within 10seconds, the unitwill continue playing the currentfile.
CHARACTER SEARCH
•Press “VOL/SEL” button once and “MODE” menu will be shown on the display for your selection.
• Press “VOL/SEL” button again to enter into “SEARCH” menu.
•Select “Character search” and press “VOL/SEL” button to enter into character search mode and “A” will appear on
the display.
• Rotate “VOL/SEL” button to select the first character of your desired MP3 file.
• Press “VOL/SEL” button shortly to select the first character and files matching your selection will show on the display.
Otherwise, “NO FILE” will show on the display.
• Rotate “VOL/SEL” button to view the available files and press the button to play the selected file.
Remark:
The media must contain directories orfiles name written by the CD / USB flash memory / SD or MMC card writer in
order to use in searching.
WIRE CONNECTION
CAR RADIO BACK SIDE
sj (OPTIONAL) o
Ircaaux inputT
_I
(OPTIONAL) L
CD CHANGER
j RED
1 WHITE
-(OPTIONAL)
R CA LINE O UT
> £] RED
ND WHITE
(OPTIONAL)
FUSE 0.1 A.
power
1 FUSE 1A
ANTENNA
IGNITION
RED
FRONT LEFTSPEAKER
WHITE
WHITE/BLACK
REAR LEFT SPEAKER
GREEN
GREEN/BLACK
(OPTIONAL)
SUBWOOFER
OUTPUT IT'
lid black n Hi
’8
(OPTIONAL)
VIDEO
OUTPUT
YELLOWl! {1_
ANTENNA
BLACK
FUSE 8A
YELLOW
GROUND
MEMORY
FRONT RIGHT SPEAKER
GRAY
GRAY/BLACK
REAR RIGHT SPEAKER
PURPLE
PURPLE/BLACK
CAUTION : Do not connect the speaker wires to chassis or car body. Each speaker wire cannot be soldered
together with other wires. Otherwise, the unit will be damaged and no sound will come out anymore.
Page. 5

RESET FUNCTION
The RESET button is located in front of
the panel. It is recessed in order to
prevent accidental engagement, and can
be activated with the tip of a ball-point pen
or any similar pointed object. This reset
circuitry is provided in order to protect the
unit’s microprocessor, and should only be
activated under the following conditions :
a) Initial installation after all wiring is
completed.
b) Abnormal operation is encountered such
as numerical indication on display is
erratic.
c) Whenever the reset button is activated,
all preset memory content will be erased
and must be reprogrammed.
INSTALLATION
CAUTION : DO NOT PLACE THE UNIT OVER THE MAXIMUM INSTALLATION ANGLE OF 30°. OTHERWISE, THE
UNIT MAY NOT WORK PROPERLY.
UNIT REMOVAL
1. Remove Front Control Panel.
2. Slightly insert the key into the slot and gently to
release.
3. Separate the sleeve from the unit. Keep release
key in a safe place as you may need for future
removal of unit.
WARNING!!
Due to protection of CD Mechanism, two small screws
on the top of the unit must be released before operate
the unit Othem/ise, the CD Mechanism can not be
P/N : 570-MCD902-01
