FEBL630Q791-01
ML630Q791 SDK BOARD
Hardware Manual
ML630Q791 Demo Kit
Issue Date: Jun.12.2015.

ML630Q791SDK Board Hardware Manual
i
FEBL630Q791-01
NOTES
1) The information contained herein is subject to change without notice.
2) Although LAPIS Semiconductor is continuously working to improve product reliability and quality,
semiconductors can break down and malfunction due to various factors. Therefore, in order to prevent
personal injury or fire arising from failure, please take safety measures such as complying with the derating
characteristics, implementing redundant and fire prevention designs, and utilizing backups and fail-safe
procedures. LAPIS Semiconductor shall have no responsibility for any damages arising out of the use of our
Products beyond the rating specified by LAPIS Semiconductor.
3) Examples of application circuits, circuit constants and any other information contained herein are provided
only to illustrate the standard usage and operations of the Products.The peripheral conditions must be taken
into account when designing circuits for mass production.
4) The technical information specified herein is intended only to show the typical functions of the Products and
examples of application circuits for the Products. No license, expressly or implied, is granted hereby under
any intellectual property rights or other rights of LAPIS Semiconductor or any third party with respect to the
information contained in this document; therefore LAPIS Semiconductor shall have no responsibility
whatsoever for any dispute, concerning such rights owned by third parties, arising out of the use of such
technical information.
5) The Products are intended for use in general electronic equipment (i.e. AV/OA devices, communication,
consumer systems, gaming/entertainment sets) as well as the applications indicated in this document.
6) The Products specified in this document are not designed to be radiation tolerant.
7) For use of our Products in applications requiring a high degree of reliability (as exemplified below), please
contact and consult with a LAPIS Semiconductor representative: transportation equipment (i.e. cars, ships,
trains), primary communication equipment, traffic lights, fire/crime prevention, safety equipment, medical
systems, servers, solar cells, and power transmission systems.
8) Do not use our Products in applications requiring extremely high reliability, such as aerospace equipment,
nuclear power control systems, and submarine repeaters.
9) LAPIS Semiconductor shall have no responsibility for any damages or injury arising from non-compliance
with the recommended usage conditions and specifications contained herein.
10) LAPIS Semiconductor has used reasonable care to ensure the accuracy of the information contained in this
document. However, LAPIS Semiconductor does not warrant that such information is error-free and LAPIS
Semiconductor shall have no responsibility for any damages arising from any inaccuracy or misprint of such
information.
11) Please use the Products in accordance with any applicable environmental laws and regulations, such as the
RoHS Directive. For more details, including RoHS compatibility, please contact a ROHM sales office.
LAPIS Semiconductor shall have no responsibility for any damages or losses resulting non-compliance with
any applicable laws or regulations.
12) When providing our Products and technologies contained in this document to other countries, you must abide
by the procedures and provisions stipulated in all applicable export laws and regulations, including without
limitation the US Export Administration Regulations and the Foreign Exchange and Foreign Trade Act.
13) This document, in part or in whole, may not be reprinted or reproduced without prior consent of LAPIS
Semiconductor.
14) ARM, Cortex and Thumb are trademarks of ARM Limited
Copyright 2015 LAPIS Semiconductor Co., Ltd.
2-4-8 Shinyokohama, Kouhoku-ku,
Yokohama 222-8575, Japan
http://www.lapis-semi.com/en/

ML630Q791SDK Board Hardware Manual
Table of Contents
i
FEBL630Q791-01
Table of Contents
1. Notations................................................................................................................................1-1
1.1. Precaution for Safe and Proper Use ............................................................................................................ 1-1
1.2. Import Safety Notes .................................................................................................................................... 1-2
1.3. Notational convention ................................................................................................................................. 1-3
1.4. Inquiry......................................................................................................................................................... 1-3
2. General Description..............................................................................................................2-1
2.1. Overview..................................................................................................................................................... 2-1
2.2. Main Components ....................................................................................................................................... 2-2
2.3. I2C bus connection of ML630Q791............................................................................................................ 2-4
2.4. System Connection Examples..................................................................................................................... 2-5
3. Setting .................................................................................................................................3-1
3.1. Setting operating mode of ML630Q791 SDK Board.................................................................................. 3-1
3.1.1. Firmware update jumper.......................................................................................................................... 3-1
3.1.2. HOST IF setting jumper .......................................................................................................................... 3-1
3.2. The switching of ML630Q791 SDK Board ................................................................................................ 3-2
3.2.1. Reset switch............................................................................................................................................. 3-2
3.2.2. Power supply switch................................................................................................................................ 3-2
4. Connectors.............................................................................................................................4-1
4.1. Connectors Pin Assignments....................................................................................................................... 4-1
4.1.1. Debug connector...................................................................................................................................... 4-1
4.1.2.HOST IF connector ................................................................................................................................. 4-1
4.1.3. Expansion port......................................................................................................................................... 4-2
4.1.4. I2C expantion connector1, 2.................................................................................................................... 4-3
5. Notes .................................................................................................................................5-1
5.1. Change about the setting hardware ............................................................................................................. 5-1
6. Schematics..............................................................................................................................6-1
6.1. Communication board................................................................................................................................. 6-1
6.2. CPU board................................................................................................................................................... 6-3

Chapter 1
Notations
This chapter explains the first things to do when the
user receives the ML630Q791DK Board.
Before turning on the power of the ML630Q791SDK
Board, be sure to check that you understand the
contents of this chapter.

ML630Q791SDK Board Hardware Manual
Chapter 1 Notations
1-1
FEBL630Q791-01
1. Notations
1.1. Precaution for Safe and Proper Use
This manual uses various labels and icons that serve as your guides to operating this product safely and
properly so as to prevent death, personal injury, and property damage. The following table lists these labels
and their definitions.
Labels
Icons
A triangular icon draws your attention to the presence of a hazard. The illustration inside
the triangular frame indicates the nature of the hazard—in this example, an electrical
shock hazard.
A circular icon with a solid background illustrates an action to be performed. The
illustration inside this circle indicates this action—in this example, unplugging the power
cord.
A circular icon with a crossbar indicates prohibition. The illustration inside this circle
indicates the prohibited action—in this example, disassembly.
Warning
This label indicates precautions that, if ignored or otherwise not
completely followed, could lead to death or serious personal injury.
This label indicates precautions that, if ignored or otherwise not
completely followed, could lead to personal injury or property
damage.
Caution

ML630Q791SDK Board Hardware Manual
Chapter 1 Notations
1-2
FEBL630Q791-01
1.2. Import Safety Notes
Please read this page before using the product.
Warning
Use only the specified voltage.
Using the wrong voltage risks fire or electrical shock.
Do not pile objects on top of the product.
Such pressure risks fire or electrical shock.
Do not use the product in an environment exposing it to moisture or high humidity.
Such exposure risks fire or electrical shock.
At the first signs of smoke, an unusual smell, or other problems, unplug the ML630Q791 SDK
BOARD and disconnect all external power cords.
Continued use risks fire or electrical shock.
At the first signs of breakdown, immediatelystop using the product, unplug the ML630Q791 SDK
BOARD, and disconnect
all external power cords.
Continued use risks fire or electrical shock.
Do not use this product on an unstable or inclined base as it can fall or overturn,
producing injury.
Do not use this product in an environment exposing it to excessive vibration, strong
electromagnetic fields, or corrosive gases. Such factors can loosen or even disconnect cable
connectors, producing a breakdown.
Do not use this product in an environment exposing it to temperatures outside the specified
range, direct sunlight, or excessive dust. Such factors risk fire and breakdown.
Use only the cables and other accessories provided. Using non-compatible parts
risks fire or breakdown.
Do not use the cables and other accessories provided with other systems.
Such improper usage risks fire.
Always turn off the power supplies before connecting or disconnecting the cables and
other accessories. Such improper handling risks fire or breakdown
Always observe the specified order for turning equipment on and off. Using the incorrect
order risks fire or breakdown.

ML630Q791SDK Board Hardware Manual
Chapter 1 Notations
1-3
FEBL630Q791-01
1.3. Notational convention
This manual utilizes the following notational conventions for convenience.
[Note] A “note” indicates a section of the manual that requires special attention.
[Reference] A “reference” provides information related to the current topic and indicates
the page number of a related section of the manual.
[Execution example] An “execution example” indicates an example related to the current topic.
(note x) “(note x)” is a reference to a numbered note that provides supplementary
information lower on the same page.
[Note x] “Note x” provides supplementary information related to the passage
marked with “(note x)”.
1.4. Inquiry
Thank you for purchasing the ML630Q791SDK Board.
Please direct any questions or comments regarding this product to your LAPIS SEMICONDUCTOR
distributor or the nearest LAPIS SEMICONDUCTOR sales office.

Chapter 2
General Description
This chapter gives a general description of the
ML630Q791SDK Board.

ML630Q791 SDK Board Hardware Manual
Chapter 2 General Description
2-1
FEBL630Q791-01
2. General Description
2.1. Overview
The ML630Q791SDK Board is equipped with the sensor hub microcontroller “ML630Q791, various sensors include
accelerometer, Gyroscope and so on.
The ML630Q791is a high-performance 32-bit low power microcontroller optimized for sensor hub, that integrates
ARM Cortex™-M0 core, 128 KByte flash memory, 16 KByte RAM, I2C interfaces for various sensors and host
interfaces with 512 Byte logging Register in small footprint package. The ML630Q791is an ideal sensor hub
microcontroller for smart phone to separate various sensors off from its application processor and control them
effectively for reducing total system power consumption.
In using the ML630Q791SDK Board, also refer to the following document:
• ML630Q791User’s Manual

ML630Q791 SDK Board Hardware Manual
Chapter 2 General Description
2-2
FEBL630Q791-01
2.2. Main Components

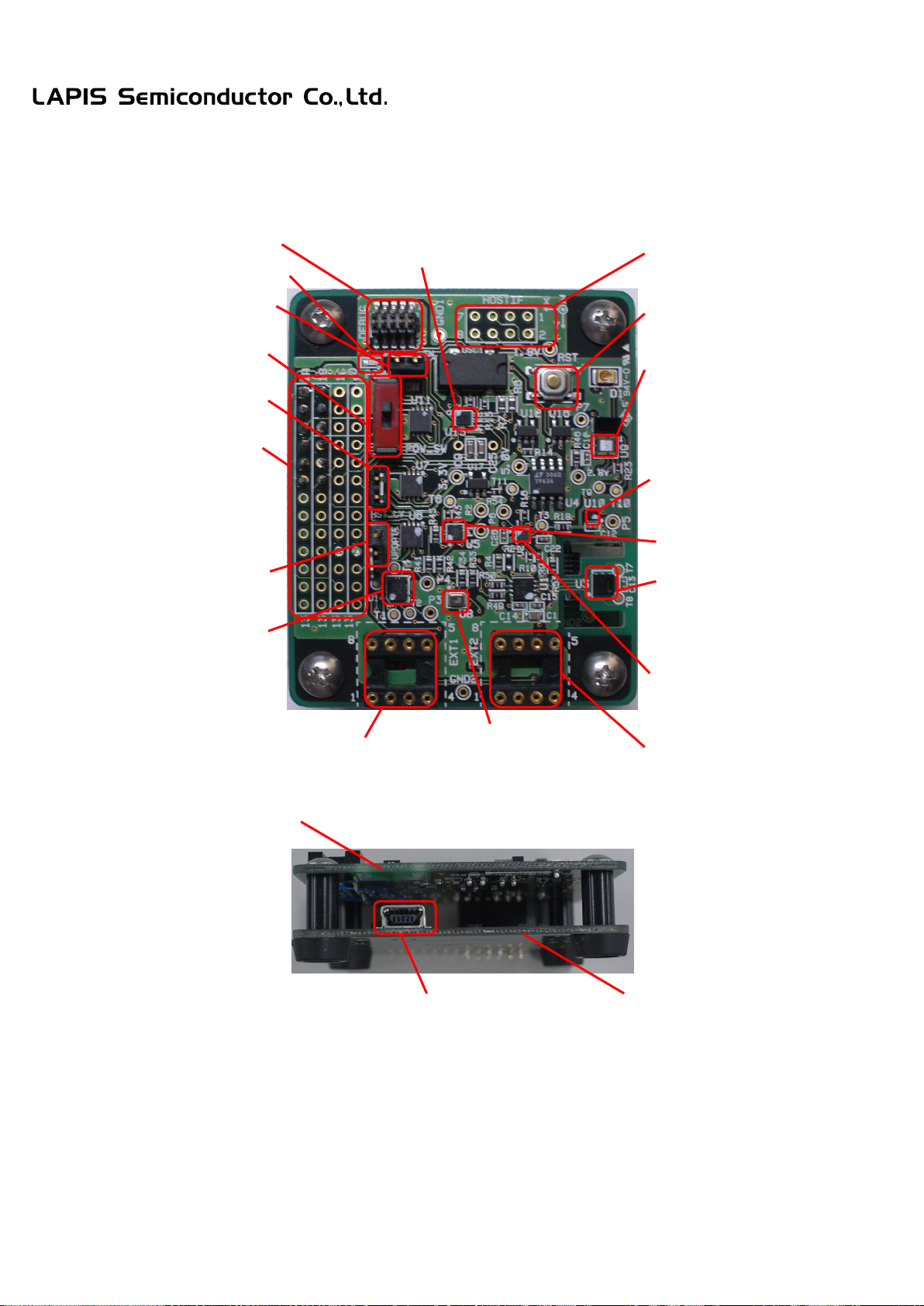

Figure 2-1 views of the ML630Q791SDK Board and Table 2-1 lists the main components of the board.
Figure 2-1 sensor hub microcontroller SDK Board
[16] Debug connector
[15] HOST IF connector
[13] Reset switch
[4] Proximity/Light Sensor
[2] Hall IC
[8] Humidity/Temperature
Sensor
[7] Gyroscope
/Accelerometer
[6] Digital Barometer
[5]Accelerometer
[3] Geomagnetic Sensor
[12] Power supply switch
[10] HOST IF
setting
jumper
[11] HOST IF Level
jumper
[14] Firmware update
jumper
[18] Expansion port
[19] I2C Expansion connector 1
[20] I2C Expansion connector 2
[1] ML630Q791
[23] Power LED
[17] USB connector
[21] CPU Board
[22] Communication board

ML630Q791 SDK Board Hardware Manual
Chapter 2 General Description
2-3
FEBL630Q791-01
Table 2-1 Components Mounted on sensor hub microcontroller SDK Board
Number
Name
Description
1
ML630Q791
Sensor hub microcontroller
2
Hall IC
Hall IC(BU52061NVX made by ROHM)
3
Geomagnetic Sensor
3-Axis Geomagnetic Sensor(HSCDTD007A made by ALPS)
4
Proximity/Light Sensor
Optical proximity sensor and ambient light sensor
(BH1772GLC made by ROHM)
5
Accelerometer
3-Axis Accelerometer(KX022 made by Kionix)
6
Digital Barometer
Barometric pressure sensor(BMP280 made by BOSCH)
7
Gyroscope/Accelerometer
Gyroscope and 3-Axis accelerometer
(BMI160 made by BOSCH)
8
Humidity/Temperature
Sensor
Humidity and Temperature sensor
(SHT20 made by SENSIRION)
9
Power LED
When the Power switch is turned on, the Power LED shines.
10
HOST IF setting jumper
Setting an enable signal of level shifter of HOST IF.
When the other HOST is used, remove the jumper cap from pins.
For details, please refer to the “3.1.2 HOST IF setting jumper”.
11
HOST IF level jumper
Please always the jumper cap is placed on pins.
12
Power supply switch
Power supply switch of SDK board.
ON: Apower supply is supplied to the SDK board.
OFF: A power supply is not supplied to the SDK board.
13
Reset switch
Reset switch for ML630Q791.
14 Firmware update jumper
Setting to update the firmware of the SDK board.
When the firmware of the SDK board is updated, the jumper cap is
placed on pins. Usually the jumper cap is not placed on pins.
15 HOST IF connector
When you use the other host, connect the other host to the HOST IF
connector.
16 Debug connector
Connect a debugger supporting the Cortex™-M0. (*1)
(FTSH-105-01-L-DV-K made by SMTmicro)
17 USB connector
USB mini Type B connector.
When the PC is used as the host, connect the PC
to the USB
connector. The power supplyof the SDK board is supplied from the
USB connector.
18
Expansion port
The signals of the ML630Q791 are connected.
19
I2C Expansion connector 1
The expansion connector of the ML630Q791 I2C bus.
20
I2C Expansion connector 2
The expansion connector of the ML630Q791 I2C bus.
21
CPU board
The board which implemented ML630Q791.
22
Communication board
The communication bard which implemented FT232H.
(*1) Please use the debugger supporting 1.8V interface voltage, because the debuger interface voltage of
ML630Q791 is 1.8V interface voltage.

ML630Q791 SDK Board Hardware Manual
Chapter 2 General Description
2-4
FEBL630Q791-01

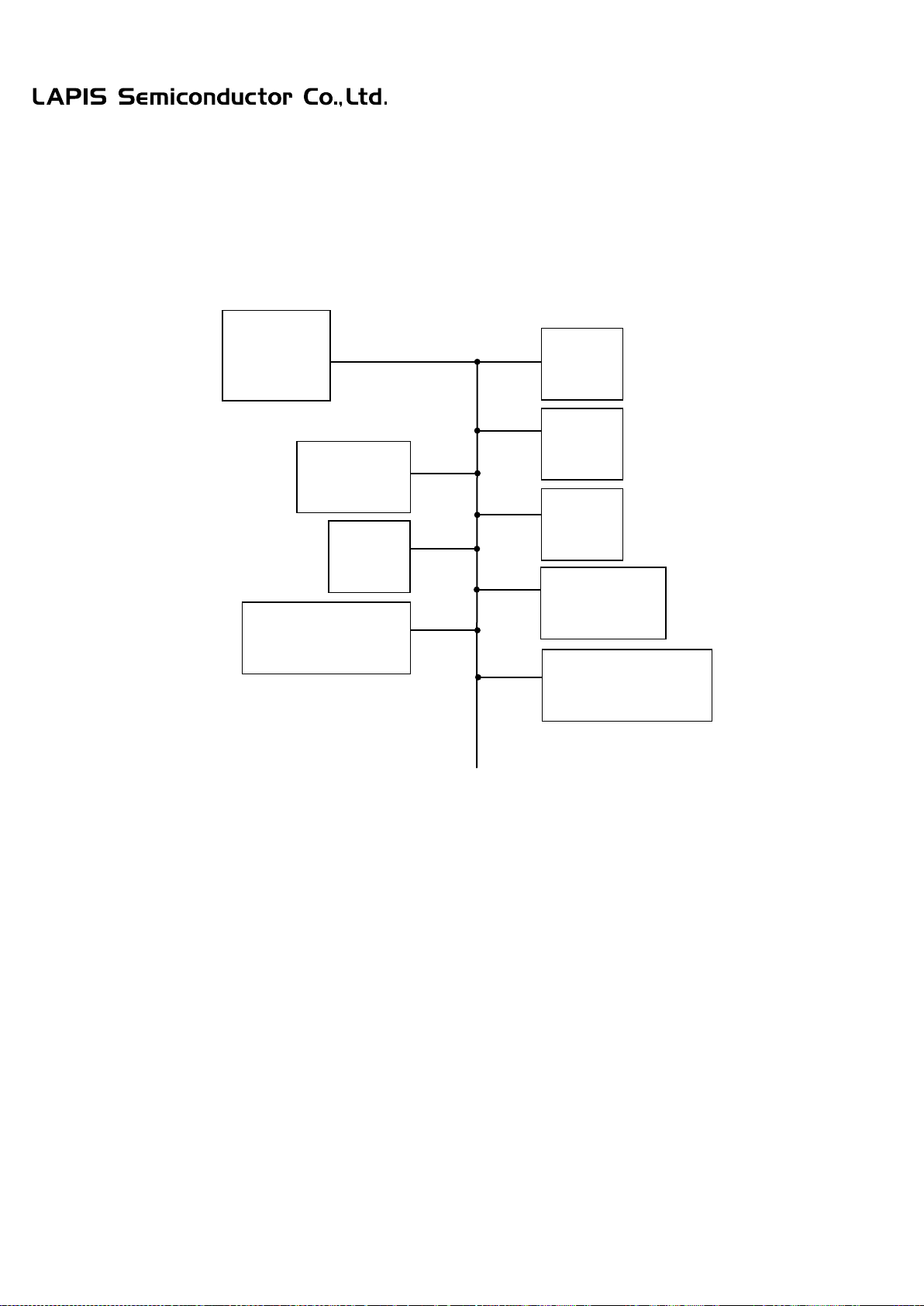

2.3. I2C bus connection of ML630Q791
Figure 2-2 shows the I2C bus connection of the ML630Q791.
( ):I2C slave address
Figure 2-2 I2C bus connection
ML630Q791
I2C0
KX022
(1EH)
BMI160
(68H)
BMP280
(76H)
BH1772GLC
(38H)
SHT20
(40H)
HSCDTD007A
(0CH)
I2C Expansion
connector1
I2C Expansion
connector2

ML630Q791 SDK Board Hardware Manual
Chapter 2 General Description
2-5
FEBL630Q791-01

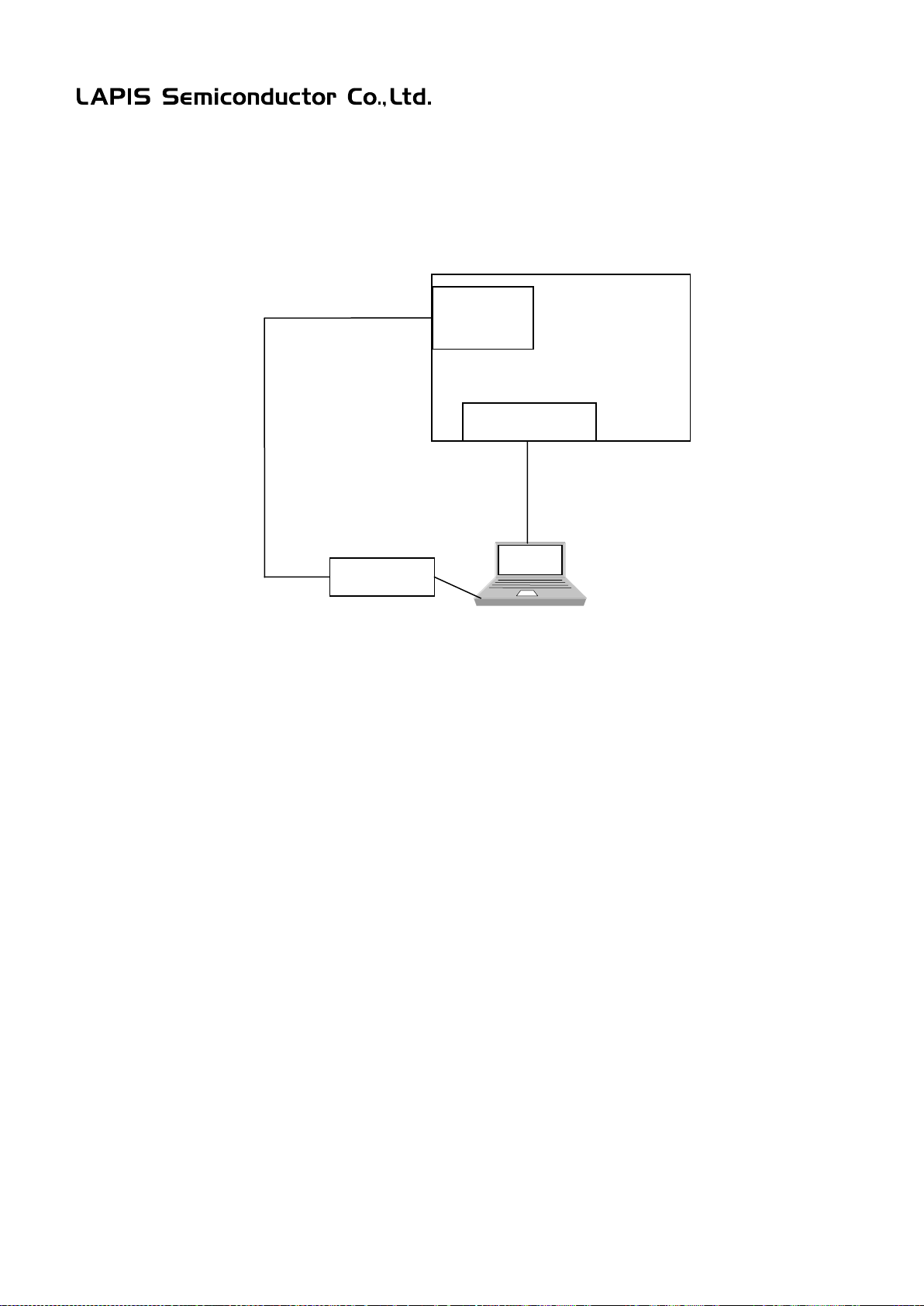

2.4. System Connection Examples
Figure 2-3 shows examples of ML630Q791 SDK Board power supply connections.
Figure 2-3 System connection example
PC
Debugger
USB
Debug
connector
USB connector

Chapter 3
Setting
This chapter gives a Setting opreating mode of the
ML630Q791 SDK Board.

ML630Q791 SDK Board Hardware Manual
Chapter 3 Setting
3-1
FEBL630Q791-01

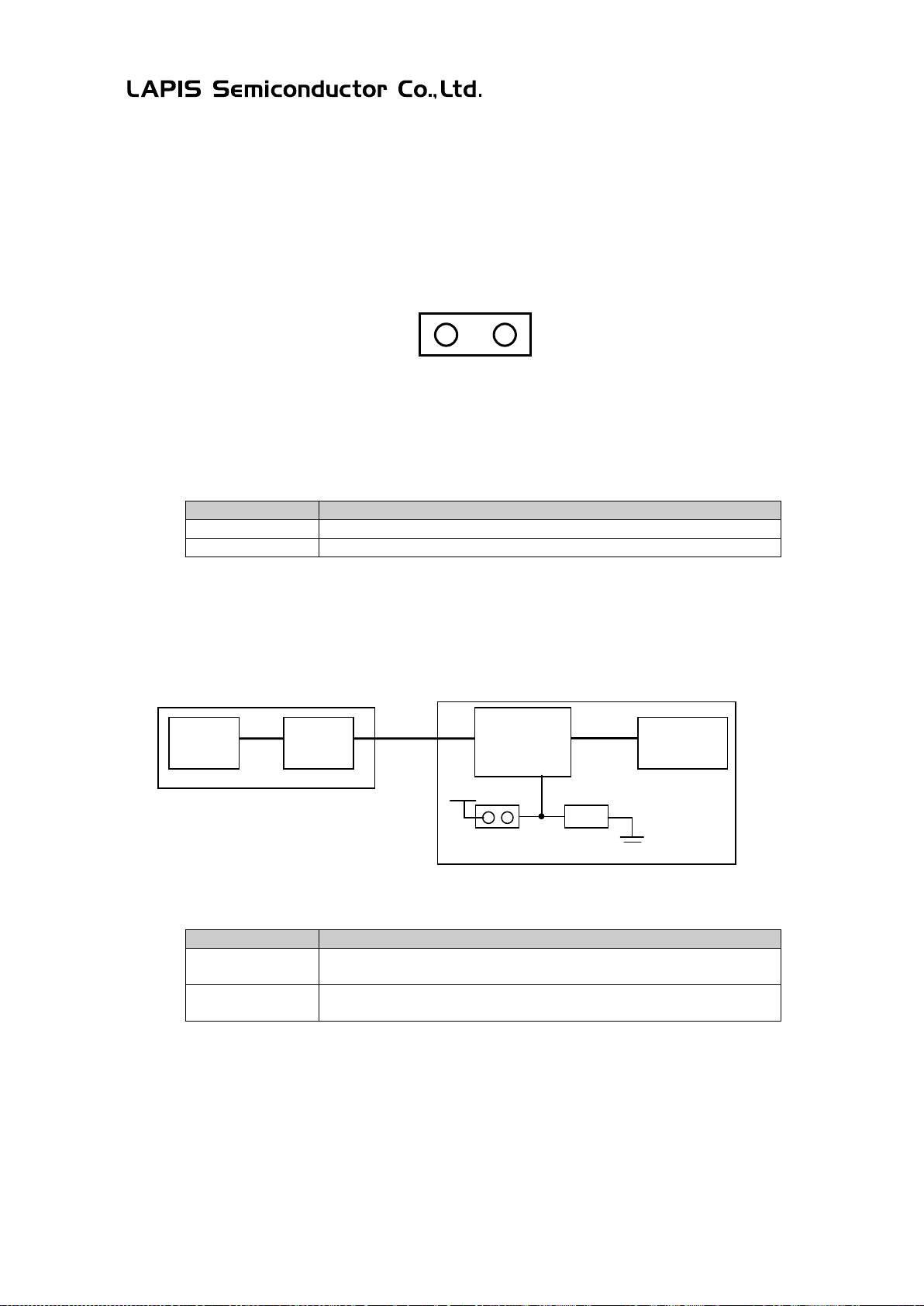

3. Setting
3.1. Setting operating mode of ML630Q791 SDK Board
3.1.1. Firmware update jumper
The BRMP pin is set by the Firmware update switch. Setting the BRMP pin to “H”,the hardware remap
function becomes available.
Figure 3-1 the Host IF switch,
Table 3-1 the Host IF switch
Setting
Explanation
cap not placed
Set BRMP pin to “H”. Supply voltage is 1.8V.
cap placed
Set BRMP pin to “L”.
3.1.2. HOST IF setting jumper
When you use the other host, remove HOST IF jumper from pins to avoid the conflict with the signal which
FT232H outputs.
Table 3-2 the HOST IF jumper
Setting
Explanation
cap placed
The level shifter is enabled. The PC connected to the USB connector is
the host.
cap not placed
The level shifter is disabled. Connect the other host to the HOST IF
connector.
UPDATE
USB
connector
FT232H
Communication board
Level shifter
EN
ML630Q791
CPU board
1.8V
HOSTIF_EN

ML630Q791 SDK Board Hardware Manual
Chapter 3 Setting
3-2
FEBL630Q791-01
3.2. The switching of ML630Q791 SDK Board
3.2.1. Reset switch
The RESET_N pin of ML630Q791 connects to the Reset switch and nSRST pin of the Debug connector.
Pressing this switch, ML630Q791 is reset and the debugger detects that the reset is asserted.
3.2.2. Power supply switch
The Power supply switch controls the power supply supplied to the CPU board.
Table 3-3 the power supply switch
Setting
Explanation
ON
The power supply of the CPU board is turned on.
OFF
The power supply of the CPU board is turned off.
expansion
port
HOST IF
connector
regulator
5V to 1.8V
ML630Q791
ON
POW_SW
A1
1
VDD
regulator
5V to 2.8V
sensors
C1
C2
C3

Chapter 4
Connectors
This chapter describes the connectors mounted on the
ML630Q791 SDK Board.

ML630Q791 SDK Board Hardware Manual
Chapter 4 Connectors
4-1
FEBL630Q791-01
4. Connectors
4.1. Connectors Pin Assignments
4.1.1. Debug connector
Please use the debugger supporting 1.8V interface voltage, because the debuger interface voltage of
ML630Q791 is 1.8V.
Pin No.
Signal name
I/O
Destination
1
VTref
I
DVDD
2
TMS/SWDIO
I/O
SWD
3
GND
-
-
4
TCK/SWCLK
O
SWC
5
GND
-
-
6
TDO/SWO
I
-
7
KEY(NC)
-
-
8
TDI
O
-
9
GND
-
-
10
nSRST
O
RESET_N
4.1.2. HOST IF connector
Pin No.
Signal name
I/O
Destination
1
5V
I
D50V
2
Vref
I
Vref
3
SCLKS
I
SCLKS
4
SDIS
I
SDIS
5
SCSS
I
SCSS
6
SDOS
O
SDOS
7
INT0S
O
INT0S
8
RESET
I
RESET_N
9
GND
I
GND
10
NC
-
-
135 79
2 4 68 10
1 35 7 9
24 68 10

ML630Q791 SDK Board Hardware Manual
Chapter 4 Connectors
4-2
FEBL630Q791-01
4.1.3. Expansion port
The interface voltage of the C1 to C13 and D1 to D13 are 1.8V.
Pin No
Signal name
Destination
Pin No
Signal name
Destination
A1
5V
5V input power source
B1
NC
A2
GND
B2
GND
A3
ACBUS0
FT232H
B3
ADBUS0
FT232H
A4
ACBUS1
FT232H
B4
ADBUS1
FT232H
A5
NC
B5
ADBUS2
FT232H
A6
NC
B6
ADBUS3
FT232H
A7
NC
B7
NC
A8
NC
B8
NC
A9
NC
B9
NC
A10
NC
B10
NC
A11
NC
B11
NC
A12
NC
B12
NC
A13
NC
B13
NC
Pin No
Signal name
Destination
Pin No
Signal name
Destination
C1
5V
5V output power
D1
GND
C2
2.8V
2.8V output power
D2
GND
C3
1.8V
1.8V output power
D3
GND
C4
PA0
ML630Q791
D4
PA1
ML630Q791
C5
PA2
ML630Q791
D5
PA3
ML630Q791
C6
PA4
ML630Q791
D6
PA5
ML630Q791
C7
PA6
ML630Q791
D7
NC
C8
GND
D8
GND
C9
SDA_S
ML630Q791
D9
SCL_S
ML630Q791
C10
SDA0_M
ML630Q791
D10
SCL0_M
ML630Q791
C11 RESETN
ML630Q791
reset signal
D11 BRMP ML630Q791
C12 CLK
ML630Q791
clock signal
D12 NC
C13
NC
D13
NC
