Lascal BuggyBoard Maxi User manual

www.buggyboard.info
Control no.
BUGGYBOARD-MAXI™
Model :
'Owners Manual : English'
Other languages, see :
www.lascal.se

Dear customer, thank you for choosing a BuggyBoard-Maxi™ from Lascal. We hope you will be satis-
fied with your purchaseand and will enjoy going out with your children on their BuggyBoard™.
WARNING!
Read these instructions carefully before use and keep for future reference.
IndexE
Content........................................... 2
Wheels............................................ 3
Connectors...................................... 3
Arms .............................................. 4
Connecting...................................... 6
Disconnecting .................................. 6
When not in use............................... 7
Accessories...................................... 7
Cleaning and recycling ...................... 7
Tests............................................... 8
Warnings......................................... 8
Warranty......................................... 8
Other Lascal products ....................... 9-10
Contact information .......................... 11-12
Product registration card ................... 13-14
ENGLISH
- 1 -
For detailed information regarding fixing the BuggyBoard™
to different kinds of pushchairs, please visit:
www.buggyboard.info
For personal assistance please contact Cheeky Rascals at:
[email protected], or
Telephone no. 01730 895761

KEEP FOR FUTURE REFERENCE
- 2 -
CONTENT
Part no. Description Preassembled part Qty.
81610 - 81612 Platform 1
81150 Strap with hook 1
81310/81311 Height adjustment screw (red/blue) x 2
81320 Arm support, left x 1
81321 Arm support, right x 1
81330 Fixing plate x 2
81340 Fixing screw x
x
x
x
2
81613 Wheel 2
2
81520 Cotter pin
81604 Friction Tape (25 x 50 mm) 2
2
81803 Owner manual
81614 Suspension arm left
81615 Suspension arm right
81616 Suspension spring
80370 Extender
80371 Extender Screw
1
1
1
2
2
2
x
x
81617 Suspension rivet
81618 Wheel locking cage 2
2
x
81300 Arm, left 1
x
81301 Arm, right 1
81520
81340
81150
81610 - 81612
81330
81613
81803
81320
81300
81615
81618
81616
81321
80371
81310/81311
81614
81617
81600 Connector assembly for Maxi
81601 Connector cover
81602 Connector strap
81603 Connector bolt
81602
81601
81603
81600
81604
80370
81301
www.buggyboard.info
Control no.
BUGGYBOARD-MAXI™
Model :
‘Owners Manual: English’
Otherlanguages, see :
www.lascal.se

a
a = max . 22.5 cm / 9 in.
2. Positioning the connectors.
The connectors can be attached facing forward
or backwards. The connectors can be fitted onto
different shapes of tubing with a maximum
circumference of 22.5 cm (9 in.). Bend the
strap round the tubing. Then feed the strap
through the slot in the connector cover and
pull the strap gently. Check the position of the
connectors to be sure that
• the arms (81300/81301) will be able to reach
the connectors (maximum 35 cm (14 in.)
with
extenders 39 cm (15,5 in) above the ground ).
• they are as low as possible on the buggy.
• they do not interfere with the buggy’s folding
mechanism.
• the arms stay clear of both the braking
mechanisms and the wheels of the buggy.
3. Attaching the connectors.
Once certain of the position of the connectors,
loosen the strap and fix the Friction Tape on the
uprights where the connectors are going to be
attached. Reposition the connector over the
friction tape and pull the strap tight. Secure the
connector by turning the connector-bolt
clockwise. Check that the buggy still folds
properly and the brakes still work properly; if
not, you may need to reposition the connectors.
2
3
2
1
- 3 -
THE CONNECTORS
Friction Tape
(Detaching the wheels)
THE WHEELS AND ARMS
1. Attaching the wheels and the arms.
1
I
II
For more details: www.buggyboard.info
Click
35 (39) cm/ 14 (15,5) in.
35 (39) cm/ 14 (15,5) in.

- 4 -
6. Rotating the arms forward.
Turn the platform onto its wheels.
(A) Unscrew the height adjustment screws
(81310) until they are just released.
(B) Rotate the arms forward then tighten the
height adjustment screws.
THE ARMS
A
B
6
5

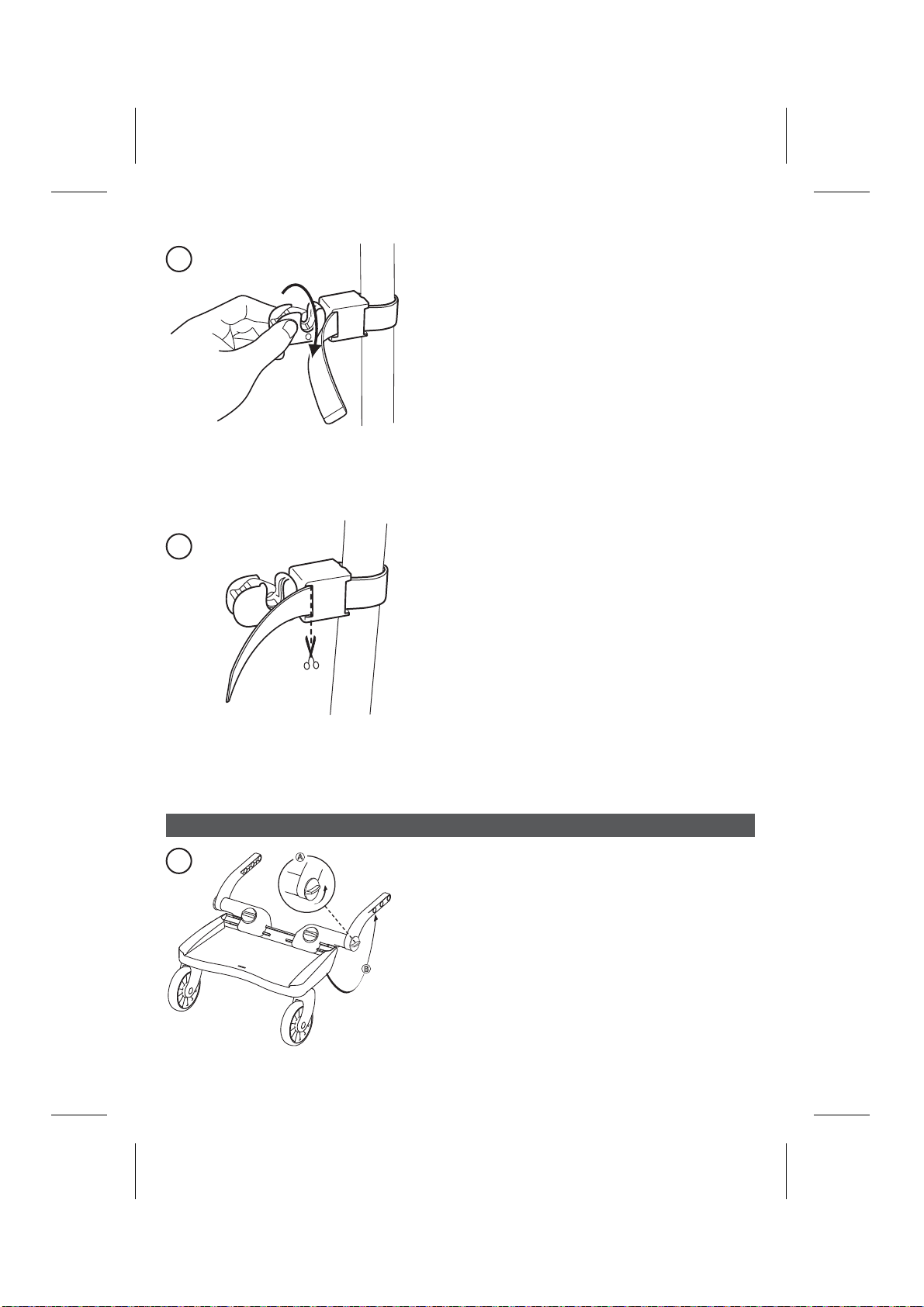

4. Tightening the connectors
The connectors must be firmly attached to
the buggy such that they cannot move.
(To detach the connector. Turn anti clockwise
until the connector come loose)
5. Cut the strap.
Cut the strap as close to the connector housing
as possible. Smooth sharp edges.
Note: Leaving the strap uncut can interfere
with the locking of the cotter pin into the
connector, and therefore the safety of the
BuggyBoard™ in use.
4

7. Positioning the cotter pins.
Measure the distance between the middle of
each of the connectors.
Deciding the cotter pin direction.
If the measured distance is between:
• 31-43 cm (12.4-17.2 in.) Alt. A below.
• 43-54 cm (17.2-21.6 in.) Alt. B below.
8. Choosing the right cotter pin hole.
43 - 54 cm
31 - 43 cm
Alt. A Alt. B
1
3
2
A
B
8
7
- 5 -
There are three holes in each arm. To choo-
se the hole that best suits your buggy, posi-
tion the BuggyBoard™ as close as possible to
the back of your buggy, however do make
sure that your child can stand comfortably.
Screw the cotter pin into the chosen cotter pin
hole, tighten with a coin. If the arms are too
short to fit to your buggy, use the 'Extender
Kit', see Fig 13.

- 6 -
DISCONNECTING
CONNECTING
11 11. Disconnect the BuggyBoard™
At the end of each connector-bolt, slide the
red release buttons down, whilst lifting the
arms up and out of the connectors.
9. Connecting the BuggyBoard™.
Unscrew the fixing screws (81340). Adjust
the width of the arms and click the cotter
pins into the connectors, then tighten the
fixing screws. Ensure that the arms are an
equal distance from the centre of the board
and the cotter pins are locked in the connec-
tors.
10. Leveling the platform.
Unlock the height adjustment screws
(81310) and rotate the platform until level.
Tighten the height adjustment screws.
IMPORTANT !
The BuggyBoard™ must be discon-
nected from the buggy before
folding the buggy.
Do not fold the buggy with the
BuggyBoard™ attached
9
10 Click
Click

- 7 -
WHEN NOT IN USE
ACCESSORIES
13. Accessory: ”Extender Kit”
Item no. 11310
To attach the BuggyBoard™ onto certain buggy
an ‘Extender Kit’ may be needed. This will
lengthen each arm up to 6cm (2.4”).
14. Accessory: Extra Connector Kit
Item no. 11340
The use of any accessories with the
BuggyBoard Maxi that have not been
approved by the manufacturer is not
recommended.
12. Hooking up the BuggyBoard™.
If the BuggyBoard™ is temporarily not in use,
it can be hooked up behind your buggy. Clip
the hook (81150) onto the platform and atta-
ch the strap to a higher point on your buggy.
Cleaning instructions: Use warm water with a soft cloth and a mild non-abrasive cleaning
fluid. All BuggyBoard™ parts and packaging are made from recyclable materials.
CLEANING AND RECYCLING
12
13
14
If you want to attach the BuggyBoard™ to
another buggy/pram without having to
remove the connectors, you may purchase
an Extra Connector Kit as a separate
accessory. Each Extra Connector Kit contains
a pair of connectors, 2 pieces of friction tape
and an additional hook and strap.
”Click”
”Click”
”Click”

WARRANTY
WARRANTY
Your BuggyBoard™ is warranted to be free from manufacturing defects for a period
of one year from date of purchase under normal use and in compliance with the ope-
rating instructions. This warranty extends only to the original retail purchaser and is
only valid when supplied with proof of purchase.
We are committed to ensuring that this product is of the highest quality. The manu-
facturing process is regularly checked by both internal and external (TÜV) controllers.
Samples of parts and completed products are also taken out regularly for tests in
our own testing laboratory. The BuggyBoard-Maxi™ is tested and approved by
SGS
Standards Technical Services Co. Ltd, Guangzhou, China and by SP Swedish
National Testing and Research Institute according to the relevant clauses in EN
1888:2003, clause 6.1.1 – 6.1.5, 7.2.2.6, 17.3, 18.2 and 21.4
TESTS
• Intended for use with only one child at a time from
approximately 2 years of age and with a maximum weight
of 20 kg (44 lb).
• Always keep your hands on the pram when your child
is standing on the BuggyBoard™. Never leave your child
unattended while he/she is standing on the BuggyBoard™.
• Make sure your child is always standing with both feet on
the anti-slip rear portion of the BuggyBoard™.
• Never use the stroller’s parking brake while your child is
standing on the BuggyBoard™.
• Before each use, check the connectors and tighten if
necessary.
• Do not use the BuggyBoard™ if any part is broken, torn
or missing.
• Never let children play with the BuggyBoard™.
WARNING
- 8 -

- 9 -
• Needs minimum space, disappears when
not in use.
• Easy to attach. Can be fixed inside or in
front of openings
• Easy to use, one-hand operated.
• Locks automaticaly open or closed
• Warning signal when opening
• Safe and secure. Exceed both the new
European safety standard EN 1930 and the
American ASTM safety standard F1004-00
More information available on internet: www.
lascal.se
KiddyGuard is a regis-
tered trademark and is
protected by patent.
KIDDYGUARD™
safety gate which keeps
your child on the safe side
OTHER LASCAL PRODUCTS
M1 CARRIER™
The Ultimate Baby Carrier
The Lascal M1 Carrier™ is the next gene-
ration of baby carriers with a sporty and
fashionable look for today’s parent. Using
the latest high-tech ventilated fabrics
dramatically increases the comfort for both
baby and parent. Super soft and naturally
anti-bacterial Bamboo fabric is perfect for
the removable Top Cover and for the leg and
arm openings, that come in contact with
baby’s skin.

- 10 -
BUGGYBOARD™
• Connects to the rear wheel axle and fits most prams and strollers.
• Easy to connect and disconnect.
• Built-in height and length adjusting system.
More information available on internet: www.lascal.se
OTHER LASCAL PRODUCTS

- 11 -
CONTACT INFORMATION (A - J)
AUSTRALIA
CNP Brands
Derrimut VIC 3030
Australia
Tel. [phone]
Customer Service: 1300 667 137
E-mail: [email protected]
www.cnpbrands.com.au
AUSTRIA
BMK Handels-und Vertriebs GmbH
1230 Wien
Tel. [phone]
E-mail: [email protected]
www.popolini.com
BELGIUM
Hebeco NV
2960 Brecht
Tel. [phone]
E-mail: [email protected]
www.hebeco.be
CANADA
Regal Lager, Inc.
Kennesaw GA, 30144,
U.S.
Ph. 800-593-5522
E-mail: [e-mail]
www.regallager.com
CHINA-SHANGHAI
彩趣貿易（上海）有限公司
上海徐匯區龍華西路585號
華富大廈A棟16樓01室
電話: [phone]
[phone]
傳真：[phone]
CYPRUS
Xenios Demetriades & Son Ltd
1070 Nicosia
Ph. [phone]
E-mail: [email protected]
www.demetriades.com.cy
CZECH REPUBLIC
VISPA NACHOD sro
54912 Vysokov 1
Tel: [phone]
E-mail: [email protected]
www.vispa.cz
DENMARK
Nord-Ideen,
Martin Frommhagen
23821 Wardersee,
Germany
Tel. [phone]
www.nordideen.de
ESTONIA /
LATVIA / LITHUANIA
4kids OÜ
Randvere tee 17-51
74001 Haabneeme, Harjumaa
Estonia
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.4kids.ee
FINLAND
Britax - Pohjolan Lapset Oy
00930 Helsingfors
Puh. [phone]
E-mail: [email protected]
www.britax.fi
FRANCE
Gamin Tout-Terrain
75019 Paris
Tel. [phone]
E-mail:
[email protected]
www.gamin-tout-terrain.com
GERMANY
Nord-Ideen,
Martin Frommhagen
23821 Wardersee
Tel. [phone]
www.nordideen.de
HOLLAND
Hebeco NV
2960 Brecht
Belgium
Tel. [phone]
E-mail: [email protected]
www.hebeco.be
HONG KONG,
CHINA & MACAU
Lascal Ltd.
Suite 919, 9th floor, Tower 3
China Hong Kong City
33 Canton Road, Kowloon
Hong Kong (SAR)
Tel. [phone]
E-mail: [email protected]
www.lascal.se
HUNGARY
Brendon Gyermekáruházak Kft.
1138 Budapest
Tel. [phone]
www.brendon.hu
ICELAND
Fifa Ltd.
Reykjavik 110
Ph. [phone]
E-mail: [email protected]
www.fifa.is
IRELAND
Cheeky Rascals Ltd.
Hants, GU33 6JG UK
Tel. [phone]
Fax. [phone]
E-mail: [email protected]
www.cheekyrascals.co.uk
ISRAEL
Baby Safe
Kibbutz Mishmarot
P.O.B 3091
Caesarea ind. Park 38900
Tel. [phone]
E-mail: [email protected]
www.babysafe.co.il
ITALY
Primi Sogni Srl
24060 Telgate
Tel. [phone]
E-mail: [email protected]
www.primisogni.com
JAPAN – 日本
株式会社 ティーレックス
〒541-0053
大阪市中央区本町2丁目3番14号
船場旭ビル5F
Tel: [phone]
E-mail: [e-mail]
www.t-smartstart.com

- 12 -
CONTACT INFORMATION (K - Z)
T-Rex, Co. Ltd.
Senba Asahi Bldg
2-3-14 Honmachi
Chuo-ku, Osaka
#541-0053
KOREA
Penta Zone Inc.
Soeul, Korea
Tel: [phone]
E-mail: [email protected]
Sole Distributor for
Lascal m1 carrier
Zero to Seven Co.,Ltd
Hanmi Bldg 11F, 1,
Gongpyeong-dong,
Jongro-gu, Seoul, #110-160
Korea
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.0to7.com
Sole Distributor for Buggy Board,
Kiddy Board and Kiddy Guard
LUXEMBOURG
Hebeco NV
2960 Brecht
Belgium
Tel. [phone]
E-mail: [email protected]
www.hebeco.be
MALAYSIA
Infantree
Singapore, 787601
Tel. [phone]
E-mail: [email protected]
www.infantree.net
MALTA
Rausi Co. Ltd
San Gwann, SGN 09
Tel. [phone]
E-mail: [email protected]
www.rausi.com.mt
NORWAY
Norske Servicesystemer AS
N-3511 Honefoss
Tel: [phone]
E-mail: [e-mail]
www.servicesystemer.no
POLAND
Tootiny
ul. Trzebiatowska 16
60-432 Poznan, Poland
Tel: [phone]
E-mail: [e-mail]
www.tootiny.com
PORTUGAL
B.B. Aventurero, S.L.
Progreso, 35, 08850 Gava
Barcelona, Spain
Tel: [phone]
E-mail:
[email protected]
www. elbebeaventurero.com
RUSSIA - Россия
107553 Москва
1-ая Пугачевская ул. влад.17
Тел.[phone],
(495)161 25 91, (495)161 27 48
E-mail: [e-mail]
www.carber.ru
Carber Poriferra
Moscow 107553
Tel. [phone]
SINGAPORE
Infantree Pte Ltd
Singapore, 787601
Tel. [phone]
E-mail: [email protected]
www.infantree.net
SLOVENIA
MAMI d.o.o.
1236 Trzin
Tel. [phone]
E-mail: [email protected]
www.mami.si
SPAIN
B.B. Aventurero S.L.
Progreso 35, 08850 Gava
Barcelona, Spain
Tel: [phone]
E-mail:
[email protected]
www.elbebeaventurero.com
SWEDEN
Carlo i Jönköping AB
556 52 Jönköping
Tel. [phone]
E-mail: [e-mail]
www.carlobaby.com
SWITZERLAND
BAMAG Babyartikel und Möbel AG
CH-8320 Fehraltorf
Tel. [phone]
E-mail: [email protected]
www.babybamag.ch
TAIWAN
Toppin 886-2-87924158
E-mail: [email protected]
www.babybus.com.tw
THAILAND
Thai Soonthorn International
Trading Co., Ltd.
316 Soi Taksin 19, Taksin Road,
Bukkalo, Thonburi, Bangkok 1060
Tel: [phone]
E-mail: [e-mail]
www.thaisoonthorninter.com
UNITED KINGDOM
Cheeky Rascals Ltd.
Hants, GU33 6JG
Tel. [phone]
Fax. [phone]
E-mail: [email protected]
www.cheekyrascals.co.uk
UNITED STATES
Regal Lager, Inc.
Kennesaw GA, 30144
Ph. 800-593-5522
E-mail: [e-mail]
www.regallager.com
VIETNAM
Maxcare Co., Ltd
366Xadan Str
Dongda Dist,
Hanoi
Vietnam
Ph. 0435738311
Fax: [phone]
E-mail: [e-mail]
www.mrbaby.vn

Registering is the only way to guarantee that Lascal will notify you in the unlikely
event we need to issue a safety notification.
Name
Address
Town
Country
Postcode
E-mail address
Date of purchase. Serial number (see underside of the platform).
Register your purchase at www.lascal.se/web/register or
fill in and return this card by mail.
PRODUCT REGISTRATION CARD
Register online at www.lascal.se/web/register
- 13 -

Place
stamp
here
PRODUCT REGISTRATION CARD
Please fold and seal with tape before mailing. Do not staple.
PRODUCT REGISTRATION CARD
Register online at www.lascal.se/web/register
To : Cheeky Rascals Ltd.
Stone Barn, The Brows, Farnham Road,
Liss, Hampshire, GU33 6JG,
U.K.
