Laser Link Red Hot 9909 Instruction Manual
MODEL 9909
Instruction Manual and
Warranty Information
CHANGING MEASUREMENT SETTINGS
The Red Hot rangefinder’s default measurement setting is to read in yards with
sound. However, there are six different measurement options for you to choose
from. If you would like to change the Red Hot measurement settings, please
follow the instructions below.
1. With the Red Hot in the OFF position, hold the rangefinder with the LCD
screen facing you.
2. PRESS AND HOLD the “On” button until the unit emits three fast beeps.
This will take approximately sixty seconds. After the third beep, release the
black button.
3. You are now able to cycle through the various measurement settings. Press
and release the black button a few times. As you do this you will see various
icons appearing on the LCD screen.
4. In order to program the Red Hot to the setting that you desire, you must cycle
through the settings (by pressing and releasing the black button) until you
find the appropriate setting. When you find your setting, simply wait for
approximately five seconds and the rangefinder will emit four fast beeps.
This indicates that you have programmed your new setting.
EXAMPLE: You would like your unit to measure in YARDS WITH VIBRATE.
In order to do this, follow steps 1-3. When you reach step 4, cycle through the
settings until you get to the icons that indicate yards with vibrate (this will be a
single letter ‘Y’ on the righthand side of the LCD, and two “lightning bolts” in the
upper left corner). When you see these icons, wait for the four fast beeps and
your new setting will be programmed.
Setting Descriptions
Yards Indicated with ‘Y’ on LCD screen.
Meters Indicated with ‘M’ on LCD screen.
Audio On Indicated with a speaker icon on LCD screen.
Audio Off No speaker icon present.
Vibrate On Indicated with “lightning bolts” on LCD
SPECIFICATIONS
Product: Red Hot
Model: 9909
Dimensions: 6” x 2 3/16” x 3 1/8”
Weight (with battery): 8 ounces
Class One Laser*
Power Source: 9 Volt Battery (alkaline only)
Range without reflector: 5 – 400 yards (5 - 366 meters)
Range w/ Laser Link reflector: 5 – 800 yards (5 – 731 meters)
Accuracy: +/- 1%
Display: LCD
Carrying case included
*This product complies with CFR 21. 1040. 10
ONE-YEAR LIMITED WARRANTY
LASER LINK GOLF warrants to the original consumer purchaser thereof all parts
of the Red Hot Rangefinder to be free from defects in materials or factory
workmanship for a period of one (1) year from the date of original purchase by the
consumer. LASER LINK GOLF will, at its option, replace or repair this product or
any part thereof, except batteries, if it proves to be defective under normal use and
service within one (1) year from date of original purchase. LASER LINK GOLF’s only
obligation under this warranty is to repair or replace the defective product or any
part thereof, except batteries, when it is returned together with proof of date of
purchase, transportation prepaid, to LASER LINK GOLF within one (1) year from the
date of original purchase. Phone: (608) 838-3100 • Toll Free: 866-909-4653
www.laserlinkgolf.com
To obtain warranty service, call Laser Link Golf at (866) 909-4653 to obtain
Return Authorization. Ship the product, or part thereof, together with
proof of purchase and a note explaining the problem to:
Laser Link Golf
Attn: Repair Department
4027 Owl Creek Drive
Madison, WI 53718
On the accompanying note, and any other correspondence, be sure to
include the model number, the Return Authorization number, your name,
your phone number or email address, and your return address.
THERE ARE NO OTHER EXPRESS WARRANTIES OTHER THAN THOSE STATED HEREIN. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE. ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN
DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. LASER LINK GOLF SHALL NOT BE
RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR
EXCLUSION MAY NOT APPLY TO YOU. LASER LINK GOLF NEITHER ASSUMES NOR AUTHORIZES
ANYONE TO ASSUME FOR IT ANY OTHER EXPRESS WARRANTY.
THIS WARRANTY DOES NOT APPLY TO ANY ACCESSORIES NOR TO ANY PRODUCT SUBJECTED
TO MISUSE, NEGLIGENT OR ACCIDENTAL DAMAGE, IMPROPER SERVICE OR HANDLING, NOR TO
ANY PRODUCTS ALTERED OR REPAIRED BY ANY PERSON OR COMPANY OTHER THAN LASER
LINK GOLF.
The Red Hot is sealed at the factory and cannot be opened. Any attempt to open the case will
damage the unit and this damage will void the Limited Warranty.
LCD Symbols
Low Battery Audio On (no symbol) Audio Off = Yards = Meters = Vibrate On
>
>
>
>
>
>
Congratulations on your purchase of the Laser Link Red Hot! All of our Laser Link
products are designed specifically for those who enjoy playing the game of golf.
The Red Hot is not for every golfer, but in the right hands, it can be a powerful
tool for managing your game. To learn more about the Red Hot and the Laser
Link Distance System, please read through the instruction manual.
STARTING OUT
The Battery
Your new rangefinder comes with a
9-volt alkaline battery included inside
the packaging. Simply install the
battery to get started.
Be careful to install the battery in the correct direction, with the positive receptor
closer to the front of the rangefinder. If the battery door does not close easily,
the battery has been placed incorrectly.
When the battery runs low on power, a low battery indicator will appear on the
left side of the LCD screen. When replacing the battery, use only a 9-volt alkaline
battery. DO NOT use heavy duty or lithium batteries.
OPERATING INSTRUCTIONS
The operating instructions are especially important if you have used our
QuickShot Rangefinder in the past. Though the two rangefinders perform a
similar function, the operation of each is different, and using the Red Hot like
you would the QuickShot will not provide optimal performance.
The minimum range is 5 yards; the maximum range is 400 yards to a
non-reflective target, and 800 yards to our patented Laser Link Reflectors.
OPERATION NOTES
• Rapid Fire – The Red Hot Rangefinder has the capability for “rapid fire”
use. You do not need to wait for a previous yardage measurement to
clear the LCD screen prior to using again.
• Auto Shutoff – The Red Hot Rangefinder has an automatic shutoff function
that will automatically turn off the unit after approximately 6 seconds.
• Weather Conditions – Rain will affect performance only if the unit gets
water on the inside, or if the rain is falling intensely enough so that it
completely covers the reflector at all times.
Fog can have an effect on performance. The thicker the fog, the higher the
chance for limited ranging capabilities.
Do not expose the rangefinder to extreme heat or extreme cold for long periods
of time. Everyday use and travel are acceptable, and will not affect the
rangefinder itself. However, long-term storage in extreme temperatures can
have an effect on the rangefinder, battery performance, and/or battery life.
• Water Resistance – The Red Hot casing is water resistant, and is lined
at all access points with rubber seals to help prevent water entry. DO NOT
submerge the rangefinder in water.
MAINTENANCE
• To clean the lenses and LCD display, use a soft, clean cloth, such as you
would use on eyeglasses. Both the lenses and the LCD can be scratched,
so DO NOT use a hard-bristled brush. DO NOT use liquid of any kind to
clean these areas.
• Use ONLY soap and water to carefully clean the outer shell of the rangefinder.
DO NOT get the rangefinder overly wet, and DO NOT submerge the unit in
water.
• It is recommended that the Red Hot be stored in its carrying case when
not in use.
Back Front
SCOPE
LCD
DISPLAY
LASER &
RECEIVER
BLACK
“ON” BUTTON
SECURITY
HOOK BATTERY
DOOR
One button does it all…
Any 9-volt
Alkaline
battery can
be used for
replacement.
TAB
Closed Position Open Position

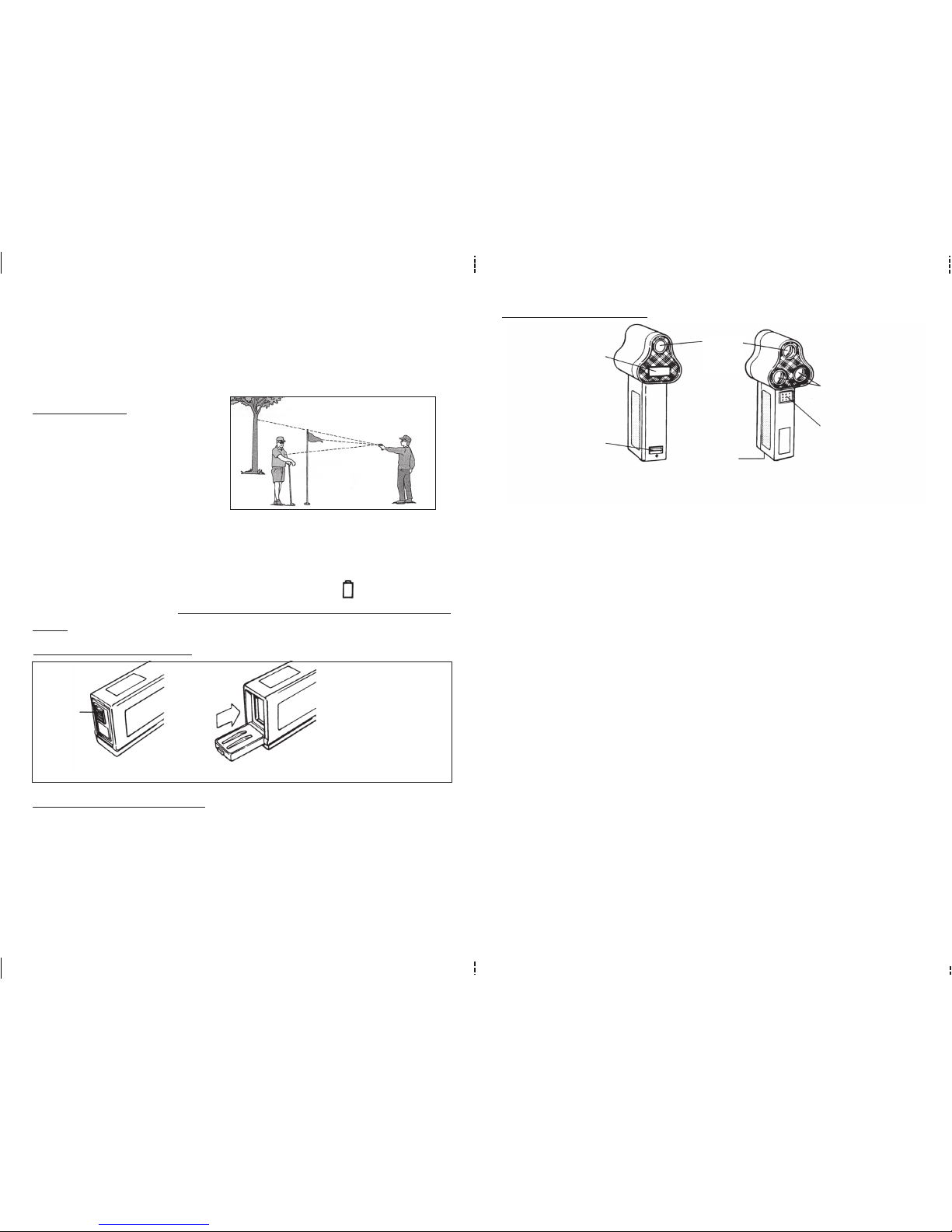

BATTERY INSTALLATION
NOTE: The maximum range of the Red Hot rangefinder can depend on several
factors, including target characteristics and environmental conditions. For instance,
longer maximum distances may be obtained to targets that are large in size, brightly
colored, or have a shiny finish. Ranging capability can also be affected by lighting
conditions (low light/overcast days will provide best performance), and the angle to
the target (i.e. a target at a 90-degree angle to the laser pulses will provide better
measurement characteristics than a target at a 45-degree angle).
To Use:
1. Hold the Red Hot with the LCD screen facing you.
2. Bring the hand-held unit up to your eye. Aim the scope in the direction of
your target.
3. To fire the laser, PRESS AND RELEASE the black “ON” button located under
your trigger finger. A red dot aiming reference will appear in the scope, and the
distance measurement will be made to where the red dot is aimed.
4. Your distance measurement will be displayed on the external LCD display.
NOTE: The red dot in the scope is simply an aiming reference, not the
actual laser.
TROUBLESHOOTING
Issues that you encounter with any of our Laser Link rangefinders are often
easily solved without returning the unit to Laser Link Golf. In many cases, the
remedy can be as simple as changing the battery, and we recommend
that this be done prior to returning the product to Laser Link Golf.
The rangefinder is reading an incorrect yardage.
• Replace the battery. Check to see if the low battery indicator ( ) is
present on the LCD screen. If there is not enough power being supplied
to the rangefinder, yardage measurements may be compromised.
• The Laser Link Red Hot is capable of reading distance measurements in
both yards and meters. Occasionally, a user will accidentally change the
measurement setting from yards to meters (or from meters to yards),
causing him/her to believe the product is measuring incorrectly. You can
determine if the product is measuring in meters by simply hitting the “ON”
button and noticing if a “Y” or an “M” appears on the screen. Instructions
on how to change the setting are included in this manual.
The rangefinder gets a reading only some of the time.
• First, make sure the reflector is clean and free of any obstructions,
including dirt, mud, or excessive calcium or salt buildup. Also make sure
nothing is blocking the sending or receiving lenses of the rangefinder,
such as your finger.
• In many cases, a slight change in user behavior will make the unit work
perfectly, and using the “Operating Instructions” procedure outlined earlier
will often solve the problem. If you continue to have difficulties getting
readings, please contact Laser Link Golf for help.
Congratulations on your purchase of the Laser Link Red Hot! All of our Laser Link
products are designed specifically for those who enjoy playing the game of golf.
The Red Hot is not for every golfer, but in the right hands, it can be a powerful
tool for managing your game. To learn more about the Red Hot and the Laser
Link Distance System, please read through the instruction manual.
STARTING OUT
The Battery
Your new rangefinder comes with a
9-volt alkaline battery included inside
the packaging. Simply install the
battery to get started.
Be careful to install the battery in the correct direction, with the positive receptor
closer to the front of the rangefinder. If the battery door does not close easily,
the battery has been placed incorrectly.
When the battery runs low on power, a low battery indicator will appear on the
left side of the LCD screen. When replacing the battery, use only a 9-volt alkaline
battery. DO NOT use heavy duty or lithium batteries.
OPERATING INSTRUCTIONS
The operating instructions are especially important if you have used our
QuickShot Rangefinder in the past. Though the two rangefinders perform a
similar function, the operation of each is different, and using the Red Hot like
you would the QuickShot will not provide optimal performance.
The minimum range is 5 yards; the maximum range is 400 yards to a
non-reflective target, and 800 yards to our patented Laser Link Reflectors.
OPERATION NOTES
• Rapid Fire – The Red Hot Rangefinder has the capability for “rapid fire”
use. You do not need to wait for a previous yardage measurement to
clear the LCD screen prior to using again.
• Auto Shutoff – The Red Hot Rangefinder has an automatic shutoff function
that will automatically turn off the unit after approximately 6 seconds.
• Weather Conditions – Rain will affect performance only if the unit gets
water on the inside, or if the rain is falling intensely enough so that it
completely covers the reflector at all times.
Fog can have an effect on performance. The thicker the fog, the higher the
chance for limited ranging capabilities.
Do not expose the rangefinder to extreme heat or extreme cold for long periods
of time. Everyday use and travel are acceptable, and will not affect the
rangefinder itself. However, long-term storage in extreme temperatures can
have an effect on the rangefinder, battery performance, and/or battery life.
• Water Resistance – The Red Hot casing is water resistant, and is lined
at all access points with rubber seals to help prevent water entry. DO NOT
submerge the rangefinder in water.
MAINTENANCE
• To clean the lenses and LCD display, use a soft, clean cloth, such as you
would use on eyeglasses. Both the lenses and the LCD can be scratched,
so DO NOT use a hard-bristled brush. DO NOT use liquid of any kind to
clean these areas.
• Use ONLY soap and water to carefully clean the outer shell of the rangefinder.
DO NOT get the rangefinder overly wet, and DO NOT submerge the unit in
water.
• It is recommended that the Red Hot be stored in its carrying case when
not in use.
Back Front
SCOPE
LCD
DISPLAY
LASER &
RECEIVER
BLACK
“ON” BUTTON
SECURITY
HOOK BATTERY
DOOR
One button does it all…
Any 9-volt
Alkaline
battery can
be used for
replacement.
TAB
Closed Position Open Position
BATTERY INSTALLATION
NOTE: The maximum range of the Red Hot rangefinder can depend on several
factors, including target characteristics and environmental conditions. For instance,
longer maximum distances may be obtained to targets that are large in size, brightly
colored, or have a shiny finish. Ranging capability can also be affected by lighting
conditions (low light/overcast days will provide best performance), and the angle to
the target (i.e. a target at a 90-degree angle to the laser pulses will provide better
measurement characteristics than a target at a 45-degree angle).
To Use:
1. Hold the Red Hot with the LCD screen facing you.
2. Bring the hand-held unit up to your eye. Aim the scope in the direction of
your target.
3. To fire the laser, PRESS AND RELEASE the black “ON” button located under
your trigger finger. A red dot aiming reference will appear in the scope, and the
distance measurement will be made to where the red dot is aimed.
4. Your distance measurement will be displayed on the external LCD display.
NOTE: The red dot in the scope is simply an aiming reference, not the
actual laser.
TROUBLESHOOTING
Issues that you encounter with any of our Laser Link rangefinders are often
easily solved without returning the unit to Laser Link Golf. In many cases, the
remedy can be as simple as changing the battery, and we recommend
that this be done prior to returning the product to Laser Link Golf.
The rangefinder is reading an incorrect yardage.
• Replace the battery. Check to see if the low battery indicator ( ) is
present on the LCD screen. If there is not enough power being supplied
to the rangefinder, yardage measurements may be compromised.
• The Laser Link Red Hot is capable of reading distance measurements in
both yards and meters. Occasionally, a user will accidentally change the
measurement setting from yards to meters (or from meters to yards),
causing him/her to believe the product is measuring incorrectly. You can
determine if the product is measuring in meters by simply hitting the “ON”
button and noticing if a “Y” or an “M” appears on the screen. Instructions
on how to change the setting are included in this manual.
The rangefinder gets a reading only some of the time.
• First, make sure the reflector is clean and free of any obstructions,
including dirt, mud, or excessive calcium or salt buildup. Also make sure
nothing is blocking the sending or receiving lenses of the rangefinder,
such as your finger.
• In many cases, a slight change in user behavior will make the unit work
perfectly, and using the “Operating Instructions” procedure outlined earlier
will often solve the problem. If you continue to have difficulties getting
readings, please contact Laser Link Golf for help.
MODEL 9909
Instruction Manual and
Warranty Information
CHANGING MEASUREMENT SETTINGS
The Red Hot rangefinder’s default measurement setting is to read in yards with
sound. However, there are six different measurement options for you to choose
from. If you would like to change the Red Hot measurement settings, please
follow the instructions below.
1. With the Red Hot in the OFF position, hold the rangefinder with the LCD
screen facing you.
2. PRESS AND HOLD the “On” button until the unit emits three fast beeps.
This will take approximately sixty seconds. After the third beep, release the
black button.
3. You are now able to cycle through the various measurement settings. Press
and release the black button a few times. As you do this you will see various
icons appearing on the LCD screen.
4. In order to program the Red Hot to the setting that you desire, you must cycle
through the settings (by pressing and releasing the black button) until you
find the appropriate setting. When you find your setting, simply wait for
approximately five seconds and the rangefinder will emit four fast beeps.
This indicates that you have programmed your new setting.
EXAMPLE: You would like your unit to measure in YARDS WITH VIBRATE.
In order to do this, follow steps 1-3. When you reach step 4, cycle through the
settings until you get to the icons that indicate yards with vibrate (this will be a
single letter ‘Y’ on the righthand side of the LCD, and two “lightning bolts” in the
upper left corner). When you see these icons, wait for the four fast beeps and
your new setting will be programmed.
Setting Descriptions
Yards Indicated with ‘Y’ on LCD screen.
Meters Indicated with ‘M’ on LCD screen.
Audio On Indicated with a speaker icon on LCD screen.
Audio Off No speaker icon present.
Vibrate On Indicated with “lightning bolts” on LCD
SPECIFICATIONS
Product: Red Hot
Model: 9909
Dimensions: 6” x 2 3/16” x 3 1/8”
Weight (with battery): 8 ounces
Class One Laser*
Power Source: 9 Volt Battery (alkaline only)
Range without reflector: 5 – 400 yards (5 - 366 meters)
Range w/ Laser Link reflector: 5 – 800 yards (5 – 731 meters)
Accuracy: +/- 1%
Display: LCD
Carrying case included
*This product complies with CFR 21. 1040. 10
ONE-YEAR LIMITED WARRANTY
LASER LINK GOLF warrants to the original consumer purchaser thereof all parts
of the Red Hot Rangefinder to be free from defects in materials or factory
workmanship for a period of one (1) year from the date of original purchase by the
consumer. LASER LINK GOLF will, at its option, replace or repair this product or
any part thereof, except batteries, if it proves to be defective under normal use and
service within one (1) year from date of original purchase. LASER LINK GOLF’s only
obligation under this warranty is to repair or replace the defective product or any
part thereof, except batteries, when it is returned together with proof of date of
purchase, transportation prepaid, to LASER LINK GOLF within one (1) year from the
date of original purchase. Phone: (608) 838-3100 • Toll Free: 866-909-4653
www.laserlinkgolf.com
To obtain warranty service, call Laser Link Golf at (866) 909-4653 to obtain
Return Authorization. Ship the product, or part thereof, together with
proof of purchase and a note explaining the problem to:
Laser Link Golf
Attn: Repair Department
4027 Owl Creek Drive
Madison, WI 53718
On the accompanying note, and any other correspondence, be sure to
include the model number, the Return Authorization number, your name,
your phone number or email address, and your return address.
THERE ARE NO OTHER EXPRESS WARRANTIES OTHER THAN THOSE STATED HEREIN. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE. ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN
DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. LASER LINK GOLF SHALL NOT BE
RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR
EXCLUSION MAY NOT APPLY TO YOU. LASER LINK GOLF NEITHER ASSUMES NOR AUTHORIZES
ANYONE TO ASSUME FOR IT ANY OTHER EXPRESS WARRANTY.
THIS WARRANTY DOES NOT APPLY TO ANY ACCESSORIES NOR TO ANY PRODUCT SUBJECTED
TO MISUSE, NEGLIGENT OR ACCIDENTAL DAMAGE, IMPROPER SERVICE OR HANDLING, NOR TO
ANY PRODUCTS ALTERED OR REPAIRED BY ANY PERSON OR COMPANY OTHER THAN LASER
LINK GOLF.
The Red Hot is sealed at the factory and cannot be opened. Any attempt to open the case will
damage the unit and this damage will void the Limited Warranty.
LCD Symbols
Low Battery Audio On (no symbol) Audio Off = Yards = Meters = Vibrate On
>
>
>
>
>
>
