Laser Reference pro shot L1-M User manual

Laser
Reference, Inc.
Service Manual
Pro ShotTM Models
L1-M and L1-S
Confidential: This document contains Laser Reference Inc.
proprietary information and shall not be duplicated, disclosed
to others, or used for purposes other than to carry out the
intent for which this material is delivered.
Version 1.5 June 1998

1
Contents
How to Contact Us:............................................................................................................. 2
External Parts Detail Model L1-M ..................................................................................... 3
External Parts Detail Model L1-S....................................................................................... 4
Internal Parts Detail Model L1-M....................................................................................... 5
Internal Parts Detail Model L1-S........................................................................................ 6
Housing & Lighthouse Model L1-S ................................................................................... 7
Motor Problems Model L1-M Only.................................................................................... 8
Motor Problems Model L1-S Only..................................................................................... 9
Power Problems ................................................................................................................ 10
Laser\Receiver Interaction ................................................................................................ 11
Calibration Problems ........................................................................................................ 12
Calibration Problems 2 ..................................................................................................... 13
Calibration Problems 3 ..................................................................................................... 14
Low Battery Indication – Not cured with new Batteries .................................................. 15
Laser Will Not Switch Grade Alarm Modes..................................................................... 16
Actual Slope Does Not Match Setting Indicated by Counter ........................................... 16
Basic Tools And Knowledge. ........................................................................................... 17
1. Special tool list: .................................................................................................... 17
2. Other tools and supplies needed: .......................................................................... 18
Periodic maintenance and service checks......................................................................... 19
1. Calibration check: ................................................................................................. 19
2. Alarm deadband check:......................................................................................... 20
3. Out of level alarm function check:........................................................................ 20
4. Motor stall and re-start check: (L1-M Only) ........................................................ 20
5. Beam power check:............................................................................................... 20
Repair Examples. .............................................................................................................. 21
1. Adjust both grade alarm deadbands:..................................................................... 21
2. Replace rotation motor:......................................................................................... 21
2. Replace main P.C.B.:............................................................................................ 21
IV Repair Procedures. ................................................................................................... 21
#101 Clean and Calibration ......................................................................................... 21
#103 Base Plate Removal and Replacement.............................................................. 22
#106 X-Axis Sensor Removal and Replacement...................................................... 24
#107 Circuit Board Removal and Replacement......................................................... 26
#108 Setting Grade Alarm Dead Bands..................................................................... 27
#109 Motor Removal and Replacement .................................................................... 28
#109-S Motor removal and replacement - For Model L1-S ........................................ 30
#110 Squaring Motor Assembly to Beam.................................................................. 31
#111 Penta Mirror Removal and Replacement.......................................................... 32
#111-S Penta Mirror Removal and Replacement ........................................................ 32
#112 Beam Power Adjustment .................................................................................... 33
#113 Vertical Vial Calibration Procedure.................................................................... 33
PCB Layout....................................................................................................................... 35
Schematic for L1-M / S..................................................................................................... 36
L1-S Board Update Info.................................................................................................... 37

2
How to Contact Us:
Laser Reference, Inc.
Manufacturer of Pro ShotProducts
450 Salmar Ave.
Campbell, CA. 95008
Toll Free (USA) 1-800-238-0685
Telephone [phone]
Fax [phone]
Email [email protected]
World Wide Web www.proshotlaser.com

3
External Parts Detail Model L1-M
Fig. 1

4
External Parts Detail Model L1-S
Fig. 1A

5
Internal Parts Detail Model L1-M
Fig. 2
10-0495 LCD
assembly

6
Internal Parts Detail Model L1-S
Fig. 2a

7
Housing & Lighthouse Model L1-S

8
Motor Problems Model L1-M Only

9
Motor Problems Model L1-S Only

10
Power Problems

11

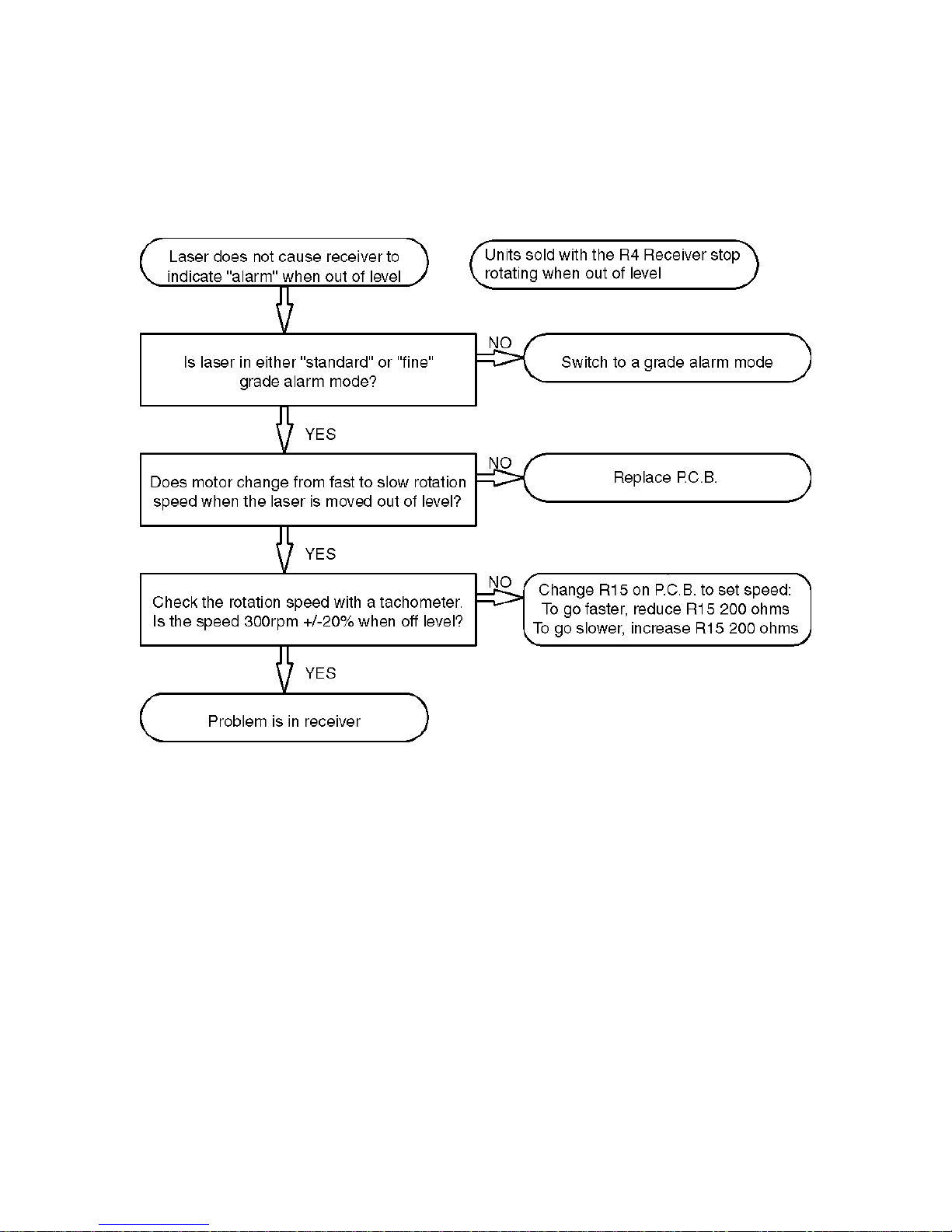

Laser\Receiver Interaction
Units sold with the R4 Receiver will stop rotating when the
transmitter is moved out of level.

12
Calibration Problems

13
Calibration Problems 2

14
Calibration Problems 3

15
Low Battery Indication – Not cured with
new Batteries

16
Laser Will Not Switch Grade Alarm
Modes
Actual Slope Does Not Match Setting
Indicated by Counter

17
Basic Tools And Knowledge.
The list following this explanation describes the basic tools necessary to
perform the procedures detailed in this manual. Where special tools made
by Laser Reference are listed, equivalent substitutes can be used. The
recommended repair times for each procedure are, however, based on the
use of the Laser Reference special tools. The recommended repair times
assume factory training or equivalent experience. Recommended repair
times are listed in hours and/or decimal fractions.
The Laser Reference factory, and Laser Reference distributors, will train
technicians from qualified and approved dealer service centers based on
mutually acceptable advance scheduled appointments. There will be no
charge for training time, but each trainee must provide their own
transportation and living expenses.
During the term of the warranty on Laser Reference products (see
warranty statement for details) Laser Reference, or It's distributor, will
reimburse an approved service center for warranty repairs based on the
repair times listed in this manual. The dollar rate of reimbursement per
hour will be set by the distributor (Laser Reference is the distributor in the
United States - see dealer agreement for details). Repairs may be sent
directly to the distributor for repair if the dealer is not equipped or trained to
perform these operations.
Dealers who wish to become service centers must apply for approval.
Please contact your distributor for further information.
1. Special tool list:
Description: Part No.
Tilt Table (for alarm dead band adjustment) 50-1010
Calibration alignment range 50-1000
Universal power supply 50-1025
Centering target (for use with I.R. viewer) 50-1030
Remote L.C.D. display 50-1070
Squaring system 50-1065
Focus adjustment tool 50-1080
