iCE40 UltraPlus Sensor Data Buffer with BLE -

Radiant Software

User Guide

FPGA-UG-02058 Version 1.0

June 2018

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

2 FPGA-UG-02058-1.0

Contents

Acronyms in This Document .......................................................................................................................................... 3

1. Introduction .......................................................................................................................................................... 4

2. Functional Description........................................................................................................................................... 4

3. Demo Setup........................................................................................................................................................... 5

3.1. Hardware Requirements............................................................................................................................... 5

3.2. Software and Firmware Requirements.......................................................................................................... 5

3.3. Configuring the MDP Board .......................................................................................................................... 6

3.3.1. Setting Jumpers and Switches................................................................................................................... 6

4. Programming the Demo ........................................................................................................................................ 8

4.1. Programming the Bitmaps to the MDP Board................................................................................................ 8

4.2. Installing the Sensor Data Buffer BLE APK onto the Android Phone ............................................................. 10

4.3. Connecting the iCE40 UltraPlus MDP to the Android Phone ........................................................................ 10

5. Running the Demo............................................................................................................................................... 11

Technical Support Assistance....................................................................................................................................... 14

Revision History .......................................................................................................................................................... 14

Figures

Figure 2.2. iCE40 UltraPlus Sensor Data Buffer with BLE Demo Block Diagram................................................................ 4

Figure 3.1. Android Phone with Jelly Bean 4.3 or KitKat 4.4 and the iCE40 UltraPlus MDP .............................................. 5

Figure 3.2. MDP Board Configuration............................................................................................................................. 6

Figure 4.1. Getting Started Dialog Box ........................................................................................................................... 8

Figure 4.2. Radiant Programmer Main Interface ............................................................................................................ 8

Figure 4.3. Device Properties Dialog Box........................................................................................................................ 9

Figure 4.4. Program Button ........................................................................................................................................... 9

Figure 4.5. Activate Bluetooth Prompt......................................................................................................................... 10

Figure 5.1. BLE Device Scan ......................................................................................................................................... 11

Figure 5.2. Start Demo Button ..................................................................................................................................... 11

Figure 5.3. Airplane Button.......................................................................................................................................... 12

Figure 5.4. Successful Operation.................................................................................................................................. 13

Figure 5.5. Interface is Reset ....................................................................................................................................... 13

Tables

Table 3.1. Detailed Information of the Board Configuration ........................................................................................... 7

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 3

Acronyms in This Document

A list of acronyms used in this document.

Acronym

Definition

APK

Application Package Kit

BLE

Bluetooth Low Energy

FPGA

Field-Programmable Gate Array

I²C

Inter-Integrated Circuit

MDP

Mobile Development Platform

PCM

Pulse Code Modulation

PDM

Pulse Density Modulation

SPI

Serial Peripheral Interface

SSP

System Solution Platform

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

4 FPGA-UG-02058-1.0

1. Introduction

The iCE40 UltraPlus™Sensor Data Buffer with BLE demo shows the application of the sensor data buffer feature with

Bluetooth Low Energy (BLE) on the iCE40 UltraPlus Mobile Development Platform (MDP). Data from the three sensors

below is read for ten seconds and sent to the application to playback the movement.

Accelerometer

Gyroscope

Magnetic field

2. Functional Description

Figure 2.1 shows the demo block diagram.

INT_GEN

SYS_RMI_reg

SYS_sensor_reg

iCE40 UltraPlus

intr

Ram_data_o

Ram_en0

Ram_en1

Ram_en2

rbop

Lb_addr

Lb_wdata

Lb_wr

Lb_en

Lb_ack

Lb_rdata

RMI

UART

Mag

Sensor

Gyro

Sensor

ACCEL

Sensor

I2C

Arbiter

MAG_CTRL

GYRO_CTRL

ACCEL_CTRL

RAM ctrl

Figure 2.1. iCE40 UltraPlus Sensor Data Buffer with BLE Demo Block Diagram

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 5

3. Demo Setup

This section describes the demo setup.

The demo setup consists of an Android phone with Jelly Bean 4.3 or higher and the iCE40 UltraPlus Mobile

Development Platform.

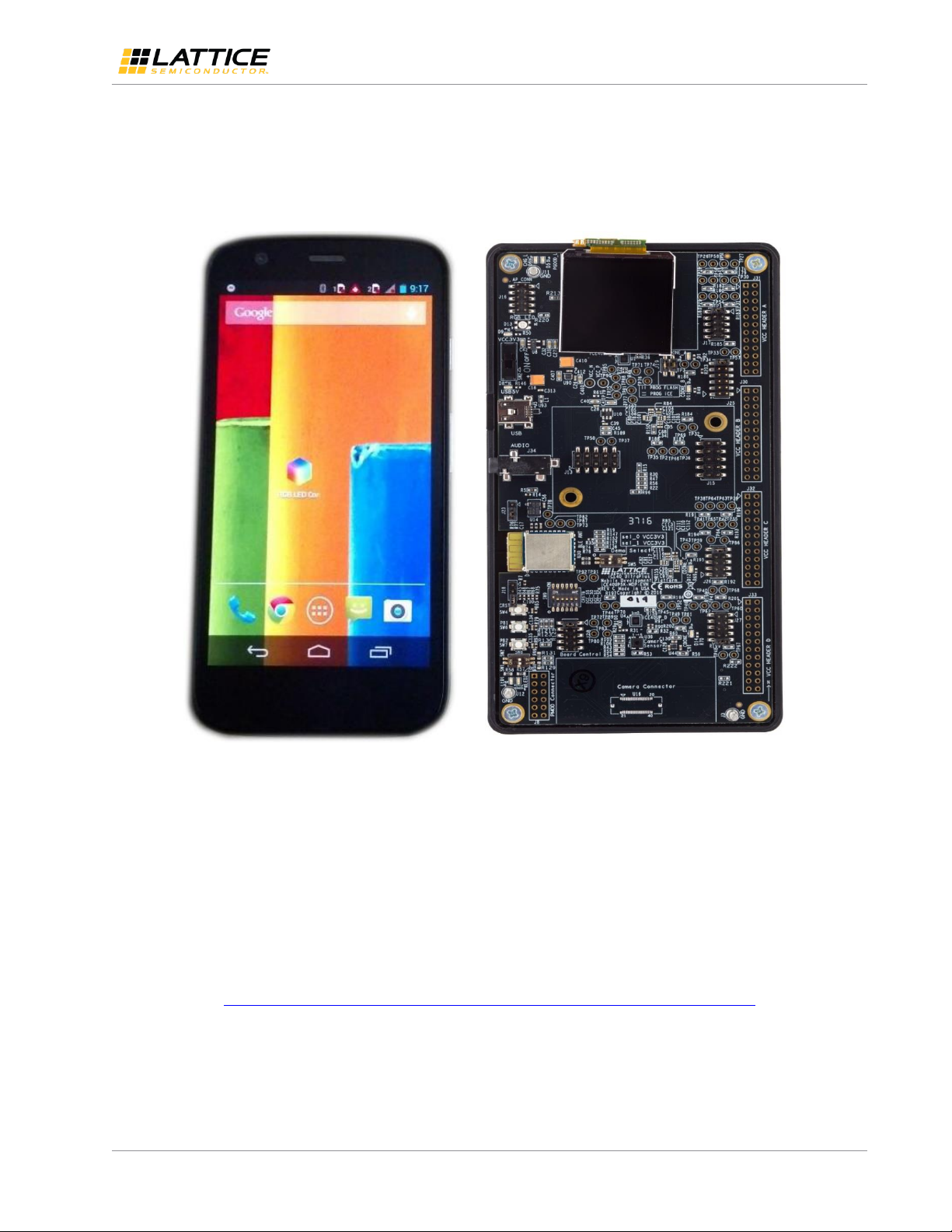

Figure 3.1. Android Phone with Jelly Bean 4.3 or KitKat 4.4 and the iCE40 UltraPlus MDP

3.1. Hardware Requirements

Android phone

iCE40 UltraPlus MDP

USB Mini Port

3.2. Software and Firmware Requirements

Android Jelly Bean 4.3 or KitKat 4.4

Radiant Programmer

(Refer to the http://www.latticesemi.com/Products/DesignSoftwareAndIP/FPGAandLDS/Radiant)

Programming file for the iCE40 UltraPlus MDP

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

6 FPGA-UG-02058-1.0

3.3. Configuring the MDP Board

3.3.1. Setting Jumpers and Switches

Board reconfiguration is needed before running this demo. Figure 3.2 highlights (in orange boxes) all switches and

jumpers need to be verified or reconfigured on Mobile Development Platform (MDP) board.

J23 Pins 2-3

J28 Pins 1-2

J27 Pins 9-10

J26 Pins 7-8

J25 Pins 11-12

J17 Pins 9-10

Pins 3-4

Pins 1-2

J18 –Disconnect

SW5-1 OFF

SW5-2 ON

J19 Vertical Jumpers

SW2 ON

Figure 3.2. MDP Board Configuration

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 7

Table 3.1 lists the detailed information of these configurations on switches and jumpers.

Table 3.1. Detailed Information of the Board Configuration

Items

Configuration

Description

J17, J27

Shunt pin 9-10

Disable ICE40UP5K_A/D devices.

J25

Shunt pin 11-12

Disable ICE40UP5K_B device.

J26

Shunt pins 1-2, 3-4, 7-8

Enable ICE40UP5K_C device.

J28

Shunt pin 1-2

Enable Board control for programming SPI Flash.

J19

Shunt pins 1-3, 2-4 (vertical)

Enable programming SPI Flash

J23

Shunt pin 2-3

Use Xtal U14 as clock source.

J18

Disconnect

Default BLE program

SW2

Set to ON

Power switch, slide down for power-on.

SW5

Set SW5-1 to OFF, and SW5-2 to ON.

Select ICE40UP5K_C as target device.

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

8 FPGA-UG-02058-1.0

4. Programming the Demo

4.1. Programming the Bitmaps to the MDP Board

To program the bitmaps to the MDP board:

1. Power ON the iCE40 UltraPlus MDP.

2. Start the Radiant Programmer tool.

3. In the Getting Started dialog box, select Create a new project from a scan as shown in Figure 4.1.

4. Set Cable to HW-USBN-2B (FTDI).

5. Set Port to FTUSB-0.

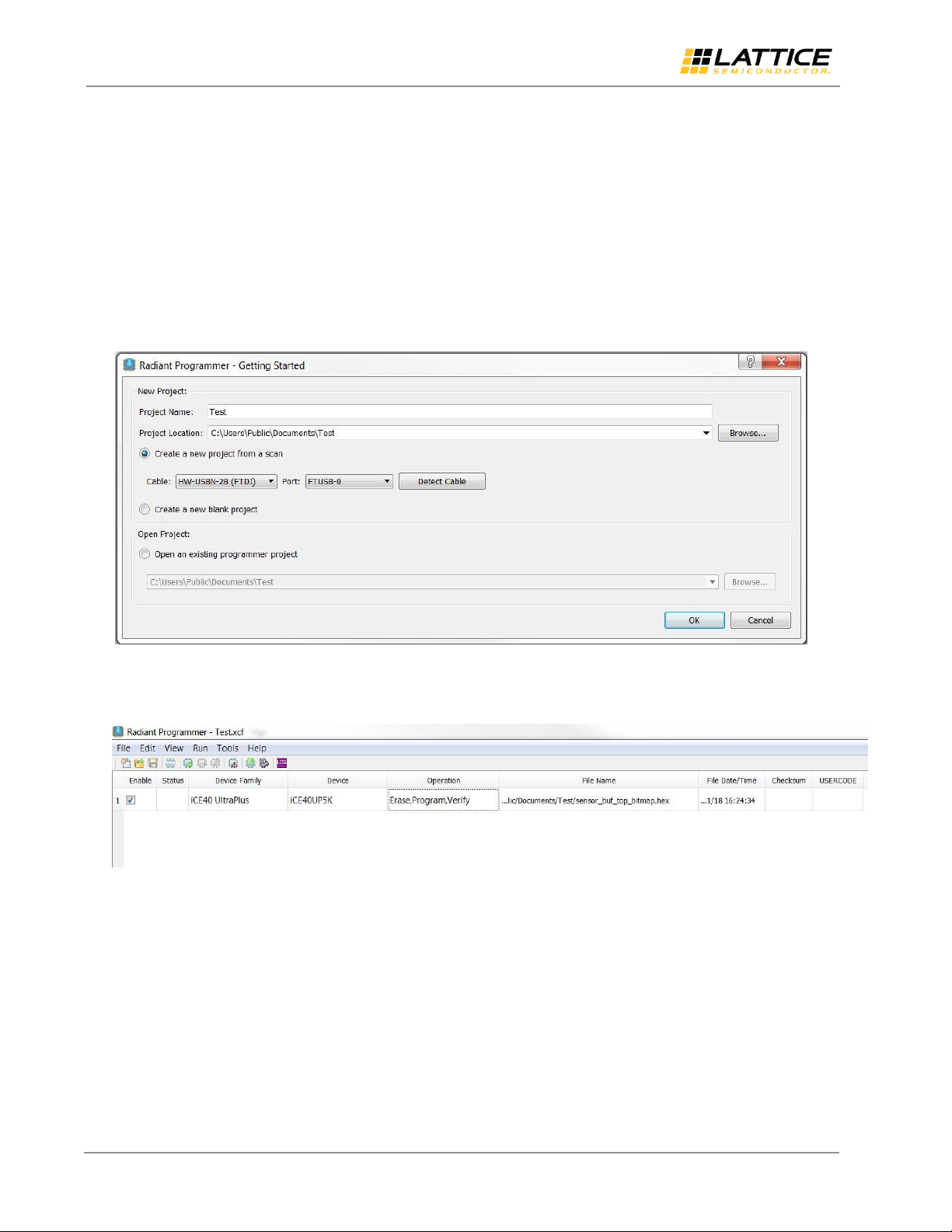

Figure 4.1. Getting Started Dialog Box

6. Click OK. This opens the Radiant Programmer main interface as shown in Figure 4.2.

Figure 4.2. Radiant Programmer Main Interface

7. Select iCE40 UltraPlus under Device Family.

8. Select iCE40UP5K under Device.

9. Right-click on the device and select Device Properties in the context menu. The Device Properties dialog box is

displayed as shown in Figure 4.3.

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 9

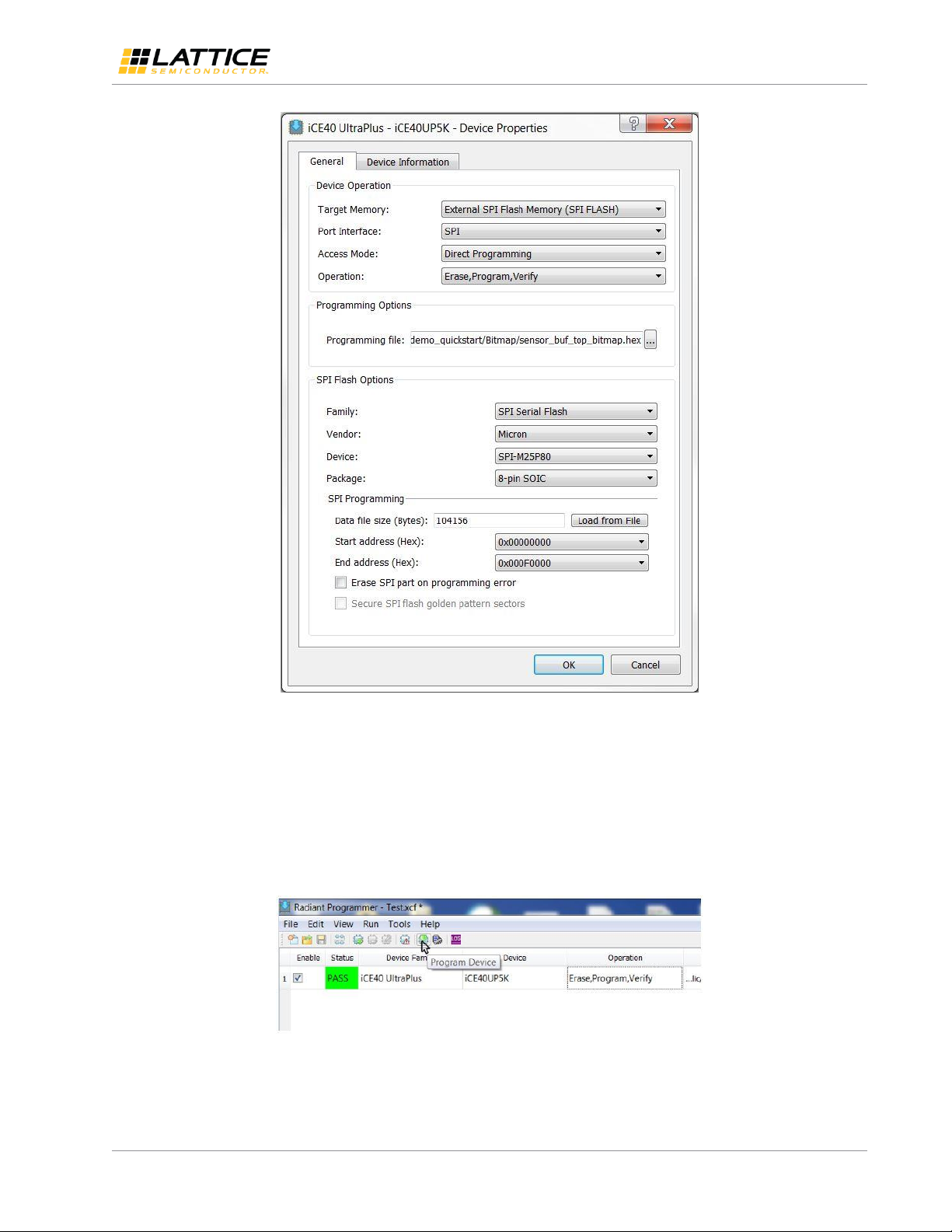

Figure 4.3. Device Properties Dialog Box

10. Select External SPI Flash Programming under Target Memory.

11. Select the program file /Bitmap/sensor_buf_top_bitmap.hex.

12. Select Micron under Vendor.

13. Select SPI-M25P80 under Device.

14. Click OK.

15. Click the Program Device button to program the FPGA.

Figure 4.4. Program Button

When the programming sequence is completed, the CDONE LED glows on the iCE40 UltraPlus MDP.

If the programmer issues an error, recheck the connection.

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

10 FPGA-UG-02058-1.0

4.2. Installing the Sensor Data Buffer BLE APK onto the Android Phone

To install the APK (Android application package) onto the Android Phone:

16. In the Android phone, select Settings > Security > Unknown sources.

17. Connect the phone to a PC and copy the SensorBufferDemo.apk to any directory on the phone.

18. On the phone, browse to the directory where the APK is copied and select it to install.

19. Deselect the Unknown sources option.

4.3. Connecting the iCE40 UltraPlus MDP to the Android Phone

To connect the iCE40 UltraPlus MDP to the Android phone:

20. Power ON the iCE40 UltraPlus MDP and the Android phone

21. Disable Bluetooth on the phone.

22. Go to the Apps menu and select Sensor Buffer Demo.

23. In the message prompt to activate Bluetooth on the phone, press Allow as shown in Figure 4.5.

Figure 4.5. Activate Bluetooth Prompt

24. Select the iCE40UP-MDP device to connect the iCE40 UltraPlus device in the vicinity.

25. If the top right text box displays CONNECT, it means that the device has been disconnected. Press CONNECT or

press the back button to reconnect the device.

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 11

5. Running the Demo

Follow the steps in the previous sections so that the iCE40 UltraPlus MDP and the Android phone are ready with the

necessary bitmap and application.

To run the demo:

26. Connect the Android phone application to the BLE device. Tap on the device that you want to connect with the

application as shown in Figure 5.1.

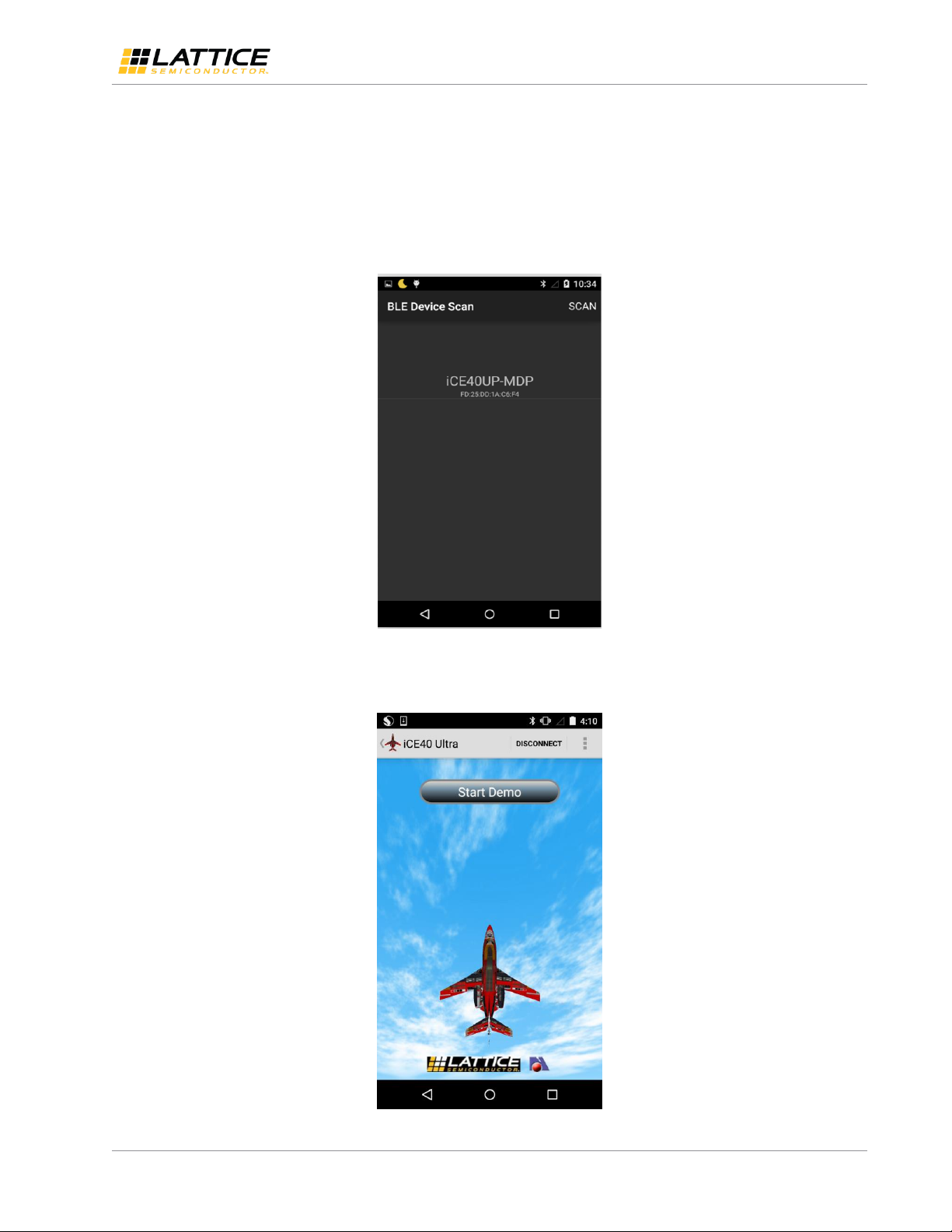

Figure 5.1. BLE Device Scan

27. Press the Start Demo button as shown in Figure 5.2.

Figure 5.2. Start Demo Button

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

12 FPGA-UG-02058-1.0

28. Press the Airplane button. The FETCHING SENSOR DATA PLEASE WAIT message is displayed as shown in Figure

5.3.

Figure 5.3. Airplane Button

29. Move the MDP board for ten seconds until the LED stops blinking. The sensor data produced by the movement of

the MDP board is recorded.

Note: The application waits for the interruption. Once interruption occurs, the application reads the sensor data

from the buffer. Otherwise, the interface is reset and you need to press the Airplane button again.

30. If the data is collected successfully, the application uses these data to manipulate the 3D airplane image shown in

Figure 5.4. The movement of the airplane mimics the recorded movement of the MDP board in the previous step.

This playback also lasts for ten seconds.

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

FPGA-UG-02058-1.0 13

Figure 5.4. Successful Operation

To test airplane movement again, press the Back button. The previous interface is displayed. Press on the Airplane

button again as shown in Figure 5.5.

Figure 5.5. Interface is Reset

iCE40 UltraPlus Sensor Data Buffer with BLE - Radiant Software

User Guide

All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.

14 FPGA-UG-02058-1.0

Technical Support Assistance
