LaView LV-CBA3213 IR Bullet Camera
User Manual

Congratulations on purchasing a LaView product. This manual applies to the LV-CBA3213 IR Bullet
Camera. This manual may vary by model including model number, number of channels, cameras,
configuration, and hard drive capacity.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling
aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for
Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling
aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER
REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS
PRODUCT.
1Introduction
1.1 Product Features
This series of camera adopts new generation sensor with high sensitivity and advanced circuit design
technology. It features high resolution, low image distortion and low noise features, etc., which makes it
suitable for surveillance system and image processing system.
High-performance sensor and high resolution brings high-quality image
IR LED enables the day/night surveillance
IR cut filter auto switch
ATW brings high color rendition
Ingress protection: IP66
1.2 Overview

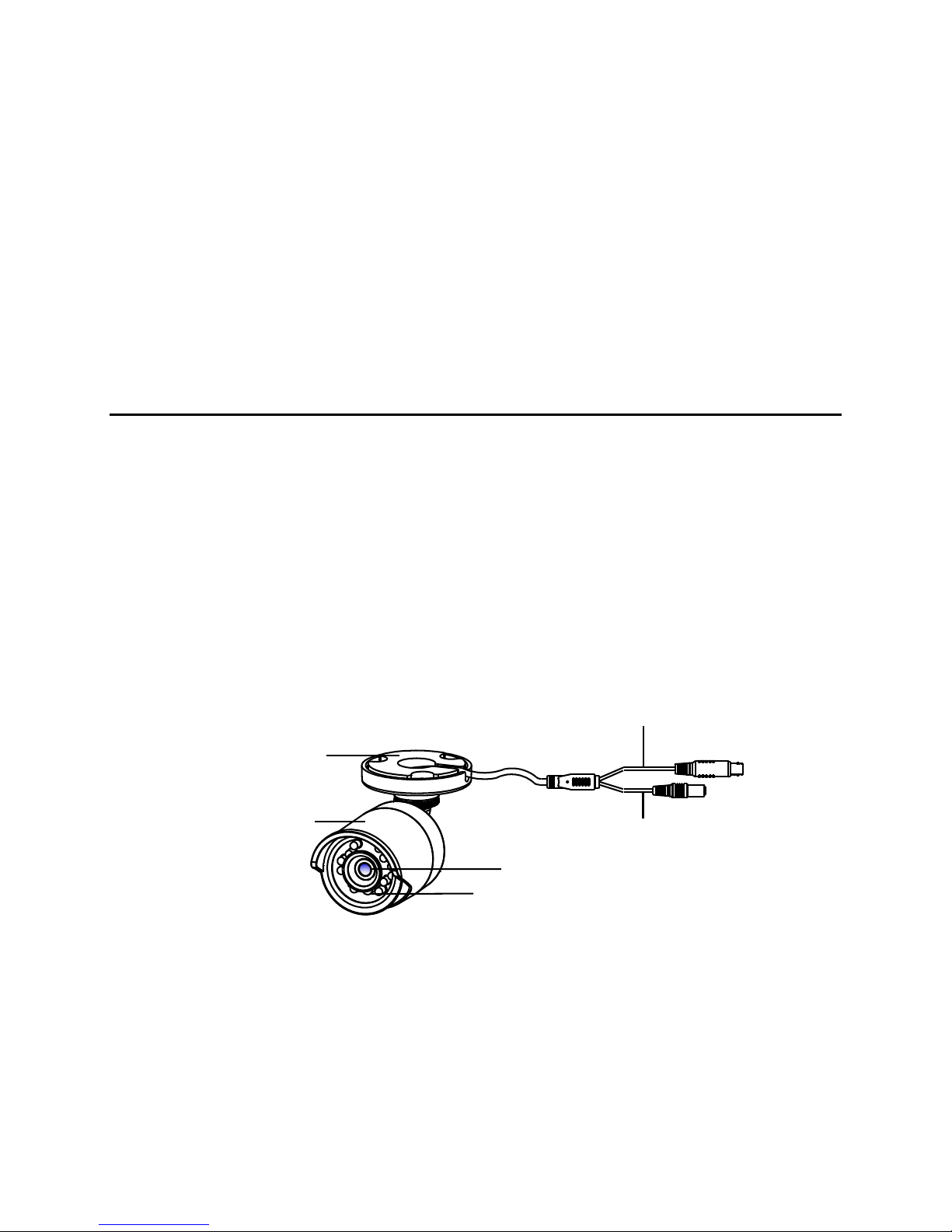

Figure 1-1 Overview of Camera
Power Cable
Mounting
Base
Sun Shield
IR LED
Lens
Video Cable

2Installation
Before you start:
Make sure that all the related equipment is power-off during the installation.
Check the specification of the products for the installation environment.
Make sure the power supply is matched with your voltage to avoid damage.
If the product does not function properly, please contact your LaView support team. Do not
disassemble the camera for repair or maintenance by yourself.
Please make sure that the ceiling or the wall is strong enough to withstand 3 times the weight of the
camera.
2.1 Ceiling Mounting for Bullet Camera
Steps:
1. Drill the screw holes and the cable hole in the ceiling according to the supplied drill template.
2. Hammer the supplied plastic expansion bolt into the screw holes.
Figure 2-1 Drill Template
3. Route the cables to the cable hole and connect the corresponding power cable and video cable.
4. Fix the camera to the ceiling with the supplied screws.
5. Secure the camera to the ceiling with the self-tapping screws.
6. Adjust the surveillance angle.
Figure 2-2 Secure the Camera to the Ceiling
1).Loosen No.1 adjusting screw to adjust the panning position [0°~ 360°].
2).Tighten No.1 adjusting screw.
3).Loosen the No.2 adjusting screw to adjust the tilting position [0°~ 90°].
Screw Hole
Screw Hole
Screw Hole
Template

4).Tighten No.2 adjusting screw.
5).Loosen No.3 adjusting screw to adjust the azimuth angle [0°~ 360°].
6).Tighten No.3 adjusting screw.
Figure 2-3 Adjust the Lens
2.2 Power Supply
Figure 2-4 The Power Cable and the Video Cable
Note: Please make sure that the power adapter is compatible with the camera, and the standard power
supply is 12 VDC. Please refer to the technical specification for more information.
1
2
3

3Regulatory Information
Federal Communications Commission (FCC) Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential or commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications or
television receptions. User is encouraged to properly shield cables and connectors in order to reduce
interference. Operation of this equipment in a residential area may cause harmful interference in which
case the user will be required to correct the interference at his own expense.
FCC Conditions: This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the Low
Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as
unsorted municipal waste in the European Union. For proper recycling, return this product to
your local supplier upon the purchase of equivalent new
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for specific
battery information. The battery is marked with this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to
your supplier or to a designated collection point. For more information see:
www.recyclethis.info

4Safety Instructions
These instructions are intended to ensure that user can use the product correctly to avoid danger or
property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
In the use of the product, you must be in strict
compliance with the electrical safety regulations of the
nation and region.
Please refer to technical specifications for detailed
information.
Input voltage should meet both the SELV(Safety Extra
Low Voltage) and the Limited Power Source with AC 24V or
DC 12V according to the IEC60950-1 standard. Please refer
to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause over-heating or
a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
When the product is mounted on wall or ceiling, the device shall be firmly fixed.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable,
and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest service center. Never
attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems
caused by unauthorized repair or maintenance.)
Cautions
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch CMOS modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol
and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap
to protect the CMOS from dirt.
Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise
(which is not a malfunction), and affect the endurance of CMOS at the same time.
The CMOS may be burned out by a laser beam, so when any laser equipment is in using, make sure
that the surface of CMOS will not be exposed to the laser beam.
Do not place the camera in extremely hot, cold (the operating temperature shall be-40℃~+60℃),
dusty or damp locations, and do not expose it to high electromagnetic radiation.
To avoid heat accumulation, good ventilation is required for operating environment.
Keep the camera away from liquid while in use.
While in delivery, the camera shall be packed in its original packing, or packing of the same texture.
Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced
regularly according to their average enduring time. The average time varies because of differences
between operating environment and using history, so regular checking is recommended for all the
users. Please contact with your dealer for more details.
Improper use or replacement of the battery may result in hazard of explosion. Replace with the same
or equivalent type only. Dispose of used batteries according to the instructions provided by the
battery manufacturer.
Warnings:
Follow these
safeguards to
prevent serious
injury or death.
Cautions: Follow
these precautions
to prevent potential
injury or material
damage.
