Introduction
Thank you for using our network camera products. Our network camera products are integrated and
developed for network video monitoring, including Storage Network Bullet, Wireless Storage Network
Bullet, IR Network Dome, IR Network Weather-Proof Cameras and High-Speed Network Ball.
High-performance single SOC chips are used in media processor for audio/video acquisition,
compression and transmission/transfer. Standard H.264 encoding algorithm is applied to ensure clear
and smooth video representation and transfer performance. Embedded Web Server offers users access
to real-time surveillance and remote control of front-end camera through IE browser.
The network cameras are easy to install and operate. The network cameras are applicable to large and
medium-size enterprises, governmental projects, large mall, chain supermarkets, intelligent buildings,
hotels, Hospitals and schools and other group customers, as well as to applications requiring remote
network video transmission and monitoring.
Instructions:
For purpose of this manual, IP camera means network camera.
Single click means a single click on the left mouse button.
Double click means a double-click on the left mouse button.
The default factory IP address for IP camera is 192.168.1.168.
The default factory administrator user name for IP camera is admin (in lowercase), and the
password is admin (in lowercase).
The default Web port number is 80 and the default media port number is 9988.
Statement:
Some information contained in this manual may differ from the actual product. For any problems you
cannot solve with the use of this manual, please contact our technical support or the authorized dealers.
This manual may be subject change without prior notice.

4
1. Overview
1.1 Range of Application
The network cameras with powerful image processing capacity may be applied at various public places
such as mall, supermarket, school, factory and workshop, as well as in environments requiring HD video
image such as bank and traffic control system, as shown below:
Monitoring
Center

5
1.2 Product Description
An IP camera is a digital online surveillance camera embedded with Web server and capable of
independent operation, giving user access to real-time monitoring through web browser or client
software from any place across the world.
IP camera is based on the latest Hisilicon solution, an integrated media processing platform for
audio/video acquisition, compression and network transmission on a single board. It is in compliance
with H.264/ H265 High Profile encoding standards. Any remote user can have access to real-time
monitoring by entering the IP address or domain name of the IP camera in web browser. This network
camera solution is applicable to residential or business environmentas well as a wide range of situations
requiring remote network video monitoring and transmission. The IP camera products are easy to install
and operate.
The IP cameras can be managed by several users with different authorization levels.
IP cameras allows mobile detection, and sends e-mail and snapshot taken in case of emergency and
store the image or video snapshot in SD card for retrieval.
1.3 Operation Environment
Operating system: Windows 7/Windows 8/Windows 2008 (32/64-bit),
Windows 2003/Windows XP/Windows 2000 (32-bit)
CPU: Intel Core Duo II dual-core processor or higher
Memory: 1G or more Video memory: 256M or more
Display: 1024 ×768 or higher resolution
IE: IE 6.0 or higher version

6
2. Device Connection
IP camera can be connected in two ways:
1. Connection to PC
Connect IP camera to PC via straight-through network cable, with power input connected to a DC
12V adaptor, and set the IP addresses of the PC and IP camera in one network segment. The IP
camera will communicate with PC within one minute after being powered on if the network operates
normally.
2. Connection to router/switch
This is more commonly used in connecting the IP camera to Internet, where the camera and PC are
connected to LAN ports of a router/switch, with gateway of the camera set to the IP address of the
router.

7
3. Device Operation Instructions
3.1 Check Connection
1. The default factory IP address for IP camera is 192.168.1.168 and the subnet mask is
255.255.255.0.Allocate to your computer an IP address in the same network segment as the IP
camera, for example, 192.168.1.69, and a same subnet mask as that of the IP camera.
2. Test whether the IP camera is connected properly and started normally by clicking on Start >

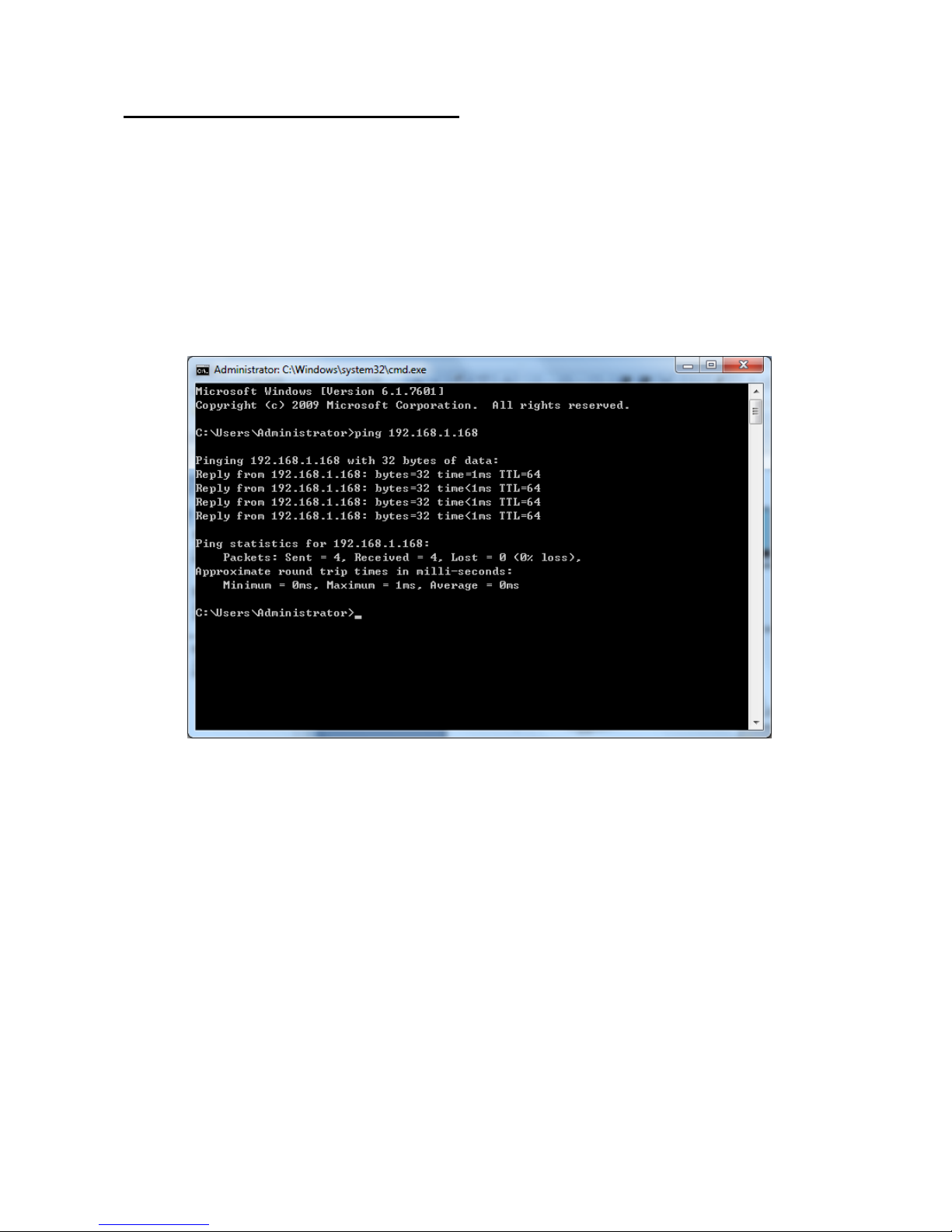

Run and entering "cmd" and pressing ENTER, and entering "ping 192.168.1.168" in the
command line window to
Check whether the IP camera is accessible. If the PING command is executed successfully, it
indicates that the IP camera operates normally and the network is connected properly. If the PING
command fails, check IP address and gateway setting of the PC and connectivity of the network.

8
3.2 Searching Device
Tips: IPC Device Search may be used for device searching across network segments. Before
running IPC
Device Search, click on the local connection icon at the lower right corner of the desktop;

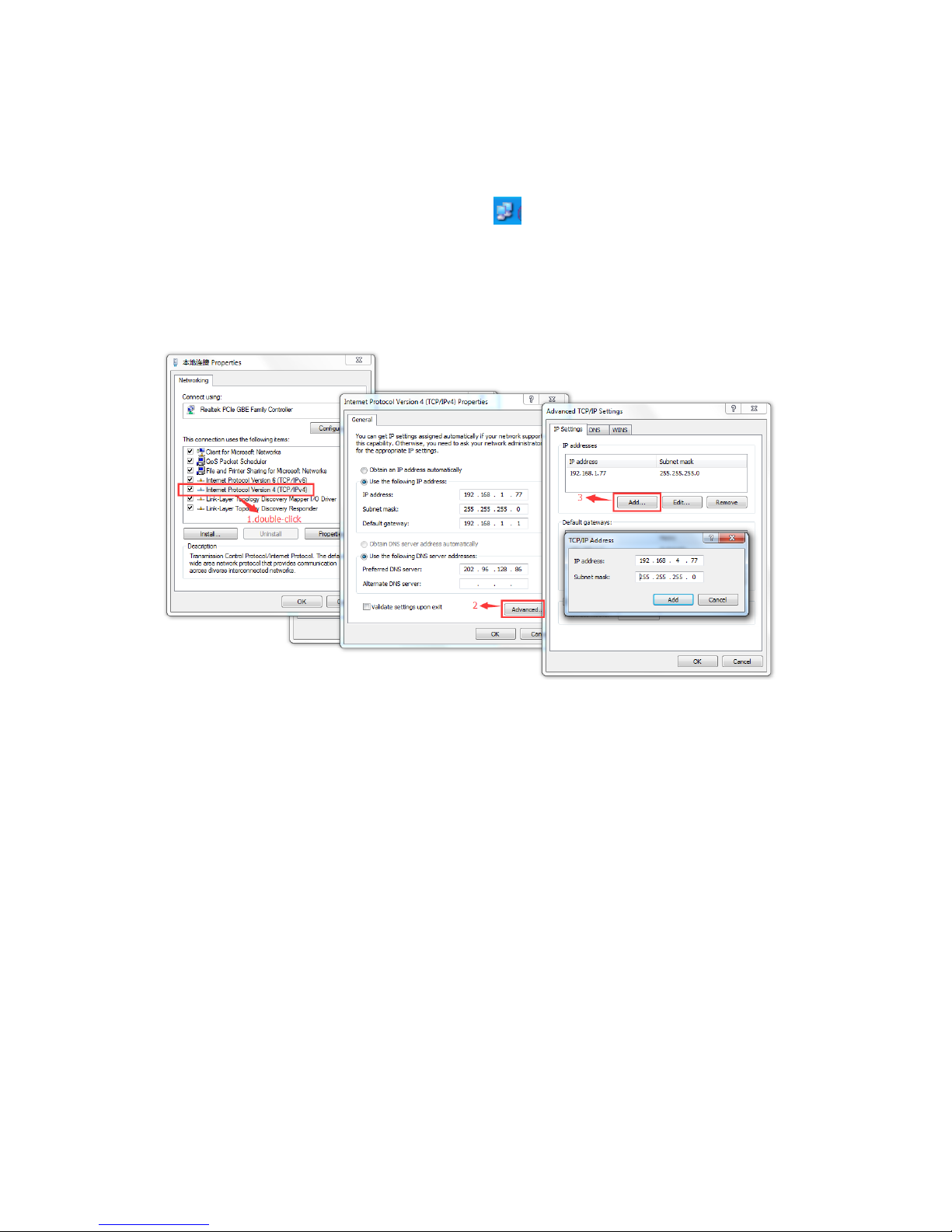

1. Add IP addresses of several network segments in TCP/IP setting for local connection (as shown
below). By running the searching tool you can search any device with IP address in the same
network segment.
Note:
IPC Device Search uses multicast protocol for device searching across segments but any firewall
forbids traffic of multicast data packets, so any firewall must be disabled in order that network the
information on device can be acquired.

9
Online device searching procedure

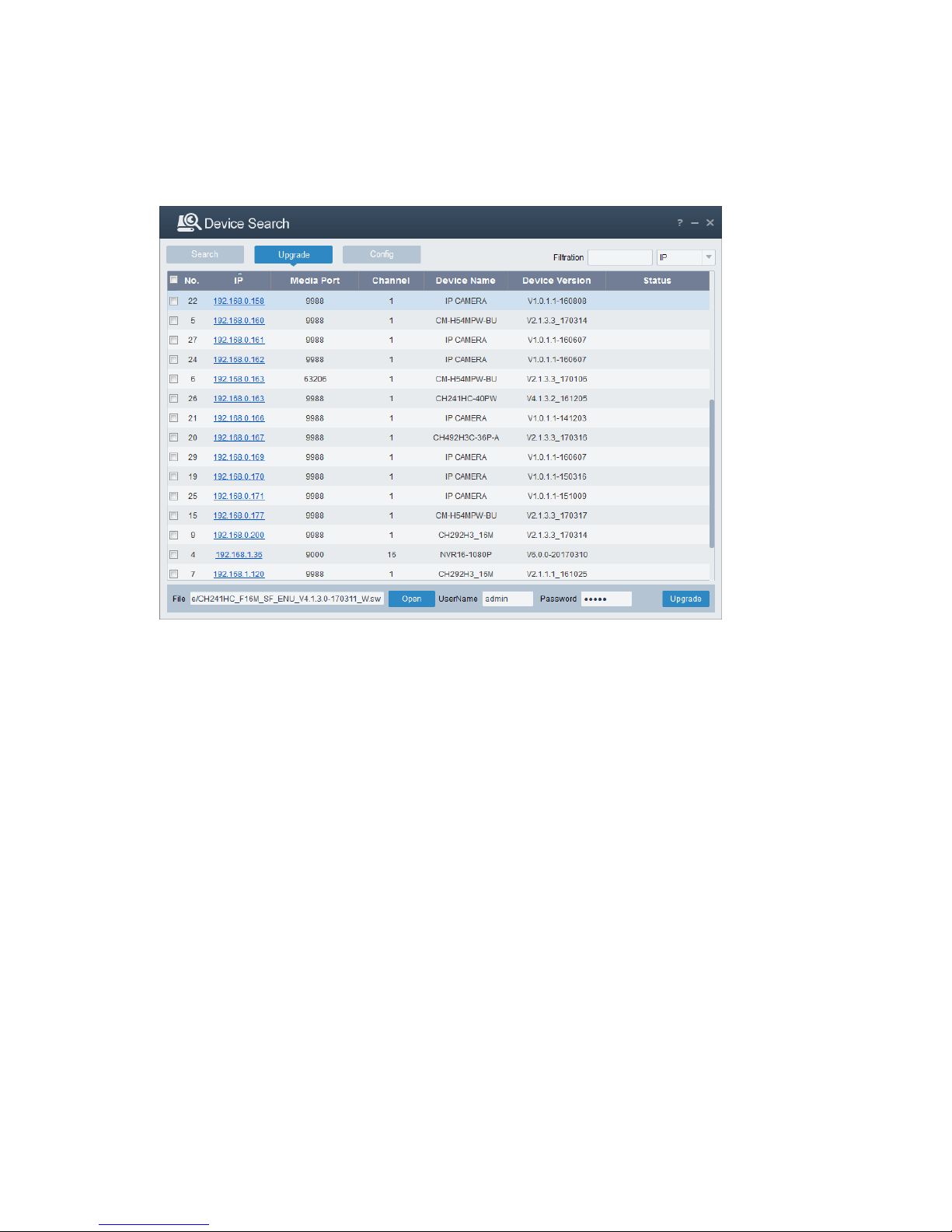

1. Run IPC Device Search by double clicking icon . It will search and display any online IPC and
its IP address, port number, number of channels, device type and version, subnet mask, gateway,
MAC address and connection pattern.

10
Upgrade：it can offer 1pcs or more than 1pcs IPcamera upgrade.Please choose the IP camera you want
to upgrade in the left frame,Open the icon to choose the software you want ,put in the user name and
password, the press the right corner button to upgrade.
Config: Double-click the selected camera in the search page, turn to the Config page to reboot the
camera, change passwords, and reset the camera.

11
3.3 Installation of Controls and Login to System
Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in
components must be installed by following the procedure below:
Access IP address of the IP camera to automatically load the controls from it.
In a pop-up plug-in installation dialog box, choose an installation option to perform the installation
process.

12
3.3.1 Preview
Operate IE and enter the IP address of the camera (http://192.168.1.168) to open a login box as
shown below:

13
In the login box you can choose a language for the IE client. Enter your user name (admin by default)
and password (admin by default) and then press OK to open a preview frame as shown below:
Some buttons in the preview frame are described below.

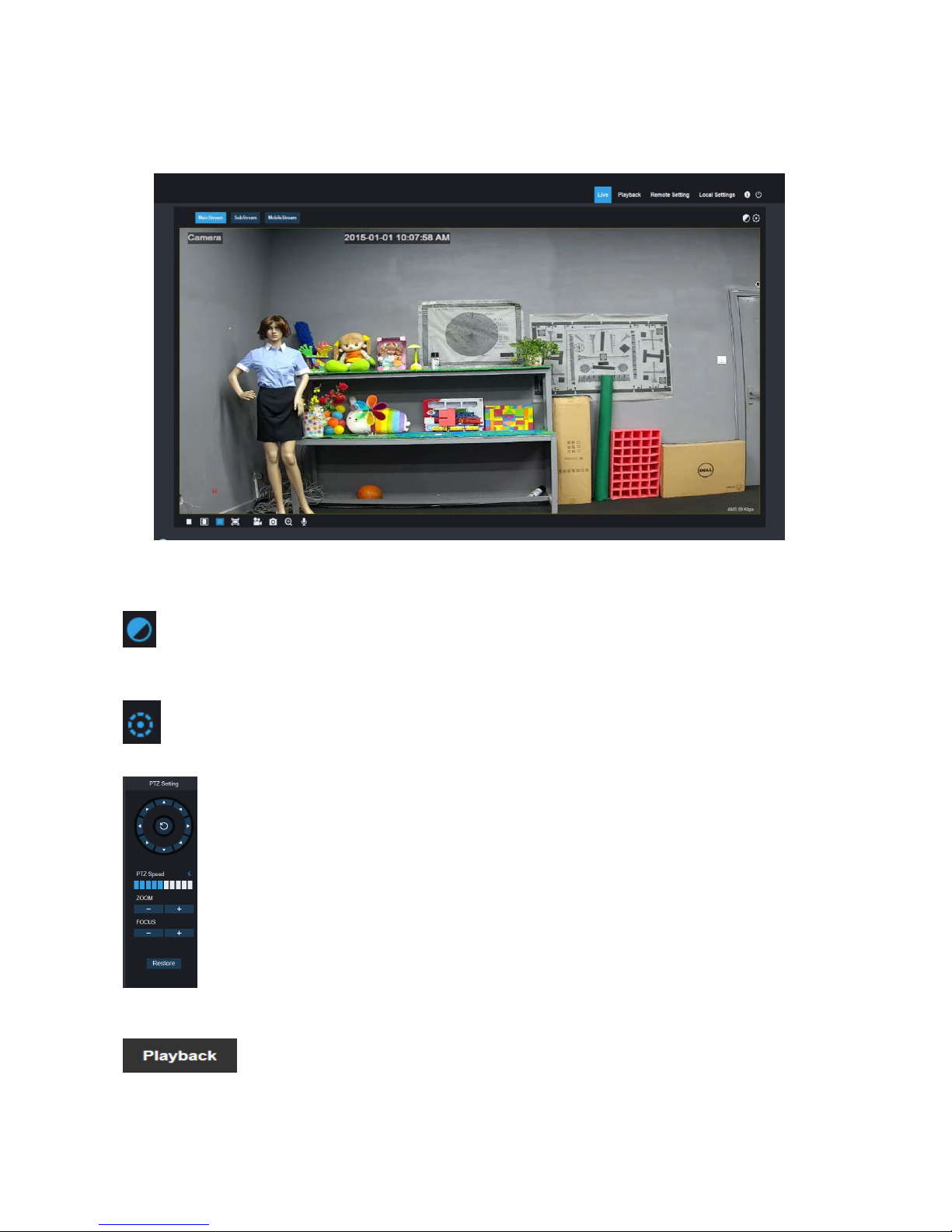

: Color setting button, for setting of color, brightness, contrast, saturation and sharpness of the
frame.
:PTZ CONTROL press the icon ,then it show below picture：
：It has eight difference angle to control in the circle button，0-10,it means difference PTZ
speed，ZOOM:adjust lens FOCUS: fix lens.Restore：restore factory setting .
: read the recording file from SD card, and then playback from browser.

14
:Access to device setting menu, for customized setting of various device parameters.
: For setting of snapshot, video file type and storage path.
: Help information (including current user, Web browser and plug-in versions), logout button,
for returning to the login page.
:Video preview switch enable/disable, original preview frame ratio,
automatic preview frame ratio, full preview frame from the left to the right.
: Preview control buttons - Zoon-In/Out, Open Video, Snap and Sound
On/Off, Mircophone arranged from the left to the right.
: Dynamic switching of bit stream for the preview frame.
Click Path Configuration button to pop up the following dialog box: In this dialog box you can set video
storage location, paths for download of remote file and storage of image snapshot, file type (RF by
default, in H265 encoding) and video recording duration.
3.3.2 Playback（optional function）

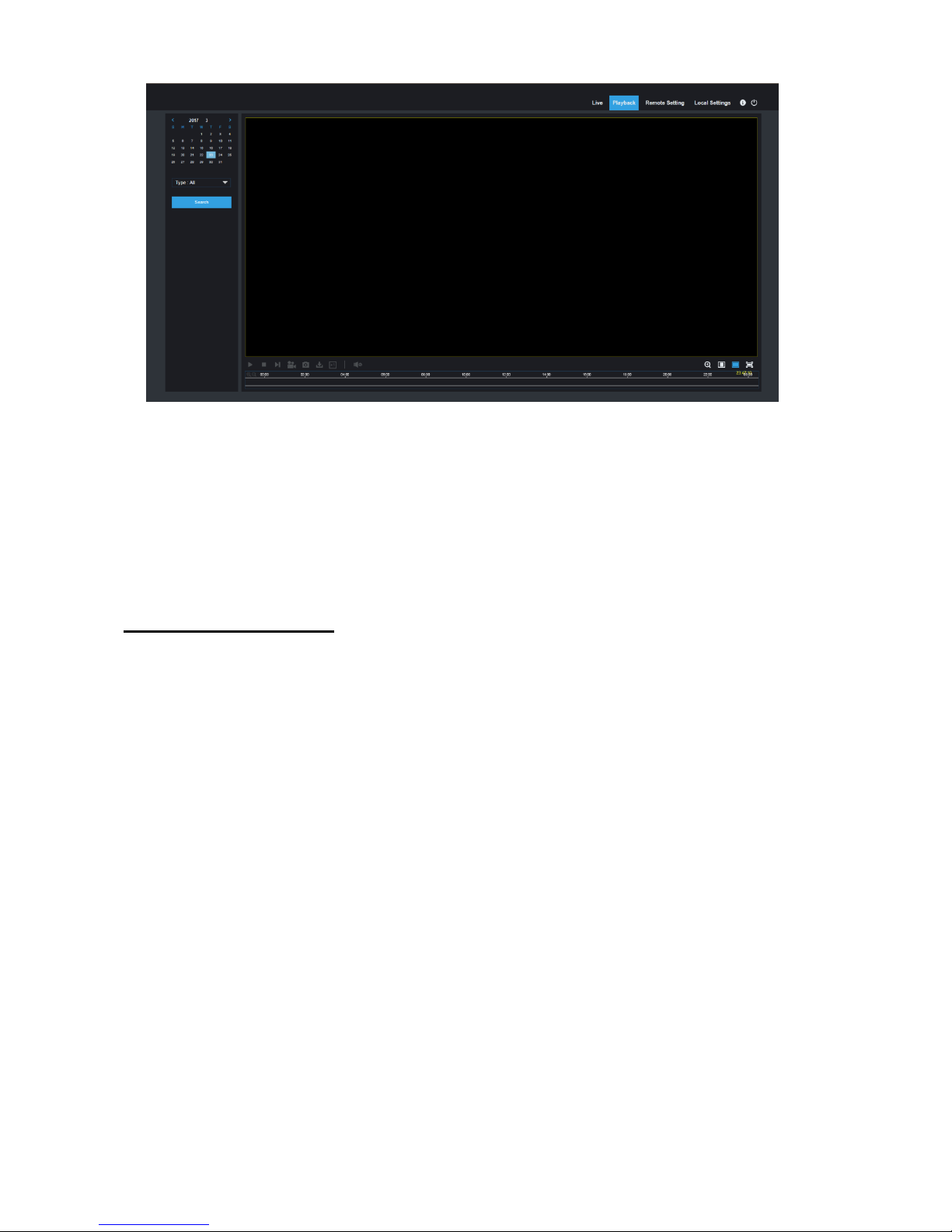

Click record file to playback, select the corresponding date, then click the Search to go to below page

15
User can search video by file type as needed, and operate the video through the simple tool on the
toolbar, e.g. open/stop video , bit stream video, recording, snapshot, download recording , quick motion
video playback, Sound On/Off.

16
4 Parameter Setting
4.1 Display Configuration
Click on Parameter Setting to open the page as below (preview setting page by default):
Name of channel: name of the IP camera
Display of channel: Choose to display or conceal it.
Time display: Choose to display or conceal it.
Blinking control: Choose 50Hz, 60Hz or disable it.
Transparency: Choose transparency of display of name of channel and time on the preview frame
(smaller value indicates higher transparency)
OSD: the text in red color on the frame; you can locate display of the name of channel and time by
dragging it in the preview frame.

17

18
4.2 Image Control
Click on Image Control in Display Configuration to open the following page:
IR-Cut Model: Classified into GPIOAutomatic, Colored, and Black-White models.
Delay: IR-cut switching delay.
Image Flip-Over:including flip horizontal, flip vertical, Corridor mode and Angle rotation (0°、180°)
Image Control: backlight compensation, 3D noise reduction, WDR, automatic gain, shutter speed,
exposure time and de-moist model.
Note:Below 2MP device ,it doesn't support Corridor mode and Angle rotation , fog mode.

19
4.3 Video Blocking

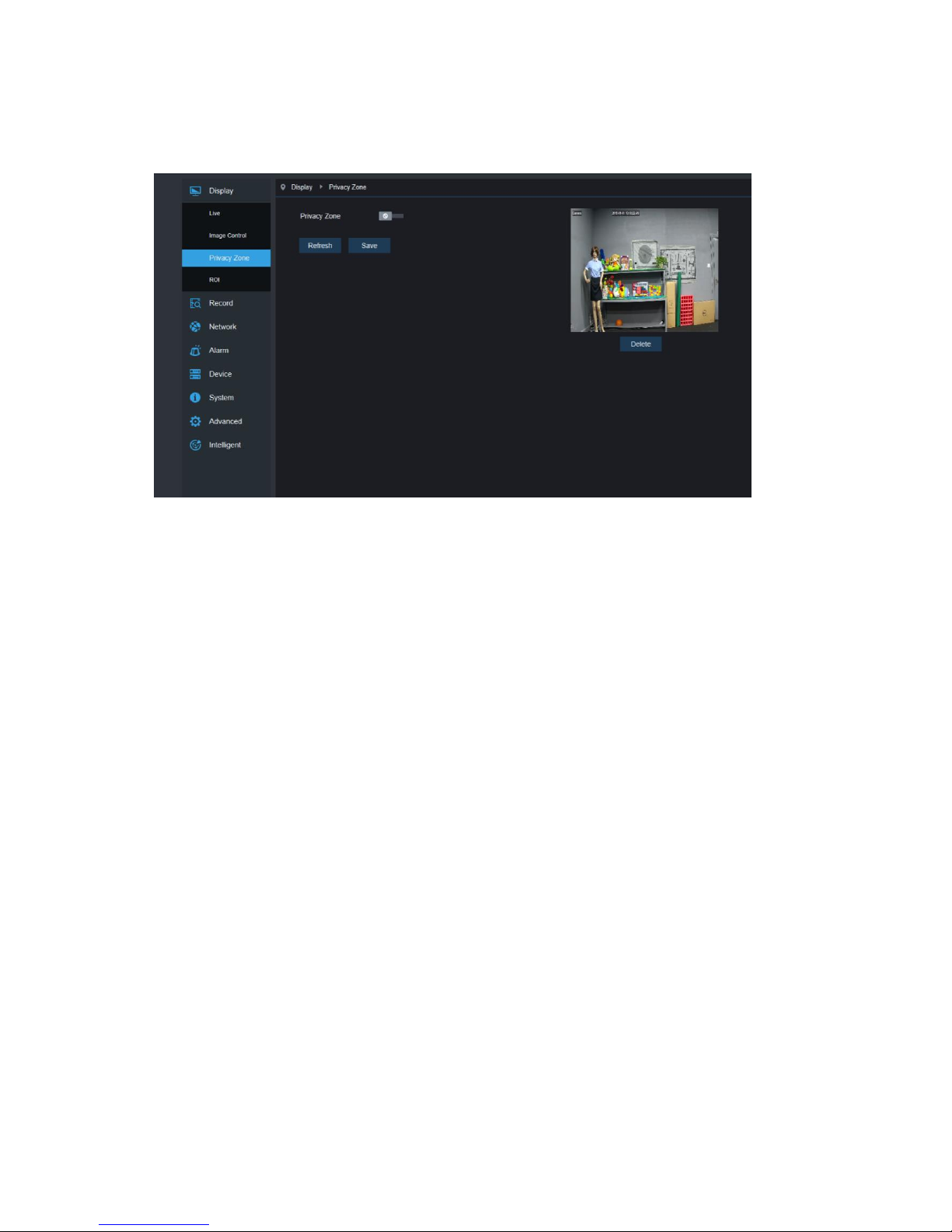

Click on Video Blocking in Display Configuration to open the following page:
Procedure of setting video blocking:
1. Check Enable Video Blocking
2. Press down and hold the left mouse button and drag out a area for video blocking (up to four areas
at one time)
3. Click on Save to enable the video blocking area.
Remove: After clicking Refresh, choose a blocked area by clicking it and then click Remove and click
Save to remove it.
