LBS Dragon Power 2 User manual

DRAGON POWER 2
10 KVA
USER MANUAL

Safety precautions
Operation
1. Before usingthis product, please read "safety precautions" carefully to ensure correct and
safe use, and please keep the manual properly.
2. Duringoperation, please pay attention to all warning signsand operate as required.
3. Donot use the device in direct sunlight,rain or the humidenvironment.
4. Thisequipment should not be installed near the heat source area or similar equipment such
as electric heater and hotstove.
5. A safe distance and ventilation should be reserved around the UPS. Please refer to the
manualfor installation.
6. Please use dry cleaning tools for wipingor cleaning the UPS.
7. In case of fire, please use the dry powder extinguisher correctly. There is a risk of electric
shockif a liquid fire extinguisher is used.
Electrical safety
1. The battery life is shortened with the increase of ambient temperature. Regular battery
replacement can ensure the UPS to work normally and provide sufficient backuptime.
2. Battery maintenance canonly be carried out by personnel with battery expertise.
3. There is a risk of electric shock and short circuit in the batteries. Toavoid personal injury
caused byelectric shock,please observe the following warningswhen replacing batteries:
A. Donot wear watches, rings or similar metal objects;
B. Use insulated tools;
C. Wear rubber shoesand gloves;
D. Donot place metal toolsor similarparts on the battery.
E. Disconnectthe load from the batteries before removingthe battery connection terminal.
4. Please do not expose the battery to the fire for avoiding explosion and endangering the
safety of life.
5. Non-professionalsshould not open or damage the battery, because the electrolyte in the
battery contains dangerous substances such as strong acid, which can cause harm to the skin
and eyes. If you accidentally touch the electrolyte, immediately wash it with plenty of water
and goto the hospital for examination.
6. Please do not short-circuit the positive and negative poles of the battery, which may cause
electric shockor fire.
Use and maintenance
1. Theuse environment and preservation method have influence on the service life and
reliability of this product. Please do not use it in the following working environment:
A. High, low temperature and humid placesexceedingthe technical
specifications(temperature 0-40℃, relative humidity 20%-90%).
B. Places with vibration and vulnerable to collision.
C. Places with metal dust, corrosive substance, salt and combustible gas.
2. If it is not usedfor a longtime, the UPS(without battery) mustbe stored in a dry
environment at the temperature range: -15-60℃.Before starting UPS, the ambient
temperature mustbe warmed to 0℃above andmaintained for morethan 3 hours.
www.lbspower.com

Content
1. Introduction ....................................................................................................................................1
1.1Symbol ...................................................................................................................................1
1.2Rear view...............................................................................................................................2
1.3Specification .........................................................................................................................3
1.4Electromagnetic compatibility ............................................................................................4
2. Installation ........................................................................................................................................5
2.1Unpackinginspection............................................................................................................5
2.2Wiring schedule....................................................................................................................5
2.3UPS connection.....................................................................................................................5
2.4External battery connection of longbackup type UPS......................................................6
2.5Connectionto the computer .............................................................................................. 7
3. ControlPanel ....................................................................................................................................8
3.1Panel display ........................................................................................................................ 8
3.2Function of button ...............................................................................................................9
3.3UPS workingstatus table of LCDdisplay ...........................................................................10
3.4Parameter query ................................................................................................................11
3.5Function setting ..................................................................................................................12
4. Warning code/faultcode andsolution ........................................................................................ 15
4.1Warning code and solution ...............................................................................................15
4.2Fault code and solution ......................................................................................................16
4.3Commonfaults and trouble shooting ...............................................................................18
5. Controland communication .........................................................................................................19
5.1SNMP Card ......................................................................................................................... 19
5.2Dry Contact......................................................................................................................... 19
5.3EPO ..................................................................................................................................... 20
6. Battery Maintenance & Repair..................................................................................................... 21
www.lbspower.com

1
1. Introduction
This series of UPS is an online sine wave uninterruptible power supply system with bypass
maintenance switch, which can provide reliable and high-quality ACpower for your precision
equipment. It can be used in a wide range, from computer equipment, communication system
to industrial automatic control equipment. Because of its online design, it is different from the
backup ups. It continuously adjusts and filters the input voltage. When the power supply is
interrupted, it will provide the backup power from the backup battery without time
interruption. In case of overload or inverter failure, the UPS switches to the bypass state and
be powered by the mains. If the overload is cleared, the UPS will automatically switch back to
the inverter power supplystate.
Thismanual is applicable to the follow products, including:
6KS:Standard UPS with built-inoutput isolation transformer and batteries.
6KL:Longbackuptime UPS with built-inoutput transformer, which connects external batteries.
10KS:Standard UPS with built-inoutput isolation transformer and batteries;
10KL:Longbackuptime UPS with built-inoutput transformer, which connects external
batteries.
1.1 Symbol
Symbols and Meanings
Symbols Meanings
Attention
Danger
AC(alternating current)
DC(direct current)
Protective earth conductor
Protective connectingconductor
Loop
Donot place with sundries
Overload
Battery
ON/OFFSwitch

2
1.2 Rearview
6KL/10KL(ISO) 6KS/10KS(ISO)
Computerinterface
Smart slot(optional)
External battery connection
"USB port
#Input breaker
$Maintenance bypassbreaker
%Terminal block
&Parallel kit (optional)
'EPO
(Output breaker
⑪Battery breaker
www.lbspower.com

3
1.3 Specification
Model
3K
6KS 6KL 10KS 10KL
Capacity 6kVA/6kW 10kVA/10kW
Input
Nominal Voltage 208/220/230/240VAC, L1+L2+PE
Voltage Range 100-300VAC
Frequency 40-70Hz
Power Factor )0.99
THDi ≤5% (linear load); ≤8% (non-linearload)
Output
Nominal Voltage 208/220/230/240VAC or 110/115/120VAC, L1+N1+L2+N2+PE
Voltage Regulation ±1%
Frequency 50/60Hz±0.1%
Crest Ratio 3:1
Voltage Harmonic Distortion ≤2% (linear load); ≤5%*non-linear load+
Transfer Time Line mode to battery mode,0ms;inverter to bypass,4ms(typical)
Waveform Pure sine wave
Overload time
Line mode: Battery mode:
30min@102%-110% load 10 min@102%-110% load
10 min@110-130% load 1 min@110-130%load
30s@130%-150% load 10s@130%-150% load
200ms@)150% load 200ms@)150% load
Efficiency
Line Mode 93.5%
Battery Mode 91.5%
ECOMode 98%
Battery
Type Sealed lead acid maintenance free
Voltage 192VDC/240VDC
Battery Number 12V 7Ah*16/20pcs External 12V7Ah*16/20pcs External
ChargingCurrent 1A 1-12A,settable 1A 1-12A,settable
Charging Mode Two/Three period charging
Management
Intelligent port RS232/USBport/SNMP card (optional)/Dry contact kit (optional)
Environment
Operation Temperature 0-40℃
Relative Humidity 0-95%(non-condensing)
Audible Noise ,50dB@1 meter
Altitude The altitude should not exceed 1000m,and the height above 1000m
should be reduced to a maximumof4000m.Refer to IEC 62040
www.lbspower.com

4
Load at highaltitude=Rated power *Derating factor (correspondingto altitude)
Altitude(m) 1000 1500 2000 2500 3000 3500 4000 4500 5000
Derating factor 100% 95% 91% 86% 82% 78% 74% 70% 67%
Notice: If the machine is used at above 1000m,diminishing ratings output must be used,
please refer to above table for derating factor.
1.4 Electromagneticcompatibility
Safety
IEC/EN 62040-1-1
EMI
ConductedEmission……IEC/EN 62040-2 Class A
Radiated Emission..........IEC/EN 62040-2 Class A
EMS
ESD...................................IEC/EN 6100-4-2 Level 4
RS.....................................IEC/EN 6100-4-3 Level 3
EFT....................................IEC/EN 6100-4-4 Level 4
SURGE..............................IEC/EN 6100-4-5 Level 4
Low FrequencySignals……IEC/EN 6100-2-2
Warning: Thisis a product for commercial andindustrial application in the second
environment-installationrestriction or additional measures maybe needed to prevent
disturbances.
NOTICE:
Thisis a productfor restricted sales distribution to informed partners. Installation restrictions
or additional measures maybe needed to prevent radio interference.
Operate the UPS in an indoor environment only inan ambient temperature range of
0-40℃(32-104℉). Install it in a clean environment, free frommoisture,flammable liquids,
gasesand corrosive substance.
ThisUPS contains no user-serviceable parts except the internal battery pack. TheUPS ON/OFF
pushbuttons donot electrically isolate internal parts. Under no circumstanceattempt to gain
accessinternally, due to the risk of electric shockor burn.
Donot continue to use the UPS if the panel indications are not accordance with these
operating instructionsor the UPS performance alters in use. Reflect all faults to your dealer.
Servicing of batteries should be performedor supervised by personnel knowledgeable of
batteries andthe precautions.
Keepunauthorizedpersonnel away from the batteries. Proper disposal of batteries is required.
Refer to your local laws and regulations for disposalrequirement.
DONOTCONNECTequipmentthat could overload the UPS or demand DC current from the
UPS, for example:electric drills, vacuumcleaners, laser printers, hair dryer or any appliance
usinghalf-waverectification.
Storing magnetic mediaon top of the UPS may result in data loss or corruption.
Turnoff and isolate the UPS before cleaning it. Use only a dry cloth, never liquid or aerosol
cleaners.
www.lbspower.com

5
2. Installation
Warning: Toensure safety,please pay attention to cut off the ACbreaker before installation.
The battery breaker also need to be cut off, if its a long backuptime model.
Caution:
1. Installation and wiring must be performed by professionalpersonnel in accordance with
local regulations.
2. The UPS needs to connect to the ground.
2.1Unpackinginspection
Inspect the appearance of the UPS to see if there is any damageduringtransportation. Donot
turn on the unit and notify the carrier and dealer immediately if there is any damageor lacking
some parts.
Recycling: The packingboxesare recyclable, so please keep them well for using in the
future.
2.2 Wiring schedule
Attention: Thediameter of the cable and the cross-sectionalarea of the three wires
dependonthe real power of the UPS.
Model AWG
Input
Output
Battery
Earth
wire
6K
S(L)
10
(6mm
²)
10
(6mm
²)
10
(6mm
²)
10
(6mm
²)
10KS(L) 8(10mm²) 8(10mm²) 8 (10mm²) 8(10mm²)
2.3 UPS connection
Warning: The rated current for the switch of the AC power must be larger than the UPS
maximuminput current. Otherwise the switch of the ACpower will be burned and destroyed.
1. Please choose the wire accordingto the table
of wiring.
2. Remove the terminal cover on the backpanel
oftheUPS .
3. Connect the input and output wires to the
correspondinginput and output terminals.
4. Tie the wire tightly and passthroughthe holes
.
5. Tie the input, output andbattery wire with the
wire, adjust the wire to the appropriate position
and fix the cable.
www.lbspower.com

6
Warning: When you are connecting the wire, please make sure that the input, output wire
and the input, output terminals are connected tightly.

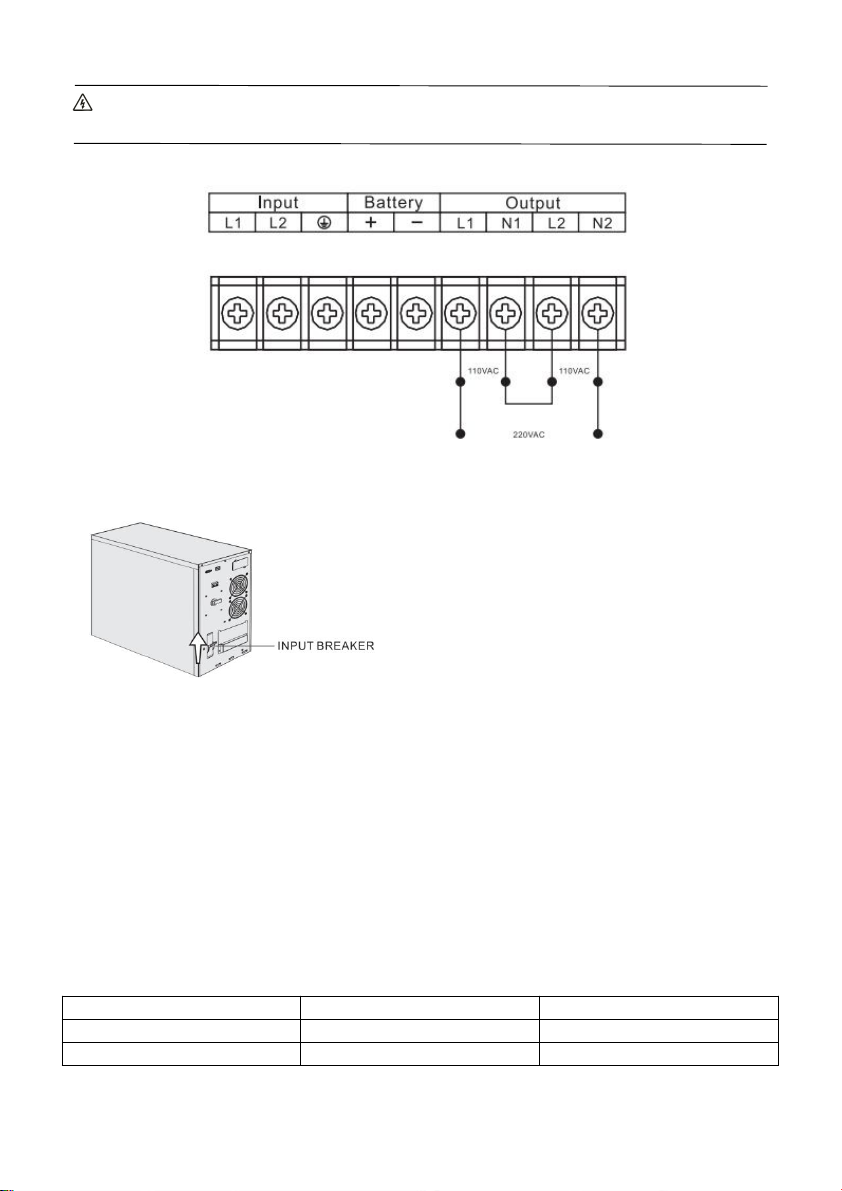

Terminals block:
6. Reinstall the cover and lockthe cover with a screwdriver .
7. After connectingthe wire and AC,then put the UPS input breakerto "ON", the UPS will be
powered.
2.4 External battery connection of longbackup type UPS
The nominal DC voltage of external battery pack is 192VDC.Each battery pack consists of 10
pieces of 12V batteries in series. To achieve longer backup time, its possible to connect
multi-battery packs.
The battery connecting procedure is very important, if you do not follow the procedure, you
mayencounter the hazardousof electric shock.So please strictly follow the steps below.
1. Set the battery breakerin "OFF" position andconnect suitable battery in series.
2. Selecting a suitable battery cable to connect between the battery pack and UPS.(Refer to
table 2.2) One DC breaker must be connected between the battery pack an the UPS, The
capability of breaker mustbe not less than the data specified in the general.
Model
6K
S(L)
10K
S(L)
Battery
voltage
192VDC
192VDC
Battery current 34A.max 56A.max
www.lbspower.com

7
Warning: Please do not connectto the terminals of UPS first, otherwise you mayencounter
the hazardousof electric shock.
3. Connect the other end of the battery cable to the UPS, and then connect to the battery
pack. TheUPS does not connect any load first, and then turns the battery pack switch to "ON",
then turn on AC,the UPS beginsto charge.
Caution: groundmark.
2.5 Connectionto the computer
RS232:Using RS232toconnect UPS with the monitoring equipment
1. Use RS232communication cable to connect to the computers RS232port first.
2. Then usethe other terminal of RS232to connect to the UPSʼs RS232port.
USB: UsingUSB to connect UPS with the monitoringequipment
1. Use USB communicationcable to connect to the computersUSB port first.
2. Thenusingthe other terminal of USB to connect to the UPSʼs USB port.
RS232Interface on UPS:
www.lbspower.com

8
3. ControlPanel
3.1 Panel display
Display Function
Error
message
FAULT
Failure occurred
Warnings
Fault
code
Mute
Mute function
Input
and
output voltage,
DC
voltage,
UPS
internal temperature
VAC:input and output voltage; VDC: DCvoltage
℃:
UPS
internal temperature; Hz:
Frequency
Load
information
The load volume(0-25%, 26%-50%, 51%-75%, 76%-100%) is shown here,
and the
overload
icon
flashes
when the
battery
is
low
or
not
connected
Battery information
The battery capacity(0-25%, 26%-50%, 51%-75%, 76%-100%) is displayed
separately,and the battery icon flasheswhen the battery is low or not
connected
Other information
AC
Battery
Bypass
Inverter
Output
working
Fan status: LEDwill always be on when the fan is normal, andflashes when
the
fan
fails
Setting icon: when entering the setting menu,the icon will light up, and the
icon
is
n
o
t shown in the
other
cases
ECOfunction: the icon light up when ECOfunction is used, otherwise the
icon
is
not displayed
Maintenance icon: when the maintenance switch is turned on, the icon
lights up, inthe other cases, the icon is not displayed
www.lbspower.com

9

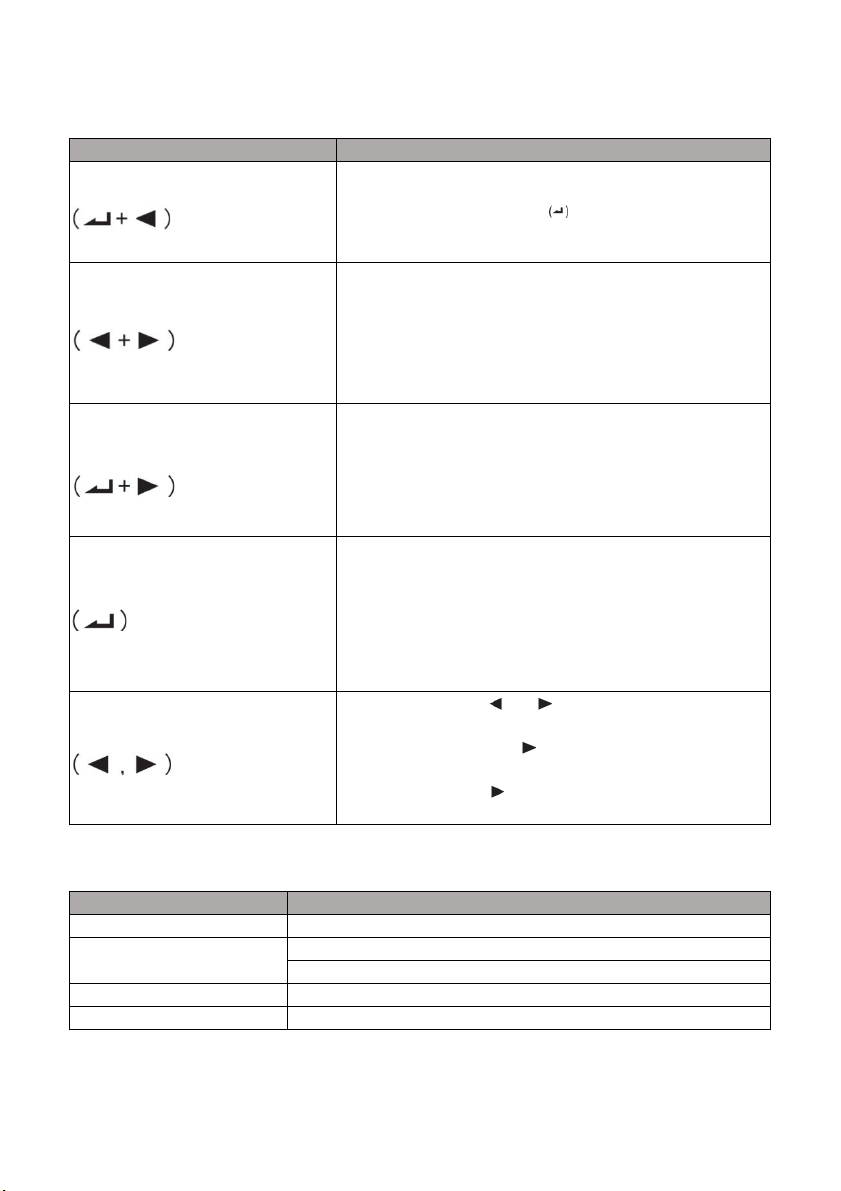

3.2 Function ofbutton
Button Functional Description
Combokey for turningon the UPS ACMode: press the two buttons at the same time for 1
secondabove to start UPS.
Battery Mode: please press confirmation button first,
after turning onthe screen, please press the two buttons
at
the same time
for
1
second above to
start
UPS.
Combokey for turningoff the UPS ACMode: press the two buttons at the same time for 1
secondabove to turn off the inverter, the systemwill turn
to Bypass Mode.
BatteryMode: pressthe two buttons at the same time for
1secondabove to turn off the inverter, and after 1
minute, the systemwill shut down, and the screen will
turn off.
Combokey for self-checkingand
mute function
Testing:in ACMode, press the two buttons at the same
time for 2 secondsabove to test the battery.
Mute: in Battery Mode/Alarm/TestingMode, presstwo
buttons at the same time for 2 secondsabove to erase
alarms, press two buttons again for 2 seconds above to
recover alarms.
Function setting/confirmation key Functionsetting: press the key more than 2 seconds to
enter the function setting page,after completingthe
setting, press the key more than 2 secondsagain to return
to the main page.
Confirmation:in the function setting page, pressthe
confirmation key1 to 2 secondsto confirm the setting
options.
Page turning/query key Pageturning: press or key 1 to 2 seconds to turn
to left or right page.
PollingMode: press the key more than 2 seconds to
enter Polling Mode, circularly display eachpagecontent
for 2 seconds, press more than 2 secondsagain to
return to the main page.
3.3 Audiblealarm
Buzzer
alarms
Description
Continuous
beeping
Fault
Soundingevery one second
Battery
voltage
low
Overload
Sounding
every
two
minutes
Bypass
mode
Soundingevery four seconds Other alarms exceptthe above
www.lbspower.com

10
3.4 UPS workingstatus table ofLCDdisplay
ACMode
LCDdisplay content Instruction
UPS can provide stable ACoutput when ACinput in the
permissible range. In ACMode, batteries will also be chargedby
the UPS.
Battery Mode
LCDdisplay content Instruction
When the ACinput is out of limited rangeor shut off,the UPS will
turn to Battery Mode. Thebatteries supplythe inverter and have
beep every 4 seconds.
Bypass Mode
LCD
display
content Instruction
When the ACinput keeps normal, start the bypass modeand close
the UPS on the panel. TheUPS will turn to BypassMode, and have
beep every 2minutes.
Error
Condition
LCD
display
content Instruction
When the UPS has faults or alarms,LCDdisplay will show the
information.
www.lbspower.com

11
3.5 Parameter query
Normally the LCDdisplay can show 8 pages totally. Pressing the query button or for
0.1-2sec can enter into the different pages which show all information, such as input, battery,
output, load, software version, temperature, and etc. If alarms occur, the display will add one
more pageto show the alarm information. If the UPS has faults, the default display will turn to
the Fault code page automatically, the home page will show the fault or alarm information by
default. When UPS keepsnormal working, the home page default display will show the output
voltage and frequency information.
Press (right button) more than 2 sec, LCDwill turn to the polling mode. Every 2 sec the
shown displaywill turn pages. Press long time, LCDwill exit the polling mode.
LCD
Display
1:
UPS
input & output voltage
LCD
Display
2:
UPS
input & output
frequency
LCDDisplay 3: Battery voltage and capacity LCDDisplay 4: Output voltage and output
active
power
LCDDisplay 5: Output voltage and output
apparent
power
LCDDisplay 6: Output voltage and load
percentage
LCDDisplay 7: UPS systemsoftware version LCDDisplay 8:connected battery quantity
www.lbspower.com

12

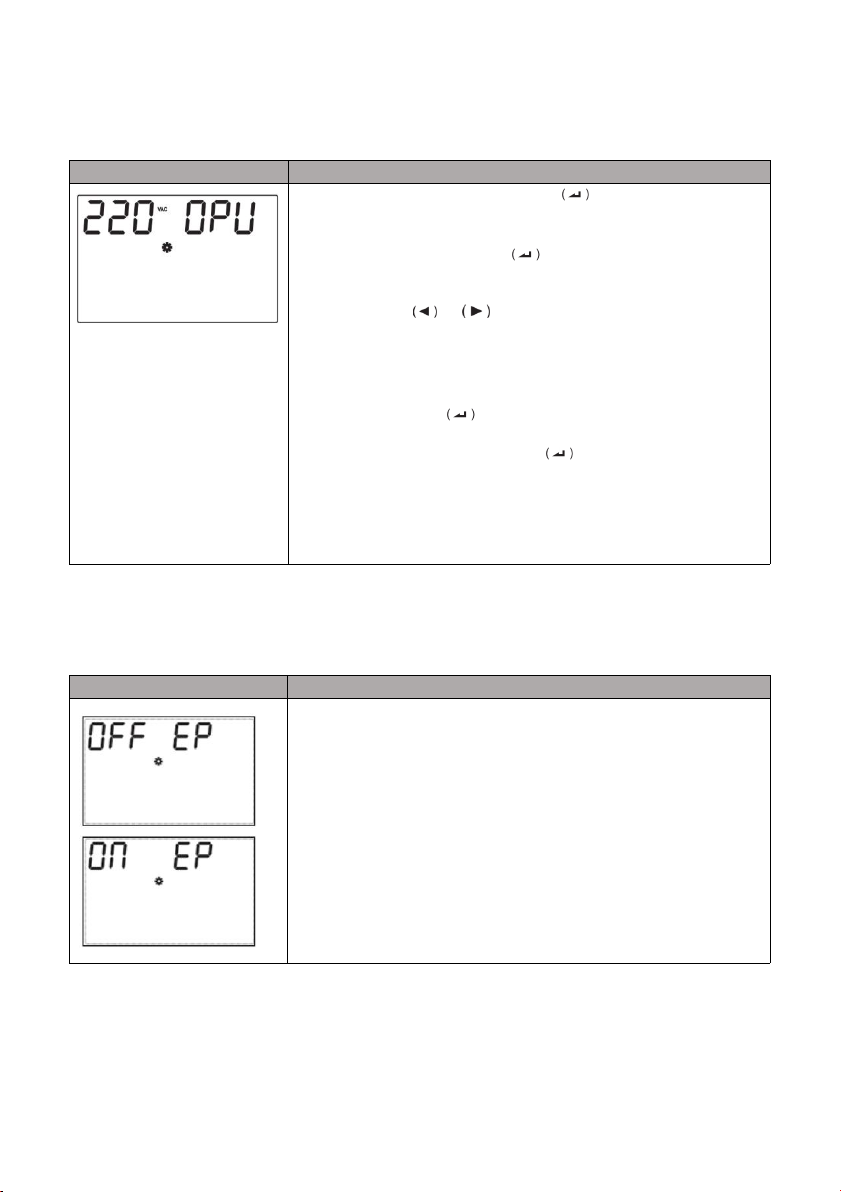

3.6 Function setting
01: Output voltage
LCD
Display
Setting
1. Press the function setting button over 2 sec, then goto
the setting page.Press the page turning buttons till the setting
page ofoutput voltage, and the word "OPU" flashing.
2. Press confirmation button 0.5-2sec, then gotothe
setting page of output voltage OPU. The"OPU" words light on,
and the numbers by left side of OPU keepsflashing. Press page
turning buttons or 0.5-2secto choose different output
voltage value, the optional voltage values are 208V,220V,230V
and 240V.The default output voltage is 220V.Please save after
setting.
3. Turnto the voltage value which you need, and press
confirmation button 0.5-2sec,then finish the OPU setting.
The number by left side of OPU will keep lighting on, no flashing.
4. Press functional setting button over 2 sec,quit the
setting page and backto the home page.( Or no operation,
waiting more than 30sec, the page will come back to home page
automatically).
Note: When the output voltage setting with 208V,the output
needs to decrease to 90% of rated power.
02: Other functional setting
02-1:Expert Mode (EP)
LCD
Display
Setting
The expert modesetting with ON, then goto the functional
setting pageagain. Thefunctional setting will show battery QTY
(PCS), EPO, chargingcurrent and other items can be selected.
When the expert mode setting with OFF,functional setting page
will show only the general options.
Note: The expertmode default to OFF. When setting as ONthen
re-connectedthe ACpower, the EP can be recovered as OFF.
www.lbspower.com

13
02-2Battery lowvoltage shutdownpoint/End ofdischarge voltage (EOD)
LCDDisplay Setting
The options of EOD setting are dEF, 9.8V,9.9V,10V,10.2V,10.5V.
By default, the EOD is dEF
(The EOD will be changed accordingto loading condition.
10.5V@load＜25%，10.2V@25%＜load＜50%，10V@load＞
50%).
02-3:Economic Operation Mode
LCD
Display
Setting
ECOis OFF by default, can be set as ONto improve the efficiency
of system operation.
Note: For the modelswith PF ＜1, OFFby default, andunable to
set.
02-4:Emergency shutdown (EPO)
LCD
Display
Setting
When EP is set to ON,the EPOoption appears on the function
setting page. Emergency shutdown can be set as closed or open
to trigger, the default is open to trigger.
Note: After EPO action, emergencyshutdown, closeall outputs
immediately.
www.lbspower.com

14
02-5:Battery quantity (PCS)
LCDDisplay Setting
When EP is set to ON, the PCSoption appears onthe function
setting page,will enter the password page,enter the password
(the general passwordis 135),you can set the number of
batteries. The default battery number is 16pcs,which can be set
to 16/18/20pcs.
02-6:ChargerCurrent (CHG)
LCDDisplay Setting
When EP is set to ON, the CHGoption appears on the functional
setting page, the charging current can be set, 1-12Aoptional,
default 1A. Noted: if UPS built-inbatteries, the charger current
default 1A, and cant be changed.
02-7:Input Neutral and Live cable reverse alarm function
LCDDisplay Setting
The input neutral and live cable reverse alarm mode is closed by
default, can choose to open to improve the safety of the system.
Note: Factory settings default closed, please open if you need.
www.lbspower.com

15
4. Warning code/fault codeand solution
4.1 Warningcode andsolution
When the " "symbolon the UPS LCDflashes, the UPS is inalarm state. Pressthe pageturning
key to the error state page (refer to 3.5), observe the alarm code and makeappropriate
processingaccording to the table below.
Alarm
code Indication Possible reasons Treatment measures
1No battery
connection
1. No battery connected
2.
Battery
damage
d
1. Checkthe connection of batteries.
2. Change the
batter
ies
.
2Battery low
voltage
The battery voltage is less than
the low voltage warning point.
The batteries discharge to below
the
alarm
point.
After the battery hasbeen sat fora
period of time, it can be turned on
again. The built-in charger can be
turned
on
to chargethe battery.
4
Input neutral
and live cables
are reversed
1. Input neutral and live cables
are reversed.
2. Input ground cable is not
connected.
3. Output ground cable is not
connected.
1. Reverse the neutral and the live
cables.
2. Check the ground cable
connection.
8Battery over
voltage UPS detects highbattery voltage
Checkthat the battery quantity
setting isconsistent with the actual
battery
quantity.
9
Charger
failure Abnormal
charger
hardware Contact the supplier.
10
Over
temperature
alarm
1. Fan fault
2. Air duct of UPS rear panel is
blocked.
3. Overload
4. NTCsensor abnormal or
connection abnormal
5. Power componentIGBT is
damaged.
1. Checkthe rectifier fan.
2. Remove blockageson the rear
panel of the UPS.
3. Checkthe load.
4. If the above treatments do not
work, contact the supplier.
12 Fan fault 1. Fan wiring is loose.
2.
Fan
hardware abnormal Checkthe fan and connection
13
AC
fuse open Fuse blown Contact the supplier.
14
EEPROM fault EEPROM
chip
damages. Contact the supplier.
21 Overload The loads exceedthe rated
power
.Checkthe load.
22
3 times
consecutive
overload
locks
3times consecutive overload
locks Shut down andrestart UPS.
23 EPO action Press EPO button.
1. Release EPO button.
2. Checkthe wiring harness on EPO
button.
24 Maintenance
switch action
The maintenance switch is
pressed. Release maintenance switch.
www.lbspower.com

16
4.2 Fault code andsolution
When the "FAULT"is longbright, and" "symbolon the UPS LCDflashes, the UPS is in fault
state. UPS automatically switches to the error status page(refer to 3.5) to observe the fault
code and makeappropriate processingaccording to the following table.
Fault
code Indication Possible reasons Treatment measures
1 Bus boosting soft-
starting fail
1. ACabnormal
2. Abnormal soft-starting
circuit of bus
Checkthe mains, if all normal,
please contact the supplier.
2 Bus over voltage 1. ACabnormal
2. Software processingerror
3.
Bus
capacitor
failure
Checkthe mains, if all normal,
please contact the supplier.
3 Bus under voltage 1. City electricity is too low.
2. Software processingerrors
3. Bus capacitor failure
1. Please check the rectifier fan.
2. Clean the obstacles on the air
duct of the rear panel of the UPS.
3. Checkthe loads.
4. If all of above donot work, please
contact the supplier.
7 Over temperature 1. Fanfailure
2. Theair duct on the rear
panel of the UPS is blocked;
3. Overload
4. NTCsensor abnormality or
abnormalwiring
5. Power componentIGBT is
damaged.
1. Please check the rectifier fan;
2. Clean the obstacles on the air
duct of the rear panel of the UPS;
3. Checkthe loads;
4. If all of above donot work, please
contact the supplier.
8 Battery relay
short circuit
Relay RL1/RL3hardware
damaged
Please contact the supplier
9 Bus relay soft-
starting fail
1. City electricity abnormal
2. Bus soft-staring circuit
abnormal
Please checkthe city electricity
power, if no abnormal, please
contact the supplier.
17 Inv soft-starting
fail
1. Some hardware of the
inverter is damaged;
2. The control panel fails.
Please contact the supplier.
18 Inv output over
voltage
1. Some hardware of the
inverter is damaged;
2. The control panel fail.
Please contact the supplier.
19 Inv output under
voltage
1. Some hardware of the
inverter is damaged;
2. The control panel fails.
Please contact the supplier.
20 Inv short circuit 1. Some hardware of the
inverter is damaged.
2. Output short circuit
1. Checkif the short circuit existson
the output of UPS.
2. Checkif the load is short circuit.
3. If no abnormal, please contact
the supplier.
www.lbspower.com

17
26 Negative power
protection(output
with ACinput fail)
1. Bypass reverses to the
inverter.
2. load abnormal
Checkthe loads and if no abnormal,
please contact the supplier.
33 Inv relay or SCR
open circuit
Relay RL8 is damaged. Please contact the supplier.
34 Inv relay or SCR
short
circuit
35 Bypass relay or
SCR
open circuit
Relay RL4/RL6isdamaged. Please contact the supplier.
36 Bypass relay or
SCR short circuit
37 I/O connection
reversed
Reverse wiring on input and
output.
Please check the wiring harness of
input and output.
39 Charger short
circuit
1. Output of charger short
circuit
2.
Charger
hardware abnormal
Please contact the supplier.
66 Over load fault 1. Overload too much
2. The voltage reduction
causes the system rated power
to decrease.
1. Checkif the load is within the
specified range;
2. Checkif the voltage has been
reduced.
67 Chargingover
voltage or battery
connection
reversed
1. Hardware error
2. Number of battery wrong;
3. Wiring wrong.
1. Checkwhether the battery wiring
or battery numbermeets the
requirements.
2. If no any abnormal, please
contact the supplier.
68 Unknown
machine model
Software version error 1. Restart the machine;
2. If no any abnormal, please
contact the supplier.
72 Charger over
current
1. Hardware error;
2. Battery abnormal.
1. Checkwhether the battery wiring
or battery numbermeets the
requirements;
2. If no any abnormal, please
contact the supplier.
73 No bootstrap Software version error 1. Restart the machine;
2. If no any abnormal, please
contact the supplier.
81 Unknown battery Number of battery wrong
QTY
setting
1. Checkwhether the battery
number meets the requirement;
2. Checkif the configuration of the
battery jumper cap is the same as
the software setting.
82 Battery QTY
setting matching
error
Numberof battery setting
wrong and cannot be matched
with software setting.
www.lbspower.com
