LBS DRAGON POWER 3 User manual

DRAGON POWER 3
15 KVA- 60 KVA
USER MANUAL

www.lbspower.com
Foreword
Description
Symbol
Alerts you to a high risk hazard that could, if not avoided,
result in serious injury or death.
Alerts you to a medium or low risk hazard that could, if
not avoided, result in moderate or minor injury.
Alerts you to a potentially hazardous situation that
could, if not avoided, result in equipment damage,
data loss, performance deterioration, or
unanticipated results. results.
Anti static prompting
Be care electric shock prompting
Provides a tip that may help you solve a problem
Summaries
Thank you for choosing the Uninterruptible Power System (hereinafter referred to
as the "UPS") product!
This document gives a description of the (10-40kVA) series UPS, including the
features, performance, appearance, structure, working principles, installation,
operation and maintenance.etc.
Please save the manual after reading, in order to consult in the future.
Symbol Conventions
The manual quotes the safety symbols, these symbols used to prompt users to
comply with safety matters during installation, operation and maintenance. Safety
symbol meaning as follows.

8VHU0DQXDO
www.lbspower.com
Symbol Description
Provides additional information to emphasize or supplement
important points in the main text.
Product standard:Q/ZZKJ 007
Change History
Changes between document issues are cumulative. The latest document issue
contains all the changes made in earlier issues.

Content
1 Safety Description............................................................................................................. 1
Safety Announcements............................................................................................................................1
1.1.1 Safety instructions................ ................................................................................................... 1
1.1.2 Use Announcements for Battery ..............................................................................................2
1.1.3 Anti- Static Protection............................................................................................................... 3
1.2Operation and Maintenance Requirements ......................................................................................3
1.3Environment Requirements.............................................................................................................................................3
2 Overview............................................................................................................................... 5
2.1 Product Intro................................
...............................................................................
......................... 5
2.1.1Model Meaning.......................................
......................................
......
..........
.......................... 5
2.1.2 Features...............................................
......................................
.......
..........
..........................5
2.1.3 Appearance ..............................................
......................................
........
..........
....................6
2.1.4 Ilustrations .............................................
......................................
........
............
.....................9
2.2 Work Principle.......................................
......................................
............
..........
.......................... 10
2.2.1 Work Principle Diagram.................
......................................
..................
..........
................... 10
2.3 Work Mode......................................
......................................
.....................
..........
........................10
2.3.1 Optionals .................................
......................................
...................
.............
......................11
2.3.2 Distribution Module..................
......................................
..............
..........
...............................14
2.3.3 Battery Box...........................
......................................
......................
..................
................16
3Installation ..............................................
......................................
...................
..........
...............17
3.1 Unpacking & Checking.......................................
.........................
...................
..........
.....................17
3.2 Installation ..............................................
......................................
.................
..........
.....................17
3.2.1 Select Input Breaker............
......................................
..
..........
...................... 18

www.lbspower.com
3.2.2 Select Wires................................................... ................. 18
3.3 Mechanical Installation ........................................................................20
3.3.1 Tower Mounting .........................................................................20
3.3.1.1Rack Mounting.......................................................................21
3.4 Electrical Connection.............................................................................. 24
3.4.1Wiring of UPS.............................................................................. 24
3.4.2Wiring Between UPS and Battery Box ....................................25
3.4.3 Wiring Between UPS and Distribution Module................................ 28
3.4.4 Wiring of Parallel System .................................................... 30
4 Use and Operation......................................................................... 33
4.1 Check before Startup.................................................................................. 33
4.2 Startup Operation....................................................................................... 33
4.3 Shutdown Operation.................................................................................... 33
4.4 Parallel System Operation.............................................................................34
4.4.1 Start Parallel System ...........................................................................34
4.4.2 Shut Down Parallel System,,,,,,,,,,,,,,,,...............................................,,, 35
4.4.3 Exit Paralle Systm Online.................................................................... 35
4.4.4 Add New UPS into Parallel System Online........................................,.... 35
4.4.5 Redundance Funcion of Parallel System................................................36
4.5 Periodic Preventive Maintenance.................................................................. 36
4.6 Battery Maintenance.................................................................................... 36
4.7 UPS Setting................................................................................................ 37
4.8 Troubleshooting ...........................................................................................42
4.8.1 Common Fault................................................................................. 42
4.8.2 Fault Status .....................................................................................46
5 Package, Transportation and Storage........................................... 48
5.1 Package..................................................................................................... 48
5.2 Transportation..............................................................................................48
5.3 Storage..................................................................................................... 48

www.lbspower.com
A Technical Specifications...........................................................................................................49
B Acronyms and Abbreviations..................................................................................................52

8VHU0DQXDO 1Safety Description
1
www.lbspower.com
1 Safety Description
This chapter introduces the safety announcements. Prior to performing any work on the UPS, please
read the user manual carefully to avoid human injury and device damage by irregular operations.
1.1 Safety Announcements
This section introduces the safety announcements that must be complied with and pay special attention
while installing, using, maintenance and other relative operations.
Before operating, please read the announcements and operation instructions in this section carefully to
avoid accident.
The DANGER, WARNING, CAUTION, etc. in the manual are not all the safety announcements that
you must abide by, they are just the supplements for the safety announcements during operating.
Our Company does not undertake the responsibility caused by violating common safety operation
requirements or the safety standard of design, manufacture and use.
1.1.1 Safety Instructions
There exists high temperature and high voltage inside the UPS. During using, please strictly comply
with all warnings and operation instruments on the UPS and in the user manual.

1Safety Description User Manual
2
www.lbspower.com
The UPS is class C3 device. If it is used in residential purpose, it may cause wireless interference. User
should take actions to avoid the interference.
⚫No liquid or other objects are allowed to enter the UPS.
⚫UPS must be well grounded.
⚫In case of re, please use dry power re extinguisher. If using liquid re extinguisher, it may cause
electric shock.
1.1.2 Use Announcements for Battery
Please use specied battery. Non-specied battery will damage the UPS.
⚫Only authorized professional can replace battery. Do not wear conductive objects, such as watches,
bracelets and rings during operating. Wear rubber shoes and gloves and use tools with insulated
handle.
⚫Don't put tools or other conductive objects on the battery.
⚫It is prohibited to short the positive pole and negative pole of the battery or connect them reversely,
which is to avoid re or electric shock.
⚫Before connecting or disconnecting the battery terminals, disconnect charger rst.
⚫The battery must be with the same type, model and manufacturer.
⚫Battery should be kept away from re source or other electrical equipments that may easily cause
spark to avoid human injury.
⚫Don't open or destroy the battery. The electrolyte in the battery includes some dangerous objects,
such as strong acid, which will be harmful to skin and eyes. If it is careless to touch the electrolyte,
clean it by a lot of water immediately and then check it in the hospital.
⚫The waste battery should be disposed according to the local regulations.

User Manual 1Safety Description
3
www.lbspower.com
1.1.3 Anti-Static Protection
The static generated by human bodies may damage the electrostatic-sensitive components on PCB.
Before touching the sensitive component, please wear anti-static rings and well connect the other end
of the anti-static rings to ground.
1.2 Operation and Maintenance Requirements
Only authorized professionals are allowed to open the UPS chassis, or it may cause electric shock and
the caused UPS fault is out of the guarantee range.
⚫If UPS needs to be moved, rewired or maintained, disconnect all electrical connection, such as AC
power, battery power, etc. to isolate power input. Do not do any work on the UPS until it is powered
off completely(≥10min). Otherwise, the output may exist electricity, which may cause electric
shock.
⚫When dismantling fan, do not put ngers or tools into the rotating fan to avoid device damage or
human injury.
1.3 Environment Requirements
Do not put the UPS in the environment where has inammable, explosive gas or smog, do not do any
operation in this environment.
⚫Do not use the UPS in the place where has direct sunshine, rain or wet.
⚫Do not use the UPS in the place where close to hest source or has metal conductive dust.
⚫The normal work temperature of UPS is -5℃～40℃, relative humidity: 0%-95%, with no
condensation (recommended work temperature is 20℃~25℃, humidity is about 50%).

1Safety Description User Manual
4
www.lbspower.com
⚫Put the UPS in the at oor without vibration and the vertical gradient is less than 5°. Keep good
ventilation around the UPS. The clearance between the rear or the side of UPS and adjacent devices
or wall should be at least 300mm～500mm. Poor ventilation will rise temperature inside UPS,
which will reduce the service life of inner components and even affect the life span of the UPS.
⚫The UPS must be used below2000m. If the altitude exceeds2000m, it needs to decrease the rated
power according to GB3859.2-93 to use.

User Manual 2Overview
5
www.lbspower.com
2 Overview
This chapter mainly introduces the UPS's model meaning, features, structure, work principle, etc.
2.1 Product Intro
10-40kVA series UPS is whole high frequency, pure online, double-conversion, smart product..The
system is perfect power security for le server, enterprise server, center server, mirco-computer,
concentrator, telecom system, data center and others that require high quality power protection. They
are widely used in many key business areas, such as post, nance, network, stock, railway, etc.
2.1.1 Model Meaning
If there is no "/B",that means the UPS can be single used only.
Three-phase input three-phase output (three in three out) is 33 mode, three-phase input single-phase
output (three in one out) is 31 mode, single -phase input single-phase output (one in one out) is 11 mode.
2.1.2 Features
Completely digitalized smart control
The UPS support various input and output mode, such as 33 mode, 31 mode, 11 mode. The UPS can
monitor the grid frequency (50Hz/60Hz) and self-adapt the frequency. The output voltage can be set to
208V/220V/230V/240V, which makes amore exible usage.
Energy conservation and high efciency
Adopts three-level inverter technology and PFC control technology, the output voltage wave is perfect
and the whole efciency can be 96%, the input power factor is greater than 0.99, which greatly
improves the use ratio of electric energy and reduces the load of power grid.
Smart fan speed control
The fan speed is adjusted automatically in accordance with the load status, which prolong fan life and
reduce noise.

2Overview User Manual
6www.lbspower.com
ECO energy conservation mode design
The UPS is designed with ECO energy conservation mode. When the grid is good, if the UPS operating
in this mode, the bypass prior to output, and the efciency can be 99%.When the bypass voltage or
frequency out of normal range and cannot satisfy the user’s power supply requirement, it will switch
to inverter output, which guarantee the reliability of power supply and also, save energy.
Low mains input voltage
Adopt the independent rapid detection technology. When output load is small, even the battery voltage
is 80V, which is the main slow limit, the battery still doesn't discharge. Therefore, in the mains mode,
all output power gets from the grid, which is to ensure the battery in 100% energy storage status, and
at the same time, reduce the battery discharge times and prolong the service life.
Tower-mounting and rack-mounting
User can select tower-mounting or rack-mounting the UPS according to use space, the LCD also can
display corresponding direction on the basis of placement mode.
2.1.3 Appearance
Appearance
Operation panel
Operation panel

User Manual 2Overview
7
www.lbspower.com
Illustration for operation panel
No. Name Illustration
LCD display Shows the working status and system setting.
(select) button
⚫Short press " " button, the LCD shows the output voltage, output
frequency, input voltage, input frequency, battery voltage, UPS
temperature, output load percentage, fault information, etc.
circularly.
⚫Long press " " button for 5s, the LCD will enter setting page.
Short press “ ” to select the setting command, long press " "
button to conrm the command.
(OFF) button When UPS is on, long press " " button for 1s, the UPS will be shut
down.
(ON) button
⚫When UPS off, long press “ ” button for 1s, the UPS will be
started.
⚫When UPS on, at mains mode, long press “ ” button for 3s, the
UPS begin to perform battery test.
⚫At battery mode, long press “ ” button for 3s to mute the buzzer
(cancel mains abnormal etc. alarm).
⚫LCD display
LCD interface

2Overview User Manual
8
www.lbspower.com
Illustration for LCD display
No. Name Illustration
Running status
display area
Shows the UPS input, output, temperature, fault type and setting item
etc.
Output status
display area
Shows load capacity ( ), battery capacity ( ), UPS fault
indication ( ) and buzzer mute ( ) etc.
Work mode
display area
Shows the work status of UPS: mains inverter ( ), bypass power
supply ( ), battery inverter ( ), ECO ( ).
Fault type and corresponding dispose please see4.8 Troubleshooting.
Rear panel
Structure of rear panel
Detail of the wiring terminal of each mode，please see3.4.1 Wiring of UPS.
Only when the bypass maintain detection (BMD) and EPO port are all shorted respectively, the UPS
can work normally.

User Manual 2Overview
9
www.lbspower.com
⚫If BMD port is disconnected, the UPS will turn to bypass power supply, and at the same time, the
LCD shows BMD fault. Once the port recovers short connection, the fault will be removed
automatically.
⚫If the EPO port is disconnected, the UPS will shut down all inverter and bypass output and at the
same time, the LCD shows EPO fault. The UPS needs to be power down completely and short
connect the EPO port, the fault will be removed automatically.
If the BMD and EPO detection function won't be used, please short the port by equipped 4P terminal.
When the function needs to be used, dismantle the short wire of BMD or EPO port and connect it with
corresponding status signal input of maintenance bypass breaker or EPO.
2.1.4 Fittings Illustration
10-40kVA series UPS and distribution module has 4 kinds of copper bar, as shown
in2032624074.0.264318872 . . User can set the UPS to 33 mode or 31 mode according to needs after
connecting the copper bar to the wiring terminal.
Copper bar illustration
Copper bar No. Illustration Sketch map
1# 2PIN copper bar N
2# 2PIN copper bar N
3# 3PIN copper bar
4# 3PIN copper bar
The installation position of each mode is as shown in2032624074.26.264318872 . ,Figure2-6.

2Overview User Manual
10
www.lbspower.com
Copper bar installation position of 33 mode UPS
Copper bar installation position of 31 mode UPS
2.2 Work Principle
2.2.1 Work Principle Diagram

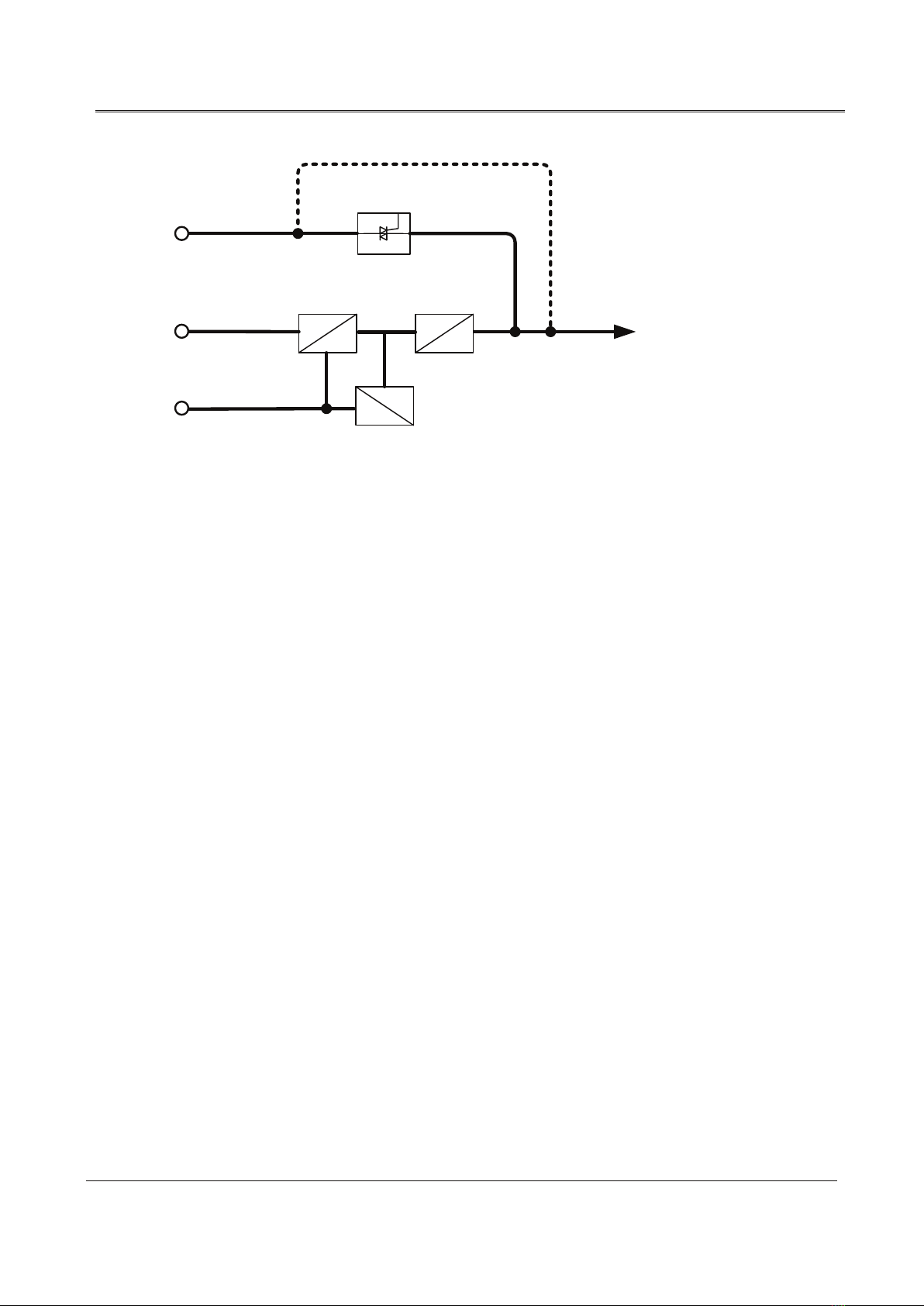

Work principle diagram of the UPS is as shown in 2032624074.26.264318872 . .

User Manual 2Overview
11
www.lbspower.com
AC
DC
DC
AC
DC
DC
Bypass input
Mains input
Battery input
Bypass static switch
Charger
Rectication
/PFC Inverter
Maintenance bypass
Output
Work principle diagram
The UPS includes rectication/PFC, inverter, charger, bypass static switch etc function module, the
input power includes mains input, bypass input, battery input, the output mode includes inverter output,
bypass output and maintenance bypass output (if equipped).
When mains normal, the rectier starts and the charger charges the battery at the same time. When
UPS off, if bypass normal, the system turns to bypass output; when UPS on, the mains boosts by
rectication/PFC and output DC bus voltage, and then go through inverter and output pure sine-wave
AC power, the output turns to inverter output to load from bypass output (if equipped).
When mains abnormal, the battery voltage boosts by rectication/PFC and output DC bus voltage, and
then go through inverter and output pure sine-wave AC power to load. When mains recover normal,
the UPS turns to mains mode from battery mode automatically.
2.2.2 Work Mode
There are 5 work modes of the UPS: normal mains power supply mode, battery inverter mode, bypass
power supply mode, ECO power supply mode and maintenance bypass power supply mode.
Normal mains power supply mode
When the mains power is normal, the UPS works in mains inverter status and charge the battery at the

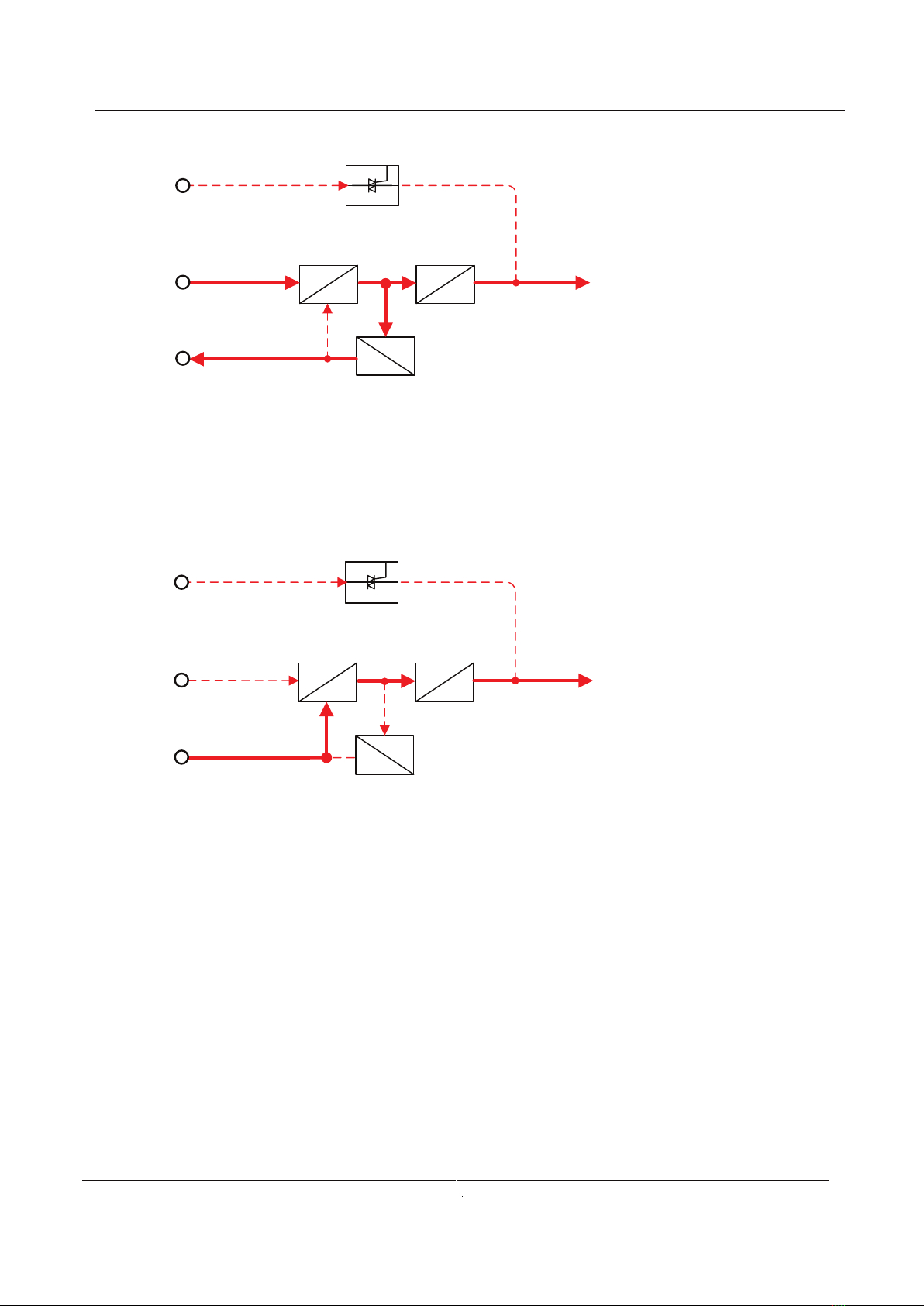

same time. The work mode is as shown in 2032624074.26.264318872 . .

2Overview User Manual
AC
DC
DC
AC
DC
DC
Bypass input
Mains input
Battery input
Bypass static switch
Charger
Rectication
/PFC Inverter
Output
Normal mains power supply mode (the thick solid line stands for the energy flow direction)
Battery inverter mode
When mains abnormal, The work mode is as shown in 2032624074.26.264318872 . .
AC
DC
DC
AC
DC
DC
Bypass input
Mains input
Battery input
Bypass static switch
Charger
Rectication
/PFC Inverter
Output
Battery inverter mode (the thick solid line stands for the energy ow direction)
Before the battery stop discharging, if the mains recover normal, the rectifier will transfer to mains
input automatically and charge the battery at the same time. That is to say, the UPS recover normal
mains power supply mode. If the mains always abnormal and the battery is running up, the UPS will
send sound and light alarm and stop working till battery low-voltage point. At that time, the buzzer
long beeps to alarm, the power for load powers down. Under the circumstance of mains power outage
completely, the UPS will shut down about 1min later automatically and close the power of the UPS to
avoid the battery discharge slimly, thus to protect the service life of battery. Once the mains recovers,
the UPS will start automatically and turn to normal mains power supply mode.

User Manual 2Overview
13
www.lbspower.com
Bypass power supply mode
Under the circumstance of bypass voltage normal, when UPS off or fault (such as inverter output
overload, over-current surge or IGBT over-temperature etc) while UPS on, the UPS will output by
bypass. When UPS on and the fault removed, it will turn to inverter output again. If the same fault
occurs more than 5 times in a short time, the UPS protects and output by bypass until power off
manually or power down and remove the fault, restart the UPS and then it will recover normal work.
AC
DC
DC
AC
DC
DC
Bypass input
Mains input
Battery input
Bypass static switch
Charger
Rectication
/PFC Inverter
Output
Bypass power supply mode (the thick solid line stands for the energy ow direction)
ECO power supply mode (just suitable for single UPS)
At the ECO mode, when bypass voltage normal, the power for load is prior supplied by bypass, when
bypass voltage abnormal, the power for load turns to inverter. ECO mode is an economic operation
mode. For the load which does not require high quality, user can select ECO mode to reduce the energy
consumption. At the ECO mode, the UPS efciency can be 99%.
Maintenance bypass power supply mode (suitable for the system with distribution module)
When the UPS needs to be maintained and the power supply for load cannot be interrupted, user can
shut down the inverter and make the UPS works in bypass status, then switch on the maintenance
bypass breaker and switch off the mains input breaker and bypass input breaker, output breaker. During
the transforming of manual maintenance bypass,AC power is supplied for load by maintenance bypass
breaker. At this time, the inner UPS has no electricity, maintainer can perform the maintenance safely.
