LCUT Creative B 00-27 User manual

LCC Modelling System
B 00-27—retaining wall tunnel portal
All drawings are not in scale.
LCC Modelling System is flexible and you can make easy modifica-
tion. Please visit our website at www.lcut.co.uk to shop for additional
LCC elements.
! We recommend PVA or any other paper/wood glue.
B 00-26 contains:
 2x LCC 00-98
 1x LCC 00-101
 1x LCC 00-102
 1x LCC 00-103
 1x LCC 00-104A
 1x LCC 00-104B
 1x LCC 00-105
Before assembly of individual units it is recommended to glue all
of the face panels (LCC 00-94, LCC 00-100, and LCC 00-101)
together first. If working on long stretch of retaining wall glue 3-4
panel faces together to make it easier to assemble later. It is
possible to assemble all units separately and then later join them
but this approach may create gaps between units.
To glue panel faces together apply glue in between the
interlocking bricks and the press gently together. Leave
overnight to dry if possible. This will ensure minimal gaps
between panels. After glue had time to dry follow the instructions
in this manual to assemble the units.
Painting recommendation:
We recommend using acrylic paints. There is no need to under-
coat the surface but it can be done if desired. The material used
is porous relatively forgiving, heavy coats are unlikely to flood
the brickwork.
!
5

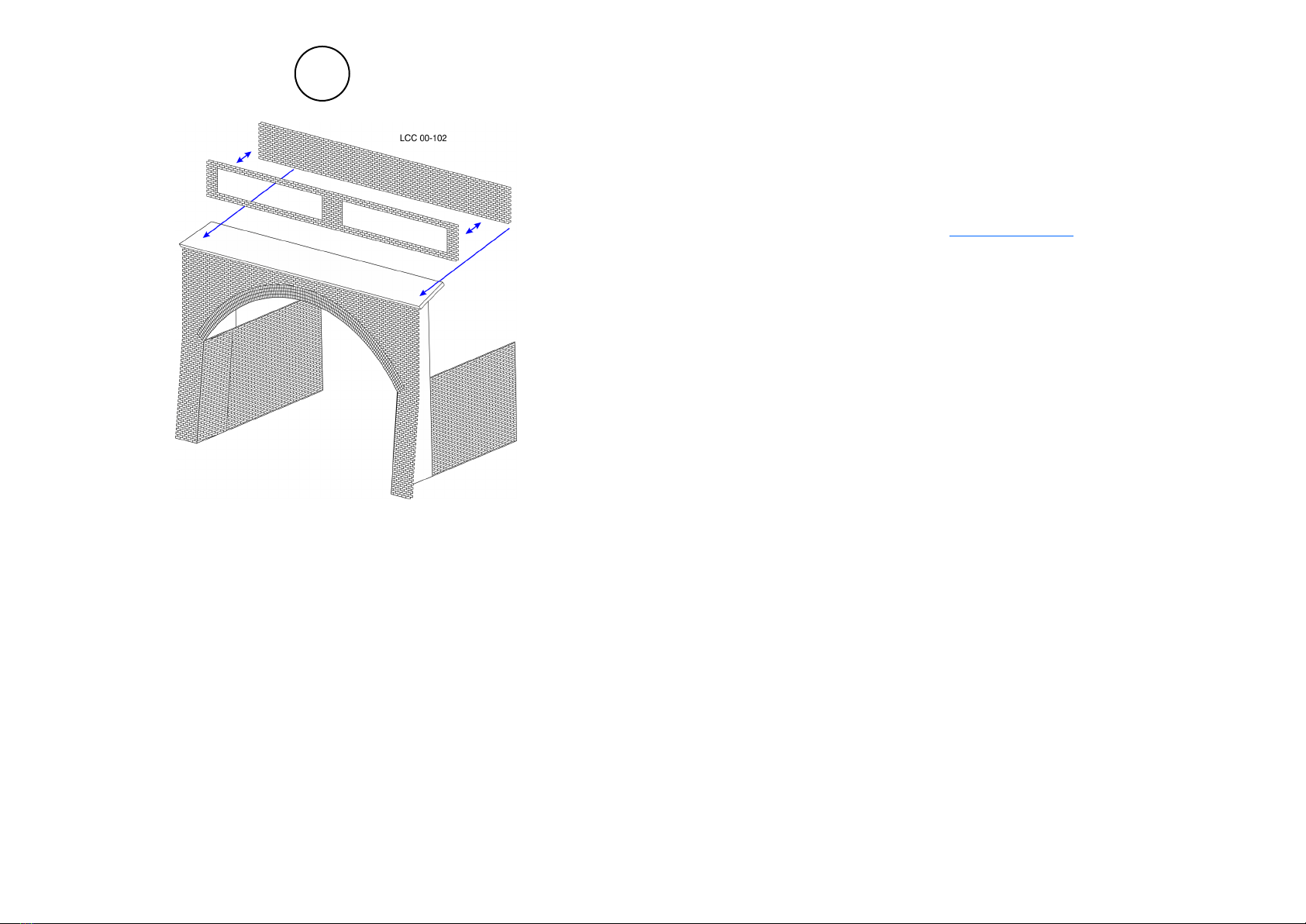

 Glue not engraved part from LCC 00-102 to the top of the assem-
bly flush with the back of LCC 00-98.
 If desired glue the deck further back or forward.
 Glue the remaining LCC 00-102 pieces together and then glue
them to the deck parallel with LCC 00-101.
 To achieve best result glue all of the full LCC 00-102 elements
together and then glue the hollow element on top. Finally glue the
whole strip to the top of all assembled retaining walls.

4
 Glue LCC 00-104 A and B to LCC 00-98.
 Use picture 1 for placement reference
 Glue LCC 00-103 to the back of LCC 00-101 slightly above the
arch line (about 1mm).
 Glue assembled LCC
00-98 to the back of
LCC 00-101.
 Ensure that LCC 00-
98 is flush with the
bottom of the face
panel as well as the
inner sides of the face
panel.
 The bend in LCC 00-
98 when glued will
shape LCC 00-101 to
have about 5% back
lean.
 Pre bend LCC 00-105 and insert into the archway. Ensure
there is no gaps between the brickwork by gently pushing it
in with pointy object (e.g. back of a hobby knife).
