LD SWEETSIXTEEN WS 1616 User manual

ON/STANBY
P O W E R
UHF PLL DIVERSITY W IRELESS RECEIVERUHF PLL DIVERSITY W IRELESS RECEIVER
IR
ASC SYSTEM
AB
ANTENNA
AF LEVELAF LEVELAF LEVEL
-6 -3 0 3
VOLUME
MAXMIN
WS 1616
ASC
IR
www.ld-system.com
16 CHN UHF PLL Diversity Wireless System
863 - 865 MHz*
WS 1616 SWEETSIXTEEN
*Anmelde- und Gebührenfrei in den meisten EU Statten. Bitte informieren Sie sich bei Ihrer lokalen Telekominikationsbehörde.
*Do not require registration or licensing in most EU countries. Please inform your local Market Surveillance Authorities for Telecommunications.

Wind microphone
system includes:
WS-1000BP bodypack
transmitter
Wind microphone
LDWS1000MW

3
Functions:
O
PWR
E
ASC
UHF L
PLR L
E ES S N I
ASM E
I
WRT TTR
R
I
S
SSM
A YE
CT
Auto u
req en cys eec in
f lto
Auto rans mitt ers eup
t t
1234
5
6
7
-
+
+
-
Open
Close
- -
+ +
++
--
1
2
4
Antenna
Adjust gain and mute switch
There are two gain settings on PBT-901. Please select the in
strument setting most suitable to you.
Mic.: Microphone
0: Guitar with passive pickup
-10dB: Transmitter mute
Power/Low Voltage/IR Transmission LED lamp
Green:ready
Red Lamp is on: the battery voltage is low
Flashing red lamp: IR transmission is in progress
3-pin microphone input socket
Power control button
Tap two seconds to turn on, hold to turn off
Synchronizing Signal Receive button
If this button is pressed, it is possible to establish infrared
connection between the transmitter and receiver.
IR Window
This window receives infrared signal so as to keep frequency
synchronization.

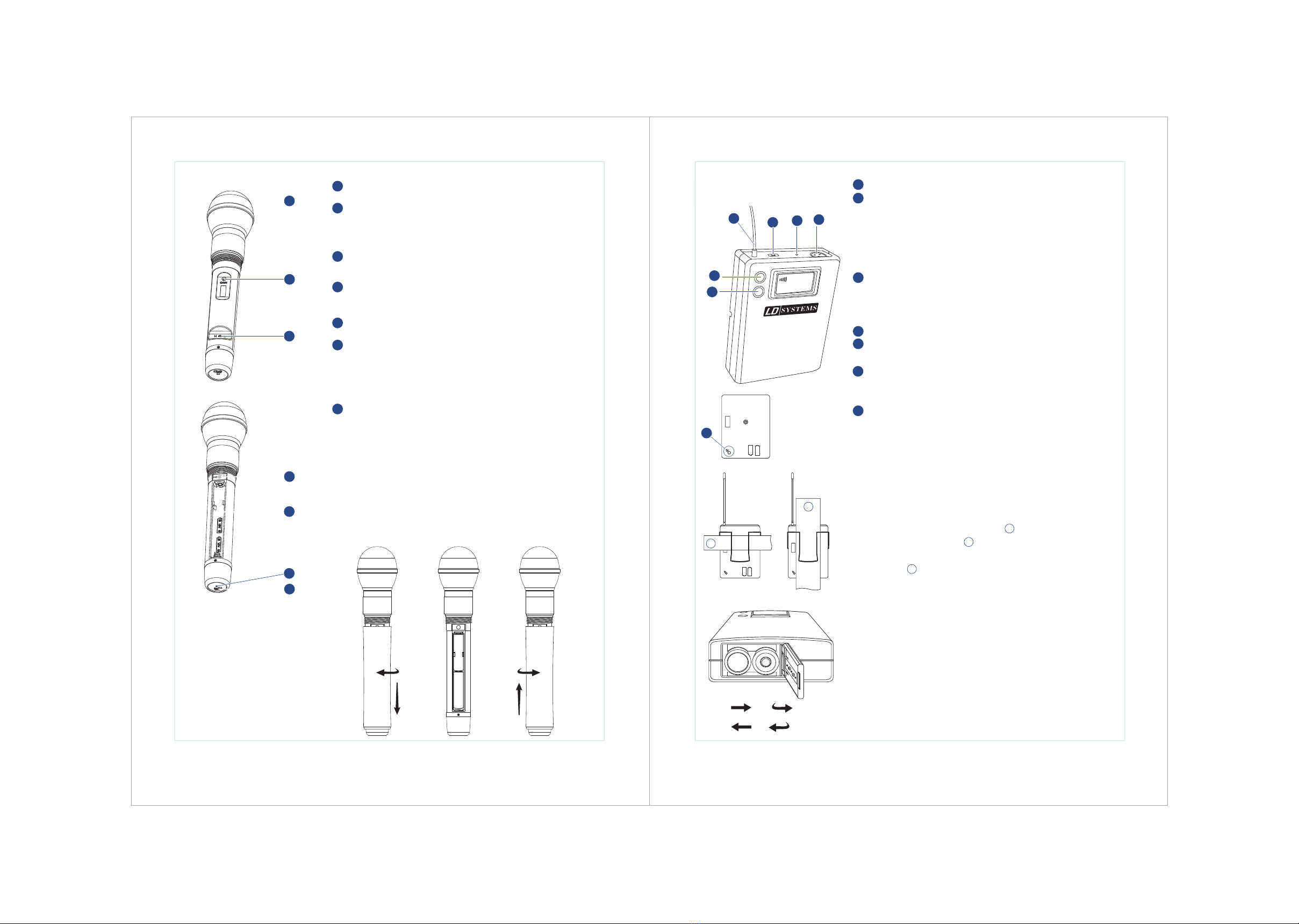

Functions:
6
7
1
2
3
4
5
How to Wear the Body pack Transmitter:
Buckle the transmitter clip to the belt or run the guitar strap
through the transmitter clip , as shown in the left diagram.
If best effect must be achieved, the transmitter should be
pushed dow .
Battery Replacement :
The life expectancy of two alkaline batteries is about six hours.
1
1
2
When the battery indicator is lighting, the batteries should be
changed immediately, as shown on the left.
Handheld Transmitter：
5
5
6
6
7
7
1
2
3
4
1
2
3
4
Expected life for two alkaline batteries is about 8 hours.
As the battery indicator on the screen keeps glowing , the
batteries should be changed immediately (as shown below).
Changing Batteries:
Microphone head
A mdjustinput sensitivity of the icrophone head
IR port
Receives infrared beam to synchronize frequencies.
On-off/mute switch
Power/ASC/Battery low indicator light.
Green on: power on
Green flash: IR transmission in process.
Red flash: battery low
Left turn for l decrease, right turn for
increase.
sensitivity sensitivity
Batteries rack
The hight of power for H,the low of power for L.
RF power switch
WS1616BP
Bodypack Transmitter

5
Group and Channel Selection
Press ▲ or ▼ to choose the appreciate frequency group, as shown
on the left.
For best results when operating multiple systems, set every channel
interval maximum.
Receiver Volume Control
Left turn for output level decrease, right turn for output level increase.
Quiet and audio level adjustment
The quiet volume control is default，it is no need to set again. Turn
it up clockwise if there is interfere signals until the RF indicator
light turn off.
Automatic Transmitter Setup
Turn off the receiver and open the battery canister, turn the IR port
on the receiver IR port, press button, and then turn on
the receiver again.
Turn the Badypack receiver IR port on the receiver IR port, then
press button, and then press the button on the
bodypack transmitter.
The receiver keeps transmitting sync frequencies 25 seconds for
each time you press the button.
Each time turn on the transmitter and press the button within
the bodypack transmitter, the transmitter will stars the IR receive
system within 25 seconds.
The handheld transmitter lights up when the IR receiver system stars,
the whole display within the backpack transmitter flashes (the IR
ndicator light also flashes at the same time)
Pay attention: The interval of the receiver and the transmitter
should be less than 0.5m as the IR connection is setting; only can
turn one transmitter IR port on the receiver at each IR connection
when multi-system is using.
“ASC”
“ASC” “ASC”
“ASC”
“ASC”
System Setup
Receiver Programming:
6
Specifications
Frequency Range and Transmitter Output Level
Operating Range Under Typical Conditions
> 50m
Note：actual range depends on RF signal
absorption, reflection, and interference
Audio Frequency Response（+/-3dB）
80Hz~16KHz
Total Harmonic Distortion（+/-30KHz deviation，
1KHz tone）
<1%
Dynamic Range
>90dB A-weighted
Operating Temperature Range
-10 C to +50 C
Note: battery characteristics may limit this range
Max Audio input level
0dBV to +10dBV
Gain Adjustment Range
20dB
Input Impedance
5K
Dimensions
85mm H * 65mm W*24mm D
Weight
80 grams（without batteries）
Power Requirements
2 size alkaline or rechargeable
batteries
“AA”
Battery Life
>10 hours
Max Audio input level
0dBV
Dimensions
235mm*54mm dia.
Weight
270 grams（without batteries）
Power Requirements
2“AA”sizs alkaline or rechargeable batteries
Battery Life
>12 hours if RF power switch is on H position
Audio Output Level（+/-30KHz deviation，1KHz tone）
XLR connector（into 600 load）：-12dBV
1/4inch connector（into3000 load）：-18dBv
Output Impedance
XLR ：200connector
1/4 ：1Kinch connector
XLR output
Impedance balanced
Pin1：Ground(cable shield)
Pin2：Audio
Pin3：No Audio
Sensitivity
-93dBm for 30dB SINAD,typical
Image Rejection
>55dB
Dimensions
44mm H*212mm W*160mm D
Weight
860 g
Power Requirements
12~18 V DC at 300mA，supplied by external
power supply
Receiver
Handheld Transmitter
System
Bodypack Transmitter
Band: UHF
Frequency Range :863-865MHz
Transmitter Output Level: 10dBm
>14 hours if RF power switch is on L position
