CYP CH-1507TX User manual

CH-1507TX & RX
HDMI to CAT5e/6 with LAN/IR/RS-232/PoE
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 21/10/13 Preliminary Release

CONTENTS
1. Introduction............................................1
2. Applications...........................................1
3. Package Contents ................................1
4. System Requirements............................1
5. Features..................................................2
6. Operation Controls and Functions.......3
6.1 Transmitter Front and Rear Panels..3
6.2 Receiver Front and Rear Panels.....4
6.3. IR Cable Pin Assignment.................5
6.4. D-Sub 9 Pin Denitions ....................5
7. Connection Diagram ............................6
8. Specications ........................................7
8.1 CAT5e/6/7 Cable Specication .....8
9. Acronyms...............................................8

1
1. INTRODUCTION
The HDMI with RS-232 over Single CAT5e/6/7 Transmitter and Receiver
set can send uncompressed audio/video over a single run of
CAT5e/6/7 cable up to 100m with 48V PoE from Transmitter (PSE) to
Receiver (PD) side and the added benet of control through the built-
in RS-232 and IR ports and a bi-directional LAN connection.
2. APPLICATIONS
• 48V PoE from Transmitter (PSE) to Receiver (PD)
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI to CAT5e/6/7 (with LAN/IR/RS-232) Transmitter
• 1×CAT5e/6/7 to HDMI (with LAN/IR/RS-232) Reciever
• 1×IR Blaster
• 1×IR Extender
• 1×48 V/0.83 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and HDMI
equipped output display (TV or monitor).

2
5. FEATURES
• HDMI with 3D, 4K×2K support, HDCP & DVI Compliant
• Supports CEC bypass
• Simultaneous transmission of uncompressed data over a single
100m/328ft CAT5e/6/7 cable
• Uncompressed video 1080p, 60 Hz, 36-bit
• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
• Supports audio sampling rate 32kHz ~192kHz
• 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)
• Support standard 48V from Transmitter (PSE) to Receiver (PD)
• Installation Friendly
Note:
1. This system was tested with CAT5e/6/7 cables, results may vary
with cables of a different specication.
2. The standard 48V PoE function is designed for powering
compatible Receiver units only—non-PoE Receivers will need
their own power supply. Receivers of another brand may not be
compatible.
3. Displaying HMDI 3D and 4Kx2K contents, equivalent source signal
and HDMI cable are required in order to secure the quality.

3
6. OPERATION CONTROLS AND FUNCTIONS

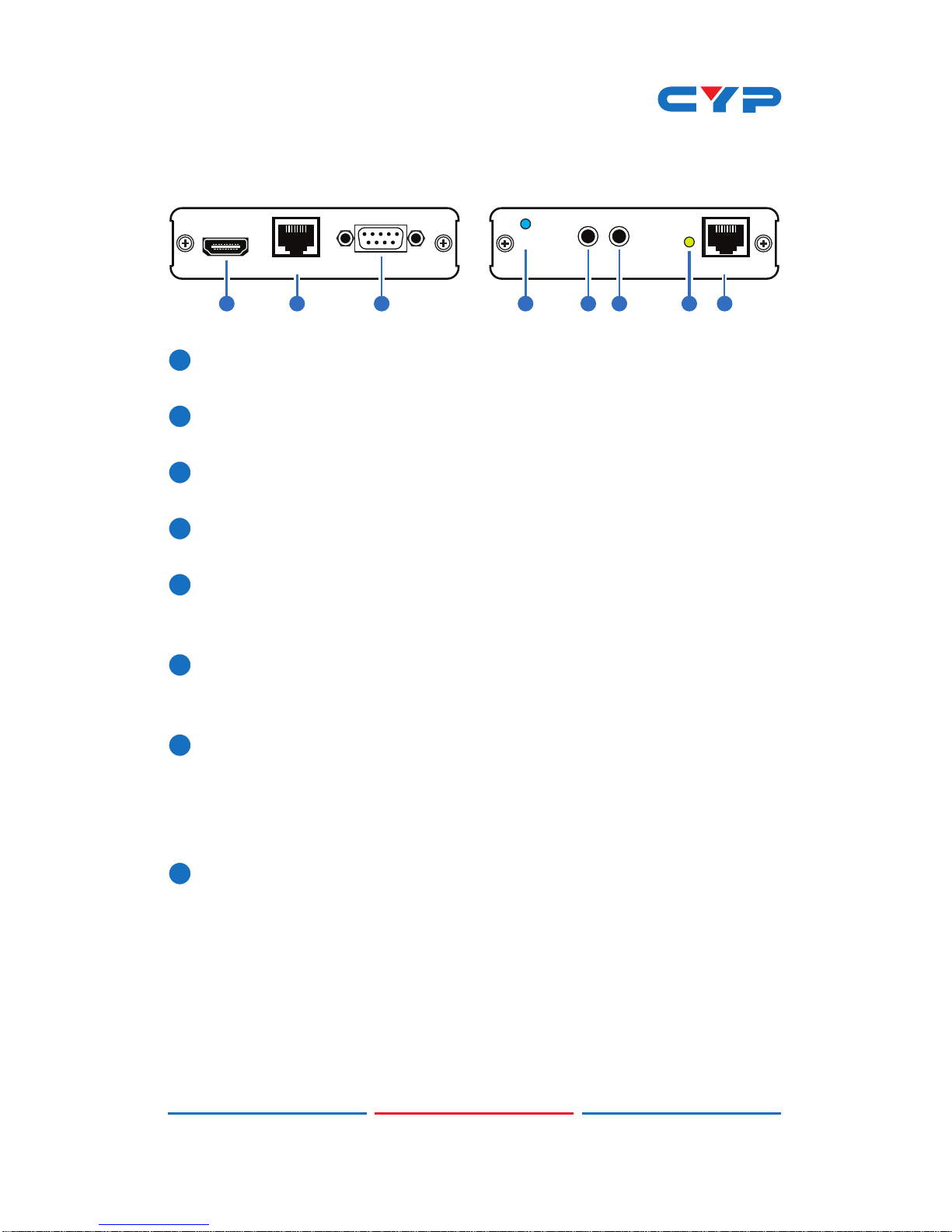

6.1 Transmitter Front and Rear Panels
RS-232 IN
LAN
HDMI IN
HDMI to CAT5e/6/7 with LAN/IR/RS-232
Transmitter
CAT5e/6/7 OUT
LINK
IR2
EXTENDER
IR1
BLASTER
DC 48V
POWER
RearFront
2 31 64 7 8 95
1
HDMI In: Connect to HDMI source equipment such as a DVD or Blu-
ray player.
2
LAN: Connect to an internet or network connection.
3
RS-232 In: Connect to a PC or Laptop with D-Sub 9 pin male cable
for the transmission of RS-232 commands.
4
Power LED: This blue LED will illuminate when the device is
connected to a power supply.
5
DC 48V: Plug the 48V DC power supply into the unit and connect
the adaptor to an AC outlet.
6
IR 1 Blaster: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
7
IR 2 Extender: Connect to the supplied IR Extender cables for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
8
Link LED: The yellow LED will illuminate when both the input source
and output display signals are connected through CAT cable.
When it blinks regularly it states the display is NOT sending signals
to receiver but the transmitter and receiver are linked and if it blink
irregularly it states an error has occurred.
9
CAT5e/6/7 Out: Connect to the Receiver unit with a Single
CAT5e/6/7 cable for transmission of all data signals.

4

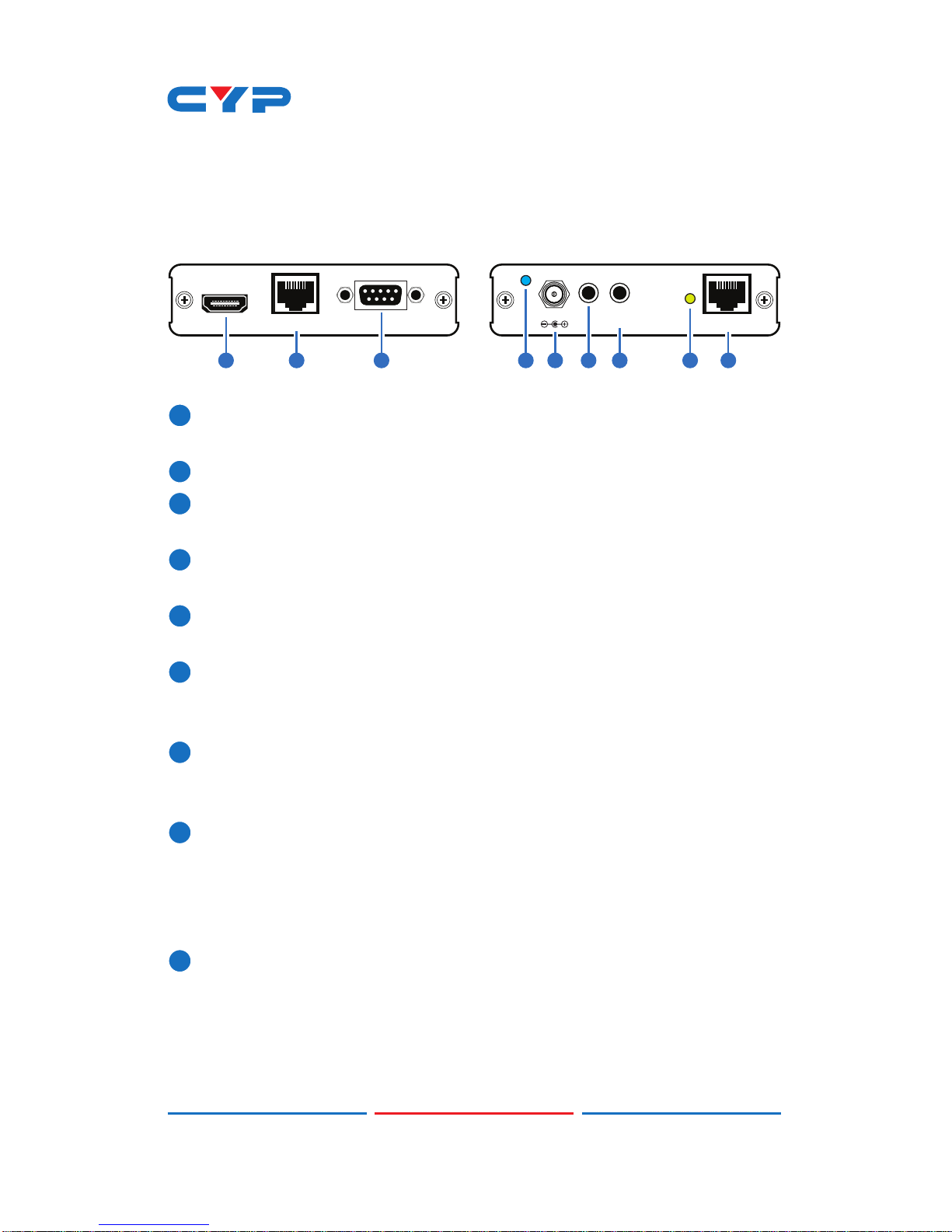

6.2 Receiver Front and Rear Panels
RS-232 OUT
LAN
HDMI OUT
CAT5e/6/7 to HDMI with LAN/IR/RS-232
Receiver
CAT5E/6/7 IN
LINK
IR1
EXTENDER
IR2
BLASTER
POWER
RearFront
2 31 65 7 84
1
HDMI Out: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
2
LAN: Connect to a PC or Laptop to the Internet or network
connection.
3
RS-232 Out: Connect to the device that is to be controlled (via
D-Sub 9 pin female cable) by RS-232 commands.
4
Power LED: This blue LED will illuminate when the device is
connected to a power supply.
5
IR 2 Blaster: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line of sight of the
equipment to be controlled.
6
IR 1 Extender: Connect to the supplied IR Extender cables for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
7
Link LED: The yellow LED will illuminate when both the input source
and output display signals are connected through CAT cable.
When it blinks regularly it states the display is NOT sending signals to
receiver but the transmitter and receiver are linked and if it blinks
irregularly it states and error has occurred.
8
CAT5e/6/7 In: Connect to the Transmitter unit with a Single
CAT5e/6/7 cable for transmission of all data signals.

5
6.3. IR Cable Pin Assignment
3
1
2
3
1
2
Power 3.3V
IR Blaster Signal
NC
IR Signal
Power 3.3V
Grounding
IR Extender
IR Blaster
6.4. D-Sub 9 Pin Denitions
Pin Dene TX / RX
1 N/C
2TxD / RxD
3RxD / TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C

6

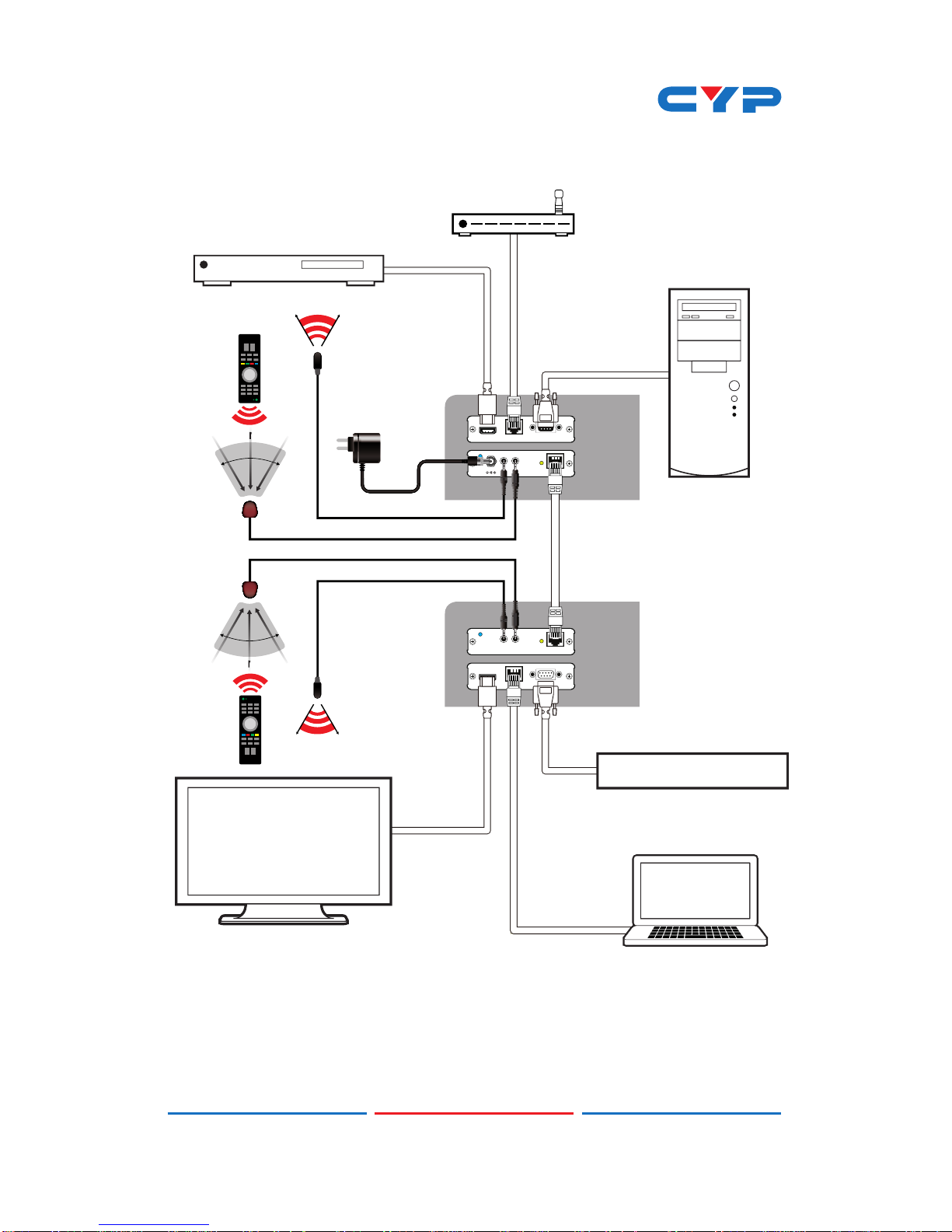

7. CONNECTION DIAGRAM
TV or Monitor
RS-232 IN
LAN
HDMI IN
HDMI to CAT5e/6/7 with LAN/IR/RS-232
Transmitter
CAT5e/6/7 OUT
LINK
IR2
EXTENDER
IR1
BLASTER
DC 48V
POWER
CAT5E/6/7 IN
LINK
IR1
EXTENDER
IR2
BLASTER
POWER
RS-232 OUT
LAN
HDMI OUT
CAT5e/6/7 to HDMI with LAN/IR/RS-232
Receiver
1.5m
60°
1.5m
60°
7m
3m 3m
60°
7m
3m 3m
60°
RS-232 Equipped
PC or Notebook
RS-232 Equipped
HDMI Switcher
Notebook
DVD or Blu-ray Player Internet Modem
or Router
Power
Supply
IR Blaster
HDMI
CAT5e/6
RS-232
HDMI
IR Extender
IR Extender
IR Blaster RX
TX
CAT5e/6
RS-232

7
8. SPECIFICATIONS
Video Bandwidth 300MHz / 10.2Gbps
Ethernet Speed 100 Mbps
Transmitter
Inputs 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN
Outputs 1×CAT5e/6/7, 1×IR Blaster
Receiver
Inputs 1×CAT5e/6/7, 1×IR Extender
Outputs 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN
HDMI In/Out Cable
Distance In: Up to 15 M/1080p@8-bit or
6M/1080p@12-bit
Out: Up to 15M/1080p@8-bit or
10M/1080p@12-bit
CAT6 In/Out Cable
Distance Up to 100 Meters
HDMI In/Out Supports
Resolution
480i~1080p@50/60, 1080p@24, 3D,
4Kx2K@24/25/30 VGA~WUXGA
IR Frequency 30~50 kHz
ESD Protection Human Body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 48 V/0.83 A DC (US/EU Standards, CE/FCC/
UL certied)
Dimensions 102 mm (W)×113 .5 mm (D)×25 mm (H)/TX
102 mm (W)×107 mm (D)×25 mm (H)/RX
Weight 262 g (TX), 262 g (RX)
Chassis Material Aluminum
Silkscreen Color Silver
Power Consumption 15W
Operating Temperature 0 °C~40 °C/32 °F ~104 °F

8
Storage Temperature −20 °C~60 °C/−4 °F~140 °F
Relative Humidity 20~90 % RH (non-condensing)
8.1 CAT5e/6/7 Cable Specication
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported
Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video) Up to 1080p,
60 Hz, 36 bits,
3D (data rates
lower than 5.3
Gbps or below
225 MHz TMDS
clock).
70 m/
CAT5e/6
100 m/CAT7
>225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz
video formats
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMI High Denition Multimedia Interface
IR Infrared
PD Powered Device
PSE Power Sourcing Equipment

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
20130524 MPM-CH1507
This manual suits for next models
1
Table of contents
Other CYP Receiver manuals

CYP
CYP CH-107RXN User manual

CYP
CYP 5-Play HDBaseT PU-507WPRX User manual

CYP
CYP CH-1604TXD User manual

CYP
CYP CA-DVIAT User manual

CYP
CYP IP-A750RX User manual

CYP
CYP PUV-3050RX-UA User manual

CYP
CYP CWHDI-Tx User manual

CYP
CYP PU-1109KIT User manual

CYP
CYP AVIP-P5104R-B1C User manual

CYP
CYP PU-515PL-WPRX User manual

CYP
CYP AU-A300-HBT User manual

CYP
CYP CA-HDMI250R User manual

CYP
CYP 5-Play HDBaseT PU-507WPRX User manual

CYP
CYP CH-1529RXPLV User manual

CYP
CYP AVX-101F-RX User manual

CYP
CYP PU-305BDA-TX User manual

CYP
CYP HDBaseT 5Play PUV-1510RX User manual

CYP
CYP CA-HDMI150R User manual

CYP
CYP DCT-30RX User manual

CYP
CYP PU-607BD-RX User manual
