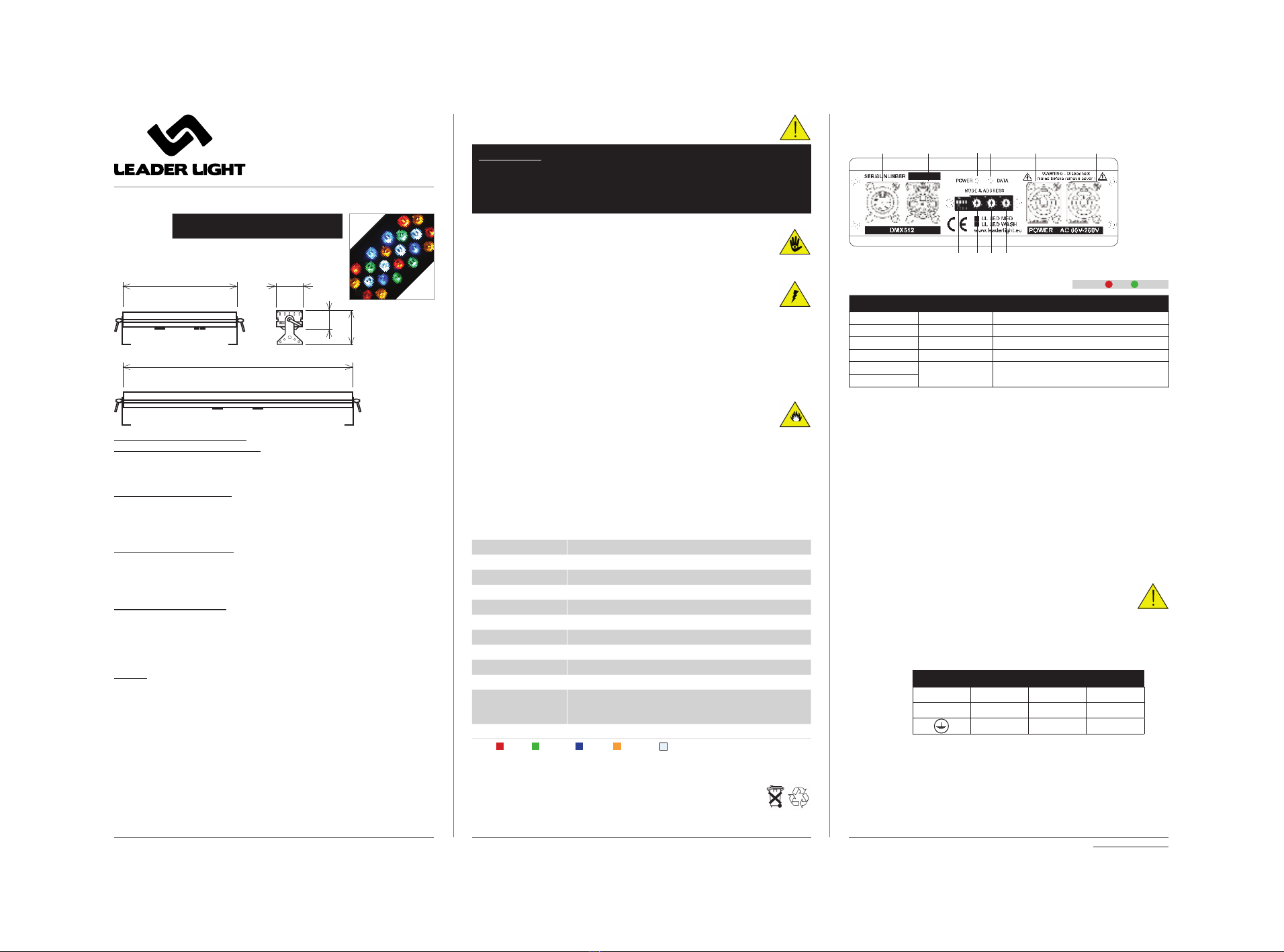

Leader Light PRO WASH VARIO OPTIC Series User manual

USER MANUAL
LL PRO WASH VARIO OPTIC
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
All dimensions are in millimeters
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand! Installation can be done only
by a qualied professional in accordance with relevant local codes.
01 SAFETY INFORMATION
01.1 Risk of eyes damage
Do not look directly into LED lamps.
Do not look into light beam from a distance of less than 40 cm (16 inches)!
-
-
01.2 Protection from electric shock
Shut down power before installation or maintenance.
Luminaries and recommended AC power supply must be installed by a qualied
professional in accordance with relevant local codes. Only acceptable source of AC power
and frequency that complies with local building and electrical codes to use.
Do not use or do not connect the products if the power cable, power plug or xtures are any
way damaged, wet, or if they are overheating.
Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
warranty.
Before removing or installing any cover or part of appliance disconnect it from AC power.
Appliance always connect to earth (eltech.).
-
-
-
-
-
-
01.3 Fire prevention
Follow all safety consideration.
Thermostatic switches or fuses never to bypass.
Device never shield. Around the axis of the tting (180°) must be maintained space for
cooling. Minimum distance from the surrounding objects must be 100mm (4 in.) (gure 1.1).
LEDs never direct cover with lters or other materials.
Allowing max. ambient temperature is 40°C (104°F).
Luminaries never use without mounting brackets. The housing never install directly to the
surface.
-
-
-
-
-
-
02 PRODUCT SPECIFICATION
02.1 Technical Specication
LED INDICATION STATUS
POWER (Green) blinking – 2Hz OK - inside xture is everything correct
DATA (Yellow) light off NO DMX512 signal
DATA (Yellow) blinking – 4Hz OK- income correct DMX512 signal
DATA (Yellow) fast blinking NON correct digital signal
POWER (Green) alternate blinking Autotest function
DATA (Yellow)
Control LEDs Indication POWER DATA
03 INSTALLATION
03.1 Unpacking
Unpack carefully.
This is electronic equipment and should be handled carefully.
Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
-
-
-
03.2 Physical installation
Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
Hairbreadth from combustible materials is 0,5m.
Before physical installation insert the optic modul on top of luminary. The optic
installation is easy and fast by 2 screws (Figure Nr. 1.2).
-
-
-
03.3 Connecting to AC power
To tackle all Safety Information- 01!
For protection from electric shock, the device must be grounded (earthed)!
It is not necessary to open the xture before power supply.
Power supply is solved simple with Neutrik PowerCon connectors.
The xture is equipped with auto-switching power supply that automatically adjusts to
any 50-60Hz AC power source from 100-260V.
Cord plug connections:
-
-
-
-
-
-
©MMX - Leader Light – All right reserved
02.2 Back panel
If you have any question please, contact [email protected]
COMPLIMENTS ON YOUR PURCHASE!
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
03.4 Control data connecting
Control data cable length is specied by Norm IEC929 Annex E4.
It is not necessary to open the xture before connecting of DMX512 control signal.
Interconnections are realized by Neutrik XLR 5pin IN/Out connectors.
Pin connections:
Pin 1 – ground
Pin 2 – signal negative
Pin 3 – signal positive
-
-
-
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specication
02.2 Back panel
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connecting to AC power
03.4 Control data connecting
03.5 DMX channels
04 PERNAMENT USE LIMITATIONS
05 MAINTENANCE
Dip options » Rotating DIP address 000÷511
“100“ “10“ “1“
DMX Out
XLR-5pin
DMX In
XLR-5pin
Power In
PowerCon
Power Out
PowerCon
Control LEDs
Edition: A - 2010
Lamp type: 66/132xRGBAW/AW P4 *
Lifetime: Long 50 000 hrs 70% degradation
Vario Optic: 10°, 25°, 40°, EL (Eliptical 15°x90°) and AS(Asymetrical)
Control data Input: DMX 512 In/Out with XLR 5PIN
Input power: max. 102W/203W
Power connection: 100-260V AC 50-60Hz In/Out PowerCon
Net weight: 5,5kg/11kg
IP: IP20
Ambient temp. (Ta): Maximum 40°C
Cooling: Conventional
Materials and nish: Housing: powder-painted anodized aluminium in black
(other colours on request)
Cover: clear or frosted PMMA
Installation: Surface mounting
600
1200
120
80 170
* P4: R-Red, G-Green, B-Blue, A-Amber, W-White (6300°K)
- One module RGBAW (4pcs White, 4pcs Green, 4pcs Blue, 5pcs Red, 5pcs Amber) => total 3/6 modules
- One module AW (12pcs White, 10pcs Amber) => total 3/6 modules
Without optic: LL37 104 LL37 105 LL37 106 LL37 107
With optic: LL37 109 LL37 110 LL37 114 LL37 115
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of
its life, but hand it in at an ofcial collection point for recycling. By doing this, you
help to preserve the environment.
Following items are included:
1. LL PRO WASH 600/1200 without optic
- LL PRO WASH 600/1200 without optic with adjustable bracket 1 pc.
- PowerCon type “A“ + “B“ 1 pc.
- User manual 1 pc.
2. LL PRO WASH 600 with optic
- LL PRO WASH 600 without optic with adjustable bracket 1 pc.
- LL VARIO OPTIC WASH 600 1 pc.
- PowerCon type “A“ + “B“ 1 pc.
- User manual 1 pc.
3. LL PRO WASH 1200 with optic
- LL PRO WASH 1200 without optic with adjustable bracket 1 pc.
- LL VARIO OPTIC 400 WASH 1200 3 pcs.
- PowerCon type “A“ + “B“ 1 pc.
- User manual 1 pc.
Additional items needed:
- Data cables with XLR 5pin Female/Male 1 pc.
- Controller compatible with DMX 1 pc.
- Mounting accessories and Vario Optics as necessary
Surface mounting:
- Screws and washers 6xM12, 2xM8

03.5 DMX channels - subject to change
The latest version of DMX channels appendix are on the websites - www. leaderlight.eu -
If you have any question please, contact [email protected]
x x
x x
minimal.
80mm
x
x
x
x
minimal.
80mm
Ventilation space 180° free
Minimal mounting distance from surface
minimal.
100mm
x
x
x
x
minimal.
80mm
Ventilation space 90° free
INSTALLATION
!!
x
x
x
x
x
x
x
x
WARNING!!!
Non-minimum distance and /or non-use
the original brackets is at your own risk!
1.1
Ch. WASH 600 RGBAW Ch. WASH 600 AW Ch. WASH 1200 RGBAW Ch. WASH 1200 AW
Mode1: Dip2=Off
1 Red 1,2,3 1 Amber 1,2,3 1 Red 1,2,3,4,5,6 1 Amber 1,2,3,4,5,6
2 Green 1,2,3 2 White 1,2,3 2 Green 1,2,3,4,5,6 2 White 1,2,3,4,5,6
3 Blue 1,2,3 3 Master (Dip1=On, Dip4=Off) 3 Blue 1,2,3,4,5,6 3 Master (Dip1=On,Dip4=Off)
4 Amber 1,2,3 4 Strobo (Dip1=On, Dip4=Off) 4 Amber 1,2,3,4,5,6 4 Strobo (Dip1=On,Dip4=Off)
5 White 1,2,3 5 5 White 1,2,3,4,5,6 5
6 Master (Dip1=On, Dip4=Off) 6 6 Master (Dip1=On,Dip4=Off) 6
7 Strobo (Dip1=On, Dip4=Off) 7 7 Strobo (Dip1=On,Dip4=Off) 7
Mode4: Dip2=On
1 Red 1 1 Amber 1 1 Red 1 16 Red 4 1 Amber 1
2 Green 1 2 White 1 2 Green 1 17 Green 4 2 White 1
3 Blue 1 3 Amber 2 3 Blue 1 18 Blue 4 3 Amber 2
4 Amber 1 4 White 2 4 Amber 1 19 Amber 4 4 White 2
5 White 1 5 Amber 3 5 White 1 20 White 4 5 Amber 3
6 Red 2 6 White 3 6 Red 2 21 Red 5 6 White 3
7 Green 2 7 Master (Dip1=On, Dip4=Off) 7 Green 2 22 Green 5 7 Amber 4
8Blue 2 8Strobo (Dip1=On, Dip4=Off) 8Blue 2 23 Blue 5 8White 4
9Amber 2 9 9 Amber 2 24 Amber 5 9Amber 5
10 White 2 10 10 White 2 25 White 5 10 White 5
11 Red 3 11 11 Red 3 26 Red 6 11 Amber 6
12 Green 3 12 12 Green 3 27 Green 6 12 White 6
13 Blue 3 13 13 Blue 3 28 Blue 6 13 Master (Dip1=On, Dip4=Off)
14 Amber 3 14 14 Amber 3 29 Amber 6 14 Strobo (Dip1=On, Dip4=Off)
15 White 3 15 15 White 3 30 White 6 15
16 Master (Dip1=On, Dip4=Off) 16 31 Master (Dip1=On, Dip4=Off) 16
17 Strobo (Dip1=On, Dip4=Off) 17 32 Strobo (Dip1=On, Dip4=Off) 17
Extention and control functions:
Dip4=Off, Dip1=Off =>DipBCD: use rotating switch for DMX start address (RS1-100, RS2-010, RS3-001) from 001 to 511
Dip4=Off, Dip1=On: address+2channel (Master+Strobo)
Dip4=On, Dip1=Off: switch on AutoRun-table functions: “100“=Prg.0-9, “10“=StepTime, “1“=FadeTime
Dip4=On, Dip1=On: switch all channels on 50% - test function
Dip2=Off: Mode 1 (5+2ch) Dip2=Off: Mode 1 (2+2ch) Dip2=Off: Mode 1 (5+2ch) Dip2=Off: Mode 1 (2+2ch)
Dip2=On: Mode 4 (15+2ch) Dip2=On: Mode 4 (6+2ch) Dip2=On: Mode 4 (30+2ch) Dip2=On: Mode 4 (12+2ch)
Dip3=Off: standard curve
Dip3=On: ultraSoft curve
180°
x
x
x
x
AIMING POSSIBILITY
The xture could be aim to wish
position with bracket.
Ventilating slots
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
For one luminary LL PRO WASH 1200 is necessary to order 3pieces
LL VARIO OPTIC 400 WASH1200
VARIO OPTIC INSTALLATION
The optic installation is easy and fast by 2 screws.
1.2
05 MAINTENANCE
To tackle all Safety Information- 01!
Damage caused by inadequate cleaning or maintenance is not coverd by warranty.
Regular cleaning is demand (dust, dirt, ...)
Maintenance policy:
Unplug mains before maintenance and at least 10 minutes cool off
Appliance do not illegal open or demount
Clean-up dust only from outer surface (for ex. scuttle, diffuser and lenses).
Use vacuum or dumpy duster (warm water)
Before reinstalling to check failure-free state – no wet parts!
-
-
-
-
-
-
-
-
04 PERNAMENT USE LIMITATIONS FOR HEATING DISSIPATION
Pernament use limitations for heating dissipation of LL PRO WASH RGBAW
body temperature must be less then 55°C
40°C ambient temperature -20% of total power
30°C ambient temperature -10% of total power
20°C ambient temperature -0% of total power
Black version - 30%
Silver or White version - 50%
Example: Then nal pernament value for BLACK colour and 40°C ambient
temperature = -30% -20% = 56% = max 143 ≥ (R + G + B + W +A) / 5
It‘s mean average of power go inside the xture at DMX signal
Example:
black LL PRO WASH: 180 ≥ (R + G + B + W + A) / 5
Silver or White LL PRO WASH: 128 ≥ (R + G + B + W +A) / 5
Value for R or G or B or W or A is 100% = 256 = 8bit levels *** RED 50% = 128
value, RED 75% = 192 value
Final information we don’t drop down each colour power with temperature
control to get maximum for each colour under total recomMendations , therefore
you need setup limitations from control desk !!!
-
