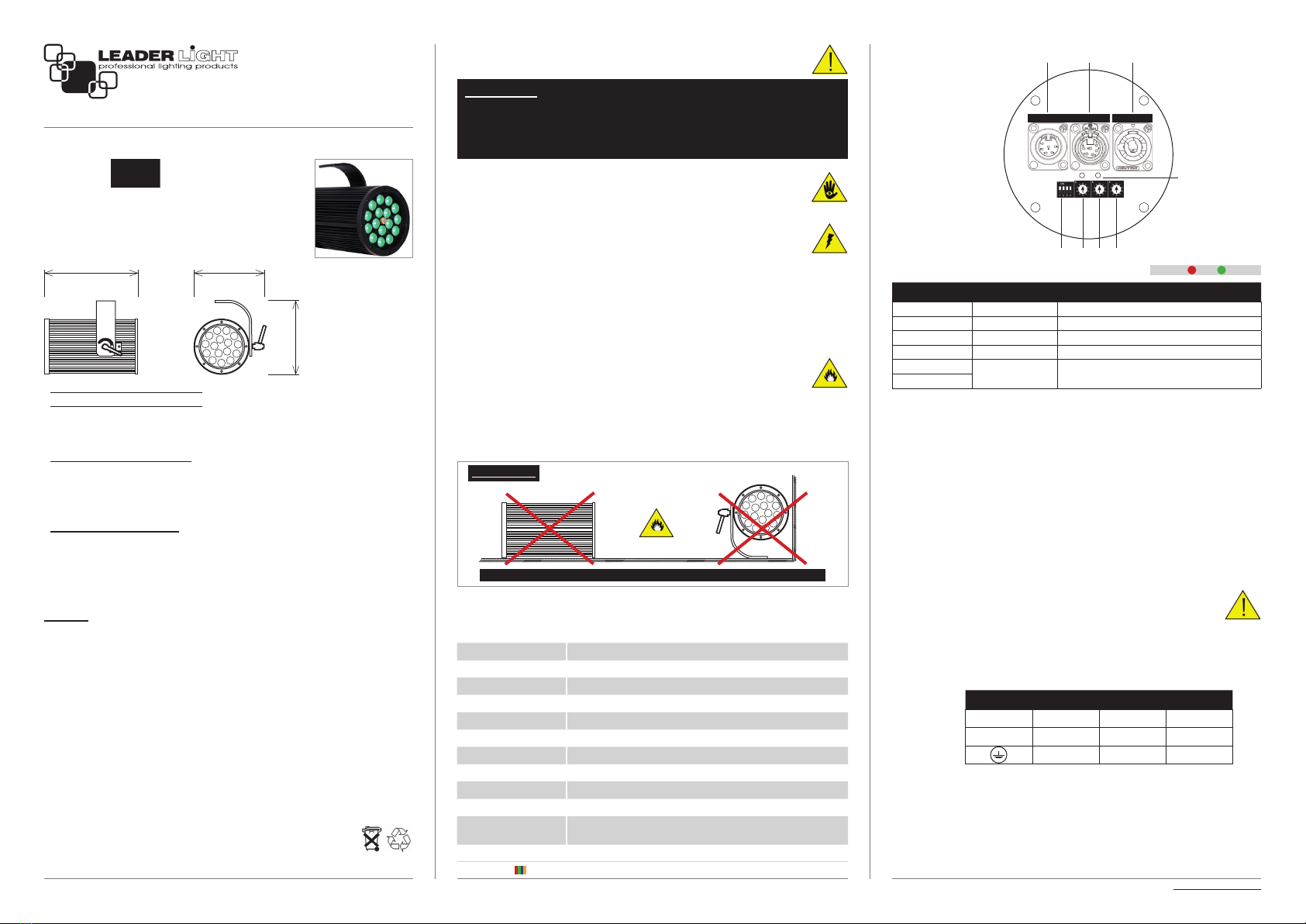

Leader Light LL STAGE SPOT VARIO OPTIC User manual

USER MANUAL
LL STAGE SPOT VARIO OPTIC
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
All dimensions are in millimeters
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand! Installation can be done only
by a qualied professional in accordance with relevant local codes.
01 SAFETY INFORMATION
01.1 Risk of eyes damage
Do not look directly into LED lamps.
Do not look into light beam from a distance of less than 40 cm (16 inches)!
-
-
01.2 Protection from electric shock
Shut down power before installation or maintenance.
Luminaries and recommended AC power supply must be installed by a qualied
professional in accordance with relevant local codes. Only acceptable source of AC power
and frequency that complies with local building and electrical codes to use.
Do not use or do not connect the products if the power cable, power plug or xtures are any
way damaged, wet, or if they are overheating.
Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
warranty.
Before removing or installing any cover or part of appliance disconnect it from AC power.
Appliance always connect to earth (eltech.).
-
-
-
-
-
-
01.3 Fire prevention
Follow all safety consideration.
Thermostatic switches or fuses never to bypass.
Device never shield. Around the axis of the tting (180°) must be maintained space for
cooling. Minimum distance from the surrounding objects must be 100mm (4 in.) (gure 1.1).
LEDs never direct cover with lters or other materials.
Allowing max. ambient temperature is 40°C (104°F).
Luminaries never use without mounting brackets. The housing never install directly to the
surface.
-
-
-
-
-
-
02 PRODUCT SPECIFICATION
02.1 Technical Specication
LED INDICATION STATUS
POWER (Red) blinking – 2Hz OK - inside xture is everything correct
DATA (Green) light off NO DMX512 signal
DATA (Green) blinking – 4Hz OK- income correct DMX512 signal
DATA (Green) fast blinking NON correct digital signal
POWER (Red) alternate blinking Autotest function
DATA (Green)
Control LEDs Indication POWER DATA
03 INSTALLATION
03.1 Unpacking
Unpack carefully.
This is electronic equipment and should be handled carefully.
Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
-
-
-
03.2 Physical installation
Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
Hairbreadth from combustible materials is 0,5m.
Before physical installation insert the optic modul on front of luminary. The optic
installation is easy and fast by 1 screw (gure Nr. 2.1).
-
-
-
03.3 Connecting to AC power
To tackle all Safety Information- 01!
For protection from electric shock, the device must be grounded (earthed)!
It is not necessary to open the xture before power supply.
Power supply is solved simple with Neutrik PowerCon connectors.
The xture is equipped with auto-switching power supply that automatically adjusts to
any 50-60Hz AC power source from 100-260V.
Cord plug connections:
-
-
-
-
-
-
©MMX - Leader Light – All right reserved
02.2 Back panel
If you have any question please, contact [email protected]
COMPLIMENTS ON YOUR PURCHASE!
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
03.4 Control data connecting
Control data cable length is specied by Norm IEC929 Annex E4.
It is not necessary to open the xture before connecting of DMX512 control signal.
Interconnections are realized by Neutrik XLR 5pin IN/Out connectors.
Pin connections:
Pin 1 – ground
Pin 2 – signal negative
Pin 3 – signal positive
-
-
-
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specication
02.2 Back panel
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connecting to AC power
03.4 Control data connecting
03.5 DMX channels
04 MAINTENANCE
Edition: A - 2010
Lamp type: 16xRGBA OneChip LED *
Lifetime: Long 60 000 hrs 90% degradation
Vario Optic: 10°, 25°, 40° and EL (Eliptical 15°x90°)
Control data connection: DMX 512 In/Out with 5pin XLR
Input power: 150W
Power connection: 100-260V AC In/Out PowerCon
Net weight: 3kg
IP: IP20
Ambient temp. (Ta): Maximum 40°C
Cooling: Conventional
Materials and nish: Housing: powder-painted anodized aluminium in black
(other colours on request)
Installation: Surface mounting
Without optic: LL36 203
With optic: LL36 202
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end
of its life, but hand it in at an ofcial collection point for recycling. By doing
this, you help to preserve the environment. * Note: LED: RGBA-Red and Green and Blue and Amber
Dip options » Rotating DIP address 000÷511
“100“ “10“ “1“
Control LEDs
POWER DATA
MODE & ADDRESS
DMX Out
XLR-5pin
DMX In
XLR-5pin
DMX512
Power In
PowerCon
POWER
WARNING!!!
!!
Non-minimum distance and / or non-use the original brackets is at your own risk!
195
163,2
215
Following items are included:
1. LL STAGE SPOT VO without optic
- LL STAGE SPOT 16 RGBA , without optic 1 pc.
- PowerCon type “A“ + “B“ 1 pc.
- User manual 1 pc.
2. LL STAGE SPOT VO with optic
- LL STAGE SPOT 16 RGBA , without optic 1 pc.
- LL VARIO OPTIC SPOT 16 25° 1 pc.
- PowerCon type “A“ + “B“ 1 pc.
- User manual 1 pc.
Additional items needed:
- Data cables with XLR 5pin Female/Male 1 pc.
- Controller compatible with DMX 1 pc.
- Mounting accessories as necessary
Surface mounting:
- Screws and washers 1xM12 or 2xM10

03.5 DMX channels - subject to change
The latest version of DMX channels appendix are on the websites - www. leaderlight.eu -
If you have any question please, contact [email protected]
04 MAINTENANCE
To tackle all Safety Information- 01!
Damage caused by inadequate cleaning or maintenance is not coverd by
warranty.
Regular cleaning is demand (dust, dirt, ...)
Maintenance policy:
Unplug mains before maintenance and at least 10 minutes cool off
Appliance do not illegal open or demount
Clean-up dust only from outer surface (for ex. scuttle, diffuser and lenses).
Use vacuum or dumpy duster (warm water)
Before reinstalling to check failure-free state – no wet parts!
-
-
-
-
-
-
-
-
DMX channels:
dmx1 = Red
dmx2 = Green
dmx3 = Blue
dmx4 = Amber
dmx5 = Master (Dip1=On)
dmx6 = Strobo (Dip1=On)
Switch functions Dip4:
Dip1 = ExtMode (+2 ch.: Master, Strobo)
Dip2 for future
Dip3 for future
Dip4 = Ultra soft curve
Order code Product name
LL36 202 LL STAGE SPOT 16 RGBA VO, 25°
LL36 203 LL STAGE SPOT 16 RGBA , without optic
Accessories:
LL37 190 LL VARIO OPTIC SPOT 16 10°
LL37 191 LL VARIO OPTIC SPOT 16 25°
LL37 192 LL VARIO OPTIC SPOT 16 40°
LL37 193 LL VARIO OPTIC SPOT 16 EL (Eliptical 15°x90°)
Ventilation space 180° free
Minimal mounting distance from surface 1.1
minimal.
80mm minimal.
80mm
Ventilation space 90° free
minimal.
100mm
minimal.
80mm
INSTALLATION SPACE
Screw the xture to the surface (M12 or 2xM10)
1.2
Surface installation
Unx by hand the screw and aim the xture to the wish position and x.
180°
AIMING POSSIBILITY
The xture could be aim to wish
position with bracket.
180°
LL VARIO OPTIC SPOT 16
2.1
Vario Optic installation
It is not necessary to open the xture for echange of Vario Optic
The optic installation is easy and fast by 1 screw. Carefully remove the optic modul and
insert the new one and x with screw.
