Leading LDE2800X User manual

USER MANUAL
PLEASE READ THIS MANUAL CAREFULLY.
IT CONTAINS IMPORTANT SAFETY INFORMATION.
ITEM # DIES5500
DIESEL GENERATOR

PREFACE
Thank you for purchasing a - - diesel generating set.
This operation manual will tell you how to operate and service your - - generation
set correctly.
Pl e ase read this manual before using the generating set to ensure the proper operation.
Follow the instructions to keep your generating set in the best working condition and
extend the life of it. If you have any commends or problem, please contact with our
sales company or the authorized agent.
This manual deals with the general items of the - - diesel generating set.However
the manual may vary with the development of the products in the future.
Please give special attentions to warnings and cautions.
Indicates that the severe personal injury even death will result
if the instructions are not followed.
Indicates that the serious personal injury or equipment damage
will result if the instructions are not followed.
- - diesel generating set will meet your requirement if you operate it according to
the manual instruction. Otherwise serious personal injury and equipment damage
will result.
So, - - reconfirms that you must to read and understand this manual before
operating the generating set.
WARNING
CAUTION

WARNING:
1. TO PREVENT THE FIRE
Never add fuel to the fuel tank while the engine is running,
Wipe off the overflowed fuel oil with a clean cloth. Keep explosives and other
flammable products and from the generating set.
To prevent the fire and to provide adequate ventilation, keep the generating set at
least one meter away from buildings and other equipment during operation.
Operate the generating set on a level surface.
Do not put the generating set indoors while the engine is hot.
1. To PREVENT FROM INHALING THE EXHAUST
Exhaust gas contains poisonous carbon monoxide,which is harnful to the health.
Never use the generating set at the confined places or poor ventilated locations.
If it’s necessary to run the generating set indoors, be sure to provide the adequate
ventilation .
3. Danger: SCALDING can accure
The muffler and the engine body are very hot while the engine is running or just
after running, do not touch these parts to prevent from being scalded.
4. ELECTRIC SHOCKS, SHORT CIRCUITS
To avoid electric shocks or short circuits, do not touch the generating set when
your hands are wet.This generating set is not waterproof, so it should not be
used in a place exposed to rain snow or water sprays. Use of the generating set
tor in a wet place can cause short circuits and electric shocks during operation.
The generating set should be grounded to prevent electrical shocks from faulty
appliances. Connect a length of heavy wires between the generating sets ground
terminal and an external ground source.
Do not hook up tools or other apparatus to generating set rator before it has been
started. If equipment is attached, generator starting may cause sudden movements
of the equipment and result in injuries and accidents. Be sure to disconnect any
apparatus from the generating set or prior to starting.

CAUTION
Most appliance motors require more than their rated wattage for start-up.
Do not exceed the the specified current limit of any socket.
Do not connect the generating set to a household circuit. This could cause
damage to the generating set and to electrical appliances in the house.
5. WHEN CHARGING THE BATTERY
Battery electrolyte contains sulfuric acid. Protect your eyes, skin and clothing. In
case of contact, flush thoroughly with water and get prompt medical attention,
especially if your eyes are affected.
Batteries generate hydrogen gas, which can be highly explosive. Do not smoke
or allow flames or sparks near a battery, especially during charging.
Charge the battery in a fully ventilated place.
6. PLEASE KEEP THE CHILDREN FROM THE GENERATOR
A generating set may cause hazards that are not recognized by the layman and
especially not recognized by children. Protect children by keeping them at a safe
distance from the generating set.
7. IN USING
Advice on the need of personal protection equipment, e. g. hearing protection
where the application is known.

CONTENTS
1. Main Technical Specifications and Date …............................1
2. Configurating ………………………………………………...3
3. Preparation for Starting ……………………………………..6
4. Start the Generating Set …………………………………….10
5. Operate the Generating Set …………………………………15
6. Load …………………………………………………………...16
7. Stop the Generating Set ……………………………………...18
8. Periodic Checks and Service ………………………………...19
9. Long-term Storage ……………………………………………20
10. Troubleshooting and Remedy ………………………………25
11. Noise………………………………………………………..…26

air-cool genset is cooling by air . if altitude is more than 1000m , air will be
rarefaction , so the effect will be not good . In case overheating , for gensets which are
using in high altitude (more than 1000m) , it should be running in low load . Also it
dosent mean that gensets can be overload if altitude is less than 1000m .

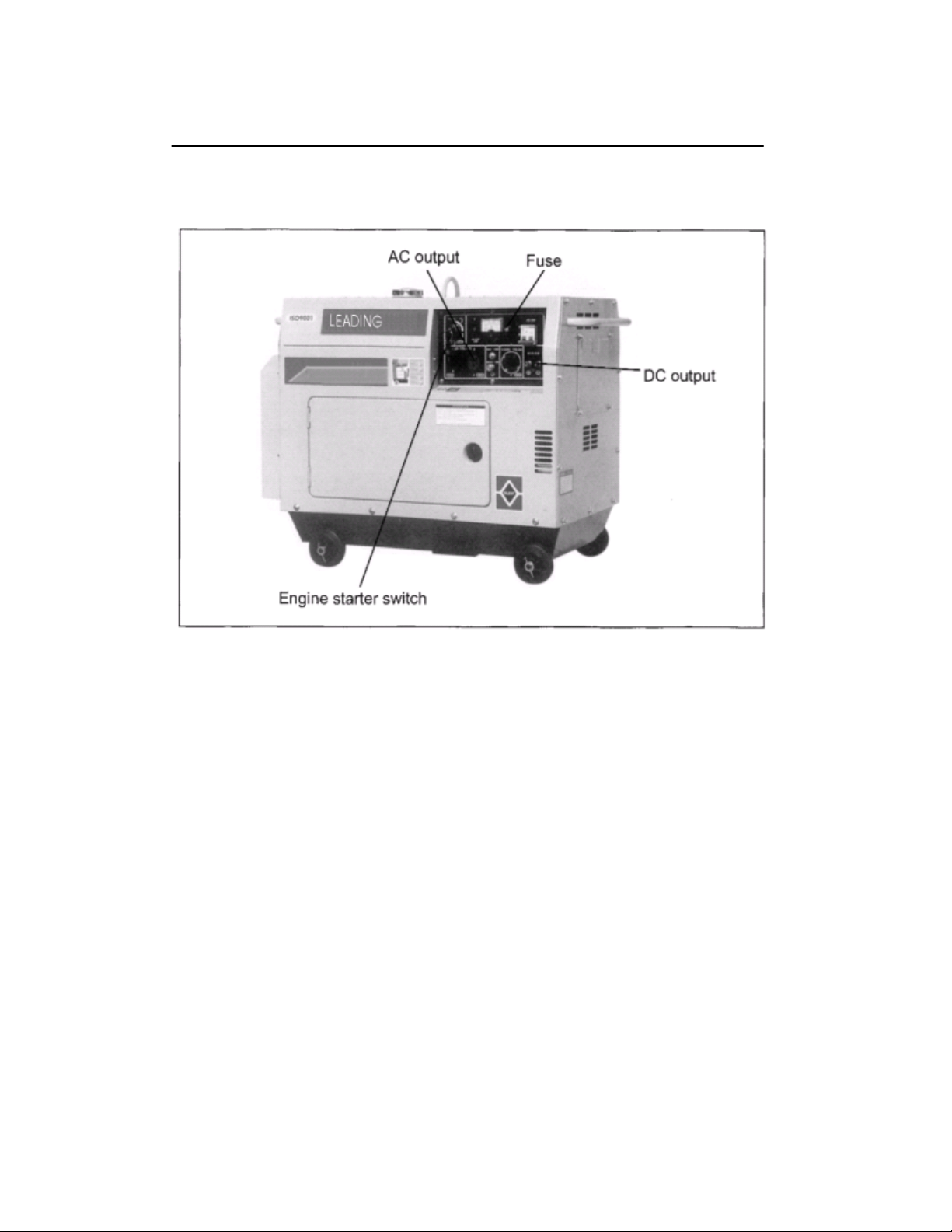

2.1 Part name (LDE series T type)

2.1 Control Panel

3. PREPARATION FOR STARTING

3.1 Selection and handling of the fule oil
Selection of fule oil.
Only use the light diesel, which is most suitable for the engine.
Keep dust and water out of the fule
When filling the fule tank from druns, make sure that no dust or water is mixed in
the fule. Otherwise the serious fule injection pump and nozzle problems will
result.
Do not overfill
Overfilling is very dangerous. Do not fill the tank beyond the top of the red plug
inside the fule oil filter.
WARNING
Refuel in a well-ventilated area with engine stopped.
Do not smoke or allow flames or sparks in the area where the engine is
refueled or where the fule oill stored.
Do not overfill the tank, make sure the filler cap is securely closed after
refueling.
Be careful not to spill fuel when refueling. If any fuel is spilled, make sure the
area is dry before starting the engine.
3.2 Check and refill the engine oil
WARNING
Always check the engine oill level with the generating set on a level surface
before
starting and refill if necessary.
The engine may be damaged if operated with insufficient engine oil, it is also
dangerous to refill too much engine oill as sudden increase in engine speed
may be caused by its combustion.
CAUTION :
LDE series generating set are equipped with low oil warning system.
This system will stops the engine automatically when the oil level falls below the

lower level. This prevents accidents such as bearing seizures, etc.
Select the most applicable engine oil
It is very important to select the applicable engine oil for keep up the performance
and life of the generating set. If inferior engine oil is used, or if your engine oil is
not replaced periodically, the risk of piston seizure, piston ring sticking and
accelerated wear of the cylinder liner, bearing and other moving components
increases significantly. So the generating set life will be shortened. - -
recommends CC/CD oil classified by APL.Choose the applicable viscosity oil
according to the local ambient temperature.

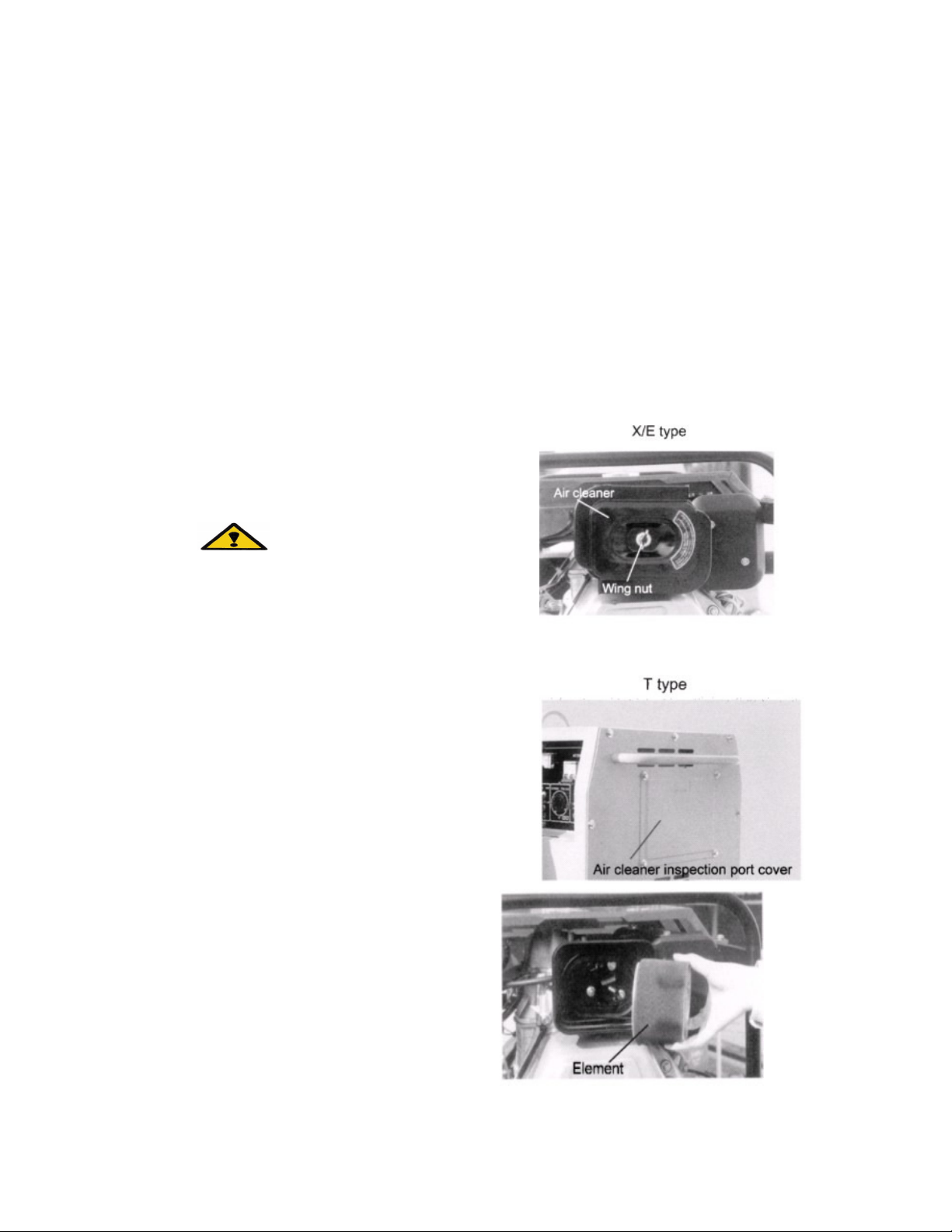

3.3 Service the air cleaner
1. Screw off the wing nut, remove the air
cleaner cover and take out the element
CAUTION:
Do not wash the element with
detergent.
Replace the element when its output
decrease or a bad exhaust color is
noticed.
Never run the generating set without
the element, otherwise the rapid engine
wear will result.
2. Reattach the air cleaner cover and screw
on the wing nut.

3.4 Check the generating set
1. Turn off the main switch and any other
loads.
WARNING:
Be sure to turn off the main switch before
starting.
The generating set should be earthed to
prevent electric shocks.
WARNING:
The generating set should be earthed to
prevent electric shocks.
Protection against electrical shock
depends on circuit breakers specially
matched to the generating set. If the
circuit breakers require replacement they
must be replaced with a circuit breaker
having identical ratings and performance
characteristics.
2. Handling of dual voltage type generat-
ing sets
Be sure to place the changeover switch
in the correct position for the rated volt-
tage of the working instrument.
CAUTION

The main switch should always be kept in the “ON” position during operation.
Before starting the engine, be sure to turn the switches of the working instru-
ment (lighting apparatus, motor, etc.) to their “OFF” position. If the switches
are not “OFF”, the sudden application of load when the engine is started
could be very dangerous.
3.5 How to open the cabinet door and covers of - - LDE series
generating set
1. Open the cabinet door for daily inspection.
Turn the lever counterclockwise and raise
the door
2. Loosen the bolt of the air cleaner check
port cover to check the air cleaner.
3. Screw off the wing nut to open the cover.
then check the nozzle cover.
3.6 Break-in period operation
The first 20hrs are the break-in period of the engine, the operator must obey to
following items:
Warm up the engine 5 minutes after the initial starting. Run the engine at low
speed and zero load before the engine becomes warm.
Avoid applying any heavy loads during the break-in period.- - recommends to
run the engine at 3000r/min with 50% load in break-in period.
Replace the engine oil on time.
Replace the engine oil while the engine is warm after 20-hours-running, the old
engine oil will be drained out completely.
Approx. one month or 20hours Every 3 months or 100 hours

4. START THE GENERATING SET
WARNING
Do not hook up tools or other apparatus to the generating set before starting.

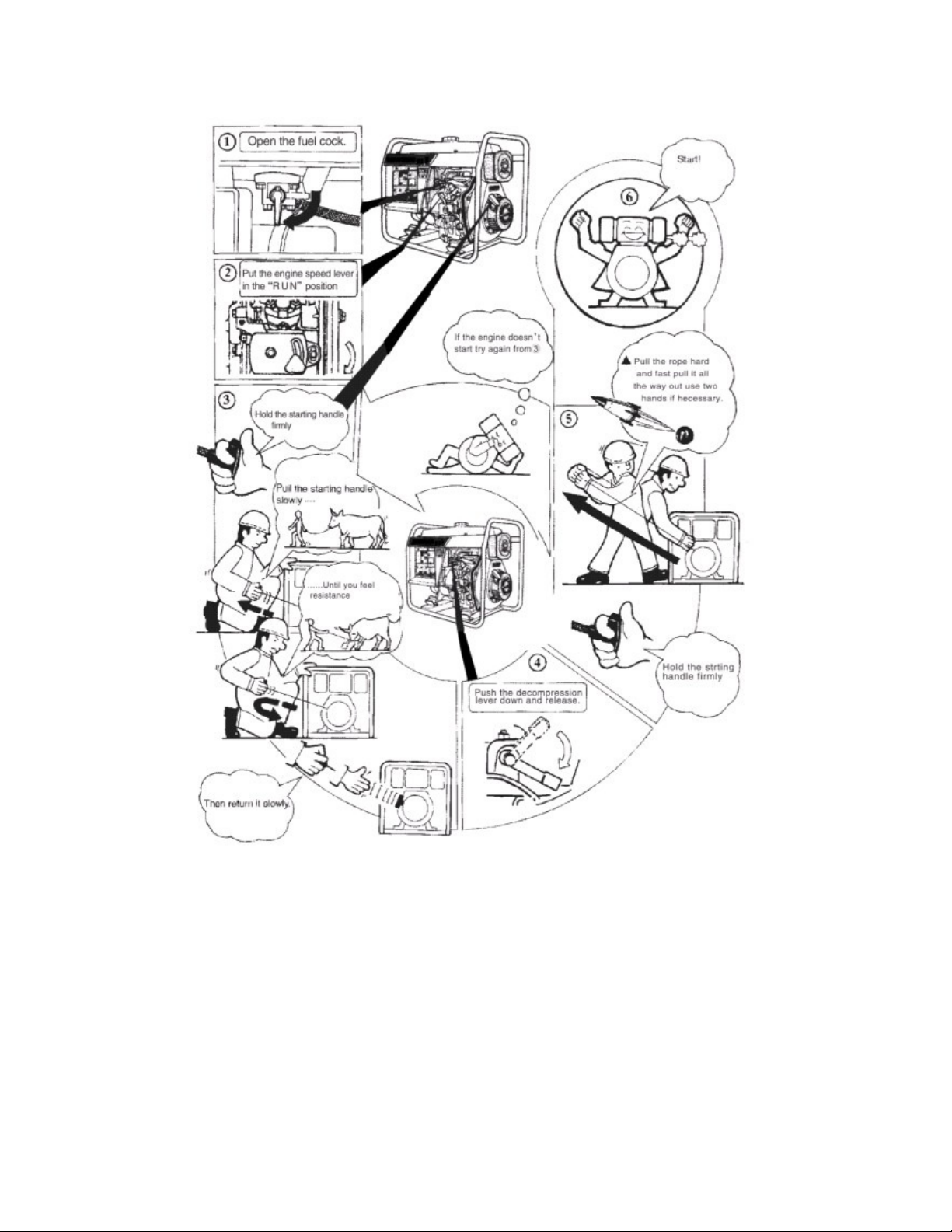

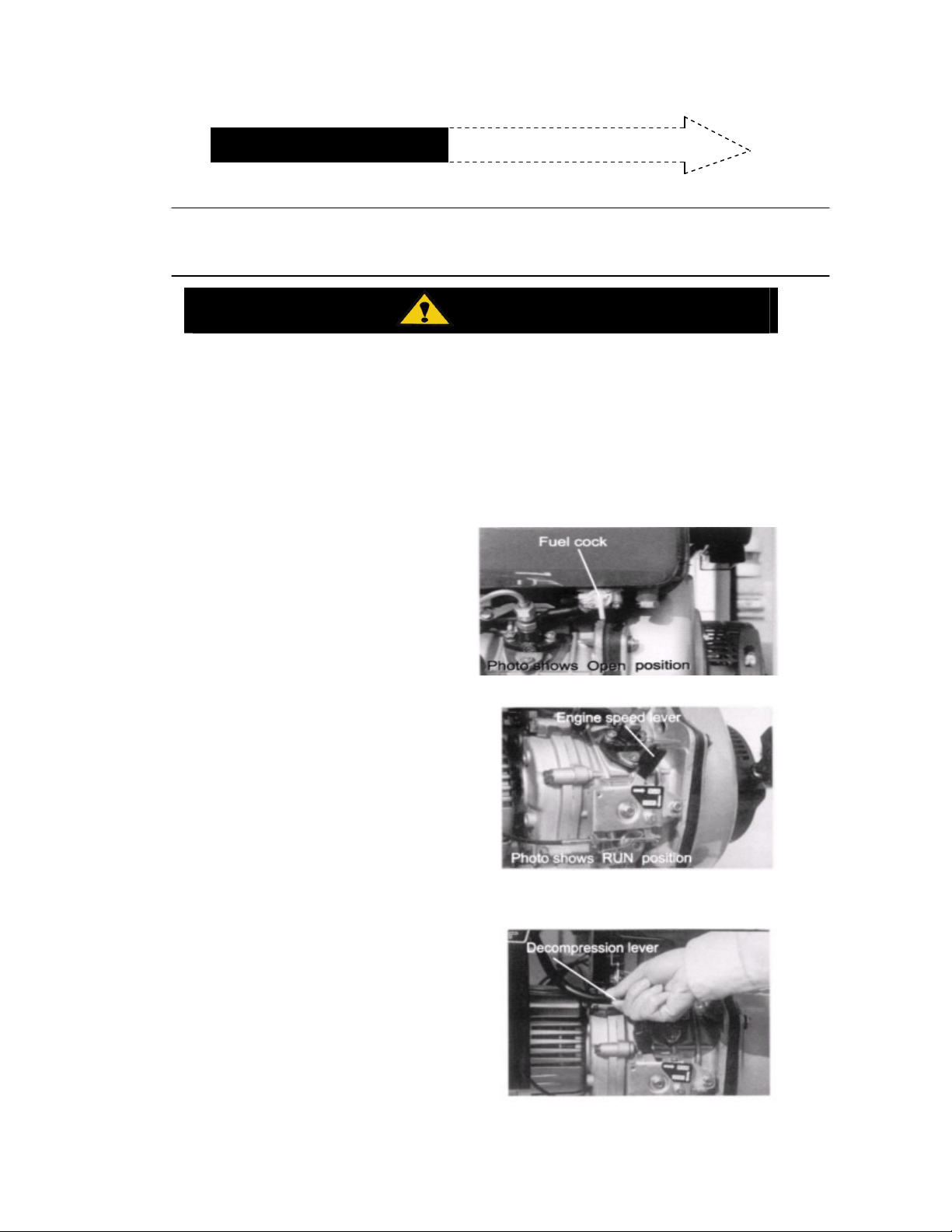

4-1 Recoil starting
Start the engine according to the following
procedures:
1. Open the fule cock.
2. Set the engine speed lever at the RUN
position.
3. Pull out the recoil starter handle.
Pull out the handle until you feel the
resistance, then return it back to the ini-
tial position.
Press down the decompression lever. It
will return automaticallly when the recoil
starter is pulled.
Pull out the recoil starter handle briskly
with both hands.

CAUTION
Do not hook up tools or other apparatus to the generating set before starting.
Do not allow the handle grip to snap back against the engine. Return it gently
to
prevent damage to the starter.
When the engine is difficult to start in cold weather, remove the screw plug
from the cylinder head cover and add 2cc engine oil.
CAUTION
Always screw on the screw plug on the cylinder head cover except filling. to prevent the
rain and dirty flowing into the engine body. Otherwise the quick wear of the internal
parts and other serious problems will result.
Recoil starting

Recoil starting

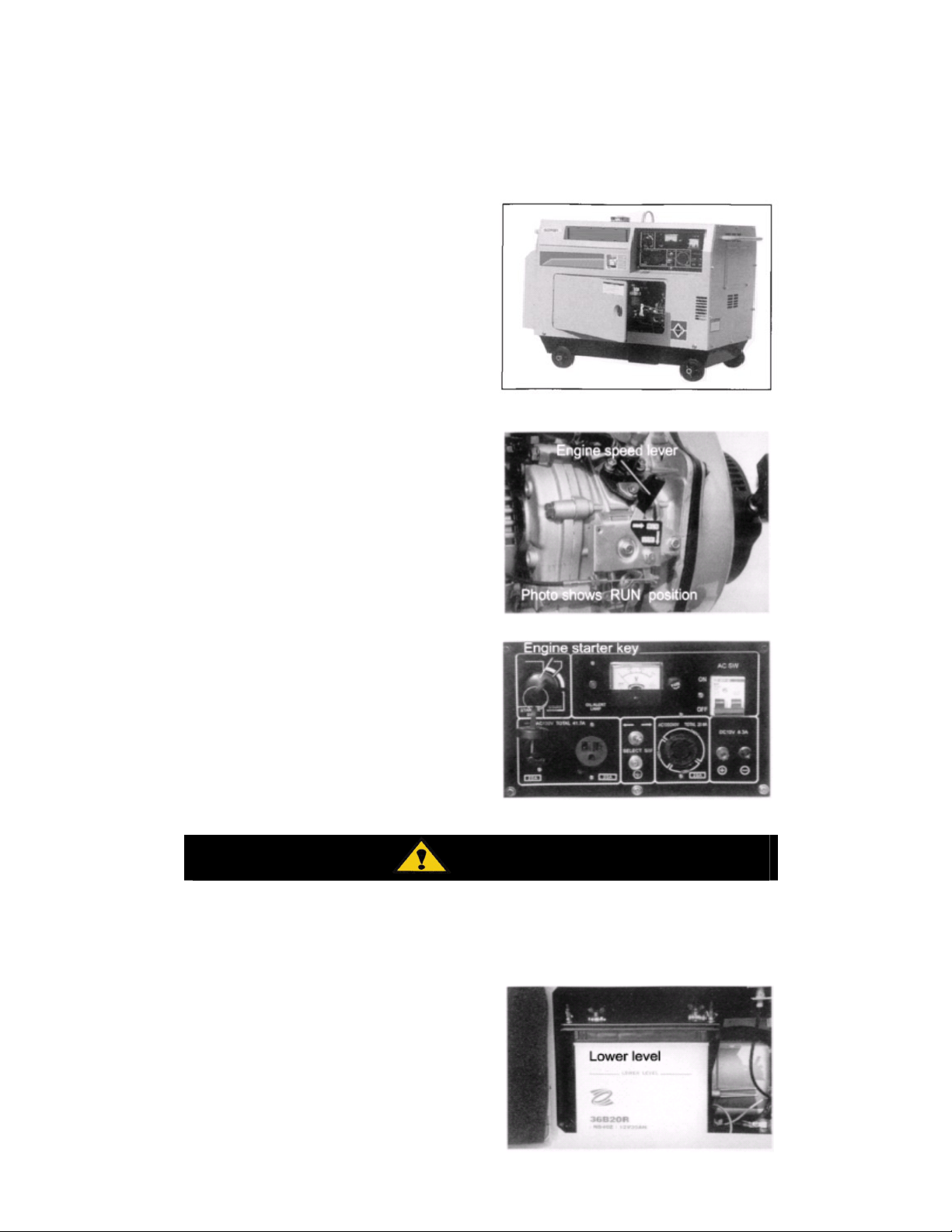

4.2 Electric starting

1. Starting (The preparations for electric
starting are the same as for the recoil
starting.)
Open the fule cock.
Set the engine speed lever at “RUN”
position.
Turn the starting key clockwise to
“START” position.
Remove your hand from the key as soon
as the engine starts.
If the starting motor does not start after
10 seconds, wait 15 seconds before start-
ing it again.
CAUTION
Run the starting motor for long time will cost the battery power greatly even
burn out the motor
Always leave the starting key at “ON” position while the engine is running.
2. Battery
Check the battery electrolyte level every
month. Refill the distilled water until the
upper limits if the electroly dropped to
the lower limits.
