leahua LH-C055 User manual

Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun
District Guangzhou China.
Tel：[phone] Fax：[phone]

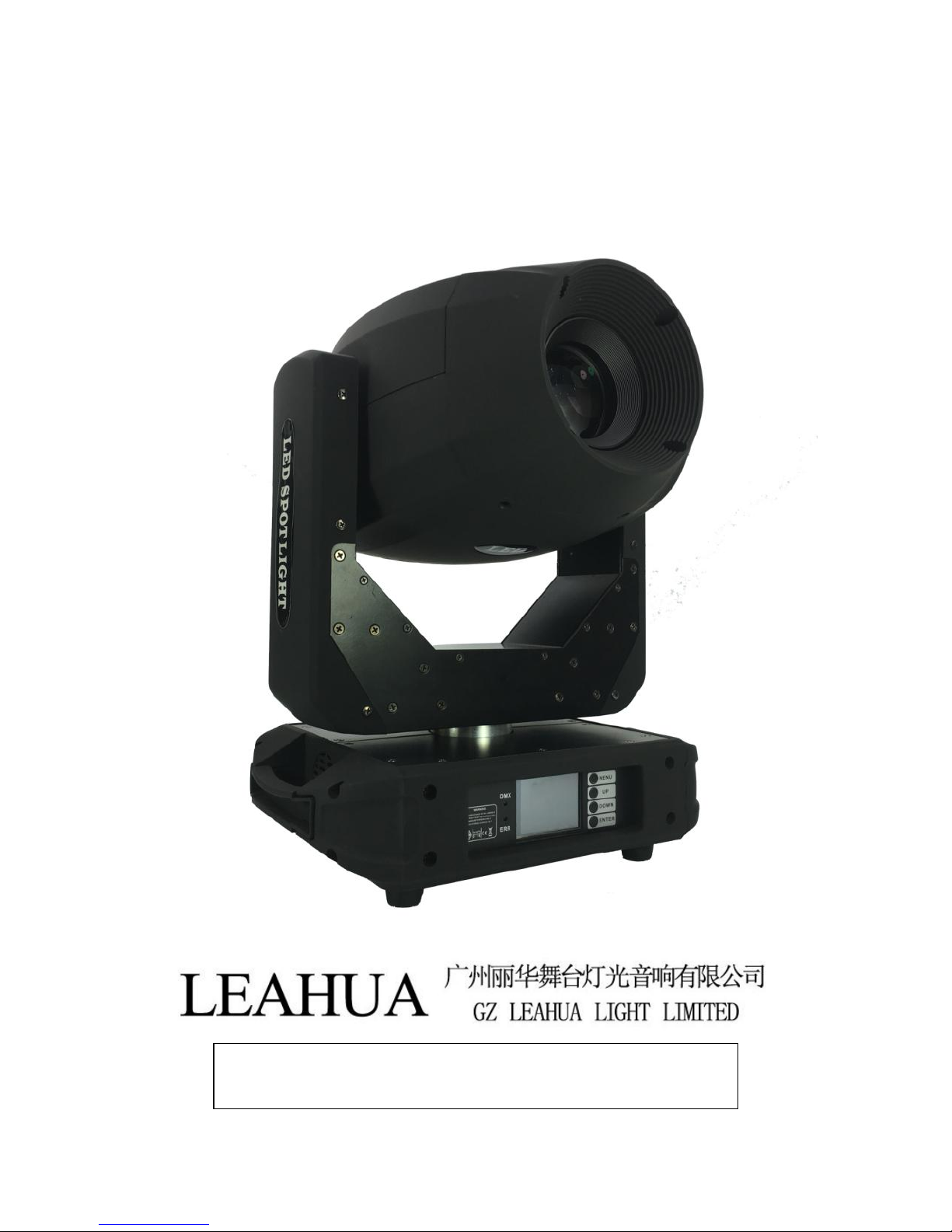

200W LED Spot Moving Head
User Manual
This manual contains important information.
Please read before operating fixture.

www.leahualight.com 1
1 SECURITY TIPS
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
non-professionals, not to disassemble the light arbitrarily and
lighting accessories inside.
rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ
(to be selected).
not beam irradiate the flammable materials, flammable materials
and the lamp should be maintained at least 1M over the distance.
lamps used in ambient temperature: -15 ℃-40 ℃, the highest
temperature of the surface of the lamp: 60 ℃.
to keep away from the liquid substance and humid environment.
before using the lights must ensure the good grounding, can not
install charging and remove any parts.
the installation of lamps, must be fixed screw fasteners with
additional security cable and regular inspection.
lamps consecutive working hours is not recommended more than
10 hours.
should stop using the lights in time when happens unusual
conditions during the process
lamp parts of the rotation, external accessories and paste parts
should be regular inspected, such as the emergence of loose and
rock, should be reinforced in a timely manner to prevent the
accident.
lamps adopt strong winds to refrigerate, it is easy to accumulate the
dust, so you have to clean it weekly especially the cooling air
opening, otherwise the dust will plug leading to poor light
-

www.leahualight.com 2
2 TECHNOLOGY REFERENCE
Input Voltage: AC100-240V 50/60Hz
Power: 200W
Light source:200W High Output White LED
lifespan:50,000 hours and low power consumption
Beam Angle 6°
Color Wheel: 9 colors +white, rotation with variable direction and
speed
Static Gobo Wheel: 7 gobos +white, wheel rotation and shake
Rotation Gobo Wheel: 7 gobos +white, wheel rotation and shake
Prism1: 8-facet Prism, prism rotation
Prism2 : 3-facet prism, prism rotation
Strobe:High speed strobe effect with 1-25 flashers per second
Channel:15/17CH DMX Channels USITT DMX-512
Control mode:DMX 512, master-slave and sound activated
controllable or auto operation
Display: Colorful LCD display
Efficient low noise fan cooling system
POWERCON IN
3-pin XLR connectors IN/OUT

www.leahualight.com 3
3 Board Instruction
1. Setting
Item
Description
Run mode
DMX
Auto 1
Auto2
Auto3
Auto4
Random
Sound mode
DMX address
1~512
Channel mode
15CH
17CH
Invert Pan
Off
On
Invert Tilt
Off
On
Pan-Tilt swap
Off
On
Pan-Tilt
Encoder
On
Off
No DMX Signal
Keep
Reset

www.leahualight.com 4
Display
On
Off
Zero point
check
Off
On
2. Manual control
Item
Value
Pan
000-255
Pan Fine
000-255
Tilt
000-255
Tilt Fine
000-255
PanTilt speed
000-255
Color
000-255
Gobo
000-255
Gobo 1
000-255
Gobo 1 Rot.
000-255
Prism
000-255
Prism Rotation
000-255
RFU
000-255
Focus
000-255
Strobe
000-255
Dimmer
000-255
Macro Function
000-255
Reset
000-255

www.leahualight.com 5
3. System
Item
Ver –T052A –LED200—A201
DMX Monitor
System Errors
Total Fixture Hours
Partial Fixture Hours
Current Temp
4. Advance
Please input password
5. 中/EN
6. Display inversion
4 DMX CHANNEL SHEET
Channel
Value
Function
15CH
17CH
1
1
PAN
0-255
Pan movement range 540º
2
PAN FINE
0-255
Pan fine
2
3
TILT
0-255
Tilt movement range 270º
4
TILT FINE
0-255
Tilt fine
3
5
PAN-TILT SPEED
0-255
Speed from slow to fast
4
6
COLOUR WHEEL

www.leahualight.com 6
0-9
Color 1
10-19
Color 2
20-29
Color 3
30-39
Color 4
40-49
Color 5
50-59
Color 6
60-69
Color 7
70-79
Color 8
80-89
Color 9
90-99
Color 10
100-169
Color flow forward from fast to slow
170-175
Stop
176-255
Color flow backward from slow to fast
5
7
STATIC GOBO
0-9
Gobo 1
10-19
Gobo 2
20-29
Gobo 3
30-39
Gobo 4
40-49
Gobo 5
50-59
Gobo 6
60-69
Gobo 7
70-79
Gobo 8
80-83
Gobo 2 shake speed from slow to fast
84-88
Gobo 3 shake speed from slow to fast
89-93
Gobo 4 shake speed from slow to fast
94-98
Gobo 5 shake speed from slow to fast
99-103
Gobo 6 shake speed from slow to fast
104-108
Gobo 7 shake speed from slow to fast
109-113
Gobo 8 shake speed from slow to fast
114
Open
115-182
Gobo Rotate CW from fast to slow
183-187
Stop

www.leahualight.com 7
188-255
Gobo Rotate CCW from slow to fast
6
8
ROTATED GOBO
0-9
Gobo 1
10-19
Gobo 2
20-29
Gobo 3
30-39
Gobo 4
40-49
Gobo 5
50-59
Gobo 6
60-69
Gobo 7
70-79
Gobo 8
80-84
Gobo 1 shake speed from slow to fast
85-89
Gobo 2 shake speed from slow to fast
90-94
Gobo 3 shake speed from slow to fast
95-99
Gobo 4 shake speed from slow to fast
100-104
Gobo 5 shake speed from slow to fast
105-109
Gobo 6 shake speed from slow to fast
110-114
Gobo 7 shake speed from slow to fast
115-119
Gobo 8 shake speed from slow to fast
120-189
Gobo Rotate CW fast to slow
190-194
Stop
195-255
Gobo Rotate CCW slow to fast
7
9
GOBO RATATION
0-15
open
16-95
Gobo Fine 0-360
96-100
Gobo Rotating 360
101-127
Gobo Rotating from left to right , slow
to fast
128-189
Gobo self-rotating CW from slow to fast
190-194
Stop
195-255
Gobo self-rotating CCW rotating from
slow to fast
8
10
PRISM INSERTION

www.leahualight.com 8
0-49
Null
50-99
3 facet prism On
100-149
Frost On
150-199
8-facet prism On
200-255
Null
9
11
PRISM ROTATION
0-126
360º rotation
127-189
self-rotating CW from fast to slow
190-194
No function
195-255
self-rotating CCW from slow to fast
10
12
RESERVE
11
13
FOCUS
0-255
Gobo hazy to clear
12
14
STOP/STOBE
0-9
Strobe OFF
10-255
Open , strobe from slow to fast
13
15
DIMMER
0-255
0-100% linear dimmer
14
16
MACRO
0-9
No function
10-50
Macro 1
51-100
Macro 2
101-150
Macro 3
151-200
Macro 4
201-250
Sound function
251-255
Auto running
15
17
RESET
0-200
All motors reset
201-255
No function

www.leahualight.com 9
5 DIFFICULTY RESOLUTION
The following is a list of problems and resolution, and other
malfunction preparing work should be professionally qualified staff to
deal with.
1. Bulb not working
a) Check whether approaching the service life of light bulbs, then
change it
b) Check whether bulbs circuitry leak, loss or connect poorly
2. Beam appears bleak
a) The bulbs maybe approach the service life, then change it, or
the optical components are unclean.
b) Bulbs have accumulation of dust, so the bulbs and other parts
inside the lamp should be cleaned and maintained in regular
period.
3. Computer lamp work intermittently
a) Check whether the fan process naturally and become dirty
b) Check inner temperature-response control plug is off
c) Check whether the circuitry is good
4. The computer lamp not controlled by controller during lighting
a) Check numeral starting address and the connection of
communication control circuit
b) The corresponding channel button of controller is open or not
c) Check whether the fuse on power supply input jack is broken
off

www.leahualight.com 10
6 AFTER SERVICE
1. Our company offer technical consultation to customers for ever.
2. If the machine is wrong and need repairmen, please truthfully fill in
the related content and feedback us the problems timely, as well as
we have to improve the product.
3. In addition to the lamp, also matching accessories are as follows：
accessories：Power line 1 piece Optional parts：(customers）

www.leahualight.com 11

Warranty Card
Name Model Production Purchase
Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the
warranty will not work (warranty period and terms, see the following)
warranty period：one year since purchase warranty terms：1、If fail when using the product
in normal state, you can made under the provisions of the warranty, show the warranty card
and purchase bills(copy), and enjoy free maintenance service in a specific service center or
the manufacturer.
2. The following will be the implementation of paid service:
(1)Without the effective warranty card
(2)There’s blank, alter and no point-of-sale name
(3)Fail caused by unresistance
(4)Fail caused by transportation or unloading
(5)Fail caused by not operate by manual
(6)Fail caused by disassemble without unauthorized
(7)Fail caused by using the unauthorized control system
Note:
Based on our company continue to improve the product, the statement
containing data may have changed, and will not notice the change any
more. Company retains its right to change specifications related when
product is improved. Thanks for your understanding.
End User
Company Name:
Add:
Sale Store
Link man:
Tel: Stamp
